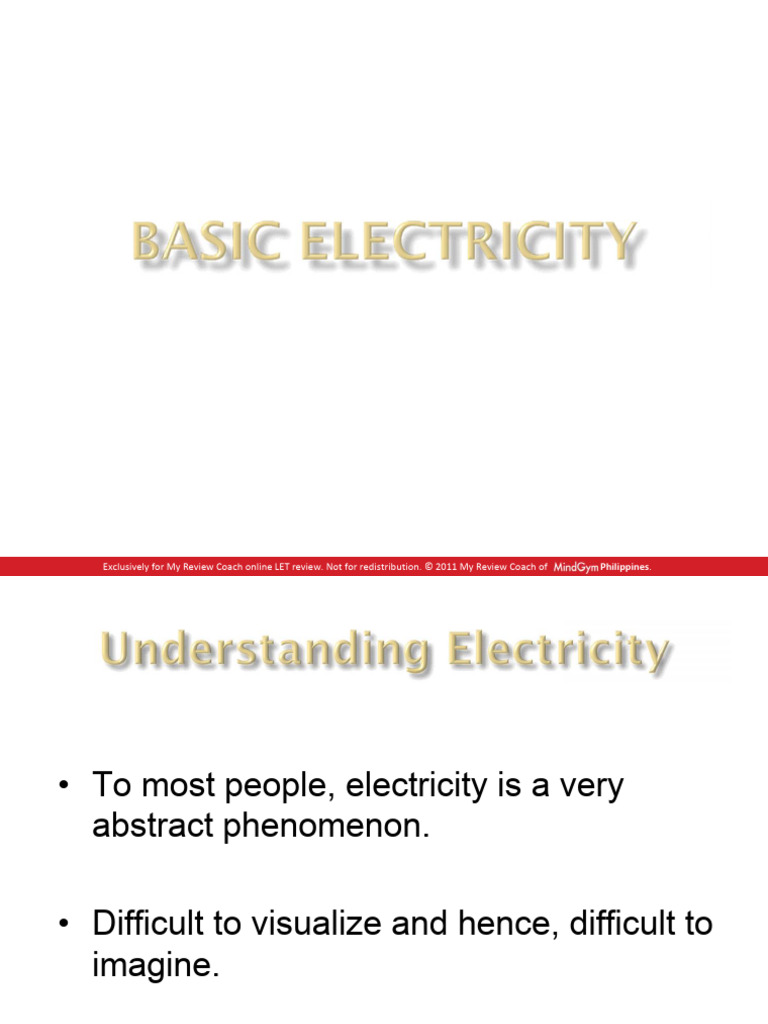

TLE - Basic Electricity-1
TLE - Basic Electricity-1
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Everything is made of atoms
• There are 118 elements, an atom is a
single part of an element
• Atom consists of electrons, protons, and
neutrons
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Electrons (- charge) are attracted to protons (+
charge), this holds the atom together
• Some materials have strong attraction and
refuse to loss electrons, these are called
insulators (air, glass, rubber, most plastics)
• Some materials have weak attractions and
allow electrons to be lost, these are called
conductors (copper, silver, gold, aluminum)
• Electrons can be made to move from one atom
to another, this is called a current of
electricity.
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Surplus of electrons is called a negative
charge (-). A shortage of electrons is
called a positive charge (+).
• A battery provides a surplus of electrons
by chemical reaction.
• By connecting a conductor from the
positive terminal to negative terminal
electrons will flow.
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Biomass Energy
– From solid material of animal or vegetable
origin
• Geothermal Energy
– Heat energy of the Earth
• Hydropower
– From force of moving water from rivers or
storage reservoirs
• Ocean Power
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Solar Energy
– Provided by the sun
• Wind Power
– Wind turbines
• Coal Energy
– From coal (carbon)
• Nuclear Energy
– Energy trapped inside atoms
• Natural Gas
– Methane (hydrogen and carbon); formed when plants and
animals are trapped beneath sedimentary layers of the
Earth
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Electric charge
– Amount of electrons involved; measured in
Coulombs (C)
– 1 Coulomb contains 6.022 x 1023 electrons
• Electric current
– Movement or flow of electrically charged
particles
– Measured in Amperes (A); 1A = 1C/s
• Anytime electrons move, this is called current.
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Electric Field
– Influence produced by an electric charge on
other charges in its vicinity
– Amount of energy converted or transferred
by the moving electrons
• Electrical Energy
– Form of energy present in an electric field or
magnetic field.
– Measured in Joules (J)
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Electric potential
– Capacity of an electric field to do work;
measured in Volts (V)
• Electromagnetism
– Interaction between the magnetic field and
the presence and motion of an electric
charge
• Electric Power
– Name given to electrical energy production
and distribution
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Direct Current
– Flow of electron in a conductor is in only one
direction
– Alternating Current
– Flow of electrons changes alternately
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Current (I)
– Intensity of the flow of electrons
• Voltage (V/E)
– Electromotive force (EMF) that enables or pushes
the electrons to flow
• Resistance (R)
– Force that opposes the flow of electrons
• Power (P)
– Total measure of electrical energy consumed in a
circuit
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Current is directly proportional to
voltage and inversely proportional to
resistance.
• An increase in voltage will result to an
increase in current.
– An increase in resistance will result to a
decrease in current.
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
Find Current Find Voltage Find Resistance
I= V V
V=IxR R=
R I
www.spacetec.org
Current equals Voltage equals Resistance equals
voltage divided current multiplied voltage divided
by resistance by resistance by current
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
POWER -The amount of electric energy
converted to another form in
a given length of time.
P=VxI
www.spacetec.org
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Energy is measured in Joules or kWh
• Energy is stored in a battery or a gallon of gasoline
– ……..Or stored in water behind a dam
– ……..Or stored in a body in motion
• Energy can be converted from one form to another
• We pay for electricity based on energy used
• Power is the RATE at which Energy is transferred or
consumed
• Power is measured in Watts or Horsepower
• 1 Watt = 1 Joule/second
• 1Joule = (1Watt) x (1second)
www.spacetec.org
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
SOLVING EXAMPLE
www.spacetec.org
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
ENERGY - Electric energy refers to the
energy of moving electrons
Measured with a
kilowatthour
energy meter
www.spacetec.org
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
SOLVING EXAMPLE 20-6
Energy = Power x Time
= (4.2 kW) x (20 h)
= 84 kWh
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Circuit
– Complete flow of current through a conductor
or path from the source to the load and back
to the source.
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
Load
Control
Device
Device
Electron
current Conductor
flow
Protective
Power
Device
Source
www.spacetec.org
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Series Circuit
– Loads are connected end to end along the
path of current in a single closed loop
• Same current through each component
• Sum of voltage drops = supply voltage
(Kirchoff Voltage Law)
• Largest resistance has the largest
voltage drop.
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
IT
– Add resistance
• Lowers current
– One open the circuit fails.
– The total resistance is the sum of all
resistors:
RT = R1 + R2 + R3
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
STEPS IN SOLVING PROBLEM 12-2
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Same Voltage across all components
• Smallest resistance, most current.
• Add a branch:
– Increase Current
– Decrease Overall Resistance
• One branch opens, current is smaller
than normal.
• Resistance of Network is less than
smallest resistor
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
Parallel Resistor Network
VT VT VT VT
IT = + + + ---- +
R1 R2 R3 RN
1 1 1 1
= + + + ---- + VT
R1 R2 R3 RN
1
RT = VT / IT = 1 + 1 + 1 + ---- + 1
R1 R2 R3 RN
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
STEPS IN SOLVING PROBLEM
V1 = 4V V2 = 8V V3 = 12V
VT = 24V VT = V1 + V2 +V3
VT - V1 - V2- V3 = 0
+24V - 4V - 8V - 12V = 0
www.spacetec.org
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
KIRCHHOFF’S CURRENT LAW
IT
(22A) I1 I2 I3
(12A) (6A) (4A)
(6A)
(10A) (4A)
IT = I1 + I2 + I3 IIN = IOUT
www.spacetec.org
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Series-Parallel Combination
– It is easier to analyze and solve the circuit by
grouping or designating points at the
branches
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Short Circuit
– When uninsulated conductors from line 1 and line 2
of a circuit come into contact with each other without
passing any load (may cause fire)
• Open Circuit
– When the flow of current in a circuit is incomplete
• Closed Circuit
– When there is a complete flow of current in the circuit
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Grounded Circuit
– When one un-insulated conductor in a circuit
touches the metal part of the appliance;
causes voltage drain (may cause
electrocution)
• Overloaded Circuit
– When the total current flowing in the circuit is
more than the current capacity of the
conductor
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
The larger the gauge number the smaller
the actual diameter of the conductor.
Solid wire
Stranded wire
Lamp cord
Multiconductor cable
www.spacetec.org
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
• Fuses
• Circuit breakers
• Overload
• Thermal shunt
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
FUSES
Ferrule-contact OR
cartridge fuse
Fuse symbol
Knife-blade
cartridge fuse
Heavy
duty
High-voltage
www.spacetec.org
Exclusively for My Review Coach online LET review. Not for redistribution. © 2011 My Review Coach of Philippines.
OVERLOADED CIRCUIT
360 W 600 W
120 W 120 V
120 V 1440 W 120 W
120 V
120 V 120 V
3A 1A 12 A 1A 5A
