    Page |1

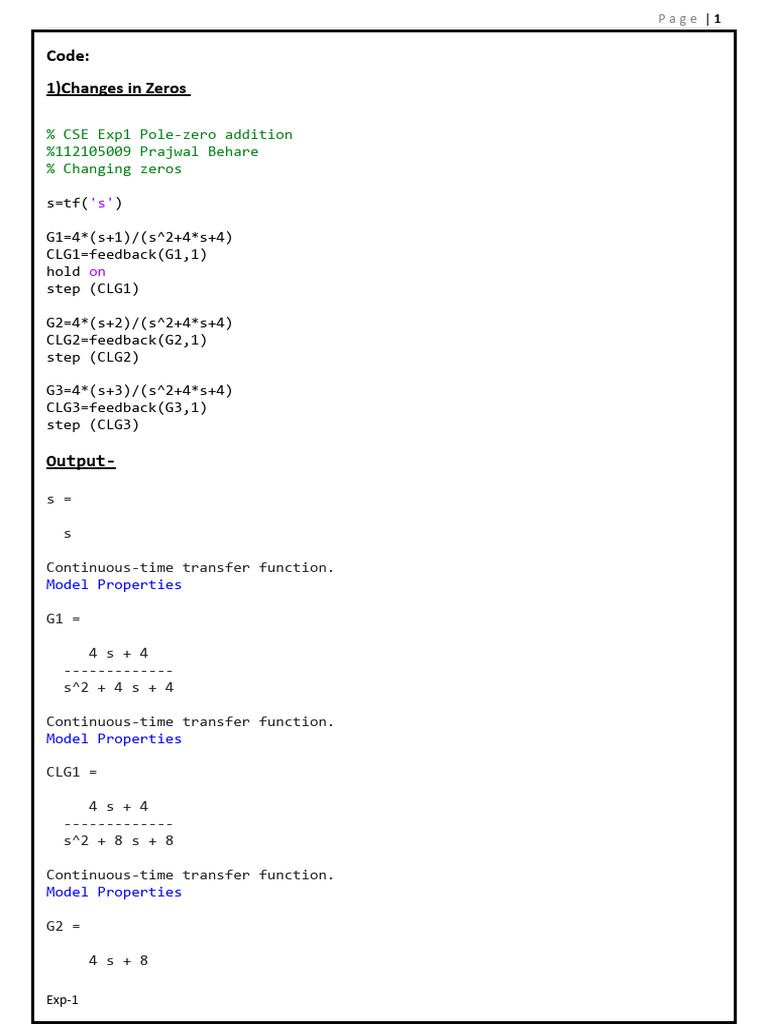

    Code:
    1)Changes in Zeros

    % CSE Exp1 Pole-zero addition


    %112105009 Prajwal Behare
    % Changing zeros

    s=tf('s')

    G1=4*(s+1)/(s^2+4*s+4)
    CLG1=feedback(G1,1)
    hold on
    step (CLG1)

    G2=4*(s+2)/(s^2+4*s+4)
    CLG2=feedback(G2,1)
    step (CLG2)

    G3=4*(s+3)/(s^2+4*s+4)
    CLG3=feedback(G3,1)
    step (CLG3)

    Output-

    s =

    Continuous-time transfer function.


    Model Properties

    G1 =

    4 s + 4
    -------------
    s^2 + 4 s + 4

    Continuous-time transfer function.


    Model Properties

    CLG1 =

    4 s + 4
    -------------
    s^2 + 8 s + 8

    Continuous-time transfer function.


    Model Properties

    G2 =

    4 s + 8

    Exp-1
    Page |2

    -------------
    s^2 + 4 s + 4

    Continuous-time transfer function.


    Model Properties

    CLG2 =

    4 s + 8
    --------------
    s^2 + 8 s + 12

    Continuous-time transfer function.


    Model Properties

    G3 =

    4 s + 12
    -------------
    s^2 + 4 s + 4

    Continuous-time transfer function.


    Model Properties

    CLG3 =

    4 s + 12
    --------------
    s^2 + 8 s + 16

    Continuous-time transfer function.


    Model Properties

    Exp-1
    Page |3

    Exp-1
    Page |4

    2)Changes in Poles:
    Code-
    % Changing poles

    s=tf('s')

    G1= 4/((s^2+4*s+4)*(s))
    CLG1=feedback(G1,1)
    hold on

    step (CLG1)
    G2= 4/((s^2+4*s+4)*(s+1))
    CLG2=feedback(G2,1)
    step(CLG2)

    G3= 4/((s^2+4*s+4)*(s+2))
    CLG3=feedback(G3,1)
    step (CLG3)

    G4= 4/((s^2+4*s+4)*(s+3))
    CLG4=feedback(G4,1)
    step (CLG4)

    Output-
    s =

    Continuous-time transfer function.


    Model Properties

    G1 =

    4
    -----------------
    s^3 + 4 s^2 + 4 s

    Continuous-time transfer function.


    Model Properties

    CLG1 =

    4
    ---------------------
    s^3 + 4 s^2 + 4 s + 4

    Continuous-time transfer function.


    Model Properties

    G2 =

    Exp-1
    Page |5

    4
    ---------------------
    s^3 + 5 s^2 + 8 s + 4

    Continuous-time transfer function.


    Model Properties

    CLG2 =

    4
    ---------------------
    s^3 + 5 s^2 + 8 s + 8

    Continuous-time transfer function.


    Model Properties

    G3 =

    4
    ----------------------
    s^3 + 6 s^2 + 12 s + 8

    Continuous-time transfer function.


    Model Properties

    CLG3 =

    4
    -----------------------
    s^3 + 6 s^2 + 12 s + 12

    Continuous-time transfer function.


    Model Properties

    G4 =

    4
    -----------------------
    s^3 + 7 s^2 + 16 s + 12

    Continuous-time transfer function.


    Model Properties

    CLG4 =

    4
    -----------------------
    s^3 + 7 s^2 + 16 s + 16

    Continuous-time transfer function.


    Model Properties

    Exp-1
    Page |6

    Exp-1
    Page |7

    PZPLOT

    Code-
    hold on

    s=tf('s')

    G1=4*(s+1)/(s^2+4*s+4)
    CLG1=feedback(G1,1)
    h3 = pzplot(CLG1,'c')

    G2=4*(s+2)/(s^2+4*s+4)
    CLG2=feedback(G2,1)
    h2 = pzplot(CLG2,'g')

    G3=4/((s^2+4*s+4)*(s+2))
    CLG3=feedback(G3,1);
    h = pzplot(CLG3,'b')

    G4= 4/((s^2+4*s+4)*(s+3))
    CLG4=feedback(G4,1)
    h1 = pzplot(CLG4,'r')
    grid on

    Exp-1
    Page |8

    Exp-1
    Page |9

    Exp-1
