Solved Examples – EE613

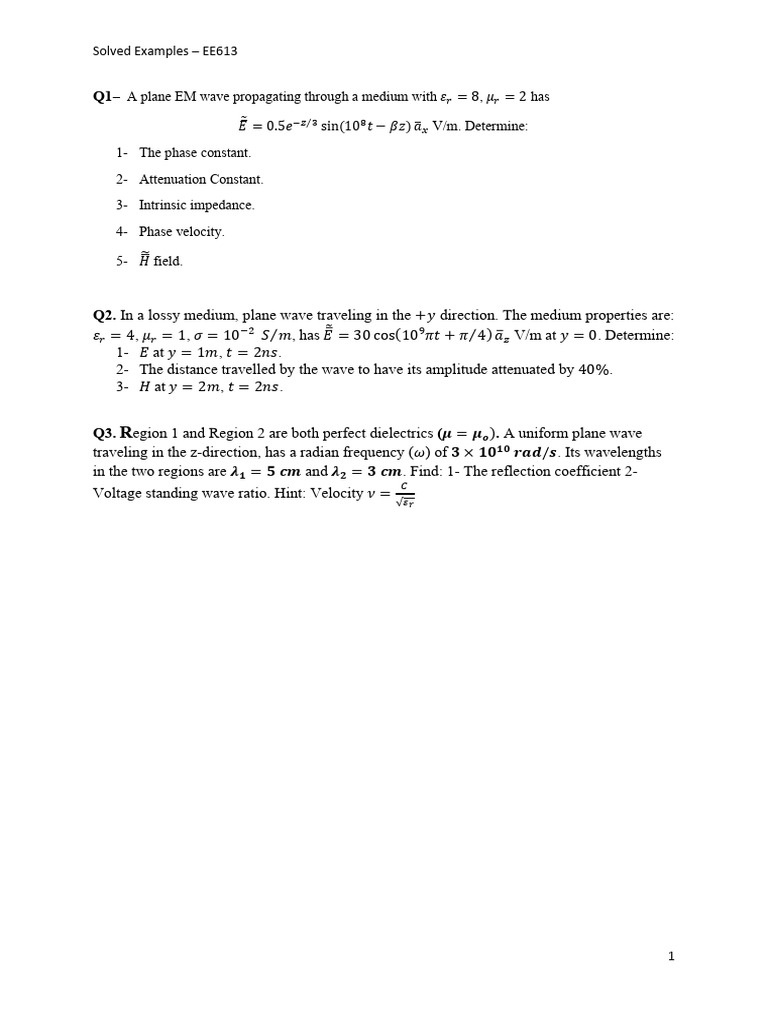

Q1− A plane EM wave propagating through a medium with 𝜀𝑟 = 8, 𝜇𝑟 = 2 has

𝐸̅̃ = 0.5𝑒 −𝑧⁄3 sin(108 𝑡 − 𝛽𝑧) 𝑎̅𝑥 V/m. Determine:

1- The phase constant.
2- Attenuation Constant.
3- Intrinsic impedance.
4- Phase velocity.
̃
̅ field.
5- 𝐻

Q2. In a lossy medium, plane wave traveling in the +𝑦 direction. The medium properties are:
𝜀𝑟 = 4, 𝜇𝑟 = 1, 𝜎 = 10−2 𝑆⁄𝑚, has 𝐸̅̃ = 30 cos(109 𝜋𝑡 + 𝜋⁄4) 𝑎̅𝑧 V/m at 𝑦 = 0. Determine:
1- 𝐸 at 𝑦 = 1𝑚, 𝑡 = 2𝑛𝑠.
2- The distance travelled by the wave to have its amplitude attenuated by 40%.
3- 𝐻 at 𝑦 = 2𝑚, 𝑡 = 2𝑛𝑠.

Q3. Region 1 and Region 2 are both perfect dielectrics (𝝁 = 𝝁𝒐 ). A uniform plane wave
traveling in the z-direction, has a radian frequency (𝜔) of 𝟑 × 𝟏𝟎𝟏𝟎 𝒓𝒂𝒅/𝒔. Its wavelengths
in the two regions are 𝝀𝟏 = 𝟓 𝒄𝒎 and 𝝀𝟐 = 𝟑 𝒄𝒎. Find: 1- The reflection coefficient 2-
𝐶
Voltage standing wave ratio. Hint: Velocity 𝜈 = 𝜀
√ 𝑟

1
Solved Examples – EE613

Q1

2
Solved Examples – EE613

3
Solved Examples – EE613

****************************************************

Q2

4
Solved Examples – EE613

**************************************************

5
Solved Examples – EE613

Q3
