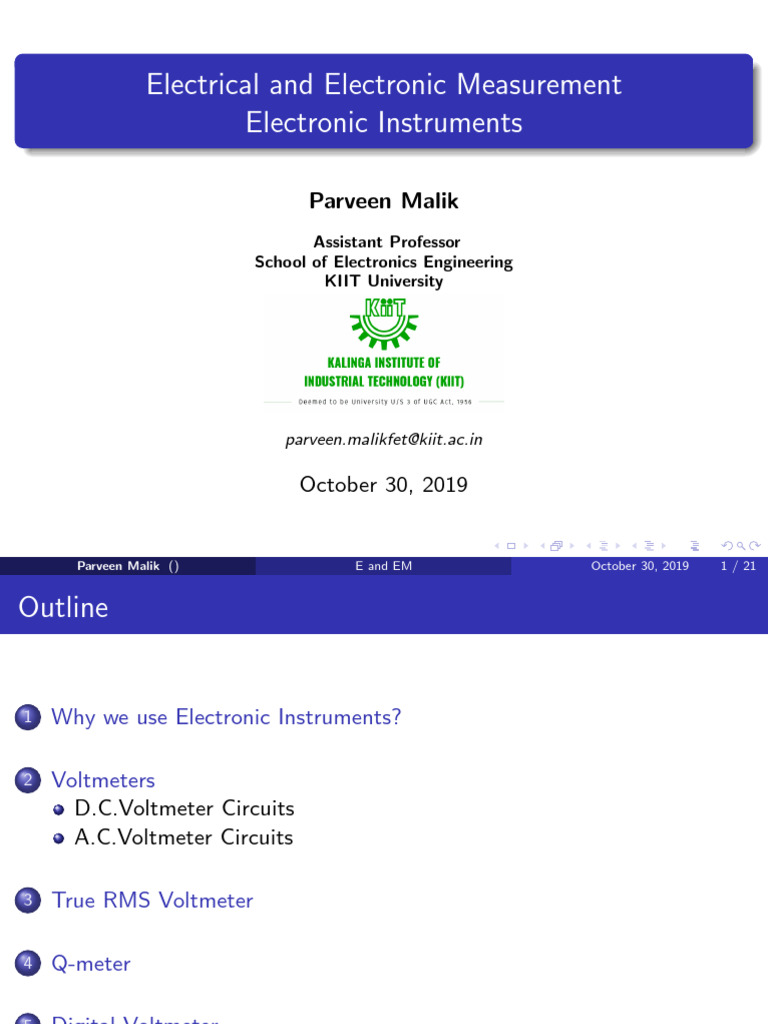

Electrical and Electronic Measurement

Electronic Instruments

Parveen Malik
Assistant Professor
School of Electronics Engineering
KIIT University

parveen.malikfet@kiit.ac.in

October 30, 2019

Parveen Malik () E and EM October 30, 2019 1 / 21

Outline

1 Why we use Electronic Instruments?

2 Voltmeters
D.C.Voltmeter Circuits
A.C.Voltmeter Circuits

3 True RMS Voltmeter

4 Q-meter

5 Digital Voltmeter

Parveen Malik () E and EM October 30, 2019 2 / 21

 Limitations
of
Electrical Voltmeters & Ammeters
Why we use electronic instruments ?
Limitations of electrical Voltmeters & Ammeter

The voltmeter constructed of moving coil instruments and multipliers

can not
Measure Low Voltages
Input impedance is low

These limitations are over come by use of electronic circuits that

have high input impedance.
have low output impedance.
can amplify low voltages to measurable level.

Parveen Malik () E and EM October 30, 2019 4 / 21

Electronic Voltmeters
D.C.Voltmeter
D.C.Voltmeter Transistor Circuits

(a) (b)

(c) (d)

Different Voltmeter circuits based upon Transistors

Parveen Malik () E and EM October 30, 2019 6 / 21

D.C.Voltmeter
D.C.Voltmeter Op-amp Circuits

(a) (b)

(c)

Different D.C.Voltmeter circuits based upon Transistors

Parveen Malik () E and EM October 30, 2019 7 / 21

A.C.Voltmeter
A.C.Voltmeter Op-amp Circuits

(a) (b)

(c) (d)

Different A.C. Voltmeter circuits based upon Op-Amp

Parveen Malik () E and EM October 30, 2019 8 / 21
True RMS Voltmeter
True RMS Voltmeter
The measuring circuits used in the electronic D.C. and A.C. voltmeter
are not suitable for specialized applications.
Most of them require input as pure sinusoids.
Thermocouple are used for such type of applications.
Thermocouple Principle - Junctions of dissimilar metals produces a
voltage when heated. Thermocouple voltage is proportional to the
rms value of input current.
Can measure rms levels of all voltages regardless of their distortion
level.
True rms voltmeter works on the thermocouple principle.

Thermocouple
Parveen Malik () E and EM October 30, 2019 10 / 21
True RMS Voltmeter
Thermocouple

A junction of two dissimilar metal produces an emf when heated.

Heating effect of current is directly proportional to the rms value of
the input current regardless of input waveform. Thus emf can be used
as a measure of rms value.
Materials - iron-constantan, copper-constantan, chromel-alumel and
platinum- platinum/rhodium.
Temp - 300◦ C , Thermocouple Output - 12mV, Heating current 2mA
to 50 mA.

(a) (b)
Parveen Malik () E and EM October 30, 2019 11 / 21
True RMS voltmeter Thermocouple type

Thermocouple

Parveen Malik () E and EM October 30, 2019 12 / 21

True RMS Voltmeter- Working
Video Amplifier Stage- The input voltage (E1 ) with a non-sinusoidal
waveform is amplified to Av E1 by means of video amplifier (A1 ). A video
amplifier operates over a wide range of frequencies (audio to very high).
The current I1 passed through resistor R1 has the same waveform as E1
and consequently the heat generated in R1 is directly proportional to the
true rms level of input voltage.
Audio Amplifier Stage- A2 works as a non-inverting d.c. amplifier which
passes direct current I2 through resistor R2 . R2 is the heater for
thermocouple T2 and thermocouple voltage e2 is directly proportional to
the heating effect of I2 .
Final Stage - The feedback from the output produces a voltage at the
op-amp inverting input equal to that at non-inverting input. Voltage e1 is
applied to the non-inverting input of A2 and e2 feedback to the inverting
terminal. Output voltage E2 settles at the level that makes e2 exactly
equal to e1 . IF T1 and T2 are similar, heating effect of I2 is same as that
of I1 . This means that I2 equals the rms value of I1 . Therefore D.C. output
voltage E2 is directly proportional to rms value of a.c. input voltage E1 .
Parveen Malik () E and EM October 30, 2019 13 / 21
Q meter
Q meter

Q meter is used to measure characteristics of coils and capacitors.

Principle - based on the series R,L,C resonant circuit.

Series Resonant Circuit

Parveen Malik () E and EM October 30, 2019 15 / 21

Q meter - Practical Circuit

Practical Q meter circuit

Parveen Malik () E and EM October 30, 2019 16 / 21

Q meter - errors

Observation 1
QTrue = ωR0 L
ω0 L
QMeasured = R+R
 sh
Rsh
QTrue = QMeasured 1 + R

Observation 2
QTrue = ω01CR
1
QMeasured = ω0 (C +C
d )R
Cd
QTrue = QMeasured 1 + C

Parveen Malik () E and EM October 30, 2019 17 / 21

Digital Voltmeter
Digital Voltmeter

Measure the voltage directly giving numerical output

Versatile and accurate instruments
Superior resolution
Reduced size or compact
Less power consumption than analog voltmeter
Less costly and rugged construction

Parveen Malik () E and EM October 30, 2019 19 / 21

Digital Voltmeter
Block Diagram

Analog to Digital Converter

Parveen Malik () E and EM October 30, 2019 20 / 21

Digital Voltmeter
Working

Objective - Measurement of Input Voltage Vi .

When input voltage Vi is greater than ramp output voltage Vr , the
opamp output saturates to +Vsat or 1 as it is fed at the non-inverting
terminal of voltage comparator. At this moment, one input of AND gate is
1 and consequently, the clock pulses start passing through it. Once the
ramp voltage become greater than input voltage Vi at time, t1 , the one
input of the AND gate becomes 0 and consequently, no clock pulses pass
through it.Thus, the decade counter counts the no. of clock pulses till Vi
is greater than Vr and the no. of pulses passed are directly proportional
the input voltage level.

Parveen Malik () E and EM October 30, 2019 21 / 21
