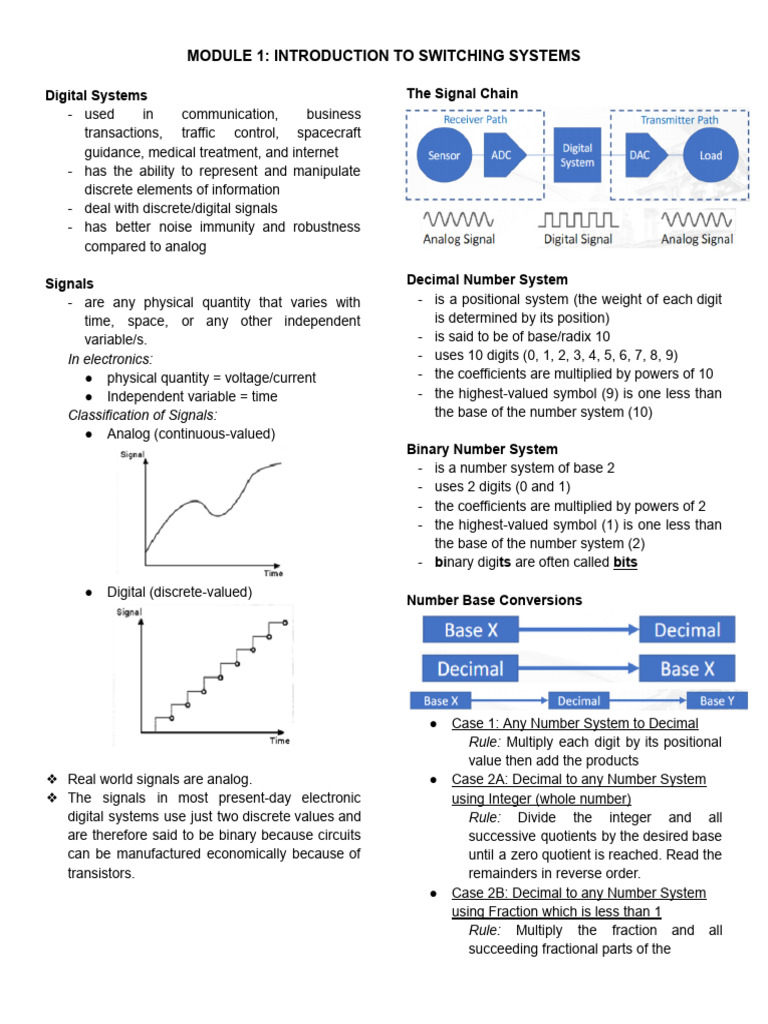

MODULE 1: INTRODUCTION TO SWITCHING SYSTEMS
Digital Systems
- used in communication, business
transactions, traffic control, spacecraft
guidance, medical treatment, and internet
- has the ability to represent and manipulate
discrete elements of information
- deal with discrete/digital signals
- has better noise immunity and robustness
compared to analog
Signals
- are any physical quantity that varies with
time, space, or any other independent
variable/s.
In electronics:
● physical quantity = voltage/current
● Independent variable = time
Classification of Signals:
● Analog (continuous-valued)
● Digital (discrete-valued)
❖ Real world signals are analog.
❖ The signals in most present-day electronic
digital systems use just two discrete values and
are therefore said to be binary because circuits
can be manufactured economically because of
transistors.
The Signal Chain
Decimal Number System
- is a positional system (the weight of each digit
is determined by its position)
- is said to be of base/radix 10
- uses 10 digits (0, 1, 2, 3, 4, 5, 6, 7, 8, 9)
- the coefficients are multiplied by powers of 10
- the highest-valued symbol (9) is one less than
the base of the number system (10)
Binary Number System
- is a number system of base 2
- uses 2 digits (0 and 1)
- the coefficients are multiplied by powers of 2
- the highest-valued symbol (1) is one less than
the base of the number system (2)
- binary digits are often called bits
Number Base Conversions
● Case 1: Any Number System to Decimal
Rule: Multiply each digit by its positional
value then add the products
● Case 2A: Decimal to any Number System
using Integer (whole number)
Rule: Divide the integer and all
successive quotients by the desired base
until a zero quotient is reached. Read the
remainders in reverse order.
● Case 2B: Decimal to any Number System
using Fraction which is less than 1
Rule: Multiply the fraction and all
succeeding fractional parts of the
 products by the desired base until a whole
number is reached. Read the integers in
order.
● Case 2C: Decimal to any Number System
using Integer + Fraction
Rule: Convert the integer part and the
fractional part separately. Add the results.
● Case 3: Any Number System to any other
Number System
Number Case Conversions (Special Cases)
● Special Case 1
Octal to Binary: Convert each octal digit to
its 3-digit binary equivalent (pad with leading zeros
if necessary)
Binary to Octal: Group the bits by 3’s
starting from the radix point, then convert each
group to octal.
● Special Case 2
Hexadecimal to Binary: Convert each
hexadecimal digit to its 4-digit binary equivalent
(pad with zeros if needed)
Binary to Hexadecimal: Group the bits by
4’s (start from the binary point) then convert each
group to hexadecimal
● Special Case 3
Binary Arithmetic
● Addition
Adding two binary digits:
0+0=0
0+1=1
1+0=1
1 + 1 = 0 with a carry of 1
● Subtraction
Subtracting two binary digits:
0-0=0
0 - 1 = 1 with a borrow of 1
1-0=1
1-1=0
Complements of Numbers
- used in digital computers to simplify the
subtraction operation and for logical
manipulation.
Two types of complements for each base-r system:
1. Radix Complement
- also called r’s complement (in base 2,
this is called 2’s complement)
- also called true complement
- to determine the r’s complement of a
number, first get the (r-1)’s complement
then add 1 to its rightmost digit (LSB)
2. Diminished Radix Complement
- also called (r-1)’s complement (in base 2,
this is called 1’s complement)
- also called radix-minus-one complement
- formed by subtracting each digit from its r-1
- for binary, the 1’s complement is formed by
changing the 1’s to 0’s and 0’s to 1’s
Subtraction with Complements
● Subtraction using 1’s complement
STEP 1: Get the 1’s complement of the
subtrahend
STEP 2: Add the result of Step 1 to the
minuend
STEP 3: If there is any end carry, remove it
and add 1 to the rightmost digit
(LSB). If there is no end carry, get
the 1’s complement of the sum and
affix a negative sign.
● Subtraction using 2’s complement
STEP 1: Get the 2’s complement of the
subtrahend
STEP 2: Add the result of Step 1 to the
minuend
STEP 3: If there is any end carry, discard it. If
there is no end carry, get the 2’s
complement of the sum and affix a
negative sign.
Other Arithmetic Operations Binary-Coded Decimal (BCD)
● Multiplication - binary is the most natural system for digital
systems
- most people are accustomed to the decimal
system, and one way to resolve this is to convert
decimal numbers to binary. Another way is to use
binary codes to represent the decimal numbers
(the most common way is to use the scheme
called binary-coded decimal)
- to encode a decimal number using BCD, replace
each digit with its corresponding BCD code rather
than converting the entire number to binary
- a decimal number in BCD is the same as its
equivalent binary number only when the number is
between 0 and 9
- a decimal number in BCD generally uses more bits
than its straight binary representation
- binary combinations 1010 through 1111 have no
meaning in BCD
- a number with k-decimal digits will require 4k bits
in BCD
- to get the decimal value from a BCD number,
group the bits by 4’s and decode each group
Binary Codes
- electronic digital systems with binary signals
- digital systems deal with discrete elements of
information (numeric and non-numeric
information)
- any distinct discrete element of information can
be represented using a binary code (i.e., a
pattern of 1’s and 0’s)

ASCII
- American Standard Code for Information
Interchange
- 7 bits (128 characters)

- using a coding scheme that uses a group of EBCIDIC

n-bits, the number of distinct codes N is: - Extended Binary Coded Decimal Interchange
Code
- given M elements to be represented by a binary - 8 bits
code, the minimum number of bits m needed is: - used on IBM mainframes

Switching Circuit Theory- mathematical study of the

properties of networks of idealized switches
- no maximum number or bits
 MODULE 2A: DIGITAL LOGIC GATES

Logic Gates Types of Logic Gates

- is the basic building block of a digital system 1. Inverter
- are interconnected in order to produce a - one of the simplest digital logic gates in
logic circuit (a logic circuit may have one or terms of function. This gate simply
more binary inputs and will correspond to inverts the logic applied to its input. In
only one binary output) other words, this gate simply
- are primarily implemented by using diodes or complements the input.
transistors that acts as electronic switches in
order to realize a particular “logic function”

Binary Logic
(+) Logic (-) Logic

True 1 0

False 0 1
Inverter IC: 7404 (Hex Inverter)
Logic Symbol:
Signals
(+) Logic (-) Logic

1 5V 0V Truth Table:

0 0V 5V

Circuits
(+) Logic (-) Logic
Function: Complementation/Inversion
1 ON/Conducting OFF/
Non-conducting Logical Expression:

0 OFF/ ON/Conducting
Non-conducting 2. OR Gate
- a logic gate that produces a high logic
TRUTH TABLE output when at least one of its inputs is
- table of combination (inputs, output) at logic high level. Note that an OR
𝑛
- number of combination = 2 (n is the number gate may have two or more inputs.
of inputs)

OR Gate IC: 7432 (Quad 2-input OR Gate)

 Logic Symbol:

Truth Table:

NOR Gate IC: 7402 (Quad 2-input NOR Gate)

Logic Symbol:
Function: Logical Addition/OR Operation
Logical Expression:
Truth Table:

3. AND Gate
- another basic logic gate whose output
is at a high logic level only when all
inputs are high.
Function: Not - OR Operation
Logical Expression:

5. NAND Gate
- produces a low logic output only if all its
inputs are high. This gate complements
the AND gate’s output. The NAND
AND Gate IC: 7408 (Quad 2-input AND Gate)
simply means NOT AND.
Logic Symbol:

Truth Table:

NAND Gate IC: 7400 (Quad 2-input NAND Gate)

Function: Logical Multiplication/AND Operation Logic Symbol:
Logical Expression:

Truth Table:

4. NOR Gate
- derived from the OR gate. It produces a
high logic output when all inputs are at
a low logic level and a low logic output
when at least one input is at high level.
 Function: Not - AND Operation 3-Input Gates
Logical Expression:

6. XOR Gate
- is an “exclusive” OR gate that produces
a high logic output only when one but
not all its inputs is high. When the
inputs are all high or low, the output is
low.
XOR Gate IC: 7486 (Quad 2-input XOR Gate)
Logic Symbol:
Operator Precedence (for evaluating Boolean
expression)
Truth Table: ● NOT
● AND
● OR

Function: Inequality/Exclusive - OR Operation

Logical Expression:

7. XNOR Gate
XNOR Gate IC: 74266 (Quad 2-input XNOR Gate)
Logic Symbol:

Truth Table:

Function: Equivalence/Exclusive- NOR Operation

Logical Expression:
 MODULE 2B: BOOLEAN ALGEBRA

Boolean Algebra 7. Laws of Absorption

- is the branch of mathematics used for digital ➔ X + XZ = X
logic systems ➔ X(X + Y) = X
- is used to study and analyze a digital logic ➔ X + X’Y = X + Y
circuit and was formulated by an English 8. Laws of Expansion
Mathematician in 1847 by the name of ➔ X • Y + X • Y’ = X
George Boole ➔ (X + Y) • (X + Y’) = X
- the basic rules of Boolean algebra are used
to represent a complex logic circuit into a De Morgan’s Theorem
more simplified form - the “+” symbols are replaced with “•”
symbols, and “•” is replaced with “+”
Boolean Algebra Rules symbols, each of the term in the expression
1. Logical OR is then complemented
(X + Y)’ = X’ • Y’
(X • Y)’ = X’ + Y’
➔ X+0=X
➔ X+1=1 Consensus Theorem
➔ X+X=X - is formed by multiplying the original terms
➔ X + X’ = 1 together, leaving out the selected variable
2. Logical AND and the complement.
XZ + X’Y + YZ = XZ + X’Y
[where YZ is a consensus term or redundant term]
(X + Z) (X’ + Y) (Y + Z) = (X + Z) (X’ + Y)
➔ X•0=0 [where (Y + Z) is a consensus term or redundant term]
➔ X•1=X
➔ X•X=X Proof of Consensus Theorem
➔ X • X’ = 0
3. Double Inversion

➔ X’’ = X
4. Commutative Laws
➔ X+Y=Y+X
➔ X•Y=Y•X
5. Associative Laws

➔ X + (Y + Z) = (X + Y) + Z

➔ X(YZ) = (XY)Z
6. Distributive Laws
➔ X(Y + Z) = XY + XZ
➔ X + YZ = (X + Y) (X + Z)
Universality of Gates: NAND
Universality of Gates: NOR
Alternate Logic Gate Representation
- the alternate symbol for each gate is
obtained from the standard symbol by doing
the following:
1. Change the operation symbol from
AND to OR, or from OR to AND (in
case of the inverter, the operation is
not changed)
2. Invert each input and output of the
standard symbol
- the equivalences are valid for gates with
any number of inputs
- none of the standard symbols have bubble
on their inputs, all the alternate symbols do
- the standard and alternate symbols for each
gate represent the same physical circuit,
there is no difference in the circuits
represented by the two symbols
- NAND and NOR gates are inverting gates,
and so both standard and alternate symbols
for each will have a bubble on either the
input or the output.
- AND and OR are non-inverting gates, and
so the alternate symbols for each will have
bubbles on both inputs and outputs.
Product Term - a single variable or the logical
product of several variables (A, X’ , A’BC’ , XY’Z)
Sum Term - a single variable or the logical sum of
several variables (A, Z, B’ , A’ + B’ + C, X + Y + Z’)
Minterm (m) - the logical product of all variables
(ABC, A’BC’ , XY’Z, X’YZ’)
Maxterm (M) - the logical sum of all variables
(A +B +C, A’ + B + C’ , X + Y’ + Z, X’ + Y + Z’)
Forms of Boolean Functions
1. Standard Form
● Sum of the Product (SOP)
- a product term or several product
terms logically added together
● Product of the Sum (POS)
- a sum term or several sum terms
logically multiplied together
2. Canonical Form
● Sum of Minterms (Σ𝑚)
- consists of several minterms
logically added together
● Product of Maxterms (Π𝑀)
- consists of several maxterms
logically multiplied together
Minterms and Maxterms for 3 Variables

Reducing Truth Table into a Logical Expression

Steps in Designing a Logic Circuit

1. Problem Analysis
a. Identify the inputs
b. Identify the output
c. Determine the relationship between
the input and output
2. Truth Table
3. Logic Expression
4. Logic Circuit
 MODULE 3: KARNAUGH MAP & QUINE-MCCLUSKEY METHOD
Module 3A: Karnaugh Map
Karnaugh Map
- also known as K-Map
- provides a simple straightforward procedure
for minimizing Boolean functions
- graphical representation of truth table
- a diagram made up of squares, each square
represents one minterm
Steps in K-Mapping
1. Determine the number of squares or cells of
𝑛
the K-map 2 = 𝑁
2. Place 1’s or 0’s in its respective cells
3. Form subcubes from the plotted 1’s or 0’s
➔ Subcube - a group of 1’s or 0’s that are
adjacent to each other
➔ Adjacent Cells - only one variable
changes as you transfer from one cell to
another
𝑛 implicants
➔ only group or subcube of 2 can be
𝑛
formed (2 is the size of subcube, also
indicate the no. of 1/0’s that was formed)
4. Write the corresponding expression based
on each subcube formed
➔ If 1’s are used, expression must be in
minterms, then eliminate the variable/s
that changed
➔ If 0’s are used, expression must be in
maxterms, then eliminate the variable/s
that changed
Rules in K-Mapping
1. Encircle any “1” square which cannot be
combined with any other “1” square
2. Encircle any “1” square which can be
combined with another “1” square to form a
group of 2. If a “1” square can be combined
in 2 or more ways, leave until later
3. Repeat step 2 for group of 4, 8, 16
4. Inspect if there are any uncovered “1”
squares. Combine them with other “1”
squares to form the biggest group possible
Don’t Care Condition
- combination of variables whose logical value
is not specified
- can be used to provide further simplification
of the Boolean expression in K-map.
Module 3B: Quine McCluskey Method
Quine-McCluskey Method
- also known as Tabulation Method
- specific step-by-step procedure that is
guaranteed to produce a simplified standard
form of expression for a function
- Consists of two parts:
1. Find all the terms that are candidates
for inclusion in the simplified function.
These terms are called prime
2. Choose among the prime implicants
those that given an expression with the
least number of literals (essential
prime implicants)
Steps in Quine-McCluskey Method
1. List down all the given minterms with its
binary equivalent. Count the number of 1’s
in each minterm
2. Make the 0-cube column
3. Make the 1-cube column
4. Make the 2-cube column
5. Make a prime implicant table to determine
the essential prime implicants
6. Write the expression
 MODULE 4: COMBINATIONAL LOGIC CIRCUIT

Combinational Logic Circuit 2. Full Adder - adds 3 bits mathematically

- consists of logic gates whose outputs at any
time are determined directly from the present
combination of inputs without regard to
previous inputs.
- does not use any memory. The previous
state of input does not have any effect on the
present state of the circuit.
Block Diagram:

Full Adder Truth Table

Examples of Combinational Logic Circuit

1. Half Adder - adds 2 bits mathematically Full Adder Circuit

3. Half Subtracter - subtracts 2 bits mathematically

Half Adder Truth Table

Half Subtracter Truth Table

Half Adder Circuit

Half Subtracter Circuit

4. Full Subtracter - subtracts 3 bits mathematically

Half Adder Circuit Implementations

Full Subtracter Truth Table

 ● 2-Bit Magnitude Comparator - compares
two 2-bit numbers
Input Output

● 𝐴1𝐴0 ● 𝐴>𝐵
● 𝐵1𝐵0 ● 𝐴<𝐵
● 𝐴=𝐵
Full Subtracter Circuit

5. Parallel Adder
● Binary Parallel Adder - produces the
arithmetic sum of two binary numbers
in parallel
● 4-Bit Full Adder

2-Bit Magnitude Comparator Truth Table

6. Magnitude Comparator - compares two

numbers, A and B, and determines their
relative magnitude. It has 3 outputs:
𝐴 < 𝐵, 𝐴 = 𝐵, 𝐴>𝐵
● Single Bit Magnitude Comparator -
compares 2 bits

Single Bit Magnitude Comparator Truth Table 2-Bit Magnitude Comparator Circuit

7. Decoder - converts binary information from n

𝑛
input lines to a maximum of 2 unique output
lines

Single Bit Magnitude Comparator Circuit

 9. Multiplexer - selects binary information from
one of many input lines and directs it to a
𝑛
single output line; 2 input lines, n selection
lines whose bit combinations determine
which input is selected; data selector.

2x4 Decoder

2x1 Decoder Multiplexer

3x8 Decoder
(can be used for Binary to Octal Conversion)

𝑛
8. Encoder - has 2 input lines and n output
lines

4x1 Decoder Multiplexer

10. Demultiplexer - a circuit that receives

information on a single line and transmits this
information to one of 2 n possible output lines
Block Diagram:

8x3 Encoder
Combinational Logic Implementaion
- any Boolean function can be expressed in
sum of minterms
- use a decoder to generate the minterms and
an external OR gate to form the sum

Examples of Combinational Logic Implementation

1. Decoder Implementation
2. Multiplexer Implementation - choose your select
lines (n-1) from your input variables (any of the
input variables) and determine the size of the
multiplexer (depends on the # of select lines)
STEPS:
● Create an implementation table based on
the variable not used as select line.
● Inspect each column of the implementation
table. If the minterms in a column are not
circled, apply 0 to the corresponding MUX
input. If the minterms are circled, apply 1
to the corresponding MUX input. If the top
minterm is circled and the bottom
minterm is not circled, apply A’ to the
corresponding MUX input. If the top
minterm is not circled and the bottom
minterm is circled, apply A to the
corresponding MUX input.
 MODULE 5: SEQUENTIAL LOGIC CIRCUITS

Sequential Logic Circuit 2. Asynchronous

- consists of a combinational circuit to which - depends upon the input signals at any
memory elements are connected to form a instant of time and the order in which the
feedback path inputs change
- receives binary information from external inputs
together with the present state of the memory NOR Latch
elements to determine the binary value at the
output terminals
- acts as storage elements and have memory
Block Diagram:

Transition Table for NOR Latch:

Latches
- storage elements that operate with signal levels
- level-sensitive devices
- are the basic circuits from which all flip-flops are
constructed

Flip-flops
- controlled by a clock transition
- edge-sensitive devices NAND Latch
- a device with two stable states
- can maintain a binary state indefinitely until
directed by an input signal to switch states
- remains in one of these states until triggered into
the other

Types of Sequential Logic Circuit

1. Synchronous
Transition Table for NAND Latch:
- a system whose behavior can be defined
from the knowledge of its signals at discrete
instants of time
- synchronization is achieved by a timing
device called a clock generator, which
provides a clock signal having the form of a
periodic train of clock pulses
Types of Flip-Flops JK Flip-Flop Transition Table
1. RS or SR Flip-Flop

3. D Flip-Flop

SR Flip-Flop Transition Table

D Flip-Flop Transition Table

2. JK Flip-Flop

4. T Flip-Flop
T Flip-Flop Transition Table

Flip-Flop Parameters
( )
● Propagation Delay Time 𝑡𝑝 - this represents
the amount of time it takes for the output of a
gate or flip-flop to change states
● ( )
Setup Time 𝑡𝑆𝐸𝑇𝑈𝑃 - is the minimum length of
time the data bit must be present before the
Level Clocking CLK edge hits
- output of the flip-flop responds during the high ● ( )
Hold Time 𝑡𝐻𝑂𝐿𝐷 - is the minimum length of
(or low) level of the clock signal
time the data bit must be present after the CLK
- positive or negative level clocking
edge has struck
Schematic Symbol:
JK Master-Slave Flip-Flop

Edge Triggering
- the flip-flop produces output only on the rising
(or falling) edge of the clock signal
- positive or negative edge triggering
Schematic Symbol:

Preset and Clear

- two external inputs that initiate the condition or
state of the flip-flop
- priority inputs
MODULE 6: DESIGN OF DIGITAL SYSTEMS Excitation Table of SR Flip Flop
(SYNCHRONOUS SEQUENTIAL LOGIC
CIRCUIT DESIGN)

Combinational Logic Circuit

- it’s output depends only and immediately on
their inputs
- has no memory element

Excitation Table of JK Flip Flop

Sequential Logic Circuits

- acts as storage elements and have memory

Block Diagram of a Sequential Circuit

Excitation Table of DFlip Flop

Forms of Triggering or Clocking

Excitation Table of T Flip Flop

Excitation Table
- lists the required inputs for a given change of
state
- is important in the design process to determine
Design Modelling
the flip flop input conditions that will cause the
- the relationship that exists among the inputs,
required transition
outputs, present states, and next states can be
specified by any of the following:
1. State Diagram - a graphical rrepresentation
wherein a state is represented by a circle;
and the transition between states is
indicated by directed lines (or arcs)
connecting the circles.
 variables. Other name for Characteristic
Equation.

2. State Table - is a tabulated representation

which consists of input, present state, next
state, and output

State Reduction Algorithms

- are concerned with procedures for reducing the
number of states in state table, while keeping
the external input-output requirements
unchanged

● Two states are said to be equivalent if, for each

member of the set of inputs, they give exactly
the same output and send the circuit either to
the same state or to an equivalent state.

Registers
- are composed of group of flip flops, each one
shares a common clock and is capable of
storing one bit of information or modify stored
binary word

3. State Equation - is an expression that specifies

the conditions of flip flop’s next state transition
as function of the present state and input
 Design of Binary Counters
- are typically done using either T or JK Flip Flop

Counters
- are registers that go through a predetermined
sequence of binary states. It counts the number
of clock pulses arriving at its input
