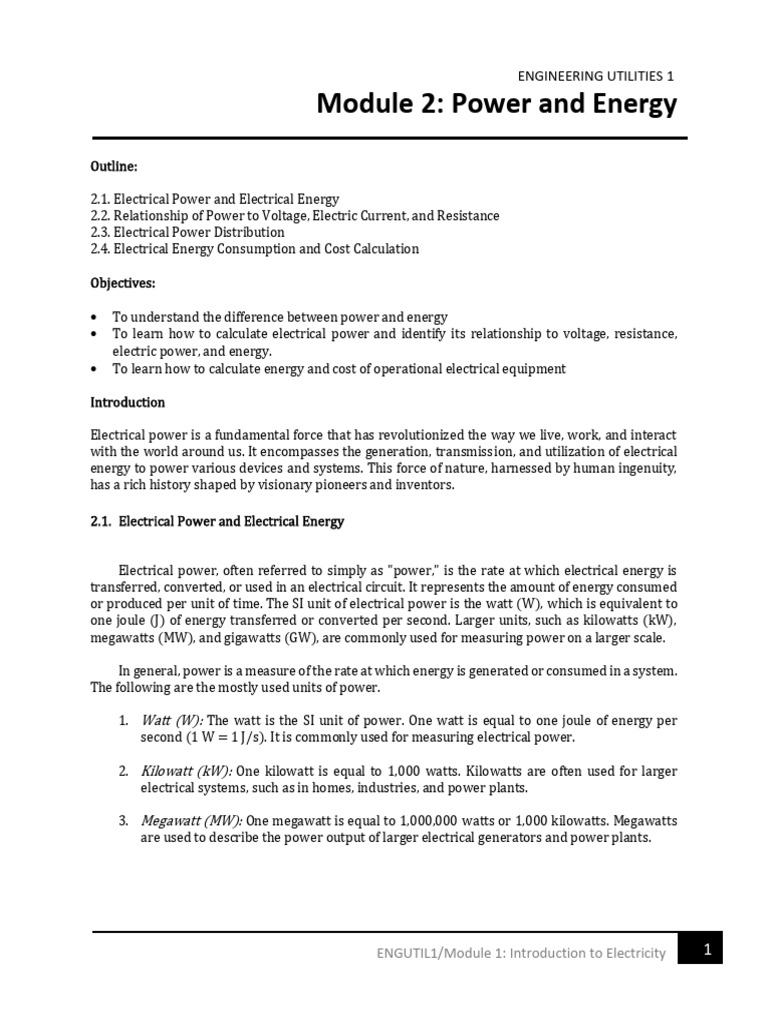

Objectives:
Introduction
Electrical power is a fundamental force that has revolutionized the way we live, work, and interact
with the world around us. It encompasses the generation, transmission, and utilization of electrical
energy to power various devices and systems. This force of nature, harnessed by human ingenuity,
has a rich history shaped by visionary pioneers and inventors.
Electrical power, often referred to simply as "power," is the rate at which electrical energy is
transferred, converted, or used in an electrical circuit. It represents the amount of energy consumed
or produced per unit of time. The SI unit of electrical power is the watt (W), which is equivalent to
one joule (J) of energy transferred or converted per second. Larger units, such as kilowatts (kW),
megawatts (MW), and gigawatts (GW), are commonly used for measuring power on a larger scale.
In general, power is a measure of the rate at which energy is generated or consumed in a system.
The following are the mostly used units of power.
1. Watt (W): The watt is the SI unit of power. One watt is equal to one joule of energy per
second (1 W = 1 J/s). It is commonly used for measuring electrical power.
2. Kilowatt (kW): One kilowatt is equal to 1,000 watts. Kilowatts are often used for larger
electrical systems, such as in homes, industries, and power plants.
3. Megawatt (MW): One megawatt is equal to 1,000,000 watts or 1,000 kilowatts. Megawatts
are used to describe the power output of larger electrical generators and power plants.
5. Horsepower (hp): Horsepower is a unit of power that is still used in some parts of the world,
particularly in the automotive and engineering industries. One horsepower is approximately
equal to 746 watts.
6. Calorie per Second (cal/s): This unit is used less frequently but is sometimes used to express
power in the field of thermodynamics. One calorie per second is approximately equal to
4.184 watts.
7. BTU per Hour (BTU/hr): British Thermal Units per hour is another unit of power used in the
context of heating, ventilation, and air conditioning (HVAC) systems. One BTU per hour is
approximately equal to 0.293 watts.
8. Erg per Second (erg/s): The erg is a unit of energy, but ergs per second are used to measure
power in the centimeter-gram-second (CGS) system of units.
Electrical energy, on the other hand, is the total amount of energy stored, transferred, or used in
an electrical system over a specific period. It quantifies the cumulative work done or the capacity for
work within the system. The SI unit of electrical energy is the joule (J). However, in practical
applications, larger units such as kilowatt-hours (kWh) and megawatt-hours (MWh) are commonly
used. One kilowatt-hour is equal to 3.6 million joules.
Problem 1. A laptop computer consumes 45 watts of power when in use. If it is used continuously
for 4 hours, how much electrical energy does it consume?
𝐸 =𝑃×𝑡
= (45 𝑊)(4 ℎ𝑜𝑢𝑟𝑠)
= 180𝑊 ∙ ℎ
Problem 2. A refrigerator operates with a power rating of 1500 watts. If it runs for 12 hours each
day, how much energy does it consume in a month (assuming 30 days)?
𝐸 =𝑃×𝑡
= (1500𝑊)(12 ℎ𝑜𝑢𝑟𝑠 × 30 𝑑𝑎𝑦𝑠)
= 540,000 𝑊 ∙ ℎ
= 540 𝑘𝑊ℎ
Note: 1 W = 1 J/s
40 × 103 𝐽
=
7200 𝑠
= 5.556 𝑊
Similarly, you can express power in terms of voltage and resistance using Ohm's Law:
P = V2/R
Utilizing Electrical Power as another parameter and in relation to Ohm’s Law, the visual
representation below shows the interrelationship between power, current, voltage, and resistance.
Problem 4. You have a resistor with a resistance Problem 5. A circuit has a current reading of 5
of 50 ohms connected to a voltage source of 120 amperes that flows through a 10-ohm resistor.
volts. Calculate the power dissipated by the Calculate the voltage drop across the resistor
resistor. and the power dissipated.
𝑉2 a. Voltage Drop
𝑃= 𝑉 = 𝐼𝑅 = (5)(10) = 𝟓𝟎 𝑽
𝑅
(120 𝑉)2 b. Power dissipated
𝑃= 𝑃 = 𝐼2 𝑅
50 Ω
𝑃 = (52 )(10) = 𝟐𝟓𝟎 𝑾
𝑷 = 𝟐𝟖𝟖 𝑾
a. PT b. ET
(𝑉𝑇 )2 𝐸 = 𝑃𝑇 × 𝑡
𝑃𝑇 =
𝑅𝑇
𝑡 = 10 𝑠 = 2.778 × 10−3 ℎ𝑟𝑠
Solve for RT first:
1 𝐸 = 720 × 10−3 𝑊 × 2.778 × 10−3 ℎ𝑟𝑠
𝑅𝑇 =
1 1 1 1 1
1000 + 1000 + 1000 + 1000 + 1000 𝑬 = 𝟐. 𝟎𝟎𝟎𝟏𝟔 × 𝟏𝟎−𝟑 𝑾𝒉
𝑅𝑇 = 200Ω
(12)2
𝑃𝑇 =
200
𝑷𝑻 = 𝟕𝟐𝟎 𝒎𝑾
Problem 7. You have a toaster rated at 1200 Problem 8. You have a light bulb with a
watts connected to a standard household resistance of 300 ohms. If it is connected to a
voltage of 120 volts. Calculate the current standard household voltage of 240 volts,
flowing through the toaster. calculate the power consumed by the light
bulb.
𝑉2
𝑃 𝑃=
𝐼= 𝑅
𝑉
(240 𝑉)2
1200 𝑊 =
= 300 Ω
120 𝑉
= 𝟏𝟗𝟐 𝑾
= 𝟏𝟎 𝑨
Problem 9. An electrical appliance consumes 500 watts of power when connected to a 120-volt
power source for 2 hours. Calculate the electrical charge that passes through the appliance during
this time.
𝑊
𝑉= = 𝟏𝟎 𝑨
𝑄
𝑊 𝑃𝑡
𝑄= =
𝑉 𝑉
𝑸 = 𝟑𝟎 × 𝟏𝟎𝟑 𝑪
2. Grid Management
Distributors manage and control the electrical grid, ensuring a reliable supply of electricity
to consumers. This involves monitoring power demand, voltage levels, and system stability
to prevent blackouts or brownouts.
3. Power Delivery
They are responsible for delivering electricity at the appropriate voltage levels to homes,
businesses, and industries. This often involves stepping down the voltage from high-voltage
transmission lines to lower-voltage levels suitable for distribution.
5. Customer Service
Power distribution companies interact directly with consumers, providing customer support,
handling billing, and addressing service-related inquiries and issues.
7. Connection Services
Distributors facilitate new connections for customers, including homes and businesses,
ensuring they have access to a reliable source of electricity. They also handle disconnections
and reconnections as needed.
The Philippine Distribution Code establishes the basic rules and procedures that govern the
operation, maintenance, development, connection, and use of the electric distribution systems in the
Philippines. Compliance with the provisions of this Distribution Code is mandatory for all
participants in distribution system operations. These include the Distributors and the Users of the
distribution system including embedded generators, other distributors connected to the distribution
system, and large customers.
The Philippine Distribution Code defines the technical aspects of the working relationship between
the distributors and all the users of the distribution system. Electric distributors must deliver electric
energy to the electricity users at acceptable levels of service quality. On the other hand, the users of
the distribution systems must comply with certain rules and standards to avoid adverse effect on the
distribution system. The reliability of the distribution system depends on the performance of the
various components of the distribution network. Thus, major components such as power substations,
primary lines, distribution transformers, secondary lines, and service lines, must perform
satisfactorily.
1. Agus VI Hydroelectric Power Plant - a 200 MW hydroelectric power plant, supplied by a water
flow of about 130 cubic meters per second. It is the oldest among the six (6) cascading power
plants. With five (5) generating units, Agus VI has proven to be a steady source of electric
power in Mindanao. Maria Cristina Falls powers the Agus VI Hydroelectric Plant. The power
plant has a 200 MW potential capacity. Agus VI is operated by the National Power Corporation
and was commissioned on May 31, 1953. Under President Gloria Macapagal Arroyo's
Mindanao Super Region development plan, the Agus VI is planned to undergo a 1.856-billion-
peso upgrading project.
Agus VI : Located at the foot of Maria Cristina Falls, flowing about 130 cubic meters
per second – supplying electricity to 70% of Mindanao.
3. Raslag Solar Farm – Located in Pampanga, this power plant is a 23 MW ground-mounted solar
farm power project which is spread over an area of 263,210 square meters. The project
supplies enough clean energy to power 11,700 households. In August 2015, RASLAG Corp.,
the renewable energy generation arm of Angeles Power, Inc. contracted Conergy Asia & ME
to expand their existing 10-MW power plant in Mexico, Pampanga by adding 13 MWp, which
will bring the total capacity of the RASLAG power plant to 23 MW by the project’s completion.
4. Sual Power Station - the largest and most cost-effective coal-fired power station in the
Philippines with a generating capacity of 1,200 MW. It has been providing electricity to the
Luzon grid since 1999 under a build, operate and transfer (BOT) scheme with the Philippine
government which ends in 2024. The coal-fired power station is owned by Team Energy, a
company established as a joint venture between Marubeni Corporation and Tokyo Electric
Power Corporation. San Miguel Energy Corporation is the independent power producer
administrator (IPPA) of the facility since 2009.
Sual Power Station: A 1,200-MW coal-fired power station Raslag Solar Farm: Ground-mounted solar power
located near Lingayen Guld in Sual, Pangasinan, harnessing farm producing 19,438 MWh annually.
Philippines
Malitbog Geothermal Power Station: The worlds largest geothermal power station located in
Leyte, Philippines
Electricity Distribution
The distribution of electricity from power plants to homes and businesses involves a series of
steps and components that ensure the efficient and safe delivery of electrical energy.
4. Substations: Along the transmission route, there are substations that serve as hubs for the
electrical grid. These substations play a crucial role in managing voltage levels, switching
between different transmission lines, and ensuring the reliability of the system. They contain
transformers that can step the voltage up or down as needed.
6. Distribution Lines: After stepping down the voltage, the electricity is distributed through a
network of power lines known as distribution lines or feeders. These lines are typically
carried on poles or underground conduits. Distribution lines may further branch into smaller
lines to serve specific neighborhoods or areas.
8. Service Drop: Finally, the electricity is delivered to individual homes and businesses through
service drops, which are lines that connect from the distribution system to the building's
electrical service entrance. Circuit breakers or fuses at the service entrance help protect the
building's electrical system from overloads and faults.
9. Internal Wiring: Inside a building, the electricity is distributed through internal wiring to
outlets, switches, and appliances.
It's important to note that the voltage levels and specific equipment used can vary by region and
country, depending on local standards and infrastructure. The entire process is designed to ensure
the safe and reliable delivery of electricity while minimizing energy losses during transmission and
distribution.
Electrical energy consumption in homes plays a pivotal role in our daily lives, powering a vast
array of appliances and devices that have become indispensable in modern society. Once
electricity has completed its journey from power plants through transformers and transmission
lines to residential areas, it transforms into a versatile force that enables us to light our homes,
cook our meals, stay connected, and maintain comfort. The efficient utilization of electrical
energy within households not only enhances our quality of life but also raises important
considerations regarding sustainability and energy conservation. In this context, understanding
how electrical energy is consumed in homes, managing its usage, and exploring energy-efficient
practices become essential steps in both reducing environmental impact and optimizing the cost-
effectiveness of our daily activities.
1. Identify the Electrical Appliance or Device: Begin by selecting the specific electrical
appliance or device for which you want to calculate energy consumption and cost. Make
sure you know the appliance's power rating in watts (W) or kilowatts (kW). This
information is usually found on a label or plate on the appliance.
2. Determine the Usage Time: Determine how many hours per day the appliance is in use.
For some appliances like refrigerators or air conditioners, you may need to estimate the
average daily usage.
4. Calculate Daily Energy Consumption: Multiply the power rating in kilowatts (kW) by the
number of hours the appliance is in use each day. This gives you the daily energy
consumption in kilowatt-hours (kWh).
Daily Energy Consumption (kWh) = Power Rating (kW) × Hours of Use (h)
5. Determine the Electricity Rate: Check your electricity bill or contact your utility provider
to find the electricity rate. In the Philippines, electricity rates are usually given in ₱ per
kilowatt-hour (₱/kWh).
6. Calculate Daily Cost: Multiply the daily energy consumption in kilowatt-hours (kWh) by
the electricity rate to determine the daily cost of running the appliance.
7. Calculate Monthly or Annual Cost: To find the monthly or annual cost of running the
appliance, simply multiply the daily cost by the number of days in the month or year. For
example, for the monthly cost:
Monthly Cost (₱) = Daily Cost (₱) × Number of Days in the Month
Convert W to kW
300 𝑊 = 0.3 𝑘𝑊
𝐷𝑎𝑖𝑙𝑦 𝐶𝑜𝑛𝑠𝑢𝑚𝑝𝑡𝑖𝑜𝑛 = 𝑃 × 𝑡
𝐷𝑎𝑖𝑙𝑦 𝐶𝑜𝑛𝑠𝑢𝑚𝑝𝑡𝑖𝑜𝑛 = (0.3 𝑘𝑊)(24 ℎ)
𝐷𝑎𝑖𝑙𝑦 𝐶𝑜𝑛𝑠𝑢𝑚𝑝𝑡𝑖𝑜𝑛 = 𝟕. 𝟐 𝒌𝑾𝒉
