SPECIFICATIONS FOR CONVETIONAL TYPE FIRE Rev: 01
ALARM SYSTEM SET Dt: 29/02/2024
Page: 1 of 4

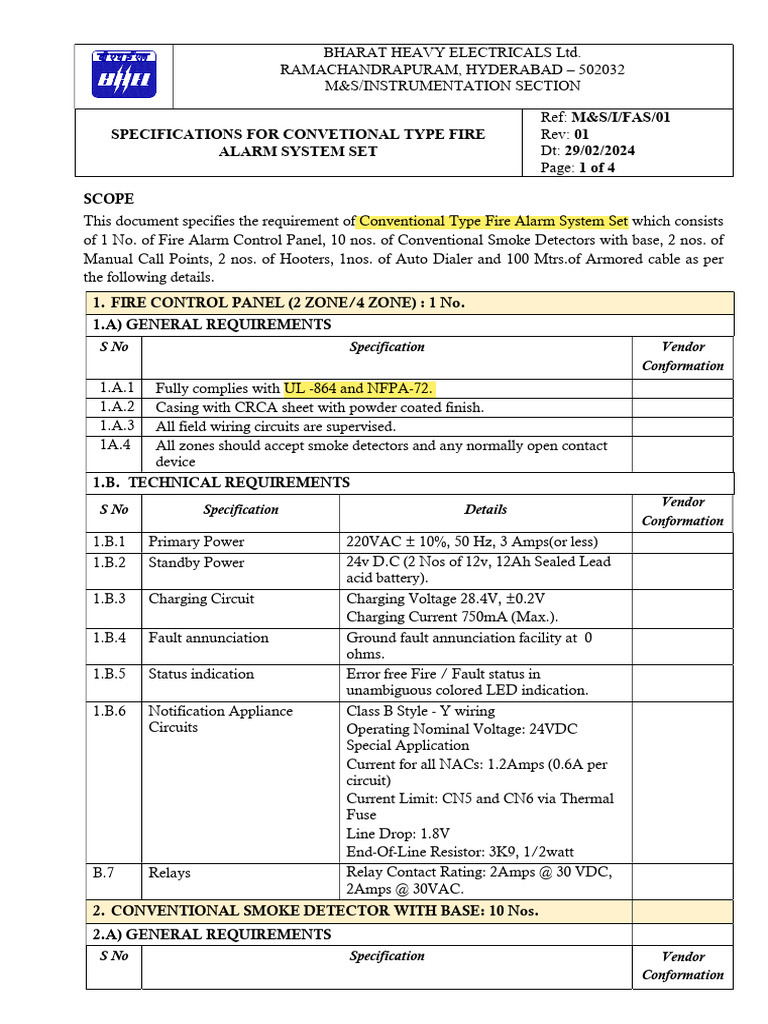

SCOPE
This document specifies the requirement of Conventional Type Fire Alarm System Set which consists
of 1 No. of Fire Alarm Control Panel, 10 nos. of Conventional Smoke Detectors with base, 2 nos. of
Manual Call Points, 2 nos. of Hooters, 1nos. of Auto Dialer and 100 Mtrs.of Armored cable as per
the following details.
1. FIRE CONTROL PANEL (2 ZONE/4 ZONE) : 1 No.
1.A) GENERAL REQUIREMENTS
S No Specification Vendor
Conformation
1.A.1 Fully complies with UL -864 and NFPA-72.
1.A.2 Casing with CRCA sheet with powder coated finish.
1.A.3 All field wiring circuits are supervised.
1A.4 All zones should accept smoke detectors and any normally open contact
device
1.B. TECHNICAL REQUIREMENTS
Vendor
S No Specification Details
Conformation
1.B.1 Primary Power 220VAC ± 10%, 50 Hz, 3 Amps(or less)
1.B.2 Standby Power 24v D.C (2 Nos of 12v, 12Ah Sealed Lead
acid battery).
1.B.3 Charging Circuit Charging Voltage 28.4V, ±0.2V
Charging Current 750mA (Max.).
1.B.4 Fault annunciation Ground fault annunciation facility at 0
ohms.
1.B.5 Status indication Error free Fire / Fault status in
unambiguous colored LED indication.
1.B.6 Notification Appliance Class B Style - Y wiring
Circuits Operating Nominal Voltage: 24VDC
Special Application
Current for all NACs: 1.2Amps (0.6A per
circuit)
Current Limit: CN5 and CN6 via Thermal
Fuse
Line Drop: 1.8V
End-Of-Line Resistor: 3K9, 1/2watt
B.7 Relays Relay Contact Rating: 2Amps @ 30 VDC,
2Amps @ 30VAC.
2. CONVENTIONAL SMOKE DETECTOR WITH BASE: 10 Nos.
2.A) GENERAL REQUIREMENTS
S No Specification Vendor
Conformation
 BHARAT HEAVY ELECTRICALS Ltd.
RAMACHANDRAPURAM, HYDERABAD – 502032
M&S/INSTRUMENTATION SECTION

Ref: M&S/I/FAS/01
SPECIFICATIONS FOR CONVETIONAL TYPE FIRE Rev: 01
ALARM SYSTEM SET Dt: 29/02/2024
Page: 2 of 4

2.A.1 IP23D rated Sensor Fully complies with EN 54-7 standards

2.A.2 Horizontal optical bench housing infra-red emitter and sensor, arranged
radially to detect forward scattered light.
2.A.3 Materials housing : Polycarbonate
2.A.4 Materials terminals : Nickel plated stainless steel
2.A.5 Product Dimensions: Sensor Length: 42mm, Sensor Diameter: 100mm
Sensor Base Length : 16mm, Sensor Base
Diameter: 100mm
2.A.6 Environmental Requirements: Operating Temp.: -20 to 60 °C,
Storage Temp.: -30 to 80°C,
Humidity Range : ≤ 95% RH.
2.B. TECHNICAL REQUIREMENTS
Vendor
S No Specification Details
Conformation
2.B.1 Power-up surge current 0.115mA
2.B.2 Maximum power-up time 30 seconds
2.B.3 Status indicator - Alarm Red
2.B.4 Fault Status indicator Off
2.B.5 Quiescent current 50μA tested at 24V dc
2.B.6 Supply voltage (Vmin- 9 to 33V dc
Vmax)
2.B.7 Terminal functions L2 -L2 Line in & out negative
2.B.8 Terminal functions L1 in +L1 in
2.B.9 Terminal functions L1 out +L1 out
2.B.10 Terminal functions -R -R Remote indicator negative connection
2.B.11 Polarity L1 & L2 are polarity insensitive
2.B.12 Battery powered No
2.B.13 Sampling frequency Once every 3 seconds
2.B.14 Holding voltage (min) 6V
2.B.15 Minimum voltage to light 12V
alarm LED
2.B.16 Alarm reset time 1s
2.B.17 Alarm load 420Ω in series with 2V drop
3. MANUAL CALL POINT : 2 Nos.
Vendor
S No Specification Details
Conformation
3.1 Operating voltage DC24V, 12-28V
3.2 Operating current Normal current: 0mA
Alarm current: ≤30mA
3.3 Output capacity Rated DC30V/0.1A passive output contact
signal and contact resistance
 BHARAT HEAVY ELECTRICALS Ltd.
RAMACHANDRAPURAM, HYDERABAD – 502032
M&S/INSTRUMENTATION SECTION

Ref: M&S/I/FAS/01
SPECIFICATIONS FOR CONVETIONAL TYPE FIRE Rev: 01
ALARM SYSTEM SET Dt: 29/02/2024
Page: 3 of 4

3.4 Type of starting parts Reusable

3.5 Start type Press metal dome manually
3.6 Reset type A special key is used to reset it. After an
alarm is sent, open key cover of manual
button and insert the key to rotate by 90°to
the right
3.7 Status indicator Fire alarm indicator, red; in normal state,
red indicator is off; but after alarming, it is
normally on.
3.8 Wiring system Two-wire system, without polarity
3.9 Operating environment Indoors, Temperature -20 ℃ ~+55 ℃ ,
Humidity ≤95% RH
3.10 Housing material and color ABS, red
3.11 Weight About 172g
3.12 Outline dimension 95.0mm×95.0mm×46.0mm (with base)
3.13 Mounting hole pitch 60mm
4. HOOTER : 2 Nos.
Vendor
S No Specification Details
Conformation
4.1 Type Conventional
4.2 Color Red
4.3 Power Source & Working DC 12/24 V
voltage
4.4 Dimensions 126(W) x 178(H) x 55(D) mm
4.5 Relative Humidity ≤95% RH
4.6 Operating Temperature 10 to 50 Deg C
4.7 Working current 75-90 mA
4.8 Volume Range ≤ 105 dB
5. AUTO DIALER : 1 No.
Vendor
S No Specification Details
Conformation
5.1 Operating Voltage 12V DC or 24V DC
5.2 Alarm mode NO or NC contact (Should be reset without
trigger signal)
5.3 Message recording time 20sec or more
5.4 Display 7- Segment display for display input
numbers
5.5 Application Fire alarm system
5.6 Keypad To be provide for entering the phone nos
5.7 Input type RJ 11 jack Telephone (landline)
 BHARAT HEAVY ELECTRICALS Ltd.
RAMACHANDRAPURAM, HYDERABAD – 502032
M&S/INSTRUMENTATION SECTION

Ref: M&S/I/FAS/01
SPECIFICATIONS FOR CONVETIONAL TYPE FIRE Rev: 01
ALARM SYSTEM SET Dt: 29/02/2024
Page: 4 of 4

5.8 Max load 20ma or less

5.9 Storage Capacity 10 telephones numbers or more
5.10 Number of digits per number 14 digits or more
5.11 Indication Dialing indication to be provided
5.12 Telephone line out provision To be provided (for connecting other
devices)
5.13 Voice Output or read back To be provided at the of dialing
5.14 Voice clarity A clear prerecorded voice massage should
be send to stored Telephone numbers.
5.15 Should not be triggered due Required
to power fluctuation
6. ARMOURED CABLE : 100 Mtrs.
Vendor
S No Specification Details
Conformation
6.1 Overall Diameter: 13.6mm
6.2 Current rating: 36 Amp
6.3 Conductors: Stranded copper
6.4 Insulation: XLPE
6.5 Core identification: 2 Core (White & Black)
6.6 Bedding: PVC
6.7 Armour/Protection: SWA (Steel wire armour)
6.8 Sheath/Jacket: PVC
6.9 Color: Black
6.10 Voltage: 600/1000v
6.12 Operating temperature: Maximum 90°C, minimum bending 0°C
6.13 British Standards: BS 5467
7. INSTALLATION & COMMISSIONING : 1 No. ( SET)
Installation and commissioning of the Fire Alarm System Set (as described in the scope) to be
completed by the supplier with experienced staff, within 4 weeks of the PO.
8.0 DOCUMENTS
8.1 Operating, installation manuals to be provided for each component of the Fire Alarm
System set
8.2 The supplier should furnish detailed catalog for each component of the Fire Alarm System
set being quoted with his offer.
8.3 The supplier should confirm point-wise adherence to all points of the above technical
specifications.
8.4 The operation of this equipment shall be under warranty, for a period of 12 months, from
the date of acceptance at BHEL works. Warranty certificate shall be sent with the dispatch
documents.
8.5 Training shall be provided by the vendor after the successful completion of Installation ,
Commissioning and Testing.
