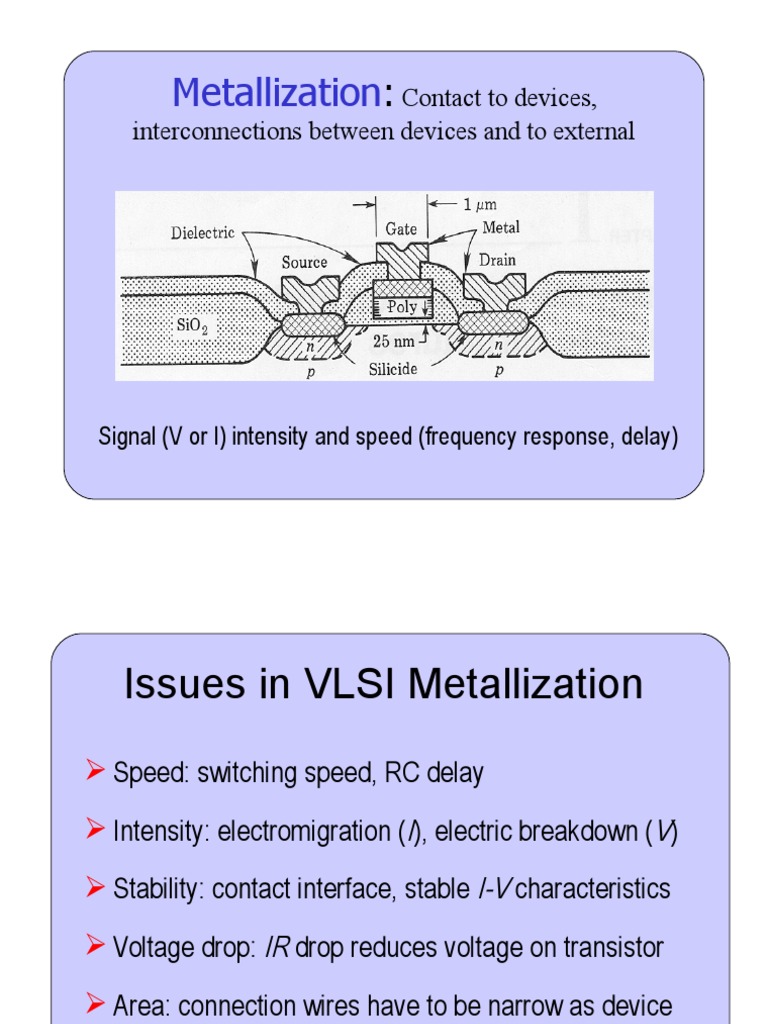

Metallization: Contact to devices,

interconnections between devices and to external

Signal (V or I) intensity and speed (frequency response, delay)

 Issues in VLSI Metallization
 Speed: switching speed, RC delay
 Intensity: electromigration (I), electric breakdown (V)
 Stability: contact interface, stable I-V characteristics
 Voltage drop: IR drop reduces voltage on transistor
 Area: connection wires have to be narrow as device
density increases
 Multi-level Metallization

Lower levels: fine

connections to individual
devices

Upper levels:
thicker/wider common
connections
Multi-level metal connections
 Pit Formation of Al Contact with Si

High solubility of
Si in Al (~1%)
Al spikes
Silicide Contacts
Phase Diagram and Formation Sequence of Silicide
Salicide (Self-aligned silicide layer)
N-channel MOS with poly Si
gate

Ti deposition and annealing,

TiSi2 formation at source,
drain and gate

Etch away unreacted Ti

Apply dielectrics and final

metallization with Al
Multi-level Metallization
Plug Filling
Chemical Mechanical Polishing (CMP)
Damascene processes Dual damascene
Metal plugs in planar SiO2

Interlayer dielectric deposit

Trench patterning & RIE

for metal lines

Metal deposition

CMP Single barrier layer and metal deposition

steps, same metal for plugs and lines
 Electromigration Effects
Void Pile-up

Bamboo-structured wire
Electromigration-resistant
Electron wind and field-driven atomic migration
 Device Isolation

Triple diffusion p-well (tub)

2-sided diffusion n-well

Double-diffused epitaxial Epitaxy double-well

 CMOS Technology

Simple CMOS layout

CMOS inverter
Twin-well CMOS process
 Lateral Isolation

Trench isolation
Localized oxidation Oxidation isolation
isolation (LOCOS)
Simple MOS process
(a) Source & drain
p+ diffusion

(b) Wet oxidation

for field oxide

(c) Dry oxidation

for gate oxide

(d) Al metallization
for gate and
contacts to S & D
Poly-Si gate NMOS process
Field oxide growth
and opening etching

Gate oxide growth

and poly-Si deposit

Gate, source & drain

n+ diffusion

PSG CVD,
lithography and
metallization
 General Process Integration
Considerations for ULSI
 In mask and process designs, tolerances for variations
in line width, junction depth and width, depletion zone width,
film thickness, mask-making and alignment
 Use self-aligned process if possible: e.g. source & drain
implantation, salicide process
 Step heights (vertical profile variation) must ensure a
positive focus margin (FM)
 Large process window and small sensitivity: tolerate
variation in equipment performance

 On-line monitoring of control parameters

 Bonding & Packaging
Wafer with IC Chips

Thin film pads for

wire bonding
 Plastic-encapsulated package

Back side of IC chip bond to a

metallized ceramic substrate

Au wires connecting
the IC and pins
Wire bonding process
 Flip-chip bonding with Pb-Sn solder
ball in contact with a ceramic substrate

More interconnect pad

(>100) allowed

Shorter connection
length, less coupling
