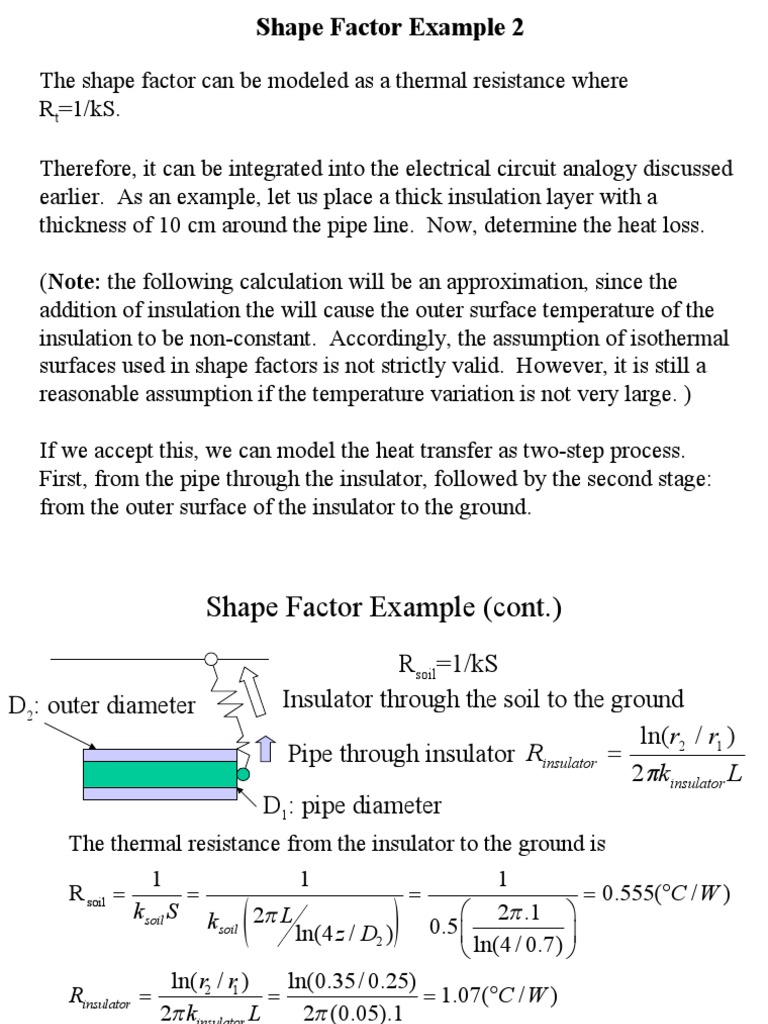

The shape factor can be modeled as a thermal resistance where
Rt=1/kS.
Therefore, it can be integrated into the electrical circuit analogy discussed
earlier. As an example, let us place a thick insulation layer with a thickness of 10 cm around the pipe line. Now, determine the heat loss.
(Note: the following calculation will be an approximation, since the
addition of insulation the will cause the outer surface temperature of the insulation to be non-constant. Accordingly, the assumption of isothermal surfaces used in shape factors is not strictly valid. However, it is still a reasonable assumption if the temperature variation is not very large. )
If we accept this, we can model the heat transfer as two-step process.
First, from the pipe through the insulator, followed by the second stage: from the outer surface of the insulator to the ground. Shape Factor Example (cont.) Rsoil=1/kS D2: outer diameter Insulator through the soil to the ground ln(r2 / r1 ) Pipe through insulator Rinsulator 2kinsulator L D1: pipe diameter The thermal resistance from the insulator to the ground is 1 1 1 R soil 0.555(C / W ) k soil S k soil 2 L ln(4 z / D2 ) 0.5 2 .1 ln(4 / 0.7) ln( r2 / r1 ) ln(0.35 / 0.25) Rinsulator 1.07(C / W ) 2 kinsulator L 2 (0.05).1
• The heat loss is significantly lower than that without the
insulator (q=181.2 W) • Although the shape factor assumption is not exactly valid, but the approximation should be good enough for most applications. Especially in cases where only a first-order estimation is needed.
