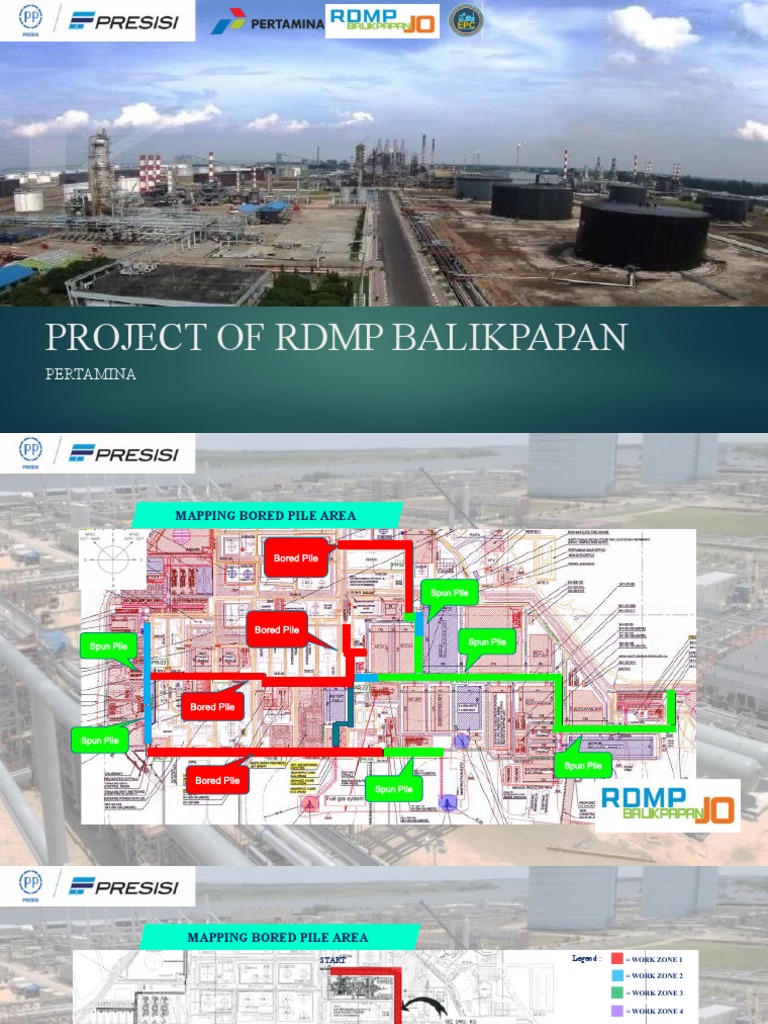

PROJECT OF RDMP BALIKPAPAN

PERTAMINA
 MAPPING BORED PILE AREA

Bored Pile

Spun Pile

Bored Pile
Spun Pile Spun Pile

Bored Pile

Spun Pile
. Spun Pile
Bored Pile
Spun Pile
 MAPPING BORED PILE AREA
START Legend : = WORK ZONE 1

= WORK ZONE 2

= WORK ZONE 3

= WORK ZONE 4

FINISH

START

START
FINISH
FINISH

START
FINISH
SCOPE OF WORK

On Project of RDMP Balikpapan, PT. PP Presisi

Tbk. as a sub contractor which is got tender for

work in pipe rack foundation, using:

1. Wash Boring

2. Bored Pile
WASH BORING

Washing boring is one method of making bored piles

in diameter 300mm – 600mm with a depth of 6m to

24m using Bore Pile Mini Crane which for drilling

requires a lot of water. Normally washing boring is

used for bored pile work which have difficult working

location with using Bore Rig/ heavy equipment.

BORED PILE

Bored pile is one type of deep foundation which is

have diameter 600mm, 800mm, 1000mm, 1200mm, &

1500mm with a depth of more than 24meters using

Bore Rig/ heavy equipment. Deep foundations are

usually used in high rise building construction, bridge,

and others construction.

 METHOD OF
IMPLEMENTATION

WASH BORING BORED PILE

-Marking and setting out pile position
-Installation of temporary casing
- Marking and setting out pile position
-Drilling operation or drilling work
- Bored Pile Hole Drilling
-Cleaning bore hole
- Bored Pile Hole Cleaning
-Measuring or checking drilling depth
- Measurement of Bored Pile Hole Depth
-Installation of reinforcement steel cage
- Installation of reinforcement steel cage
-Setting tremie pipe
- Re-measurement of Bored Pile Hole Depth
-Casting
- Installation of Tremie Pipe in Bore Pile Holes
Revocation temporary casing
- Casting Bored Pile Holes
METHOD OF IMPLEMENTATION
Square steel plate
WASH BORING
Drilling Position

Expose Pipe

For wash boring work, we used protection it Soil Surface

used concept of “boring table”. It means the

machine of wash boring stand on upper of the
Rail Concept

table for drilling process. The material which Rail Concept

used for table is using IWF steel.

Expose
Pipe
Expose Pipe

Other using boring table roller used, protection

is done by placing square steel plate above the
Square Steel Plate
existing pipe at the project site. This aims to Boring Table Roller
Used

minimize the occurrence of objects falling

during the drilling process.
METHOD OF IMPLEMENTATION

WASH BORING

Tampak Depan

Tampak Atas

Tampak Samping
METHOD OF IMPLEMENTATION
BORED PILE

This implementation method is used for all of land bored pile work.
The working steps/ stages is always the same. The different is
drilling time needed which depends on characteristic of soil (SPT
results).
