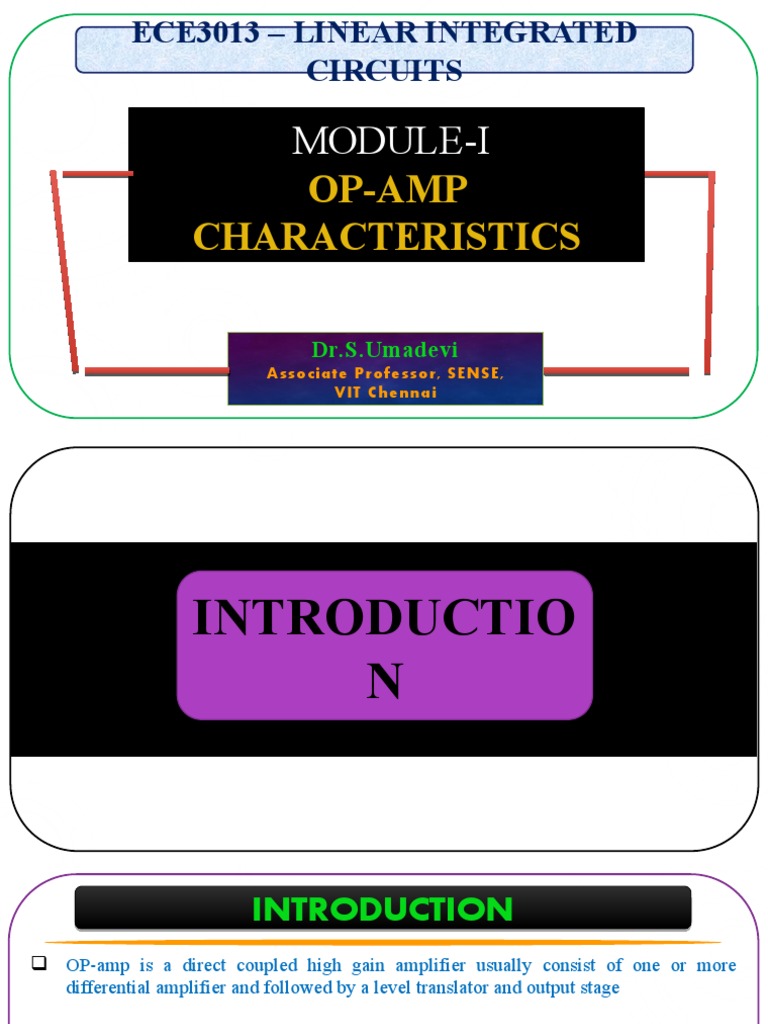

ECE3013 – LINEAR INTEGRATED
CIRCUITS
MODULE-I
OP-AMP
CHARACTERISTICS
Dr.S.Umadevi
Associate Professor, SENSE,
VIT Chennai
INTRODUCTIO
N
INTRODUCTION
 OP-amp is a direct coupled high gain amplifier usually consist of one or more
differential amplifier and followed by a level translator and output stage
 Direct coupling or conductive coupling passes the full spectrum of frequencies

including direct current
 Op-amp is versatile device that can be used to amplify AC as well as DC signals.
 It was originally designed for performing mathematical operation such as addition,

subtraction, multiplication, and integration (that is why it is called as operational
amplifier)
Module 1: Lecture - 1 ECE3013 – Linear Integrated Circuits 1

1
INTRODUCTION
 Operational amplifier is available as a single integrated circuit
package
 In addition with suitable feedback components, the op amp can

be used for variety of applications comparators, filters,
oscillators, regulators and so on
 Op amp are classified as :

(i). General purpose (IC741 & IC 351)
(ii). Special purpose (LM380)
2
INTRODUCTION
Block diagram of a typical op-amp

3
INTRODUCTION
Block diagram of a typical op-amp

4
INTRODUCTION
Circuit diagram of a typical op-amp

4
INTRODUCTION

4
INTRODUCTION
 Input stage: A differential amplifier that provides high voltage gain and
high input impedance
 Intermediate stage: Another differential amplifier used for providing

additional voltage gain
 Level shifter: A emitter follower circuit used to bring the DC level to the
ground potential when no input signal is applied
 Output stage: A push pull complementary amplifier used to provides low

output impedance, large AC output swings and high current sourcing and
sinking capability
5
OP-AMP
TERMINALS
OP-AMP TERMINALS
Pin Diagram of Op-Amp

8
OP-AMP TERMINALS
Op-amp of Manufacturers

9
OP-AMP TERMINALS

10
OP-AMP TERMINALS
Metal Can
11
OP-AMP TERMINALS
Symbol of Op-Amp
12
OP-AMP TERMINALS
Symbol of Op-Amp
13
OP-AMP TERMINALS
Symbol of Op-Amp
14
OP-AMP TERMINALS
Power supply for op-amp

15
OP-AMP
EQUIVALENT
CIRCUIT
OP-AMP EQUIVALENT CIRCUIT
Symbol of Op-Amp
6

7

AOLVd = Thevenin voltage source
R0 = Thevenin equivalent resistance looking back into the output

terminal of an op-amp
AOL= Large-signal voltage gain
Vd = difference input voltage
V1 = Voltage at the non inverting input terminal with respect to

ground
V2 = Voltage at the inverting terminal with respect to ground

7
IDEAL OP-AMP
IDEAL OP-AMP
Characteristics Symbol Ideal Values Practical values

Open loop voltage gain AOL ∞ 200000
Input resistance Rn ∞ 2 MΩ
Output resistance R0 0 75 Ω
Offset voltage V0 0 6 mV
Bandwidth BW ∞ 1 MHz
CMRR ρ ∞ 90 dB
Slew rate S ∞ 0.5 V/µs

16
IDEAL OP-AMP
• Infinite voltage gain

• Infinite Input resistance = Almost any signal source can drive it and there is
no loading of the proceeding stage
• Zero output resistance = output can drive an infinite number of other
devices
• Infinite bandwidth= Frequency signal 0 to ∞ Hz can be amplified without
attenuation
• Infinite slew rate = Maximum rate at which an amplifier can respond to an
abrupt change of input level

16
IDEAL OP-AMP
If V1> V2  V0 will be in + saturation

If V2>V1  V0 will be in – saturation
• Output assumes one of the two possible output states ( that is +Vsat or –Vsat)
• Amplifier acts as a switch

17
IDEAL OP-AMP
Application :
• Voltage comparator
• Zero crossing detector

17
IDEAL INVERTING
AMPLIFIER
IDEAL INVERTING AMPLIFIER

20

21

22
PRACTICAL
INVERTING
AMPLIFIER
PRACTICAL INVERTING AMPLIFIER

23

24

25
IDEAL NON-
INVERTING
AMPLIFIER
IDEAL NON-INVERTING AMPLIFIER

26

27

28

29

30

31
PRACTICAL NON INVERTING AMPLIFIER
VOLTAGE FOLLOWER/ UNITY GAIN BUFFER
In a closed loop non-inverting amplifier
Gain = 1 + Rf/Ri
If Rf=0 ( no feedback) and Ri = ∞
Gain = 1
• Hence V0/Vi = 1
Calculate the voltage gain for each stage of this amplifier circuit then calculate the overall voltage gain
PRACTICAL OP-AMP
DC
CHARACTERISTICS
An Ideal op-amp, no current drawn from the source and its response is also independent of temperature
But in real op-amp,
 1. Current is taken from the source into the op-amp inputs
 2. Mismatch in transistor
 3. Shifts its operation with temperature
Non ideal dc characteristics that add error components to the dc output voltage are,
 1. Input bias current
 2. Input offset current
 3. Input offset voltage
 4. Thermal drifty
INPUT BIAS CURRENT
• Input bias current

INPUT BIAS CURRENT
 IB1 = dc bias current flowing into the non inverting input
 IB2= dc bias current flowing into the inverting input
 IB1 & IB2 = base currents of the two transistors in the input differential
stage
 Though both the transistors are identical, practically it is not possible to
have,
IB1 = IB2
IB is very small (few hundred nano amperes, 500nA maximum at supply
voltages ± 15 V

32
INPUT BIAS CURRENT
 Input bias current causes significant output offset voltage in circuits using
relatively large FB resistance

32
INPUT BIAS CURRENT

32
INPUT BIAS CURRENT

32
INPUT BIAS CURRENT

32
INPUT BIAS CURRENT

32
INPUT BIAS CURRENT

32
INPUT BIAS CURRENT

32
INPUT OFFSET CURRENT

32

32

32
COMPENSATION
 The effect of offset current can be minimized by keeping feedback
resistance small.
 But to obtain a high input impedance, R1 must be kept large, so Rf also

should be high to get reasonable gain
 T-Feedback is the good solution to solve this problem

34
DC CHARACTERISTICS OF OP-AMP

35
DC CHARACTERISTICS OF OP-AMP
 The T-Feedback allow large feedback resistance while keeping the
resistance to ground low
 The T-feedback network provides a feedback signal as if the network were

a single feedback resistor

36
OFFSET VOLTAGE COMPENSATION NETWORK
THERMAL DRIFT

42
AC
CHARACTERISTICS
OF OP-AMP
AC CHARACTERISTICS OF OP-AMP
FREQUENCY RESPONSE
 Ideally op-amp should have a infinite bandwidth
 But the practical op-amp gain decreases (roll-off) at higher frequencies
 Reason: capacitance due to physical characteristics of the device (BJT or
FET) and internal construction of op-amp
 For op-amp with one break (corner) frequency, all the capacitance effect
can be represented by a single capacitor C (figure)
 There is only one pole due to R0C and one -20dB/decade roll-off comes
into effect.
43
FREQUENCY RESPONSE

44
FREQUENCY RESPONSE

45
FREQUENCY RESPONSE

46
FREQUENCY RESPONSE

47
FREQUENCY RESPONSE

48
FREQUENCY RESPONSE

49
FREQUENCY RESPONSE
 The open loop frequency response is flat 90dB from low frequencies (DC
Signals) to 200kHz for the first break frequency
 From 200kHz to 2MHz gain drops from 90dB to 70dB which is

-20dB/decade.
 At frequency from 2MHz to 20MHz the roll-off rate is -40 dB/decade
 As frequency is increasing, cascading effect of RC poles comes into effect

and roll-off rate increasing successively by -20dB/decade
50
SLEW RATE
 The Slew Rate of an op amp describes how fast the output voltage can
change in response to an immediate change in voltage at the input.
 The higher the value (in V/µs) of slew rate, the faster the output can
change and the more easily it can reproduce high frequency signals.
 If a square wave is applied to the input of the op amp, the output should
also be a square wave.
 However the fast rising and falling edges of the square wave can tend to
cause the amplifier to oscillate for a short time after the rise or fall.

64
SLEW RATE
 To prevent this effect, the op amp’s internal circuitry contains a small
amount of compensation capacitance that slows down the rate of change
by acting as a CR time constant so that very fast transient voltages do not
trigger oscillation, but this compensation also limits the slew rate of the op
amp as shown in Figure.

65
SLEW RATE
 If the largest possible voltage swing and the highest frequency of the signal are
known, the minimum required slew rate for the op amp can be calculated using
the formula:
Where f = the highest signal frequency (Hz) and Vpk = the maximum peak
voltage of the signal.
 For example if an op amp is to amplify a signal with a peak amplitude of 6 volts

at a frequency of 40kHz, an op amp with a slew rate of at least 2π x 40 exp3 x 6
= 1.5V/µs would be required.

67
SLEW RATE

• The maximum frequency fmax at which we can obtain an undistorted
output voltage with a peak value of Vop is determined by the
slewrate in accordance with

67
SLEW RATE EXERCISE
1. 1. Slew rate for a 741 is 0.5 V/µs. At what maximum frequency can you get an
undistorted sine-wave output voltage of a) 10 V peak b) 1V peak
2. Ans : a) fmax = 8 kHz b) fmax = 80 kHz
3. 2. What is the open-loop gain of an op-amp that has a unity-gain bandwidth of 1.5 MHz
for a signal of 1kHz.
4. Open-loop gain at 1kHz = Bandwidth unity gain / Input signal frequency f
5. Ans : 1500
COMMON MODE REJECTION RATIO (CMRR)
 The input to the difference amplifier in general contains two components:

common mode and difference mode signal.
 The common mode signal (VCM) is the difference between two input
signal, where as the difference mode signal is difference between two
input signal (VDM)
VCM = (V1+V2)/2 VDM=(V1-V2)
 Ideally, an amplifier affect difference mode signal only. However the

common mode signal is also amplified to some degree

68
 The common mode rejection ratio (CMRR) defined as the ratio of the
difference signal voltage gain to the common mode voltage signal gain
CMRR = ADM/ACM
 And it provides an indication of how well an op amp does at rejecting a

signal applied simultaneously to both inputs
 Greater the value of the CMRR better the performance of the op amp. For
the 741C, CMRR is 90 dB typically.

69
 An ideal differential op-amp responds only to the difference in the
voltages applied to its input terminals and produces no output for a
common mode input voltage.
 In practical op-amps, common mode input voltages are not entirely

subtracted at the output due to slightly different gains between the
inverting and non-inverting inputs.
 The gain of an op-amp for common mode input voltage is known as the
common mode response. The ratio of the gain with the signal applied
differentially to the common mode response is called the common mode
rejection ratio, CMRR.
70
THANK YOU
by VI
DE
M A

Module 1

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Module 1

Uploaded by

Copyright:

Available Formats

ECE3013 – LINEAR INTEGRATED

 Direct coupling or conductive coupling passes the full spectrum of frequencies

 Op-amp is versatile device that can be used to amplify AC as well as DC signals.

 It was originally designed for performing mathematical operation such as addition,

Module 1: Lecture - 1 ECE3013 – Linear Integrated Circuits 1

 In addition with suitable feedback components, the op amp can

 Op amp are classified as :

Block diagram of a typical op-amp

Block diagram of a typical op-amp

Module 1: Lecture - 1 ECE3013 – Linear Integrated Circuits 4

Circuit diagram of a typical op-amp

Module 1: Lecture - 1 ECE3013 – Linear Integrated Circuits 4

 Intermediate stage: Another differential amplifier used for providing

 Output stage: A push pull complementary amplifier used to provides low

Pin Diagram of Op-Amp

Module 1: Lecture - 1 ECE3013 – Linear Integrated Circuits 9

Module 1: Lecture - 1 ECE3013 – Linear Integrated Circuits 10

Power supply for op-amp

Module 1: Lecture - 1 ECE3013 – Linear Integrated Circuits 15

Module 1: Lecture - 1 ECE3013 – Linear Integrated Circuits 7

R0 = Thevenin equivalent resistance looking back into the output

Vd = difference input voltage

V1 = Voltage at the non inverting input terminal with respect to

Module 1: Lecture - 1 ECE3013 – Linear Integrated Circuits 7

Characteristics Symbol Ideal Values Practical values

Module 1: Lecture - 2 ECE3013 – Linear Integrated Circuits 16

• Infinite voltage gain

Module 1: Lecture - 2 ECE3013 – Linear Integrated Circuits 16

If V1> V2  V0 will be in + saturation

Module 1: Lecture - 2 ECE3013 – Linear Integrated Circuits 17

Module 1: Lecture - 2 ECE3013 – Linear Integrated Circuits 17

Module 1: Lecture - 3 ECE3013 – Linear Integrated Circuits 20

Module 1: Lecture - 3 ECE3013 – Linear Integrated Circuits 21

Module 1: Lecture - 3 ECE3013 – Linear Integrated Circuits 22

Module 1: Lecture - 3 ECE3013 – Linear Integrated Circuits 23

Module 1: Lecture - 3 ECE3013 – Linear Integrated Circuits 24

Module 1: Lecture - 3 ECE3013 – Linear Integrated Circuits 25

Module 1: Lecture - 4 ECE3013 – Linear Integrated Circuits 26

Module 1: Lecture - 4 ECE3013 – Linear Integrated Circuits 27

Module 1: Lecture - 4 ECE3013 – Linear Integrated Circuits 28

Module 1: Lecture - 4 ECE3013 – Linear Integrated Circuits 29

Module 1: Lecture - 4 ECE3013 – Linear Integrated Circuits 30

Module 1: Lecture - 4 ECE3013 – Linear Integrated Circuits 31

If Rf=0 ( no feedback) and Ri = ∞

But in real op-amp,

 1. Current is taken from the source into the op-amp inputs

 3. Shifts its operation with temperature

 1. Input bias current

 2. Input offset current

 3. Input offset voltage

• Input bias current

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

Module 1: Lecture - 5 ECE3013 – Linear Integrated Circuits 32

 But to obtain a high input impedance, R1 must be kept large, so Rf also
