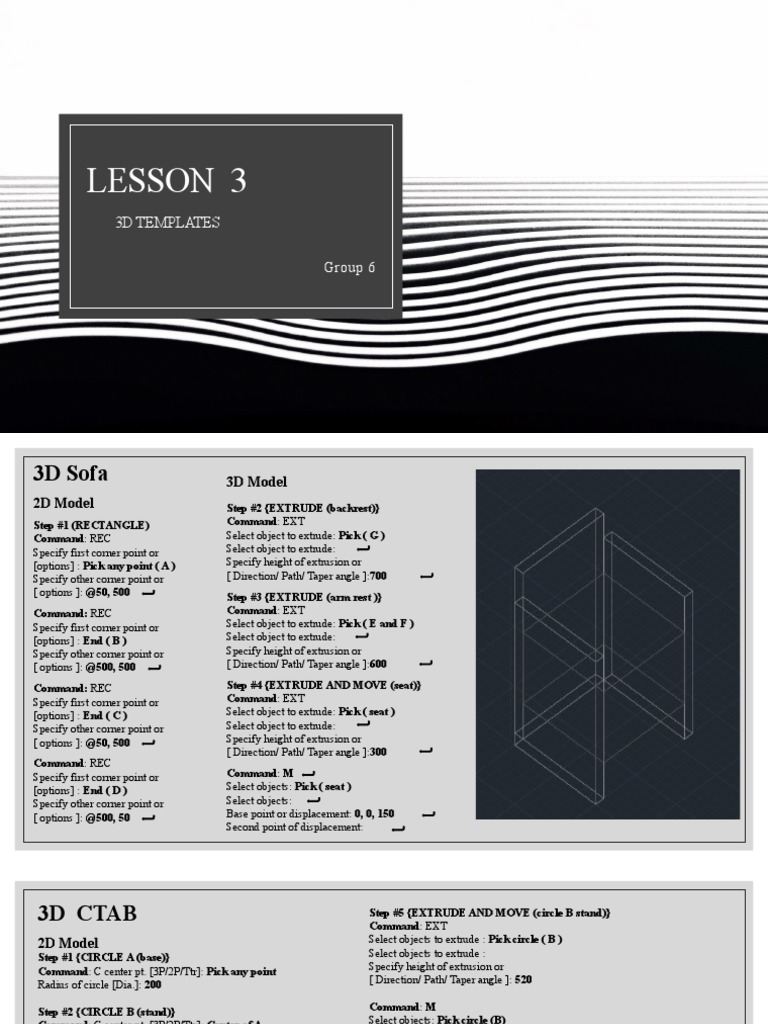

LESSON 3

3D TEMPLATES

Group 6
3D Sofa
2D Model
Step #1 (RECTANGLE)
Command: REC
Specify first corner point or
[options] : Pick any point ( A )
Specify other corner point or
[ options ]: @50, 500
Command: REC
Specify first corner point or
[options] : End ( B )
Specify other corner point or
[ options ]: @500, 500
Command: REC
Specify first corner point or
[options] : End ( C )
Specify other corner point or
[ options ]: @50, 500
Command: REC
Specify first corner point or
[options] : End ( D )
Specify other corner point or
[ options ]: @500, 50
3D Model
Step #2 {EXTRUDE (backrest)}
Command: EXT
Select object to extrude: Pick ( G )
Select object to extrude:
Specify height of extrusion or
[ Direction/ Path/ Taper angle ]:700
Step #3 {EXTRUDE (arm rest )}
Command: EXT
Select object to extrude: Pick ( E and F )
Select object to extrude:
Specify height of extrusion or
[ Direction/ Path/ Taper angle ]:600
Step #4 {EXTRUDE AND MOVE (seat)}
Command: EXT
Select object to extrude: Pick ( seat )
Select object to extrude:
Specify height of extrusion or
[ Direction/ Path/ Taper angle ]:300
Command: M
Select objects: Pick ( seat )
Select objects:
Base point or displacement: 0, 0, 150
Second point of displacement:
3D CTAB
2D Model
Step #1 {CIRCLE A (base)}
Command: C center pt. [3P/2P/Ttr]: Pick any point
Radius of circle [Dia.]: 200
Step #2 {CIRCLE B (stand)}
Command: C center pt. [3P/2P/Ttr]: Center of A
Radius of circle [Dia.]: 50
Step #3 {CIRCLE C (top)}
Command: C center pt. [3P/2P/Ttr]: Center of A
Radius of circle [Dia.]: 300
3D Model
Step #4 {EXTRUDE (circle A base)}
Command: EXT
Select objects to extrude : Pick circle ( A )
Select objects to extrude :
Specify height of extrusion or
[ Direction/ Path/ Taper angle ]: 50
Step #5 {EXTRUDE AND MOVE (circle B stand)}
Command: EXT
Select objects to extrude : Pick circle ( B )
Select objects to extrude :
Specify height of extrusion or
[ Direction/ Path/ Taper angle ]: 520
Command: M
Select objects: Pick circle (B)
Select objects:
Base point or displacement: 0, 0, 50
Second point of displacement:
Step #6 {EXTRUDE AND MOVE (circle C top)}
Command: EXT
Select objects to extrude :Pick circle ( C )
Select objects to extrude :
Specify height of extrusion or
[ Direction/ Path/ Taper angle ]: 30
Command: M
Select objects: Pick circle (C)
Select objects:
Base point or displacement: 0, 0, 570
Second point of displacement:
Solid Editing
Step #7 {Fillet r=30 (Circle A (base)}
Command: F
Pline/Rad/Tr /<Sel. 1st object> : Pick A
Enter radius: 25
Chain/Radius/<Select edge> :

Step #8
Command: BLOCK (use OSNAP off)
