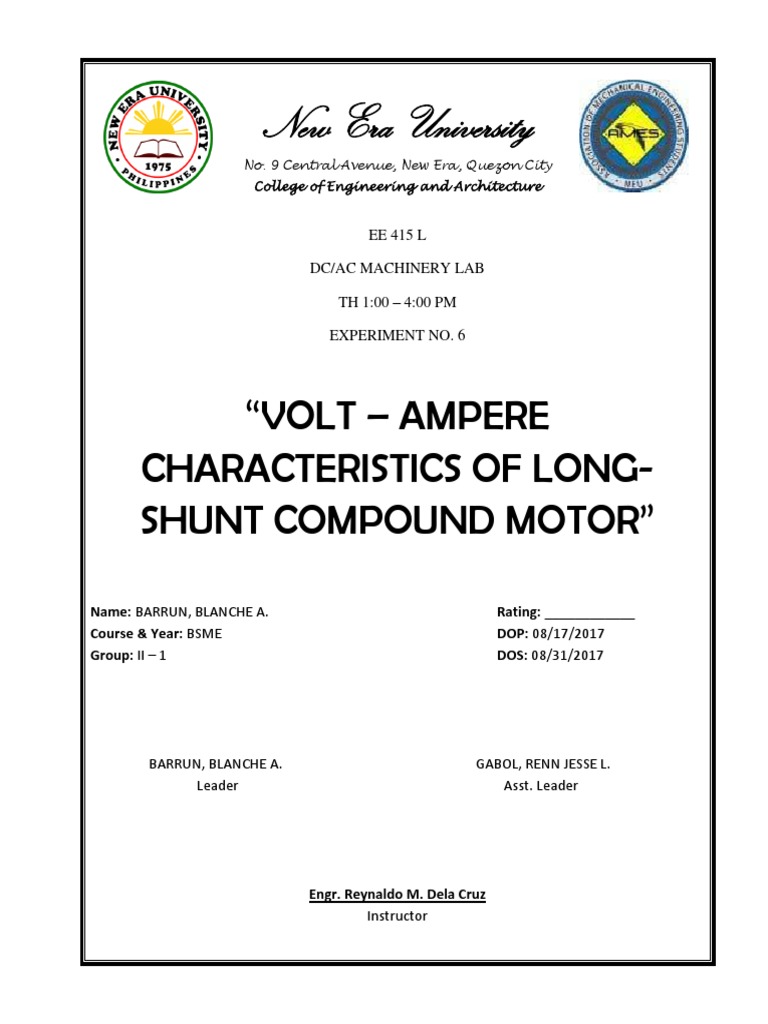

New Era University

No. 9 Central Avenue, New Era, Quezon City

College of Engineering and Architecture

EE 415 L

DC/AC MACHINERY LAB

TH 1:00 4:00 PM

EXPERIMENT NO. 6

VOLT AMPERE
CHARACTERISTICS OF LONG-
SHUNT COMPOUND MOTOR
Name: BARRUN, BLANCHE A. Rating: ____________
Course & Year: BSME DOP: 08/17/2017
Group: II 1 DOS: 08/31/2017

BARRUN, BLANCHE A. GABOL, RENN JESSE L.

Leader Asst. Leader

Engr. Reynaldo M. Dela Cruz

Instructor
I. OBJECTIVE
1. To familiarize with the shunt motor.
2. To observe the Volt Ampere characteristics of DC shunt motor.

II. EQUIPMENT
1 Variac Power Supply
1 AC/DC Converter
1 DMM
1 DWM
1 DC Machine (Compound)
16 Connecting Wires Banana Plug (Big Wire)
6 Connecting Wires Alligator Clips (Small Wire)
1 AC Plug with Banana Plug
1 Extension Cord

III. PROCEDURE
1. Connect the circuit shown in Figure 5.1 showing the short-shunt compound
motor.
2. Set the variac power supply into 10 Volt.
3. When the motor is rotating, measure and record the terminal voltage V T = 10V,
the line current IT, the power of the motor PM, and the field current IF.
4. Compute and record the internal resistance of the motor.
5. Repeat procedure No. 2, No. 3 and No. 4, when the variac is set to: 20V, 30V,
40V, 50V, up to 100V.
6. Plot a characteristics graph IT vs VT and VT vs PM.

IV. Circuit Diagram

Actual Pictures
V. Data and Results

VT IL PM IF RM=

Volt Amp Watt Amp Ohm
10 0.99 27 0.03 10.1
20 0.61 59 0.07 32.79
30 0.29 92 0.11 103.45
40 0.16 134 0.14 250
50 0.09 183 0.18 555.56
60 0.05 227 0.22 1200
70 0.02 270 0.27 3500
80 0 313 0.31
90 0.03 358 0.35 3000
100 0.06 398 0.39 1666.67

Graph

Current vs Voltage
1
0.9
0.8
0.7
0.6
IL (Amp)

0.5
0.4
0.3
0.2
0.1
0
0 10 20 30 40 50 60 70 80 90 100
VT (Volt)
 Voltage vs Power
100
90
80
70
60
VT (Volt)

50
40
30
20
10
0
0 50 100 150 200 250 300 350 400
PM (Watt)

VI. Question/ Problem

By internet research, research about:

LONG-SHUNT COMPOUNT MOTOR

Long Shunt Compound Wound DC Motor

In case of long shunt compound wound DC motor, the shunt field winding is
connected in parallel across the series combination of both the armature and series
field coil, as shown in the diagram below.
Voltage and Current Equation of Long Shunt Compound Wound DC Motor
Let E and Itotal be the total supply voltage and current supplied to the input terminals
of the motor. And Ia, Ise , Ish be the values of current flowing through
armature resistance Ra, series winding resistance Rse and shunt winding resistance
Rsh respectively.
Now we know in shunt motor,

And in series motor

Therefore, the current equation of a compound wound DC motor is given by

And its voltage equation is,

In this type, the shunt field winding is connected across the combination of armature
and the series field winding as shown in the Fig. 1.

Fig. 1 Long shunt compound motor

Let Rse be the resistance of series field and Rsh be the resistance of shunt field
winding. The total current drawn from supply is IL.
So IL = Ise + Ish
But Ise = Ia
.. . IL = Ia+ Ish
And Ish = V/Rsh
And V = Eb + Ia Ra + Ise Rse + Vbrush
But as Ise = Ia ,
.. . V = Eb + Ia (Ra + Rse) + Vbrush
