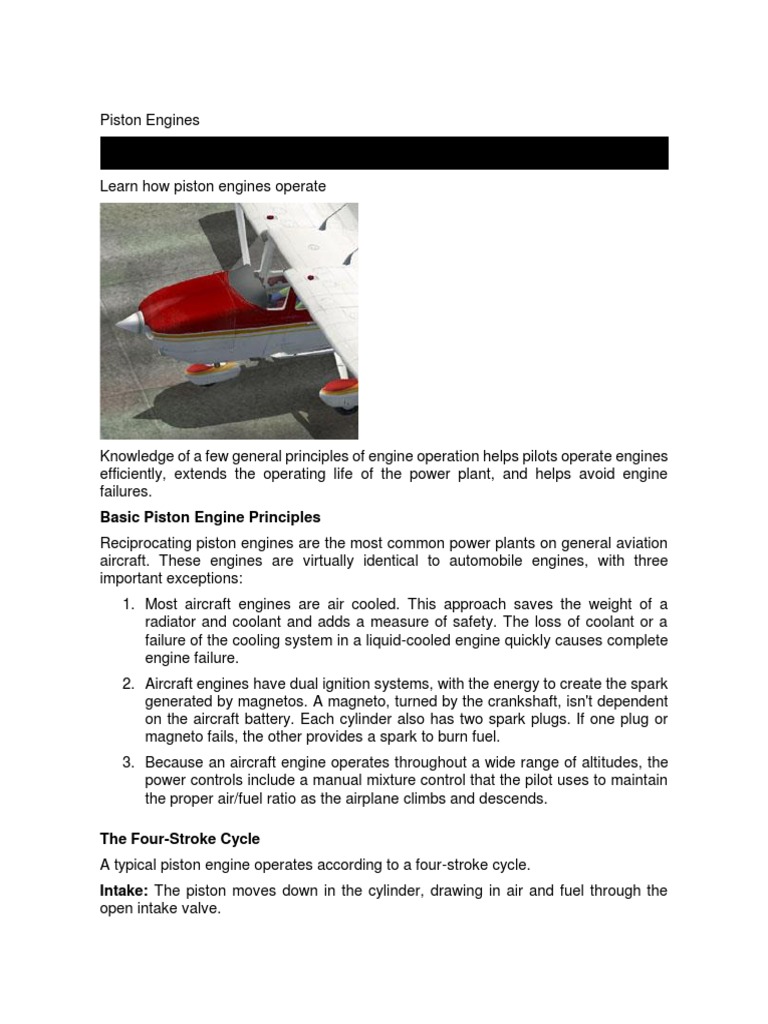

Piston Engines

Learn how piston engines operate

Knowledge of a few general principles of engine operation helps pilots operate engines
efficiently, extends the operating life of the power plant, and helps avoid engine
failures.
Basic Piston Engine Principles
Reciprocating piston engines are the most common power plants on general aviation
aircraft. These engines are virtually identical to automobile engines, with three
important exceptions:
1. Most aircraft engines are air cooled. This approach saves the weight of a
radiator and coolant and adds a measure of safety. The loss of coolant or a
failure of the cooling system in a liquid-cooled engine quickly causes complete
engine failure.
2. Aircraft engines have dual ignition systems, with the energy to create the spark
generated by magnetos. A magneto, turned by the crankshaft, isn't dependent
on the aircraft battery. Each cylinder also has two spark plugs. If one plug or
magneto fails, the other provides a spark to burn fuel.
3. Because an aircraft engine operates throughout a wide range of altitudes, the
power controls include a manual mixture control that the pilot uses to maintain
the proper air/fuel ratio as the airplane climbs and descends.

The Four-Stroke Cycle

A typical piston engine operates according to a four-stroke cycle.
Intake: The piston moves down in the cylinder, drawing in air and fuel through the
open intake valve.
Compression: The intake and exhaust valves in the cylinder close and the piston
moves up in the cylinder, compressing the fuel-air mixture.
Power: As the piston nears the top of the cylinder during the compression stroke, a
burst of electricity from the ignition system generates a spark in the spark plugs. The
sparks ignite the air/fuel mixture, which expands rapidly as it burns. The force of this
expansion drives the piston back down in the cylinder. As the piston moves down, it
turns the crankshaft, which turns the propeller.
Exhaust: When the piston reaches the bottom of the cylinder, the exhaust valve
opens. The piston then moves back up in the cylinder, pushing the burned air/fuel
mixture out of the cylinder.
Each cylinder cycles through these four strokes in turn, ensuring that at least one
piston is always producing power.

Carburetors and Fuel Injectors

Most piston engines used in aircraft have either a carburetor or fuel injection system
to deliver fuel and air to the cylinders. The carburetor mixes fuel and air before it enters
the cylinders. Carburetors are common on smaller engines because they're relatively
inexpensive. Larger engines usually have fuel-injection systems, which squirt fuel
directly into the cylinders, where it mixes with air during the intake stroke.

Ignition Systems
The ignition system provides a spark to ignite the air/fuel mixture in the cylinders of a
piston engine. Most modern aircraft engines use magnetos to generate the spark.
Although not as sophisticated as the electronic ignition systems used in the latest cars,
magnetos are useful in aircraft because:
• They produce a hotter spark at high engine speeds than the battery system
used in automobiles.
• They do not depend on an external source of energy such as a battery, a
generator, or an alternator.

Getting Started
Magnetos generate electricity when they rotate. So, to start the engine, the pilot must
engage a battery-powered starter that rotates the crankshaft. After the magnetos
begin rotating, they supply the spark to each cylinder to ignite the air/fuel mixture and
the starter system is disengaged. The battery no longer has any part in the operation
of the engine. If the battery (or master) switch is turned off, the engine continues to
run.
Dual Ignition

Most aircraft engines are equipped with a dual ignition system—two magnetos that
supply electrical current to two spark plugs for each cylinder. One magneto system
supplies the current to one set of plugs; the second system supplies the current to the
other set of plugs. This is why the ignition switch on the Cessna Skyhawk SP Model
172 (marked as MAGNETO on some planes) has five positions: OFF, L (left), R
(right), BOTH, and START. With the switch in the L or R position, only one magneto
supplies current and only one set of spark plugs fires. With the switch in the BOTH
positions, both magnetos supply current and both sets of spark plugs fire.

Advantages of Dual Ignition

Aircraft have dual ignition systems for safety and efficiency.
• If one magneto system fails, the engine can operate on the other system until
you can make a safe landing.
• Two spark plugs improve burning and combustion of the mixture, delivering
improved performance.

Operating the Ignition System

You should turn the ignition switch to BOTH after starting the engine and leave it on
BOTH during flight. Turn it OFF after shutting down the engine. If you leave the ignition
switch on BOTH (or L or R), the engine could fire if the propeller is moved from outside
the airplane—even if the electrical master switch is off.

Before Takeoff Check

To make sure both ignition systems are operating properly, check each system during
the engine run-up before takeoff. The normal procedure is to set the power at about
1700 rpm. Turn the ignition switch from BOTH to R, then back to BOTH, then to L, and
then back to BOTH. You should see a slight drop in rpm each time you switch from
BOTH to either R or L. If both magnetos are functioning normally, the drop should be
no more than about 75 rpm.

Shutting Down the Engine

You should not shut down a piston engine by turning the ignition switch to OFF.
Instead, move the mixture control to the idle cutoff position to turn off the fuel supply
to the cylinders. After the engine stops, turn the ignition switch to OFF. This procedure
ensures that no fuel remains in the cylinders and that the engine won't start accidentally
if someone turns the prop or if carbon deposits inside the cylinders create hot spots
that ignite residual fuel.

Piston Engine Controls

Most modern piston engines have two or three basic controls.

• A throttle, the control that has the most direct effect on power.
• Propeller control (if the aircraft is equipped with a constant-speed propeller) to
adjust the propeller's rotational speed, measured in revolutions per minute
(rpm).
• Mixture control to adjust the air/fuel mixture as the airplane climbs and
descends.
Carbureted engines also have carburetor heat to prevent the formation of or to melt
carburetor ice. Engines of about 200 horsepower or more usually have cowl flaps to
allow the pilot to adjust the amount of cooling air that flows over the engine. Opening
the cowl flaps is especially important during high-power operations such as takeoff and
prolonged climbs.

Propellers
Piston engines are typically connected to a fixed-pitch or a constant-speed propeller.
Fixed-pitch propellers are bolted directly to the crankshaft of the engine and therefore
always turn at the same speed as the engine. A fixed-pitch prop is somewhat like a
transmission with only one gear. This configuration makes up for its lack of efficiency
by being very simple to operate. The only gauge that you need to monitor is the
tachometer.
A constant-speed propeller has a governor that adjusts the angle of the blades to
maintain the rpm you select. This type of propeller makes much more efficient use of
the engine's power. At low speed when maximum power is required (as during takeoff),
you select maximum rpm or "full increase" with the propeller control, and the propeller
blades meet the air at a small angle. During cruise, you adjust the rpm to a lower
setting, and the blades take a bigger bite of the air while turning a lower speed.

Managing the Power

With a fixed-pitch propeller, managing power is simple. Push the throttle in, and rpm
(and power) increases. Pull the throttle out, and rpm decreases. Be aware, however,
that as airspeed increases, rpm tends to creep up, too. Monitor the tachometer
carefully during descents at high speed to make sure that the rpm stays within limits.
A constant-speed propeller makes power management a bit more complicated. You
must monitor the manifold pressure gauge, controlled by the throttle, and the
tachometer, which shows the propeller rpm. You adjust rpm with the prop control.
When setting power with a constant-speed propeller, remember these basic rules to
avoid overstressing the engine:

To increase power
1. Increase rpm by advancing the propeller control.
2. Increase manifold pressure with the throttle.

To decrease power
1. Reduce manifold pressure with the throttle.
2. Decrease rpm with the propeller control.

Engines with Carburetors

Many aircraft piston engines use carburetors to combine air and fuel to create a
combustible mixture that burns in the cylinders.
How a Carburetor Works
Outside air flows through an air filter, then into the carburetor. The air flows through a
venturi, a narrow throat in the carburetor. The air accelerates in the venturi and its
pressure drops according to Bernoulli's principle. The partial vacuum forces fuel to flow
through a jet into the airstream where it mixes with the flowing air. The air/fuel mixture
then flows into the intake manifold, which routes it to each cylinder.

The Right Ratio

The carburetor mixes air and fuel by weight. Piston engines generally produce
maximum power when the air/fuel mixture is about 15:1.Carburetors are calibrated at
sea-level pressure to meter the correct amount of fuel with the mixture control in the
full rich position. As altitude increases, air density decreases. To compensate for this
difference, the pilot uses the mixture control to adjust the air/fuel mixture entering the
combustion chamber.
To control the amount of fuel that mixes with the air, most carburetors use a float in a
fuel chamber. A needle attached to the float opens and closes an opening in the fuel
line, metering the correct amount of fuel into the carburetor. The position of the float,
controlled by the fuel level in the float chamber, determines when the valve opens and
closes.
Running Rich
An air/fuel mixture that is too rich—that is, it contains too much fuel—causes excessive
fuel consumption, rough engine operation, and loss of power. Running an engine too
rich also cools the engine, causing below-normal temperatures in the combustion
chambers, which leads to spark plug fouling, among other problems.

Running Lean
Operating with the mixture too lean—too little fuel for the current weight of air—results
in rough engine operation, detonation, overheating, and a loss of power.

Carburetor Ice
Vaporization of fuel and expansion of the air in the carburetor causes sudden cooling
of the air/fuel mixture. The temperature may drop as much as 60 F (15 C) within a
fraction of a second. This cooling causes water vapor in the air to condense, and if the
temperature in the carburetor reaches 32 degrees F (0 C) the water freezes inside the
carburetor passages. Even a slight accumulation of this deposit can restrict the flow of
air into the carburetor, reducing power. Carburetor ice may also lead to complete
engine failure, particularly when the throttle is partly or fully closed.

Icing Conditions
On dry days, or when the temperature is well below freezing, the moisture in the air
generally doesn't cause carburetor ice. But if the temperature is between 20 F (-7 C)
and 70 F (21 C), with visible moisture or high humidity, the pilot should be constantly
on the alert for carburetor ice.

Indications of Carburetor Icing

For airplanes with fixed-pitch propellers, the first indication of carburetor icing is a drop
in rpm on the tachometer. For airplanes with controllable pitch (constant-speed)
propellers, the first indication is usually a drop in manifold pressure. In both cases, the
engine may start to run rough. In airplanes with constant-speed propellers, rpm
remains constant.

Thawing Out
To prevent carburetor ice from forming and to eliminate ice that forms, carburetors are
equipped with heaters. The carburetor heater preheats the air before it reaches the
carburetor. This preheating melt ice or snow entering the intake, melts ice that forms
in the carburetor passages (provided the accumulation is not too great), and keeps the
air/fuel mixture above freezing to prevent formation of carburetor ice.

Using Carburetor Heat

When flying in conditions conducive to carburetor icing, monitor the engine instruments
to watch for signs that ice is forming. If you suspect that carburetor ice is present, apply
full carburetor heat immediately. Leave it on full until you're certain that all the ice has
been removed. Applying partial heat or leaving heat on for too short a time may
aggravate the situation.
When you first apply carburetor heat, expect a drop in rpm in airplanes equipped with
fixed-pitch propellers; in airplanes equipped with constant-speed propellers, expect a
drop in manifold pressure. If no carburetor ice is present, rpm or manifold pressure will
remain lower than normal until the carburetor heat is turned off. If carburetor ice is
present, expect a rise in rpm or manifold pressure after the initial drop (often
accompanied by intermittent engine roughness). When you turn carburetor heat off,
the rpm or manifold pressure rises above the value before heat was applied. The
engine should also run more smoothly after the ice has melted.
In extreme cases of carburetor icing, after the ice has been removed you may need to
apply just enough carburetor heat to prevent further ice formation.

Carburetor Heat as a Precaution

Whenever the throttle is closed during flight, especially as you prepare to land, the
engine cools rapidly and vaporization of the fuel is less complete than if the engine is
warm. If you suspect carburetor icing conditions, apply full carburetor heat before
closing the throttle and leave the heat on.

More Power
Use of carburetor heat tends to reduce the output of the engine and increase the
engine's operating temperature. Therefore, don't use carburetor heat when you need
full power (as during takeoff) or during normal engine operation except to check for the
presence or removal of carburetor ice.

Fuel-Injected Engines
Piston engines rated at more than 200 horsepower often use a fuel-injection system
rather than a carburetor.
A fuel-injection system squirts fuel directly into the cylinders or just ahead of the intake
valve. The fuel then mixes with air in the cylinders. Because this type of system
requires high-pressure pumps, an air/fuel control unit, a fuel distributor, and discharge
nozzles for each cylinder, it's generally more expensive than a carburetor.
As with an engine equipped with a carburetor, the pilot controls the flow of fuel by
adjusting the mixture control.

Advantages of Fuel Injection

Fuel injection has several advantages over a carbureted fuel system, which
compensate for its greater cost and complexity.
• No possibility of carburetor ice (although impact ice can block air intakes).
• Better fuel flow.
• Faster throttle response.
 • Precise control of mixture.
• Better fuel distribution.
• Easier cold-weather starts.

Disadvantages of Fuel Injection

Fuel injection does have some disadvantages, the most important being:
• Difficulty in starting a hot engine.
• Vapor locks during ground operations on hot days.
• Difficulty restarting an engine that quits as the result of fuel starvation.
- top -
