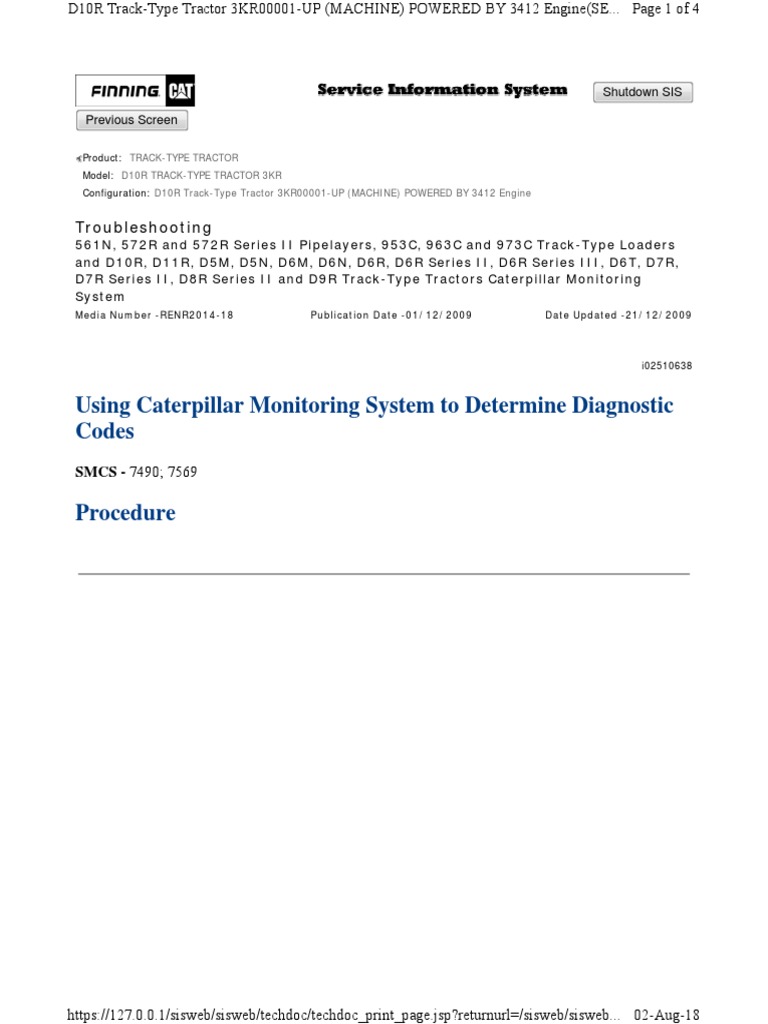

Product: TRACK-TYPE TRACTOR

Model: D10R TRACK-TYPE TRACTOR 3KR
Configuration: D10R Track-Type Tractor 3KR00001-UP (MACHINE) POWERED BY 3412 Engine

Troubleshooting
561N, 572R and 572R Series II Pipelayers, 953C, 963C and 973C Track-Type Loaders
and D10R, D11R, D5M, D5N, D6M, D6N, D6R, D6R Series II, D6R Series III, D6T, D7R,
D7R Series II, D8R Series II and D9R Track-Type Tractors Caterpillar Monitoring
System
Media Number -RENR2014-18 Publication Date -01/12/2009 Date Updated -21/12/2009

i02510638

Using Caterpillar Monitoring System to Determine Diagnostic

Codes
SMCS - 7490; 7569

Procedure

https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb... 02-Aug-18
D10R Track-Type Tractor 3KR00001-UP (MACHINE) POWERED BY 3412 Engine(SE... Page 2 of 4

Illustration 1 g00429460

Display Area

(1) First display. (2) Second display. (3) Module identifier (MID). (4) service code indicator (SERV CODE). (5)
Component identifier (CID). (6) Failure mode identifier (FMI).

Note: Illustration 1 shows the display from current production machines. The CID is now four digits.
A decimal point "." has replaced the "F". The "F" came before the FMI. The display that is seen on
earlier models is shown in illustration 2.

https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb... 02-Aug-18
D10R Track-Type Tractor 3KR00001-UP (MACHINE) POWERED BY 3412 Engine(SE... Page 3 of 4

Illustration 2 g00300658

Display Area

(1) First display. (2) Second display. (3) Module identifier (MID). (4) Service code indicator (SERV CODE). (5)
Component identifier (CID). (6) Failure mode identifier (FMI).

The following procedures may cause new diagnostic codes to be logged. Therefore, before any
procedures are performed make a list of all the active diagnostic codes in order to determine the
system problems. Clear the diagnostic codes that were caused by the procedure, when each procedure
is complete.

Note: Before performing a procedure, always check all the circuit breakers. Repair the cause of any
circuit breaker that is tripped.

Use the following procedure to troubleshoot diagnostic code information.

1. Place the Caterpillar Monitoring System in service mode (mode 3). In order to place the
Caterpillar Monitoring System in service mode, close the service and clear switches. Open the
switches when service mode "3" is shown on the display.

Note: The diagnostic scrolling mode may be entered in order to see the diagnostic codes, but
the diagnostic codes can be more easily diagnosed by using the service mode. The service mode

https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb... 02-Aug-18
D10R Track-Type Tractor 3KR00001-UP (MACHINE) POWERED BY 3412 Engine(SE... Page 4 of 4

allows the diagnostic codes to be placed on hold for further investigation. The service mode
allows the diagnostic codes to be cleared when the problem has been fixed.

2. The diagnostic code is shown and the diagnostic code is on hold at this time. The display
toggles between showing MID (3) and CID (5) and FMI (6). If you are in the service mode and
a diagnostic code is not present, "---" will be displayed.

3. In order to view all the diagnostic codes, scroll through the diagnostic codes. In order to scroll
through the diagnostic codes, close the service switch. The display momentarily shows MID
(3), CID (5) and FMI (6) for each diagnostic code. The word "End" will be shown after the last
diagnostic code in the list.

4. Place the desired diagnostic code on hold. In order to place the diagnostic code on hold, open
the service switch when the desired diagnostic code is shown.

5. Use the information from the MID in order to determine the ECM that is generating the
diagnostic code. If the MID is not 030, see Electrical System Schematic, "Module Identifier
(MID) Table" of the machine that is being serviced. Use the table to determine the ECM that
has detected the diagnostic code. Then see the service manual module for that electronic
control. If the MID is 030, use this Service Manual Module to troubleshoot the diagnostic code
that is generated.

6. Observe the "SERV CODE" indicator (4). In the service mode, the "SERV CODE" indicator
functions as a "SERV CODE" indicator.

◦ If the "SERV CODE" indicator (4) shows "SERV CODE", then the failure that caused
the diagnostic code that is shown is currently present.

◦ If the "SERV CODE" indicator (4) is OFF, then the diagnostic code that caused the
diagnostic code that is shown is not present at this time.

7. See the corresponding test in order to troubleshoot the diagnostic code. Use the Service Manual
for the ECM that is generating the diagnostic code.

8. After a diagnostic code is corrected, clear the diagnostic code. In order to clear the diagnostic
code, close the clear switch while the diagnostic code is on hold. After clearing, the display
advances to the next available diagnostic code.

9. Repeat Steps 2 through 8 for the remaining diagnostic codes. Return to the normal mode when
you are finished. In order to return to the normal mode, close the service and clear switches.
Open the switches when mode "0" is shown on the display.
