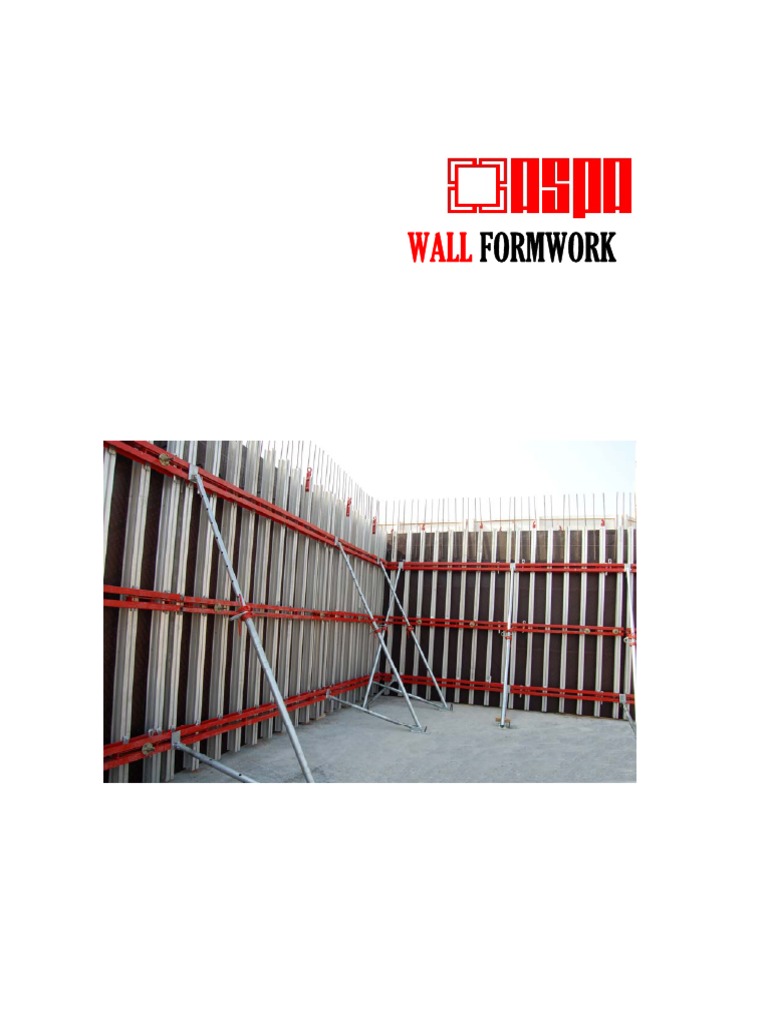

WALL FORMWORK
WALL Introduction
ASPA designs, manufactures and supplies a full range of system formwork from flying table forms to climbing system.
The shuttering panel is used to form concrete structures such as retaining walls, dams, reservoirs, water towers and bridges.
ASPA's engineers, supported by experienced draughtsmen, have had extensive experience in designing purpose‐made steel
forms. All designs are CAD generated and are supported by up‐to‐date design programmes.
Economical:
• Virtually eliminates timber
• Robust, resistance to damage
• Standard elements suit plywood sheet size without cutting
• Components easily transported and stored
• Few standard components simplifies stock requirements
Versatile:
• Unlimited adjustment
• For Walls, Beams & Heavy Slab support
• Complex shape possible
Labour Saving:
• Aluminum beams speed up assembly
• Simple erection and dismantling
• No skilled labour required
• Light Weight
WALL Components
Steel Waler Universal Clamp
It is a twin 100x50mm chennel section. Designed to make Used to connect Aluminum to waler. Simple in design
elements using standard size plywood sheets. prevent rotation and ensure positive connection.
Simple, positive connections 110kN tie load capacity.
Weight 22 kg/m
Weight (kg)
Length 0.52
(m)
1.17
2.39 Angle Tie Bracket
3.61
4.83 It is a heavy duty bracket for external corner ties.
Fixed to walers with the help of wedge.
Weight (kg)
Aluminum Beam 2.5
Two different profile are available:
Prop Connector
Fitted to formwork by wedge, they
provide attachment for Push‐pull Props.
Weight (kg)
2.0
A150 Beam: Bending Moment exceeds 6 kNm
Size: 150x80 mm
Weight: 3.162 kg/m
Length: Any length up to 10m Lifting Bracket
Connect to the Aluminum beam for crane handling
A165 Beam: Bending Moment exceeds 6 kNm of forms. Two bracket are used per panel.
Size: 150x80 mm
Weight: 3.162 kg/m Weight (kg)
Length: Any length up to 10m 4.5
WALL Components
Wedge A Splicer
They are heavy drop forged wedge, which provides Splicer provides standard connections between panel.
high strength connections. Minimum adjustment length is 710mm.
Weight (kg) Weight (kg)
1.0 4.1
Wedge S
Access Bracket Simple robust wedge for connection of accessories.
Simple but robust bracket with positive wedge fixing
for providing walkways on large forms. It is provide
with spigot for fixing guardrail post. Weight (kg)
0.3
Weight (kg)
11.0 Internal Corner Connector
Provides tight positive connectios at internal corners.
ensure 90° corner every time.
Internal Splice
For connection between panels where make up areas is Weight (kg)
required. Can also be used to extend panels for stop‐end 11.0
and external corner details.
Length Hinge Waler Connector
(mm)
960 Used when there is a change in angle between panels.
1460 Can be used in circular structure.
1960
Weight (kg)
17.0
WALL Technical Data
ECO‐FLEX
STEEL WALERS
PLYWOOD SIZES
(18mm Thk) 1219 2438 3657 4876
STEEL WALER SIZES
(mm) 1170 2390 3610 4830
CONCRETE PRESSURE S N S N S N S N
(kN/m²) (mm) (mm) (mm) (mm)
40 363 4 330 8 353 11 339 15
50 363 4 330 8 353 11 339 15
60 272 5 288 9 321 12 316 16
80 272 5 288 9 294 13 296 17
90 272 5 256 10 294 13 296 17
S ‐ Aluminum beams spacing center to center
N ‐ No. of Aluminum beams per panel
WALL Technical Data
ECO‐FLEX
STEEL WALERS
CONCRETE PANEL
PRESSURE HEIGHT A‐FLEX STEEL WALERS SPACING
(kN/M²) (M) (M)
A B C D E
50 2.0 0.4 1.0
65 2.6 0.4 1.2
75 3.0 0.4 1.6
80 3.5 0.4 1.0 1.2
80 4.0 0.4 1.0 1.6
80 4.5 0.4 1.0 1.2 1.2
80 5.2 0.4 1.0 1.2 1.6
80 6.0 0.4 0.9 1.0 1.2 1.6
CONCRETE PANEL
PRESSURE HEIGHT A‐FLEX STEEL WALERS LOAD
(kN/M²) (M) (kN/M)
W1 W2 W3 W4 W5
50 2.0 32.9 15.1
65 2.6 52.5 32.0
75 3.0 72.0 40.5
80 3.5 67.5 56.4 28.1
80 4.0 71.9 79.6 40.5
80 4.5 75.5 78.4 57.0 21.1
80 5.2 72.0 88.0 87.5 40.5
80 6.0 68.0 76.0 86.6 84.0 36.1
