3.

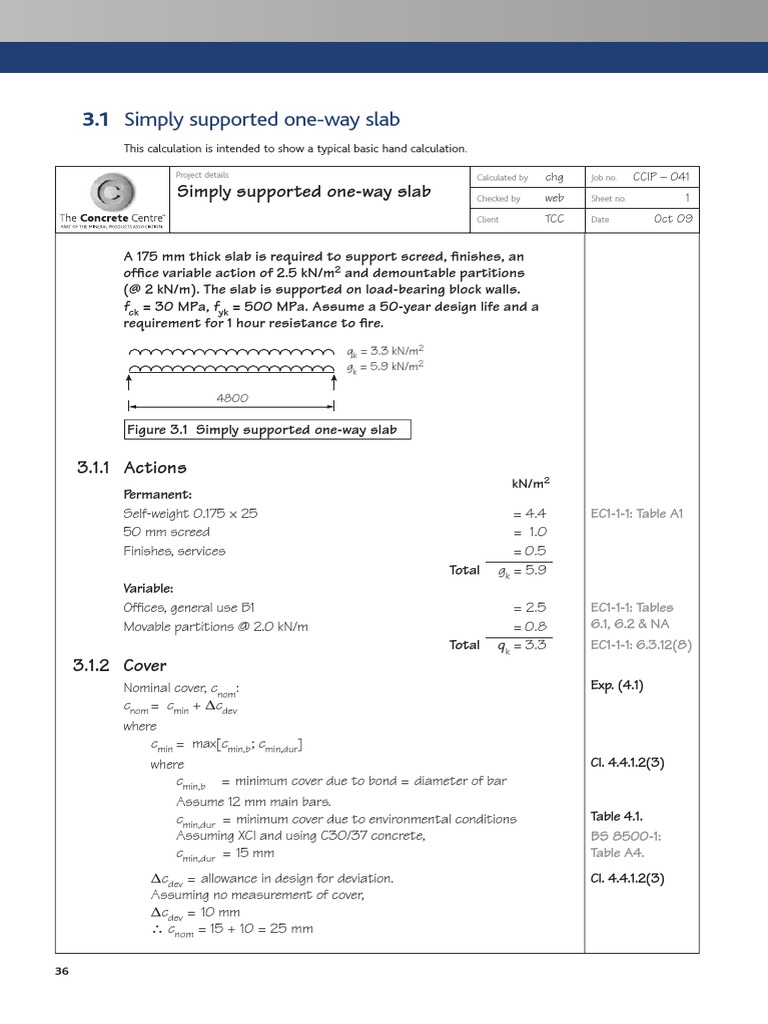

1 Simply supported one-way slab

Mabl\Ze\neZmbhgblbgm^g]^]mhlahpZmrib\Ze[Zlb\aZg]\Ze\neZmbhg'

Ikhc^\m]^mZbel <Ze\neZm^][r chg Ch[gh' CCIP – 041

Simply supported one-way slab <a^\d^][r web La^^mgh' 1
<eb^gm TCC =Zm^ Oct 09

A 175 mm thick slab is required to support screed, finishes, an

office variable action of 2.5 kN/m2 and demountable partitions
(@ 2 kN/m). The slab is supported on load-bearing block walls.
fck = 30 MPa, fyk = 500 MPa. Assume a 50-year design life and a
requirement for 1 hour resistance to fire.
qk = 3.3 kN/m2
gk = 5.9 kN/m2

4800

Figure 3.1 Simply

p supported
pp one-way slab

3.1.1 Actions
kN/m2
Permanent:
Self-weight 0.175 × 25 = 4.4 EC1-1-1: Table A1
50 mm screed = 1.0
Finishes, services = 0.5
Total gk = 5.9
Variable:
Offices, general use B1 = 2.5 EC1-1-1: Tables
Movable partitions @ 2.0 kN/m = 0.8 6.1, 6.2 & NA
Total jk = 3.3 EC1-1-1: 6.3.12(8)
3.1.2 Cover
Nominal cover, cnom: Exp. (4.1)
cnom = cmin + Dcdev
where
cmin = max[cmin,b ; cmin,dur]
where Cl. 4.4.1.2(3)
cmin,b = minimum cover due to bond = diameter of bar
Assume 12 mm main bars.
cmin,dur = minimum cover due to environmental conditions Table 4.1.
Assuming XCI and using C30/37 concrete, BS 8500-1:
cmin,dur = 15 mm Table A4.
Dcdev = allowance in design for deviation. Cl. 4.4.1.2(3)
Assuming no measurement of cover,
Dcdev = 10 mm
= cnom = 15 + 10 = 25 mm

36
