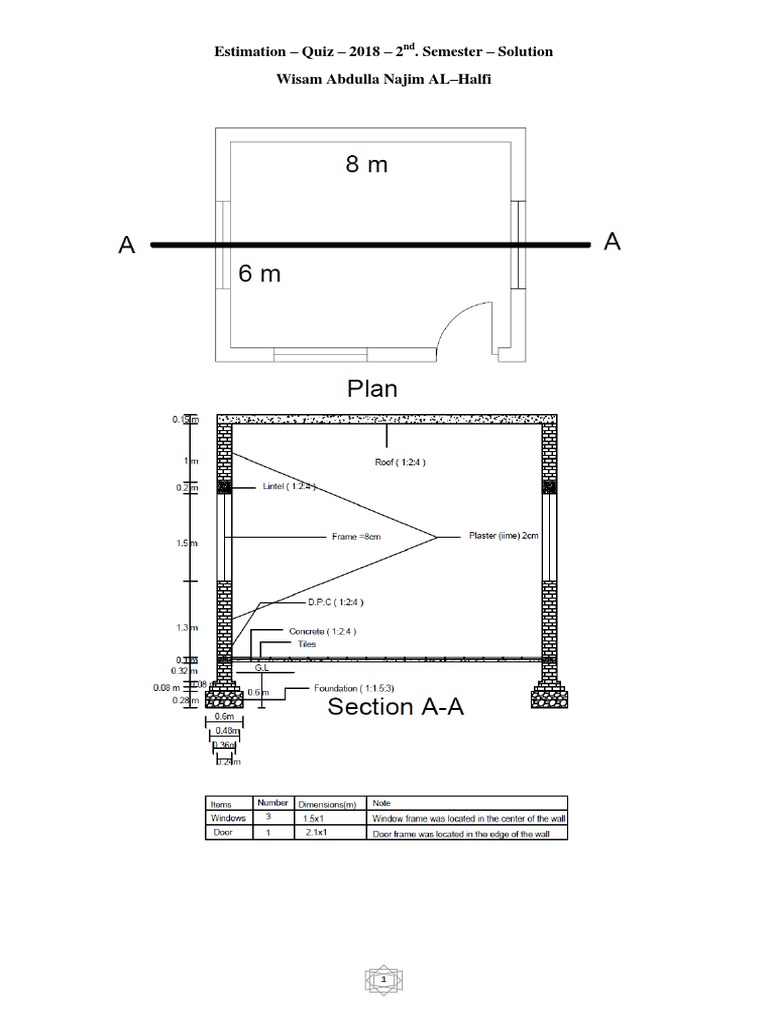

    Estimation – Quiz – 2018 – 2nd.

    Semester – Solution
    Wisam Abdulla Najim AL–Halfi

    1
    Estimation – Quiz – 2018 – 2nd. Semester – Solution
    Wisam Abdulla Najim AL–Halfi

    1. Excavation :
    Length = 2(8+0.24) + 2(6+0.24)
    = 28.96 m.
    Volume = length x width x height
    = 28.96 x 0.6 x 0.6 = 10.4256 m3.
    2. Foundation : ( 1:1.5:3):
    V = 28.96 x 0.6 x 0.28 = 4.86528 m3.
    V = 0.67(C+S+G)
    4.86528 = 0.67 (1+1.5+3) C
    C = 1.32029308 m3.
    Cement = 37 bags.
    Sand = 1.980 m3.
    Gravel = 3.960 m3.
    3. Bricks ( under D.P.C):
    1st. V = 28.96 X 0.08 X 0.48 = 1.112064 m3.
    2nd. V = 22.96 X 0.08 X 0.36 = 0.834048 m3.
    3rd. V = 22.96 X 0.32 X 0.24 = 2.224128 m3.
    Vtotal = 4.17024 m3.
    No. of bricks = 450 X 4.17024 = 1877 bricks.
    Morter :(1:3)
    Vmorter = 0.23 X 4.17024 = 0.9591552 m3.
    V = 0.75(C+S)
    0.9591552 = 0.75 (1+3)C
    C = 0.3197184 m3.
    Cement = 9 bags.
    Sand = 0.9591552 m3.
    4. D.P.C.: (1:2:4):
    V = 28.96 x 0.1 x 0.24 = 0.69504 m3.
    V = 0.76 (1+2+4)C
    C = 0.148196162 m3.
    Cement = 5 bags.
    Sand = 0.296 m3.
    Gravel = 0.592 m3.

    2
    Estimation – Quiz – 2018 – 2nd. Semester – Solution
    Wisam Abdulla Najim AL–Halfi

    Lintel: (1:2:4)
    V = 28.96 x 0.2 x 0.24 = 1.39008 m3.
    C = 0.296 m3.
    Cement = 9 bags.
    Sand = 0.593 m3.
    Gravel = 1.186 m3.
    5. Bricks (above D.P.C.):
    A = 28.96 x 4 = 115.84 m2.(+)
    Adoor = 2.1 x 1 = 2.1 m2. (–)
    A win. = 3(1.5 x 1) = 4.5 m2. (–)
    Atotal = 115.84 – 2.1 – 4.5 = 109.24 m2.
    V = Atotal X 0.24 = 109.24X0.24 = 26.2176 m3.
    V lintel = 28.96 x 0.2 x 0.24 = 1.39008 m3. (–)
    Vtotal = 24.82752 m3.
    No. of bricks = 450 x 24.82752 = 11173 bricks.
    Morter: (1:3):
    Vmorter = 0.23 X 24.82752 = 5.7103296 m3.
    V = 0.75(C+S)
    5.7103296= 0.75 (1+3)C
    C = 1.9034432 m3.
    Cement = 54 bags.
    Sand = 5.710 m3.
    6. Plastering ( inside):
    A = 2(8+6) x 4 = 112 m2.
    Adoor = 2.1 x 1 = 2.1 m2. (–)
    Awin.= 3(1.5 x 1) = 4.5 m2. (–)
    Ar.door = (2.1+1+2.1) x 0.16 = 0.832 m2.(+)
    Ar.win. = 3(1.5+1+1.5+1) x 0.08 = 1.2 m2.(+)
    Atotal = 107.432 m2.
    Vtotal = 107.432 x 0.02 = 2.14864 m3.
    Quantity of lime = 1417 x 2.14864 = 3045 kg.
    Vroof = 8 x 6 x 0.02 = 0.96 m3.
    Quantity of lime = 1417 x 0.96 = 1361 kg.
    Quantity of lime = 4406 kg.

    3
    Estimation – Quiz – 2018 – 2nd. Semester – Solution
    Wisam Abdulla Najim AL–Halfi

    7. Plastering (outside (1:3)):


    A = 2(8.48+6.48) x 4.25 = 127.16 m2.
    Adoor = 2.1 x 1 = 2.1 m2. (–)
    Awin.= 3(1.5 x 1) = 4.5 m2. (–)
    Ar.win. = 3(1.5+1+1.5+1) x 0.08 = 1.2 m2.(+)
    Atotal = 121.76 m2.
    Vtotal = 121.76 x 0.02 = 2.4352 m3.
    C = 0.812 m3.
    Cement = 23 bags.
    Sand = 2.4352 m3.
    8. Slab (roof): (1:2:4)
    V = 8.48 x 6.48 x 0.15 = 8.24256 m3.
    C = 1.757947548 m3.
    Cement = 50 bags.
    Sand = 3.515 m3.
    Gravel = 7.030 m3.
    9. Blanding: (1:2:4)
    V = 8 x 6 x 0.05 = 2.4 m3.
    C = 0.512 m3.
    Cement = 15 bags.
    Sand = 1.024 m3.
    Gravel = 2.048 m3.
    10. Tiles: (30X30)cm.
    Aroom = 8X6 = 48 m2.
    Atile = 0.303X0.303 = 0.091809 m2.
    No. of tiles = (Aroom / Atile ) = 523 tiles
