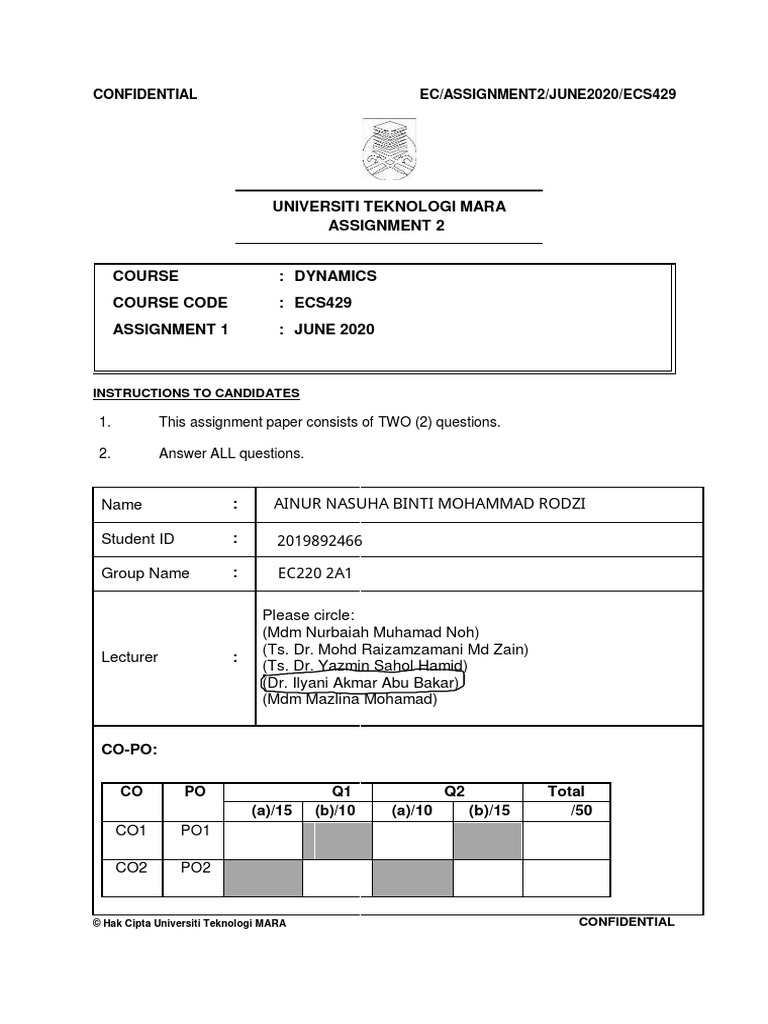

CONFIDENTIAL EC/ASSIGNMENT2/JUNE2020/ECS429

UNIVERSITI TEKNOLOGI MARA

ASSIGNMENT 2

COURSE : DYNAMICS
COURSE CODE : ECS429
ASSIGNMENT 1 : JUNE 2020

INSTRUCTIONS TO CANDIDATES

1. This assignment paper consists of TWO (2) questions.

2. Answer ALL questions.

Name : AINUR NASUHA BINTI MOHAMMAD RODZI

Student ID : 2019892466

Group Name : EC220 2A1

Please circle:
(Mdm Nurbaiah Muhamad Noh)
(Ts. Dr. Mohd Raizamzamani Md Zain)
Lecturer :
(Ts. Dr. Yazmin Sahol Hamid)
(Dr. Ilyani Akmar Abu Bakar)
(Mdm Mazlina Mohamad)

CO-PO:

CO PO Q1 Q2 Total
(a)/15 (b)/10 (a)/10 (b)/15 /50
CO1 PO1

CO2 PO2

© Hak Cipta Universiti Teknologi MARA CONFIDENTIAL

CONFIDENTIAL EC/ASSIGNMENT2/JUNE2020/ECS429

STUDENT DECLARATION:

“I hereby declare that all the online submissions are based on my

original efforts, not plagiarised from any source(s), nor attempting to or
communicating with any other person during the online assessment
period. I am fully aware that candidates who are suspected of violating
this pledge are liable to be referred to the Disciplinary Committee of the
Faculty.”

______________________________________________
(Name: AINUR NASUHA BINTI MOHAMMAD RODZI )
(Student ID: 2019892466 )
Faculty of Civil Engineering
Universiti Teknologi MARA,
40450 Shah Alam, Selangor

DO NOT TURN THIS PAGE UNTIL YOU ARE TOLD TO DO SO

This assignment paper consists of 4 printed pages

© Hak Cipta Universiti Teknologi MARA CONFIDENTIAL

CONFIDENTIAL EC/ASSIGNMENT2/JUNE2020/ECS429

QUESTION 1

The double pulley in Figure Q1 has a centroidal moment of inertia of 0.574 kgm 2 with an
outer radius of 350 mm and an inner radius of 250 mm. Neglecting friction of the bearing.
Given the mass of block A, mA= 20 kg.
a) Using Newton’s Second Law, express the equations of motion for block A, pulley B,
and Mr. Ahmad. Knowing that the coefficient of kinetic friction between Mr. Ahmad’s
foot and the floor is μk=0.3 and consider the reaction force of Mr. Ahmad as one
system. Calculate the acceleration of block A if velocity for block A is 2.56 m/s. Using
the Work-Energy Method, solve the distance, h of block A before it comes to rest.
Consider Mr. Ahmad’s weight to be the same as you. Please write down your
weight in the answer script. (CO1-PO1) (C4)
(15 marks)
b) Using the Impulse-Momentum Method, determine the velocity of block A and B, 3
seconds after the system is released from rest. (CO2-PO2) (C3)
(10 marks)

3
4

Figure Q1

© Hak Cipta Universiti Teknologi MARA CONFIDENTIAL

CONFIDENTIAL
EC/ASSIGNMENT2/JUNE2020/ECS42
9

QUESTION 2

a) A spring is stretched 250 mm by a 20 kg block. If the spring moved 100 mm below

equilibrium position and given a downward velocity of 0.75 m/s, determine the
periodic function that describe the block’s motion and the phase angle. (Assume that
the positive displacement is downward). (CO1-PO1) (C3)
(10 marks)

b) Figure Q2(b) shows that the 4 kg block A is supported by the 20 kg disk that is
pinned at its mass center O. Determine the period and frequency of the resulting
motion of the system if the belt which passes over the disk is not allowed to slip at its
contacting surface. (CO2-PO2) (C4)
(15 marks)

Figure Q2(b)

END OF QUESTION PAPER

© Hak Cipta Universiti Teknologi MARA CONFIDENTIA
