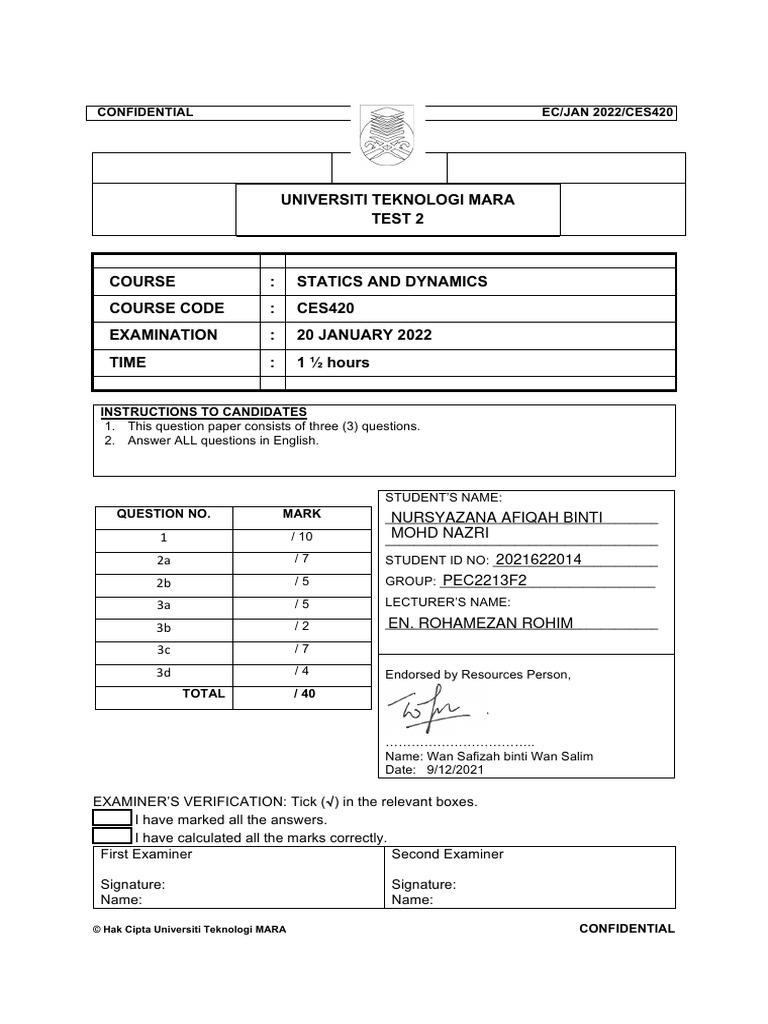

CONFIDENTIAL 1 EC/JAN 2022/CES420

UNIVERSITI TEKNOLOGI MARA

TEST 2

COURSE : STATICS AND DYNAMICS

COURSE CODE : CES420
EXAMINATION : 20 JANUARY 2022
TIME : 1 ½ hours

INSTRUCTIONS TO CANDIDATES
1. This question paper consists of three (3) questions.
2. Answer ALL questions in English.

STUDENT’S NAME:
QUESTION NO. MARK ______________________________________
NURSYAZANA AFIQAH BINTI
1 / 10 MOHD NAZRI
______________________________________
2a /7 STUDENT ID NO: _______________________
2021622014
2b /5 GROUP: ______________________________
PEC2213F2
3a /5 LECTURER’S NAME:

3b /2 ______________________________________
EN. ROHAMEZAN ROHIM
3c /7
3d /4 Endorsed by Resources Person,
TOTAL / 40

……………………………..
Name: Wan Safizah binti Wan Salim
Date: 9/12/2021

EXAMINER’S VERIFICATION: Tick (√) in the relevant boxes.

I have marked all the answers.
I have calculated all the marks correctly.
First Examiner Second Examiner

Signature: Signature:
Name: Name:

© Hak Cipta Universiti Teknologi MARA CONFIDENTIAL

CONFIDENTIAL 2 EC/JAN 2022/CES420

Date: Date:

QUESTION 1

A load W of magnitude 350 N is applied to the mechanism at C. Neglecting the weight of the
mechanism, determine the value of θ corresponding to equilibrium using principle of virtual
work. The constant of the spring is k = 5 kN/m, and the spring is unstretched when θ = 0.
(CO2:PO2)(C4)

(10 marks)

Figure Q1

QUESTION 2

An automobile is travelling on the level pavement at a speed of 90 km/h. At that speed the
driver apply a break until it’s come to stop and the breaking distance was 45 m. Assume the
breaking force is independent of the grade. By applying the suitable method

a) Find the deceleration of the automobile from 90 km/h until it’s stopped. (CO1:PO1)(C2)

(7 marks)

b) Find the breaking force applied by the road and the tires. (CO1:PO1)(C2)

(5 marks)

© Hak Cipta Universiti Teknologi MARA CONFIDENTIAL

CONFIDENTIAL 3 EC/JAN 2022/CES420

QUESTION 3

Crate A of mass 15 kg is projected with an initial velocity of 5 m/s upwards along an incline
15o as shown in Figure Q3. The coefficient of kinetic friction between the block and the plane
is μk = 0.2.

a) Determine the velocity after it has moved 5 m. (CO2:PO2)(C4)

(5 marks)

b) Determine the maximum distance it can move up. (CO2:PO2)(C4)

(2 marks)

c) If the Crate A of mass 15 kg is projected with an initial velocity of 5 m/s upwards along
an incline13o, determine the velocity after it has moved 5 m. (CO2:PO2)(C4)

(7 marks)

d) Based on QUESTION Q3c), if at the mid-travelled distance, the angle is increased by

20%, determine the range of new total distance it can move up. (CO2:PO2)(C4)

(4 marks)

15 kg 5 m/s

A 15o

Figure Q3

END OF QUESTION PAPER
