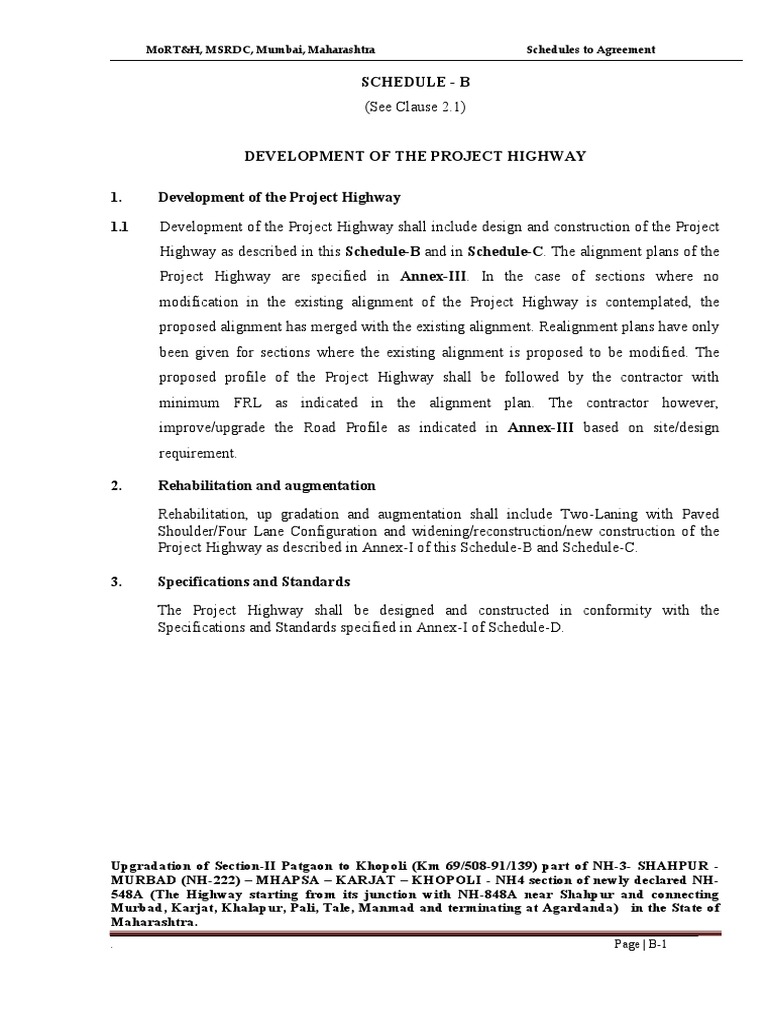

SCHEDULE - B
(See Clause 2.1)
DEVELOPMENT OF THE PROJECT HIGHWAY
1. Development of the Project Highway

1.1 Development of the Project Highway shall include design and construction of the Project
Highway as described in this Schedule-B and in Schedule-C. The alignment plans of the
Project Highway are specified in Annex-III. In the case of sections where no
modification in the existing alignment of the Project Highway is contemplated, the
proposed alignment has merged with the existing alignment. Realignment plans have only
been given for sections where the existing alignment is proposed to be modified. The
proposed profile of the Project Highway shall be followed by the contractor with
minimum FRL as indicated in the alignment plan. The contractor however,
improve/upgrade the Road Profile as indicated in Annex-III based on site/design
requirement.
2. Rehabilitation and augmentation

Rehabilitation, up gradation and augmentation shall include Two-Laning with Paved
Shoulder/Four Lane Configuration and widening/reconstruction/new construction of the
Project Highway as described in Annex-I of this Schedule-B and Schedule-C.
3. Specifications and Standards

The Project Highway shall be designed and constructed in conformity with the
Specifications and Standards specified in Annex-I of Schedule-D.
Upgradation of Section-II Patgaon to Khopoli (Km 69/508-91/139) part of NH-3- SHAHPUR -

MURBAD (NH-222) – MHAPSA – KARJAT – KHOPOLI - NH4 section of newly declared NH-
548A (The Highway starting from its junction with NH-848A near Shahpur and connecting
Murbad, Karjat, Khalapur, Pali, Tale, Manmad and terminating at Agardanda) in the State of
Maharashtra.
. Page | B-1
Annex - I
(Schedule-B)
DESCRIPTION OF TWO LANING WITH PAVED SHOULDER
1. REHABILITATION, UPGRADATION & WIDENING OF THE EXISTING

HIGHWAY
1.1 The Project Highway starts at km.69.508 and ends at km 91.139(Near khopoli) in the state
of Maharashtra. Total Existing Length of Project road is 21.815 km. and Design Length of
project is 21.631 km. The project highway Two Lane with Paved Shoulders/four lane
configuration shall be constructed as per Schedule D.
The Project Highway shall follow the existing alignment unless otherwise specified by the
Authority and shown in the alignment plans specified in Annex III of Schedule-A.
Geometric deficiencies, if any, in the existing horizontal and vertical profiles shall be
corrected as per the prescribed standards for plain/rolling terrain to the extent land is
available.
1.2 WIDTH OF CARRIAGEWAY
1.2.1 Two Lane with paved shoulder: - Two-Laning with paved shoulders shall be constructed.
and the carriageway shall be 10 m wide in open country in accordance with the typical cross
sections drawings as per the Manual (IRC:SP 73-2015) as mentioned in the table below.
Design Typical cross
Carriageway Width
Sr. No. Chainage Length Type OF section (Ref. to
(m)
(km) TCS Manual)
From (Km) To (Km)
1 69.508 69.583 0.075 3 1.5+7.0+1.5 = 10 m Fig. 2.2

2 69.583 69.783 0.2 2 1.5+7.0+1.5 = 10 m Fig. 2.2
3 69.783 69.833 0.05 1 1.5+7.0+1.5 = 10 m Fig. 2.2
4 69.833 70.523 0.69 2 1.5+7.0+1.5 = 10 m Fig. 2.2
5 70.523 70.563 0.04 3 1.5+7.0+1.5 = 10 m Fig. 2.2
6 70.563 71.313 0.75 2 1.5+7.0+1.5 = 10 m Fig. 2.2
7 71.313 71.513 0.2 3 1.5+7.0+1.5 = 10 m Fig. 2.2
8 71.513 71.553 0.04 2 1.5+7.0+1.5 = 10 m Fig. 2.2
9 71.553 71.633 0.08 3 1.5+7.0+1.5 = 10 m Fig. 2.2
10 71.633 72.053 0.42 2 1.5+7.0+1.5 = 10 m Fig. 2.2
11 72.053 72.263 0.21 3 1.5+7.0+1.5 = 10 m Fig. 2.2

Maharashtra.
. Page | B-2

Carriageway Width
(m)
(km) TCS Manual)
From (Km) To (Km)
12 72.263 72.303 0.04 1 1.5+7.0+1.5 = 10 m Fig. 2.2

13 72.303 72.643 0.34 3 1.5+7.0+1.5 = 10 m Fig. 2.2
14 72.643 72.873 0.23 2 1.5+7.0+1.5 = 10 m Fig. 2.2
15 72.873 72.903 0.03 1 1.5+7.0+1.5 = 10 m Fig. 2.2
16 72.903 72.933 0.03 2 1.5+7.0+1.5 = 10 m Fig. 2.2
17 72.933 72.973 0.04 1 1.5+7.0+1.5 = 10 m Fig. 2.2
18 72.973 73.033 0.06 2 1.5+7.0+1.5 = 10 m Fig. 2.2
19 73.033 73.063 0.03 1 1.5+7.0+1.5 = 10 m Fig. 2.2
20 73.063 73.103 0.04 3 1.5+7.0+1.5 = 10 m Fig. 2.2
21 73.103 73.153 0.05 1 1.5+7.0+1.5 = 10 m Fig. 2.2
22 73.153 73.413 0.26 3 1.5+7.0+1.5 = 10 m Fig. 2.2
23 73.413 73.483 0.07 2 1.5+7.0+1.5 = 10 m Fig. 2.2
24 73.483 73.563 0.08 3 1.5+7.0+1.5 = 10 m Fig. 2.2
25 73.563 73.613 0.05 2 1.5+7.0+1.5 = 10 m Fig. 2.2
26 73.613 73.693 0.08 1 1.5+7.0+1.5 = 10 m Fig. 2.2
27 73.693 73.823 0.13 3 1.5+7.0+1.5 = 10 m Fig. 2.2
28 73.823 74.208 0.385 1 1.5+7.0+1.5 = 10 m Fig. 2.2
29 74.208 76.228 2.02 6 1.5+7.0+1.5 = 10 m Fig.2.2
30 77.028 77.808 0.78 6 1.5+7.0+1.5 = 10 m Fig.2.2
31 77.808 79.018 1.21 3 1.5+7.0+1.5 = 10 m Fig. 2.2
32 79.018 79.373 0.355 4 1.5+7.0+1.5 = 10 m 2.4A (Modified)
33 79.373 79.413 0.04 3 1.5+7.0+1.5 = 10 m Fig. 2.2
34 79.413 79.453 0.04 2 1.5+7.0+1.5 = 10 m Fig. 2.2
35 79.453 79.463 0.01 3 1.5+7.0+1.5 = 10 m Fig. 2.2
36 79.463 79.943 0.48 3 1.5+7.0+1.5 = 10 m Fig. 2.2
37 79.943 79.953 0.01 2 1.5+7.0+1.5 = 10 m Fig. 2.2
38 79.953 80.108 0.155 3 1.5+7.0+1.5 = 10 m Fig. 2.2
39 80.108 80.293 0.185 3 1.5+7.0+1.5 = 10 m Fig. 2.2
40 80.293 80.483 0.19 2 1.5+7.0+1.5 = 10 m Fig. 2.2
41 80.483 80.523 0.04 3 1.5+7.0+1.5 = 10 m Fig. 2.2
42 80.523 83.308 2.785 4 1.5+7.0+1.5 = 10 m 2.4A (Modified)
43 83.308 83.823 0.515 3 1.5+7.0+1.5 = 10 m Fig. 2.2
44 83.823 84.033 0.21 2 1.5+7.0+1.5 = 10 m Fig. 2.2

Maharashtra.
. Page | B-3

Carriageway Width
(m)
(km) TCS Manual)
From (Km) To (Km)
45 84.033 84.723 0.69 3 1.5+7.0+1.5 = 10 m Fig. 2.2

46 84.723 84.813 0.09 2 1.5+7.0+1.5 = 10 m Fig. 2.2
47 84.813 84.943 0.13 3 1.5+7.0+1.5 = 10 m Fig. 2.2
48 84.943 85.023 0.08 2 1.5+7.0+1.5 = 10 m Fig. 2.2
49 85.023 85.083 0.06 3 1.5+7.0+1.5 = 10 m Fig. 2.2
50 85.083 85.093 0.01 2 1.5+7.0+1.5 = 10 m Fig. 2.2
51 85.093 86.723 1.63 3 1.5+7.0+1.5 = 10 m Fig. 2.2
52 86.723 86.893 0.17 2 1.5+7.0+1.5 = 10 m Fig. 2.2
53 86.893 88.633 1.74 3 1.5+7.0+1.5 = 10 m Fig. 2.2
54 88.633 88.643 0.01 3 1.5+7.0+1.5 = 10 m Fig. 2.2
55 88.643 88.743 0.1 2 1.5+7.0+1.5 = 10 m Fig. 2.2
56 88.743 90.508 1.765 3 1.5+7.0+1.5 = 10 m Fig. 2.2
57 90.508 91.139 0.631 5 1.5+7.0+1.5 = 10 m Fig.2.9 Modified
Note:
1) Cross-section at Major/Minor Bridge approaches are to be followed matching to
adjoining cross-sections with suitable transition.
2) Where cross-section changes from two lanes to four lane a transition shall be
provided as per the Manual (IRC: SP 73-2015)
3) Where Bus Bays & Truck Lay Byes constructed as per Schedule C a transition shall
be provided as per the Manual (IRC:SP 73-2015)
1.2.2 Four lane/ Two lane paved shoulder with service road in built up area:- Four Lane
with paved shoulder and two lane with service road shall be constructed in built-up area as
mentioned in table below and shall be as per Fig.2.4 (Modified) & Fig. 2.9 Modified of
Schedule D.
Design Chainage Typical cross

Length
Sr. No. From Carriageway Width (m) section (Ref. to
To (Km) (km)
(Km) Manual)
1 79.018 79.373 0.355 2 x 9.00 = 18 m 2.4 (Modified)
2 80.523 83.308 2.785 2 x 9.00 = 18 m 2.4 (Modified)
3 90.508 91.139 0.631 1 x 7.00 & 2 x 5.50 = 18 m 2.9 (Modified)
Total length 3.771
1.2.3 No proposal Section is as shown in table below.

Maharashtra.
. Page | B-4
Sr. No. Chainage From Chainage To Length (Km) Proposal Type
1 76.228 77.028 0.800 No Proposal

Total 0.800
1.2.4 Two lane with Slip Road: - Two lane with paved shoulder in Grade Separated Structure
approach section with Slip road shall be constructed in accordance with the typical cross
sections drawings in the Manual (IRC:SP 73-2015) constructed as mentioned in table
below:

Sr. Length Carriageway
section (Ref. to
No. From To (km) Width (m)
Manual)
(Km) (Km)
…..NIL…..
1.2.5 In Toll Plaza Location: There are one Toll Plazas.
Design Chainage in
Sr. No. Figure (As per IRC-SP-73-2015)
Km.
1 72+108 As per Schedule D of Manual
1.2.6 Except as otherwise provided in this Agreement, the Linear dimension and width of
the paved Carriageway and cross-sectional features shall conform to paragraph 1.2 above
& Cross Sections given at Schedule D. Invert levels of the longitudinal drains shall be
decided as per adjoining draining area and properties.
S. Length Carriageway
Lane Configuration Remark
No. (km) Width (m)
1 2 Lane with paved shoulder 7.500 10.00
4 Lane in built-up (with side
2 - -
drain)
3 4 Lane in plain/rolling terrain 13.331 18.00
4 No proposal Section 0.800 -
Total Length 21.631
2. GEOMETRIC DESIGN AND GENERAL FEATURES

Maharashtra.
. Page | B-5
2.1 General
Geometric design and general features of the Project Highway shall be in accordance with
Section 2 of the Manual. (IRC: SP 73-2015).
2.2 Design Speed
The design speed shall be the minimum design speed of 80/100 km per hr for plain/
rolling terrain. In Ghat sections and Forest area design speed is restricted to 40/50/65
km per hr. as the development is proposed within the extent of available land.
2.3 Improvement of the existing road geometrics

In the following sections, where improvement of the existing road geometrics to the
prescribed standards is not possible, the existing road geometrics shall be improved to
the extent possible within the given right of way and proper road signs and safety
measures shall be provided for safe regulation of fast moving, slow moving and
pedestrian traffic:
Design Chainage Type of deficiency

S. No. Remarks
(from km to km) Radius of curve Design Speed
1 km 75.4 to km 75.45 Radius of Curve 150 m 35 km per hr Radius of Curve
2 km 75.78 to km 75.81 Radius of Curve 100 m 30 km per hr & Speed is
restricted as the
3 km 76.06 to km 76.1 Radius of Curve 35 m 15 km per hr section passes
through urban
4 km 76.47 to km 76.51 Radius of Curve 200 m 50 km per hr limits of town
5 km 79.03 to km 79.04 Radius of Curve 20 m 10 km per hr portion.

& Speed is
7 km 79.56 to km 79.7 Radius of Curve 225 m 55 km per hr restricted as the
section passes
8 km 79.71 to km 79.75 Radius of Curve 100 m 30 km per hr
through Hilly
9 km 79.89 to km 79.96 Radius of Curve 175 m 45 km per hr portion.

& Speed is
11 km 83.9 to km 83.98 Radius of Curve 125 m 35 km per hr restricted as the
section passes
12 km 84.11 to km 84.19 Radius of Curve 200 m 45 km per hr through the
town portion
13 km 88.04 to km 88.2 Radius of Curve 200 m 50 km per hr and Major

Maharashtra.
. Page | B-6
Bridge
approach.

Town portion.
Right of Way
Details of the Right of Way are given in Annex II of Schedule A.
2.4 Type of shoulders
(a) In built-up sections, service road shall be constructed in the following stretches with
covered RCC Drain.
Fully paved
Sr. Design Chainages Length shoulders with Typical cross section
No. (Km) covered drain on (Ref. to Manual)
From To both sides
1 90.508 91.139 0.631 0.631 Fig. 2.9 (Modified)
Note: The thickness of the Paver blocks shall be 100 mm with M40 Grade of Concrete.
(b) In open country Fig. 2.2, Two Lane with paved shoulders of 1.5 m width shall be
provided and balance 2.0m width shall be covered with 150 mm thick compacted layer of
granular material.
Design Chainages Fully paved

Sr. Length Typical cross section
shoulders on both
No. From To (Km) (Ref. to Manual)
sides
1 77.028 79.008 1.980 1.980 Fig. 2.2
(c) In Grade separated structure approaches, footpaths/fully paved shoulders and walkway
shall be constructed by paver blocks in the following stretches with covered RCC Drain.
Sr.
Built-up Location
Length
Fully paved Typical cross
No.
stretch From To (km)
shoulders/foot section (Ref. to
(township) (Km) (Km) paths Manual)
Maharashtra.
. Page | B-7
Sr.
Built-up Location
Length
Fully paved Typical cross
No.
stretch From To (km)
shoulders/foot section (Ref. to
(township) (Km) (Km) paths Manual)
…..NIL……
Note: The thickness of the Paver blocks shall be 100 mm with M40 Grade of Concrete.
(d) Design and specifications of paved shoulders and granular material shall confirm to the
requirements specified in paragraphs 5.10 and 5.11 of the Manual. (IRC:SP 73-2015).
2.6 Lateral and vertical clearances at underpasses
2.6.1. Lateral and vertical clearances at underpasses and provision of guardrails/crash barriers
shall be as per paragraph 2.10 of the Manual (IRC: SP: 73-2015).
2.6.2. Vehicular Underpasses shall be constructed at following locations: -
Location (chainages) (from

km to km) Proposed Total Width of
S.
Span/opening the Structure (in Remark
No. Design
Location (in m) m)
Chainage
…..NIL……
Note: Approach Gradient & RE Walls: Approach and exit gradient of road crossing
through underpass shall be maintained.
2.7 Lateral and vertical clearances at overpasses:
2.7.1 Lateral and vertical clearances at overpasses shall be as per paragraph 2.11 of the
Manual.
2.7.2 Lateral and vertical clearances at overpasses shall be as per paragraph 2.11 of the
Manual (IRC: SP 73-2015). Overpass shall be constructed at following locations:-
Total Width of
Proposed Span the Structure (in
Design Name of
S. No. Intersecting Roads arrangement (in m) Remark
Chainage
m)
------- NIL -------
2.8 a) Service roads:-
Service roads shall be constructed at the following locations and as per cross sections
Maharashtra.
. Page | B-8
shown at Schedule D.
Right hand side (RHS)/Left Length (Km) of Remark

Location of Service
hand side (LHS)/or Both side Service Road
Sl Road (Design
No. Chainage)
From (km) To (km)
------- NIL -------
b) Slip roads:-
5.50m wide Slip Road at Grade Separated structure approaches portion shall be
provided on both sides. Slip roads shall be constructed at the following locations and as
per cross sections shown at Schedule D.
Location of Service Right hand side (RHS)/Left Length (Km) of Remark

Sl Road (Design hand side (LHS)/or Both Service Road
No. Chainage) side
……NIL……
Above length of the Service/Slip Road is indicative and minimum specified. The actual
length of the service/slip road shall be determined by the contractor in accordance with
the Manual requirements with approval from the Authority’s Engineer. Any Increase in
the Length specified in the clause of Schedule B shall not constitute a Change of Scope.
Any New location as per site requirement and directed by Authority Engineer will be
considered under a Change of Scope.
2.9 Grade separated structures

Grade separated structures shall be constructed as per paragraph 2.13 of the Manual
IRC: SP: 73-2015.
Sr Location of structure Lengt Number & Approach Gradient Remarks, if any

. h (m) length of & RE Walls
N span (m)
o. Location (Design
Ch.)
------- NIL -------
2.9.1 In the case of grade separated structures, the type of structure and the level of the
Maharashtra.
. Page | B-9
Project Highway and the cross roads shall be as follows: [Refer to paragraphs 2.13 of
the Manual and specify the type of vehicular under pass/ overpass structure and whether
the cross road is to be carried at the existing level, raised or lowered]
2.10 Cattle and pedestrian underpass /overpass :
Cattle/pedestrian underpasses and provision of guardrails/crash barriers shall be as per

paragraph 2.10 & 2.13 of the Manual (IRC:SP:73-2015). Under pass shall be
constructed at following locations.
Design
S. No. Chainages Location Span Arrangement
Width (m) Remark
(m)
------- NIL -------
2.11 Typical cross-sections of the Project Highway
Sr. No. Design Chainage Length Typical cross Remark

(km) section (Ref. to
Manual)
From To (Km)
(Km)
1 69.508 69.583 0.075 Fig. 2.2 2-Lane section as per alignment
plan
2 69.583 69.783 0.2 Fig. 2.2
3 69.783 69.833 0.05 Fig. 2.2
4 69.833 70.523 0.69 Fig. 2.2
5 70.523 70.563 0.04 Fig. 2.2
6 70.563 71.313 0.75 Fig. 2.2
7 71.313 71.513 0.2 Fig. 2.2
8 71.513 71.553 0.04 Fig. 2.2
9 71.553 71.633 0.08 Fig. 2.2
10 71.633 72.053 0.42 Fig. 2.2
11 72.053 72.263 0.21 Fig. 2.2
12 72.263 72.303 0.04 Fig. 2.2
13 72.303 72.643 0.34 Fig. 2.2
14 72.643 72.873 0.23 Fig. 2.2
15 72.873 72.903 0.03 Fig. 2.2
16 72.903 72.933 0.03 Fig. 2.2
17 72.933 72.973 0.04 Fig. 2.2
Maharashtra.
. Page | B-10

Manual)
From To (Km)
(Km)
18 72.973 73.033 0.06 Fig. 2.2
19 73.033 73.063 0.03 Fig. 2.2
20 73.063 73.103 0.04 Fig. 2.2
21 73.103 73.153 0.05 Fig. 2.2
22 73.153 73.413 0.26 Fig. 2.2
23 73.413 73.483 0.07 Fig. 2.2
24 73.483 73.563 0.08 Fig. 2.2
25 73.563 73.613 0.05 Fig. 2.2
26 73.613 73.693 0.08 Fig. 2.2
27 73.693 73.823 0.13 Fig. 2.2
28 73.823 74.208 0.385 Fig. 2.2
29 74.208 76.228 2.02 Fig.2.2
30 76.228 77.028 0.8 No Proposal
31 77.028 77.808 0.78 Fig.2.2
32 77.808 79.018 1.21 Fig.2.2
33 79.018 79.373 0.355 2.4C(Modified) 4-Lane section as per alignment
plan
34 79.373 79.463 0.09 Fig.2.2 2-Lane section as per alignment
plan
35 79.463 79.943 0.48 Fig.2.2
36 79.943 79.953 0.01 Fig.2.2
37 79.953 80.108 0.155 Fig.2.2
38 80.108 80.293 0.185 Fig.2.2
39 80.293 80.483 0.19 Fig.2.2
40 80.483 80.523 0.04 Fig.2.2
41 80.523 82.543 2.02 2.4 (Modified) 4-Lane section as per alignment
plan
42 82.543 82.563 0.02 2.4 (Modified)
43 82.563 83.308 0.745 2.4 (Modified)
plan
45 83.823 84.033 0.21 Fig.2.2
46 84.033 84.723 0.69 Fig.2.2
47 84.723 84.813 0.09 Fig.2.2
48 84.813 84.943 0.13 Fig.2.2

Maharashtra.
. Page | B-11

Manual)
From To (Km)
(Km)
49 84.943 85.023 0.08 Fig.2.2
50 85.023 85.083 0.06 Fig.2.2
51 85.083 85.093 0.01 Fig.2.2
52 85.093 86.723 1.63 Fig.2.2
53 86.723 86.893 0.17 Fig.2.2
54 86.893 88.633 1.74 Fig.2.2
55 88.633 88.643 0.01 Fig.2.2
56 88.643 88.743 0.1 Fig.2.2
57 88.743 90.508 1.765 Fig.2.2
58 90.508 91.139 0.631 Fig.2.9 Modified 2-Lane with service road section as
per alignment plan
Total 21.631
Note 1: The cross section schedule given in above table is indicative and stretches may
increase or decrease depending upon profile designed by contractor however, this shall
not be treated as change of scope.
Note 2: Width of paver block, as shown in Fig: - 2.5 A (Modified), 2.5 B (Modified) &
2.5 C (Modified) shall be determined, as per availability of land, by contractor in
consultation with the Authority’s Engineer, however, this shall not be treated as change
of scope.
3. INTERSECTIONS AND GRADE SEPARATORS
All intersections and grade separators shall be as per Section 3 of the Manual (IRC: SP
73-2015). Existing intersections which are deficient shall be improved to the prescribed
standards. For improvement of intersections and at grade junction standards and type
plan MoRT&H and IRC: SP:41-1994 shall be followed.
Properly designed intersections shall be provided at the locations and of the types and
features given in the tables below:
3.1 At-grade intersections
1. Major Junction – 3 Nos.
Sr. Design Chainage Category of Type of

Remark
No. (Km) Road Junction
1 77.608 Other X LHS-Bhaisgaon
Maharashtra.
. Page | B-12
Sr. Design Chainage Category of Type of

Remark
No. (Km) Road Junction
RHS-Neral, Kalyan
2 79.028 SH T LHS- SH-79
LHS- Pune
3 91.139 NH T
RHS-Mumbai
2. Minor Junction – 4 Nos.
SI. Design Chainage Type of

Side Other features
No. (Km) Intersection
LHS- Barai,
1 74.288 Both Side X
RHS- Sagudnabhagh
2 81.324 LHS T Khopoli Road via Gundage
3 87.308 LHS T Ghodiwali
4 89.808 LHS T Dolwali
Rumble Strips: - The cross road junctions as mentioned above shall be provided with
Rumble strips at the approach of junctions as per IRC: 99
Note: - It is clarified that if any other deficient junctions with cross BT/CC roads is
identified during development period in addition to those mentioned above shall be
improved as per standard set forth in Schedule ‘D’. Any Increase in the junction specified
in the clause of Schedule B shall not constitute a Change of Scope.
For cross road drainage facility new HP culverts on cross roads shall be constructed as per
Clause 7.2.4 (c) of this Schedule and shall be as per Manual.
3.2 Grade separated intersection with ramps

Minimum length of
Sr. Location Salient Road to be carried
viaduct to be
No. (Design Ch.) features under the structures
provided
…..NIL…..
Note: Approach Gradient & RE Walls: Approach and exit gradient of road crossing
through underpass shall be provided as per Manual (IRC: SP: 73-2015
4. ROAD EMBANKMENT AND CUT SECTION
4.1 Reconstruction and up-gradation of the existing road embankment/cuttings and

construction of new road embankment. cuttings shall conform to the Specifications and
Maharashtra.
. Page | B-13
Standards given in section 4 of the Manual and the specified cross sectional details.
Deficiencies in the plan and profile of the existing road shall be corrected.
4.2 Raising of the existing road:-
The existing road shall be raised in the following sections:
Design Chainges Design

Sr. No. Remark
Length (km)
From To
1 77.408 77.453 0.045
2 79.413 79.453 0.040
3 79.943 79.953 0.010
4 80.293 80.483 0.190
If FRL-ERL >
5 82.543 82.563 0.020
950mm then it
6 83.823 84.033 0.210
7 84.723 84.813 0.090
is considered
8 84.943 85.023 0.080 as raising.
9 85.083 85.093 0.010
10 86.723 86.893 0.170
11 88.643 88.743 0.100
Total length 0.965
Note:- Raising of existing road will comprise of pavement crust of 600 mm thickness
(300mm PQC, 150mm DLC, 150MM GSB) below which there will subgrade consisting of
500mm thickness. Remaining raising will be made-up of embankment construction in earth
(compacted) of approved soil compacted in layer not less then 200mm each.
As per manual IRC:SP73-2015 subject to minimum level specified in alignment plan
mentioned in Annex-III of schedule“A”.
It is economically decided to raise the embankment height to ensure that the bottom of
subgrade is atleast 0.6 m above the Ground Level at the Toe of Existing Road Embankment.
Which in no case should be lower than the natural adjoining ground level .The chainages
given in above table are indicative and stretches may increase or decrease depending upon
profile designed by contractor. The raising for Reconstruction / New Construction in
approaches of Major/Minor Bridges shall be carried out by contractor as per Schedule D and
in consultation with the Authority’s Engineer and as per availability of land, however,this
shall not be treated as change of scope.
4.3 Cutting of the existing road:-
The existing road shall be cut in the following sections:

Sr. No. Remark
From To Length (km)
1 69.508 74.028 4.520 CUTTING
2 77.453 79.008 1.555 CUTTING
3 79.008 79.358 0.350 CUTTING
4 79.358 79.403 0.045 CUTTING
Maharashtra.
. Page | B-14

Sr. No. Remark
From To Length (km)
5 79.463 79.943 0.480 CUTTING
6 79.953 80.108 0.155 CUTTING
7 80.108 80.293 0.185 CUTTING
8 80.483 80.558 0.075 CUTTING
9 80.558 82.543 1.985 CUTTING
10 82.563 83.308 0.745 CUTTING
11 83.308 83.823 0.515 CUTTING
12 84.033 84.723 0.690 CUTTING
13 84.813 84.943 0.130 CUTTING
14 85.023 85.083 0.060 CUTTING
15 85.093 86.723 1.630 CUTTING
16 86.893 88.633 1.740 CUTTING
17 88.743 90.508 1.765 CUTTING
12 90.508 91.139 0.631 CUTTING
Total Length 17.256
Note: The chainages given in above table are indicative and stretches may increase or
decrease depending upon profile designed by contractor, the raising for Reconstruction/
New Construction in approaches of Major/Minor Bridges shall be carried out by contractor
as per Schedule D and in consultation with the Authority’s Engineer and as per availability
of land, however, this shall not be treated as change of scope.
5. PAVEMENT DESIGN
5.1 Pavement design shall be carried out in accordance with Section 5 of the Manual (IRC:
SP 73-2015) IRC relevant codes and International Standards.
5.2 Type of pavement :-

Rigid Pavement – Rigid Pavement shall be constructed in entire length of 18.031 km
(from km 69.508 to km 91.139) project highway.
Flexible Pavement–Resurfacing work to repair the portions of existing road where bypass
has taken place for a length of 2.80 km.
No Proposal – For the length of 0.80 km.
Rigid Pavement shall be constructed in full length of Main Carriageway & resurfacing of
existing flexible pavement shall be done in bypass sections of project highway.
5.3 Design requirements
5.3.1 Design Period and strategy

Rigid pavement shall be constructed for new pavements and reconstruction of the
existing road. Rigid pavement shall be designed for a minimum design period of 30
(Thirty) years and minimum CBR of sub grade should be 8%. Stage construction shall
not be permitted.
Maharashtra.
. Page | B-15
Resurfacing of Flexible pavement Bypass sections shall be as per MoRTH specification.
5.3.2 Design Traffic
Notwithstanding anything to the contrary contained in this Agreement or the Manual,

the Contractor shall design the pavement for design traffic of 1141 CVPD (In Year
2016) considering future traffic projections for design life or as per the actual traffic
whichever is higher. Minimum pavement composition should be adopted for new
pavement/reconstruction of road as below:-
a) Main Carriageway:-
S. Description Minimum Crust Composition of

No. Rigid Pavement
1 PQC 280 mm
2 DLC 150 mm
3 GSB 150 mm
Total 580 mm
b) Resurfacing of Flexible Road:-
S. Description Minimum Crust

No. Composition ( For 10 msa)
1 BC 40 mm
2 DBM 60 mm
3 PCC(DBM) 50 mm
Total 150 mm
c) Crust below Paver Block: Paver Block flooring 100 mm thick with M40 Grade of
Concrete at Built-up portion shall be provided on both sides. Minimum pavement
composition should be adopted for paver block flooring as below.
S. Description Minimum Crust Composition

No. below paver block
….NIL….
d) The Crust Composition for Truck Lay Byes shall be as per Main Carriageway
Clause 5.3.2 (a) above.
e) The Crust composition for Minor roads, Bus bay shall be as per section 5 of IRC SP
73-2015
5.4 Widening & Reconstruction of stretches

Maharashtra.
. Page | B-16
The following stretches of the existing road shall be widened & reconstructed by
scarifying the existing carriageway and laying fresh pavement starting from sub base
level. These shall be designed as rigid pavement on the basis of “Modulus of sub grade
reaction” and minimum crust as per 5.3.2.
Sr. Design Chainages Design

No. From To Length (km) Remark
1 69.508 75.078 5.57
2 75.128 76.228 1.100
3 77.028 78.008 0.980
4 78.238 78.288 0.050
5 78.458 78.918 0.460
6 79.008 80.908 1.900
7 81.068 81.148 0.080
8 81.228 81.728 0.500
9 81.788 83.288 1.500
10 83.388 83.648 0.260
11 83.658 84.508 0.850 As per manual IRC:SP 73-
12 84.618 84.638 0.020 2015 subject to minimum
13 84.848 84.888 0.040 level specified in
14 85.018 86.508 1.490 Alignment plan mentioned
15 86.568 86.868 0.300 in Annex-III of Schedule
16 86.878 87.858 0.980 ‘A’.
17 87.868 91.139 3.271
Total Length = 19.351 km
5.5 New Construction of Bypasses and Realignments: -
Rigid pavement shall be constructed for bypasses, realignment and geometric

improvements.
As per manual IRC:SP 73-2015 subject to minimum level specified in Alignment plan
mentioned in Annex-III of Schedule ‘A’.
1. Realignments:-
Design Chainages Design
Sr. No. Remarks
From To Length (km)
1 75.078 75.128 0.05 As per manual IRC:SP 73-
2 78.008 78.238 0.23 2015 subject to minimum
3 78.288 78.458 0.17 level specified in
4 78.918 79.008 0.09 Alignment plan mentioned
Maharashtra.
. Page | B-17
Design Chainages Design

Sr. No. Remarks
From To Length (km)
5 80.908 81.068 0.16 in Annex-III of Schedule
6 81.148 81.228 0.08 ‘A
7 81.728 81.788 0.06
8 83.288 83.388 0.1
9 84.508 84.618 0.11
10 84.888 85.018 0.13
11 86.508 86.568 0.06
TOTAL LENGTH 1.240 km
NOTE: - No proposal Section’s are as shown in table below.
Sr. No. Chainage From Chainage To Length (Km) Proposal Type
1 76.228 77.028 0.800 No Proposal

Total 0.800 km
2. Bypasses: - - (Bypasses shall be constructed under phase II)
Design Chainages
Sr. No. Remark
From To
1 74.208 77.808 Karjat
3. New Alignment (New Link):- Nil.
Design Chainages Design Length

Sr. No. Remark
From To (Km)
----NIL-----
4. Geometric improvements:-
Design Chainages Remarks

Design
Sr. No.
Length (km)
From To As per manual IRC:SP 73-
83.648 83.658 0.010 2015 subject to minimum
1 level specified in
84.638 84.848 0.210 Alignment plan
2
Maharashtra.
. Page | B-18
86.868 86.878 0.010 mentioned in Annex-III of

3 Schedule ‘A’
4 87.858 87.868 0.010
TOTAL LENGTH 0.240 km
Total Length of Project Road (21.631 Km)

5. Improvement at a Glance: -
Length
Sr. No. From To section (Ref. to Remark
(km)
(Km) (Km) Manual)
1 69.508 69.583 0.075 Fig. 2.2
2 69.583 69.783 0.2 Fig. 2.2
3 69.783 69.833 0.05 Fig. 2.2
4 69.833 70.523 0.69 Fig. 2.2
5 70.523 70.563 0.04 Fig. 2.2
6 70.563 71.313 0.75 Fig. 2.2
7 71.313 71.513 0.2 Fig. 2.2
8 71.513 71.553 0.04 Fig. 2.2
9 71.553 71.633 0.08 Fig. 2.2
10 71.633 72.053 0.42 Fig. 2.2
11 72.053 72.263 0.21 Fig. 2.2
12 72.263 72.303 0.04 Fig. 2.2
13 72.303 72.643 0.34 Fig. 2.2
14 72.643 72.873 0.23 Fig. 2.2 2-Lane section as per alignment
15 72.873 72.903 0.03 Fig. 2.2 plan
16 72.903 72.933 0.03 Fig. 2.2
17 72.933 72.973 0.04 Fig. 2.2
18 72.973 73.033 0.06 Fig. 2.2
19 73.033 73.063 0.03 Fig. 2.2
20 73.063 73.103 0.04 Fig. 2.2
21 73.103 73.153 0.05 Fig. 2.2
22 73.153 73.413 0.26 Fig. 2.2
23 73.413 73.483 0.07 Fig. 2.2
24 73.483 73.563 0.08 Fig. 2.2
25 73.563 73.613 0.05 Fig. 2.2
26 73.613 73.693 0.08 Fig. 2.2
27 73.693 73.823 0.13 Fig. 2.2
28 73.823 74.208 0.385 Fig. 2.2

Maharashtra.
. Page | B-19

Length
Sr. No. From To section (Ref. to Remark
(km)
(Km) (Km) Manual)
29 74.208 76.228 2.02 Fig.2.2
30 76.228 77.028 0.8 No Proposal
31 77.028 77.808 0.78 Fig.2.2
32 77.808 79.018 1.21 Fig.2.2
4-Lane section as per alignment
33 79.018 79.373 0.355 2.4C(Modified) plan
34 79.373 79.463 0.09 Fig.2.2
35 79.463 79.943 0.48 Fig.2.2
36 79.943 79.953 0.01 Fig.2.2
37 79.953 80.108 0.155 Fig.2.2
plan
38 80.108 80.293 0.185 Fig.2.2
39 80.293 80.483 0.19 Fig.2.2
40 80.483 80.523 0.04 Fig.2.2
41 80.523 82.543 2.02 2.4 (Modified)
42 82.543 82.563 0.02 2.4 (Modified) plan
43 82.563 83.308 0.745 2.4 (Modified)
44 83.308 83.823 0.515 Fig.2.2
45 83.823 84.033 0.21 Fig.2.2
46 84.033 84.723 0.69 Fig.2.2
47 84.723 84.813 0.09 Fig.2.2
48 84.813 84.943 0.13 Fig.2.2
49 84.943 85.023 0.08 Fig.2.2
51 85.083 85.093 0.01 Fig.2.2 plan
52 85.093 86.723 1.63 Fig.2.2
53 86.723 86.893 0.17 Fig.2.2
54 86.893 88.633 1.74 Fig.2.2
55 88.633 88.643 0.01 Fig.2.2
56 88.643 88.743 0.1 Fig.2.2
57 88.743 90.508 1.765 Fig.2.2
Fig.2.9 2-Lane with service road section
58 90.508 91.139 0.631 Modified as per alignment plan
Total 21.631
6. ROADSIDE DRAINAGE
Drainage system including surface and subsurface drains for the Project Highway shall
Maharashtra.
. Page | B-20
be provided as per Section 6 of the Manual (IRC: SP 73-2015). RCC covered drain shall
be provided in both side of Built-Up areas at following locations.
Design Chainages Length (Km)

Sr. No. Type Remark
From To LHS RHS
1 79.108 79.428 0.000 0.320 2.2B
2 83.608 83.908 0.300 0.300 2.4
3 90.508 91.139 0.631 0.631 2.5 Built-up
LENGTH 0.931 1.251
TOTAL LENGTH
2.182
(M)
The locations of Drains at roadway shall be as per cross section type given at Schedule
D. In all built up areas RCC covered drains with Footpath shall be provided. Suitable
crossing shall be provided at approaches to properties etc. invert levels of drains shall
be decided on the basis of ground slopes of adjoining properties and open grounds.
In cutting portions RCC open drain of suitable size shall be constructed in consultation
with Authority Engineer.
Above length of the lined drains are indicative and minimum specified. The actual
length of the lined drains shall be determined by the Contractor keeping in view the
drainage location and in accordance with the Manual requirements with approval from
the Authority's Engineer. Any increase in the length of drain as specified in above
location shall not constitute a Change of Scope. Any New location as per site
requirement and directed by Authority Engineer will be considered under a Change of
Scope.
7 DESIGN OF STRUCTURES
Summary of proposed structures are as mentioned below:-
SUMMARY OF STRUCTURES
Proposals
Type of Structure Existing Nos.
Nos. Type of Proposal
MJB 1 1 Retained Due to Bypass
2 Existing Retained / Additional Parallel MNB
1 Widening
MNB 6
2 Retained
1 Retained Due to Bypass
5 Converted to Box Culvert
3 Widening
Slab Culvert 10
1 Retained
Box Culvert 2 2 Retained
Maharashtra.
. Page | B-21
SUMMARY OF STRUCTURES
Proposals
Type of Structure Existing Nos.
Nos. Type of Proposal
59 Reconstruction
HPC 71 5 Upgraded to Box Culvert
ROB 1 1 Retained Due to Bypass
7.1 General
7.1.1 All bridges, culverts and structures shall be designed and constructed in accordance
with section 7 of the Manual (IRC: SP 73-2015) and shall conform to the cross-
sectional features and other details specified therein. All designs shall be in conforming
with is IRC and International Codes. The deviation shown in Schedule – D shall be
taken in to considerations.
7.1.2 New Major bridges (Nil.): Width of the carriageway of new Major bridges and structures
shall be as follows:
The width of carriageway of new Major and Minor bridges shall be as mentioned below.
Sr. Existing Design Width of carriageway and

Remark
No. Chainage Chainage cross sectional features
Nil
7.1.3 New Minor bridges (Nil.) : Width of the carriageway of new Minor bridges and
structures shall be as follows:
The width of carriageway of new Minor bridges shall be as mentioned below.

Width of carriageway
Sr. Existing Design
and cross sectional Remark
No. Chainage Chainage
features
Nil
a Span arrangement of Major and Minor Bridge shall be designed by contractor on the
basis of detailed surveys & investigations subject to minimum specified in GAD as per
Para 7.3.2 of this schedule. Founding levels shall be decided after detailed Geo-
Technical investigation, Waterway, road top level, soffit etc. shall be decided on the
basis of land survey conforming to various codal provision applicable.
7.1.4 The following structures shall be provided with footpaths:

Maharashtra.
. Page | B-22
Sr. No. Location at Km Remarks

1 Markewadi at 70.865 Minor Bridge
2 Talwali at 87.97 Minor Bridge
3 Nawande at 89.405 Minor Bridge
7.1.5 All bridges shall be high-level bridges.
7.1.6 The following structures shall be designed to carry utility services specified in table
below:
Sr. No. Bridge at Km Utility service to be carried Remark
1 70.865 OFC cables, electric Cable, Minor Bridge

2 87.97 Gas Pipe lines, etc. Minor Bridge
3 89.405 Minor Bridge
All Major / Minor Bridges, Box Culvert, Flyovers, Vehicular/Pedestrians Structures

shall be designed to carry utility services like OFC Cables, Electricity Lines etc.
7.1.7 Cross-section of the new culverts and bridges at deck level for the Project Highway shall
conform to the typical cross-sections given in section 7 of the Manual (IRC:SP 73-2015)
and deviations given at Schedule D.
7.2 Culverts
7.2.1 Overall width of all culverts shall be equal to the roadway width of the approaches.
7.2.2 Reconstruction of Existing Culverts
The existing culverts at the following locations shall be re-constructed as new culverts.
Refer to paragraph 7.3 (ii) of the Manual (IRC: SP 73-2015).
(a) SLAB CULVERT: Nil.
Culvert location Proposed

Existing Design Span/ Proposed
S. No. Remark
Chainage Chainage Opening Width (m)
(Km) (Km) (m.)
---Nil---
(b) SLAB CULVERT CONVERTED TO BOX CULVERT: 05 Nos.

Maharashtra.
. Page | B-23
Culvert location
Proposed
Existing Design Proposed
S. No. Span/ Opening Remark
Chainage Chainage Width (m)
(m.)
(Km) (Km)
Slab Culvert Converted
1 85.266 83.562 1/6x3/0 26.00
to Box Culvert
2 87.048 85.295 1/4x3/0 26.00
to Box Culvert
3 88.426 86.671 1/4x3/0 26.00
to Box Culvert
4 88.701 86.943 1/4x3/0 26.00
to Box Culvert
5 89.039 87.278 1/6x3/0 26.00
to Box Culvert
(c) PIPE CULVERTS: 59 Nos.
Culvert location
Existing Design Proposed Nos. Proposed
Sr. No. Remark
Chainage Chainage x Dia (m.) Width (m)
(Km) (Km)
1 71.542 69.964 1 x 1.20 14.00 Reconstruction
Maharashtra.
. Page | B-24
Culvert location
Sr. No. Remark
(Km) (Km)

Maharashtra.
. Page | B-25
Culvert location
Sr. No. Remark
(Km) (Km)
(d) PIPE CULVERTS CONVERTED TO BOX CULVERT: 05 Nos.
Culvert location
Proposed
Existing Design Proposed
S. No. Span/ Opening Remark
Chainage Chainage Width (m)
(m.)
(Km) (Km)
HPC Converted to Box
1 73.777 72.196 1/3x3/0 14.00
Culvert
2 74.954 73.372 1/3x3/0 14.00
Culvert
3 75.378 73.796 1/3x3/0 14.00
Culvert
4 84.608 82.917 1/3x3/0 26.00
Culvert
5 91.572 89.813 1/6x3/0 26.00
Culvert
Note: -
1. It is clarified that as per site requirement New HP Culverts if required for drainage arrangement
shall be identified & constructed if any during development shall be constructed as per standard
set forth in Schedule ‘D’& as per instruction of Authority Engineer.
7.2.3 Widening of existing culverts
All existing culverts which are not to be reconstructed shall be widened to the roadway
width of the Project Highway as per the typical cross section given in section 7 of the
Manual. Repairs and strengthening of existing structures where required shall be carried
out.

Maharashtra.
. Page | B-26
(a) SLAB/BOX CULVERT: 03 Nos.
Details of Existing Structure Details of Proposed structure

Sr. Existing Design
No Chainag Chainag Width Propos
Type o f Span Span
. e (Km) e (Km) of ed
Structur Arrangeme Arrangeme Remark
Structur Width
e nt nt
e (m) (m)
1 71.697 70.118 Slab 1 x 4.50 12.80 1 x 4.50 14.00 WIDENING
Slab
2 83.795 82.093 1 x 3.00 22.20 1 x 3.00 26.00 WIDENING
(Skew)
3 87.176 85.424 Slab 1 x 5.00 14.90 1 x 5.00 26.00 WIDENING
(b) PIPE CULVERTS: Nil.
Details of Existing Structure

Existing Design
SI. Extend of
Chainage Chainage Width of Remark
No. Type of No. x Dia. widening
(Km) (Km) Structure
Structure (m)
(m)
--NIL--
7.2.4 Additional new culverts shall be constructed as per particulars given in the table
below:
(a) BOX CULVERT: Nil.
Design Proposed Proposed

SI.
Chainage Span/ Width Type Remark
No.
(Km) Opening (m.) (m)
--NIL--
(b) PIPE CULVERTS: Nil.
Design
No. x Proposed
Sr. No. Chainage Type Remark
Dia.(mm) Width (m)
(Km)
Nil

Maharashtra.
. Page | B-27
Note: - It is clarified that as per site requirement New HP Culverts if required for
drainage arrangement shall be identified & constructed if any during development shall
be constructed as per standard set forth in Schedule ‘D’& as per instruction of
Authority Engineer.
(c) PIPE CULVERTS AT CROSS ROAD JUNCTIONS: 04 Nos.
As per site requirement New HP Culvert shall be constructed for drainage arrangement
at following junctions as per standard set forth in Schedule ‘D’& as per instruction of
Authority Engineer.
Details of Proposed Structure

Design Type of
Sr. No. Nos. No. x Proposed Width
Chainage Junction Remark
Dia. (m)
1 74.278 Minor 1 1 x 1200 14.00
2 81.308 Minor 1 1 x 1200 14.00
3 89.073 Minor 1 1 x 1200 14.00
4 89.808 Minor 1 1 x 1200 14.00
For Junction Locations Refer Clause 3.1 of this Schedule B.

Note: - It is clarified that if any other deficient junctions with cross BT/CC roads is
identified during development period shall be improved with drainage facilities with pipe
culvert & as per standard set forth in Schedule ‘D’.
7.2.5 Repairs/replacements of railing/parapets, flooring and protection works of the existing

culverts shall be undertaken as per Para 7.22 of manual (IRC:SP 73-2015).
LAB/BOX CULVERTS – Nil.
Location of Structure
Sr. No. Type Remark
(km)
----Nil----
Note: - It is clarified that above repairing & strengthening measures are indicative and minimum
specified. The condition survey of the existing structure shall be carried out by the
contractor as per IRC 35, & Strengthening / repairing shall be carried out as per the
requirement of site and as per instruction of Authority Engineer, for pier, abutment, sub
structure & super structure, replacement of bearings, expansion joints & wearing coat,
providing railing on bridge, painting & protection works etc. If any Increase in the
specified above shall not constitute a Change of Scope.
Maharashtra.
. Page | B-28
PIPE CULVERTS – Nil.
Location of
Sr. No. Type Remark
Structure (km)
----Nil----
7.2.6 Floor protection works shall be provided as specified in the relevant IRC Codes and
Specifications.
7.3 Bridges
7.3.1 Existing bridges to be re-constructed

The existing bridges at the following locations shall be re-constructed as new Structures:
[Refer to paragraph 7.3.2 of the Manual]
(a) MAJOR BRIDGES: - Nil.
Details of Existing Structure Details of Proposed structure Remark

Sr. Existing Design
No Chainage Chainage Span Width of Span
Type of Proposed Type of
. (Km) (Km) Arrang- Structur Arrang-
Structure Width (m) Bridge
ement e (m) ement
Nil
(b) MINOR BRIDGES: - Nil.
Details of Existing Structure Details of Proposed structure Remark

Sr. Existing Design
No Chainage Chainage Span Width of Span
Type of Proposed Type of
. (Km) (Km) Arrang- Structure Arrang-
Structure Width (m) Bridge
ement (m) ement*
Nil
Note: It is clarified that above repairing &Strengthening measures are indicative and
minimum specified. The condition survey of the existing structures shall be carried out by the
EPC contractor as per IRC-35 and strengthening /repairing /widening shall be carried out as
per requirement of site and as per instruction of Authority Engineer for pier, abutment, sub
structure ,and super structure replacement of bearing expansion joint and wearing coat,
providing railing on bridge, painting and protection work. If any increase in the specified
above shall not constitute a change of scope.
- Strengthening of substructureand foundation by RCC jacketing.
- Replacement of wearing coat with new coat.
- Replacement of expansion joints,
- Replacement of bearings,
- Structural repairs to substructure/super structure,
- Repair to flooring and protection works.
Maharashtra.
. Page | B-29
- M40 grade concreteshall beused for repair work.
(i) The following narrow Bridges shall be widened including Strengthening &
repairing of Existing Bridge.
(a) MAJOR BRIDGES: - NIL
Sr. Design Chainage Existing Extent of Cross-section at deck level

No. (Km) Width (m) widening (m) for widening @
--NIL--
(b) MINOR BRIDGES: - 01 Nos.
Sr. Design Chainage Existing Extent of Cross-section at deck level

No. (Km) Width (m) widening (m) for widening @
Refer GAD for MNB at
1 70.865 11.00 5.00
70.865
7.3.2 Additional new bridges:
New bridges at the following locations on the Project Highway shall be constructed.
GADs for the new bridges are attached in the drawings folder.
(a) MAJOR BRIDGES: - Nil.
Sr.
Bridge at km (Design Ch.) Total Length of bridge (m) Total Width (m)
No.
Nil
(b) MINOR BRIDGES: - 02 Nos.
Sr.
Bridge at km (Design Ch.) Total Length of bridge (m) Total Width (m)
No.
1 87.97 28.40 22.50
2 89.405 9.20 22.50
7.3.3 The railings of all existing bridges shall be replaced by crash barriers as per manual.

Maharashtra.
. Page | B-30
S. No. Location at km Remarks

--NIL--
7.3.4 Repairs/replacements of railing/parapets of the existing bridges shall be undertaken as

per manual.
S. No. Location at km. Remarks

1 73.671
2 75.484
3 75.984 Repair/Replacement of
4 81.832 railing/Parapet
5 87.97
6 89.405
7.3.5 Drainage system for bridge decks
An effective drainage system for bridge decks shall be provided as specified in

paragraph 7.21 of the Manual IRC SP 73 2015
7.3.6 Structures in marine environment : - NIL
7.4. Rail-road bridges: -NIL
7.4.1. Design, Construction and detailing of ROB/RUB shall be specified in section 7 of the
Manual.
Existing Design Proposed span

SI. Width
Chainage Chainage arrangement Track Lane
No. (m)
(Km) (Km) (m)
--NIL--
7.4.2. Road Over Bridges: NIL
Road over-bridge (road over rail) shall be provided at the following level crossings, as per
GAD drawings attached.

SI. Width
No. (m)
(Km) (Km) (m)
Maharashtra.
. Page | B-31

SI. Width
No. (m)
(Km) (Km) (m)
----NIL----
7.5 Grade separated structures: - Nil.
The grade separator structures shall be provided at the location and of the type and length
specified in paragraph 2.9 and 3 of this Annex-I
7.6 Repairs and strengthening of bridges and structures
[Refer to paragraph 7.23 of the Manual IRC SP 73 2015 and provide details]
The existing bridges and structures to be repaired / strengthened, and the nature and
extent of repairs /strengthening required are given below:
A. BRIDGES
(i) MAJOR BRIDGES: - 01 Nos.
Sr. Location of bridge Nature and extent of repairs /strengthening to

No. (km) be carried out
Replacement of expansion joints & wearing coat,
1 76.476 providing crash barrier and approach slab on
bridge, painting & bed protection work.
(ii) MINOR BRIDGES: - 05 Nos.
Sr. Location of bridge Nature and extent of repairs /strengthening to

No. (km) be carried out
1 73.671
2 75.484 Replacement of expansion joints & wearing coat,
3 81.832 providing crash barrier and approach slab on
4 87.97 bridge, painting & bed protection work.
5 89.405
Note: - It is clarified that above repairing & strengthening measures are indicative and minimum
specified. The condition survey of the existing structure shall be carried out by the contractor as
per IRC 35, & Strengthening / repairing shall be carried out as per the requirement of site and as
per instruction of Authority Engineer, for pier, abutment sub structure & super structure,
replacement of bearings, expansion joints & wearing coat, providing railing on bridge, painting &
protection works etc. If any Increase in the specified above shall not constitute a Change of Scope.

Maharashtra.
. Page | B-32
B. ROB/RUB
(i) ROB: - NIL

(ii) RUB: - NIL
Sr. Location of ROB
Remark
No. (km)
NIL
C. Overpasses/Underpasses and Other Structures: -
Sr. Location of Structures Nature and Extend of repairs / strengthening

No. (Km) to be carried out
NIL
7.7 List of Major Bridges and Structures :-
The following is the list of the Major Bridges and Structures:
Sr. No. Location of bridge (km)

Nil
8 TRAFFIC CONTROL DEVICES AND ROAD SAFETY WORKS
8.1 Traffic control devices and road safety works shall be provided in accordance with
Section 9 of the Manual.
8.2 Specifications of the reflective sheeting shall be provided in accordance with Section 9
of the Manual.
8.3 Details shall be as approved by Authority Engineer.
8.4 Reflective Traffic Safety Products/Round tree reflectors shall be provided on tree for
easy visibility at night.
8.5 Solar lights blinkers shall be provided at major & minor junctions etc.
9 ROADSIDE FURNITURE
9.1 Roadside furniture shall be provided in accordance with the provisions of Section 9 of
the Manual.
9.2 Overhead traffic signs: The locations are mentioned in below table and the size shall be
evolved based on design of sign boards given in IRC 67.

Maharashtra.
. Page | B-33
Location
S. No Numbers Type Remark
(Design Chainage)
Cantilever overhead
1 77.608, 79.028 2 At Major Junction
sign
2 79.058 1 Overhead gantry Sign Four Lane Start
3 91.079 1 Overhead gantry Sign Four Lane End
4 62.008 1 Cautionary sign Start of Ghats Section
5 64.538 1 Cautionary sign End of Ghats Section
Cantilever overhead
6 91.139 1 End of Project Road
sign
Note: All Traffic Signs for Road Users would be provided as per Manual. However the
Contractor shall provide minimum numbers of Cautionary, Mandatory, Warning and
Informatory Traffic Sign Boards as mentioned below:
S. No Location Numbers Size
At Junction, at curves & 74

1 Built-up 90 cm Equilateral Triangle
58
2 At Curves 60 cm Equilateral Triangle
3 At Curves 36 60 cm Circular
14
4 At Junction & Other 80x60 cm Rectangular
30
5 At Village 80x60 cm Rectangular
44
6 At Junction &Village 60x45 cm Rectangular
29
7 At Curve 60x60 cm Square
7
8 At Junction & Bus bay 90 cm High Octagon
At Every 10 Km.
9 Route Marker Sign 0.9 Sqm

Maharashtra.
. Page | B-34
S. No Location Numbers Size
Delineators at Curve , 840

median openings & 80 – 100 cm High above
10 Structures Ground
Both Side on every
11 Hazard Marker Bridge As per IRC :79-1981
10 COMPULSORY AFFORESTATION
Deleted.
11 HAZARDOUS LOCATIONS
The safety barriers shall be provided at the hazardous locations as per Clause 7.18 of the
Manual (IRC:SP 73-2015). W-Beam metal crash barriers shall however be provided for
a minimum length of 24.730 Km. at all hazardous locations. All hazardous locations
shall be finalized in consultation with the Authority Engineer.
a) W-Beam metal crash barriers: W-Beam metal crash barriers shall be provided at
location given below.
Design Chainages Total

Length
Sr. No. Side Length Remarks
From (Km) To (Km) (Km)
(Km)
Nil
Above length of the W-Beam metal crash barriers is indicative and minimum specified.
The actual length of the W-Beam metal crash barriers shall be determined by the
Contractor in accordance with the Manual requirements with approval from the
Authority's Engineer. Any increase in the length specified in this Clause of Schedule B
shall not constitute a Change of Scope.
12 SPECIAL REQUIREMENT FOR HILL ROADS:-

Retaining walls and drains have been provided in banking and cut sections along with
cautionary signage.
13 CHANGE OF SCOPE
The lengths of Structures and bridges specified hereinabove are minimum. The actual
lengths as required on the basis of detailed investigations shall be determined by the
Contractor in accordance with the Specifications and Standards. Any variations in the
lengths specified in this Schedule-B shall not constitute a Change of Scope, save and
except any variations in the length arising out of a Change of Scope expressly
undertaken in accordance with the provisions of Article 13.
Maharashtra.
. Page | B-35

Maharashtra.
. Page | B-36

Maharashtra.
. Page | B-37

Maharashtra.
. Page | B-38

Maharashtra.
. Page | B-39

Maharashtra.
. Page | B-40

Maharashtra.
. Page | B-41

Maharashtra.
. Page | B-42

Mort&H, MSRDC, Mumbai, Maharashtra Schedules To Agreement

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Mort&H, MSRDC, Mumbai, Maharashtra Schedules To Agreement

Uploaded by

Copyright:

Available Formats

MoRT&H, MSRDC, Mumbai, Maharashtra Schedules to Agreement

DEVELOPMENT OF THE PROJECT HIGHWAY

1. Development of the Project Highway

2. Rehabilitation and augmentation

3. Specifications and Standards

Upgradation of Section-II Patgaon to Khopoli (Km 69/508-91/139) part of NH-3- SHAHPUR -

DESCRIPTION OF TWO LANING WITH PAVED SHOULDER

1. REHABILITATION, UPGRADATION & WIDENING OF THE EXISTING

1.2 WIDTH OF CARRIAGEWAY

1 69.508 69.583 0.075 3 1.5+7.0+1.5 = 10 m Fig. 2.2

Upgradation of Section-II Patgaon to Khopoli (Km 69/508-91/139) part of NH-3- SHAHPUR -

Design Typical cross

12 72.263 72.303 0.04 1 1.5+7.0+1.5 = 10 m Fig. 2.2

Upgradation of Section-II Patgaon to Khopoli (Km 69/508-91/139) part of NH-3- SHAHPUR -

Design Typical cross

45 84.033 84.723 0.69 3 1.5+7.0+1.5 = 10 m Fig. 2.2

Design Chainage Typical cross

1.2.3 No proposal Section is as shown in table below.

Upgradation of Section-II Patgaon to Khopoli (Km 69/508-91/139) part of NH-3- SHAHPUR -

Sr. No. Chainage From Chainage To Length (Km) Proposal Type

1 76.228 77.028 0.800 No Proposal

Design Chainage Typical cross

1.2.5 In Toll Plaza Location: There are one Toll Plazas.

4 No proposal Section 0.800 -

Total Length 21.631

2. GEOMETRIC DESIGN AND GENERAL FEATURES

Upgradation of Section-II Patgaon to Khopoli (Km 69/508-91/139) part of NH-3- SHAHPUR -

2.2 Design Speed

2.3 Improvement of the existing road geometrics

Design Chainage Type of deficiency

6 km 79.33 to km 79.37 Radius of Curve 100 m 35 km per hr Radius of Curve

10 km 83.64 to km 83.71 Radius of Curve 100 m 50 km per hr Radius of Curve

Upgradation of Section-II Patgaon to Khopoli (Km 69/508-91/139) part of NH-3- SHAHPUR -

16 km 89.33 to km 89.37 Radius of Curve 200 m 45 km per hr

Details of the Right of Way are given in Annex II of Schedule A.

2.4 Type of shoulders

1 90.508 91.139 0.631 0.631 Fig. 2.9 (Modified)

Design Chainages Fully paved

2.6 Lateral and vertical clearances at underpasses

2.6.2. Vehicular Underpasses shall be constructed at following locations: -

Location (chainages) (from

2.7 Lateral and vertical clearances at overpasses:

2.8 a) Service roads:-

Right hand side (RHS)/Left Length (Km) of Remark

From (km) To (km)

------- NIL -------

Location of Service Right hand side (RHS)/Left Length (Km) of Remark

2.9 Grade separated structures

Sr Location of structure Lengt Number & Approach Gradient Remarks, if any

------- NIL -------

2.10 Cattle and pedestrian underpass /overpass :

Cattle/pedestrian underpasses and provision of guardrails/crash barriers shall be as per

------- NIL -------

2.11 Typical cross-sections of the Project Highway

Sr. No. Design Chainage Length Typical cross Remark

Sr. No. Design Chainage Length Typical cross Remark

Upgradation of Section-II Patgaon to Khopoli (Km 69/508-91/139) part of NH-3- SHAHPUR -

Sr. No. Design Chainage Length Typical cross Remark

3. INTERSECTIONS AND GRADE SEPARATORS

3.1 At-grade intersections

1. Major Junction – 3 Nos.

Sr. Design Chainage Category of Type of

Sr. Design Chainage Category of Type of
