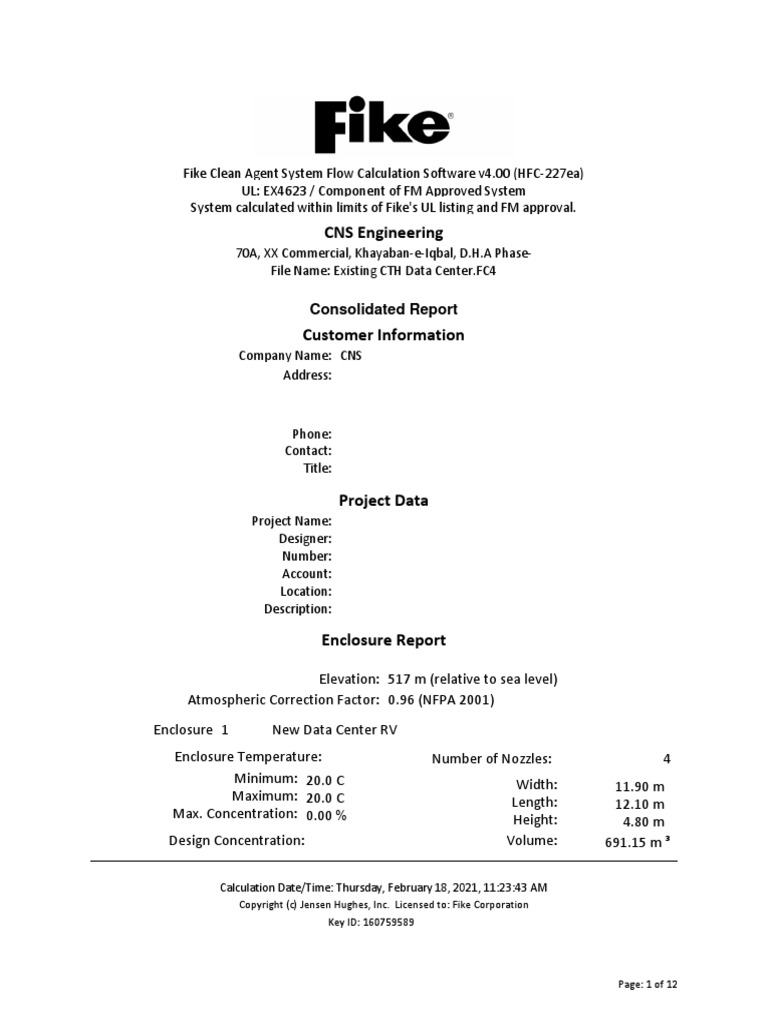

Fike Clean Agent System Flow Calculation Software v4.

00 (HFC-227ea)
UL: EX4623 / Component of FM Approved System
System calculated within limits of Fike's UL listing and FM approval.
CNS Engineering
70A, XX Commercial, Khayaban-e-Iqbal, D.H.A Phase-
File Name: Existing CTH Data Center.FC4

Consolidated Report
Customer Information
Company Name: CNS
Address:

Phone:
Contact:
Title:

Project Data
Project Name:
Designer:
Number:
Account:
Location:
Description:

Enclosure Report

Elevation: 517 m (relative to sea level)

Atmospheric Correction Factor: 0.96 (NFPA 2001)
Enclosure 1 New Data Center RV
Enclosure Temperature: Number of Nozzles: 4
Minimum: 20.0 C Width: 11.90 m
Maximum: 20.0 C Length: 12.10 m
Max. Concentration: 0.00 % Height: 4.80 m
Design Concentration: Volume: 691.15 m ³
Adjusted: 7.45 % Non-permeable: 0.00 m ³
Calculation Date/Time: Thursday, February 18, 2021, 11:23:43 AM
Copyright (c) Jensen Hughes, Inc. Licensed to: Fike Corporation
Key ID: 160759589

Page: 1 of 12
 Consolidated Report
Adjusted: 7.45 % Non-permeable: 0.00 m ³
Minimum: 7.20 % Total Volume: 691.15 m ³
Min. Agent Required: 376.04 kg
Adjusted Agent Required: 390.00 kg

Leakage Area vs Pressure

30
Legend

E1-Pos (+)
E1-Neg (-)
25
Equivalent Leakage Area (in^2)

20

15

10

0
0 2 4 6 8 10 12 14
Enclosure Pressure (psf)

Agent Source Report

Agent: HFC-227ea / Propellant N2

Cylinder Name: 423 L Cylinder, Upright
Cylinder Part Number: 70-271
Agent Per Cylinder: 390.00 kg
Fill Density: 0.922 kg / l
Number of Main Cylinders: 1
Calculation Date/Time: Thursday, February 18, 2021, 11:23:43 AM
Copyright (c) Jensen Hughes, Inc. Licensed to: Fike Corporation
Key ID: 160759589

Page: 2 of 12
 Consolidated
Fill Density: 0.922 kgReport
/l
Number of Main Cylinders: 1
Number of Reserve Cylinders: 0

Cylinder Empty Weight: 242.70 kg

Weight, All Cylinders + Agent: 632.70 kg
Floor Area Per Cylinder: 0.29 m ²
Floor Loading Per Cylinder: 2168 kg /m ²

Calculation Date/Time: Thursday, February 18, 2021, 11:23:43 AM

Copyright (c) Jensen Hughes, Inc. Licensed to: Fike Corporation
Key ID: 160759589

Page: 3 of 12
 Consolidated Report
Parts Report

Total Agent Required: 390.00 kg

Cylinder Name: 423 L Cylinder, Upright (Part: 70-271)
Number of Cylinders: 1
Nozzle
Nozzle Type Diameter Nozzle Area Part Number
E1-N1 360 NPT - Br 50 mm 823.42 mm ² 80-097-3680
E1-N2 360 NPT - Br 50 mm 823.42 mm ² 80-097-3680
E1-N3 360 NPT - Br 50 mm 593.81 mm ² 80-097-3125
E1-N4 360 NPT - Br 50 mm 823.42 mm ² 80-097-3680

Pipe &
Fittings Type Diameter Length Elbows (90) Elbows (45) Tees Unions
40T 50 mm 9.80 m 14 0 0 0
40T 65 mm 2.80 m 0 0 1 0
40T 80 mm 3.10 m 0 0 1 0
40T 100 mm 9.20 m 2 0 1 0
Other
Objects Name Quantity Part Number

System Acceptance Report

System Discharge Time: 10.0 seconds

Percent Agent In Pipe: 43.3%
Percent Agent Before First Tee: 27.2%

Enclosure Number: 1
Enclosure Name: New Data Center RV
Minimum Design Concentration: 7.20%
Adjusted Design Concentration: 7.45%
Calculation Date/Time: Thursday, February 18, 2021, 11:23:43 AM
Copyright (c) Jensen Hughes, Inc. Licensed to: Fike Corporation
Key ID: 160759589

Page: 4 of 12
 Consolidated Report
Adjusted Design Concentration: 7.45%
Predicted Concentration: 7.45%
Maximum Expected Agent Concentration: 7.45% (At 20.0 C)

Minimum Adjusted Predicted Average

Agent Agent Agent Nozzle
Nozzle Required Required Delivered Pressure

E1-N1 94.01 kg 97.50 kg 106.94 kg 5.643 bar

E1-N2 94.01 kg 97.50 kg 115.40 kg 6.411 bar
E1-N3 94.01 kg 97.50 kg 73.37 kg 7.251 bar
E1-N4 94.01 kg 97.50 kg 94.29 kg 7.441 bar

Calculation Date/Time: Thursday, February 18, 2021, 11:23:43 AM

Copyright (c) Jensen Hughes, Inc. Licensed to: Fike Corporation
Key ID: 160759589

Page: 5 of 12
 Consolidated Report

Pipe Network Report

Total Total
Pipe Start End Pipe Pipe Pipe Elevation Equivalent Nozzle Nozzle Nozzle Nozzle
Description Section Node Node Type Diameter Length Union Change Length Name Size Type Area
Cylinder - On Man./End 0 2 80 mm 1.78 m 0 1.78 m 9.42 m
Pipe System 2 3 40T 100 mm 2.10 m 0 2.10 m 2.10 m
Elbow (90) System 3 4 40T 100 mm ------ 0 ------ 3.26 m
Pipe System 4 5 40T 100 mm 6.00 m 0 ------ 6.00 m
Elbow (90) System 5 6 40T 100 mm ------ 0 ------ 3.26 m
Pipe System 6 7 40T 100 mm 1.10 m 0 ------ 1.10 m
Tee System 7 8 40T 80 mm ------ 0 ------ 1.55 m
Pipe System 8 9 40T 80 mm 3.10 m 0 ------ 3.10 m
Tee System 9 10 40T 65 mm ------ 0 ------ 1.25 m
Pipe System 10 11 40T 65 mm 2.80 m 0 ------ 2.80 m
Tee System 11 12 40T 50 mm ------ 0 ------ 3.41 m
Pipe System 12 13 40T 50 mm 0.50 m 0 ------ 0.50 m
Elbow (90) System 13 14 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 14 15 40T 50 mm 0.70 m 0 0.70 m 0.70 m
Elbow (90) System 15 16 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 16 17 40T 50 mm 0.30 m 0 ------ 0.30 m
Elbow (90) System 17 18 40T 50 mm ------ 0 ------ 1.68 m
Pipe&Nozzle System 18 19 40T 50 mm 0.10 m 0 -0.10 m 0.10 m E1-N2 50 mm 360 NPT - Br 823.42 mm ²
Tee System 11 20 40T 50 mm ------ 0 ------ 3.41 m
Pipe System 20 21 40T 50 mm 0.50 m 0 ------ 0.50 m
Elbow (90) System 21 22 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 22 23 40T 50 mm 3.10 m 0 ------ 3.10 m
Elbow (90) System 23 24 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 24 25 40T 50 mm 0.30 m 0 ------ 0.30 m
Elbow (90) System 25 26 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 26 27 40T 50 mm 0.70 m 0 0.70 m 0.70 m
Elbow (90) System 27 28 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 28 29 40T 50 mm 0.30 m 0 ------ 0.30 m
Elbow (90) System 29 30 40T 50 mm ------ 0 ------ 1.68 m
Pipe&Nozzle System 30 31 40T 50 mm 0.10 m 0 -0.10 m 0.10 m E1-N1 50 mm 360 NPT - Br 823.42 mm ²
Tee System 9 32 40T 50 mm ------ 0 ------ 3.41 m
Pipe System 32 33 40T 50 mm 0.50 m 0 ------ 0.50 m
Key ID: 160759589
Page: 6 of 12
 Consolidated Report
Total Total
Pipe Start End Pipe Pipe Pipe Elevation Equivalent Nozzle Nozzle Nozzle Nozzle
Description Section Node Node Type Diameter Length Union Change Length Name Size Type Area
Elbow (90) System 33 34 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 34 35 40T 50 mm 0.70 m 0 0.70 m 0.70 m
Elbow (90) System 35 36 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 36 37 40T 50 mm 0.30 m 0 ------ 0.30 m
Elbow (90) System 37 38 40T 50 mm ------ 0 ------ 1.68 m
Pipe&Nozzle System 38 39 40T 50 mm 0.10 m 0 -0.10 m 0.10 m E1-N3 50 mm 360 NPT - Br 593.81 mm ²
Tee System 7 40 40T 50 mm ------ 0 ------ 3.41 m
Pipe System 40 41 40T 50 mm 0.50 m 0 ------ 0.50 m
Elbow (90) System 41 42 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 42 43 40T 50 mm 0.70 m 0 0.70 m 0.70 m
Elbow (90) System 43 44 40T 50 mm ------ 0 ------ 1.68 m
Pipe System 44 45 40T 50 mm 0.30 m 0 ------ 0.30 m
Elbow (90) System 45 46 40T 50 mm ------ 0 ------ 1.68 m
Pipe&Nozzle System 46 47 40T 50 mm 0.10 m 0 -0.10 m 0.10 m E1-N4 50 mm 360 NPT - Br 823.42 mm ²

Key ID: 160759589

Page: 7 of 12
