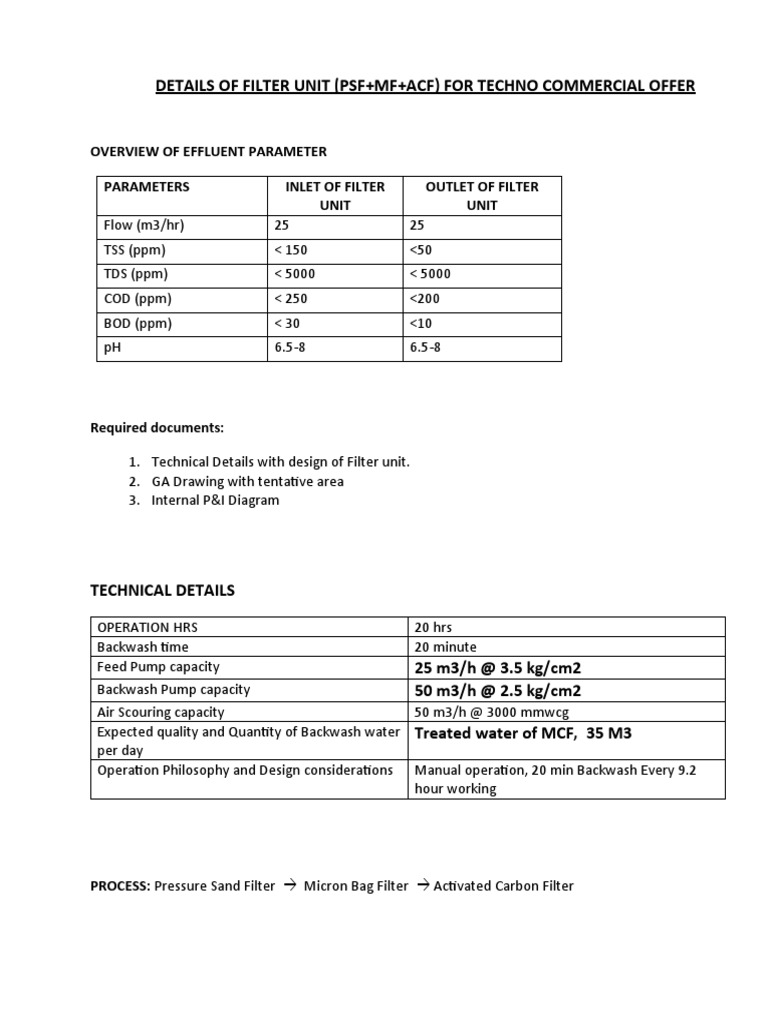

DETAILS OF FILTER UNIT (PSF+MF+ACF) FOR TECHNO COMMERCIAL OFFER

OVERVIEW OF EFFLUENT PARAMETER

PARAMETERS INLET OF FILTER OUTLET OF FILTER

UNIT UNIT
Flow (m3/hr) 25 25
TSS (ppm) < 150 <50
TDS (ppm) < 5000 < 5000
COD (ppm) < 250 <200
BOD (ppm) < 30 <10
pH 6.5-8 6.5-8

Required documents:

1. Technical Details with design of Filter unit.

2. GA Drawing with tentative area
3. Internal P&I Diagram

TECHNICAL DETAILS

OPERATION HRS 20 hrs

Backwash time 20 minute
Feed Pump capacity 25 m3/h @ 3.5 kg/cm2
Backwash Pump capacity 50 m3/h @ 2.5 kg/cm2
Air Scouring capacity 50 m3/h @ 3000 mmwcg
Expected quality and Quantity of Backwash water Treated water of MCF, 35 M3
per day
Operation Philosophy and Design considerations Manual operation, 20 min Backwash Every 9.2
hour working

PROCESS: Pressure Sand Filter  Micron Bag Filter  Activated Carbon Filter
1). Pressure Sand Filter (PSF)

Flow 25 m3/hr
SOR 210 m3/m2/d
No. of unit 1 Nos.
Dirt holding capacity NA
Manholes 2
Filtration media Vendor need to define the type of media and quantity
Diameter 1600 mm
Height 2000 mm
MOC & other requirements  MS body of 8 mm shell and 10 mm dished end,
Rubber lined internally, Two coats epoxy + 2
coats PU coating externally.
 MS pressure vessel with frontal piping in SS
304 Sch 10, along with valves-flanges-pressure
guage etc.
 Outlet collection laterals and header at
bottom.

2). Micron Filter (MF)

Pore size 50 micron

Nos. of Bag 2
Dirt holding capacity Need to define by Vendor
Diameter 350 mm
Height 1500 mm
No. of unit 1
MOC MS / SS 304 / GRP / PP

3). Activated Carbon Filter (ACF)

Flow 25 m3/h

SOR 300 m3/m2/d

No. of unit 1 Nos.
Activated Carbon 650 kg
Iodine value of carbon 900
Diameter 1600
Height 2000
MOC MS body, Rubber lined internally, Two coats
epoxy + 2 coats PU coating externally
