EXPT 8

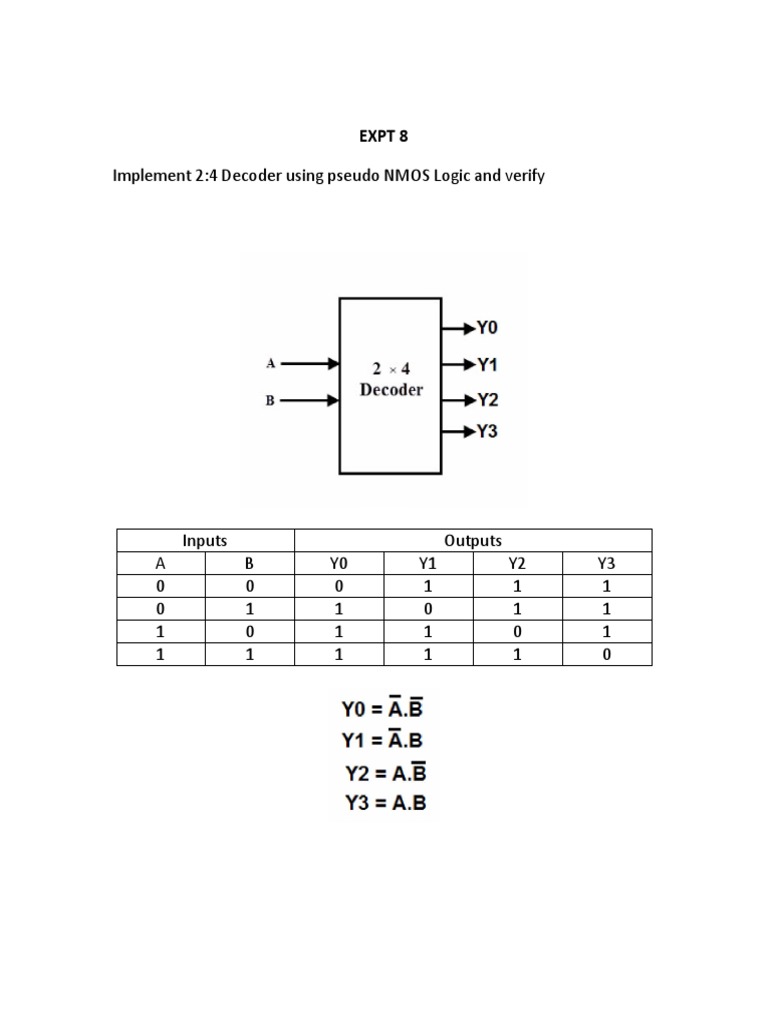

Implement 2:4 Decoder using pseudo NMOS Logic and verify

Inputs Outputs
A B Y0 Y1 Y2 Y3
0 0 0 1 1 1
0 1 1 0 1 1
1 0 1 1 0 1
1 1 1 1 1 0
Circuit file:

*Decoder (2:4) using pseudo NMOS

.include "E:\VLSI_ July_Nov_2021\Lab_Work\EXPT 8\mosmodel.txt
VDD 1 0 DC 1.8V

VA 2 0 PULSE(0 1.8V 0 1N 1N 40U 80U)

VB 3 0 PULSE(0 1.8V 0 1N 1N 80U 160U)

M1 6 0 1 1 CMOSP L=0.18U W=0.36U

M2 6 4 7 0 CMOSN L=0.18U W=0.36U
M3 7 5 0 0 CMOSN L=0.18U W=0.36U

M4 8 0 1 1 CMOSP L=0.18U W=0.18U

M5 8 4 9 0 CMOSN L=0.18U W=0.36U
M6 9 3 0 0 CMOSN L=0.18U W=0.36U

M7 10 0 1 1 CMOSP L=0.18U W=0.36U

M8 10 2 11 0 CMOSN L=0.18U W=0.36U
M9 11 5 0 0 CMOSN L=0.18U W=0.36U

M10 12 0 1 1 CMOSP L=0.18U W=0.36U

M11 12 2 13 0 CMOSN L=0.18U W=0.36U
M12 13 3 0 0 CMOSN L=0.18U W=0.36U

M13 4 2 1 1 CMOSP L=0.18U W=0.72U

M14 4 2 0 0 CMOSN L=0.18U W=0.36U

M15 5 3 1 1 CMOSP L=0.18U W=0.72U

M16 5 3 0 0 CMOSN L=0.18U W=0.36U

.TRAN 0 800U

.END
