STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY

& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE

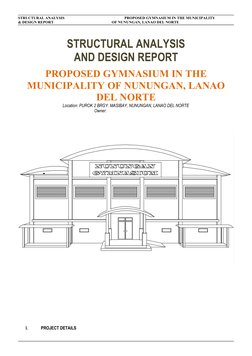

STRUCTURAL ANALYSIS
AND DESIGN REPORT
PROPOSED GYMNASIUM IN THE
MUNICIPALITY OF NUNUNGAN, LANAO
DEL NORTE
Location: PUROK 2 BRGY. MASIBAY, NUNUNGAN, LANAO DEL NORTE
Owner:

I. PROJECT DETAILS
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
Project Name : Proposed Gymnasium in the Municipality of Nunungan, Lanao Del norte
Location : Purok 2 BRGY. Masibay, Nunungan, Lanao Del norte
Occupancy Category : Essential Facilities
Building Structural System : Moment Resisting Frame Systems – Special Reinforced Concrete MF’s

II. REFERENCE CODE AND STANDARDS

- National Structural Code of the Philippines
- National Building Code of the Philippines

III. MATERIAL SPECIFICATIONS

Concrete – reinforced concrete design shall be in accordance with NSCP 2015. The specified minimum
compressive strength of the concrete by cylinder test at 28days age shall be as follows:
Foundation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Beams - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Columns - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Suspended Slab - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Slab on Grade - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20.7MPa (3000PSI)
Lean Concrete - - - - - - - - - - - - - - - - - - - - - - - - - - - - -10.0MPa (1450PSI)

Reinforcing Steel – minimum yield strength of reinforcing bar shall be as follows:

16mmØ and smaller reinforcing bar - - - - - - - - - - - - - - 276MPa (Grade 40)

20mmØ and bigger reinforcing bar - - - - - - - - - - - - - - - 414MPa (Grade 60)

Structural Steel – All structural steel such as wide flange, angles, channels, pipes and plates shall conform to
ASTM A36 or equivalent with minimum yield strength of 248MPa.

Weld – Welding electrode shall be E70XX, minimum welding 6mm. Fu = 480MPa

Anchor Bolt – Anchor Bolt shall conform to ASTM 325 or equivalent. Anchor bolt shall be designed for maximum
tensile stress of 140MPa on the tensile stress area of the bolt.

IV. DESIGN LOAD CRITERIA

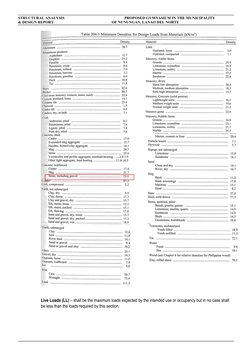

Dead Loads (DL) – consist of the weight of all materials of construction incorporated into the building or other
structure, including but not limited to walls, floors, roofs, ceilings, stairways, finishes, cladding and other similarly
incorporated architectural and structural items, and fixed service equipment, including the weight of cranes.
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE

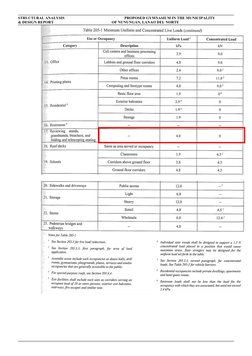

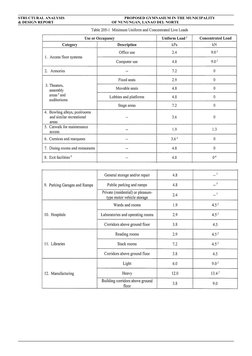

Live Loads (LL) – shall be the maximum loads expected by the intended use or occupancy but in no case shall
be less than the loads required by this section.
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
Roof Live Loads (LL) – shall be designed for the unit live loads, Lr, set forth in Table 205-3. The live loads shall
be assumed to act vertically upon the projected area on a horizontal plane.

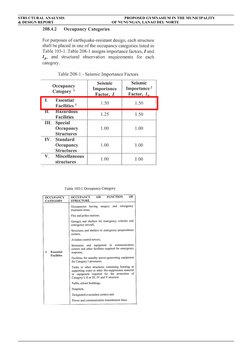

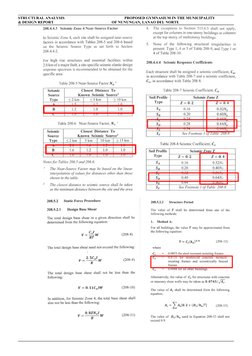

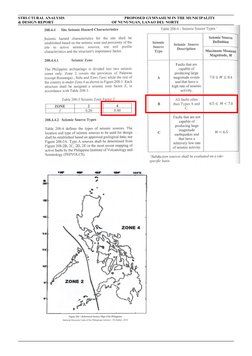

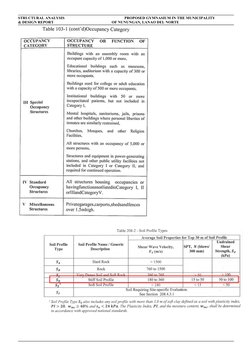

Earthquake Loads (EQX & EQZ), section 208

STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
V. LOAD COMBINATIONS
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE

LOAD COMBINATION FOR DESIGN

LOAD COMB 16 1.2DL + 0.5LL + 1.0EQX
LOAD COMB 17 1.2DL + 0.5LL - 1.0EQX
LOAD COMB 18 1.2DL + 0.5LL + 1.0EQZ
LOAD COMB 19 1.2DL + 0.5LL - 1.0EQZ
LOAD COMB 20 0.9DL + 1.0EQX
LOAD COMB 21 0.9DL - 1.0EQX
LOAD COMB 22 0.9DL + 1.0EQZ
LOAD COMB 23 0.9DL - 1.0EQZ

LOAD COMBINATION FOR DRIFT CHECK

LOAD COMB 16 1.2DL + 0.5LL + 1.0EQX
LOAD COMB 17 1.2DL + 0.5LL - 1.0EQX
LOAD COMB 18 1.2DL + 0.5LL + 1.0EQZ
LOAD COMB 19 1.2DL + 0.5LL - 1.0EQZ
LOAD COMB 20 0.9DL + 1.0EQX
LOAD COMB 21 0.9DL - 1.0EQX
LOAD COMB 22 0.9DL + 1.0EQZ
LOAD COMB 23 0.9DL - 1.0EQZ

LOAD COMBINATION FOR DEFLECTION CHECK

LOAD COMB 24 1.0DL + 1.0LL + 1.0RL

VI. GEOMETRY
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE

3D STRUCTURAL RENDERED VIEW

VII. LOAD CALCULATION

STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE

VIII. ANALYSIS
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE

IX. DESIGN

DESIGN OF BEAMS AND GIRDERS

STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE

DESIGN OF COLUMNS
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE

DESIGN OF FOOTINGS
STRUCTURAL ANALYSIS PROPOSED GYMNASIUM IN THE MUNICIPALITY
& DESIGN REPORT OF NUNUNGAN, LANAO DEL NORTE
