Milter Bends Wall Thickness Calculation Report

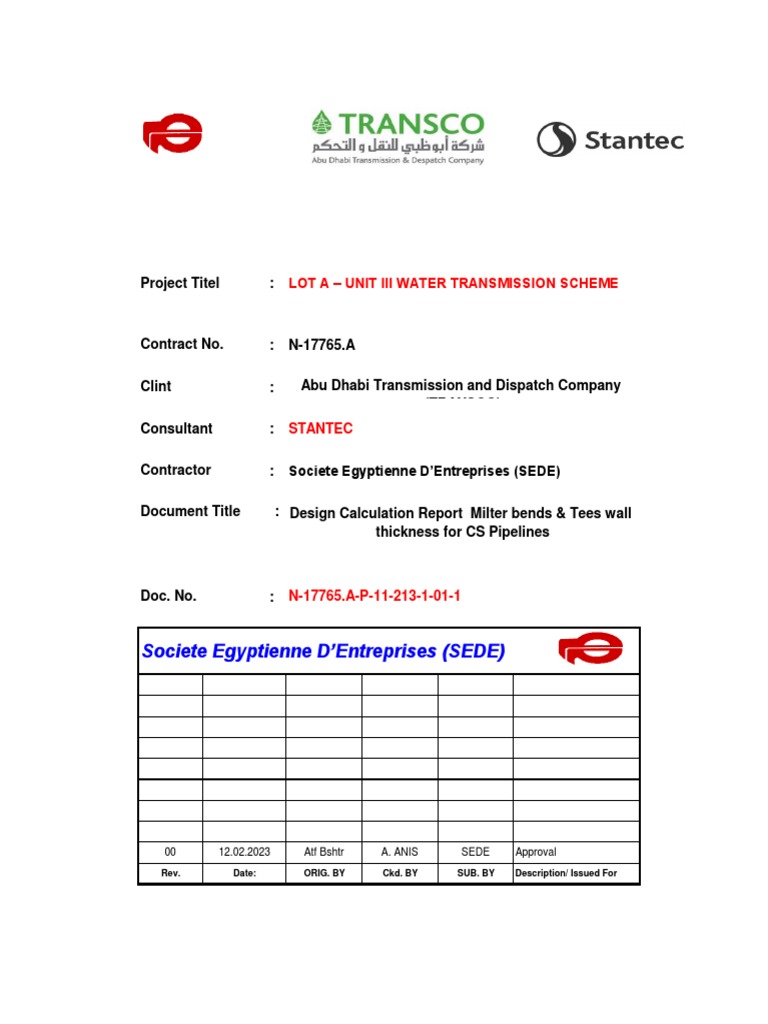

Project Titel : LOT A – UNIT III WATER TRANSMISSION SCHEME
Contract No. : N-17765.A
Clint : Abu Dhabi Transmission and Dispatch Company

(TRANSCO)
Consultant : STANTEC
Contractor : Societe Egyptienne D’Entreprises (SEDE)
Document Title : Design Calculation Report Milter bends & Tees wall
thickness for CS Pipelines
Doc. No. : N-17765.A-P-11-213-1-01-1
Societe Egyptienne D’Entreprises (SEDE)
00 12.02.2023 Atf Bshtr A. ANIS SEDE Approval

Rev. Date: ORIG. BY Ckd. BY SUB. BY Description/ Issued For
Design Calculation Report N-17765.A
Fittings Wall Thickness for CS Pipelines
Part (A)
Miter Bends
Abu Dhabi Transmission and 2 STANTEC

Dispatch Company (TRANSCO)
Design Calculation Report for

Milter bends wall thickness for CS Pipelines
CONTENTS - PART A
No. DN Design Pressure (bar) Elbow
A-1 DN 1800 10 45°
A-2 DN 1200 16 90°
A-3 DN 1200 16 45°
A-4 DN 1200 16 22.5°
A-5 DN 1200 16 11.25°
A-6 DN 1200 25 45°
A-7 DN 1200 25 22.5°
A-8 DN 1200 25 11.25°
A-9 DN 1000 25 45°
A - 10 DN 1000 25 22.5°
A - 11 DN 1000 25 11.25°
A - 12 DN 900 16 90°
A - 13 DN 900 25 90°
A - 14 DN 900 25 45°
A - 15 DN 800 16 90°
A - 16 DN 700 25 45°
A - 17 DN 700 25 22.5°
Summary Of Results

Part A - 1

DN 1800 mm
PN 10 bars
45°

1. General
1.1 Introduction
This document covers the design calculations for the milter bends wall thickness
for CS pipes
The calculations are based on the American Standard ASME B31.3
1.2 Refrences
- Contract Documents W-P-SS-002-Rev.01, Specification for Carbon Steel Pipes & Fittings,
- ASME 31.3 - 2020 - Process Piping Guide
- ASME-B36.10M
2. Design Parametrs and Conditons:

2.1 Bend Data
PN: Design Pressure 10 bar
DN: Bend Diameter 1800 mm
D: Outside Diameter 1829 mm
Bθ : Bend Angle 45 Degree
2.2 Material Data

CM : Cylinder Material ASTM SA516 Gr.70 / ASME A516 Gr.70
E: Quality factor from Table A-A1 / A-1B 0.85
Y: Specified Minimum Yield Stress 245 MPa
2.3 Pressures and Stresses

P i : Internal Design Pressure 1.0 MPa
S : Allowable Stress acc to ASME B31.3 161.00 MPa
W : Weld Joint Strength Reduction Factor 1.00

3. Allowable stress calculations
Pm: maximum allowable internal pressure for milter bends

T: Wall thickness 12.70 mm
mechanical allowance (corrosion allowance +
c: 0.64 mm
tolerance) according to ASME 31.3
empirical value based on (T - c) - acc to ASME
A: 25.00
31.3
Min effective radius of miter bend, defined as

the shortest distance from the pipe centerline to
R1-min : 1104.39 mm
the intersection of the planes of adjacent miter
joints (R1=A/tanθ+D/2) - acc to ASME 31.3
Select R1-min
Min effective radius of miter bend, defined as (Max of Two)
R1-min* : 2743.50 mm
joints (1.5×D) - acc to project specs)
R1-S : Selected R1 2743.50 mm
r2 : mean radius of pipe using nominal wall 908.15 mm
n: no of cuts 3.00 max 4 cuts
θ: Miter Cut Angle 7.50 Degree
Minimum Crotch length [larger of 2.5(r2T)^2
M: 268.49 mm
and tanθ (R1 - r2)]

Check on allowable stresses with required stress

Pm: Formula (4a) 10.48 > 10 bar Ok
Pm: Formula (4b) 14.57 > 10 bar Ok
4. Results
Summary
Elbow 45 - 1800 mm - PN10
No of Cuts 3
Chosen thickness (mm) 12.70

Part A - 2

DN 1200 mm
PN 16 bars
90°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
Bθ : Bend Angle 90.00 Degree
2.2 Material Data




c: 0.71 mm
A: 27.11
31.3

R1-min : 745.81 mm
Select R1-min
R1-min* : 1828.50 mm
M: 243.89 mm


4. Results
Summary
Elbow 90 - 1200 mm - PN16
No of Cuts 4

Part A - 3

DN 1200 mm
PN 16 bars
45°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.56 mm
A: 25.00
31.3

R1-min : 863.33 mm
Select R1-min
R1-min* : 1828.50 mm
M: 204.97 mm


4. Results
Summary
Elbow 45 - 1200 mm - PN16
No of Cuts 4

Part A - 4

DN 1200 mm
PN 16 bars
22.5°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.52 mm
A: 25.00
31.3

the shortest distance from the pipe centerline
R1-min : to the intersection of the planes of adjacent 990.93 mm
miter joints (R1=A/tanθ+D/2) - acc to ASME
31.3 Select R1-min
R1-min* : 1828.50 mm
to the intersection of the planes of adjacent
miter joints (1.5×D) - acc to project specs)
M: 197.34 mm


4. Results
Summary
Elbow 22.5 - 1200 mm - PN16
No of Cuts 3

Part A - 5

DN 1200 mm
PN 16 bars
11.25°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data


S : Allowable Stress acc to ASME B31.3 161 MPa


c: 0.48 mm
A: 11.25
31.3

R1-min : 838.50 mm
Select R1-min
R1-min* : 1828.50 mm
M: 189.79 mm


4. Results
Summary
Elbow 11.25 - 1200 mm - PN16
No of Cuts 2

Part A - 6

DN 1200 mm
PN 25 bars
45°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.87 mm
A: 33.21
31.3

R1-min : 861.77 mm
Select R1-min
R1-min* : 1828.50 mm
M: 256.19 mm


4. Results
Summary
Elbow 45 - 1200 mm - PN25
No of Cuts 3

Part A - 7

DN 1200 mm
PN 25 bars
22.5°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.75 mm
A: 28.67
31.3

R1-min : 1046.93 mm
Select R1-min
R1-min* : 1828.50 mm
M: 238.27 mm


4. Results
Summary
Elbow 22.5 - 1200 mm - PN25
No of Cuts 3

Part A - 8

DN 1200 mm
PN 25 bars
11.25°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.71 mm
A: 11.25
31.3

R1-min : 838.50 mm
Select R1-min
R1-min* : 1828.50 mm
M: 231.78 mm


4. Results
Summary
Elbow 11.25 - 1200 mm - PN25
No of Cuts 2

Part A - 9

DN 1000 mm
PN 25 bars
45°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.71 mm
A: 11.25
31.3

R1-min : to the intersection of the planes of adjacent 622.22 mm
miter joints (R1=A/tanθ+D/2) - acc to ASME
31.3 Select R1-min
R1-min* : 1524.00 mm
to the intersection of the planes of adjacent
miter joints (1.5×D) - acc to project specs)
M: 211.35 mm


4. Results
Summary
Elbow 45 - 1000 mm - PN25
No of Cuts 4

Part A - 10

DN 1000 mm
PN 25 bars
22.5°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.64 mm
A: 25.00
31.3

R1-min : 889.43 mm
Select R1-min
R1-min* : 1524.00 mm
M: 199.55 mm


4. Results
Summary
Elbow 22.5 - 1000 mm - PN25
No of Cuts 3

Part A - 11

DN 1000 mm
PN 25 bars
11.25°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.60 mm
A: 11.25
31.3

R1-min : 737.00 mm
Select R1-min
R1-min* : 1524.00 mm
M: 193.32 mm


4. Results
Summary
Elbow 11.25 - 1000 mm - PN25
No of Cuts 2

Part A - 12

DN 900 mm
PN 16 bars
90°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.52 mm
A: 25.00
31.3

R1-min : 614.84 mm
Select R1-min
R1-min* : 1371.00 mm
R1-S : Selected R1 1371 mm
M: 170.63 mm


4. Results
Summary
Elbow 90 - 900 mm - PN16
No of Cuts 5

Part A - 13

DN 900 mm
PN 25 bars
90°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.71 mm
A: 27.11
31.3

R1-min : 628.18 mm
Select R1-min
R1-min* : 1371.00 mm
M: 200.31 mm


4. Results
Summary
Elbow 90 - 900 mm - PN25
No of Cuts 5

Part A - 14

DN 900 mm
PN 25 bars
45°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.64 mm
A: 11.25
31.3

R1-min : 571.22 mm
Select R1-min
R1-min* : 1371.00 mm
M: 189.13 mm


4. Results
Summary
Elbow 45 - 900 mm - PN25
No of Cuts 4

Part A - 15

DN 800 mm
PN 16 bars
90°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.44 mm
A: 25.00
31.3

R1-min : 564.34 mm
Select R1-min
R1-min* : 1219.50 mm
M: 148.21 mm


4. Results
Summary
Elbow 90 - 800 mm - PN16
No of Cuts 5

Part A - 16

DN 700 mm
PN 25 bars
45°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.48 mm
A: 11.25
31.3

R1-min : 469.72 mm
Select R1-min
R1-min* : 1066.50 mm
M: 144.54 mm


4. Results
Summary
Elbow 45 - 700 mm - PN25
No of Cuts 4

Part A - 17

DN 700 mm
PN 25 bars
22.5°

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Bend Data
2.2 Material Data




c: 0.44 mm
A: 25.00
31.3

R1-min : 736.93 mm
Select R1-min
R1-min* : 1066.50 mm
M: 138.49 mm


4. Results
Summary
Elbow 22.5 - 700 mm - PN25
No of Cuts 3

Summary of Elbows

Summary Of Results
Diameter (mm) PN (bar) Fitting Type Wall thickness (mm) no of cuts

1800 10 45° elbow 12.70 3
1200 90° elbow 14.27 4
1200 45° elbow 11.13 4
16
1200 22.5° elbow 10.31 3
1200 11.25° elbow 9.53 2
1200 45° elbow 17.48 3
1200 25 22.5° elbow 15.09 3
1200 11.25° elbow 14.27 2
1000 45° elbow 14.27 4
1000 25 22.5° elbow 12.70 3
1000 11.25° elbow 11.91 2
900 16 90° elbow 10.31 5
900 25 90° elbow 14.27 5
900 25 45° elbow 12.70 4
800 16 90° elbow 8.74 5
700 25 45° elbow 9.53 4
700 25 22.5° elbow 8.74 3

Part (B)
Tees


CONTENTS - PART B
Design Pressure
No. Diameter
(bar)
B-1 DN 1200 / 1200 25
B-2 DN 1200 / 1200 16
B-3 DN 1200 / 1000 25
B-4 DN 1200 / 900 16
B-5 DN 1200 / 900 25
B-6 DN 1200 / 800 16
B-7 DN 1200 / 700 25
B-8 DN 1200 / 600 16
B-9 DN 1200 / 600 25
B - 10 DN 1200 / 500 16
B - 11 DN 1200 / 500 25
B - 12 DN 1200 / 450 16
B - 13 DN 1200 / 300 16
B - 14 DN 1200 / 300 25
B - 15 DN 1200 / 250 16
B - 16 DN 1200 / 250 25
B - 17 DN 1000 / 1000 25
B - 18 DN 1000 / 700 25
B - 19 DN 1000 / 600 25
B - 20 DN 1000 / 500 25
B - 21 DN 1000 / 300 25
B - 22 DN 1000 / 200 25
B - 23 DN 900 / 900 16
B - 24 DN 900 / 900 25
B - 25 DN 900 / 80 16
B - 26 DN 400 / 400 16
Summary Of Results

Part B - 1

Branch connection wall thickness for CS Pipelines
Tee 1200/1200 mm
PN 25 bars

1. General
1.1 Introduction
This document covers the design calculations for the branch connection wall thickness
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.1 Branch connection Data
PN Design Pressure 25 bar
dh : Run Tee Inside Diameter 1200 mm
Dh : Run Tee Outside Diameter 1219 mm
db : Branch Tee Inside Diameter 1200 mm
Db : Branch Tee Outside Diameter 1219 mm
2.2 Material Data

E Quality factor from table A-1A/B 0.85
S: Allowable Stress acc to ASME B31.3 161.00 MPa
W: Weld joint strength reduction factor from table 302.3.4 1.00
M: Mill tolerance ratio (acc. To project specs) 5.00 %
Y: Coefficient from table 304.1.1 0.40

3. Calculation of minimum pipe wall thickness and design pressure thickness
T H : Run Pipe Nominal Wall thickness 12.70 mm

T h : Run Pipe Nominal Wall thickness - minus Mill Tolerance 12.07 mm
Pressure design thickness of Run pipe (acc. to ASME 31.3
th : 11.08 mm < 12.07 Ok
section 304.1.2)
T B : Branch Pipe Nominal Wall thickness 11.91 mm
T b : Branch Pipe Minimum Wall thickness 11.31 mm
Pressure design thickness of Branch pipe (acc. to ASME 31.3
tb : 11.08 mm < 11.31 Ok
section 304.1.2)
Dh/Th
D b/Dh- Branch to Run diameter ratio condition to specify the Dh/Th
1.00 < 0.5 Limit
Condition allowable ratio applies
D h /T h :Run pipe diameter to Thickness ratio 95.98 < 100 Ok
D b /D h :Branch to Run diameter ratio 1.00 ≤ 1 Ok
β : Angle beta between the Run pipe and Branch pipe 90.00 ° > 45 Ok
4. Calculation of required and available reinforcement area

4.1 Calculation of required reinforcement area
Effective length removed from pipe at branch
d1 : 1196.37 mm
d 1 = [D b - 2(T b - c)]/sin β
Required reinforcement area
A1 : 13258.64 mm²
A 1 = t h d 1 (2 - sin β )
4.2 Calculation of available reinforcement area

height of reinforcement zone outside of run
L4 : 30.16 mm
pipe - smaller of: 2.5(T h - c) or 2.5(T b - c) + T r
half width of reinforcement zone, larger of:
d2 : 1196.37 < 1219 Ok
d 1 or (T b - c) + (T h - c) + d 1 /2 and less than D h
area resulting from excess thickness in the run pipe wall
A2 : 1175.58 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
area resulting from excess thickness in the branch pipe wall
A3 : 14.00 mm²
A 3 = 2L 4 (T b - t b - c)/sin β
T r : selected reinforcement pad wall thickness 10.31 mm
OD pad : Outer Diameter of reinforcement R-pad = 2d2 2390.00 mm

A r : available reinforcement area in R-Pad 12073.01 mm²

available reinforcement area in branch weld fillet
A w1 : Aw1 = 2(0.5tc2), @ tc = lesser of 0.7 × branch pipe wall 36.00 mm²
thickness or 6 mm
available reinforcement area in R-Pad weld fillet
A w2 : 26.57 mm²
A w2 = 2 × (0.5T r ) 2 /2
area of other metal provided by welds and properly attached
A4 : 12135.58 mm²
reinforcement A 4 = A r +A w1 +A w2
Total available reinforcement area
Av: 13325.17 mm² > 13259 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/1200 - PN 25
Run Wall thickness (mm) 12.70
Branch Wall thickness (mm) 11.91
R-Pad thickness (mm) 10.31
R-Pad outer diameter (mm) 2390.00

Part B - 2

Tee 1200/1200 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 7.09 mm < 12.07 Ok
section 304.1.2)
Pressure design thickness of Branch pipe (acc. to ASME
tb : 7.09 mm < 8.30 Ok
31.3 section 304.1.2)
D b/Dh- Branch to Run diameter ratio condition to specify the Dh/Th Limit
1.00 < 0.5
Condition Dh/Th allowable ratio applies
β : Angle beta between the Run pipe and Branch pipe 90.00 ° > 45 Ok

d1 : 1202.39 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 8528.44 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 23.53 mm
d2 : 1202.39 < 1219 Ok
A2 : 5978.45 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 : area resulting from excess thickness in the branch pipe wall 56.94 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 1.92 mm²
A w2 = 2 × (0.5T r ) 2 /2
area of other metal provided by welds and properly
A4 : 2533.69 mm²
attached reinforcement A 4 = A r +A w1 +A w2
Av: 8569.08 mm² > 8528 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/1200 - PN 16

Part B - 3

Tee 1200/1000 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 11.08 mm < 12.07 Ok
section 304.1.2)
tb : 9.24 mm < 9.79 Ok
31.3 section 304.1.2)
D b/Dh-
Dh/Th Limit
Conditio Branch to Run diameter ratio condition to specify the Dh/Th 0.83 < 0.5
applies
n allowable ratio
β : Angle beta between the Run pipe and Branch pipe 90 ° > 45 Ok

d1 : 996.41 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 11042.60 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 30.16 mm
d2 : 996.41 < 1219 Ok
A2 : 979.09 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 33.73 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 26.57 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 10104.51 mm²
Av: 11117.34 mm² > 11043 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/1000 - PN 25

Part B - 4

Tee 1200/900 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 7.09 mm < 12.07 Ok
section 304.1.2)
tb : 5.32 mm < 6.78 Ok
31.3 section 304.1.2)
D b/Dh- Branch to Run diameter ratio condition to specify the Dh/Th Dh/Th Limit
0.75 < 0.5

d1 : 900.43 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 6386.67 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 19.73 mm
d2 : 900.43 < 1219 Ok
A2 : 4477.07 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 57.79 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 1.92 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 1871.72 mm²
Av: 6406.58 mm² > 6387 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/900 - PN 16

Part B - 5

Tee 1200/900 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 11.08 mm < 12.07 Ok
section 304.1.2)
tb : 8.31 mm < 9.05 Ok
31.3 section 304.1.2)
0.75 < 0.5

d1 : 895.89 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 9928.63 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 30.16 mm
d2 : 895.89 < 1219 Ok
A2 : 880.32 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 26.57 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 9094.13 mm²
Av: 10019.20 mm² > 9929 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/900 - PN 25

Part B - 6

Tee 1200/800 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 7.09 mm < 12.07 Ok
section 304.1.2)
tb : 4.73 mm < 6.03 Ok
31.3 section 304.1.2)
0.67 < 0.5

d1 : 800.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 5680.94 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 17.85 mm
d2 : 800.94 < 1219 Ok
A2 : 3982.35 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 1.92 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 1675.37 mm²
Av: 5704.20 mm² > 5681 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/800 - PN 16

Part B - 7

Tee 1200/700 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



Pressure design thickness of Run pipe (acc. to ASME
th : 11.08 mm < 12.07 Ok
31.3 section 304.1.2)
tb : 6.46 mm < 6.78 Ok
31.3 section 304.1.2)
0.58 < 0.5

d1 : 697.43 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 7729.23 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 27.27 mm
d2 : 697.43 < 1219 Ok
A2 : 685.31 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
area resulting from excess thickness in the branch pipe
A 3 : wall 17.36 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 26.57 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 7052.04 mm²
Av: 7754.71 mm² > 7729 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/700 - PN 25

Part B - 8

Tee 1200/600 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 7.09 mm < 12.07 Ok
section 304.1.2)
tb : 3.55 mm < 5.26 Ok
31.3 section 304.1.2)
0.50 < 0.5

d1 : 599.47 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 4252.00 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 15.93 mm
d2 : 599.47 < 1219 Ok
A2 : 2980.66 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 54.59 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 1.92 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 1235.76 mm²
Av: 4271.00 mm² > 4252 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/600 - PN 16

Part B - 9

Tee 1200/600 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 11.08 mm < 12.07 Ok
section 304.1.2)
tb : 5.54 mm < 6.03 Ok
31.3 section 304.1.2)
0.50 < 0.5

d1 : 597.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 6626.54 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 25.39 mm
d2 : 597.94 < 1219 Ok
A2 : 587.54 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 24.95 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 26.57 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 6026.13 mm²
Av: 6638.63 mm² > 6627 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/600 - PN 25

Part B - 10

Tee 1200/500 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 7.09 mm < 8.30 Ok
section 304.1.2)
tb : 2.96 mm < 6.03 Ok
31.3 section 304.1.2)
D b/Dh-
Conditio Branch to Run diameter ratio condition to specify the Dh/Th 0.42 < 0.5 No limit
n allowable ratio
D h /T h :Run pipe diameter to Thickness ratio 139.473684 < 100 Check

d1 : 495.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 3517.61 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 20.76 mm
d2 : 495.94 < 1219 Ok
A2 : 600.14 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 10.08 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 2836.54 mm²
Av: 3564.41 mm² > 3518 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/500 - PN 16

Part B - 11

Tee 1200/500 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 11.08 mm < 11.31 Ok
section 304.1.2)
tb : 4.62 mm < 6.03 Ok
31.3 section 304.1.2)
0.42 < 0.5 No limit
Condition allowable ratio

d1 : 495.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 5496.14 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 26.21 mm
d2 : 495.94 < 1219 Ok
A2 : 115.12 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 74.17 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 30.97 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 5415.39 mm²
Av: 5604.67 mm² > 5496 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/500 - PN 25

Part B - 12

Tee 1200/450 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 7.09 mm < 8.30 Ok
section 304.1.2)
tb : 2.66 mm < 6.03 Ok
31.3 section 304.1.2)
D b/Dh-
n allowable ratio

d1 : 444.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 3155.87 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 20.76 mm
d2 : 444.94 < 1219 Ok
A2 : 538.42 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 140.05 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 10.08 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 2525.39 mm²
Av: 3203.86 mm² > 3156 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/450 - PN 16

Part B - 13

Tee 1200/300 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

Db : Branch Tee Outside Diameter 323.8 mm
2.2 Material Data



th : 7.09 mm < 8.30 Ok
section 304.1.2)
tb : 1.88 mm < 6.03 Ok
31.3 section 304.1.2)
D b/Dh-
n allowable ratio

d1 : 311.74 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 2211.10 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 20.64 mm
d2 : 311.74 < 1219 Ok
A2 : 377.24 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 171.26 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 7.73 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 1674.36 mm²
Av: 2222.85 mm² > 2211 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/300 - PN 16

Part B - 14

Tee 1200/300 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 11.08 mm < 11.31 Ok
section 304.1.2)
tb : 2.94 mm < 6.03 Ok
31.3 section 304.1.2)
0.27 < 0.5 No limit

d1 : 311.74 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 3454.77 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 26.21 mm
d2 : 311.74 < 1219 Ok
A2 : 72.36 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 30.97 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 3236.13 mm²
Av: 3470.81 mm² > 3455 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/300 - PN 25

Part B - 15

Tee 1200/250 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 7.09 mm < 8.30 Ok
section 304.1.2)
tb : 1.59 mm < 6.03 Ok
31.3 section 304.1.2)
0.22 < 0.5 No limit

d1 : 260.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 1850.78 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 20.64 mm
d2 : 260.94 < 1219 Ok
A2 : 315.76 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 183.46 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 7.73 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 1400.81 mm²
Av: 1900.03 mm² > 1851 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/250 - PN 16

Part B - 16

Tee 1200/250 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 11.08 mm < 11.31 Ok
section 304.1.2)
tb : 2.48 mm < 6.03 Ok
31.3 section 304.1.2)
D b/Dh-
n allowable ratio

d1 : 260.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 2891.78 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 26.21 mm
d2 : 260.94 < 1219 Ok
A2 : 60.57 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 186.47 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 30.97 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 2688.54 mm²
Av: 2935.57 mm² > 2892 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1200/250 - PN 25

Part B - 17

Tee 1000/1000 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 9.24 mm < 9.79 Ok
section 304.1.2)
tb : 9.24 mm < 9.79 Ok
31.3 section 304.1.2)
1.00 < 0.5

d1 : 996.41 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 9202.17 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 24.49 mm
d2 : 996.41 < 1016 Ok
A2 : 557.18 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 22.71 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 8673.83 mm²
Av: 9258.39 mm² > 9202 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1000/1000 - PN 25

Part B - 18

Tee 1000/700 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 9.24 mm < 9.79 Ok
section 304.1.2)
tb : 6.46 mm < 7.52 Ok
31.3 section 304.1.2)
0.70 < 0.5

d1 : 695.95 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 6427.34 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 24.49 mm
d2 : 695.95 < 1016 Ok
A2 : 389.17 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 19.10 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 6071.69 mm²
Av: 6512.73 mm² > 6427 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1000/700 - PN 25

Part B - 19

Tee 1000/600 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 9.24 mm < 9.79 Ok
section 304.1.2)
tb : 5.54 mm < 6.03 Ok
31.3 section 304.1.2)
D b/Dh-
Dh/Th Limit
applies
n allowable ratio

d1 : 597.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 5522.12 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 24.49 mm
d2 : 597.94 < 1016 Ok
A2 : 334.36 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 22.71 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 5188.66 mm²
Av: 5547.08 mm² > 5522 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1000/600 - PN 25

Part B - 20

Tee 1000/500 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 9.24 mm < 9.79 Ok
section 304.1.2)
tb : 4.62 mm < 6.03 Ok
31.3 section 304.1.2)
0.50 < 0.5

d1 : 495.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 4580.12 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 23.82 mm
d2 : 495.94 < 1016 Ok
A2 : 277.32 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 67.41 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 19.10 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 4251.53 mm²
Av: 4596.26 mm² > 4580 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1000/500 - PN 25

Part B - 21

Tee 1000/300 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 9.24 mm < 9.79 Ok
section 304.1.2)
tb : 2.94 mm < 6.03 Ok
31.3 section 304.1.2)
0.32 < 0.5 No limit

d1 : 311.74 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 2878.97 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 23.82 mm
d2 : 311.74 < 1016 Ok
A2 : 174.32 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 19.10 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 2627.64 mm²
Av: 2949.48 mm² > 2879 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1000/300 - PN 25

Part B - 22

Tee 1000/200 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 9.24 mm < 9.79 Ok
section 304.1.2)
tb : 1.99 mm < 6.03 Ok
31.3 section 304.1.2)
0.22 < 0.5 No limit

d1 : 207.04 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 1912.03 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 23.82 mm
d2 : 207.04 < 1016 Ok
A2 : 115.77 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 192.75 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 19.10 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 1619.92 mm²
Av: 1928.44 mm² > 1912 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 1000/200 - PN 25

Part B - 23

Tee 900/900 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 5.32 mm < 9.05 Ok
section 304.1.2)
tb : 5.32 mm < 6.03 Ok
31.3 section 304.1.2)
1.00 < 0.5

d1 : 901.94 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 4796.68 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 17.85 mm
d2 : 901.94 < 914 Ok
A2 : 3368.99 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 25.50 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 1.92 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 1423.30 mm²
Av: 4817.79 mm² > 4797 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 900/900 - PN 16

Part B - 24

Tee 900/900 mm
PN 25 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 8.31 mm < 9.05 Ok
section 304.1.2)
tb : 8.31 mm < 9.05 Ok
31.3 section 304.1.2)
1.00 < 0.5

d1 : 895.89 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 7446.47 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 22.63 mm
d2 : 895.89 < 914 Ok
A2 : 664.50 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 15.68 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 6752.00 mm²
Av: 7450.08 mm² > 7446 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 900/900 - PN 25

Part B - 25

Tee 900/80 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

2.2 Material Data



th : 5.32 mm < 6.03 Ok
section 304.1.2)
tb : 0.52 mm < 6.20 Ok
31.3 section 304.1.2)
0.10 < 0.5 No limit

d1 : 76.49 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 406.81 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 15.08 mm
d2 : 76.49 < 914 Ok
A2 : 54.64 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 1.92 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 192.06 mm²
Av: 418.21 mm² > 407 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 900/80 - PN 16

Part B - 26

Tee 400/400 mm
PN 16 bars

1. General
1.1 Introduction
for CS pipes
1.2 Refrences
- ASME-B36.10M

Dh : Run Tee Outside Diameter 406.4 mm
2.2 Material Data



th : 2.36 mm < 6.20 Ok
section 304.1.2)
tb : 2.36 mm < 6.20 Ok
31.3 section 304.1.2)
D b/Dh-
Dh/Th Limit
applies
n allowable ratio

d1 : 393.99 mm
d 1 = [D b - 2(T b - c)]/sin β
A1 : 931.67 mm²
A 1 = t h d 1 (2 - sin β )

L4 : 15.51 mm
d2 : 393.99 < 406 Ok
A2 : 1512.47 mm²
A 2 = (2d 2 - d 1 )(T h - t h - c)
A3 : 119.07 mm²
A 3 = 2L 4 (T b - t b - c)/sin β


thickness or 6 mm
A w2 : 0.00 mm²
A w2 = 2 × (0.5T r ) 2 /2
A4 : 20.89 mm²
Av: 1652.43 mm² > 932 Ok
A v = A 2 +A 3 +A 4 > A 1
5. Results
Summary
Tee 400/400 - PN 16
R-Pad thickness (mm) No R-Pad is
R-Pad outer diameter (mm) needed

Summary of Tees

Summary Of Results
Run Wall Branch Wall thickness R-Pad R-Pad Outer Diameter

Diameter PN (bar)
thickness (mm) (mm) thickness (mm) (mm)
DN 1200 / 1200 25 12.70 11.91 10.31 2390
DN 1200 / 1200 16 12.70 8.74 2.77 2120
DN 1200 / 1000 25 12.70 10.31 10.31 1990
DN 1200 / 900 16 12.70 7.14 2.77 1580
DN 1200 / 900 25 12.70 9.53 10.31 1790
DN 1200 / 800 16 12.70 6.35 2.77 1410
DN 1200 / 700 25 12.70 7.14 10.31 1390
DN 1200 / 600 16 12.70 5.54 2.77 1050
DN 1200 / 600 25 12.70 6.35 10.31 1190
DN 1200 / 500 16 8.74 6.35 6.35 950
DN 1200 / 500 25 11.91 6.35 11.13 990
DN 1200 / 450 16 8.74 6.35 6.35 850
DN 1200 / 300 16 8.74 6.35 5.56 620
DN 1200 / 300 25 11.91 6.35 11.13 610
DN 1200 / 250 16 8.74 6.35 5.56 520
DN 1200 / 250 25 11.91 6.35 11.13 510
DN 1000 / 1000 25 10.31 10.31 9.53 1920
DN 1000 / 700 25 10.31 7.92 8.74 1400
DN 1000 / 600 25 10.31 6.35 9.53 1150
DN 1000 / 500 25 10.31 6.35 8.74 990
DN 1000 / 300 25 10.31 6.35 8.74 620
DN 1000 / 200 25 10.31 6.35 8.74 400
DN 900 / 900 16 9.53 6.35 2.77 1420
DN 900 / 900 25 9.53 9.53 7.92 1760
DN 900 / 80 16 6.35 6.53 2.77 150
DN 400 / 400 16 6.53 6.53 No R-Pad

Appendices


Milter Bends Wall Thickness Calculation Report

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Milter Bends Wall Thickness Calculation Report

Uploaded by

Copyright:

Available Formats

Project Titel : LOT A – UNIT III WATER TRANSMISSION SCHEME

Contract No. : N-17765.A

Clint : Abu Dhabi Transmission and Dispatch Company

Contractor : Societe Egyptienne D’Entreprises (SEDE)

Doc. No. : N-17765.A-P-11-213-1-01-1

Societe Egyptienne D’Entreprises (SEDE)

00 12.02.2023 Atf Bshtr A. ANIS SEDE Approval

Abu Dhabi Transmission and 2 STANTEC

Design Calculation Report for

No. DN Design Pressure (bar) Elbow

A-1 DN 1800 10 45°

A-2 DN 1200 16 90°

A-3 DN 1200 16 45°

A-4 DN 1200 16 22.5°

A-5 DN 1200 16 11.25°

A-6 DN 1200 25 45°

A-7 DN 1200 25 22.5°

A-8 DN 1200 25 11.25°

A-9 DN 1000 25 45°

Abu Dhabi Transmission and 3 STANTEC

Design Calculation Report for

Abu Dhabi Transmission and 4 STANTEC

2. Design Parametrs and Conditons:

2.2 Material Data

2.3 Pressures and Stresses

Abu Dhabi Transmission and 5 STANTEC

3. Allowable stress calculations

Pm: maximum allowable internal pressure for milter bends

Min effective radius of miter bend, defined as

Abu Dhabi Transmission and 6 STANTEC

Check on allowable stresses with required stress

Abu Dhabi Transmission and 7 STANTEC

Design Calculation Report for

Abu Dhabi Transmission and 8 STANTEC

2. Design Parametrs and Conditons:

2.2 Material Data

2.3 Pressures and Stresses

Abu Dhabi Transmission and 9 STANTEC

3. Allowable stress calculations

Pm: maximum allowable internal pressure for milter bends

Min effective radius of miter bend, defined as

Abu Dhabi Transmission and 10 STANTEC

Check on allowable stresses with required stress

Abu Dhabi Transmission and 11 STANTEC

Design Calculation Report for

Abu Dhabi Transmission and 12 STANTEC

2. Design Parametrs and Conditons:

2.2 Material Data

2.3 Pressures and Stresses

Abu Dhabi Transmission and 13 STANTEC

3. Allowable stress calculations

Pm: maximum allowable internal pressure for milter bends

Min effective radius of miter bend, defined as

Abu Dhabi Transmission and 14 STANTEC

Check on allowable stresses with required stress

Abu Dhabi Transmission and 15 STANTEC

Design Calculation Report for

Abu Dhabi Transmission and 16 STANTEC

2. Design Parametrs and Conditons:

2.2 Material Data

2.3 Pressures and Stresses

Abu Dhabi Transmission and 17 STANTEC

3. Allowable stress calculations
