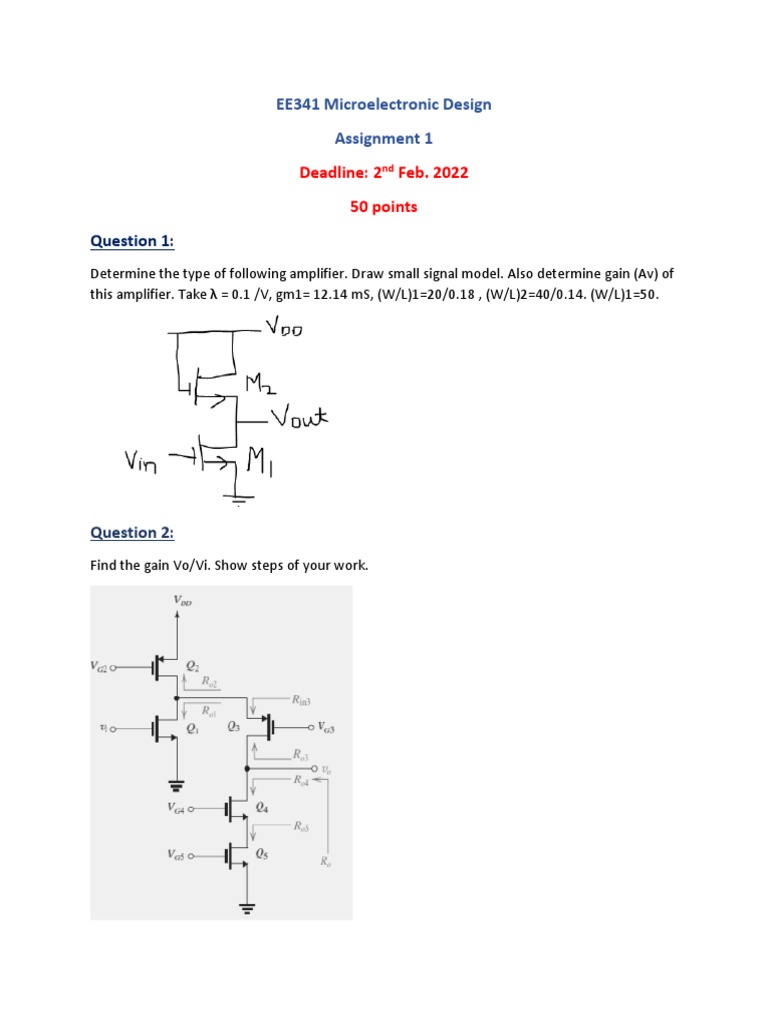

    EE341 Microelectronic Design

    Assignment 1
    Deadline: 2nd Feb. 2022
    50 points
    Question 1:
    Determine the type of following amplifier. Draw small signal model. Also determine gain (Av) of
    this amplifier. Take λ = 0.1 /V, gm1= 12.14 mS, (W/L)1=20/0.18 , (W/L)2=40/0.14. (W/L)1=50.

    Question 2:
    Find the gain Vo/Vi. Show steps of your work.
    Question 3:
    Determine the gain of the following circuit:

    Question 4:
    All the transistors have W/L = 12/0.5 in the figure below and you can assume biasing current, I = 100 uA.
    What is the gain of the stage?
    Question 5:
    Consider the amplifier circuit shown in Figure. The transistor is specified to have Vt=0.4 V, Kn’=0.4 mA/V2
    , W/L = 10, and lambda=0. Also, let VDD=1.8V, RD =17.5kohms , and VGS=0.6 V. For vGS = 0V, vDS=0V, Find
    VOV , ID , VDS and Av.
