21CET501- Hazard, Vulnerability and Risk Assessment

M.Tech. (DAM) 1st Semester (2021-22)

Assignment: 4

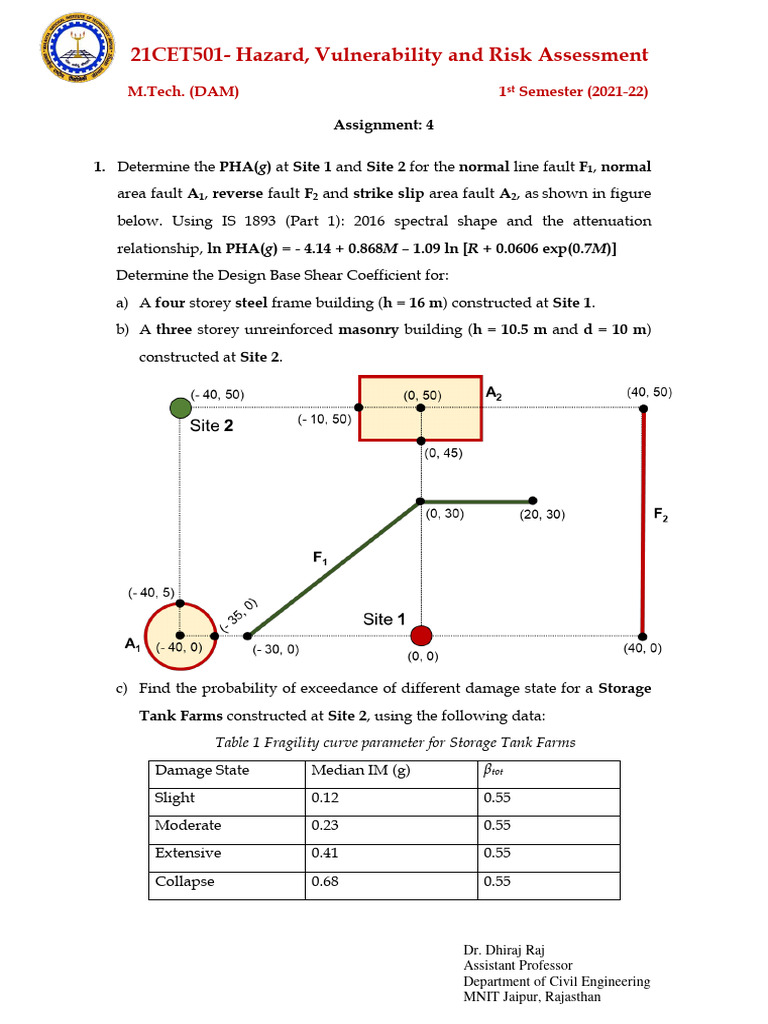

1. Determine the PHA(g) at Site 1 and Site 2 for the normal line fault F1, normal
area fault A1, reverse fault F2 and strike slip area fault A2, as shown in figure
below. Using IS 1893 (Part 1): 2016 spectral shape and the attenuation
relationship, ln PHA(g) = - 4.14 + 0.868M – 1.09 ln [R + 0.0606 exp(0.7M)]
Determine the Design Base Shear Coefficient for:
a) A four storey steel frame building (h = 16 m) constructed at Site 1.
b) A three storey unreinforced masonry building (h = 10.5 m and d = 10 m)
constructed at Site 2.

c) Find the probability of exceedance of different damage state for a Storage

Tank Farms constructed at Site 2, using the following data:
Table 1 Fragility curve parameter for Storage Tank Farms
Damage State Median IM (g) βtot
Slight 0.12 0.55
Moderate 0.23 0.55
Extensive 0.41 0.55
Collapse 0.68 0.55

Dr. Dhiraj Raj

Assistant Professor
Department of Civil Engineering
MNIT Jaipur, Rajasthan
 21CET501- Hazard, Vulnerability and Risk Assessment
M.Tech. (DAM) 1st Semester (2021-22)

d) A five storey (G+4 residential apartment shown in below figure) reinforced

concrete frame building constructed at Site 1 with storey height of 3.5 m and
bay length of 6.0 m.

(a) Elevation (b) Plan

i. Estimation the probability of exceedance of different damage state for
the given building typology
ii. Estimation of vulnerability or mean damage ratio for the same
iii. Calculate the risk in terms of direct economic loss using HAZUS
methodology

Dr. Dhiraj Raj

Assistant Professor
Department of Civil Engineering
MNIT Jaipur, Rajasthan
 21CET501- Hazard, Vulnerability and Risk Assessment
M.Tech. (DAM) 1st Semester (2021-22)

Data Given:
Cost of replacement in square meter – Rs. 13550 in Jaipur
Table 2 Fragility curve parameter for Pre-/low-code
Damage State Median IM (g) βtot
Slight 0.0270 0.41
Moderate 0.0422 0.41
Extensive 0.1089 0.41
Collapse 0.2236 0.41

Table3 Fragility curve parameter for High-code

Damage State Median IM (g) βtot
Slight 0.0514 0.54
Moderate 0.0981 0.54
Extensive 0.3221 0.54
Collapse 0.8691 0.54

Table 4: Structural Repair Cost Ratio (in % of building replacement cost taken
from HAZUS earthquake model

Structural Damage State

No. Label Occupancy Class
Slight Moderate Extensive Complete

1 RES1 Single-family Dwelling 0.5 2.3 11.7 23.4

2 RES2 Mobile Home 0.4 2.4 7.3 24.4

3-8 RES3A-F Multi-family Dwelling 0.3 1.4 6.9 13.8

9 RES4 Temporary Lodging 0.2 1.4 6.8 13.6

10 RES5 Institutional Dormitory 0.4 1.9 9.4 18.8

11 RES6 Nursing Home 0.4 1.8 9.2 18.4

12 COM1 Retail Trade 0.6 2.9 14.7 29.4

13 COM2 Wholesale Trade 0.6 3.2 16.2 32.4

Dr. Dhiraj Raj

Assistant Professor
Department of Civil Engineering
MNIT Jaipur, Rajasthan
 21CET501- Hazard, Vulnerability and Risk Assessment
M.Tech. (DAM) 1st Semester (2021-22)

14 COM3 Personal and Repair Services 0.3 1.6 8.1 16.2

Professional/Technical/Busin
15 COM4 0.4 1.9 9.6 19.2
ess Services

16 COM5 Banks/Financial Institutions 0.3 1.4 6.9 13.8

17 COM6 Hospital 0.2 1.4 7.0 14.0

18 COM7 Medical Office/Clinic 0.3 1.4 7.2 14.4

19 COM8 Entertainment & Recreation 0.2 1.0 5.0 10.0

20 COM9 Theaters 0.3 1.2 6.1 12.2

21 COM10 Parking 1.3 6.1 30.4 60.9

22 IND1 Heavy Industrial 0.4 1.6 7.8 15.7

23 IND2 Light Industrial 0.4 1.6 7.8 15.7

24 IND3 Food/Drugs/Chemicals 0.4 1.6 7.8 15.7

25 IND4 Metals/Minerals Processing 0.4 1.6 7.8 15.7

26 IND5 High Technology 0.4 1.6 7.8 15.7

27 IND6 Construction 0.4 1.6 7.8 15.7

28 AGR1 Agriculture 0.8 4.6 23.1 46.2

29 REL1 Church/Membership 0.3 2.0 9.9 19.8

Organization

30 GOV1 General Services 0.3 1.8 9.0 17.9

31 GOV2 Emergency Response 0.3 1.5 7.7 15.3

32 EDU1 Schools/Libraries 0.4 1.9 9.5 18.9

33 EDU2 Colleges/Universities 0.2 1.1 5.5 11.0
