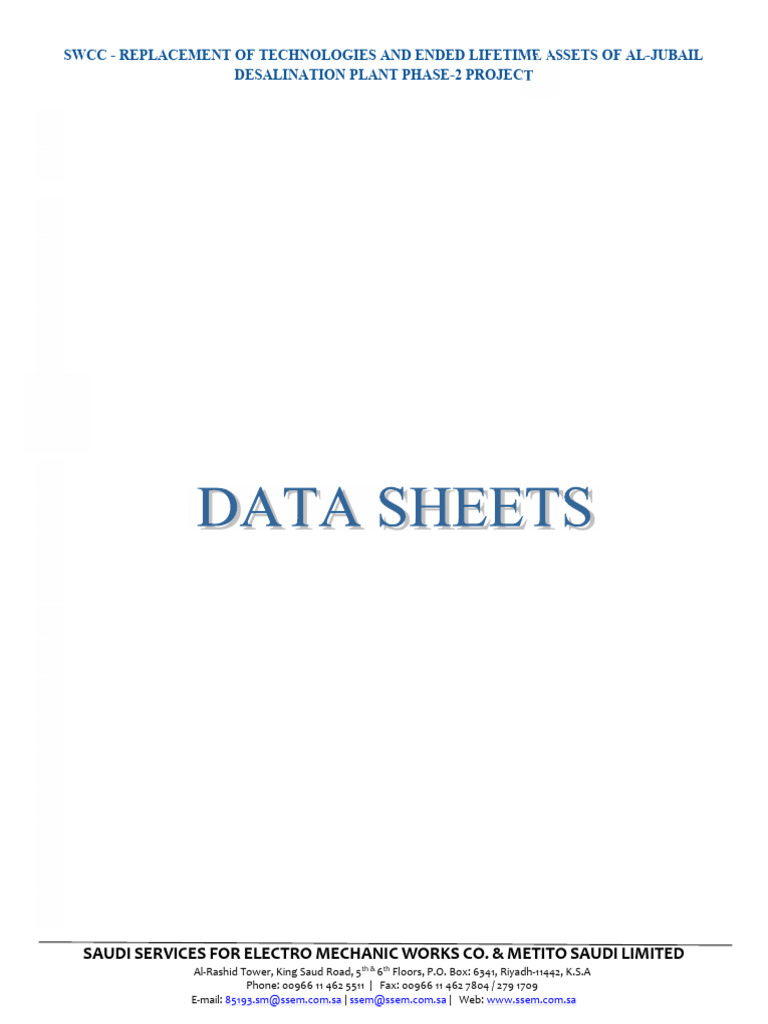

SWCC - REPLACEMENT OF TECHNOLOGIES AND ENDED LIFETIME ASSETS OF AL-JUBAIL

DESALINATION PLANT PHASE-2 PROJECT

SAUDI SERVICES FOR ELECTRO MECHANIC WORKS CO. & METITO SAUDI LIMITED
Al-Rashid Tower, King Saud Road, 5th & 6th Floors, P.O. Box: 6341, Riyadh-11442, K.S.A
Phone: 00966 11 462 5511 | Fax: 00966 11 462 7804 / 279 1709
E-mail: 85193.sm@ssem.com.sa | ssem@ssem.com.sa | Web: www.ssem.com.sa
REPLACEMENT OF TECHNOLOGIES AND ENDED LIFETIME ASSETS OF AL JUBAIL DESALINATION PLANT, PHASE-2
4 of 22
Subject 21SWCG00056-2-200-R0100G-1M0-DS-100007 Page
Doc. Nr. DATA SHEET - MISCELLANEOUS EQUIPMENT Rev. 000

Temporary Filter 1600

ITEM DESCRIPTION UNITS REQUIRED OFFERED
1 GENERAL DATA
1.1 Manufacturer - (1)
1.2 Service - Product Water
1.3 Service Fluid - Potable Water
1.4 Quantity Units 5
10GEW15AT001 /10GEW15AT002 / 10GEW15AT003 /
1.5 KKS
10GEW15AT004 / 10GEW15AT005
1.6 Location - Indoor
1.7 Climate Conditions:
1.7.1 Ambient Temperature (Min, Max) ºC 13 / 49
1.7.2 Maximum Ambient Humidity % 100
1.7.3 Barometric Pressure (Min, Max) mbar 970 / 1030
1.8 Seismic Zone - In zone 2a of US Uniform Building Code
1.9 Design and manufacturing codes (1)
1.10 Design Life
Mechanical components with minimum
1.10.1 Years 30
maintenance
2 DESIGN CONDITIONS
2.1 Design and Manufacturing Code - ASME VIII Div 1
2.2 Design Fluid - Potable Water
2.3 Design Pressure barg 1,8
2.4 Design Temperature ºC -2 to 54
2.5 Service Water Conditions
2.5.1 Temperature (Min / Max) ºC -2 to 54
2.5.2 Density kg/m3 989.93 / 1000
2.5.3 Viscosity kg/ms 0.0011 / 0.00063
3 OPERATION CONDITIONS
3.1 Pressure (min/norm/max) barg 1,5
3.2 Temperature ºC 40
3.3 Flow m3/h 10417
3.4 Pressure Test barg 2.7 (1)
3.5 Insulation Thickness mm (1)
4 TECHNICAL FEATURES
4.1 Type - Temporary Filter
4.2 Mesh -
4.3 Type - Perforated metal screens lined with wire mesh cloth (2)
4.4 Size mm2 Mesh 80
4.5 Open Area mm (1)
4.6 Max Pressure Drop (Clean / Dirty) mm 0,2 / 0,5
4.7 Additional Commissioning mesh / size Yes / Mesh 80
4.8 Materials
4.8.1 Body - (1), (2)
5 MATERIALS (2)
5,1 Cover gasket - (1)
5,2 Bolts - ASTM A193-B8M Cl1
5,3 Nuts - ASTM A194-Gr 8M Hex
5,4 Mesh - SS 316L (1) (2)
According to Painting TS J3A-SPE-ABNG-ZZZ-375-0002_Painting
5,5 Painting -
Specification. C5M for Outdoor
6 DIMENSIONS AND LOADS
6.1 A mm (1)
6.2 B mm (1)
6.3 C mm (1)
6.4 Weight kg (1)
7 SKETCH

8 CONNECTIONS
8.1 Inlet PN6, AWWA C207 D (provided by others) (1)
8.1.1 Size mm DN1600
8.1.2 Drilling AWWA C207D
8.1.2.1 Type Between Flanges
8.1.2.2 Face FF
8.2 Outlet PN6, AWWA C207 D (provided by others) (1)
8.2.1 Size mm DN1600
8.2.2 Drilling AWWA C207D
8.2.2.1 Type Between Flanges
8.2.2.2 Face FF
8.3 Drainage (DN /Type) -
8.4 Vent (DN / Type) NA
9 ACCESORIES
9.1 Pressure switch Required; Dry contact

9.2 Root valves associated to the pressure switch Required

10 SCOPE OF SUPPLY
10.1 Services scope
10.1.1 Design and engineering Yes
10.1.2 Planning and monthly progress reports Yes
Quality control and related documentation, such as
10.1.3 Yes
manufacturing dossiers, Inspection Program, etc.
10.1.4 Packing and marking for the delivery to the power plant Yes
10.1.5 Documentation Yes
10.1.6 Guarantees Yes
10.1.7 Labelling according the KKS coding system Yes
10.2 Optionals
10.2.1 The full delivery (transport and transport insurance) to the site Optional
10.3 Spare parts/consumables/special tool scope
10.3.1 Spare parts for 2 years of operation Yes
NOTES
(1) Vendor to provide and/or verify
(2) All materials should be suitable for service and in accordance with pipping class.
REPLACEMENT OF TECHNOLOGIES AND ENDED LIFETIME ASSETS OF AL JUBAIL DESALINATION PLANT, PHASE-2
5 of 22
Subject 21SWCG00056-2-200-R0100G-1M0-DS-100007 Page
Doc. Nr. DATA SHEET - MISCELLANEOUS EQUIPMENT Rev. 000

Temporary Filter 1400

ITEM DESCRIPTION UNITS REQUIRED OFFERED
1 GENERAL DATA
1.1 Manufacturer - (1)
1.2 Service - Media Filter Backwash
1.3 Service Fluid - Backwash (Brine)
1.4 Quantity Units 6
00GED00AT001 / 00GED00AT002 / 00GED00AT003 /
1.5 KKS
00GED00AT004 / 00GED00AT005 / 00GED00AT006
1.6 Location - Indoor
1.7 Climate Conditions:
1.7.1 Ambient Temperature (Min, Max) ºC 13 / 49
1.7.2 Maximum Ambient Humidity % 100
1.7.3 Barometric Pressure (Min, Max) mbar 970 / 1030
1.8 Seismic Zone - In zone 2a of US Uniform Building Code
1.9 Design and manufacturing codes (1)
1.10 Design Life
Mechanical components with minimum
1.10.1 Years 30
maintenance
2 DESIGN CONDITIONS
2.1 Design and Manufacturing Code - ASME VIII Div 1
2.2 Design Fluid - Backwash (Brine)
2.3 Design Pressure barg ATM
2.4 Design Temperature ºC -2 to 54
2.5 Service Water Conditions
2.5.1 Temperature (Min / Max) ºC -2 to 54
2.5.2 Density kg/m3 1033
2.5.3 Viscosity kg/ms 0,0007
3 OPERATION CONDITIONS
3.1 Pressure (min/norm/max) barg ATM
3.2 Temperature ºC 40
3.3 Flow m3/h 8380
3.4 Pressure Test barg 2.7 (1)
3.5 Insulation Thickness mm (1)
4 TECHNICAL FEATURES
4.1 Type - Temporary Filter
4.2 Mesh -
4.3 Type - Perforated metal screens lined with wire mesh cloth (2)
4.4 Size mm2 Mesh 80
4.5 Open Area mm (1)
4.6 Max Pressure Drop (Clean / Dirty) mm 0,2 / 0,5
4.7 Additional Commissioning mesh / size Yes / Mesh 80
4.8 Materials
4.8.1 Body - (1), (2)
5 MATERIALS (2)
5,1 Cover gasket - (1)
5,2 Bolts - ASTM A193-B8M Cl1
5,3 Nuts - ASTM A194-Gr 8M Hex
5,4 Mesh - S32750 (1) (2)
According to Painting TS J3A-SPE-ABNG-ZZZ-375-0002_Painting
5,5 Painting -
Specification. C5M for Outdoor
6 DIMENSIONS AND LOADS
6.1 A mm (1)
6.2 B mm (1)
6.3 C mm (1)
6.4 Weight kg (1)
7 SKETCH

8 CONNECTIONS
8.1 Inlet PN6, AWWA C207 D (provided by others) (1)
8.1.1 Size mm DN1400
8.1.2 Drilling AWWA C207D
8.1.2.1 Type Between Flanges
8.1.2.2 Face FF
8.2 Outlet PN6, AWWA C207 D (provided by others) (1)
8.2.1 Size mm DN1400
8.2.2 Drilling AWWA C207D
8.2.2.1 Type Between Flanges
8.2.2.2 Face FF
8.3 Drainage (DN /Type) -
8.4 Vent (DN / Type) NA
9 ACCESORIES
9.1 Pressure switch Required; Dry contact

9.2 Root valves associated to the pressure switch Required

10 SCOPE OF SUPPLY
10.1 Services scope
10.1.1 Design and engineering Yes
10.1.2 Planning and monthly progress reports Yes
Quality control and related documentation, such as
10.1.3 Yes
manufacturing dossiers, Inspection Program, etc.
10.1.4 Packing and marking for the delivery to the power plant Yes
10.1.5 Documentation Yes
10.1.6 Guarantees Yes
10.1.7 Labelling according the KKS coding system Yes
10.2 Optionals
10.2.1 The full delivery (transport and transport insurance) to the site Optional
10.3 Spare parts/consumables/special tool scope
10.3.1 Spare parts for 2 years of operation Yes
NOTES
(1) Vendor to provide and/or verify
(2) All materials should be suitable for service and in accordance with pipping class.
