Control System Manual Rev 0

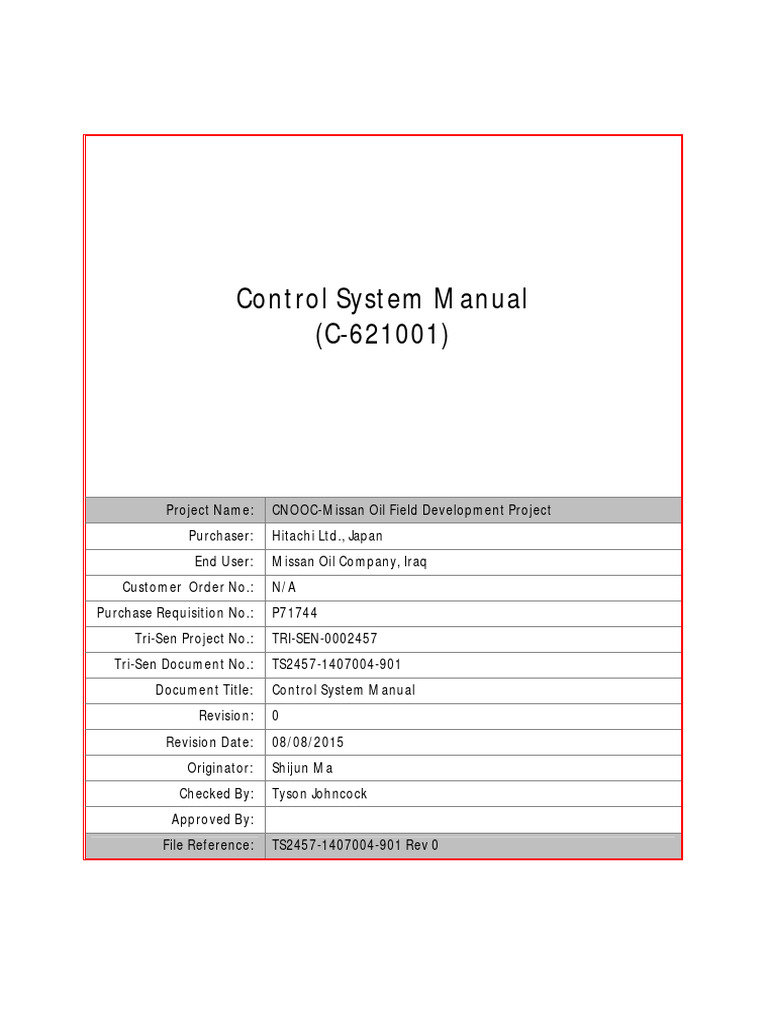

Control System Manual
(C-621001)
Project Name: CNOOC-Missan Oil Field Development Project

Purchaser: Hitachi Ltd., Japan
End User: Missan Oil Company, Iraq
Customer Order No.: N/A
Purchase Requisition No.: P71744
Tri-Sen Project No.: TRI-SEN-0002457
Tri-Sen Document No.: TS2457-1407004-901
Document Title: Control System Manual
Revision: 0
Revision Date: 08/08/2015
Originator: Shijun Ma
Checked By: Tyson Johncock
Approved By:
File Reference: TS2457-1407004-901 Rev 0
Control System Narrative
(C-621001)

Customer Order No.: N/A
Document Title: Control System Narrative
Revision: 2
Originator: Shijun Ma
Checked By: Tyson Johncock
Approved By:
CNOOC-Missan Oil Field Development Project
REVISION HISTORY
Rev Date Change Done/Checked By

Shijun Ma/ Tyson
A 08/13/14 Release for internal review
Johncock
Shijun Ma/ Tyson
0 08/14/14 Release for Approval
Johncock
Shijun Ma/ Tyson
Johncock
Shijun Ma/ Tyson
Johncock
Control System Narrative -ii -

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Table of Contents
1 General ............................................................................................................................... 1
2 Application Overview ......................................................................................................... 2
3 Hardware Overview............................................................................................................ 3
3.1 TSx Controller .......................................................................................................................3
3.2 Machinery Monitoring Systems ..........................................................................................3
3.3 Controller Cabinet ................................................................................................................4
3.4 Network Instruction .............................................................................................................4
3.5 Unit Control Panel Grounding .............................................................................................5
4 Interface Description .......................................................................................................... 6
4.1 Engineering Work Station ....................................................................................................6
4.2 HMI Operation ......................................................................................................................6
4.3 High-Speed Data Recording .................................................................................................7
4.4 Modbus RS-485 Communication.........................................................................................7
5 Alarms and Trips ................................................................................................................. 9
5.1 Cabinet Alarms .....................................................................................................................9
5.2 System Hardware Alarms and Trips ....................................................................................9
5.3 Lubrication Oil System Alarms and Trips ......................................................................... 10
5.4 Dry Gas Seal System Alarms and Trips ............................................................................. 11
5.5 Machine Monitoring System Alarms and Trips ............................................................... 11
5.5.1 Compressor Axial Displacement and Bearing Vibrations ........................................................ 12
5.5.2 Keyphasor.................................................................................................................................... 12
5.5.3 Gear Box Axial Displacement and Bearing Vibrations ............................................................. 13
5.5.4 Motor Bearing Vibrations .......................................................................................................... 14
5.6 Machine Temperatures Monitoring, Alarms and Trips .................................................. 14
5.6.1 Compressor Bearing Temperatures .......................................................................................... 14
5.6.2 Gear / Pinion Temperatures ...................................................................................................... 15
5.6.3 Motor Temperatures .................................................................................................................. 16
5.7 External Trips ..................................................................................................................... 17
5.8 Process Alarms and Trips .................................................................................................. 17
6 Compressor Sequences..................................................................................................... 19
Control System Narrative -iii -

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
6.1 State: Shutdown ................................................................................................................ 20

6.2 State: Ready to Start ......................................................................................................... 22
6.3 State: Accelerate ............................................................................................................... 23
6.4 State: Run........................................................................................................................... 24
6.5 State: Normal Stop ............................................................................................................ 24
7 Performance Control ........................................................................................................ 25
7.1 Functional Descriptions (PC-622004) ............................................................................... 25
7.2 Input Selection................................................................................................................... 25
7.3 Fallback Strategies for Transmitter Failures .................................................................... 26
7.4 Performance Control Module Assignment ...................................................................... 26
7.4.1 Discharge Pressure PID .............................................................................................................. 26
7.4.2 Process Demand Scheduler ....................................................................................................... 27
7.4.3 2nd Suction Drum Level Control (LIC-622011) ........................................................................... 31
7.4.4 Separation Drum Level Control (LIC-622021) ........................................................................... 31
7.4.5 Discharge NGL Separator Tank Press. Control (PIC-622005) ................................................... 32
7.4.6 NGL Separator Level Control (LIC-622031) ............................................................................... 32
7.5 Load Sharing ...................................................................................................................... 33
7.5.1 Peer to Peer communication ..................................................................................................... 33
7.5.2 General Description .................................................................................................................... 34
7.5.3 Functional Overview................................................................................................................... 34
7.5.4 Functional Description ............................................................................................................... 35
7.5.5 The Load Sharing Bias Limits:..................................................................................................... 35
8 Anti-Surge Control Module Assignment ........................................................................... 36
8.1 Functional Description ...................................................................................................... 36
8.2 1st Stage Anti-Surge Control Module Assignment ......................................................... 37
8.2.1 Stage 1 Flow Compensation ...................................................................................................... 38
8.2.2 Stage 1 X Coordinate Calculation (Flow transmitter at discharge) ......................................... 38
8.2.3 Stage 1 Y Coordinate Calculation (Pressure Ratio)................................................................... 39
8.2.4 Stage 1 Surge Cycle detection ................................................................................................... 39
8.2.5 Stage 1 Intelligent Surge Curve (iSurge Curve) ......................................................................... 40
8.2.6 Stage 1 Surge PV Calculation ..................................................................................................... 41
8.2.7 Anti-Surge PID w/ Adaptive Gain............................................................................................... 41
Control System Narrative -iv -

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
8.2.8 Hand Indicating Controller (HIC) ............................................................................................... 42

8.2.9 Valve Vow.................................................................................................................................... 42
8.2.10 High select and signal reversal .............................................................................................. 43
nd
8.3 2 Stage Anti-Surge Control Module Assignment ....................................................... 44
8.3.1 Stage 2 Flow Compensation ...................................................................................................... 45
8.3.2 Stage 2 X Coordinate Calculation (Flow transmitter at discharge) ......................................... 45
8.3.3 Stage 2 Y Coordinate Calculation (Pressure Ratio)................................................................... 46
8.3.4 Stage 2 Surge Cycle detection ................................................................................................... 46
8.3.5 Stage 2 Intelligent Surge Curve (iSurge Curve) ......................................................................... 47
8.3.6 Stage 2 Surge PV Calculation ..................................................................................................... 48
8.3.7 Anti-Surge PID w/ Adaptive Gain............................................................................................... 48
8.3.8 Hand Indicating Controller (HIC) ............................................................................................... 49
8.3.9 Valve Vow.................................................................................................................................... 49
8.3.10 High select and signal reversal .............................................................................................. 50
9 Lubrication Oil System Control ......................................................................................... 50
9.1 Lubrication Oil Reservoir Temperature Control .............................................................. 50
9.2 Lubrication Oil Pump Control ........................................................................................... 52
9.2.1 Oil Pump Start Permissive Signals ............................................................................................. 52
9.2.2 Lubrication Oil Pump Manual Start /Stop Operation............................................................... 53
9.2.3 Lubrication Oil Pump Auto Start Operation.............................................................................. 53
10 Process Auxiliary Devices Control ..................................................................................... 53
10.1 P-621001A/ P-621001B Control ....................................................................................... 54
11 Seal Gas System Control ................................................................................................... 54
11.1 Seal Gas Differential Pressure Control (PDIC-622343) ................................................... 55
12 Appendix A Control System IP Address & Security Settings ............................................. 56
A.1 IP Address Settings ............................................................................................................ 56
A.2 Modbus serial RS485 communication Parameters ......................................................... 56
A.3 Security Settings ................................................................................................................ 56
Control System Narrative -v -

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
1 General
This Control System Narrative document defines the functionality and interfacing of the Tri-Sen
provided motor driven Two Stage Feed Gas compressor manufactured by Hitachi Ltd Tokyo
Japan (Hereafter referred to as Hitachi).
This document provides general control guidelines for startup, performance, anti-surge, process
and performance control, and other control functions provided by Tri-Sen Systems Corporation
(Hereafter referred to as Tri-Sen).
Relevant identification data:

End User: Missan Oil Company, Iraq (Hereafter referred to as Missan)
Project: CNOOC-Missan Oil Field Development Project
Application: Motor Driven Compressor
Control System: Tri-Sen TSx redundant system and Bently-Nevada 3500 system
Location: Iraq
For the development of the detailed design, Hitachi provides with the following:
• P&ID drawings
• Compressor Performance Curves
• Project Alarm and Trip List
• Other control related documents
Tri-Sen provides the following documents for reference (Tri-Sen document number):
• TS2457-1407004-101 Control System Architecture Diagram
• TS2457-1407004-201 Control System IO List
• TS2457-1407004-301 Control System Power Consumption
• TS2457-1407004-501 Control System Unit Control Panel Outlines
• TS2457-1407004-502 Control System Local Control Panel Outlines
• TS2457-1407004-503 Control System Local Switch Box Outlines
• TS2457-1407004-504 Control System Auxiliary Operator Console Outlines
• TS2457-1407004-601 Control System Unit Control Panel Wiring Schematics
• TS2457-1407004-602 Control System Local Control Panel Wiring Schematics
• TS2457-1407004-603 Control System Local Switch Box Wiring Schematics
• TS2457-1407004-604 Control System Auxiliary Operator Console Wiring Schematics
Control System Narrative -1 -

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
2 Application Overview
The string is comprised of a Two Stage Compressor driven by a Motor arrangement. The Tri-Sen
TSx will provide control for the oil system and seal gas system, anti-surge and performance
control, which will be displayed on the provided HMI PC. Machine Monitoring is provided in the
Bently-Nevada 3500 (Hereafter referred to as Bently).
The overall control system is used to oversee the operation of the new motor-gear driven
compressor. Missan will operate the compressor. The auxiliary equipment associated with this
compressor includes:
• Lube Oil Unit with two (2) motor driven pumps, reservoir, lube oil coolers, Oil filters, a
accumulator, and a rundown tank
• Dry Gas Seal System, with seal gas filters and buffer gas filters.
• Tri-Sen TSx
• Tri-Sen Workstation HMI
• Bently Vibration Monitoring System
The Engineering Workstation will communicate to the Tri-Sen TSx through an Ethernet network.
The redundant Modbus TCP/IP links from the Tri-Sen TSx are converted to Modbus serial RS-485
inside UCP to be used to connect to the plant DCS system. The single Modbus TCP/IP link from
the Tri-Sen TSx is also converted to Modbus serial RS-485 inside UCP to communicate with
Bently.
The entire control is designed to be failsafe mode. Therefore, the field inputs and outputs are
normally in the “Energized” state respectively when in normal condition. A logical 1 input signal
to the system is treated as a normal state and a logic 0 signal is treated as trip or alarm state.
Upon total power failure, the output signals will go to “0” state.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
3 Hardware Overview
3.1 TSx Controller
The Tri-Sen TSx is a versatile programmable hardware platform in a 19” rack mounted chassis
with din rail mounted termination assemblies. This application uses redundant processors,
redundant I/O modules, and redundant Modbus communication modules. According to the
quantity of physical input/output points and other requirements, such as safety integrity level
(SIL), redundancy, flexible online maintenance, and field signal types, a total of 3 chassis with the
following I/O and communication modules are supplied by Tri-Sen.
QTY Modules Channel

8 Non-Isolated Single Ended Analog Input Module 32
2 Isolated Current Analog Output Module 16
10 Non-Isolated Single Ended Digital Input Module 32
6 DC voltage Sourcing Digital Output Module 24
2 DC voltage Sourcing Digital Output Module 16
2 MODBUS TCP/IP Communications Module N/A
I/O cables from modules in the chassis are connected to one external termination panel (ETP)
which is connected to marshaling terminal strips for wiring field signals.
3.2 Machinery Monitoring Systems
As an integral part of the control system, Bently is used for machinery protection and monitoring
to insure proper operation of the compressor, motor, and gear bearings. There is one Bently
racks with redundant 230VAC power supplies in the unit control panel. The vibration,
displacement, keyphasor, and temperature signals are brought to the Bently.
Two 16-channel relay output modules are installed in the rack for alarm and trip outputs to TSx
controller. All data is available for review. All trips will come from normally open relay contacts
and will de-energize on alarm. The following table lists the monitors configured in Bently racks.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
QTY Modules Channel

2 3500/15-02-02 High Voltage AC Power Supply Module N/A
1 3500/22-01-01 Transient Data Interface 1
1 3500/25-01-01 Enhanced Keyphasor Module 2
5 3500/40-01-00 Proximitor Monitor 5
2 3500/65-01-00 16-Channel Temperature Monitor 16
2 3500/33-01-00 16-Channel Relay Module 16
1 3500/92-02-01-00 Communication Gateway N/A
3.3 Controller Cabinet
The unit control panel consists of a TSx controller and associated parts are mounted on a sub
panel inside a 5-bay Rittal cabinet. Every cabinet is 2100H x 800W x 800D with both front and
rear access doors. The end user is providing redundant 230VAC, 60Hz UPS power and Non-UPS
230VAC, 60Hz power feeding to the UCP.
The local control panel consists of an IP65, Certified for Zone 2 and Group IIB T4 free-standing
enclosure with front door access. 4 pushbuttons (Compressor Start, Compressor Normal Stop,
Trip Reset, and Emergency-Stop), 6 LED Pilot Lamps (Ready for Start, Local Control, Compressor
Running, Common Trip, Common Alarm and Emergency Alarm) are provided.
Refer to Document TS2457-1407004-501Control System Unit Control Panel Outlines Drawing for
the detailed cabinet layout, TS2457-1407004-502 Control System Local Control Panel Outlines
Drawing for the detailed cabinet layout drawing and TS2457-1407004-301 for the Control
System Power Consumption calculation.
3.4 Network Instruction
The communication between processors and I/O modules of TSx controller is established
through triple redundant 10/100Mb Ethernet, named I/O networks. Host networks are setup for
synchronizing redundant processors and communicating with work stations for logic
development and HMI. The configuration for Transient Data Interface in Bently racks also relies
on the same host network. TSx controller provides redundant Modbus TCP/IP interface
converted into Modbus RS-485 inside UCP communicating with plant DCS and simplex

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
communication with Bently system. Refer to Section 4.1 and 4.4 for detailed instructions on Host
network and Modbus network interface.
All Ethernet cables are CAT 5e, color coded with RJ45 male connectors on both ends. The
maximum Ethernet cable length is 100 meters or 300 feet. For distances longer than 100 meters
or 300 feet, the fiber optic cable shall be used.
The maximum cable length is 4000 feet for Modbus RS-485.
Network Ferrule Cables Color

Host Network RED
I/O Network B GREEN
I/O Network C YELLOW
I/O Network D BLUE
Modbus TCP/IP Network WHITE
The IP address for the TSx controller is set to be 192.168.1.1 by default. It can be changed based
per customer’s requirement. Note that, once an IP address is assigned to the TSx, it defines a
block of four consecutive IP addresses. By default, IP address 192.168.1.2, 192.168.1.3, and
192.168.1.4 are blocked and these IP addresses must not be used by other devices. The Modbus
TCP/IP addresses can also be defined per requirement.
Refer to TS2457-1407004-101 Control System Architecture Diagram for the communication

network instructions.
3.5 Unit Control Panel Grounding
The Unit Control Panel is equipped with a Safety ground Bus bar and Instrument Ground Bus bar.
The Safety Ground Bus bar will protect the equipment and personnel from possible electrical
discharges and the Instrument Ground Bus bar will ground all possible noise and electrical
interference that may arise in the analog signals during their way into the control panels.
Refer to TS2457-1407004-601 Control System UCP Wiring Schematics for specific wiring details.
The Local Control Panel is equipped with a Safety Ground terminal strip to protect the
equipment and personnel from possible electrical discharges.
Refer to TS2457-1407004-602 Control System LCP Wiring Schematics.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
4 Interface Description
4.1 Engineering Work Station
The engineering work station is a personal computer (PC). Tri-Sen TSx software package
“NetSuite” is installed on this PC. The NetSuite software provides the platform for system
configuration, application modification, and high-speed data recording. Bently configuration
software is also installed on this server for machine monitoring and voting configuration.
The communication between the TSx controller and the engineering station is through an
Ethernet cable. The Transient Data Interface modules in Bently racks are connected to the same
Host network.
4.2 HMI Operation
The HMI application will run on the engineering work station. The HMI application provides user
interfaces for current motor-gear box-compressor status, performance operation, auxiliary
control, machine monitoring, control system hardware running status, the current active alarms
and the trip history. HMI screens shall include the following pages:
• Overall Motor-Gear-compressor Running Status

• Compressor Performance Control Interface
• Compressor Anti-Surge control Interface
• Machine Monitoring Interface
• Process Controls Interface
• Lube Oil System Interface
• Dry Gas Seal System Interface
• Control System Hardware Running Status
• Alarm
• Trend
• Trip Status and First Out Screen
The HMI application is configured to run in full screen mode with Windows operation keys
disabled for security reasons. User names and passwords are assigned to perform corresponding
operations as shown in the following table.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Security Levels Permissions

View system running status, speed, valve position, and alarms. Basic
Operator performance operations, such as start and stop compressor, raise or
lower setpoint, acknowledge and reset active alarms or trips
Operator permissions plus program modifications, online tuning and
Engineer
PID controls and Trip Bypasses
Administrator User name, password, security levels management
4.3 High-Speed Data Recording
Tri-Sen Alarm and Data Archiving (ADA) application is used for high speed data recording. Any
hardwire point, soft link point, or memory variable can be recorded in the data base format files
with 10ms time stamp. For discrete variables, event groups and priority can be assigned to every
point. In addition to groups and priority, alarm set points, deviation, and dead band can be
assigned to every analog point. Two priority levels are used in this application: alarm signal with
low priority and trip signal with high priority. Basic groups contain performance control, anti-
surge control, machine monitoring system, and control system hardware.
The record files can be opened by the NetSuite Trend application for historical trending or by
Microsoft Office® Access for data analysis.
4.4 Modbus RS-485 Communication
Modbus TCP/IP modules are installed in Tri-Sen TSx racks. Modbus TCP/IP interface is first
converted into Modbus RS-485 inside UCP, and then communicate with Plant DCS and Bently
system individually. There are two Ethernet ports on the Modbus module. As shown in the
following table, one port is configured as a Modbus Slave port communicating with Plant DCS;
the other port is configured as a Modbus Master port gathering the machine monitoring data
from the Bently communication modules installed in Bently system.
Module in Slot 12 Chassis 0:
Port Comm w/ Redundancy Function

Send the process, monitoring values, flags and alarms to DCS
Slave DCS Redundant
Receive the operating and reset commands from DCS

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Master Bently Redundant Bring machine monitoring signals, heath status to TSx
Module in Slot 0 Chassis 2:
Port Comm w/ Redundancy Function

Send the process, monitoring values, flags and alarms to DCS
Slave DCS Redundant
Receive the operating and reset commands from DCS
Master Bently Redundant Bring machine monitoring signals, heath status to TSx
Modbus modules in DCS have the access to the TSx control system through the TSx Modbus
module and no signal is written to the TSx system by DCS.
Refer to TS2457-1407004-101 Control System Architecture Diagram for the communication
network instructions.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
5 Alarms and Trips
This section describes the alarm and trip signals initiated by the compressor control system. The
first out trip generated by the TSx controller (refer to the trip list in section 6.1) will be displayed
on the HMI and available for DCS.
Once an alarm or a trip is active, it will be latched and the alarm lamps located on the Local
Control Panel and the auxiliary operation console will be flashed until the operator pushes the
acknowledge button. The annunciation of the alarm or trip event remains annunciated until the
originating condition returns to normal and the operator pushes the reset button.
The analog signals involved in protection are implemented in triple redundant configuration
connected individually to same channel, separate I/O modules under a 2oo3 voting scheme, thus
if an analog signal failure is detected in the signals involved in this scheme, the voting scheme
will be changed to a 1oo2 voting scheme.
5.1 Cabinet Alarms
To monitor the cabinet equipment to following alarm will be generated:
• Power Supply (UPS1) Failure

• Power Supply (UPS2) Failure
• Power Supply (NON-UPS) Failure
• PLC Failure
• UCP Fan Failure
• UCP Temperature High
5.2 System Hardware Alarms and Trips
The performance, anti-surge controls and auxiliary controls are done in the Tri-Sen TSx system
which has the comprehensive diagnostic function built in. The following TSx hardware alarms are
generated automatically by the system and are combined into a redundant TSx hardware failure
common alarm:
• Rack Power Supplies Failure (left or right)
• Any One of the Redundant Processor Modules Offline
• Processor Modules CPU or Board Temperature High
• Any I/O Module Offline or Cable Presents Error

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Individual alarms are available on Tri-Sen TSx HMI screen Hardware Status page. By clicking the
reset button on this page, the I/O module will return to online status if the fault has cleared.
Two activity status integers will monitor the communication load over the TSx redundant host
network. The engineering work station which runs the HMI and fast data recording application
relies on the host networks. A zero value of the activity status integer will create an alarm to
indicate the error of the engineering work station.
Bently rack provides a “NOT OK” bit to indicate when it is operating normally or when a fault has
been detected within the rack. The bit is passed to Tri-Sen TSx through a soft link to generate the
Bently system common alarm.
5.3 Lubrication Oil System Alarms and Trips
The following alarms are logic alarms that may occur in the Tri-Sen TSx if the operation of the
Lubrication Oil Heaters does not function as expected.
The following is a list of alarm/trip signals generated for the Lubrication Oil System. These alarms
visually indicate that there is a problem with the unit. Each of these alarm signals will be
available on the Tri-Sen TSx HMI screens.
Associated Tags Alarm/Trip Description

PDAH-622321 L/O FILTER DIFF. PRESS HIGH
TAH-622330 L/O RESERVOIR TEMP. HIGH
TAL-622330 L/O RESERVOIR TEMP. LOW
LAL-622321 L/O RESERVOIR LEVEL LOW
LAL-622331 L/O RUNDOWN TANK LEVEL LOW
TAH-622331 L/O COOLER OUTLET TEMP. HIGH
TAL-622331 L/O COOLER OUTLET TEMP. LOW
PAL-622331 L/O HEADER PRESS. LOW
PALL-622332A L/O HEADER PRESS. (FOR TRIP) LL
PALL-622332B L/O HEADER PRESS. (FOR TRIP) LL
PALL-622332C L/O HEADER PRESS. (FOR TRIP) LL

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Note: All setpoints are stated in I/O list.

5.4 Dry Gas Seal System Alarms and Trips
The following is a list of alarm/trip signals generated for the Dry Gas Seal System. These alarms
visually indicate that there is a problem with the unit. Each of these alarm signals should be
available on the Tri-Sen TSx HMI screens.
Associated Tags Alarm/Trip Description

PDAH-622341 SEAL GAS FILTER DIFF.PRESS. HIGH
PDAH-622342 BUFFER GAS FILTER DIFF.PRESS. HIGH
PAH-622342 PRIMARY LEAKAGE PRESS. (DE) HIGH
PAH-622343 PRIMARY LEAKAGE PRESS. (NDE) HIGH
PAHH-622344A PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) HH
PAHH-622344B PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) HH
PAHH-622344C PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) HH
PAHH-622345A PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) HH
PAHH-622345B PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) HH
PAHH-622345C PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) HH
PAL-622341 BRG. SEPARATION GAS SUPPLY PRESS. LOW
PDAH-622343 SEAL GAS DIFF. PRESS. HIGH should be low alarm
TAL-622341 S/G SUPPLY TEMP. LOW
5.5 Machine Monitoring System Alarms and Trips
As an integral part of the control system, the Bently system is in place to insure proper operation
of the compressor, motor, and gear bearings. General descriptions of the alarms are listed below.
Reference the Hitachi P&I Diagram for details pertaining to individual alarms.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
5.5.1 Compressor Axial Displacement and Bearing Vibrations

The following compressor axial displacement and bearing vibrations are monitored by the Bently
system.
Associated Tags Description
ZT-622302A COMP. AXIAL DISPLACEMENT A HIGH
ZT-622302B COMP. AXIAL DISPLACEMENT B HIGH
VT-622307X COMP. RADIALVIBRATION X (DE) HIGH
VT-622307Y COMP. RADIALVIBRATION Y (DE) HIGH
VT-622308X COMP. RADIALVIBRATION X (NDE) HIGH
VT-622308Y COMP. RADIALVIBRATION Y (NDE) HIGH
The alarm signals are

• High Alarm for Each Displacement Measurement (Total of 2 alarms)
• High Alarm for Each Vibration Measurement (Total of 4 alarms)
• High High Alarm for Each Displacement Measurement (Total of 2 alarms)
• High High Alarm for Each Vibration Measurement (Total of 4 alarms)
• Health Status Alarm for Each Displacement Measurement (Total of 2 alarms)
• Health Status Alarm for Each Vibration Measurement (Total of 4 alarms)
The trip conditions associated to above displacement and vibration are

• 2oo2 High High Trip on Displacement Measurements (Total of 1 trip)
• 2oo2 High High Trip on Each Pair of Vibration Measurements (Total of 2 trips)
• The HH trip signals are hardwired to TSx from Bently Relay Modules
5.5.2 Keyphasor
The following keyphasors are monitored by the Bently system.

KT-622302 PINION SHAFT KEYPHASOR
KT-622301 GEAR SHAFT KEYPHASOR

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
No alarm signals are associated to above keyphasor sensors.
5.5.3 Gear Box Axial Displacement and Bearing Vibrations

The following gear box shaft axial displacement and bearing vibrations are monitored by the
Bently system.
Associated Tags Alarm Description

ZT-622301A GEAR AXIAL DISPLACEMENTA
ZT-622301B GEAR AXIAL DISPLACEMENTB
VT-622305X PINION SHAFT RADIALVIBRATION X (DE) HIGH
VT-622305Y PINION SHAFT RADIALVIBRATION Y (DE) HIGH
VT-622306X PINION SHAFT RADIALVIBRATION X (NDE) HIGH
VT-622306Y PINION SHAFT RADIALVIBRATION Y (NDE) HIGH
VT-622303X GEAR SHAFT VIBRATION X (DE)
VT-622303Y GEAR SHAFT VIBRATION Y (DE)
VT-622304X GEAR SHAFT VIBRATION X (NDE)
VT-622304Y GEAR SHAFT VIBRATION Y (NDE)
The alarm signals associated to above displacement and vibration sensors are
• High Alarm for Each Displacement Measurement (Total of 2 alarms)
• High High Alarm for Each Displacement Measurement (Total of 2 alarms)
• Health Status Alarm for Each Displacement Measurement (Total of 2 alarms)
The trip conditions associated to above displacement and vibration sensors are
• 2oo2 High High Trip on Displacement Measurements (Total of 1 trip)
• 2oo2 High High Trip on Each Pair of Vibration Measurements (Total of 2 trips)

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
5.5.4 Motor Bearing Vibrations

The following motor bearing vibrations are monitored by the Bently system.

VT-622302X MOTOR SHAFT VIBRATION X (CPL)
VT-622302Y MOTOR SHAFT VIBRATION Y (CPL)
VT-622301X MOTOR SHAFT VIBRATION X (ANTI-CPL)
VT-622301Y MOTOR SHAFT VIBRATION Y (ANTI-CPL)
The alarm signals associated to above displacement and vibration sensors are
The trip conditions associated to above vibration sensors are

• 2oo2 High High Trip on Vibration Measurements (Total of 2 trips)

5.6 Machine Temperatures Monitoring, Alarms and Trips
The TSx is in place to insure proper operation of the compressor, motor, and gear bearings.
General description of the temperature alarms is listed below. Reference the Hitachi P&I
Diagram for details pertaining to individual alarms.
5.6.1 Compressor Bearing Temperatures

The following compressor bearing temperatures are monitored by the TSx system.

TE-622320A COMP. JOURNAL BEARING TEMP.(DE)
TE-622321A COMP. JOURNAL BEARING TEMP.(DE)

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
TE-622322A COMP. JOURNAL BEARING TEMP.(NDE)

TE-622323A COMP. JOURNAL BEARING TEMP.(NDE)
TE-622326A COMP. THRUST BEARING TEMP. (ACT)
TE-622327A COMP. THRUST BEARING TEMP. (ACT)
TE-622324A COMP. THRUST BEARING TEMP. (IN-ACT)
TE-622325A COMP. THRUST BEARING TEMP. (IN-ACT)
The alarm signals associated to above temperature sensors are

• High Alarm for Each Temperature Measurement (Total of 8 alarms)
• High High Alarm for Each Temperature Measurement (Total of 8 alarms)
• Health Status Alarm for Each Temperature Measurement (Total of 8 alarms)
The trip conditions associated to above temperature sensors are

• 1oo4 Temperature High High Trip for four measurements on the same bearing (Total of
2 trips)
5.6.2 Gear / Pinion Temperatures

The following gear box bearing temperatures are monitored by the TSx system.

TE-622316A PINION JOURNAL BEARING TEMP.
TE-622317A PINION JOURNAL BEARING TEMP.
TE-622318A PINION JOURNAL BEARING TEMP. (NDE)
TE-622319A PINION JOURNAL BEARING TEMP. (NDE)
TE-622308A GEAR JOURNAL BEARING TEMP. (DE)
TE-622309A GEAR JOURNAL BEARING TEMP. (DE)

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
TE-622310A GEAR JOURNAL BEARING TEMP. (NDE)

TE-622311A GEAR JOURNAL BEARING TEMP. (NDE)
TE-622314A GEAR THRUST BEARING TEMP. (ACT)
TE-622315A GEAR THRUST BEARING TEMP. (ACT)
TE-622312A GEAR THRUST BEARING TEMP. (IN-ACT)
TE-622313A GEAR THRUST BEARING TEMP. (IN-ACT)


3 trips)
5.6.3 Motor Temperatures

The following motor bearing and winding temperatures are monitored by the TSx system.
TE-622303A MOOR JOURNAL BEARING TEMP. (CPL)
TE-622304A MOOR JOURNAL BEARING TEMP. (CPL)
TE-622301A MOOR JOURNAL BEARING TEMP. (ANTI-CPL)
TE-622302A MOOR JOURNAL BEARING TEMP. (ANTI-CPL)
TE-622305 MOTOR WINDING TEMP. (U)
TE-622306 MOTOR WINDING TEMP. (V)
TE-622307 MOTOR WINDING TEMP. (W)

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015

1 trip)
• 1oo3 Temperature High High Trip for three winding measurements (Total of 1 trip)
5.7 External Trips
The following trip signals are from VSDS, LCP, AOC and SIS system.

CMXA-622001 VSDS COMMON TRIP
HS-622301B COMPRESSOR NORMAL STOP FROM LCP
HS-622301E EMERGENCY STOP FROM LCP
HS-622305B COMPRESSOR NORMAL STOP FROM AOC
HS-622305E EMERGENCY STOP FROM AOC
XA-622320 SHUTDOWN SIGNAL FROM SIS
ESD-100000 PLANT SHUTDOWN
ESD-101000A FIRE SHUTDOWN
ESD-101000B PLANT SHUTDOWN
ESD-101000C ELECTRIC POWER FAULT SHUTDOWN
5.8 Process Alarms and Trips
The following is a list of alarm/trip signals generated for compressor process system. These
alarms visually indicate that there is a problem with the unit. Each of these alarm signals is
available on the Tri-Sen TSx System HMI screens and the DCS.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Associated Tags Alarm /Trip Description

LAHH-622002 1ST SUCTION DRUM LEVEL (FOR TRIP)
LAHH-622012 2ND SUCTION DRUM LEVEL (FOR TRIP)
LALL-622013 2ND SUCTION DRUM LEVEL (FOR TRIP)
LALL-622023 SEPARATOR DRUM LEVEL (FOR TRIP)
LALL-622033 NGL SEPERATOR DRUM LEVEL LOW LOW
LAH-622002 1ST SUCTION DRUM LEVEL (FOR TRIP) HIGH
LAH-622012 2ND SUCTION DRUM LEVEL (FOR TRIP) HIGH
LAH-622022 SEPARATOR DRUM LEVEL HIGH
LAH-622001 1ST SUCTION DRUM LEVEL HIGH
LAH-622003 1ST SUCTION DRUM LEVEL HIGH
LAL-622011 2ND SUCTION DRUM LEVEL LOW
LAH-622011 2ND SUCTION DRUM LEVEL HIGH
LAL-622013 2ND SUCTION DRUM LEVEL (FOR TRIP) LOW
LAL-622021 SEPARATION DRUM LEVEL LOW
LAH-622021 SEPARATION DRUM LEVEL HIGH
LAL-622023 SEPARATION DRUM LEVEL (FOR TRIP) LOW
TAH-622005 1ST DISCHARGE GAS COOLER OUTLET TEMP HIGH
TAH-622006 2ND DISCHARGE GAS COOLER OUTLET TEMP HIGH
PAL-622005 DISCHARGE NGL SEPERATOR TANK PRESS. LOW
PAH-622005 DISCHARGE NGL SEPERATOR TANK PRESS. HIGH
LAL-622004 V-621004 DRUM LEVEL LOW
LAH-622004 V-621004 DRUM LEVEL HIGH
LAL-622031 NGL SEPERATOR DRUM LEVELL LOW
LAH-622031 NGL SEPERATOR DRUM LEVELL HIGH
LAL-622033 NGL SEPERATOR DRUM LEVEL LOW
LAL-622501 V-61109 LIQUID LEVEL LOW
LAH-622501 V-61109 LIQUID LEVEL HIGH

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
LALL-622501 V-61109 LIQUID LEVEL LOW LOW
6 Compressor Sequences
This section defines the sequence and actions that are required to start the compressor and to
stop the compressor.
The Sequence is defined as states of operation and the states are given numerical reference to
facilitate programming conditional statements. It must be that the sequence is always in only
one state and there is never a time when the sequence not in any state.
The sequence states used by the Tri-Sen control system are based on the needs of the control
system. Each state is based on the control requirements, not on events. The state information is
used in the control program for setting limits, setpoints, timers, and etc.
Operation of the auxiliary systems is based on permissives for each sub system. The permissives
and their role in sequencing will be displayed on the HMI, but the state of auxiliary systems is
not used to define a control state for the compressor. The screen design documentation will
provide further explanation about how this data will be displayed.
Sequence states are defined in the following table
State Description
0 Shutdown State
1 Ready to Start State
2 Accelerate State
3 Run State
4 Normal Stop

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
6.1 State: Shutdown
Shutdown State is entered when any of the following conditions occur:

• From any Mode if a trip in following table occurs
# Tag Shutdown Condition Bypass

1 XA-622320 SHUTDOWN SIGNAL IMPULSE,OPEN NO
2 HS-622301E EMERGENCY STOP FROM LCP IMPULSE,OPEN NO
3 HS-622305E EMERGENCY STOP FROM AOC IMPULSE,OPEN NO
4 HS-622311E EMERGENCY STOP FROM HMI IMPULSE,OPEN NO
PT-
5 L/O HEADER PRESS. (2OO3) LATCHED, OPEN YES
622332A/B/C
PT-
6 PRIMARY LEAKAGE PRESS. (DE) (2OO3) LATCHED, OPEN YES
622344A/B/C
PT- PRIMARY LEAKAGE PRESS. (NDE)
7 LATCHED, OPEN YES
622345A/B/C (2OO3)
8 LT-622002 1ST SUCTION DRUM LEVEL (FOR TRIP) LATCHED, OPEN YES
9 LT-622012 2ND SUCTION DRUM LEVEL (FOR TRIP) LATCHED, OPEN YES
10 LT-622023 -SEPARATION DRUM LEVEL (FOR TRIP) LATCHED, OPEN YES
11 VAHH-622307 COMP SHAFT VIBRATION (DE) HH LATCHED, OPEN YES
12 VAHH-622308 COMP SHAFT VIBRATION (NDE) HH LATCHED, OPEN YES
13 ZAHH-622302 COMP. AXIAL DISPLACEMENT HH LATCHED, OPEN YES
14 VAHH-622305 PINION SHAFT VIBRATION (DE) HH LATCHED, OPEN YES
15 VAHH-622306 PINION SHAFT VIBRATION (NDE) HH LATCHED, OPEN YES
16 VAHH-622303 GEAR SHAFT VIBRATION (DE) HH LATCHED, OPEN YES
17 VAHH-622304 GEAR SHAFT VIBRATION (NDE) HH LATCHED, OPEN YES
18 ZAHH-622301 GEAR AXIAL DISPLACEMENTHH LATCHED, OPEN YES
19 VAHH-622302 MOTOR SHAFT VIBRATION (CPL) HH LATCHED, OPEN YES
MOTOR SHAFT VIBRATION (ANTI-CPL)
20 VAHH-622301 LATCHED, OPEN YES
HH
21 TAHH-622320 COMP JOURNAL BEARING TEMP. HH LATCHED, OPEN YES
22 TAHH-622324 COMP THR. BRG.TEMP. HH LATCHED, OPEN YES

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
23 TAHH-622316 PINION JOURNAL BEARING TEMP. HH LATCHED, OPEN YES

24 TAHH-622308 GEAR JOURNAL BEARING TEMP. HH LATCHED, OPEN YES
25 TAHH-622312 GEAR THRUST BEARING TEMP. HH LATCHED, OPEN YES
26 TAHH-622301 MOTOR JOURNAL BEARING TEMP LATCHED, OPEN YES
27 TAHH-622305 MOTOR WINDING TEMP. HH LATCHED, OPEN YES
28 CMXA-622001 VSDS COMMON TRIP LATCHED, OPEN YES
29 XA-622323A 1ST STAGE SURGE LATCHED, OPEN YES
30 XA-622323B 2nd STAGE SURGE LATCHED, OPEN YES
31 XA-622350 VSDS MOTOR FAIL TO START TRIP LATCHED, OPEN NO
32 ESD-100000 PLANT SHUTDOWN LATCHED, OPEN NO
33 ESD-101000A FIRE SHUTDOWN LATCHED, OPEN NO
34 ESD-101000B PLANT SHUTDOWN LATCHED, OPEN NO
35 ESD-101000C ELECTRIC POWER FAULT SHUTDOWN LATCHED, OPEN NO
36 BHS-622003 EMRGENCY STOP IMPULSE,OPEN NO
37 BHS-622002 EMRGENCY STOP IMPULSE,OPEN NO
38 LT-622013 2ND SUCTION DRUM LEVEL (FOR TRIP) LATCHED, OPEN YES
39 N-STOP NORMAL STOP IMPULSE,OPEN NO
When in Shutdown, the following actions occur:

• Start 180 second coast down timer.
• De-energize EMERGENCY STOP US-C621001to VSDS.
• De-energize COMMON TRIP XA-622340 to SIS.
• De-energize the following solenoid valves:
1ST ANTI-SURGE SOLENOID VALVES SV-622301A and SV-622301B
2ND ANTI-SURGE SOLENOID VALVES SV-622302A and SV-622302B
• De-energize the following solenoid valves:
SUCTION SHUT OFF SOLENOID VALVE ESDV-622001
DISCHARGE SHUT OFF SOLENOID VALVE ESDV-622004
2ND SUCTION DRUM DRAIN SOLENOID VALVE ESDV-622013

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
SEPERATOR DRUM DRAIN SOLENOID VALVE ESDV-622023

ESDV-622033 SOLENOID VALVE
Note: Only the trips from SIS, AOC, VSDS and process drum level can make the above solenoid
valves de-energized.
• COMMON TRIP LAMP XL-622301D on LCP turns on.
• COMMON TRIP LAMP XL-622305D on AOC turns on.
• EMERGENCY LAMP XL-622301E on LCP turns on. (Only when emergency Shutdown)
• EMERGENCY LAMP XL-622305E on AOC turns on. (Only when emergency Shutdown).
• If the trip was Normal Stop, MAIN MOTOR NORMAL STOP SIGNAL will be issued and
Main Motor ESD Command will not be issued. For all other Trip COMMON TRIP SIS will
be de-energized.
• Anti-Surge algorithm is disabled, the PID is placed in “Auto” and the HIC is placed in
“Manual” and compressor Anti-Surge Valve will automatically fully open.
• Performance Controller is disabled.
• The Process scheduler is disabled
6.2 State: Ready to Start
Ready to Start is entered when the following condition occurs:

• From Shutdown State, when all trips are clear, and reset, the coast down timer is
expired and the below compressor start permissives are satisfied:
Associated Tags Compressor Start Permissive
PT-622331 L/O HEADER PRESS. NOT LOW
TT-622331 L/O COOLER OUTLET TEMP. NOT LOW
LT-622321 L/O RESERVOIR LEVEL NOT LOW
LT-622331 L/O RUNDOWN TANK LEVEL NOT LOW
FZSO-622301 1ST ANTI-SURGE VALVE FULLY OPEN
FZSO-622302 2ND ANTI-SURGE VALVE FULLY OPEN
XA-622340 NO COMMON TRIP
XS-622320 START PERMISSIVE FROM DCS
XI-622320 VSDS READY TO START
XA-622326 NO MOTOR INTERLOCK
XI-622323 MOTOR PURGING INTERMEDIATE SWITCH

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Note: In many cases the permissive value is not the same as the alarm value; therefore it is
considered a separate setpoint.
While in this State, the following actions occur:

• READY FOR START LAMP XL-622301A on LCP is on.
• READY FOR START LAMP XL-622305A on AOC is on.
• Energize the following solenoid valves:
SUCTION SHUT OFF SOLENOID VALVE ESDV-622001
DISCHARGE SHUT OFF SOLENOID VALVE ESDV-622004
• If the associated level is normal, energize the following solenoid valves:
2ND SUCTION DRUM DRAIN SOLENOID VALVE ESDV-622013
SEPERATOR DRUM DRAIN SOLENOID VALVE ESDV-622023
ESDV-622033 SOLENOID VALVE
• Anti-Surge algorithm remains disabled, the PID is placed in “Auto” and the HIC is
placed in “Manual”
• Performance Controller is disabled.
• The Process scheduler is disabled
6.3 State: Accelerate
Accelerate is entered from Ready to Start when any of the following conditions occur:
1. Compressor start command is received from the LCP when operation place is in Local.
2. Or compressor start command is received from the AOC when operation place is in
Remote.
When in Accelerate State, the following actions occur:

3. Reset coast down timer.
4. Energize the main motor start signal to VSDS for 3 seconds.
5. Start Acceleration Timer, 15 seconds (ACCEL_TMR).
6. Energized the Trip Multiplier signal to BENTLY.
7. Wait 5 seconds to activate VSDS motor fail to start trip if VSDS MOTOR RUNNING
feedback is not received.
8. Anti-Surge algorithm remains disabled, the PID is placed in “Auto” and the HIC is place in
“Manual”.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
6.4 State: Run
Run is entered from Accelerate when any of the following conditions occur:
• When 15 seconds acceleration timer expires.
When in Run, the following actions occur:
• COMPRESSOR RUNNING LAMP XL-622301R on LCP turns on.

• COMPRESSOR RUNNING LAMP XL-622305R on AOC turns on.
• Energize 1ST ANTI-SURGE SOLENOID VALVES SV-622301A and SV-622301B.
• Energize 2ND ANTI-SURGE SOLENOID VALVES SV-622302A and SV-622302B.
• De-energized the Trip Multiplier signal to BENTLY.
• Anti-Surge algorithm is enabled. The PID remains in “Auto” and the HIC is set to
“Manual”. This will keep the Anti-Surge Valve fully open.
• Performance Controller and Process scheduler remain disabled. Discharge Pressure PID
and PDS are placed in Auto once Performance Control is set to Auto from HMI.
• Operator can place the Performance controller in Manual to be able to manually
manipulate main motor speed.
6.5 State: Normal Stop
Normal Stop is entered from Run when any of the following conditions occur:
When in Normal Stop State, the following are satisfied:

• Antisurge Valve is Full Open
When the above conditions are satisfied, the following actions occur:
• Normal Stop signal (N_Stop) is generated to make the compressor to Shutdown State.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
7 Performance Control 主要目的是保证流量满足下游需要。正常工况下，气

量充足，出口压力通过电机转速调节；非正常工况，
气量低时，PDS允许performance controller 通过调
节回流阀控制出口压力。通过回流阀调节出口压力可
7.1 Functional Descriptions (PC-622004) 以避免performance controller 与防喘震系统发生干
涉。
Performance control will be performed by the Tri-Sen TSx. The primary function is to keep the
compressor running to a specified discharge flow to satisfy the downstream process. The output
of the performance controller is passed through a process demand scheduler. During normal
operation the discharge pressure is controlled by modulating the main motor speed, but during
process upsets and operation with low flows the process demand scheduler will allow the
performance controller to control the discharge pressure by manipulating the recycle valve. This
is required to prevent the performance controller from interacting with the anti-surge controller
and it allows for a high turndown to meet low process demands.
气量不足时容易产生气
体失速，如果出口管路
7.2 Input Selection 压力高，将造成喘震。
Redundant Measurements
This application utilizes redundant transmitters for suction drum pressure, compressor inlet
pressure, discharge pressure, compressor inlet temperature, discharge temperature and flow.
The PV selection for these will be as follows: 入口分液罐压力，入口压力，出口
压力，入口温度、出口温度、流量
1. Suction drum pressure, compressor inlet pressure and flow will be low selected when
both transmitters are healthy, and use last remaining when the other transmitter is
faulted.
2. Discharge pressure, compressor inlet temperature, and discharge temperature will be
high selected when both transmitters are healthy and use last remaining when the other
transmitter is faulted.
3. If both transmitters of a measurement are faulted the surge controller fall back strategy
will be activated.
4. Faulted transmitters are removed from selection logic and must be reactivated by
operator before being placed back in selection logic.
Note: A faulted transmitter is detected by the input signal going out of range low or high. The
high and low threshold is set to match the respective transmitter are set between the saturation
level and transmitter failure value. The following table states the thresholds used for this project.
Manufacturer Low Fail (mA) High Fail (mA)

TSx 3.75 21.75

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
7.3 Fallback Strategies for Transmitter Failures
Option A:
1. If a temperature measurement is lost, the equation will use value from 5 scans prior.
2. If a pressure measurement is lost, then implement simplified surge PV (turns the surge
controller into a raw flow controller)
3. If flow measurement is lost the surge controller will be placed in manual and the
operator will have to manage the recycle valve; there is no surge protection.
Option B:
4. If any measurement is lost the surge controller will be placed in manual and the operator
will have to manage the recycle valve.
Option C:
5. If any measurement is lost the surge controller will be disabled and the recycle valve will
open fully.
In this application we adopt the first philosophy.
7.4 Performance Control Module Assignment
The control function is organized into Modules, with each Module performing specific tasks. The
following is a list of modules used for performance control. They are presented here in
execution order.
State Description
10 Discharge Pressure
20 Load Sharing
7.4.1 Discharge Pressure PID
The primary function of Pressure Control is to manipulate the discharge header pressure at
specific value. This will allow a running unit to take over control should the current master
controller trip or be taken offline.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
This is a standard VPID controller. It can be placed in Auto or Manual and is enabled/disabled by
the sequence.
PV 出口压力测量值
• Reverse Action (if the measurement increases, the PID output decreases) Setpoint 设置的出口压力
OUtput 通过对比测量值与
• Setpoint is set by Operator. Setpoint will track PV when in manual or disabled. 设定值，输出一个信号，用
于控制可影响出口压力的执
• The output of this PID is connected to the Process Demand Scheduler. 行机构。这个信号的大小就
是output，output通过PDS
• Output limits are from 0 to 100%. 来分配性的控制转速和回流
• Setpoint limits are from 0 to 70barg. 阀开度，保证出口压力在
setpoint附近徘徊
• Whenever sequencing is in the “Run” state this controller is enabled and can be placed in
Auto or Manual mode by the operator. All other times the output will be set to 0% and
the Setpoint will track the PV.
问题1.Output是否只受
出口压力值影响，是否
7.4.2 Process Demand Scheduler 受surge PV影响。
The Process Demand Scheduler (PDS) allows a single controller to manipulate two different
control variables or outputs, similar to a split range configuration. It will continuously manage
the relationship of the two control variables in an effort to avoid another related process
variable.
Primarily the two control variables are the performance variable of a compressor (speed or
throttling valve) and the anti-surge valve. The related process variable is most often the PV of
the surge controller. 相关工艺变量是喘震控制
器的工艺变量。
The demand input (PIDOUT) to the PDS is indicated below by the vertical green line @ 60%. The
process handle output (OUT1) is generated by the intersection of the demand input and the
Process Handle line (blue line below). The Anti-Surge Valve output (OUT2) is generated by the
intersection of the demand input and the Anti-Surge Valve line (red line below).
Figure 1
Process Demand Scheduler
100 100
当出口压力升高，则PID
90 90 output减小，及左图中绿
80 80
线左移。而后回流阀开度
增大，压缩机转速降低。
70 70
当出口压力降低，则PID
60 60 Process output增大，及左图中绿
Anti- Handle
Surge 50 50 (speed or
线右移。而后回流阀开度
Valve suction
vavle)
减小，压缩机转速升高。
40 40
30 30
20 20 当大流量时，不需要开喘
震阀就可以控制出口压力
10 10
0 0
0 10 20 30 40 50 60 70 80 90 100
Process Demand
(performance PID output)

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
蓝线和红线受防喘震系 CNOOC-Missan Oil Field Development Project
统变量影响。
指的是下方右图的蓝线
The behavior of the Process Handle and Anti-Surge Valve lines are influenced by the surge
controller process variable (PV). If the PV of the surge controller is greater than the setpoint (SP),
as indicated in the below right side graph, then the Process Handle line will move to the right
and the Anti-Surge Valve line will move to the left, thereby minimizing the Anti-Surge Valve
output and move toward the demand input manipulating only the Process Handle. 这句话是对的。当surge
当工况距离喘震线较远 Figure 2 controller 的测量变量
时，优先关喘震阀，避免过大，大于SP时，应左
能源浪费，降低效率 PDS Behavior 1 移
当出口压力升高，则PID
100 100
4.0 output减小，及左图中绿
90 90
3.5
线左移。而后回流阀开度
80 80
增大，压缩机转速降低。
70 70
60 60
3.0
当出口压力降低，则PID
Anti-
Surge 50
Process
Handle
50 (speed or Y 2.5
output增大，及左图中绿
Valve suction
vavle)
线右移。而后回流阀开度
40 40
2.0 减小，压缩机转速升高。
30 30
20 20 1.5
10 10
1.0
0 0
0 10 20 30 40 50 60 70 80 90 100
0 10 20 30 40 50 60 70 80 90 100
Process Demand
X
Provided there is enough process flow to allow the Anti-Surge Valve to close before the surge PV
reaches the setpoint, the PDS graph will appear as shown below with the demand input moving
only the Process Handle.
Figure 3 流量充足的条件下，为达
到设定出口压力，只调节
大流量下，不可能喘震， PDS Process Handle Only 转速。但如果设定压力比
因此可以关闭喘震阀较低，在最小转速下也无
法降低出口压力时会怎么
100 100 样？
90 90
4.0
80 80
3.5
70 70
60 60 Process 3.0 如果出口压力设定比塔后

Anti-
Surge 50
Handle
50 (speed or 压力调节阀高很多，会不
Valve
40 40
suction
vavle)
Y 2.5 会造成压缩机不断提速保
30 30 2.0
证出口压力，但调节阀会
不断增加开度降低阀前压
20 20
1.5 力？
10 10
1.0
0 0
0 10 20 30 40 50 60 70 80 90 100 0 10 20 30 40 50 60 70 80 90 100
Process Demand
(performance PID output) X
当设置一个较小的出口压力后，如右图，假设管路特性不变，则压缩机工作点应在
横虚线与管路特性曲线交点上，总会有一条在特定转速下的性能曲线经过这个交
点，当压缩机达到这个转速时，出口压力即为设定值。
If the surge PV reached the SP before the process handle output was at its minimum limit then
the two lines would have stopped moving and the graph would look as it does in the PDS Low
Process Flow below. 为了保证不喘震，在某工况下压缩机会持续将低转速
避免发生喘震。上面的意思是说，压缩机转速在持续
降低，带还没调制最低时，喘震PV就已经达到控制
线。这时，红线和蓝线均停止移动，反应出就像在低
上文中所述“转速输出达到最小限流量运行条件下的曲线。
制值以前，喘震过程变量已达到控
制线。”可以理解为，右上图中虚
线（即压力设定值）与管路特性曲
Control System Narrative 线的交点已接近喘震控制线。 -28 -
Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Figure 4
PDS Low Process Flow
100 100
90 90
4.0
80 80
70 70 3.5
60 60 Process 3.0
Anti- Handle
Surge 50 50 (speed or
Valve suction
vavle) Y 2.5
40 40
30 30 2.0
20 20
1.5
10 10
1.0
0 0
0 10 20 30 40 50 60 70 80 90 100 0 10 20 30 40 50 60 70 80 90 100
Process Demand
(performance PID output) X
If there is low process flow and a low pressure ratio is required, as indicated in the below right
side graph, the PDS will allow the Process Handle to go to the minimum limit and then allow the
input demand to manipulate the Anti-Surge Valve. This will allow for the highest turndown of
the compressor.
低流量、低压力时，允许 Figure 5
将转速降到最低，调节喘
震阀 PDS Process Anti-Surge Valve Only
100 100
4.0
90 90
80 80 3.5
70 70
3.0
60 60 Process
Anti- Handle
Surge 50 50 (speed or Y 2.5
Valve suction
vavle)
40 40
2.0
30 30
20 20 1.5
10 10
1.0
0 0
0 10 20 30 40 50 60 70 80 90 100
0 10 20 30 40 50 60 70 80 90 100
Process Demand
X
It is important to note that when the PDS is enabled the surge controller internal SP is reduced
by a small about to prevent interaction with the PDS; this small reduction is not shown in the
above graphs but is shown below as the light green line in the below right side graph. In this case
the Process Handle line will move to the left and the Anti-Surge Valve line will move to the right,
thereby bringing the surge PV back to the SP without any action from the surge controller.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Figure 6
PDS low surge PV
100 100
4.0
90 90
80 80 3.5
70 70
3.0
60 60 Process
Anti- Handle
Surge 50 50 (speed or Y 2.5
Valve suction
vavle)
40 40
压 2.0
30 30
缩
20 20 比 1.5
10 10
1.0
0 0
0 10 20 30 40 50 60 70 80 90 100
0 10 20 30 40 50 60 70 80 90 100
Process Demand
X
By moving the Process Handle line and the Anti-Surge Valve line in opposite directions the
process flow is changed very little. The PDS has a SPLIT variable to allow for cases where the
process influence of the two outputs is not equal. The graph below on the left shows the case
where SPLIT is set to 25% for cases where the anti-surge valve is small compared to the range for
the process handle (e.g. the speed range is large). The graph below on the right shows the case
where the SPLIT is set to 75% for cases where the anti-surge valve is large compared to the
range for the Process Handle. The value of SPLIT must be confirmed during commissioning.
Figure 7
PDS low surge PV
100 100 100 100
90 90 90 90
80 80 80 80
70 70 70 70
60 60 Process 60 60 Process
Anti- Handle Anti- Handle
Surge 50 50 (speed or Surge 50 50 (speed or
Valve suction Valve suction
vavle) vavle)
40 40 40 40
30 30 30 30
20 20 20 20
10 10 10 10
0 0 0 0
0 10 20 30 40 50 60 70 80 90 100 0 10 20 30 40 50 60 70 80 90 100
Process Demand Process Demand
(performance PID output) (performance PID output)
The movement of the Process Handle line and the Anti-Surge Valve line are manipulated by two
integrators that work in unison to ensure that the demand input is always in control of the
process and the transition from one control variable to the other is bumpless.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
7.4.3 2nd Suction Drum Level Control (LIC-622011)

This is a standard VPID controller. It can be placed in Auto or Manual.
· Direct Action (if the measurement increases, the PID output increases)
· Setpoint is set by Operator. Setpoint will track PV when in manual or disabled.
· Output limits are from 0 to 100%.
· Setpoint limits are from 0 to 100%.
2nd suction drum level is maintained using a fail close control valve. This control is designed to
maintain the level at a specific setpoint. The Tri-Sen TSx controls the valve using a proportional-
integral-derivative (PID) instruction. The setpoint for this instruction is adjustable via the HMI
interface. The process variable (PV) for this control is 2nd suction drum level measurement. The
output of this PID instruction will be a 4-20mA signal scaled from 0-100%, where 0% commands
the valve to the fully closed position, and 100% commands the valve to the fully open position.
The field devices associated to this PID control are:

LIT-622011 2ND SUCTION DRUM LEVEL
2ND SUCTION DRUM DRAIN CONTROL VALVE
LV-622011
POSITION
7.4.4 Separation Drum Level Control (LIC-622021)

Separation drum level is maintained using a fail close control valve. This control is designed to
interface. The process variable (PV) for this control is separation drum level measurement. The

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015

LIT-622021 SEPARATION DRUM LEVEL
SEPARATION DRUM DRAIN CONTROL VALVE
LV-622021
POSITION
7.4.5 Discharge NGL Separator Tank Press. Control (PIC-622005)

· Reverse Action (if the measurement increases, the PID output decreases)
· Setpoint limits are from 0 to 15MPAG.
Discharge NGL Separation drum level is maintained using a fail open control valve. This control is
designed to maintain the pressure at a specific setpoint. The Tri-Sen TSx controls the valve using
a proportional-integral-derivative (PID) instruction. The setpoint for this instruction is adjustable
via the HMI interface. The process variable (PV) for this control is separation drum level
measurement. The output of this PID instruction will be a 4-20mA signal scaled from 100-0%,
where 0% commands the valve to the fully closed position, and 100% commands the valve to
the fully open position. The field devices associated to this PID control are:

PIT-622005 DISCHARGE NGL SEPERATOR TANK PRESS.
LV-622005 DISCHARGE NGL SEPERATOR VALVE POSITION
7.4.6 NGL Separator Level Control (LIC-622031)


Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015

NGL separator level is maintained using a fail close control valve. This control is designed to
interface. The process variable (PV) for this control is 1st suction drum level measurement. The

LIT-622031 L/O RUNDOWN TANK LEVEL
LV-622031 EXPORT PUMP OUTPUT VALUE CONTROL
7.5 Load Sharing
7.5.1 Peer to Peer communication

The Tri-Sen TSx controllers’ network will utilize Peer-to-Peer networking in order to share data
between compressor systems (nodes). Every node has the ability to talk with each other. There
are two nodes, NODE1 (Unit1) and NODE2 (Unit2) in peer-to-peer network.
The nodes are required to share some data which will be used by the performance control of
each Tri-Sen TSx controller. Following is the data listed to be sent over the Peer-to-Peer network.

GV_PC622004SP_NODE1 Current pressure setpoint
GV_PC622004OUT_NODE1 Current controller output
GV_PI622004_NODE1 Discharge Pressure
GV_PDS1OUT_NODE1 Current PDS 1 output
GV_PDS2OUT_NODE1 Current PDS 2 output
GV_N1LSERR_NODE1 Current Load Sharing Error

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
GV_N1OPRNG_NODE1 Operating Point Range

GV_N1ACTIVE_NODE1 Node active flag
GV_N1LOADSHARE_NODE1 Load Sharing Flag
7.5.2 General Description
The primary function of Load Sharing is to balance each of the running compressors such that
that all the units approach their surge control lines together. This eliminates the scenario where
one machine is venting or recycling while another unit is running with excess flow.
Each unit will utilize the data sent over the Peer-to-Peer network in order to calculate its own
setpoint.
7.5.3 Functional Overview
Load sharing performs three primary functions:

1. To calculate the average distance of the operating point to the surge control line.
2. To calculate the average bias.
3. To place limits on the calculated bias. The bias limit will be ½ of the range from minimum
and maximum limits of the discharge pressure controller.
Load sharing selection is specific to each Tri-Sen TSx controller. Load sharing is enabled/disabled
from the HMI.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Load sharing will be enabled when all of the following conditions are met:
1. The unit is in the State Run.
2. Load Sharing is selected.
3. At least one header pressure transmitter is functioning properly.
4. The Peer-to-Peer communication link is healthy.
7.5.4 Functional Description
To minimize venting/recycle (thereby increasing efficiency) the load sharing controls will ensure
that each unit is operating the same distance from the surge controller setpoint (control line).
To balance the PV of each load sharing unit, the controller must know where each unit is running
on their respective compressor map. This operating range is shown in the drawing below as
NODE_X_PV and represents the horizontal or X axis distance from the operating point to the
control line.
All operating ranges are then averaged together and the difference between the individual unit’s
operating range and the average is placed into the tag UXX_LSERR. This calculated value is then
fed as the error into an integrator whose purpose is to reduce the error to zero by adding or
subtracting (this value is bipolar) from the performance controller’s desired speed setpoint.
The next step is to balance the speed of each unit around the performance controller’s desired
setpoint. This is accomplished by a second slower integrator whose output is also added or
subtracted from the performance controller’s desired speed setpoint. The sum of the two
integrators is referred to as the Bias. The error for the second integrator is calculated by
averaging the bias of all operating units. This second integrators error tag is NODE_XX_BIASERR.
Finally, the bias is summed with the output of the PDS function to create a speed setpoint.
7.5.5 The Load Sharing Bias Limits:
A dynamic bias limit is used on the output of each integrator. The bias limit logic ensures that
the output of the integrators do not prevent any unit from reaching 100 percent capacity. Using
a linear interpolation function, the bias limit will be limited to an output of 0.0 when the
performance controller demand is at its minimum or maximum values. The limit will be clamped
to 50% when the performance controller demand is between 0% and 100%.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
8 Anti-Surge Control Module Assignment
8.1 Functional Description
The primary function of the anti-surge control is to prevent the compressor from operating in an
unstable surge region. Continued operation in a surge region can result in a mechanical failure.
Anti-surge control prevents surge from occurring by maintaining a minimum flow rate through
the compressor. The flow rate is controlled by modulating a recycle valve. This valve recycles
gas back to the compressor suction.
The field devices associated to anti-surge controls are as follows:

PIT-622351A/B COMP 1ST SUCTION PRESS.
TIT-622351A/B COMP 1ST SUCTION TEMP. 进出口压力、温度和流量
PIT-622352A/B COMP 1ST DISCHARGE PRESS.

TIT-622352A/B COMP 1ST DISCHARGE TEMP.
FIT-622352A/B COMP 1ST DISCHARGE FLOW
PIT-622353A/B COMP 2ND SUCTION PRESS.
TIT-622353A/B COMP 2ND SUCTION TEMP.
PIT-622354A/B COMP 2ND DISCHARGE PRESS.
TIT-622354A/B COMP 2ND DISCHARGE TEMP.
FIT-622354A/B COMP 2ND DISCHARGE FLOW
1ST ANTI-SURGE CONTROL VALVE
FV-622301
POSITION
2ND ANTI-SURGE CONTROL VALVE
FV-622302
POSITION
FZT-622301 1ST ANTI-SURGE VALVE TRANSMITTER
FZT-622302 2ND ANTI-SURGE VALVE TRANSMITTER

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
8.2 1st Stage Anti-Surge Control Module Assignment
following is a list of modules used in for anti-surge control. They are presented here in execution
order.
Associated Compressor Start Permissive

Tags
10 Discharge Flow Compensation (press & temp)
20 X Coordinate Calculation
30 Y Coordinate Calculation (Pressure Ratio)
40 Surge Cycle detection
50 Intelligent Surge Curve (iSurge Curve)
60 Surge PV calculation
70 Anti-Surge PID
80 Hand Indicating Controller
90 Valve Vow
100 High Select and signal reversal

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Flow1
Flow Compensated From Process Demand Scheduler
Pd1 Discharge Flow 1
Comp
Td1 FV-
622301
SP (10%)
Flow1 X
Ps1 Calc Surge Surge
X of PID > +/-
PV
Pd1 surge Calc w/ Adaptive Recycle
(abs) Y curve Gain Spillback
Ps1 iSurgeCurve
Calc
(abs) Hand
Manual
Indicating
Demand
Controller
Surge Cycle Xgain Safety

Detection Response
Figure 8.2 1st Stage Anti-Surge Block Diagram
8.2.1 Stage 1 Flow Compensation

The compensated flow is calculated through the following:
Pd + Pabscor Torifice
compensated _ flow = flow *
Porifice Td + Tabscor
Where:
Compensated_flow= 1 st Stage Compensated Flow (kg/h)
Flow = 1st Stage Discharge Flow (kg/h)
Pd = 1st Stage Compressor discharge pressure (barg)
Td = 1st Stage Compressor discharge temperature (°C)
Pabscor = Pressure absolute correction Value, 1.01325 (bar)
Tabscor = Temperature absolute correction Value, 273.15 (K)
Porifice= Design or base pressure for flow element calculation (bara)
Torifice= Design or base temperature for flow element calculation (K)
Note1: The 1.01325 is added to convert gauge to absolute pressure.

The 273.15 is added to covert °C to K (Kelvin).
8.2.2 Stage 1 X Coordinate Calculation (Flow transmitter at discharge)

The X coordinate is calculated with the following equation:

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
2
 compensate d _ flow Pbase   (Ts + Tabscor ) 
X =
( Ps + Pabscor )  
* *  * 100
 max_ flow Tbase
Where:
max_flow = maximum flow range of the flow meter (kg/h)
Ps = 1st Stage Inlet Pressure (barg)
Ts = 1st Stage Inlet Temperature (°C)
Pbase = Compressor base pressure condition related surge interpolation (bara)
Tbase = Compressor base temperature condition related surge interpolation (°C)
Note: The 1.01325 is added to convert gauge to absolute pressure

The 273.15 is added to covert °C to K (Kelvin)
8.2.3 Stage 1 Y Coordinate Calculation (Pressure Ratio)

The Y calculation is calculated with the following equation:
Pd + Pabscor
Y=
Ps + Pabscor
Where:
Pd = 1st Stage Compressor Discharge Pressure (barg)
Ps = 1st Stage Compressor Inlet Pressure (barg)
Note: The 1.01325 is added to covert gauge to absolute pressure.
8.2.4 Stage 1 Surge Cycle detection

This module compares the X coordinate (operating point) rate of change to the Y coordinate
(pressure ratio) rate of change while also looking for a surge cycle.
The rate of change is calculated each scan by comparing the current value against the value of
the previous scan. The value is passed through a gap filter so that the amplitude of the noise
does not contribute or skew the rate of change calculation. This calculation is performed for
both the X coordinate and the Y coordinate as follows:

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
• Subtract current value from previous scan filtered value. If the change is less than Gap
Filter dead band then Filtered value is unchanged.
• If deviation exceeds Gap Filter dead band then set filtered value to current value minus
amplitude for increasing value or set to current value plus amplitude for decreasing value.
• Subtract previous filtered value from current filtered value
• Divide by scan time to convert from unit/scan to unit/sec.
This module then identifies surge cycles by first confirming that both the X and Y values rate of
change are negative in conjunction with monitoring the X value for a negative and a positive
high rate of change occurring within a given time period (surge cycle, see illustration below)
which is half of the expected surge cycle period.
1. If current rate of change exceeds the surge rate in the negative direction start timer that
is equal to half of the expected surge cycle.
2. If current rate of change exceeds the surge rate in the positive direction and the negative
rate timer is active then set cycle true
3. If cycle is true and the rate of change for X and Y were negative within the last surge cycle
time then increment surge count by 1 and reset negative rate timer.
One surge cycle
X coordinate
Figure 8.2.4 Surge Detection
8.2.5 Stage 1 Intelligent Surge Curve (iSurge Curve)

The Pressure Ratio is used in a linear interpolation to calculate the horizontal component of the
surge curve (surge_line). The Following are the base coordinates to be used in the interpolation.
Table 8.2.5 Surge Curve
Origin Point 1 Point 2 Point 3 Point 4 Point 5 Point 6

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
X 0.0 13.80 15.70 17.76 23.13 30.21 41.22

Y 1.0 2.65 3.01 3.43 3.84 4.35 4.92
Each of the X base coordinates are multiplied by a gain factor (Xgain), i.e. if Xgain equals 1.0 then
the intelligent surge curve is plotted thru the base coordinates. The initial value of Xgain is 1.0
and the value is not allowed to be less than 1.0 except during commissioning.
If the Surge Cycle Detection function indicates that a surge event has taken place (i.e.
intelligence has been gained), then Xgain is set as follows
 X 
Xgain =   + 0.02
 surge _ line 
The “+ 0.02” is to add an additional safety buffer. The values used for X and surge_line are those
5 scans prior to the beginning of the surge cycle.
8.2.6 Stage 1 Surge PV Calculation

The PV to be used by the Anti-Surge PID is calculated as the following:
PV _ surge = X − surge_ line
8.2.7 Anti-Surge PID w/ Adaptive Gain

This is a standard VPID controller. It can be placed in Auto or Manual (warning: manual means
no surge protection).
• Reverse Action (if the measurement increases, the PID output decreases)
• Output limits are from 0 to Max_out.
• The Setpoint is SP_surge. This setpoint will increment by 2% if PV_surge decreases below
-1.0%. Maximum setpoint limit is set by SP_Max
• This controller is enabled when sequencing is in the “Run” state, all other times it will be
disabled. When disabled the output of this controller is forced to 100%.
• The manual demand for this controller is the same demand as the HIC below
• The Gain of this controller is adaptive in that is varies based on the PV. A linear
interpolation is used to adjust the gain of this controller as follows.
Table 8.2.7 Surge PID Adaptive Gain

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
PV Gain
0 Gain_mx
SP_surge*0.90 Gain_nrm
SP_surge*1.15 1.0
SP_surge*1.20 0.1
100 0.1
• In the case where this controller is not the highest input to high select for the recycle
valve, its output will be initialized to the current recycle valve output minus the gain term
of the PID (gain * (sp - pv)) to prevent windup.
8.2.8 Hand Indicating Controller (HIC)

This function’s purpose is to allow the operator a means of opening the recycle valve while still
maintaining surge protection. Its output goes to the high select.
• This HIC will have Track and Manual modes.
• In Track mode, the output will track the output of the recycle valve. If the Anti-Surge PID
is placed in manual, this limiter will be forced to Track mode.
• In Manual mode the operator can open and close the recycle valve provided the Anti-
Surge PID is satisfied, thereby maintaining surge protection. The manual demand is
common with the Surge PID manual demand.
• Output limits are from 0% to Max_out.
8.2.9 Valve Vow

This function’s purpose is to ensure the opening of the recycle valve for extreme drops in PV. Its
output is high selected with the Anti-Surge PID output. The function will start to open the ASV
from its current position. The two examples below show the function’s output with different
ASV starting points. The one on the left shows the ASV at 0% as the PV decreases below 7%. The
one on the right shows the ASV at 50% as the PV decreases below 7%.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Figure 8.2.9 Valve Vow Examples
This function’s output is based on the following equation:

 (MAX − clamp( MIN , PV , Max) ) 
2
temp = ASV _ ENT +   ∗ MAX _ OUT

 (MAX − MIN ) 
VLV _ VOW _ 1 = clamp(0, temp, MAX _ OUT)
Where:
MAX= % function’s output begins to increase (5%).
MIN = % function’s output reaches Max_out (1%).
MAX_OUT = Maximum output limit of this function (100%).
ASV_ENT = ASV last position before the operating point entered the functions active
range
8.2.10 High select and signal reversal

The output of the Discharge Pressure Controller via the process demand scheduler, Anti-Surge
PID, the Hand Indicating Controller, and Safety Response are high selected as the % open
demand for the recycle valve.
The output of this High Select is rate limited. The recycle valve is allowed to open at a fast rate
but is restricted to a slower closing rate. It also provides indication of which input is currently
modulating the recycle valve.
This valve is a fail open valve so the final output signal must be reversed so that 0-100% = 20-
4mA (closed to open).

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
8.3 2nd Stage Anti-Surge Control Module Assignment
following is a list of modules used in for anti-surge control. They are presented here in execution
order.
Associated Compressor Start Permissive
Tags
10 Discharge Flow Compensation (press & temp)
20 X Coordinate Calculation
30 Y Coordinate Calculation (Pressure Ratio)
40 Surge Cycle detection
50 Intelligent Surge Curve (iSurge Curve)
60 Surge PV calculation
70 Anti-Surge PID
80 Hand Indicating Controller
90 Valve Vow
100 High Select and signal reversal
Flow2
Flow Compensated From Process Demand Scheduler
Pd2 Discharge Flow 2
Comp
Td2 FV-
622302
SP (10%)
Flow2 X
Ps2 Calc Surge Surge
X of PID > +/-
PV
Pd2 surge Calc w/ Adaptive Recycle
(abs) Y curve Gain Spillback
Ps2 iSurgeCurve
Calc
(abs) Hand
Manual
Indicating
Demand
Controller
Surge Cycle Xgain Safety

Detection Response
Figure 8.3 2nd Stage Anti-Surge Block Diagram

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
8.3.1 Stage 2 Flow Compensation

The compensated flow is calculated through the following:
Pd + Pabscor Torifice
compensated _ flow = flow *
Porifice Td + Tabscor
Where:
Compensated_flow= 2 nd Stage Compensated Flow (kg/h)
Flow = 2nd Stage Discharge Flow (kg/h)
Pd = 2nd Stage Compressor discharge pressure (barg)
Td = 2nd Stage Compressor discharge temperature (°C)
Torifice= Design or base temperature for flow element calculation (K)
Note1: The 1.01325 is added to convert gauge to absolute pressure.

The 273.15 is added to covert °C to K (Kelvin).
8.3.2 Stage 2 X Coordinate Calculation (Flow transmitter at discharge)

The X coordinate is calculated with the following equation:
2
 compensate d _ flow Pbase   (Ts + Tabscor ) 
X = * *  * 100
 max_ flow ( Ps + Pabscor )   Tbase
Where:
Ps = 2nd Stage Inlet Pressure (barg)
Ts = 2nd Stage Inlet Temperature (°C)
Pbase = Compressor base pressure condition related surge interpolation (bara)
max_flow = maximum flow range of the flow meter (kg/h)
Note: The 1.01325 is added to convert gauge to absolute pressure

The 273.15 is added to covert °C to K (Kelvin)

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
8.3.3 Stage 2 Y Coordinate Calculation (Pressure Ratio)

The Y calculation is calculated with the following equation:
Pd + Pabscor
Y=
Ps + Pabscor
Where:
Pd = Compressor Discharge Pressure (barg)
Ps = Compressor Inlet Pressure (barg)
Note: The 1.01325 is added to covert gauge to absolute pressure.
8.3.4 Stage 2 Surge Cycle detection

This module compares the X coordinate (operating point) rate of change to the Y coordinate
(pressure ratio) rate of change while also looking for a surge cycle.
The rate of change is calculated each scan by comparing the current value against the value of
the previous scan. The value is passed through a gap filter so that the amplitude of the noise
does not contribute or skew the rate of change calculation. This calculation is performed for
both the X coordinate and the Y coordinate as follows:
• Subtract current value from previous scan filtered value. If the change is less than Gap
Filter dead band then Filtered value is unchanged.
• If deviation exceeds Gap Filter dead band then set filtered value to current value minus
amplitude for increasing value or set to current value plus amplitude for decreasing value.
• Subtract previous filtered value from current filtered value
• Divide by scan time to convert from unit/scan to unit/sec.
This module then identifies surge cycles by first confirming that both the X and Y values rate of
change are negative in conjunction with monitoring the X value for a negative and a positive
high rate of change occurring within a given time period (surge cycle, see illustration below)
which is half of the expected surge cycle period.
4. If current rate of change exceeds the surge rate in the negative direction start timer that
is equal to half of the expected surge cycle.
5. If current rate of change exceeds the surge rate in the positive direction and the negative
rate timer is active then set cycle true

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
6. If cycle is true and the rate of change for X and Y were negative within the last surge cycle
time then increment surge count by 1 and reset negative rate timer.
One surge cycle
X coordinate
Figure 8.3.4 Surge Detection
8.3.5 Stage 2 Intelligent Surge Curve (iSurge Curve)

The Pressure Ratio is used in a linear interpolation to calculate the horizontal component of the
surge curve (surge_line). The Following are the base coordinates to be used in the interpolation.
Table 8.3.5 Surge Curve

Origin Point 1 Point 2 Point 3 Point 4 Point 5 Point 6
X 0.0 11.66 13.90 17.62 21.71 26.68 34.72
Y 1.0 2.41 2.71 3.03 3.42 3.80 4.27
Each of the X base coordinates are multiplied by a gain factor (Xgain), i.e. if Xgain equals 1.0 then
the intelligent surge curve is plotted thru the base coordinates. The initial value of Xgain is 1.0
and the value is not allowed to be less than 1.0 except during commissioning.
If the Surge Cycle Detection function indicates that a surge event has taken place (i.e.
intelligence has been gained), then Xgain is set as follows
 X 
Xgain =   + 0.02
 surge _ line 
The “+ 0.02” is to add an additional safety buffer. The values used for X and surge_line are those
5 scans prior to the beginning of the surge cycle.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
8.3.6 Stage 2 Surge PV Calculation

The PV is calculated as the following:
PV _ surge = X − surge_ line
8.3.7 Anti-Surge PID w/ Adaptive Gain

This is a standard VPID controller. It can be placed in Auto or Manual (warning: manual means
no surge protection).
• Reverse Action (if the measurement increases, the PID output decreases)
• Output limits are from 0 to Max_out.
• The Setpoint is SP_surge. This setpoint will increment by 2% if PV_surge decreases below
-1.0%. Maximum setpoint limit is set by SP_Max
• This controller is enabled when sequencing is in the “Run” state, all other times it will be
disabled. When disabled the output of this controller is forced to 100%.
• The manual demand for this controller is the same demand as the HIC below
• The Gain of this controller is adaptive in that is varies based on the PV. A linear
interpolation is used to adjust the gain of this controller as follows.
Table 8.3.7 Surge PID Adaptive Gain
PV Gain
0 Gain_mx
SP_surge*1.15 1.0
SP_surge*1.20 0.1
100 0.1

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
• In the case where this controller is not the highest input to high select for the recycle
valve, its output will be initialized to the current recycle valve output minus the gain term
of the PID (gain * (sp - pv)) to prevent windup.
8.3.8 Hand Indicating Controller (HIC)

This function’s purpose is to allow the operator a means of opening the recycle valve while still
maintaining surge protection. Its output goes to the high select.
• This HIC will have Track and Manual modes.
• In Track mode, the output will track the output of the recycle valve. If the Anti-Surge PID
is placed in manual, this limiter will be forced to Track mode.
• In Manual mode the operator can open and close the recycle valve provided the Anti-
Surge PID is satisfied, thereby maintaining surge protection. The manual demand is
common with the Surge PID manual demand.
• Output limits are from 0% to Max_out.
8.3.9 Valve Vow

This function’s purpose is to ensure the opening of the recycle valve for extreme drops in PV. Its
output is high selected with the Anti-Surge PID output. The function will start to open ASV from
its last position before the operating point entered the function active range. This functions’
output is based on the following equation:
 (MAX − clamp( MIN , PV , Max) ) 
2
temp = ASV _ ENT +   ∗ MAX _ OUT

 (MAX − MIN ) 
VLV _ VOW _ 1 = clamp(0, temp, MAX _ OUT)

Where:
MAX= % function’s output begins to increase (5%).
MIN = % function’s output reaches Max_out (1%).
MAX_OUT = Maximum output limit of this function (100%).
ASV_ENT = ASV last position before the operating point entered the functions active
range

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
Figure 8.3.9 Valve Vow Examples
8.3.10 High select and signal reversal

The output of the Discharge Pressure Controller via the process demand scheduler, Anti-Surge
PID, the Hand Indicating Controller, and Safety Response are high selected as the % open
demand for the recycle valve.
The output of this High Select is rate limited. The recycle valve is allowed to open at a fast rate
but is restricted to a slower closing rate. It also provides indication of which input is currently
modulating the recycle valve.
This valve is a fail open valve so the final output signal must be reversed so that 0-100% = 20-
4mA (closed to open).
9 Lubrication Oil System Control
9.1 Lubrication Oil Reservoir Temperature Control
There is one electric heater installed in the oil reservoir. This heater is controlled by the Tri-Sen
TSx via a separate contactor in the MCC. The signal from the Tri-Sen TSx is energized (contact
closed for 3 seconds) to turn on the heater and is de-energized (contact open for 3seconds) to
turn off the heater. The heater is operated from the Local Switch Box via the Tri-Sen TSx to the
customer’s MCC. A running indication for the heater is sent from the MCC to the Tri-Sen TSx.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
An Auto/Man switch is provided in the Lube Oil Console for the heater. The Auto/Man switch
must be in Auto in order to place the Heater into Auto control. A Heater “In Auto” Indication is
displayed in the Tri-Sen TSx, showing the operator that the Heater is currently in Auto.
If the Auto/Man switch is in Man, the heater can only be operated to on or off from Local Switch
Box. No matter the Auto/Man switch is in Auto or Man, the heater can be operated to off from
Local Switch Box.
As soon as the heater failure is detected, the heater will be commanded off.
When in Auto, the Tri-Sen TSx will monitor the oil reservoir temperature and oil reservoir level. If
there is insufficient level in the reservoir, the TSx will turn off the heater regardless of the oil
temperature. If there is sufficient level in the reservoir, the TSx will cycle the heater on and off
based on the oil temperature. The heater will be commanded on when the oil temperature falls
below a predetermined low set point and will be commanded off when the oil temperature
exceeds a predetermined high set point. Tri-Sen TSx control of the heater is only available when
the heater control has been placed in Auto.
The field devices associated to this control:

LT-622321 L/O RESERVOIR LEVEL
TT-622330 L/O RESERVOIR TEMP.
HS-622304C ELECTRIC HEATER AUTO/MANUAL SELECT SW AUTO
HS-622304A ELECTRIC HEATER ON
HS-622304B ELECTRIC HEATER OFF
XI-622304A ELECTRIC HEATER ON SIGNAL
XA-622304F ELECTRIC HEATER FAILURE
XS-622304A ELECTRIC HEATER ON
XS-622304B ELECTRIC HEATER OFF
XL-622304A ELECTRIC HEATER ON LAMP
XL-622304B ELECTRIC HEATER OFF LAMP

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
9.2 Lubrication Oil Pump Control
There are two lubrication oil pumps provided, an L/O Main Pump and an L/O Standby Pump.
Both the L/O Main Pump and the L/O Standby Pump are motor driven. Each oil pump is
controlled through the customer’s MCC. The signal from the Tri-Sen TSx is energized (contact
closed for 3 seconds) to turn on the pumps and is de-energized (contact open for 3seconds) to
turn off the pumps. The Start, Stop, and Auto/ Manual switch are only located on the Local
Switch Box. The field devices associated to this control are:

HS-622302C L/O MAIN PUMP AUTO/MANUAL SELECT SW AUTO
HS-622302A L/O MAIN PUMP START
HS-622302B L/O MAIN PUMP STOP
HS-622303C L/O STANDBY PUMP AUTOIMANUAL SELECT SW AUTO
HS-622303A L/O STANDBY PUMP START
HS-622303B L/O STANDBY PUMP STOP
CMXI-622001 VSDS MOTOR RUNNING
XS-622302A L/O MAIN PUMP START
XS-622302B L/O MAIN PUMP STOP
XS-622303A L/O STANDBY PUMP START
XS-622303B L/O STANDBY PUMP STOP
XL-622302A L/O MAIN PUMP RUNNING LAMP
XL-622302B L/O MAIN PUMP STOPPED LAMP
XL-622303A L/O STANDBY PUMP RUNNING LAMP
XL-622303B L/O STANDBY PUMP STOPPED LAMP
9.2.1 Oil Pump Start Permissive Signals
To prevent damage to the equipment, the following conditions must be satisfied before an oil
pump is commanded to operate. These permissive signals are required when starting the pumps
but do not stop the pumps after they are running.

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015

LT-622321 L/O RESERVOIR LEVEL
PT-622341 BRG. SEPARATION GAS SUPPLY PRESS.
9.2.2 Lubrication Oil Pump Manual Start /Stop Operation

Each Lube Oil Pump can be started using the pushbuttons located on the Local Switch Box. When
the Auto/Man switch is switched to manual, and the start pushbutton is operated, the Start
signal is then sent via the Tri-Sen TSx to the MCC.
The running pump can be stopped from Local Switch Box at any time.
9.2.3 Lubrication Oil Pump Auto Start Operation

The pumps are in standby mode awaiting a prompt from the Tri-Sen TSx when switch is in Auto.
An indication will be displayed for each pump when it is in Auto on the Tri-Sen TSx HMI and Local
Switch Box. The pumps can be operated via the pushbuttons on Local Switch Box. When in Auto,
the Tri-Sen TSx will monitor the lubrication oil supply pressure. If the oil pressure drops below a
predetermined low setpoint, the signal to start the pump will be sent to the MCC. Also, if the
running pump is failure or is stop, the standby pump will be started.
Pumps can be switched while compressor is running. The follow signals are used for the
lubrication oil pump auto start logic:

PT-622331 L/O HEADER PRESS.
XI-622302R L/O MAIN PUMP RUNNING SIGNAL
XA-622302F L/O MAIN PUMP FAILURE
XI-622303R L/O STANDBY PUMP RUNNING SIGNAL
XA-622303F L/O STANDBY PUMP FAILURE
10 Process Auxiliary Devices Control

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
10.1 P-621001A/ P-621001B Control
NGL export Pump stops always automatically. The Tri-Sen TSx only have the stop command for
the pumps.
The Tri-Sen TSx will monitor the level of V621005 NGL Separator Drum Level.if the level of the
V621005 NGL Separator Drum is LL and XA-622001 shutdown is received, a 3 seconds pulse
signal to stop the motor will be sent to the MCC.
The follow signals are used for P-621001A auto stop logic:
LT-622033 NGL SEPERATOR DRUM LEVEL
PMXI-622001A PUMP P‐621001A RUNNING
PMXA622001A PUMP P‐621001A FAULT
PMXSS622001A PUMP P‐621001A STOP
XA-622001 NGL EXPORT PUMP STOP STATUS
The pump running and failure status will be shown on HMI.
The similar logic is for P-621001B control.

The follow signals are used for P-621001B stop logic:

LT-622033 NGL SEPERATOR DRUM LEVEL
PMXI-622001B PUMP P‐621001B RUNNING
PMXA622001B PUMP P‐621001B FAULT
PMXSS622001B PUMP P‐621001B STOP
XA-622001 NGL EXPORT PUMP STOP STATUS
11 Seal Gas System Control

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
11.1 Seal Gas Differential Pressure Control (PDIC-622343) 控制压差PV

setpoint 压差设定
output
· Reverse Action (if the measurement increases, the PID output decreases)
· Setpoint limits are from 0 to 0.6 barg.
The seal gas differential pressure supplied to the compressor is maintained using a fail lock open
control valve. This control is designed to maintain a specific pressure above the balance piston
pressure. The Tri-Sen TSx controls the valve using a proportional-integral-derivative (PID)
instruction. The setpoint for this instruction is adjustable via the Tri-Sen TSx interface. The
process variable (PV) for this control uses the seal gas supply to vent differential pressure. The
The following devices are used in the seal gas differential pressure controller. The field devices
associated to this PID control are:

PDT-622343 SEAL GAS DIFF.PRESS.
PDCV-622343 S/G PRESSURE CONTROL VALVE POSITION

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
12 Appendix A Control System IP Address & Security Settings

A.1 IP Address Settings
Device Ports Function Address Subnet Mask

NP A/B-J1 HMI & ADA 192.168.1.1 255.255.255.0
Tri-Sen TSx
NPA-J1 Local IP 192.168.1.2 255.255.255.0
Node Processors
NPB-J2 Local IP 192.168.1.3 255.255.255.0
Port 1 Host Network 1 192.168.1.11 255.255.255.0
Engineering Station
Port 2 Host Network 2 192.168.1.12 255.255.255.0
B/N Rack TDI - Configuration 192.168.1.21 255.255.255.0
MB-A-J1 Modbus Slave 190.168.1.31 255.255.255.0
TSx Modbus TCP/IP MB-B-J1 Modbus Slave 190.168.1.32 255.255.255.0
MB-A-J2 Modbus Master 192.168.1.41 255.255.255.0
B/N Rack Comm - Modbus Slave 192.168.1.42 255.255.255.0
A.2 Modbus serial RS485 communication Parameters
Node
Device Master/Slave Baud Rate Stop Bit Data Bit Parity
Address
TSX Slave 1 19200 1 8 None
Bently Slave 1 19200 1 8 None
A.3 Security Settings
Device/Applications Security Level User name Password

CCS Engineering Station Administrator Technician -
Administrator Administrator TSx
NetArrays User Manager TSx
Logic Development Program Download - TSx
Program Debug - TSx
Operator - -
HMI
Engineering Engineer TSx

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015

Doc No.: TS2457-1407004-801
Revision: 2
Date: 08/08/2015
SYSTEM ARCHITECTURE DIAGRAM
CNOOC-MISSAN OIL FIELD

DEVELOPMENT PROJECT
INDEX For Customer Approval

SHEET DESCRIPTION Customer Representative:
1 OF 2 COVER SHEET
2 OF 2 CNOOC SYSTEM ARCHITECTURE DIAGRAM
A -- Reviewed & approved
with no comment
Name
B -- Reviewed & approved

with comment
Signature
C -- Do not proceed with

fabrication
Date

DEVELOPMENT PROJECT SHEET TITLE: COVER SHEET
1 UPDATE AFTER FAT TG 09/03/15 YC 09/03/15 CUSTOMER PO.: TRI-SEN PROJECT NO.: TRI-SEN-0002457
0 ISSUE FOR APPROVAL YZ 07/18/14 MA 07/22/14 DRAWING NAME: SYSTEM ARCHITECTURE DIAGRAM PURCHASE REQUISITION NO.:P71744 TRI-SEN DRAWING NO.: TS2457-1407004-101
REV DESCRIPTION DSG DATE DWN DATE CHK DATE APP DATE HITACHI DRAWING NUMBER: SCALE: N/A SIZE: B SHEET: 1 OF 2
(DESIGNED BY CNOOC) LEGEND:
AUXILIARY OPERATING
CONSOLE TSx POWERED LOOP
BENTLY POWERED LOOP

EWS 21" LCD
MCC POWERED LOOP
230 VAC POWER INPUT

TB MODBUS RS485
UNIT CONTROL PANEL
OPS 21" LCD (FRONT AND REAR ACCESS) P/S 230VAC, 50Hz UPS CONFIGURATION NETWORK
P/S 230VAC, 50Hz UPS UNIT CONTROL PANEL
LOGIC CONTROLLER (TSx) MACHINE MONITORING P/S 230VAC, 50Hz NON-UPS TRI-SEN SCOPE OF SUPPLY
(THREE CHASSISES) (BENTLY NEVADA)
OPS 21" LCD SUPPLIED BY OTHERS
P/S POWER SUPPLY

DCS
I/R I/R INTERPOSING RELAY
ISO ISOLATOR
I/R
SIS R R
TB TERMINAL BLOCK
SUPPLIED BY HITACHI
VSDS
TB
NOTES:
TB I/R I/R ISO I/R ISO ISO TSx LOGIC CONTROLLER IS
REDUNDANT SYSTEM WITH THREE
CHASSIS
ANALOG SIGNAL SHALL BE 4 TO 20
mA
MCC ENERGIZE TO CLOSE; DE-
SAFE AREA ENERGIZE TO OPEN
DIGITAL SIGNALS ARE SUPERVISED
ENGINEERING STATION SHALL BE
HAZARDOUS AREA A DESKTOP WITH TRI-SEN TSx
LOCAL PANEL TEMP. KEYPHASOR AXIAL VIBRATION CONFIGURATION SOFTWARE
MOTOR PROCESS LUBE OIL SEAL GAS INSTALLED
FOR LOU RTD SENSORS SENSORS SENSORS
CABLES BETWEEN UCP AND
OTHER SYSTEM EXCEPT MMS ARE
NOT SELLER’S SCOPE
MAIN PUMP LOCAL PANEL
MOTOR
FOR GEAR
STANDBY
PUMP
COMPRESSOR BOX
COMPRESSOR
ELECTRIC
HEATER
IP65 Exde 2C T6 IP65 Exde 2C T6

DEVELOPMENT PROJECT SHEET TITLE: CNOOC SYSTEM ARCHITECTURE DIAGRAM
1 UPDATE AFTER FAT TG 09/03/15 YC 09/03/15 CUSTOMER PO.: TRI-SEN PROJECT NO.: TRI-SEN-0002457
0 ISSUE FOR APPROVAL YZ 07/18/14 MA 07/22/14 DRAWING NAME: SYSTEM ARCHITECTURE DIAGRAM PURCHASE REQUISITION NO.:P71744 TRI-SEN DRAWING NO.: TS2457-1407004-101
REV DESCRIPTION DSG DATE DWN DATE CHK DATE APP DATE HITACHI DRAWING NUMBER: SCALE: N/A SIZE: B SHEET: 2 OF 2
CNOOC-Missan Oil Field Development Project Control System I/O List
Control System I/O List

C-621001
Customer PO No.: N/A
Document Title: Control System I/O List
Revision: 6
Originator: Tian Gai
Checked By: YeeChiang Cheng
Approved By: Tyson Johncock
Page 1 of 20
DICTIONARY
SHEET DESCRIPTION REV REVISION HISTORY
ABBREVIATIONS DESCRIPTIONS
1 COVER 0 FIRST ISSUE FOR APPROVAL AI ANALOGUE INPUT
2 INDEX & I/O COUNT UPDATED MULTIPLE COMMENTS FROM HITACHI DATED 7/21/2014 AO ANALOGUE OUTPUT
3 TSx ANALOG INPUT MODULE CHANGED THE CHASSIS AND SLOT OF THE REDUNDANT MODULES AOC AUXILIARY OPERATOR CONSOLE
4 TSx ANALOG INPUT MODULE ADDED THE ISOLATOR TO THE INSTRUMENT TYPE WITH 20% SPARE AXIAL DISPLACEMENT SENSOR
5 TSx ANALOG INPUT MODULE 1 ADDED THE RELAY FOR DIGITAL INPUT AND OUTPUT ISOLATION CHSS/RED CHASSIS NUMBER/REDUNDANT CHASSIS NUMBER
6 TSx ANALOG INPUT MODULE REARRANGED THE 2OO3 SIGNALS DI DIGITAL INPUT
7 TSx ANALOG OUTPUT MODULE ADDED PERMISSIVE SET POINT COLUMN DO DIGITAL OUTPUT
8 TSx DIGITAL INPUT MODULE ADDED THE BENTLY 3500 SYSTEM I/O I.S INTRINSIC SAFE
9 TSx DIGITAL INPUT MODULE ADDED ISOLATORS FOR ANTISURGE VALVE LIMIT SWITICHES KPH KEYPHASOR SENSOR
10 TSx DIGITAL INPUT MODULE ADDED ISOLATORS FOR ANTISURGE VALVE SOLENOID VALVES LCP LOCAL CONTROL PANEL
11 TSx DIGITAL INPUT MODULE ADDED SAFETY RELAYS FOR SIL3 DO SIGNAL ISOLATION LSB LOCAL SWITCH BOARD
12 TSx DIGITAL INPUT MODULE 2 CHANGED THE DO MODULE TYPE FOR CH2/SLOT12 AND CH3/SLOT12 LUBE LUBE OIL SYSTEM
13 TSx DIGITAL OUTPUT MODULE REARRANGED SIL3 DO SIGNALS AT THE SAME DO MODULE MCC MOTOR CONTROL CENTER
14 TSx DIGITAL OUTPUT MODULE CHANGED SOME SETPOINT VALUES PER HITACHI COMMENTS MMS MACHINE MONITORING SYSTEM
15 TSx DIGITAL OUTPUT MODULE ADDED HYPHEN TO THE TAGS PER HITACHI COMMENTS MOTOR MOTOR CONTROL SYSTEM
16 TSx DIGITAL OUTPUT MODULE UPDATED MULTIPLE COMMENTS DURING FAT MTL5511 SWITC H/ PRO XIMITY DETECTOR INTERFACE
17 BENTLY PROXIMITOR MODULE MTL5521 SOLENOID/ ALAR M DRIVER
6
18 BENTLY TEMPERATURE MODULE MTL5531 VIBRATION PROBE INTERFACE
19 BENTLY KEPHAOR MODULE MTL5541 TRANSMITTER / 2-3 WIRE TRANSMITTER REPEATER
20 BENTLY RELAY MODULE MTL5546 TRANSMITTER / 4-20mA SMART ISOLATIONG DRIVER + LFD
MTL5575 TEMPERATURE CONVERTE THC OR RTD INPUT
5 MTL5582 RESISTANCE ISOLATOR TO REPEAT RTD SIGNALS
TYPE MODULE QTY REDUNDANCY PTS/MOD TOTAL PTS USED PTS SPARE PTS % SPARE PROCESS PROCESS CONTROL SYSTEM
AI 1404002-003 8 DUAL 32 128 69 59 46% RTD RESISTANCE TEMPERATURE DETECTOR
AO 1404002-009 2 DUAL 16 16 6 10 63% SAFETY RELAY PSR-SCP-24DC/FSP/2X1/1X2
DI 1404001-002 10 DUAL 32 160 79 81 51% SEAL SEAL GAS SYSTEM
DO 1404001-011 6 DUAL 24 72 SIL SAFETY INTEGRITY LEVEL
33 55 63%
DO 1404001-010 2 DUAL 16 16 SL/RED SLOT NUMBER/REDUNDANT SLOT NUMBER
SOLD SOLENOID
TEMP TEMPERATURE SENOR/MTL5531
UCP UNIT CONTROL PANEL
NOTE: % SPARE= {(TOTAL PTS - USED PTS) / TOTAL PTS} x 100% VIB VIBRATION SENOR
VLV VALVE CONTROL
XMTR TRANSMITTER
Customer Order No.: N/ATri-Sen Project No.: Tri-Sen-0002457Tri-Sen Document No.: TS2457-1407004-201Revision: 6 Date: 03/09/2015 Page 2 of 20
Measuring Alarm SP Trip SP

I/O
S/NO REV TAG NAME DESCRIPTION INSTRMT TYPE SUB SYSTEM FROM TO POWER SIGNAL Perm SP MODULE CHSS/RED SL/RED PT REMARK
TYPE
UNIT MIN MAX L H LL HH
1 3 PIT-622351A COMP 1ST SUCTION PRESS. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA BARG 0 10 - - - - - 1404002-003 1/2 1/1 1 I.S, SIL3
2 3 TIT-622351A COMP 1ST SUCTION TEMP. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA °C 0 200 - - - - - 1404002-003 1/2 1/1 2 I.S, SIL3
3 3 PIT-622352A COMP 1ST DISCHARGE PRESS. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA BARG 0 30 - - - - - 1404002-003 1/2 1/1 3 I.S, SIL3
4 3 TIT-622352A COMP 1ST DISCHARGE TEMP. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA °C 0 200 - - - - - 1404002-003 1/2 1/1 4 I.S, SIL3
5 6 FIT-622352A COMP 1ST DISCHARGE FLOW. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA KG/H 0 170000 - - - - - 1404002-003 1/2 1/1 5 I.S, SIL3; DP:0-0.42 BAR
6 3 PIT-622353A COMP 2ND SUCTION PRESS. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA BARG 0 30 - - - - - 1404002-003 1/2 1/1 6 I.S, SIL3
7 3 TIT-622353A COMP 2ND SUCTION TEMP. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA °C 0 200 - - - - - 1404002-003 1/2 1/1 7 I.S, SIL3
8 3 PIT-622354A COMP 2ND DISCHARGE PRESS. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA BARG 0 80 - - - - - 1404002-003 1/2 1/1 8 I.S, SIL3
9 3 TIT-622354A COMP 2ND DISCHARGE TEMP. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA °C 0 200 - - - - - 1404002-003 1/2 1/1 9 I.S, SIL3
10 6 FIT-622354A COMP 2ND DISCHARGE FLOW. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA KG/H 0 185000 - - - - - 1404002-003 1/2 1/1 10 I.S, SIL3; DP:0-0.57BAR
11 3 LIT-622002 1ST SUCTION DRUM LEVEL (FOR TRIP) AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - 50 - 70 - 1404002-003 1/2 1/1 11 I.S, SIL3; OPEN TO TRIP
12 3 LIT-622012 2ND SUCTION DRUM LEVEL (FOR TRIP) AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - 50 - 70 - 1404002-003 1/2 1/1 12 I.S, SIL3; OPEN TO TRIP
13 3 LIT-622022 SEPARATOR DRUM LEVEL AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - 50 - - 1404002-003 1/2 1/1 13 I.S, SIL3;
14 3 LIT 622001
LIT-622001 1ST SUCTION DRUM LEVEL AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4 20 A
4-20mA % 0 100 70 - - - 1404002 003
1404002-003 1/2 1/1 14 I.S
I S
15 3 LIT-622003 1ST SUCTION DRUM LEVEL AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 85 - - - 1404002-003 1/2 1/1 15 I.S
16 3 LIT-622011 2ND SUCTION DRUM LEVEL AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 20 70 - - - 1404002-003 1/2 1/1 16 I.S; LOW ALARM 20% IN P&ID
17 3 LIT-622013 2ND SUCTION DRUM LEVEL (FOR TRIP) AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 95 - 85 - - 1404002-003 1/2 1/1 17 I.S, SIL3
18 3 LIT-622021 SEPARATION DRUM LEVEL AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 20 70 - - - 1404002-003 1/2 1/1 18 I.S
19 3 LIT-622023 SEPARATION DRUM LEVEL (FOR TRIP) AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 95 - 85 - - 1404002-003 1/2 1/1 19 I.S, SIL3; OPEN TO TRIP
20 5 SPARE AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 20 I.S
21 5 SPARE AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 21 I.S
22 5 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 22 -
23 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 23 -
24 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 24 -
25 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 25 -
26 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 26 -
27 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 27 -
28 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 28 -
29 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 29 -
30 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 30 -
31 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 31 -
32 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 1/1 32 -

I/O
TYPE
1 3 GT-622001 COMBUSTIBLE GAS DETECTOR (NEAR COMP.) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-003 1/2 2/2 1 EX-D
2 3 GT-622002 COMBUSTIBLE GAS DETECTOR (NEAR 1ST SUCTION DRUM) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-003 1/2 2/2 2 EX-D
3 3 GT-622003 COMBUSTIBLE GAS DETECTOR (NEAR 2ND SUCTION DRUM) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-003 1/2 2/2 3 EX-D
4 3 GT-622004 COMBUSTIBLE GAS DETECTOR (NEAR SEPARATOR DRUM) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-003 1/2 2/2 4 EX-D
5 3 GT-622005 COMBUSTIBLE GAS DETECTOR (NEAR 1ST GAS COOLER) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-003 1/2 2/2 5 EX-D
6 3 GT-622006 TOXIC GAS DETECTOR (NEAR COMP.) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA ppm 0 30 - - - - - 1404002-003 1/2 2/2 6 EX-D
7 3 GT-622007 TOXIC GAS DETECTOR (NEAR 1ST SUCTION DRUM) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA ppm 0 30 - - - - - 1404002-003 1/2 2/2 7 EX-D
8 3 GT-622008 TOXIC GAS DETECTOR (NEAR 2ND SUCTION DRUM) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA ppm 0 30 - - - - - 1404002-003 1/2 2/2 8 EX-D
9 3 GT-622009 TOXIC GAS DETECTOR (NEAR SEPARATOR DRUM) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA ppm 0 30 - - - - - 1404002-003 1/2 2/2 9 EX-D
10 3 GT-622010 TOXIC GAS DETECTOR (NEAR 1ST GAS COOLER) AI XMTR PROCESS FIELD TSX 24VDC 4-20mA ppm 0 30 - - - - - 1404002-003 1/2 2/2 10 EX-D
11 2 FZT-622301 1ST ANTI-SURGE VALVE TRANSMITTER AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-003 1/2 2/2 11 I.S
12 2 FZT-622302 2ND ANTI-SURGE VALVE TRANSMITTER AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-003 1/2 2/2 12 I.S
13 2 PDT-622341 SEAL GAS FILTER DIFF.PRESS. AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BAR 0 4 - 1.2 - - - 1404002-003 1/2 2/2 13 I.S
14 2 PDT 622342
PDT-622342 BUFFER GAS FILTER DIFF
DIFF.PRESS.
PRESS AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4 20 A
4-20mA BAR 0 4 - 1 2
1.2 - - - 1404002 003
1404002-003 1/2 2/2 14 I.S
I S
15 2 PT-622342 PRIMARY LEAKAGE PRESS. (DE) AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BARG 0 10 - 4 - - - 1404002-003 1/2 2/2 15 I.S
16 2 PT-622343 PRIMARY LEAKAGE PRESS. (NDE) AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BARG 0 10 - 4 - - - 1404002-003 1/2 2/2 17 I.S
17 2 PT-622344A PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BARG 0 10 - - - 7 - 1404002-003 1/2 2/2 16 I.S, SIL3; 2OO3 TRIP
18 2 PT-622345A PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BARG 0 10 - - - 7 - 1404002-003 1/2 2/2 18 I.S, SIL3; 2OO3 TRIP
19 2 PT-622332A L/O HEADER PRESS. (FOR TRIP) AI XMTR/ MTL5541 LUBE FIELD TSX 24VDC 4-20mA BARG 0 4 - - 0.8 - - 1404002-003 1/2 2/2 19 I.S, SIL3; 2OO3 TRIP
20 2 PT-622331 L/O HEADER PRESS. AI XMTR/ MTL5541 LUBE FIELD TSX 24VDC 4-20mA BARG 0 4 1.7 - - - >1.7 1404002-003 1/2 2/2 20 I.S; COMP. START PERMISSIVE
21 2 PT-622341 BRG. SEPARATION GAS SUPPLY PRESS. AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BARG 0 0.1 0.03 - - - - 1404002-003 1/2 2/2 21 I.S; PUMP START PERMISSIVE
22 2 PDT-622343 SEAL GAS DIFF.PRESS. AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BAR 0 0.6 0.075 - - - - 1404002-003 1/2 2/2 22 I.S；0.1 BAR FOR SEAL GAS VALVE CONTROL
23 2 TT-622341 S/G SUPPLY TEMP. AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA °C 0 200 72 - - - - 1404002-003 1/2 2/2 23 I.S
24 5 GT-622011 TOXIC GAS DETECTOR AI XMTR PROCESS FIELD TSX 24VDC 4-20mA ppm 0 30 - - - - - 1404002-003 1/2 2/2 24 -
27 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 2/2 27 -
28 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 2/2 28 -
29 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 2/2 29 -
30 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 2/2 30 -
31 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 2/2 31 -
32 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 2/2 32 -

I/O
TYPE
1 3 PIT-622351B COMP 1ST SUCTION PRESS. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA BARG 0 10 - - - - - 1404002-003 1/2 3/3 1 I.S, SIL3
2 3 TIT-622351B COMP 1ST SUCTION TEMP. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA °C 0 200 - - - - - 1404002-003 1/2 3/3 2 I.S, SIL3
3 3 PIT-622352B COMP 1ST DISCHARGE PRESS. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA BARG 0 30 - - - - - 1404002-003 1/2 3/3 3 I.S, SIL3
4 3 TIT-622352B COMP 1ST DISCHARGE TEMP. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA °C 0 200 - - - - - 1404002-003 1/2 3/3 4 I.S, SIL3
5 6 FIT-622352B COMP 1ST DISCHARGE FLOW. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA KG/H 0 170000 - - - - - 1404002-003 1/2 3/3 5 I.S, SIL3; DP:0-0.42 BAR
6 3 PIT-622353B COMP 2ND SUCTION PRESS. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA BARG 0 30 - - - - - 1404002-003 1/2 3/3 6 I.S, SIL3
7 3 TIT-622353B COMP 2ND SUCTION TEMP. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA °C 0 200 - - - - - 1404002-003 1/2 3/3 7 I.S, SIL3
8 3 PIT-622354B COMP 2ND DISCHARGE PRESS. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA BARG 0 80 - - - - - 1404002-003 1/2 3/3 8 I.S, SIL3
9 3 TIT-622354B COMP 2ND DISCHARGE TEMP. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA °C 0 200 - - - - - 1404002-003 1/2 3/3 9 I.S, SIL3
10 6 FIT-622354B COMP 2ND DISCHARGE FLOW. AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA KG/H 0 185000 - - - - - 1404002-003 1/2 3/3 10 I.S, SIL3; DP:0-0.57BAR
11 5 PIT-622005 DISCHARGE NGL SEPERATOR TANK PRESS. AI XMTR/ MTL5541 PROCESS FIELD TSX 25VDC 4-20mA MPAG 0 1.5 0.45 1 - - - 1404002-003 1/2 3/3 11 -
12 5 LIT-622004 V‐621004 DRUM LEVEL AI XMTR/ MTL5541 PROCESS FIELD TSX 26VDC 4-20mA % 0 100 20 80 - - - 1404002-003 1/2 3/3 12 -
13 5 LIT-622031 NGL SEPERATOR DRUM LEVEL AI XMTR/ MTL5542 PROCESS FIELD TSX 27VDC 4-20mA % 0 100 15 70 - - - 1404002-003 1/2 3/3 13 -
14 3 LIT 622033
LIT-622033 NGL SEPERATOR DRUM LEVEL AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4 20 A
4-20mA % 0 100 20 15 - - 1404002 003
1404002-003 1/2 3/3 14 I.S,
I S SIL3
15 5 PIT-622004 DISCHARGE PRESSURE AI XMTR/ MTL5541 PROCESS FIELD TSX 24VDC 4-20mA BARG 0 70 - - - - - 1404002-003 1/2 3/3 15 -
16 4 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 16 -
17 2 PT-622344B PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) AI - SEAL FIELD TSX 24VDC 4-20mA BARG 0 10 - - - 7 - 1404002-003 1/2 3/3 17 I.S, SIL3; 2OO3 TRIP
18 2 PT-622345B PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BARG 0 10 - - - 7 - 1404002-003 1/2 3/3 18 I.S, SIL3; 2OO3 TRIP
19 2 PT-622332B L/O HEADER PRESS. (FOR TRIP) AI XMTR/ MTL5541 LUBE FIELD TSX 24VDC 4-20mA BARG 0 4 - - 0.8 - - 1404002-003 1/2 3/3 19 I.S, SIL3; 2OO3 TRIP
20 1 SPARE - AI XMTR/ MTL5541 - - - - - - - - - - - - - 1404002-003 1/2 3/3 20 -
21 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 21 -
22 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 22 -
23 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 23 -
24 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 24 -
25 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 25 -
26 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 26 -
27 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 27 -
28 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 28 -
29 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 29 -
30 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 30 -
31 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 31 -
32 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 3/3 32 -

I/O
TYPE
1 2 PDT-622321 L/O FILTER DIFF. PRESS AI XMTR/ MTL5541 LUBE FIELD TSX 24VDC 4-20mA BAR 0 4 - 1.2 - - - 1404002-003 1/2 4/4 1 I.S
2 2 TT-622330 L/O RESERVOIR TEMP. AI XMTR/ MTL5541 LUBE FIELD TSX 24VDC 4-20mA °C 0 100 45 65 - - - 1404002-003 1/2 4/4 2 I.S；45°C/60°C FOR HEATER CONTROL
3 3 LT-622321 L/O RESERVOIR LEVEL AI XMTR/ MTL5541 LUBE FIELD TSX 24VDC 4-20mA mmH2O 0 915 517 - - - >517 1404002-003 1/2 4/4 3 I.S; HEATER/PUMP/COMP. START PERMISSIVE
4 2 LT-622331 L/O RUNDOWN TANK LEVEL AI XMTR/ MTL5541 LUBE FIELD TSX 24VDC 4-20mA mmH2O 0 1000 428 - - - >428 1404002-003 1/2 4/4 4 I.S; COMP. START PERMISSIVE
5 2 TT-622331 L/O COOLER OUTLET TEMP. AI XMTR/ MTL5541 LUBE FIELD TSX 24VDC 4-20mA °C 0 100 40 55 - - >40.0 1404002-003 1/2 4/4 5 I.S; COMP. START PERMISSIVE
6 1 SPARE - AI XMTR/ MTL5541 - - - - - - - - - - - - - 1404002-003 1/2 4/4 6 -
7 1 SPARE - AI XMTR/ MTL5541 - - - - - - - - - - - - - 1404002-003 1/2 4/4 7 -
8 1 SPARE - AI XMTR/ MTL5541 - - - - - - - - - - - - - 1404002-003 1/2 4/4 8 -
9 3 CMSI-622001 VSDS SPEED F/B AI XMTR/ MTL5541 VSDS FIELD TSX 24VDC 4-20mA RPM 0 1800 - - - - - 1404002-003 1/2 4/4 9 NON-I.S
10 2 II-622320 VSDS CURRENT F/B AI XMTR/ MTL5541 VSDS FIELD TSX 24VDC 4-20mA A 0 1200 - - - - - 1404002-003 1/2 4/4 10 NON-I.S
11 2 JI-622320 VSDS POWER F/B AI XMTR/ MTL5541 VSDS FIELD TSX 24VDC 4-20mA KW 0 13000 - - - - - 1404002-003 1/2 4/4 11 NON-I.S
12 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 12 -
13 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 13 -
14 1 SPARE - AI - - - - - - - - - - - - - - 1404002 003

1404002-003 1/2 4/4 14 -
15 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 15 -
16 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 16 -
17 2 PT-622344C PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BARG 0 10 - - - 7 - 1404002-003 1/2 4/4 17 I.S, SIL3; 2OO3 TRIP
18 2 PT-622345C PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) AI XMTR/ MTL5541 SEAL FIELD TSX 24VDC 4-20mA BARG 0 10 - - - 7 - 1404002-003 1/2 4/4 18 I.S, SIL3; 2OO3 TRIP
19 2 PT-622332C L/O HEADER PRESS. (FOR TRIP) AI XMTR/ MTL5541 LUBE FIELD TSX 24VDC 4-20mA BARG 0 4 - - 0.8 - - 1404002-003 1/2 4/4 19 I.S, SIL3; 2OO3 TRIP
20 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 20 -
21 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 21 -
22 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 22 -
23 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 23 -
24 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 24 -
25 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 25 -
26 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 26 -
27 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 27 -
28 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 28 -
29 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 29 -
30 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 30 -
31 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 31 -
32 1 SPARE - AI - - - - - - - - - - - - - - 1404002-003 1/2 4/4 32 -

I/O
TYPE
1 2 FV-622301 1ST ANTI-SURGE CONTROL VALVE POSITION AO VLV/ MTL5546 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-009 1/2 5/5 1 I.S; FO
2 2 FV-622302 2ND ANTI-SURGE CONTROL VALVE POSITION AO VLV/ MTL5546 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-009 1/2 5/5 2 I.S; FO
3 3 SPARE - AO VLV/ MTL5546 PROCESS FIELD TSX 24VDC 4-20mA - - - - - - - - 1404002-009 1/2 5/5 3 -
4 2 LV-622011 2ND SUCTION DRUM DRAIN CONTROL VALVE POSITION AO VLV/ MTL5546 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-009 1/2 5/5 4 I.S; FC
5 2 LV-622021 SEPARATION DRUM DRAIN CONTROL VALVE POSITION AO VLV/ MTL5546 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-009 1/2 5/5 5 I.S; FC
6 2 PDCV-622343 S/G PRESSURE CONTROL VALVE POSITION AO VLV/ MTL5546 PROCESS FIELD TSX 24VDC 4-20mA % 0 100 - - - - - 1404002-009 1/2 5/5 6 I.S; FL
7 3 PY-622004A MAIN MOTOR REMOTE SPEED REFERENCE AO VLV/ MTL5546 PROCESS FIELD TSX 24VDC 4-20mA RPM 1125 1575 - - - - - 1404002-009 1/2 5/5 7 NON-I.S
8 5 PV-622005 DISCHARGE NGL SEPERATOR VALVE POSITION AO VLV/ MTL5546 PROCESS FIELD TSX 25VDC 4-20mA % 0 100 - - - - - 1404002-009 1/2 5/5 8 I.S; FO
9 5 LV-622031 EXPORT PUMP OUTPUT VALUE CONTROL AO VLV/ MTL5546 PROCESS FIELD TSX 25VDC 4-20mA % 0 100 - - - - - 1404002-009 1/2 5/5 9 I.S; FC
10 1 SPARE - AO - - - - - - - - - - - - - - 1404002-009 1/2 5/5 10
11 1 SPARE - AO - - - - - - - - - - - - - - 1404002-009 1/2 5/5 11
12 1 SPARE - AO - - - - - - - - - - - - - - 1404002-009 1/2 5/5 12 -
13 1 SPARE - AO - - - - - - - - - - - - - - 1404002-009 1/2 5/5 13 -
14 1 SPARE - AO - - - - - - - - - - - - - - 1404002 009

1404002-009 1/2 5/5 14 -
15 1 SPARE - AO - - - - - - - - - - - - - - 1404002-009 1/2 5/5 15 -
16 1 SPARE - AO - - - - - - - - - - - - - - 1404002-009 1/2 5/5 16 -

I/O
TYPE
1 2 FZSC-622301 1ST ANTI-SURGE VALVE FULLY CLOSE DI SWITCH/MTL5511 PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 1 I.S
2 2 FZSO-622301 1ST ANTI-SURGE VALVE FULLY OPEN DI SWITCH/MTL5511 PROCESS FIELD TSX TSX 24VDC - - - - - - - CLOSE 1404001-002 2/3 6/6 2 I.S; COMP. START PERMISSIVE
3 2 FZSC-622302 2ND ANTI-SURGE VALVE FULLY CLOSE DI SWITCH/MTL5511 PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 3 I.S
4 2 FZSO-622302 2ND ANTI-SURGE VALVE FULLY OPEN DI SWITCH/MTL5511 PROCESS FIELD TSX TSX 24VDC - - - - - - - CLOSE 1404001-002 2/3 6/6 4 I.S; COMP. START PERMISSIVE
5 3 XZSC-622003 1ST SUCTION DRUM DRAIN VALVE FULLY CLOSE DI SWITCH/MTL5511 PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 5 NON-I.S(Ex-d); RELAY
6 3 XZSO-622003 1ST SUCTION DRUM DRAIN VALVE FULLY OPEN DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 6 NON-I.S(Ex-d); RELAY
7 2 XZSC-622013 2ND SUCTION DRUM DRAIN VALVE FULLY CLOSE DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 7 NON-I.S(Ex-d); RELAY
8 2 XZSO-622013 2ND SUCTION DRUM DRAIN VALVE FULLY OPEN DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 8 NON-I.S(Ex-d); RELAY
9 2 XZSC-622023 SEPARATION DRUM DRAIN VALVE FULLY CLOSE DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 9 NON-I.S(Ex-d); RELAY
10 2 XZSO-622023 SEPARATION DRUM DRAIN VALVE FULLY OPEN DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 10 NON-I.S(Ex-d); RELAY
11 3 XZSC-622002 BDV-622002 FULLY CLOSE DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 11 NON-I.S(Ex-d); RELAY
12 3 XZSO-622002 BDV-622002 FULLY OPEN DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 12 NON-I.S(Ex-d); RELAY
13 2 XZSC-622001 SUCTION SHUT OFF VALVE FULLY CLOSE DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 13 NON-I.S(Ex-d); RELAY
14 2 XZSO 622001
XZSO-622001 SUCTION SHUT OFF VALVE FULLY OPEN DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001 002
1404001-002 2/3 6/6 14 NON-I.S(Ex-d);
NON I S(E d) RELAY
15 2 XZSC-622004 DISCHARGE SHUT OFF VALVE FULLY CLOSE DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 15 NON-I.S(Ex-d); RELAY
16 2 XZSO-622004 DISCHARGE SHUT OFF VALVE FULLY OPEN DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 16 NON-I.S(Ex-d); RELAY
17 5 XZSO-622033 ESDV‐622033 FULLY CLOSE DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 17 -
18 5 XZSC-622033 ESDV‐622033 FULLY OPEN DI SWITCH PROCESS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 6/6 18 -
19 5 SPARE DI - - - - - - - - 1404001-002 2/3 6/6 19 -
20 5 SPARE DI - - - - - - - - 1404001-002 2/3 6/6 20 -
21 2 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 21 -
22 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 22 -
23 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 23 -
24 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 24 -
25 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 25 -
26 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 26 -
27 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 27 -
28 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 28 -
29 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 29 -
30 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 30 -
31 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 31 -
32 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 6/6 32 -

I/O
TYPE
1 3 CMXA-622001 VSDS COMMON TRIP DI CONTACT VSDS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 7/7 1 NON-I.S; SIL3;OPEN TO TRIP
2 2 XI-622322 VSDS MCB OPEN F/B DI CONTACT VSDS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 7/7 2 NON-I.S;
3 2 XA-622322 VSDS COMMON ALARM DI CONTACT VSDS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 7/7 3 NON-I.S;
4 2 XI-622320 VSDS READY TO START DI CONTACT VSDS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 7/7 4 NON-I.S;
5 3 CMXI-622001 VSDS MOTOR RUNNING DI CONTACT VSDS FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 7/7 5 NON-I.S;
MOTOR
6 2 XA-622325 MOTOR PURGE ALARM DI CONTACT FIELD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 7/7 6 NON-I.S;
PIURGE
MOTOR
7 2 XA-622326 MOTOR INTERLOCK DI CONTACT FIELD TSX TSX 24VDC - - - - - - - CLOSE 1404001-002 2/3 7/7 7 NON-I.S; COMP. START PERMISSIVE
PIURGE
MOTOR
8 2 XI-622323 MOTOR PURGING INTERMEDIATE SWITCH DI CONTACT FIELD TSX TSX 24VDC - - - - - - - CLOSE 1404001-002 2/3 7/7 8 NON-I.S; COMP. START PERMISSIVE
PIURGE
9 1 SPARE - DI - - - - - - - - - - - - - 1404001-002 2/3 7/7 9 -
10 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 10 -
11 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 11 -
12 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 12 -
13 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 13 -
14 1 SPARE - DI - - - - - - - - - - - - - - 1404001 002

1404001-002 2/3 7/7 14 -
15 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 15 -
16 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 16 -
17 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 17 -
18 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 18 -
19 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 19 -
20 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 20 -
21 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 21 -
22 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 22 -
23 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 23 -
24 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 24 -
25 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 25 -
26 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 26 -
27 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 27 -
28 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 28 -
29 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 29 -
30 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 30 -
31 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 31 -
32 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 7/7 32 -

I/O
TYPE
1 2 XI-622302R L/O MAIN PUMP RUNNING SIGNAL DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 1 NON-I.S;RELAY
2 2 XA-622302F L/O MAIN PUMP FAILURE DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 2 NON-I.S;RELAY
3 2 XI-622303R L/O STANDBY PUMP RUNNING SIGNAL DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 3 NON-I.S;RELAY
4 2 XA-622303F L/O STANDBY PUMP FAILURE DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 4 NON-I.S;RELAY
5 2 XI-622304A ELECTRIC HEATER ON SIGNAL DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 5 NON-I.S;RELAY
6 2 XA-622304F ELECTRIC HEATER FAILURE DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 6 NON-I.S;RELAY
7 5 PMXI-622001A PUMP P‐621001A RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 7 -
8 5 PMXA-622001A PUMP P‐621001A FAULT DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 8 -
9 5 PMXI-622001B PUMP P‐621001B RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 9 -
10 5 PMXA-622001B PUMP P‐621001B FAULT DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 10 -
11 5 AMXI-622001A AIR COOLER A‐621001 RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 11 -
12 5 AMXI-622001B AIR COLLER A‐621001 RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 12 -
13 5 AMXI-622001C AIR COLLER A‐621001 RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 13 -
14 5 AMXI 622001D
AMXI-622001D AIR COLLER A
A‐621001
621001 RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001 002
1404001-002 2/3 8/8 14 -
15 5 AMXI-622002A AIR COOLER A‐621002 RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 15 -
16 5 AMXI-622002B AIR COOLER A‐621002 RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 16 -
17 5 AMXI-622002C AIR COOLER A‐621002 RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 17 -
18 5 AMXI-622002D AIR COOLER A‐621002 RUNNING DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 18 -
19 5 PS-622701A PUMP P-621001A PRESSURE SWITCH DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 19 -
20 5 PS-622701B PUMP P-621001B PRESSURE SWITCH DI CONTACT MCC MCC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 8/8 20 -
21 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 21 -
22 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 22 -
23 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 23 -
24 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 24 -
25 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 25 -
26 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 26 -
27 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 27 -
28 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 28 -
29 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 29 -
30 0 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 30 -
31 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 31 -
32 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 8/8 32 -

I/O
TYPE
1 2 HS-622301A COMPRESSOR START FROM LCP DI SWITCH LCP LCP TSX TSX 24VDC - - - - - - - COLSE 1404001-002 2/3 9/9 1 NON-I.S; COMP. START PERMISSIVE
2 2 HS-622301B COMPRESSOR NORMAL STOP FROM LCP DI SWITCH LCP LCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 2 NON-I.S; OPEN TO STOP
3 2 HS-622301C OPERATION PLACE REMOTE / LOCAL SELECT SW REMOTE DI SWITCH LCP LCP TSX TSX 24VDC - - - - - - - COLSE 1404001-002 2/3 9/9 3 NON-I.S; COMP. START PERMISSIVE
4 2 HS-622301R TRIP RESET FROM LCP DI SWITCH LCP LCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 4 NON-I.S, SIL3
5 2 HS-622301E EMERGENCY STOP FROM LCP DI SWITCH LCP LCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 5 NON-I.S, SIL3; OPEN TO E-STOP
6 2 HS-622305A COMPRESSOR START FROM AOC DI SWITCH AOC AOC TSX TSX 24VDC - - - - - - - COLSE 1404001-002 2/3 9/9 6 NON-I.S; COMP. START PERMISSIVE
7 2 HS-622305B COMPRESSOR NORMAL STOP FROM AOC DI SWITCH AOC AOC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 7 NON-I.S; OPEN TO STOP
8 2 HS-622305R TRIP RESET FROM AOC DI SWITCH AOC AOC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 8 NON-I.S, SIL3
9 2 HS-622305E EMERGENCY STOP FROM AOC DI SWITCH AOC AOC TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 9 NON-I.S, SIL3; OPEN TO E-STOP
10 2 HS-622302C L/O MAIN PUMP AUTO/MANUAL SELECT SW AUTO DI SWITCH LSB1 LSB1 TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 10 NON-I.S
11 2 HS-622302A L/O MAIN PUMP START DI SWITCH LSB1 LSB1 TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 11 NON-I.S
12 2 HS-622302B L/O MAIN PUMP STOP DI SWITCH LSB1 LSB1 TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 12 NON-I.S
13 2 HS-622303C L/O STANDBY PUMP AUTOIMANUAL SELECT SW AUTO DI SWITCH LSB1 LSB1 TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 13 NON-I.S
14 2 HS-622303A L/O
/ STANDBY PUMP START DI SWITCH LSB1 LSB1 TSX TSX 24VDC - - - - - - - - 1404001-002 2/3
/ 9/9
/ 14 NON-I.S
15 2 HS-622303B L/O STANDBY PUMP STOP DI SWITCH LSB1 LSB1 TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 15 NON-I.S
16 2 HS-622304C ELECTRIC HEATER AUTO/MANUAL SELECT SW AUTO DI SWITCH LSB1 LSB1 TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 16 NON-I.S
17 2 HS-622304A ELECTRIC HEATER ON DI SWITCH LSB1 LSB1 TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 17 NON-I.S
18 2 HS-622304B ELECTRIC HEATER OFF DI SWITCH LSB1 LSB1 TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 18 NON-I.S
19 2 XA-622320 SHUTDOWN SIGNAL DI SWITCH SIS SIS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 19 NON-I.S, SIL3; OPEN TO E-STOP
20 2 HS-622320R TRIP RESET FROM SIS DI CONTACT SIS SIS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 20 NON-I.S, SIL3
21 2 XS-622320 START PERMISSIVE FROM DCS DI CONTACT DCS DCS TSX TSX 24VDC - - - - - - - CLOSE 1404001-002 2/3 9/9 21 NON-I.S; COMP. START PERMISSIVE
22 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 9/9 22 NON-I.S
23 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 9/9 23 NON-I.S
24 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 9/9 24 NON-I.S
25 4 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 9/9 25 NON-I.S
26 3 ESD-100000 PLANT SHUTDOWN DI CONTACT SIS SIS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 26 NON-I.S
27 3 ESD-101000A FIRE SHUTDOWN DI CONTACT SIS SIS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 27 NON-I.S
28 3 ESD-101000B INSTRUMENT AIR FAULT SHUTDOWN DI CONTACT SIS SIS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 28 NON-I.S
29 3 ESD-101000C ELECTRIC POWER FAULT SHUTDOWN DI CONTACT SIS SIS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 29 NON-I.S
30 5 BHS-622003 EMRGENCY STOP DI CONTACT TBD TBD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 30 NON-I.S
31 5 BHS-622002 EMRGENCY STOP DI CONTACT TBD TBD TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 9/9 31 NON-I.S
32 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 9/9 32 -

I/O
TYPE
1 4 VAHH-622307 COMP SHAFT VIBRATION (DE) HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 1 NON-I.S; SIL3;OPEN TO TRIP
2 4 VAHH-622308 COMP SHAFT VIBRATION (NDE) HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 2 NON-I.S; SIL3;OPEN TO TRIP
3 4 VAHH-622303 GEAR SHAFT VIBRATION (DE) HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 3 NON-I.S; SIL3;OPEN TO TRIP
4 4 VAHH-622304 GEAR SHAFT VIBRATION (NDE) HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 4 NON-I.S; SIL3;OPEN TO TRIP
5 4 VAHH-622306 PINION SHAFT VIBRATION (NDE) HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 5 NON-I.S; SIL3;OPEN TO TRIP
6 4 VAHH-622305 PINION SHAFT VIBRATION (DE) HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 6 NON-I.S; SIL3;OPEN TO TRIP
7 4 VAHH-622302 MOTOR SHAFT VIBRATION (CPL) HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 7 NON-I.S; SIL3;OPEN TO TRIP
8 4 VAHH-622301 MOTOR SHAFT VIBRATION (ANTI-CPL) HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 8 NON-I.S; SIL3;OPEN TO TRIP
9 4 ZAHH-622302 COMP. AXIAL DISPLACEMENT HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 9 NON-I.S; SIL3;OPEN TO TRIP
10 4 ZAHH-622301 GEAR AXIAL DISPLACEMENTHH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 10 NON-I.S; SIL3;OPEN TO TRIP
11 4 TAHH-622324 COMP THR. BRG.TEMP. HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 11 NON-I.S; SIL3;OPEN TO TRIP
12 4 TAHH-622320 COMP JOURNAL BEARING TEMP.. HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 12 NON-I.S; SIL3;OPEN TO TRIP
13 4 TAHH-622316 PINION JOURNAL BEARING TEMP. HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 13 NON-I.S; SIL3;OPEN TO TRIP
14 4 TAHH 622312
TAHH-622312 GEAR THRUST BEARING TEMP
TEMP. HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001 002
1404001-002 2/3 10/10 14 NON-I.S;
NON I S SIL3
SIL3;OPEN
OPEN TO TRIP
15 4 TAHH-622308 GEAR JOURNAL BEARING TEMP. HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 15 NON-I.S; SIL3;OPEN TO TRIP
16 4 TAHH-622301 MOTOR JOURNAL BEARING TEMP. HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 16 NON-I.S; SIL3;OPEN TO TRIP
17 4 TAHH-622305 MOTOR WINDING TEMP. HH DI CONTACT MMS MMS TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 17 NON-I.S; SIL3;OPEN TO TRIP
18 2 XA-622327 POWER SUPPLY (UPS1) FAILURE DI CONTACT UCP UCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 18 NON-I.S
19 2 XA-622328 POWER SUPPLY (UPS2) FAILURE DI CONTACT UCP UCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 19 NON-I.S
20 2 XA-622329 POWER SUPPLY (NON UPS) FAILURE DI CONTACT UCP UCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 20 NON-I.S
21 2 XA-622330 PLC FAILURE DI CONTACT UCP UCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 21 NON-I.S
22 2 XA-622331 UCP FAN FAILURE DI CONTACT UCP UCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 22 NON-I.S
23 2 XA-622332 UCP TEMP HIGH DI CONTACT UCP UCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 23 NON-I.S
24 2 HS-622340 BYPASS ENABLE (MASTER SW) DI CONTACT UCP UCP TSX TSX 24VDC - - - - - - - - 1404001-002 2/3 10/10 24 NON-I.S; INSIDE CABINET
25 1 SPARE - DI SWITCH - - - - - - - - - - - - - 1404001-002 2/3 10/10 25 -
26 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 10/10 26 -
27 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 10/10 27 -
28 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 10/10 28 -
29 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 10/10 29 -
30 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 10/10 30 -
31 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 10/10 31 -
32 1 SPARE - DI - - - - - - - - - - - - - - 1404001-002 2/3 10/10 32 -

I/O
TYPE
1 4 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 10/2 1 NON-I.S; RELAY
14 4 SPARE - DO - - - - - - - - - - - - - - 1404001 011

1404001-011 1/3 10/2 14 NON-I.S;
NON I S RELAY
17 6 BN_RESET BN 3500 RACK RESET DO CONTACT BN TSX BN TSX 24VDC - - - - - - - - 1404001-011 1/3 10/2 17 NON-I.S; RELAY
18 6 BN_TM BN 3500 TRIP MULTIPLIER DO CONTACT BN TSX BN TSX 24VDC - - - - - - - - 1404001-011 1/3 10/2 18 NON-I.S; RELAY
19 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 10/2 19 -
20 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 10/2 20 -
21 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 10/2 21
22 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 10/2 22
23 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 10/2 23
24 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 10/2 24

I/O
TYPE
1 2 XS-622340 MOTOR START DO CONTACT VSDS TSX VSDS DRY DRY - - - - - - - - 1404001-011 1/3 11/1 1 NON-I.S; RELAY
2 2 XS-622341 MAIN MOTOR NORMAL STOP SIGNAL DO CONTACT VSDS TSX VSDS DRY DRY - - - - - - - - 1404001-011 1/3 11/1 2 NON-I.S; RELAY
3 2 XA-622342 COMMON ALARM DO CONTACT DCS TSX DCS DRY DRY - - - - - - - - 1404001-011 1/3 11/1 3 NON-I.S; RELAY
4 2 XS-622302A L/O MAIN PUMP START DO CONTACT MCC TSX MCC DRY DRY - - - - - - - - 1404001-011 1/3 11/1 4 NON-I.S; RELAY
5 2 XS-622302B L/O MAIN PUMP STOP DO CONTACT MCC TSX MCC DRY DRY - - - - - - - - 1404001-011 1/3 11/1 5 NON-I.S; RELAY
6 2 XS-622303A L/O STANDBY PUMP START DO CONTACT MCC TSX MCC DRY DRY - - - - - - - - 1404001-011 1/3 11/1 6 NON-I.S; RELAY
7 2 XS-622303B L/O STANDBY PUMP STOP DO CONTACT MCC TSX MCC DRY DRY - - - - - - - - 1404001-011 1/3 11/1 7 NON-I.S; RELAY
8 2 XS-622304A ELECTRIC HEATER ON DO CONTACT MCC TSX MCC DRY DRY - - - - - - - - 1404001-011 1/3 11/1 8 NON-I.S; RELAY
9 2 XS-622304B ELECTRIC HEATER OFF DO CONTACT MCC TSX MCC DRY DRY - - - - - - - - 1404001-011 1/3 11/1 9 NON-I.S; RELAY
11 5 PMXSS-622001A PUMP P‐621001A STOP DO CONTACT MCC TSX MCC DRY DRY - - - - - - - - 1404001-011 1/3 11/1 11 NON-I.S; RELAY
13 5 PMXSS-622001B PUMP P‐621001B STOP DO CONTACT MCC TSX MCC DRY DRY - - - - - - - - 1404001-011 1/3 11/1 13 NON-I.S; RELAY
14 1 SPARE - DO - - - - - - - - - - - - - - 1404001 011

1404001-011 1/3 11/1 14 NON-I.S;
NON I S RELAY
17 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 11/1 17 -
18 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 11/1 18 -
19 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 11/1 19 -
20 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 11/1 20 -
21 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 11/1 21 -
22 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 11/1 22 -
23 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 11/1 23 -
24 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 1/3 11/1 24 -

I/O
TYPE
1 2 XL-622301A READY FOR START LAMP DO LAMP LCP TSX LCP TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 1 NON-I.S
2 2 XL-622301B LOCAL CONTROL LAMP DO LAMP LCP TSX LCP TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 2 NON-I.S
3 2 XL-622301R COMPRESSOR RUNNING LAMP DO LAMP LCP TSX LCP TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 3 NON-I.S
4 2 XL-622301D COMMON TRIP LAMP DO LAMP LCP TSX LCP TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 4 NON-I.S
5 2 XL-622301C COMMON ALARM LAMP DO LAMP LCP TSX LCP TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 5 NON-I.S
6 2 XL-622301E EMERGENCY LAMP DO LAMP LCP TSX LCP TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 6 NON-I.S
7 2 XL-622305A READY FOR START LAMP DO LAMP AOC TSX AOC TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 7 NON-I.S
8 2 XL-622305B REMOTE CONTROL LAMP DO LAMP AOC TSX AOC TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 8 NON-I.S
9 2 XL-622305R COMPRESSOR RUNNING LAMP DO LAMP AOC TSX AOC TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 9 NON-I.S
10 2 XL-622305D COMMON TRIP LAMP DO LAMP AOC TSX AOC TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 10 NON-I.S
11 2 XL-622305C COMMON ALARM LAMP DO LAMP AOC TSX AOC TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 11 NON-I.S
12 2 XL-622305E EMERGENCY LAMP DO LAMP AOC TSX AOC TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 12 NON-I.S
13 2 XL-622302A L/O MAIN PUMP RUNNING LAMP DO LAMP LSB1 TSX LSB1 TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 13 NON-I.S
14 2 XL 622302B
XL-622302B L/O MAIN PUMP STOPPED LAMP DO LAMP LSB1 TSX LSB1 TSX 24VDC - - - - - - - - 1404001 011
1404001-011 2/3 11/11 14 NON-I.S
NON I S
15 2 XL-622303A L/O STANDBY PUMP RUNNING LAMP DO LAMP LSB1 TSX LSB1 TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 15 NON-I.S
16 2 XL-622303B L/O STANDBY PUMP STOPPED LAMP DO LAMP LSB1 TSX LSB1 TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 16 NON-I.S
17 2 XL-622304A ELECTRIC HEATER ON LAMP DO LAMP LSB1 TSX LSB1 TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 17 NON-I.S
18 2 XL-622304B ELECTRIC HEATER OFF LAMP DO LAMP LSB1 TSX LSB1 TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 18 NON-I.S
19 5 BDVL-622003 EMERGENCY STOP LAMP DO LAMP AOC TSX AOC TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 19 -
20 5 BDVL-622002 EMERGENCY STOP LAMP DO LAMP AOC TSX AOC TSX 24VDC - - - - - - - - 1404001-011 2/3 11/11 20 -
21 6 SPARE - DO - - - - - - - - - - - - - - 1404001-011 2/3 11/11 21 -
22 6 SPARE - DO - - - - - - - - - - - - - - 1404001-011 2/3 11/11 22 -
23 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 2/3 11/11 23 -
24 1 SPARE - DO - - - - - - - - - - - - - - 1404001-011 2/3 11/11 24 -

I/O
TYPE
1 2 XA-622340 COMMON TRIP DO CONTACT/SAFETY RELAY SIS TSX SIS DRY DRY - - - - - - - CLOSE 1404001-010 2/3 12/12 1 NON-I.S; SIL3; COMP. START PERMISSIVE
2 3 US-C621001 EMERGENCY STOP DO CONTACT/SAFETY RELAY VSDS TSX VSDS DRY DRY - - - - - - - - 1404001-010 2/3 12/12 2 NON-I.S, SIL3;
3 3 SPARE - DO - - - - - - - - - 1404001-010 2/3 12/12 3 -
4 5 ESDV-622001 SUCTION SHUT OFF SOLENOID VALVE DO SOLENOID PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 4 -
5 5 ESDV-622004 DISCHARGE SHUT OFF SOLENOID VALVE DO SOLENOID PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 5 -
6 3 SPARE - DO - - - - - - - - - 1404001-010 2/3 12/12 6 -
7 5 ESDV-622013 2ND SUCTION DRUM DRAIN SOLENOID VALVE DO SOLENOID PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 7 -
8 5 ESDV-622023 SEPERATOR DRUM DRAIN SOLENOID VALVE DO SOLENOID PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 8 -
9 5 ESDV-622033 ESDV‐622033 SOLENOID VALVE DO SOLENOID PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 9 -
10 5 BDV-622003 BDV‐622003 OPEN DO SOLENOID PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 10 -
11 5 BDV-622002 BDV‐622002 OPEN DO SOLENOID PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 11 -
12 2 SPARE - DO - - - - - - - - - 1404001-010 2/3 12/12 12 I.S; SIL 3
13 2 SV-622301A 1ST ANTI-SURGE SOLENOID VALVE DO MTL5521 PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 13 I.S; SIL 3
14 2 SV 622301B
SV-622301B 1ST ANTI
ANTI-SURGE
SURGE SOLENOID VALVE DO SOLENOID/MTL5521 PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001 010
1404001-010 2/3 12/12 14 I.S;
I S SIL 3
15 2 SV-622302A 2ND ANTI-SURGE SOLENOID VALVE DO SOLENOID/MTL5521 PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 15 I.S; SIL 3
16 2 SV-622302B 2ND ANTI-SURGE SOLENOID VALVE DO SOLENOID/MTL5521 PROCESS TSX FIELD TSX 24VDC - - - - - - - - 1404001-010 2/3 12/12 16 I.S; SIL 3
SOLENOID/MTL5521

I/O
TYPE
1 1 - - - MMS MMS B/N B/N - - - - - - - - - 3500/22-01-01-00 1 1 -
2 1 - - - - MMS MMS B/N B/N - - - - - - - - - 1 - -
3 2 VT-622307X COMP. RADIALVIBRATION X (DE) Prox VIB/MTL5531 COMP. FIELD B/N B/N - µm 0 150 - 50 - 75 - 3500/40-01-00 1 3 1 I.S
1OO2 ALARM
4 2 VT-622307Y COMP. RADIALVIBRATION Y (DE) Prox VIB/MTL5531 COMP. FIELD B/N B/N - µm 0 150 - 50 - 75 - 3500/40-01-00 1 3 2 2OO2 TRIP
5 2 VT-622308X COMP. RADIALVIBRATION X (NDE) Prox VIB/MTL5531 COMP. FIELD B/N B/N - µm 0 150 - 50 - 75 - 3500/40-01-00 1 3 3 I.S
1OO2 ALARM
6 2 VT-622308Y COMP. RADIALVIBRATION Y (NDE) Prox VIB/MTL5531 COMP. FIELD B/N B/N - µm 0 150 - 50 - 75 - 3500/40-01-00 1 3 4 2OO2 TRIP
7 2 VT-622305X PINION SHAFT RADIALVIBRATION X (DE) Prox VIB/MTL5531 PINION FIELD B/N B/N - µm 0 200 - 95 - 140 - 3500/40-01-00 1 4 1 I.S
1OO2 ALARM
8 2 VT-622305Y PINION SHAFT RADIALVIBRATION Y (DE) Prox VIB/MTL5531 PINION FIELD B/N B/N - µm 0 200 - 95 - 140 - 3500/40-01-00 1 4 2 2OO2 TRIP
9 2 VT-622306X PINION SHAFT RADIALVIBRATION X (NDE) Prox VIB/MTL5531 PINION FIELD B/N B/N - µm 0 200 - 95 - 140 - 3500/40-01-00 1 4 3 I.S
1OO2 ALARM
10 2 VT-622306Y PINION SHAFT RADIALVIBRATION Y (NDE) Prox VIB/MTL5531 PINION FIELD B/N B/N - µm 0 200 - 95 - 140 - 3500/40-01-00 1 4 4 2OO2 TRIP
11 2 VT-622303X GEAR SHAFT VIBRATION X (DE) Prox VIB/MTL5531 GEAR FIELD B/N B/N - µm 0 400 - 190 - 280 - 3500/40-01-00 1 5 1 I.S
1OO2 ALARM
12 2 VT-622303Y GEAR SHAFT VIBRATION Y (DE) Prox VIB/MTL5531 GEAR FIELD B/N B/N - µm 0 400 - 190 - 280 - 3500/40-01-00 1 5 2 2OO2 TRIP
13 2 VT-622304X GEAR SHAFT VIBRATION X (NDE) Prox VIB/MTL5531 GEAR FIELD B/N B/N - µm 0 400 - 190 - 280 - 3500/40-01-00 1 5 3 I.S
1OO2 ALARM
14 2 VT 622304Y
VT-622304Y GEAR SHAFT VIBRATION Y (NDE) P
Prox VIB/MTL5531 GEAR FIELD B/N B/N - µm 0 400 - 190 - 280 - 3500/40 01 00
3500/40-01-00 1 5 4 2OO2 TRIP
15 2 VT-622302X MOTOR SHAFT VIBRATION X (CPL) Prox VIB/MTL5531 MOTOR FIELD B/N B/N - µm 0 200 - 100 - 125 - 3500/40-01-00 1 6 1 I.S
1OO2 ALARM
16 2 VT-622302Y MOTOR SHAFT VIBRATION Y (CPL) Prox VIB/MTL5531 MOTOR FIELD B/N B/N - µm 0 200 - 100 - 125 - 3500/40-01-00 1 6 2 2OO2 TRIP
17 2 VT-622301X MOTOR SHAFT VIBRATION X (ANTI-CPL) Prox VIB/MTL5531 MOTOR FIELD B/N B/N - µm 0 200 - 100 - 125 - 3500/40-01-00 1 6 3 I.S
1OO2 ALARM
18 2 VT-622301Y MOTOR SHAFT VIBRATION Y (ANTI-CPL) Prox VIB/MTL5531 MOTOR FIELD B/N B/N - µm 0 200 - 100 - 125 - 3500/40-01-00 1 6 4 2OO2 TRIP
19 2 ZT-622302A COMP. AXIAL DISPLACEMENT A Prox VIB/MTL5531 COMP. FIELD B/N B/N - mm -1.00 1.00 -0.50 0.50 -0.75 0.75 - 3500/40-01-00 1 7 1 I.S
1OO2 ALARM
20 2 ZT-622302B COMP. AXIAL DISPLACEMENT B Prox AXIAL/MTL5531 COMP. FIELD B/N B/N - mm -1.00 1.00 -0.50 0.50 -0.75 0.75 - 3500/40-01-00 1 7 2 2OO2 TRIP
21 2 ZT-622301A GEAR AXIAL DISPLACEMENTA Prox AXIAL/MTL5531 GEAR FIELD B/N B/N - mm -1.00 1.00 -0.50 0.50 -0.75 0.75 - 3500/40-01-00 1 7 3 I.S
1OO2 ALARM
22 2 ZT-622301B GEAR AXIAL DISPLACEMENTB Prox AXIAL/MTL5531 GEAR FIELD B/N B/N - mm -1.00 1.00 -0.50 0.50 -0.75 0.75 - 3500/40-01-00 1 7 4 2OO2 TRIP
23 AXIAL/MTL5531
24
25
26
27
28
29
30
31
32

I/O
TYPE
1 2 TE-622320A COMP. JOURNAL BEARING TEMP.(DE) TEMP RTD/MTL5582 COMP. FIELD B/N B/N - °C 0 150 - 110 - 120 - 3500/65-01-00 1 8 1
2 2 TE-622321A COMP. JOURNAL BEARING TEMP.(DE) TEMP RTD/MTL5582 COMP. FIELD B/N B/N - °C 0 150 - 110 - 120 - 3500/65-01-00 1 8 2 I.S
1OO4 ALARM
3 2 TE-622322A COMP. JOURNAL BEARING TEMP.(NDE) TEMP RTD/MTL5582 COMP. FIELD B/N B/N - °C 0 150 - 110 - 120 - 3500/65-01-00 1 8 3 1OO4 TRIP
4 2 TE-622323A COMP. JOURNAL BEARING TEMP.(NDE) TEMP RTD/MTL5582 COMP. FIELD B/N B/N - °C 0 150 - 110 - 120 - 3500/65-01-00 1 8 4
5 2 TE-622326A COMP. THRUST BEARING TEMP. (ACT) TEMP RTD/MTL5582 COMP. FIELD B/N B/N - °C 0 150 - 110 - 120 - 3500/65-01-00 1 8 5
6 2 TE-622327A COMP. THRUST BEARING TEMP. (ACT) TEMP RTD/MTL5582 COMP. FIELD B/N B/N - °C 0 150 - 110 - 120 - 3500/65-01-00 1 8 6 I.S
1OO4 ALARM
7 2 TE-622324A COMP. THRUST BEARING TEMP. (IN-ACT) TEMP RTD/MTL5582 COMP. FIELD B/N B/N - °C 0 150 - 110 - 120 - 3500/65-01-00 1 8 7 1OO4 TRIP
8 2 TE-622325A COMP. THRUST BEARING TEMP. (IN-ACT) TEMP RTD/MTL5582 COMP. FIELD B/N B/N - °C 0 150 - 110 - 120 - 3500/65-01-00 1 8 8
9 2 TE-622316A PINION JOURNAL BEARING TEMP. TEMP RTD/MTL5582 PINION FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 8 9
10 2 TE-622317A PINION JOURNAL BEARING TEMP. TEMP RTD/MTL5582 PINION FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 8 10 I.S
1OO4 ALARM
11 2 TE-622318A PINION JOURNAL BEARING TEMP. (NDE) TEMP RTD/MTL5582 PINION FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 8 11 1OO4 TRIP
12 2 TE-622319A PINION JOURNAL BEARING TEMP. (NDE) TEMP RTD/MTL5582 PINION FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 8 12
13 2 TE-622308A GEAR JOURNAL BEARING TEMP. (DE) TEMP RTD/MTL5582 GEAR FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 8 13
14 2 TE 622309A
TE-622309A GEAR JOURNAL BEARING TEMP
TEMP. (DE) TEMP RTD/MTL5582 GEAR FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65 01 00
3500/65-01-00 1 8 14 I S
I.S
1OO4 ALARM
15 2 TE-622310A GEAR JOURNAL BEARING TEMP. (NDE) TEMP RTD/MTL5582 GEAR FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 8 15 1OO4 TRIP
16 2 TE-622311A GEAR JOURNAL BEARING TEMP. (NDE) TEMP RTD/MTL5582 GEAR FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 8 16
17 2 TE-622314A GEAR THRUST BEARING TEMP. (ACT) TEMP RTD/MTL5582 GEAR FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 9 1
18 2 TE-622315A GEAR THRUST BEARING TEMP. (ACT) TEMP RTD/MTL5582 GEAR FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 9 2 I.S
1OO4 ALARM
19 2 TE-622312A GEAR THRUST BEARING TEMP. (IN-ACT) TEMP RTD/MTL5582 GEAR FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 9 3 1OO4 TRIP
20 2 TE-622313A GEAR THRUST BEARING TEMP. (IN-ACT) TEMP RTD/MTL5582 GEAR FIELD B/N B/N - °C 0 150 - 115 - 120 - 3500/65-01-00 1 9 4
21 2 TE-622303A MOTOR JOURNAL BEARING TEMP. (CPL) TEMP RTD/MTL5582 MOTOR FIELD B/N B/N - °C 0 150 - 90 - 100 - 3500/65-01-00 1 9 5
22 2 TE-622304A MOTOR JOURNAL BEARING TEMP. (CPL) TEMP RTD/MTL5582 MOTOR FIELD B/N B/N - °C 0 150 - 90 - 100 - 3500/65-01-00 1 9 6 I.S
1OO4 ALARM
23 2 TE-622301A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) TEMP RTD/MTL5582 MOTOR FIELD B/N B/N - °C 0 150 - 90 - 100 - 3500/65-01-00 1 9 7 1OO4 TRIP
24 2 TE-622302A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) TEMP RTD/MTL5582 MOTOR FIELD B/N B/N - °C 0 150 - 90 - 100 - 3500/65-01-00 1 9 8
25 2 TE-622305 MOTOR WINDING TEMP. (U) TEMP RTD/MTL5582 MOTOR FIELD B/N B/N - °C 0 200 - 140 - 145 - 3500/65-01-00 1 9 9
I.S
26 2 TE-622306 MOTOR WINDING TEMP. (V) TEMP RTD/MTL5582 MOTOR FIELD B/N B/N - °C 0 200 - 140 - 145 - 3500/65-01-00 1 9 10 1OO3 ALARM
1OO3 TRIP
27 2 TE-622307 MOTOR WINDING TEMP. (W) TEMP RTD/MTL5582 MOTOR FIELD B/N B/N - °C 0 200 - 140 - 145 - 3500/65-01-00 1 9 11
28 1 SPARE - TEMP RTD/MTL5582 - FIELD B/N B/N - ‐ - - - - - - - 3500/65-01-00 1 9 12 -
29 1 SPARE - TEMP - - FIELD B/N B/N - ‐ - - - - - - - 3500/65-01-00 1 9 13 -

I/O
TYPE
1 2 KT-622302 PINION SHAFT KEYPHASOR Prox KPH/MTL5531 PINION FIELD B/N B/N - RPM 0 11000 - - - - - 3500/25-01-01-00 1 2U 1 I.S
2 2 KT-622301 GEAR SHAFT KEYPHASOR Prox KPH/MTL5531 GEAR FIELD B/N B/N - RPM 0 2000 - - - - - 3500/25-01-01-00 1 2U 2 I.S
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

I/O
TYPE
1 2 VAHH-622307 COMP SHAFT VIBRATION (DE) HH RO CONTACT COMP. B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 1 NON-I.S;
2 2 VAHH-622308 COMP SHAFT VIBRATION (NDE) HH RO CONTACT COMP. B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 2 NON-I.S;
3 2 VAHH-622303 GEAR SHAFT VIBRATION (DE) HH RO CONTACT GEAR B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 3 NON-I.S;
4 2 VAHH-622304 GEAR SHAFT VIBRATION (NDE) HH RO CONTACT GEAR B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 4 NON-I.S;
5 2 VAHH-622306 PINION SHAFT VIBRATION (NDE) HH RO CONTACT PINION B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 5 NON-I.S;
6 2 VAHH-622305 PINION SHAFT VIBRATION (DE) HH RO CONTACT PINION B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 6 NON-I.S;
7 2 VAHH-622302 MOTOR SHAFT VIBRATION (CPL) HH RO CONTACT MOTOR B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 7 NON-I.S;
8 2 VAHH-622301 MOTOR SHAFT VIBRATION (ANTI-CPL) HH RO CONTACT MOTOR B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 8 NON-I.S;
9 2 ZAHH-622302 COMP. AXIAL DISPLACEMENT HH RO CONTACT COMP. B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 9 NON-I.S;
10 2 ZAHH-622301 GEAR AXIAL DISPLACEMENTHH RO CONTACT GEAR B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 10 NON-I.S;
11 2 SPARE - RO CONTACT - B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 11 11 NON-I.S;
14 2 SPARE - RO CONTACT - B/N TS

TSx TS
TSx - - - - - - - - - 3500/33 01 00
3500/33-01-00 1 11 14 NON-I.S;
NON I S
17 2 TAHH-622324 COMP THR. BRG.TEMP. HH RO CONTACT COMP. B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 12 1 NON-I.S;
18 1 TAHH-622320 COMP JOURNAL BEARING TEMP.. HH RO CONTACT COMP. B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 12 2 -
19 1 TAHH-622316 PINION JOURNAL BEARING TEMP. HH RO CONTACT PINION B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 12 3 -
20 1 TAHH-622312 GEAR THRUST BEARING TEMP. HH RO CONTACT GEAR B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 12 4 -
21 1 TAHH-622308 GEAR JOURNAL BEARING TEMP. HH RO CONTACT GEAR B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 12 5 -
22 1 TAHH-622301 MOTOR JOURNAL BEARING TEMP. HH RO CONTACT MOTOR B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 12 6 -
23 1 TAHH-622305 MOTOR WINDING TEMP. HH RO CONTACT MOTOR B/N TSx TSx - - - - - - - - - 3500/33-01-00 1 12 7 -
24 1 SPARE - RO CONTACT - B/N TSx TSx - ‐ - - - - - - - 3500/33-01-00 1 12 8 -
BILL OF MATERIALS BILL OF MATERIALS
QTY MANUFACTURER/ QTY MANUFACTURER/
NO/S PART NO. DESCRIPTION NO/S PART NO. DESCRIPTION
pc(s) SUPPLIER pc(s) SUPPLIER
1 4 RITTAL 8808.521 TS8 2000H X 800W X 800D mm, WITH 2XMOUNTING PLATE, FRONT/REAR DOORS, RAL 7035 66 10 TRI-SEN N/A TRI-SEN LOGO PLATE
2 1 RITTAL 8108.235 TS8 SIDE WALLS, 2000mm H X 800mm W, RAL 7035 67
3 5 RITTAL 8601.800 BASE/PLINTH, HEIGHT 100mm H X 800mm W 68
4 5 RITTAL 8601.080 SIDE BASE/PLINTH, HEIGHT 100mm H X 800mm W 69 3 TRI-SEN 1401009-012 SBare Chassis, w/ 230VAC Dual P/S, 15 Slots
5 14 RITTAL 8612.180 TS SYSTEM CHASSIS WITH MOUNTING FLANGE FOR OUTER LEVEL, 800mmW 70 2 TRI-SEN 1402002-001 Node Processor Module
6 4 RITTAL 8612.080 TS SYSTEM CHASSIS WITH MOUNTING FLANGE FOR INNER LEVEL, 800mmW 71 6 TRI-SEN 1402001-001 Chassis Processor Module
7 5 RITTAL 3325.200 EXHAUST FILTER FOR FILTER FAN 72 10 TRI-SEN 1404001-002 DI Module, 32-CH, Non-Isolated Single Ended
8 1 RITTAL 7827.080 19'' MOUNTING ANGLES FOR TS 73 6 TRI-SEN 1404001-011 DO Module, 24-CH Supervised
9 1 RITTAL 8808.501 TS8 2000H X 800W X 800D mm, WITH 1XMOUNTING PLATE, FRONT/REAR DOORS, RAL 7035 74 8 TRI-SEN 1404002-003 AI Module, 32-CH, Non-Isolated Single Ended
10 75 2 TRI-SEN 1404002-009 AO Module, 16-CH, Current Output
11 76 2 TRI-SEN 1404004-001 COMM Module, MODBUS TCP/IP
12 10 BMC MXT5-Y12C INTERNAL LIGHT 77 7 TRI-SEN 1404000-001 Filler Card

13 10 PANNASONIC AZD1002 DOOR SWITCH 78 5 TRI-SEN 1405012-121 ETP, 32-CH DI, Single Ended, Sourcing 24VDC
14 10 ADDA AA1282HB-AW 230VAC FILTER FAN 79 4 TRI-SEN 1405111-130 ETP, 24-CH DO, Supervised
15 10 TOYOGIKEN 5200.1-00 AIR FLOW MONITOR,NO 80 4 TRI-SEN 1405023-140 ETP, 32-CH AI, Single Ended Current Input
16 3 RITTAL 3110.000 THERMOSTAT 81 1 TRI-SEN 1405029-140 ETP, 16-CH AO, Current Output
17 82 1 TRI-SEN 1407000-001 NetSuite Software Package (Incl. Development & Programming）
18 83 2 TRI-SEN 1404001-010 DO Module, 16-CH Supervised
19 4 SIEMENS 6EP1337-3BA00 SITOP 24VDC 40A Power Supply 84 1 TRI-SEN 1405110-130 ETP, 16-CH DO
20 4 SIEMENS 6EP1961-3BA21 Power Supply Redundant Module 85

21 105 OMRON MY2N-D2 24VDC Relay With built-in diode and LED indicator 86 3 N-TRON 116TX Ethernet Switch(16x RJ45)
22 3 OMRON MY2N-CR AC220/240 230VAC Relay 87 2 N-TRON 108TX Ethernet Switch: -8 x 10/100 BASE-T ports
23 3 PHOENIX CONTACT PSR-SCP-24DC/ESP4/2X1/1X2 SIL3 Relay 88

24 89
25 3 SCHNEIDER iINT125 2P 63A DISCONNECTING SWITCH 90 1 BENTLY NEVADA 3500/05-01-01-00-00-00 3500 SYSTEM RACK MOUNT,14-Position (BN 3500 Scope of supply from other vendors)
26 13 SCHNEIDER IC65N-2P-C4 CIRCUIT BREAKER, 4 AMPS, 2 POLE 91 2 BENTLY NEVADA 3500/15-02-02-00 High Voltage AC Power Supply Module (BN 3500 Scope of supply from other vendors)
27 2 SCHNEIDER IC65N-2P-C6 CIRCUIT BREAKER, 6 AMPS, 2 POLE 92 1 BENTLY NEVADA 3500/22-01-01-00 Transient Data Interface (BN 3500 Scope of supply from other vendors)
28 4 SCHNEIDER IC65N-2P-C16 CIRCUIT BREAKER, 16 AMPS, 2 POLE 93 1 BENTLY NEVADA 3500/25-01-01-00 Keyphasor Module (BN 3500 Scope of supply from other vendors)
29 1 STEGO 03503.0-01 ELECTRICAL SOCKET SD035, BRITISH STANDARD 94 5 BENTLY NEVADA 3500/40-01-00 Proximitor Monitor (BN 3500 Scope of supply from other vendors)
30 1 IDEC ASW 0201 SELECTIVE SWITCH 95 2 BENTLY NEVADA 3500/65-01-00 16 Channel Temperature Monitor (BN 3500 Scope of supply from other vendors)
31 96 2 BENTLY NEVADA 3500/33-01-00 16 Channel Relay Module (BN 3500 Scope of supply from other vendors)
32 2 SCHNEIDER IC65H-1P-C20 CIRCUIT BREAKER, 20 AMPS, 1 POLE 97 1 BENTLY NEVADA 3500/92-02-01-00 Communication Gateway RS485 (BN 3500 Scope of supply from other vendors)
33 6 SCHNEIDER IC65H-1P-C10 CIRCUIT BREAKER, 10 AMPS, 1 POLE 98 3 BENTLY NEVADA 130678-01 COVER PLATE (BN 3500 Scope of supply from other vendors)
34 40 SCHNEIDER IC65H-1P-C4 CIRCUIT BREAKER, 4 AMPS, 1 POLE 99

35 1 MTL 5575 BARRIER FOR RTD 100
36 5 MTL 5521 BARRIER FOR DO 101
37 3 MTL MA30/D/2/SI MAIN POWER SURGE PROTECTOR 102
38 22 MTL 5531 BARRIER FOR B.N probe/prox 103
39 27 MTL 5582 BARRIER FOR B.N RTD 104
40 72 MTL 5541 BARRIER FOR AI 105
41 9 MTL 5546 BARRIER FOR AO 106
42 5 MTL 5511 BARRIER FOR DI 107
43 3 WEIDMULLER 0661360000 EK10/35 108
44 6 WEIDMULLER 0337660000 FEED-THROUGH TERMINAL SAK 10/EN 109
45 15 WEIDMULLER 0225660000 TERMINAL WITH ELECTRONIC COMPONENTS ASK 1/EN LD 230VAC 110
46 250 WEIDMULLER 0222760000 TERMINAL WITH ELECTRONIC COMPONENTS ASK 1/EN LD 15K 24VDC 111
47 277 WEIDMULLER 0218660000 FEED-THROUGH TERMINAL SAK 2.5/EN 112
48 187 WEIDMULLER 1855610000 KNIFE DISCONNNECT TERMINAL WTR 2.5 113
49 187 WEIDMULLER 1020000000 FEED-THROUGH TERMINAL WDU 2.5 114
50 159 WEIDMULLER 8731640000 KNIFE DISCONNNECT TERMINAL WTR BLUE 2.5 115
51 210 WEIDMULLER 1020080000 FEED-THROUGH TERMINAL WDU BLUE 2.5 116
52 117
53
54 4 BLACK BOX LES431A RS485 CONVERTER SERIAL
55
56 1 N/A N/A GROUNDING BAR (21 CONTACTS)
57 8 N/A N/A GROUNDING BAR (15 CONTACTS)
58 5 N/A N/A FIELD SHIELD GROUNDING BAR
59 3 N/A N/A 0VDC BUSBAR CNOOC

60 MISSAN OIL FIELD DEVELOPMENT PROJECT
61
62
63
64
65
66
10
1
4
1
2
5
3
4
5
1
9
1
30
7
5
CNOOC
MISSAN OIL FIELD DEVELOPMENT PROJECT
CNOOC
REAR REAR REAR REAR REAR
15
10
14
10
FRONT FRONT FRONT FRONT FRONT
CNOOC
SEE DETAIL "A"
PLINTH DETAIL
PLINTH FRONT VIEW DETAIL "A" (4 : 1)
CNOOC
12 12
1 1
TS-01 13 13
1 1
46
32
TD-01 20
2
TB-FM1 19
47
32 2
47 SIEMENS SIEMENS
TS-02
SITOP
SITOP
3
PSU 1# PSU 2#
46 TD-02 2 4VDC 2 4VDC
230VAC 230VAC
40A 40A
32
47
32
TB-622308
50 51 TB-622303
TS-GT
8 8
50 51
47 8 8
35 13 TB-AI4A
1
40 50 51 TB-622307
53 AI1 6 6
50 51
16 16
80 TB-AO1A
1
50 51 TB-622309
8 8
50 51
A I_ETP 16 16
TB-622310
AI2
50 51
16 16
80
1
TB-AI1A
50 51
A I_ETP 12 12
TB-AI1B
AI3 50 51
2 4
80
1 TB-AI2
50 51
2 2
A I_ETP
TB-AI3
50 51
6 6
TB-GT
46 49
13 13
48 ISE
13
58
2
IE
58
1
PE ISE
57 57
1 1
CNOOC
12
1
13
1 12
1
16
1 TD-03 13
1
TS-03 47
33
21
46 CB4 2
33 TB-FM2
33 34
1 18 TB6
47
3
48 49
1 1
40 0V BAR
16
AI4 DO3 59
1
80 79
1 1
DI4
78
1
A I_ETP
AO1
DI_ETP
81
41 1 (24P )DO _ETP
TD-06
8
TS-06 47
18
AO_ETP
46
18
DI1
78
1
DI_ETP
21
16
42 40
5 3 TB-DO3
TB-DI4
41 48 49
1 21 21 48 49
32 32
TB-AI4B
TB-DI1B
TB-DI1A 48 49
4 4 48 49
50 51 16 16
5 5
TB-AO1B
48 49
2 2
IE
58
1
PE IE
57 57
1 1
CNOOC
12 12
1 1
13 13
16 1 1
1
8 CB3 45 47
1 10 10
TSx CHA1 25 27
1 2
69 74 26
1 4 3
70 75 TSx CHA SSIS
1 1
C OMM
71 76 45 47
DO
DO
AO
CP
CP
NP
AI
AI
AI
AI
2 1 CB2 5 5
73 77
TSx-1 2 4 TSx-1 25 28
1 2
26
5
86
3 CB1
22
25 28 3
87 1 2
2
26
5
CB5-B
34
TSx CHA2 11 0V BAR
69 73 1 TSx CHA SSIS 59

1 1
70 74 4
AO
DO
DO
CP
CP
NP
AI
AI
AI
AI
DI
DI
DI
DI
DI
1
71 75 1
TSx-2 2 TSx-2
72 83 1
5
TSx CHA3
1
69 73 TSx CHA SSIS
1 TB1
1
C OMM
71 76
DO
DO
DO
DO
CP
CP
DI
DI
DI
DI
DI
2 43 44
3
72 77 1 2 37
TSx-3 5
1
TSx-3 3
83
TB2
43 44
1 2
54
4 29
1
TB3
43 44
1 2
PE
56
1
CNOOC
12 12
1 1
13 13
1 1
DO2 21
CB5-A 2
DI3
TB-FM3 79 TB-FM4
1 32 34
78 2 11
47 1 47 0V BAR
3 3 33
5
DI_ETP
59
1
DO1 DO4
(24P )DO _ETP
DI2
79 84
1 1
78
1
DI_ETP
(24P )DO _ETP
(16P )DO _ETP
TD-08
TS-08
21 21
50 47
27 46 32
32
TS-07
TS-VALVE
46
16
46
10
TD-07
47
16
TD-VALVE
47 36
10 5
TB-DI3
TB-DO2
48 49 21
48 49 27 27 8
16 16
23
3
TB-DI2A
TB-DO1 TB-DO4C
48 49
10 10
48 49 50 51
18 18 5 5
TB-DI2B
48 49 TB-DO4A
16 16
48 49
3 3
TB-DO4B
48 49
8 8
PE IE
57 57
1 1
CNOOC
12 12
1 1
16
1 13 13
1 1
20
19 2
2
SIEMENS SIEMENS
SITOP
SITOP
PSU 3# PSU 4#
2 4VDC 2 4VDC
230VAC 230VAC
BN CHA1 40A 40A
90 95
1 2
91 96
2 2
92 97
1 1
93 98
1 3
94
5
TB-622302
50 51
DI5 6 12
TS-04
78 TB-622305
1 46
32
50 51 38
7 14 22
TB-622306
DI_ETP 50 51
5 10 TD-04
TB-BN40 47
32
50 51
4 8
TB-622301
TS-05
39
50 51 27
8 16 46
32
TB-622304
50 51
12 24
TB-BN65 TD-05
50 51 47
7 14 32
ISE
58
1
PE ISE
57 57
1 1
CNOOC
CNOOC
CNOOC
T A
O U
S
N
P
EM
O
T
R S
E
G E N CY
1 BARTEC 07-56D1-5731 SS316 Local Control Panel (400Wx400Hx210Dmm)

1 BARTEC 07-3353-4120 Indicator Lamp Green (Ex_de), 24VDC
3 BARTEC 07-3353-4110 Indicator Lamp Red (Ex_de), 24VDC
2 BARTEC 07-3353-4130 Indicator Lamp White (Ex_de), 24VDC
1 BARTEC 05-0003-007000 Push Button With Green Plate (Ex_e)
1 BARTEC 05-0003-007000 Push Button With Black Plate (Ex_e)
1 BARTEC 05-0003-007000 Push Button With Red Plate (Ex_e)
1 BARTEC 05-0003-000800 E-stop Push Button (Ex_e)
1 BARTEC 05-0003-000900 Select Switch 2-way (Ex_e)
5 BARTEC 07-3323-4400 Switch module (Ex_de), 1NO+1NC
32 WEIDMULLER WDU 2.5 Terminal Blocks (Ex_e)
2 CMP 737
1 BARTEC - PE Bar With 15 Terminals
CNOOC
CNOOC
MATERIAL : TRAFFOLYTE (BLACK LETTER WHITE BACKGROUND)
DIMENSION : 30mm x 120mm (H x W)
TYPE : SCREWED
TEXT HEIGHT : 6mm
MATERIAL : PVC (WHITE BACKGROUND BLACK LETTER)

TEXT HEIGHT : 2 LINES (6mm)
3 LINES (4mm)
TYPE : TAG HOLDER
CNOOC
A A'
FRONT VIEW
SIDE VIEW
CNOOC
VIEW A-A'
FRAME BOTTOM VIEW
CNOOC
1 BARTEC 07-56D1-5731 SS316 Local Control Panel (400Wx400Hx210Dmm)
3 BARTEC 07-3353-4120 Indicator Lamp Green (Ex_de), 24VDC
3 BARTEC 07-3353-4110 Indicator Lamp Red (Ex_de), 24VDC
3 BARTEC 05-0003-007000 Push Button With Green Plate (Ex_e)
3 BARTEC 05-0003-007000 Push Button With Red Plate (Ex_e)
3 BARTEC 05-0003-000900 Select Switch 2-way (Ex_e)
9 BARTEC 07-3323-4400 Switch module (Ex_de), 1NO+1NC
48 WEIDMULLER WDU 2.5 Terminal Blocks (Ex_e)
3 CMP 737
1 BARTEC - PE Bar With 15 Terminals
CNOOC
CNOOC
MATERIAL : TRAFFOLYTE (BLACK LETTER WHITE BACKGROUND)
DIMENSION : 20mm x 120mm (H x W)
TYPE : SCREWED
TEXT HEIGHT : 6mm
MATERIAL : PVC (WHITE BACKGROUND BLACK LETTER)

TEXT HEIGHT : 2 LINES (6mm)
3 LINES (4mm)
TYPE : TAG HOLDER
CNOOC
A A'
FRONT VIEW
SIDE VIEW
CNOOC
VIEW A-A'
FRAME BOTTOM VIEW
BILL OF MATERIALS BILL OF MATERIALS
QTY MANUFACTURER/ QTY MANUFACTURER/
NO/S PART NO. DESCRIPTION NO/S PART NO. DESCRIPTION
pc(s) SUPPLIER pc(s) SUPPLIER
1 1 TBD TBD Auxiliary Operation Console 66

2 2 IDEC APW122DE-W LED PILOT LIGHTS.22mm.WHITE 67
3 1 IDEC APW122DE-G LED PILOT LIGHTS.22mm.GREEN 68
4 3 IDEC APW122DE-R LED PILOT LIGHTS.22mm.RED 69
5 1 IDEC ABW110E-G NON-ILLUMINATED PUSHBUTTONS.Flush *.GREEN 70
6 1 IDEC ABW101E-R NON-ILLUMINATED PUSHBUTTONS.Flush *.RED 71
7 1 IDEC ABW110E-B NON-ILLUMINATED PUSHBUTTONS.Flush *.BLACK 72
8 1 IDEC HW1B-V301-R NON-ILLUMINATED SPECIAL FUNCTION PUSHBUTTONS.Ø29 mm PUSHLOCK TURN RESET.RED 73
9 1 IDEC HW9Z-KG1 ESD PUSHBOTTON COVER 74
10 16 WEIDMULLER 1855610000 KNIFE DISCONNNECT TERMINAL WTR 2.5 75
11 16 WEIDMULLER 1020000000 FEED-THROUGH TERMINAL WDU 2.5 76
12 2 IDEC AVLW32211ED-R NON-ILLUMINATED SPECIAL FUNCTION PUSHBUTTONS. PUSHLOCK TURN RESET.+ LED PILOT LIGHTS.RED 77
13 2 IDEC HW9Z-KL1 PUSHBOTTON COVER 78
14 79
15 80
16 81
17 82
18 83
19 84
20 85
21 86
22 87
23 88
24 89
25 90
26 91
27 92
28 93
29 94
30 95
31 96
32 97
33 98
34 99
35 100
36 101
37 102
38 103
39 104
40 105
41 106
42 107
43 108
44 109
45 110
46 111
47 112
48 113
49 114
50 115
51 116
52 117
53
54
55
56
57
58
59
CNOOC
60
61
E:\Tri-sen\5.2339\0.Others\Tri-Sen Logo.png
62
63
64
65
B-B
A-A
C-C
CNOOC
MISSAN OIL FIELD DEVELOPMENT PROJECT E:\Tri-sen\5.2339\0.Others\Tri-Sen Logo.png
2 3 4
2 1 3
XL-622305A XL-622305B XL-622305R XL-622305D XL-622305C XL-622305E

READY TO START REMOTE RUNNING COMMON TRIP COMMON ALARM EMERGENCY
(W) (W) (G) (R) (R) (R)
A1 A2 A3 A4 A5 A6
HS-622305A HS-622305B BDV-622002 BDV-622003 HS-622305R HS-622305E

START NORMAL STOP E-BLOWDOWN E-BLOWDOWN RESET EMERGENCY STOP
(G) (R) (R) (R) (BK) (R)
A7 A8 A11 A12 A9 A10

5 8 9
1 1 1
7
6 1
1
12 13
2 2
CNOOC
10 11
16 16
TB-AOC
CNOOC
Terminals Terminals Position &
Cable Tag Cable Tag Type Tag Name
inside UCP inside AOC Terminations
TB-DO3 (13-24) TB-AOC
TB-DO3:13 / TB-AOC:1 TB-AOC:1 / A1-X1
13 13 1 1 X1 XL-622305A
TB-DO3:14 / TB-AOC:2 TB-AOC:2 / A1-X2 A1 WHITE LAMP
READY TO START LAMP
14 14 2 2 X2
15 15 3 3 X1 XL-622305B
TB-DO3:16 / TB-AOC:4 TB-AOC:4 / A2-X2 A2 WHITE LAMP
16 16 4 4 X2 REMOTE CONTROL LAMP
17 17 5 5 X1 XL-622305R
TB-DO3:18 / TB-AOC:6 TB-AOC:6 / A3-X2 A3 GREEN LAMP
COMPRESSOR RUNNING LAMP
18 18 6 6 X2
19 19 7 7 X1 XL-622305D
TB-DO3:20 / TB-AOC:8 TB-AOC:8 / A4-X2 A4 RED LAMP
20 20 8 8 X2 COMMON TRIP LAMP
21 21 9 9 X1 XL-622305C
TB-DO3:22 / TB-AOC:10 TB-AOC:10 / A5-X2 A5 RED LAMP
22 22 10 10 X2 COMMON ALARM LAMP
TB-DO3:23/ TB-AOC:11 TB-AOC:11 / A6-X1
23 23 11 11 X1 XL-622305E
TB-DO3:24/ TB-AOC:12 TB-AOC:12 / A6-X2 A6 RED LAMP
24 24 12 12 X2 EMERGENCY LAMP
TB-DI4 (11-18)
TB-DI4:11 / TB-AOC:13 TB-AOC:13 / A7-3
11 11 13 13 3 HS-622305A
TB-DI4:12 / TB-AOC:14 TB-AOC:14 / A7-4 A7 GREEN BUTTON
12 12 14 14 4 COMPRESSOR START
13 13 15 15 1 HS-622305B
TB-DI4:14 / TB-AOC:16 TB-AOC:16 / A8-2 A8 RED BUTTON
14 14 16 16 2 COMPRESSOR NORMAL STOP
15 15 17 17 3 HS-622305R
TB-DI4:16/ TB-AOC:18 TB-AOC:18 / A9-4 A9 BLACK BUTTON
16 16 18 18 4 TRIP RESET
17 17 19 19 1 HS-622305E
TB-DI4:18 / TB-AOC:20 TB-AOC:20 / A10-2 A10 RED BUTTON
18 18 20 20 2 EMERGENCY STOP
TBD
TBD / TB-AOC:21 TB-AOC:21 / A11-X1
# # 21 21 X1 BDL-622002
TBD / TB-AOC:22 TB-AOC:22 / A11-X2 RED LAMP
# # 22 22 X2 EMERGENCY STOP
TBD / TB-AOC:23 TB-AOC:23 / A11-1 A11
# # 23 23 1 BHS-622002
TBD / TB-AOC:24 TB-AOC:24 / A11-2 RED BUTTON
# # 24 24 2 EMERGENCY STOP
TBD / TB-AOC:25 TB-AOC:25 / A12-X1
# # 25 25 X1 BDL-622003
TBD / TB-AOC:26 TB-AOC:26 / A12-X2 RED LAMP
# # 26 26 X2 EMERGENCY STOP
TBD / TB-AOC:27 TB-AOC:27 / A12-1 A12
# # 27 27 1 BHS-622003
TBD / TB-AOC:28 TB-AOC:28 / A12-2 RED BUTTON
# # 28 28 2 EMERGENCY STOP
29 29
30 30
31 31
32 32
CNOOC
1 1 L L
MA30
2 2 N N
3 3 G G
13
14
5
9
L L
TSx CHA 1 TSx CHA 2
CNOOC
L
TSx CHA 3
CNOOC
1 1 L L
MA30
2 2 N N
3 3 G G
13
14
5
9
R R
TSx CHA 1 TSx CHA 2
CNOOC
R
TSx CHA 3
CNOOC
1 1 L L
MA30
2 2 N N
3 3 G G
13
14
5
9
L N
CNOOC
1 1A
2 1A
3 1A
4 1A
5 1A
6 1A
7 1A
8 1A
9 1A
10 1A
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
#A
CNOOC
L
N
L
N
L
N
1 1A
2 1A L
3 1A N
4 1A
5 1A
L
N
L
N
L
N
L
N
1 1
2 2
3 3 L
4 4 N
5 5
L
N
#A
CNOOC
14 9 1 1
13 5 2 2
14 9
13 5
CNOOC
CNOOC
CNOOC
CNOOC
CNOOC
14 9
13 5
14 9
13 5
CNOOC
CNOOC
CNOOC
CNOOC
108TX 108TX
15/16 15/16 15/16
7/8 7/8
13/14 13/14 13/14
5/6 5/6 11/12 11/12 11/12
3/4 3/4 9/10 9/10 9/10
1/2 1/2 7/8 7/8 7/8
5/6 5/6 5/6
3/4 3/4 3/4
1/2 1/2 1/2
CNOOC
CNOOC
1 1A 14 1 1A 14
2 1A 13 2 1A 13
3 1A 14 3 1A 14
4 1A 13 4 1A 13
14 14
5 1A 5 1A
13 13
6 1A 6 1A
14 14
7 1A 7 1A
13 13
8 1A 8 1A
14 14
9 1A 9 1A
13 13
10 1A 10 1A
14 14
11 1A 11 1A
13 13
12 1A 12 1A
14 14
13 1A 13 13 1A 13
14 1A 14 14 1A 14
15 1A 13 15 1A 13
16 1A 14 16 1A 14
17 1A 13 17 1A 13
18 1A 14 18 1A 14
19 1A 13 19 1A 13
20 1A 14 20 1A 14
21 1A 13 21 1A 13
14 14
22 1A 22 1A
13 13
23 1A 23 1A
14 14
24 1A 24 1A
13 13
25 1A 25 1A
14 14
26 1A 26 1A
13 13
27 1A 27 1A
14 14
28 1A 28 1A
13 13
29 1A 29 1A
14 14
30 1A 13
30 1A 13
31 1A 14 31 1A 14
32 1A 13 32 1A 13
14 14
13 13
14 14
13 13
1 1 1 1
14 14
2 2 13
2 2 13
3 3 14 3 3 14
4 4 13 4 4 13
5 5 14 5 5 14
6 6 13 6 6 13
7 7 14 7 7 14
8 8 13 8 8 13
9 9 14 9 9 14
10 10 13 10 10 13
11 11 14 11 11 14
13 13
12 12 12 12
14 14
13 13 13 13
13 13
14 14 14 14
14 14
15 15 15 15
13 13
16 16 16 16
17 17 17 17
18 18 18 18
19 19 19 19
20 20 20 20
21 21 21 21
22 22 22 22
23 23 23 23
24 24 24 24
25 25 25 25
26 26 26 26
27 27 27 27
28 28 28 28
29 29 29 29
30 30 30 30
31 31 31 31
32 32 32 32
CNOOC
#A
1 1A 14
2 1A 13
3 1A 14
4 1A 13
14
5 1A
13
6 1A
14
7 1A
13
8 1A
14
9 1A
13
10 1A
14
11 1A
13
12 1A
14
13 1A 13
14 1A 14
15 1A 13
16 1A 14
17 1A 13
18 1A 14
19 1A 13
20 1A 14
21 1A 13
14
22 1A
13
23 1A
14
24 1A
13
25 1A
14
26 1A
13
27 1A
14
28 1A
13
29 1A
14
30 1A 13
31 1A 14
32 1A 13
33 1A 14
13
14
13
1 1
14
2 2 13
3 3 14
4 4 13
5 5 14
6 6 13
7 7 14
8 8 13
9 9 14
10 10 13
11 11 14
13
12 12
14
13 13
13
14 14
14
15 15
13
16 16
14
17 17
13
18 18
14
19 19 13
20 20 14
21 21 13
22 22 14
23 23 13
24 24 14
25 25 13
26 26 14
27 27 13
28 28
29 29
30 30
31 31
32 32
33 33
CNOOC
#A
1 1A 14 1 1A 14
2 1A 13 2 1A 13
3 1A 14 3 1A 14
4 1A 13 4 1A 13
14 14
5 1A 5 1A
13 13
6 1A 6 1A
14 14
7 1A 7 1A
13 13
8 1A 8 1A
14 14
9 1A 9 1A
13 13
10 1A 10 1A
14 14
11 1A 11 1A
13 13
12 1A 12 1A
14 14
13 1A 13 13 1A 13
14 1A 14 14 1A 14
15 1A 13 15 1A 13
16 1A 14 16 1A 14
17 1A 13 17 1A 13
18 1A 14 18 1A 14
19 1A 13 19 1A 13
20 1A 14 20 1A 14
21 1A 13 21 1A 13
14 14
22 1A 22 1A
13 13
23 1A 23 1A
14 14
24 1A 24 1A
13 13
25 1A 25 1A
14 14
26 1A 26 1A
13 13
27 1A 27 1A
14 14
28 1A 28 1A
13 13
29 1A 29 1A
14 14
30 1A 13
30 1A 13
31 1A 14 31 1A 14
32 1A 13 32 1A 13
14 14
13 13
14 14
13 13
1 1 1 1
14 14
2 2 13
2 2 13
3 3 14 3 3 14
4 4 13 4 4 13
5 5 14 5 5 14
6 6 13 6 6 13
7 7 7 7 14
8 8 8 8 13
9 9 9 9 14
10 10 10 10 13
11 11 11 11 14
13
12 12 12 12
14
13 13 13 13
13
14 14 14 14
14
15 15 15 15
13
16 16 16 16
17 17 17 17
18 18 18 18
19 19 19 19
20 20 20 20
21 21 21 21
22 22 22 22
23 23 23 23
24 24 24 24
25 25 25 25
26 26 26 26
27 27 27 27
28 28 28 28
29 29 29 29
30 30 30 30
31 31 31 31
32 32 32 32
CNOOC
#A
TSx CHASSIS 1
L R
CNOOC
TSx CHASSIS 2
L R
CNOOC
TSx CHASSIS 3
L R
CNOOC
17 17
18 18
1 1 19 19
2 12 12 2
2 2 20 20
1 11 11 1
21 21
7 7
22 22
8 8 2 12 12 2
23 23
1 11 11 1
24 24
13 13
14 14 2 12 12 2
1 11 11 1
19 19
20 20 3 1 1
2 12 12
1 2 2
1 11 11
26 26 4 3 3
27 27 4 4
2 12
5 5
1 11
6 6
2 12
1 11
1 1
2 2
2 12
7 7 1 11
8 8
2 12
13 13
1 11
14 14
2 12
19 19
1 11
20 20
26 26 2 12
27 27 1 11
2 12
1 11
1 1 2 12
2 2 1 11
3 3
4 4 2 12
5 5 1 11
6 6
7 7 2 12
8 8 1 11
9 9
10 10 2 12
11 11 1 11
12 12
13 13 2 12
14 14 1 11
15 15
16 16 2 12
1 11
2 12
1 11
CNOOC
0.5A 1
1 1 1 1
2 2 12 2
2 2 2 2
3 3 11 1
3 3 4 4
0.5A 4
4 4 5 5
5 5 12 2
5 5 7 7
6 6 11 1
6 6 8 8
0.5A 7
7 7 10 10
8 8 12 2
8 8 11 11
9 9 11 1
9 9 13 13
0.5A 10
10 10 14 14
11 11 12 2
11 11 16 16
12 12 11 1
12 12 17 17
0.5A 13
13 13 19 19
14 14 12 2
20 20
15 15 11 1
22 22
0.5A 16
23 23
17 17
18 18
0.5A 19
20 20
21 21
0.5A 22
23 23
24 24
0.5A 25
26 26
27 27 31 0.5A
0.5A 28 32 32
29 29 33 33
30 30 34 0.5A
35 35
2 12 36 36
1 11 37 0.5A
38 38
2 12 39 39
1 11
2 12
1 11
2 12
1 11
1 1
2 2
2 12
3 3
1 11
4 4
2 12
1 11
1 1 2 12
2 2 1 11
4 4
5 5 2 12
7 7 1 11
8 8
10 10
11 11
13 13
14 14
16 16
17 17
19 19
20 20
22 22
23 23
26 26
27 27
29 29
30 30
47 47
48 48
CNOOC
#A
4 4
5 5
10 10 2 12 12 2
11 11 1 11 11 1
16 16 2 12
17 17 1 11
22 22
2 12
23 23
1 11
29 29
30 30 2 12
1 11
47 47
48 48 2 12
1 11
2 12
1 11
4 4
5 5
2 12
10 10 1 11
11 11
2 12
16 16
1 11
17 17
2 12
22 22
1 11
23 23
29 29 2 12
30 30 1 11
47 47
2 12
48 48 1 11
2 12
1 11
1 1
2 2 2 12
3 3 1 11
4 4
5 5 2 12
6 6 1 11
7 7
8 8 2 12
9 9 1 11
10 10
11 11 2 12
12 12 1 11
2 12
1 11
2 12
1 11
CNOOC
1 1 2 12 12 2
2 2 1 11 11 1
4 4
5 5 2 12
7 7 1 11
8 8
10 10 2 12
11 11 1 11
13 13
14 14 2 12
16 16 1 11
17 17
19 19 2 12
20 20 1 11
22 22
23 23 2 12
1 11
2 12
1 11
2 12
1 11
1 1
2 12
2 2
1 11
3 3
4 4
2 12
5 5
1 11
6 6
7 7
2 12
8 8
1 11
2 12
1 11
1 1
2 2 2 12
3 3 1 11
4 4
5 5 2 12
6 6 1 11
7 7
8 8 2 12
9 9 1 11
10 10
11 11 2 12
12 12 1 11
2 12
1 11
2 12
1 11
CNOOC
12 2 1 1
11 1 2 2
12 2 3 3
11 1 4 4
12 2 5 5
11 1 6 6
12 2 7 7
11 1 8 8
12 2 9 9
11 1 10 10
12 2 11 11
11 1 12 12
12 2 1 1
11 1 2 2
3 3
12 2 13 13 4 4
11 1 14 14
12 2 15 15
11 1 16 16
CNOOC
12 2 1 1
11 1 2 2
12 2 3 3
11 1 4 4
12 2 5 5
11 1 6 6
12 2 7 7
11 1 8 8
12 2 9 9
11 1 10 10
9 14 1 1A 1 1
5 13 1 1 2 2
9 14 2 1A 3 3
5 13 2 2 4 4
9 14 3 1A 5 5
5 13 3 3 6 6
9 14 4 1A 7 7
5 13 4 4 8 8
9 14 5 1A 9 9
5 13 5 5 10 10
9 14 6 1A 11 11
5 13 6 6 12 12
9 14 7 1A 13 13
5 13 7 7 14 14
9 14 8 1A 15 15
5 13 8 8 16 16
9 14 9 1A 17 17
5 13 9 9 18 18
9 14 10 1A 19 19
5 13 10 10 20 20
9 14 11 1A 21 21
5 13 11 11 22 22
9 14 12 1A 23 23
5 13 12 12 24 24
9 14 13 1A 25 25
5 13 13 13 26 26
9 14 14 1A 27 27
5 13 14 14 28 28
9 14 15 1A 29 29
5 13 15 15 30 30
9 14 16 1A 31 31
5 13 16 16 32 32
17 1A
17 17
18 1A
18 18
CNOOC
#A
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
11 11
12 12
13 13
14 14
15 15
16 16
17 17
18 18
19 19
20 20
9 14 1 1A 1 1
5 13 1 1 2 2
9 14 2 1A 3 3
5 13 2 2 4 4
9 14 3 1A 5 5
5 13 3 3 6 6
9 14 4 1A 7 7
5 13 4 4 8 8
9 14 5 1A 9 9
5 13 5 5 10 10
9 14 6 1A 11 11
5 13 6 6 12 12
9 14 7 1A 13 13
5 13 7 7 14 14
9 14 8 1A 15 15
5 13 8 8 16 16
9 14 9 1A 17 17
5 13 9 9 18 18
9 14 10 1A 19 19
5 13 10 10 20 20
9 14 11 1A 21 21
5 13 11 11 22 22
9 14 12 1A 23 23
5 13 12 12 24 24
9 14 13 1A 25 25
5 13 13 13 26 26
9 14 14 1A 27 27
5 13 14 14 28 28
9 14 15 1A 29 29
5 13 15 15 30 30
9 14 16 1A 31 31
5 13 16 16 32 32
CNOOC
9 14 1 1A 1 1
5 13 1 1 2 2
9 14 2 1A 3 3
5 13 2 2 4 4
9 14 3 1A 5 5
5 13 3 3 6 6
9 14 4 1A 7 7
5 13 4 4 8 8
9 14 5 1A 9 9
5 13 5 5 10 10
9 14 6 1A 11 11
5 13 6 6 12 12
9 14 7 1A 13 13
5 13 7 7 14 14
9 14 8 1A 15 15
5 13 8 8 16 16
9 14 9 1A 17 17
5 13 9 9 18 18
9 14 10 1A 19 19
5 13 10 10 20 20
9 14 11 1A 21 21
5 13 11 11 22 22
9 14 12 1A 23 23
5 13 12 12 24 24
9 14 13 1A 25 25
5 13 13 13 26 26
9 14 14 1A 27 27
5 13 14 14 28 28
9 14 15 1A 29 29
5 13 15 15 30 30
9 14 16 1A 31 31
5 13 16 16 32 32
9 14 17 1A 33 33
5 13 17 17 34 34
9 14 18 1A 35 35
5 13 18 18 36 36
9 14 19 1A 37 37
5 13 19 19 38 38
9 14 20 1A 39 39
5 13 20 20 40 40
9 14 21 1A 41 41
5 13 21 21 42 42
9 14 22 1A 43 43
5 13 22 22 44 44
9 14 23 1A 45 45
5 13 23 23 46 46
9 14 24 1A 47 47
5 13 24 24 48 48
9 14 25 1A 49 49
5 13 25 25 50 50
9 14 26 1A 51 51
5 13 26 26 52 52
9 14 27 1A 53 53
5 13 27 27 54 54
28 1A
28 28
29 1A
29 29
30 1A
30 30
31 1A
31 31
32 1A
32 32
CNOOC
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
11 11
12 12
13 13
14 14
15 15
16 16
17 17
18 18
19 19
20 20
21 21
22 22
23 23
24 24
25 25
26 26
27 27
28 28
29 29
30 30
31 31
32 32
33 33
34 34
35 35
36 36
37 37
38 38
39 39
40 40
41 41
42 42
43 43
44 44
45 45
46 46
47 47
48 48
49 49
50 50
51 51
52 52
53 53
54 54
55 55
56 56
57 57
58 58
59 59
60 60
61 61
62 62
63 63
64 64
CNOOC
1 1
2 2
3 3
1 1
2 2
3 3
1 1
2 2
3 3
1 1
2 2
3 3
CNOOC
14 9 1 1
13 5 2 2
14 9 3 3
13 5 4 4
14 9 5 5
13 5 6 6
14 9 7 7
13 5 8 8
14 9 9 9
13 5 10 10
14 9 11 11
13 5 12 12
14 9 13 13
13 5 14 14
14 9 15 15
13 5 16 16
14 9 17 17
13 5 18 18
14 9 19 19
13 5 20 20
14 9 21 21
13 5 22 22
14 9 23 23
13 5 24 24
14 9 25 25
13 5 26 26
14 9 27 27
13 5 28 28
14 9 29 29
13 5 30 30
14 9 31 31
13 5 32 32
14 9 33 29
13 5 34 34
14 9 35 35
13 5 36 36
CNOOC
#A
14 9 1 1
13 5 2 2
14 9 3 3
13 5 4 4
14 9 5 5
13 5 6 6
14 9 7 7
13 5 8 8
14 9 9 9
13 5 10 10
14 9 11 11
13 5 12 12
14 9 13 13
13 5 14 14
14 9 15 15
13 5 16 16
14 9 17 17
13 5 18 18
14 9 19 19
13 5 20 20
14 9 21 21
13 5 22 22
14 9 23 23
13 5 24 24
14 9 25 25
13 5 26 26
14 9 27 27
13 5 28 28
14 9 29 29
13 5 30 30
14 9 31 31
13 5 32 32
CNOOC
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
11 11
12 12
13 13
14 14
15 15
16 16
17 17
18 18
19 19
20 20
21 21
22 22
23 23
24 24
25 25
26 26
27 27
28 28
29 29
30 30
31 31
32 32
33 33
34 34
35 35
36 36
37 37
38 38
39 39
40 40
41 41
42 42
CNOOC
A1 13 1 1
A2
SR-01 14 2 2
A1 13 3 3
A2
SR-02 14 4 4
A1 13 5 5
A2
SR-03 14 6 6
14 9 1 2A 1 1
13 5 1 1 2 2
14 9 2 2A 3 3
13 5 2 2 4 4
14 9 3 2A 5 5
13 5 3 3 6 6
14 9 4 2A 7 7
13 5 4 4 8 8
14 9 5 2A 9 9
13 5 5 5 10 10
14 9 6 2A 11 11
13 5 6 6 12 12
14 9 7 2A 13 13
13 5 7 7 14 14
14 9 8 2A 15 15
13 5 8 8 16 16
9 2A
9 9
10 2A
10 10
12 2 1 1
11 1 2 2
12 2 3 3
11 1 4 4
12 2 5 5
11 1 6 6
12 2 7 7
11 1 8 8
12 2 9 9
11 1 10 10
CNOOC
#A
AC POWER SUPPLY
SUPPLY OK
AC POWER SUPPLY
SUPPLY OK
CNOOC
HIGH VOLTAGE
AC PIM
175-264 VAC
2.3A, 47-63Hz
F
U
S
E
250V/6.25A SB
POWER
LINE
NEUT
GND
HIGH VOLTAGE
AC PIM
175-264 VAC
2.3A, 47-63Hz
F
U
S
E
250V/6.25A SB
POWER
LINE
NEUT
GND
CNOOC
TRANSIENT
DATA
INTERFACE
I/O MODULE
NC
ARM
NO
OK RELAY
10/100 TX
SYSTEM
CONTACTS
COM
TM
COM
INHB
COM
RST
SHIELD
CNOOC
KEYPHASOR
I/O MODULE
CH1
PWR
1 19 19
COM 12
3 20 20
KPH 11
2 21 21
SHLD
CH 2
PWR
1 13 13
COM 12
3 14 14
KPH 11
2 15 15
SHLD
BUFFERED KPH
BUF1
COM
BUF2
COM
COVER PLATE
CNOOC
PROXIMITOR
I/O MODULE
PWR
1 7 7
COM CH1
12
3 8 8
SIG 11
2 9 9
SHLD
PWR
1 10 10
COM CH2
12
3 11 11
SIG 11
2 12 12
SHLD
PWR
1 13 13
COM CH3
12
3 14 14
SIG 11
2 15 15
SHLD
PWR
1 16 16
COM CH4
12
3 17 17
SIG 11
2 18 18
SHLD
INHB
RET
SHLD
SHIELD
CNOOC
PROXIMITOR
I/O MODULE
PWR
1 7 7
COM CH1
12
3 8 8
SIG 11
2 9 9
SHLD
PWR
1 10 10
COM CH2
12
3 11 11
SIG 11
2 12 12
SHLD
PWR
1 13 13
COM CH3
12
3 14 14
SIG 11
2 15 15
SHLD
PWR
1 16 16
COM CH4
12
3 17 17
SIG 11
2 18 18
SHLD
INHB
RET
SHLD
SHIELD
CNOOC
PROXIMITOR
I/O MODULE
PWR
1 7 7
COM CH1
12
3 8 8
SIG 11
2 9 9
SHLD
PWR
1 10 10
COM CH2
12
3 11 11
SIG 11
2 12 12
SHLD
PWR
1 1 1
COM CH3
12
3 2 2
SIG 11
2 3 3
SHLD
PWR
1 4 4
COM CH4
12
3 5 5
SIG 11
2 6 6
SHLD
INHB
RET
SHLD
SHIELD
CNOOC
PROXIMITOR
I/O MODULE
PWR
1 1 1
COM CH1
12
3 2 2
SIG 11
2 3 3
SHLD
PWR
1 4 4
COM CH2
12
3 5 5
SIG 11
2 6 6
SHLD
PWR
1 7 7
COM CH3
12
3 8 8
SIG 11
2 9 9
SHLD
PWR
1 10 10
COM CH4
12
3 11 11
SIG 11
2 12 12
SHLD
INHB
RET
SHLD
SHIELD
CNOOC
PROXIMITOR
I/O MODULE
PWR
1 1 1
COM CH1
12
3 2 2
SIG 11
2 3 3
SHLD
PWR
1 4 4
COM CH2
12
3 5 5
SIG 11
2 6 6
SHLD
PWR
1 1 1
COM CH3
12
3 2 2
SIG 11
2 3 3
SHLD
PWR
1 4 4
COM CH4
12
3 5 5
SIG 11
2 6 6
SHLD
INHB
RET
SHLD
SHIELD
CNOOC
1 1
2 2
3 3
5 5
6 6
TEMPERATURE 7 7
I/O MODULE
9 9
B 12 3
10 10
C CH1
11 1
11 11
D 9 4
SHLD
13 13
B 12 3
14 14
C CH2
11 1
15 15
D 9 4
SHLD 34 34
B 12 3 35 35
C CH3
11 1 36 36
D 9 4
SHLD 38 38
B 12 3 39 39
C 11 1 40 40
CH4
D 9 4
42 42
SHLD
43 43
B 12 3
44 44
C CH5
11 1
D 9 4 46 46
SHLD 47 47
B 12 3 48 48
C CH6
11 1
D 9 4
SHLD
B 12 3
C CH7
11 1
D 9 4 1 1
SHLD 2 2
B 12 3 3 3
C CH8
11 1
D 9 4 5 5
SHLD 6 6
7 7
B 12 3
C CH9
11 1
9 9
D 9 4
10 10
SHLD
11 11
B 12 3
C CH10
11 1
13 13
D 9 4
14 14
SHLD 15 15
B 12 3
C 11 1 34 34
CH11
D 9 4 35 35
SHLD 36 36
B 12 3
38 38
C CH12
11 1
39 39
D 9 4
40 40
SHLD
B 12 3
42 42
C CH13
11 1 43 43
D 9 4
44 44
SHLD
B 12 3 46 46
C CH14
11 1 47 47
D 9 4 48 48
SHLD
B 12 3
C CH15
11 1
D 9 4
SHLD
B 12 3
C CH16
11 1
D 9 4
SHLD
CNOOC
17 17
18 18
TEMPERATURE
19 19
I/O MODULE
B 12 3 21 21
C CH1
11 1 22 22
D 9 4 23 23
SHLD
B 12 3 50 50
C CH2
11 1
51 51
D 9 4
52 52
SHLD
B 12 3 54 54
C CH3
11 1 55 55
D 9 4 56 56
SHLD
B 12 3
C CH4
11 1
D 9 4
SHLD
B 12 3 1 1
C CH5
11 1 2 2
D 9 4 3 3
SHLD
B 12 3 4 4
C CH6
11 1 5 5
D 9 4 6 6
SHLD
B 12 3 7 7
C CH7
11 1 8 8
D 9 4 9 9
SHLD
B 12 3 10 10
C CH8
11 1 11 11
D 9 4 12 12
SHLD
B 12 3 13 13
C CH9
11 1 14 14
D 9 4 15 15
SHLD
B 12 3 16 16
C CH10
11 1 17 17
D 9 4 18 18
SHLD
B 12 3 19 19
C CH11
11 1 20 20
D 9 4 21 21
SHLD
B
C CH12
D
SHLD
B
C CH13
D
SHLD
B
C CH14
D
SHLD
B
C CH15
D
SHLD
B
C CH16
D
SHLD
CNOOC
COMM GATEWAY
I/O MODULE
RS485
MODBUS 1
HOST
RACK
RX- BISA
RX+ BISA
RX TERM
TX TERM
MODBUS 2
HOST
RACK
RX- BISA
RX+ BISA
RX TERM
TX TERM
CNOOC
16-CHANNEL
RELAY MODULE
NC
ARM CH1
NO
NC
ARM CH2
NO
NC
ARM CH3
NO
NC
ARM CH4
NO
NC
ARM CH5
NO
NC
ARM CH6
NO
NC
ARM CH7
NO
NC
ARM CH8
NO
NC
ARM CH9
NO
NC
ARM CH10
NO
NC
ARM CH11
NO
NC
ARM CH12
NO
NC
ARM CH13
NO
NC
ARM CH14
NO
NC
ARM CH15
NO
NC
ARM CH16
NO
SHIELD
CNOOC
16-CHANNEL
RELAY MODULE
NC
ARM CH1
NO
NC
ARM CH2
NO
NC
ARM CH3
NO
NC
ARM CH4
NO
NC
ARM CH5
NO
NC
ARM CH6
NO
NC
ARM CH7
NO
NC
ARM CH8
NO
NC
ARM CH9
NO
NC
ARM CH10
NO
NC
ARM CH11
NO
NC
ARM CH12
NO
NC
ARM CH13
NO
NC
ARM CH14
NO
NC
ARM CH15
NO
NC
ARM CH16
NO
SHIELD
CNOOC
TSx CHASSIS
COMM
CP
CP
AO
DO
DO
NP
AI
AI
AI
AI
L
108TX 108TX
7 8 7 8
5 6 5 6
3 4 3 4
1 2 1 2
TSx CHASSIS
CP
CP
AO
DO
DO
NP
AI
AI
AI
AI
DI
DI
DI
DI
DI
11
13
15
11
13
15
11
13
15
1
9
10
12
14
16
10
12
14
16
10
12
14
16
2
8
TSx CHASSIS
COMM
CP
CP
DO
DO
DO
DO
DI
DI
DI
DI
DI
CNOOC
CNOOC
CNOOC
CNOOC
CNOOC
CNOOC
CNOOC-Missan Oil Field Development Project Control System HMI Screens
Control System HMI Screens

C-621001
Document Title: Control System HMI Screens
Revision: 4
Approved By: YeeChiang Cheng
Page 1 of 1
Control System Communication List
C-621001
Document Title: Control System Communication List
Revision: 3
Approved By:

Modbus Mapping - Index and Settings
SHEET DESCRIPTION REV REVISION HISTORY

1 COVER 0 FIRST ISSUE FOR APPROVAL
2 INDEX AND VERSION INF 1 UPDATE PER LATEST LOGIC
3 MODBUS CONFIGURATION 2 UPDATE PER LATEST LOGIC
4 INT READ FROM BENTLY 3 UPDATE FOR APPROVAL
8 FLOAT READ ONLY BY DCS
15 INT READ ONLY BY DCS

Doc No.: TS2457-1407005-401
Revision: 3 Page 2 of 35
Date: 09/03/2015
Modbus Mapping - Index and Settings
MODBUS MODULES CONFIGURATIONS

DEVICES: DCS TSx BENTLY
PORT: - C1S12-J1/C3S0-J1 -
ROLE: MASTER SLAVE -
PRRMARY ADDRESS : 192.168.1.101 192.168.1.31 -
SECONDARY ADDRESS: 192.168.1.102 192.168.1.32 -
SUBNET MASK: 255.255.255.0 255.255.255.0 -
PORT: - C1S12-J2/C3S0-J2 SLOT 10

ROLE: - MASTER SLAVE
PRRMARY ADDRESS : - 192.168.1.41 192.168.1.51
SECONDARY ADDRESS: - 192.168.1.42 192.168.1.52
SUBNET MASK: - 255.255.255.0 255.255.255.0
Bently 3500 Channel State Integer Unpack Description

DATA ADDRESS Variable Description Data Type
Bit 0 Channel not OK Int (Bit)
Bit 1 Channel Alert/Alarm1 Int (Bit)
Bit 2 Channel Danger/ Alarm Int (Bit)
Bit 3 Channel in Bypass Int (Bit)
Bit 4 Undefined Int (Bit)

Doc No.: TS2457-1407005-401
Date: 09/03/2015
Modbus Mapping - Bently 3500 Rack 1
Rev Address Tag Name Slo Pts Channel Type Description Type
t
0 46000 KT-622302 2 1 Keyphasor PINION SHAFT KEYPHASOR Float
0 46001 KT-622301 2 2 Keyphasor GEAR SHAFT KEYPHASOR Float
0 46002 - 2 3 Keyphasor Float
0 46003 VT-622307X 3 1 Radial COMP. RADIALVIBRATION X (DE) Float
0 46004 VT-622307Y 3 2 Radial COMP. RADIALVIBRATION Y (DE) Float
0 46005 VT-622308X 3 3 Radial COMP. RADIALVIBRATION X (NDE) Float
0 46006 VT-622308Y 3 4 Radial COMP. RADIALVIBRATION Y (NDE) Float
0 46007 VT-622305X 4 1 Radial PINION SHAFT RADIALVIBRATION X (DE) Float
0 46008 VT-622305Y 4 2 Radial PINION SHAFT RADIALVIBRATION Y (DE) Float
0 46009 VT-622306X 4 3 Radial PINION SHAFT RADIALVIBRATION X (NDE) Float
0 46010 VT-622306Y 4 4 Radial PINION SHAFT RADIALVIBRATION Y (NDE) Float
0 46011 VT-622303X 5 1 Radial GEAR SHAFT VIBRATION X (DE) Float
0 46012 VT-622303Y 5 2 Radial GEAR SHAFT VIBRATION Y (DE) Float
0 46013 VT-622304X 5 3 Radial GEAR SHAFT VIBRATION X (NDE) Float
0 46014 VT-622304Y 5 4 Radial GEAR SHAFT VIBRATION Y (NDE) Float
0 46015 VT-622302X 6 1 Radial MOTOR SHAFT VIBRATION X (CPL) Float
0 46016 VT-622302Y 6 2 Radial MOTOR SHAFT VIBRATION Y (CPL) Float
0 46017 VT-622301X 6 3 Radial MOTOR SHAFT VIBRATION X (ANTI-CPL) Float
0 46018 VT-622301Y 6 4 Radial MOTOR SHAFT VIBRATION Y (ANTI-CPL) Float
0 46019 ZT-622302A 7 1 Axial COMP. AXIAL DISPLACEMENT A Float
0 46020 ZT-622302B 7 2 Axial COMP. AXIAL DISPLACEMENT B Float
0 46021 ZT-622301A 7 3 Axial GEAR AXIAL DISPLACEMENTA Float
0 46022 ZT-622301B 7 4 Axial GEAR AXIAL DISPLACEMENTB Float
0 46023 TE-622320A 8 1 RTD COMP. JOURNAL BEARING TEMP.(DE) Float
0 46024 TE-622321A 8 2 RTD COMP. JOURNAL BEARING TEMP.(DE) Float
0 46025 TE-622322A 8 3 RTD COMP. JOURNAL BEARING TEMP.(NDE) Float
0 46026 TE-622323A 8 4 RTD COMP. JOURNAL BEARING TEMP.(NDE) Float
0 46027 TE-622326A 8 5 RTD COMP. THRUST BEARING TEMP. (ACT) Float
0 46028 TE-622327A 8 6 RTD COMP. THRUST BEARING TEMP. (ACT) Float
0 46029 TE-622324A 8 7 RTD COMP. THRUST BEARING TEMP. (IN-ACT) Float
0 46030 TE-622325A 8 8 RTD COMP. THRUST BEARING TEMP. (IN-ACT) Float
0 46031 TE-622316A 8 9 RTD PINION JOURNAL BEARING TEMP. Float
0 46032 TE-622317A 8 10 RTD PINION JOURNAL BEARING TEMP. Float
0 46033 TE-622318A 8 11 RTD PINION JOURNAL BEARING TEMP. (NDE) Float
0 46034 TE-622319A 8 12 RTD PINION JOURNAL BEARING TEMP. (NDE) Float
0 46035 TE-622308A 8 13 RTD GEAR JOURNAL BEARING TEMP. (DE) Float
0 46036 TE-622309A 8 14 RTD GEAR JOURNAL BEARING TEMP. (DE) Float
0 46037 TE-622310A 8 15 RTD GEAR JOURNAL BEARING TEMP. (NDE) Float
0 46038 TE-622311A 8 16 RTD GEAR JOURNAL BEARING TEMP. (NDE) Float

Doc No.: TS2457-1407005-401
Date: 09/03/2015
t
0 46039 TE-622314A 9 1 RTD GEAR THRUST BEARING TEMP. (ACT) Float
0 46040 TE-622315A 9 2 RTD GEAR THRUST BEARING TEMP. (ACT) Float
0 46041 TE-622312A 9 3 RTD GEAR THRUST BEARING TEMP. (IN-ACT) Float
0 46042 TE-622313A 9 4 RTD GEAR THRUST BEARING TEMP. (IN-ACT) Float
0 46043 TE-622303A 9 5 RTD MOTOR JOURNAL BEARING TEMP. (CPL) Float
0 46044 TE-622304A 9 6 RTD MOTOR JOURNAL BEARING TEMP. (CPL) Float
0 46045 TE-622301A 9 7 RTD MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) Float
0 46046 TE-622302A 9 8 RTD MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) Float
0 46047 TE-622305 9 9 RTD MOTOR WINDING TEMP. (U) Float
0 46048 TE-622306 9 10 RTD MOTOR WINDING TEMP. (V) Float
0 46049 TE-622307 9 11 RTD MOTOR WINDING TEMP. (W) Float
0 46050 - - - - - Float
0 46051 - - - - - Float
0 46052 - - - - - Float
0 46053 - - - - - Float
0 46054 - - - - - Float
0 46055 - - - - - Float
0 46056 - - - - - Float
0 46057 - - - - - Float
0 46058 - - - - - Float
0 46059 - - - - - Float
0 46060 - - - - - Float
0 46061 - - - - - Float
0 46062 - - - - - Float
0 46063 TDI_S 1 - TDI BN RACK SLOT 1 MODULE STATE Int
0 46064 KT-622302_S 2 1 Keyphasor PINION SHAFT KEYPHASOR STATE Int
0 46065 KT-622301_S 2 2 Keyphasor GEAR SHAFT KEYPHASOR STATE Int
0 46066 - 2 3 Keyphasor Int
0 46067 - 2 4 Keyphasor Int
0 46068 VT-622307X_S 3 1 Radial COMP. RADIALVIBRATION X (DE) STATE Int
0 46069 VT-622307Y_S 3 2 Radial COMP. RADIALVIBRATION Y (DE) STATE Int
0 46070 VT-622308X_S 3 3 Radial COMP. RADIALVIBRATION X (NDE) STATE Int
0 46071 VT-622308Y_S 3 4 Radial COMP. RADIALVIBRATION Y (NDE) STATE Int
0 46072 VT-622305X_S 4 1 Radial PINION SHAFT RADIALVIBRATION X (DE) STATE Int
0 46073 VT-622305Y_S 4 2 Radial PINION SHAFT RADIALVIBRATION Y (DE) STATE Int
0 46074 VT-622306X_S 4 3 Radial PINION SHAFT RADIALVIBRATION X (NDE) STATE Int
0 46075 VT-622306Y_S 4 4 Radial PINION SHAFT RADIALVIBRATION Y (NDE) STATE Int
0 46076 VT-622303X_S 5 1 Radial GEAR SHAFT VIBRATION X (DE) STATE Int
0 46077 VT-622303Y_S 5 2 Radial GEAR SHAFT VIBRATION Y (DE) STATE Int
0 46078 VT-622304X_S 5 3 Radial GEAR SHAFT VIBRATION X (NDE) STATE Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015
t
0 46079 VT-622304Y_S 5 4 Radial GEAR SHAFT VIBRATION Y (NDE) STATE Int
0 46080 VT-622302X_S 6 1 Radial MOTOR SHAFT VIBRATION X (CPL) STATE Int
0 46081 VT-622302Y_S 6 2 Radial MOTOR SHAFT VIBRATION Y (CPL) STATE Int
0 46082 VT-622301X_S 6 3 Radial MOTOR SHAFT VIBRATION X (ANTI-CPL) STATE Int
0 46083 VT-622301Y_S 6 4 Radial MOTOR SHAFT VIBRATION Y (ANTI-CPL) STATE Int
0 46084 ZT-622302A_S 7 1 Axial COMP. AXIAL DISPLACEMENT A STATE Int
0 46085 ZT-622302B_S 7 2 Axial COMP. AXIAL DISPLACEMENT B STATE Int
0 46086 ZT-622301A_S 7 3 Axial GEAR AXIAL DISPLACEMENTA STATE Int
0 46087 ZT-622301B_S 7 4 Axial GEAR AXIAL DISPLACEMENTB STATE Int
0 46088 TE-622320A_S 8 1 RTD COMP. JOURNAL BEARING TEMP.(DE) STATE Int
0 46089 TE-622321A_S 8 2 RTD COMP. JOURNAL BEARING TEMP.(DE) STATE Int
0 46090 TE-622322A_S 8 3 RTD COMP. JOURNAL BEARING TEMP.(NDE) STATE Int
0 46091 TE-622323A_S 8 4 RTD COMP. JOURNAL BEARING TEMP.(NDE) STATE Int
0 46092 TE-622326A_S 8 5 RTD COMP. THRUST BEARING TEMP. (ACT) STATE Int
0 46093 TE-622327A_S 8 6 RTD COMP. THRUST BEARING TEMP. (ACT) STATE Int
0 46094 TE-622324A_S 8 7 RTD COMP. THRUST BEARING TEMP. (IN-ACT) STATE Int
0 46095 TE-622325A_S 8 8 RTD COMP. THRUST BEARING TEMP. (IN-ACT) STATE Int
0 46096 TE-622316A_S 8 9 RTD PINION JOURNAL BEARING TEMP. STATE Int
0 46097 TE-622317A_S 8 10 RTD PINION JOURNAL BEARING TEMP. STATE Int
0 46098 TE-622318A_S 8 11 RTD PINION JOURNAL BEARING TEMP. (NDE) STATE Int
0 46099 TE-622319A_S 8 12 RTD PINION JOURNAL BEARING TEMP. (NDE) STATE Int
0 46100 TE-622308A_S 8 13 RTD GEAR JOURNAL BEARING TEMP. (DE) STATE Int
0 46101 TE-622309A_S 8 14 RTD GEAR JOURNAL BEARING TEMP. (DE) STATE Int
0 46102 TE-622310A_S 8 15 RTD GEAR JOURNAL BEARING TEMP. (NDE) STATE Int
0 46103 TE-622311A_S 8 16 RTD GEAR JOURNAL BEARING TEMP. (NDE) STATE Int
0 46104 TE-622314A_S 9 1 RTD GEAR THRUST BEARING TEMP. (ACT) STATE Int
0 46105 TE-622315A_S 9 2 RTD GEAR THRUST BEARING TEMP. (ACT) STATE Int
0 46106 TE-622312A_S 9 3 RTD GEAR THRUST BEARING TEMP. (IN-ACT) STATE Int
0 46107 TE-622313A_S 9 4 RTD GEAR THRUST BEARING TEMP. (IN-ACT) STATE Int
0 46108 TE-622303A_S 9 5 RTD MOTOR JOURNAL BEARING TEMP. (CPL) STATE Int
0 46109 TE-622304A_S 9 6 RTD MOTOR JOURNAL BEARING TEMP. (CPL) STATE Int
0 46110 TE-622301A_S 9 7 RTD MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) STATE Int
0 46111 TE-622302A_S 9 8 RTD MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) STATE Int
0 46112 TE-622305_S 9 9 RTD MOTOR WINDING TEMP. (U) STATE Int
0 46113 TE-622306_S 9 10 RTD MOTOR WINDING TEMP. (V) STATE Int
0 46114 TE-622307_S 9 11 RTD MOTOR WINDING TEMP. (W) STATE Int
0 46115 - 9 12 RTD - Int
0 46116 - 9 13 RTD - Int
0 46117 - 9 14 RTD - Int
0 46118 - 9 15 RTD - Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015
Modbus Mapping - DCS Float Read Only
Rev Address Tag Name Description Type

0 40001 PI-622351A COMP 1ST SUCTION PRESS. Float
0 40003 TI-622351A COMP 1ST SUCTION TEMP. Float
0 40005 PI-622352A COMP 1ST DISCHARGE PRESS. Float
0 40007 TI-622352A COMP 1ST DISCHARGE TEMP. Float
0 40009 FI-622352A COMP 1ST DISCHARGE FLOW. Float
0 40011 PI-622353A COMP 2ND SUCTION PRESS. Float
0 40013 TI-622353A COMP 2ND SUCTION TEMP. Float
0 40015 PI-622354A COMP 2ND DISCHARGE PRESS. Float
0 40017 TI-622354A COMP 2ND DISCHARGE TEMP. Float
0 40019 FI-622354A COMP 2ND DISCHARGE FLOW. Float
0 40021 LI-622002 1ST SUCTION DRUM LEVEL (FOR TRIP) Float
0 40023 LI-622012 2ND SUCTION DRUM LEVEL (FOR TRIP) Float
0 40025 LI-622022 SEPARATOR DRUM LEVEL (FOR TRIP) Float
0 40027 LI-622001 1ST SUCTION DRUM LEVEL Float
0 40029 LI-622003 1ST SUCTION DRUM LEVEL Float
0 40031 LI-622011 2ND SUCTION DRUM LEVEL Float
0 40033 LI-622013 2ND SUCTION DRUM LEVEL Float
0 40035 LI-622021 SEPARATION DRUM LEVEL Float
0 40037 LI-622023 SEPARATION DRUM LEVEL Float
0 40039 - - Float
0 40041 - - Float
0 40043 - - Float
0 40045 - - Float
0 40047 - - Float
0 40049 - - Float
0 40051 - - Float
0 40053 - - Float
0 40055 - - Float
0 40057 - - Float
0 40059 - - Float
0 40061 - - Float
0 40063 - - Float
0 40065 GI-622001 COMBUSTIBLE GAS DETECTOR (NEAR COMP.) Float
0 40067 GI-622002 COMBUSTIBLE GAS DETECTOR (NEAR 1ST SUCTION DRUM) Float
0 40069 GI-622003 COMBUSTIBLE GAS DETECTOR (NEAR 2ND SUCTION DRUM) Float
0 40071 GI-622004 COMBUSTIBLE GAS DETECTOR (NEAR SEPARATOR DRUM) Float
0 40073 GI-622005 COMBUSTIBLE GAS DETECTOR (NEAR 1ST GAS COOLER) Float
0 40075 GI-622006 TOXIC GAS DETECTOR (NEAR COMP.) Float
0 40077 GI-622007 TOXIC GAS DETECTOR (NEAR 1ST SUCTION DRUM) Float
0 40079 GI-622008 TOXIC GAS DETECTOR (NEAR 2ND SUCTION DRUM) Float

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 40081 GI-622009 TOXIC GAS DETECTOR (NEAR SEPARATOR DRUM) Float
0 40083 GI-622010 TOXIC GAS DETECTOR (NEAR 1ST GAS COOLER) Float
0 40085 FZI-622301 1ST ANTI-SURGE VALVE TRANSMITTER Float
0 40087 FZI-622302 2ND ANTI-SURGE VALVE TRANSMITTER Float
0 40089 PDI-622341 SEAL GAS FILTER DIFF.PRESS. Float
0 40091 PDI-622342 BUFFER GAS FILTER DIFF.PRESS. Float
0 40093 PI-622342 PRIMARY LEAKAGE PRESS. (DE) Float
0 40095 PI-622343 PRIMARY LEAKAGE PRESS. (NDE) Float
0 40097 PI-622344A PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) Float
0 40099 PI-622345A PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) Float
0 40101 PI-622332A L/O HEADER PRESS. (FOR TRIP) Float
0 40103 PI-622331 L/O HEADER PRESS. Float
0 40105 PI-622341 BRG. SEPARATION GAS SUPPLY PRESS. Float
0 40107 PDI-622343 SEAL GAS DIFF.PRESS. Float
0 40109 TI-622341 S/G SUPPLY TEMP. Float
0 40111 GI-622011 TOXIC GAS DETECTOR Float
0 40117 - - Float
0 40119 - - Float
0 40121 - - Float
0 40123 - - Float
0 40125 - - Float
0 40127 - - Float
0 40129 PI-622351B COMP 1ST SUCTION PRESS. Float
0 40131 TI-622351B COMP 1ST SUCTION TEMP. Float
0 40133 PI-622352B COMP 1ST DISCHARGE PRESS. Float
0 40135 TI-622352B COMP 1ST DISCHARGE TEMP. Float
0 40137 FI-622352B COMP 1ST DISCHARGE FLOW. Float
0 40139 PI-622353B COMP 2ND SUCTION PRESS. Float
0 40141 TI-622353B COMP 2ND SUCTION TEMP. Float
0 40143 PI-622354B COMP 2ND DISCHARGE PRESS. Float
0 40145 TI-622354B COMP 2ND DISCHARGE TEMP. Float
0 40147 FI-622354B COMP 2ND DISCHARGE FLOW. Float
0 40149 PI-622005 DISCHARGE NGL SEPERATOR TANK PRESS. Float
0 40151 LI-622004 V‐621004 DRUM LEVEL Float
0 40153 LI-622031 NGL SEPERATOR DRUM LEVEL Float
0 40155 LI-622033 NGL SEPERATOR DRUM LEVEL Float
0 40157 PI-622004 DISCHARGE PRESSURE Float
0 40159 - - Float

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 40161 PI-622344B PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) Float
0 40163 PI-622345B PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) Float
0 40165 PI-622332B L/O HEADER PRESS. (FOR TRIP) Float
0 40167 - - Float
0 40169 - - Float
0 40171 - - Float
0 40173 - - Float
0 40175 - - Float
0 40177 - - Float
0 40179 - - Float
0 40181 - - Float
0 40183 - - Float
0 40185 - - Float
0 40187 - - Float
0 40189 - - Float
0 40191 - - Float
0 40193 PDI-622321 L/O FILTER DIFF. PRESS Float
0 40195 TI-622330 L/O RESERVOIR TEMP. Float
0 40197 LI-622321 L/O RESERVOIR LEVEL Float
0 40199 LI-622331 L/O RUNDOWN TANK LEVEL Float
0 40201 TI-622331 L/O COOLER OUTLET TEMP. Float
0 40203 - - Float
0 40205 - - Float
0 40207 - - Float
0 40209 CMSI-622001 VSDS SPEED F/B Float
0 40211 II-622320 VSDS CURRENT F/B Float
0 40213 JI-622320 VSDS POWER F/B Float
0 40215 - - Float
0 40217 - - Float
0 40219 - - Float
0 40221 - - Float
0 40223 - - Float
0 40225 PI-622344C PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) Float
0 40227 PI-622345C PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) Float
0 40229 PI-622332C L/O HEADER PRESS. (FOR TRIP) Float
0 40231 - - Float
0 40233 - - Float
0 40235 - - Float
0 40237 - - Float
0 40239 - - Float

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 40241 - - Float
0 40243 - - Float
0 40245 - - Float
0 40247 - - Float
0 40249 - - Float
0 40251 - - Float
0 40253 - - Float
0 40255 - - Float
0 40257 FV-622301 1ST ANTI-SURGE CONTROL VALVE POSITION Float
0 40259 FV-622302 2ND ANTI-SURGE CONTROL VALVE POSITION Float
0 40261 Float
0 40263 LV-622011 2ND SUCTION DRUM DRAIN CONTROL VALVE POSITION Float
0 40265 LV-622021 SEPARATION DRUM DRAIN CONTROL VALVE POSITION Float
0 40267 PDCV-622343 S/G PRESSURE CONTROL VALVE POSITION Float
0 40269 SIC-622340 MAIN MOTOR REMOTE SPEED REFERENCE Float
0 40271 PV-622005 DISCHARGE NGL SEPERATOR VALVE POSITION Float
0 40273 LV-622031 EXPORT PUMP OUTPUT VALUE CONTROL Float
0 40275 - - Float
0 40277 - - Float
0 40279 - - Float
0 40281 - - Float
0 40283 - - Float
0 40285 - - Float
0 40287 - - Float
0 40289 KI-622301 GEAR SHAFT KEYPHASOR Float
0 40291 KI-622302 PINION SHAFT KEYPHASOR Float
0 40293 - Float
0 40295 - Float
0 40297 VT-622307X COMP. RADIALVIBRATION X (DE) Float
0 40299 VT-622307Y COMP. RADIALVIBRATION Y (DE) Float
0 40301 VT-622308X COMP. RADIALVIBRATION X (NDE) Float
0 40303 VT-622308Y COMP. RADIALVIBRATION Y (NDE) Float
0 40305 VT-622305X PINION SHAFT RADIALVIBRATION X (DE) Float
0 40307 VT-622305Y PINION SHAFT RADIALVIBRATION Y (DE) Float
0 40309 VT-622306X PINION SHAFT RADIALVIBRATION X (NDE) Float
0 40311 VT-622306Y PINION SHAFT RADIALVIBRATION Y (NDE) Float
0 40313 VT-622303X GEAR SHAFT VIBRATION X (DE) Float
0 40315 VT-622303Y GEAR SHAFT VIBRATION Y (DE) Float
0 40317 VT-622304X GEAR SHAFT VIBRATION X (NDE) Float
0 40319 VT-622304Y GEAR SHAFT VIBRATION Y (NDE) Float

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 40321 VT-622302X MOTOR SHAFT VIBRATION X (CPL) Float
0 40323 VT-622302Y MOTOR SHAFT VIBRATION Y (CPL) Float
0 40325 VT-622301X MOTOR SHAFT VIBRATION X (ANTI-CPL) Float
0 40327 VT-622301Y MOTOR SHAFT VIBRATION Y (ANTI-CPL) Float
0 40329 ZT-622302A COMP. AXIAL DISPLACEMENT A Float
0 40331 ZT-622302B COMP. AXIAL DISPLACEMENT B Float
0 40333 ZT-622301A GEAR AXIAL DISPLACEMENTA Float
0 40335 ZT-622301B GEAR AXIAL DISPLACEMENTB Float
0 40337 TE-622320A COMP. JOURNAL BEARING TEMP.(DE) Float
0 40339 TE-622321A COMP. JOURNAL BEARING TEMP.(DE) Float
0 40341 TE-622322A COMP. JOURNAL BEARING TEMP.(NDE) Float
0 40343 TE-622323A COMP. JOURNAL BEARING TEMP.(NDE) Float
0 40345 TE-622326A COMP. THRUST BEARING TEMP. (ACT) Float
0 40347 TE-622327A COMP. THRUST BEARING TEMP. (ACT) Float
0 40349 TE-622324A COMP. THRUST BEARING TEMP. (IN-ACT) Float
0 40351 TE-622325A COMP. THRUST BEARING TEMP. (IN-ACT) Float
0 40353 TE-622316A PINION JOURNAL BEARING TEMP. Float
0 40355 TE-622317A PINION JOURNAL BEARING TEMP. Float
0 40357 TE-622318A PINION JOURNAL BEARING TEMP. (NDE) Float
0 40359 TE-622319A PINION JOURNAL BEARING TEMP. (NDE) Float
0 40361 TE-622308A GEAR JOURNAL BEARING TEMP. (DE) Float
0 40363 TE-622309A GEAR JOURNAL BEARING TEMP. (DE) Float
0 40365 TE-622310A GEAR JOURNAL BEARING TEMP. (NDE) Float
0 40367 TE-622311A GEAR JOURNAL BEARING TEMP. (NDE) Float
0 40369 TE-622314A GEAR THRUST BEARING TEMP. (ACT) Float
0 40371 TE-622315A GEAR THRUST BEARING TEMP. (ACT) Float
0 40373 TE-622312A GEAR THRUST BEARING TEMP. (IN-ACT) Float
0 40375 TE-622313A GEAR THRUST BEARING TEMP. (IN-ACT) Float
0 40377 TE-622303A MOTOR JOURNAL BEARING TEMP. (CPL) Float
0 40379 TE-622304A MOTOR JOURNAL BEARING TEMP. (CPL) Float
0 40381 TE-622301A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) Float
0 40383 TE-622302A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) Float
0 40385 TE-622305 MOTOR WINDING TEMP. (U) Float
0 40387 TE-622306 MOTOR WINDING TEMP. (V) Float
0 40389 TE-622307 MOTOR WINDING TEMP. (W) Float
0 40391 - - Float
0 40393 - - Float
0 40395 - - Float
0 40397 - - Float
0 40399 - - Float

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 40401 - - Float
0 40403 - - Float
0 40405 - - Float
0 40407 - - Float
0 40409 - - Float
0 40411 - - Float
0 40413 - - Float
0 40415 - - Float
0 40417 PI-622351 COMP 1ST SUCTION PRESS. SELECTED Float
0 40419 TI-622351 COMP 1ST SUCTION TEMP. SELECTED Float
0 40421 PI-622352 COMP 1ST DISCHARGE PRESS. SELECTED Float
0 40423 TI-622352 COMP 1ST DISCHARGE TEMP. SELECTED Float
0 40425 FI-622352 COMP 1ST DISCHARGE FLOW. SELECTED Float
0 40427 PI-622353 COMP 2ND SUCTION PRESS. SELECTED Float
0 40429 TI-622353 COMP 2ND SUCTION TEMP. SELECTED Float
0 40431 PI-622354 COMP 2ND DISCHARGE PRESS. SELECTED Float
0 40433 TI-622354 COMP 2ND DISCHARGE TEMP. SELECTED Float
0 40435 FI-622354 COMP 2ND DISCHARGE FLOW. SELECTED Float
0 40437 LIC-622021H_TSP SEPARATION DRUM CONTROLLER TARGET SETPOINT HMI Float
0 40439 LIC-622021_TSP SEPARATION DRUM CONTROLLER TARGET SETPOINT Float
0 40441 LIC-622021_SP SEPARATION DRUM CONTROLLER SETPOINT Float
0 40443 LIC-622021H_MD SEPARATION DRUM CONTROLLER MANUAL DEMAND HMI Float
0 40445 LIC-622021_TMD SEPARATION DRUM CONTROLLER TARGET MANUAL DEMAND Float
0 40447 LIC-622021_MD SEPARATION DRUM CONTROLLER MANUAL DEMAND Float
0 40449 PC-622354H_TSP COMP 2ND DISCHARGE PRESS. CONTROLLER TARGET SETPOINT HMI Float
0 40451 PC-622354_TSP COMP 2ND DISCHARGE PRESS. CONTROLLER TARGET SETPOINT Float
0 40453 PC-622354_SP COMP 2ND DISCHARGE PRESS. CONTROLLER SETPOINT Float
0 40455 PC-622354H_MD COMP 2ND DISCHARGE PRESS. CONTROLLER MANUAL DEMAND HMI Float
0 40457 PC-622354_TMD COMP 2ND DISCHARGE PRESS. CONTROLLER TARGET MANUAL DEMAND Float
0 40459 PC-622354_MD COMP 2ND DISCHARGE PRESS. CONTROLLER MANUAL DEMAND Float
0 40461 PDS_OUT1 PROCESS HANDLE OUT(OUT1) Float
0 40463 PDS_OUT2 ANTI-SURGE VALVE OUTPUT(OUT2) Float
0 40465 PC-622004AH_TSP SPEED CONTROLLER TARGET SETPOINT HMI Float
0 40467 PC-622004A_TSP SPEED CONTROLLER TARGET SETPOINT Float
0 40469 PC-622004A_SP SPEED CONTROLLER SETPOINT Float
0 40471 PC-622004AH_MD SPEED CONTROLLER MANUAL DEMAND HMI Float
0 40473 PC-622004A_TMD SPEED CONTROLLER TARGET MANUAL DEMAND Float
0 40475 PC-622004A_MD SPEED CONTROLLER MANUAL DEMAND Float
0 40477 Float
0 40479 Float

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 40481 LIC-622011H_TSP 2ND SUNCTION DRUM LEVEL CONTROLLER TARGET SETPOINT HMI Float
0 40483 LIC-622011_TSP 2ND SUNCTION DRUM LEVEL CONTROLLER TARGET SETPOINT Float
0 40485 LIC-622011_SP 2ND SUNCTION DRUM LEVEL CONTROLLER SETPOINT Float
0 40487 LIC-622011H_MD 2ND SUNCTION DRUM LEVEL CONTROLLER MANUAL DEMAND HMI Float
0 40489 LIC-622011_TMD 2ND SUNCTION DRUM LEVEL CONTROLLER TARGET MANUAL DEMAND Float
0 40491 LIC-622011_MD 2ND SUNCTION DRUM LEVEL CONTROLLER MANUAL DEMAND Float
0 40493 Float
0 40495 PDC-622343H_TSP SEAL GAS DIFF.PRESS. CONTROLLER TARGET SETPOINT HMI Float
0 40497 PDC-622343_TSP SEAL GAS DIFF.PRESS. CONTROLLER TARGET SETPOINT Float
0 40499 PDC-622343_SP SEAL GAS DIFF.PRESS. CONTROLLER SETPOINT Float
0 40501 PDC-622343H_MD SEAL GAS DIFF.PRESS. CONTROLLER MANUAL DEMAND HMI Float
0 40503 PDC-622343_TMD SEAL GAS DIFF.PRESS. CONTROLLER TARGET MANUAL DEMAND Float
0 40505 PDC-622343_MD SEAL GAS DIFF.PRESS. CONTROLLER MANUAL DEMAND Float
0 40507 PDC-622343_OUT SEAL GAS DIFF.PRESS. CONTROLLER OUTPUT Float
0 40509 Float
0 40511 Float
0 40513 UC1_PV 1ST ANTI-SURGE CONTROL PROCESS VALUE Float
0 40515 UC1_SP 1ST ANTI-SURGE CONTROL SETPOINT Float
0 40517 UC1_HMI_MD 1ST ANTI-SURGE CONTROL MANUAL DEMAND HMI Float
0 40519 UC1_MD 1ST ANTI-SURGE CONTROL MANUAL DEMAND Float
0 40521 UC1_OP 1ST ANTI-SURGE CONTROL OPERATING POINT Float
0 40523 UC1_ASV 1ST ANTI-SURGE CONTROL OUTPUT Float
0 40525 UC2_PV 2ND ANTI-SURGE CONTROL PROCESS VALUE Float
0 40527 UC2_SP 2ND ANTI-SURGE CONTROL SETPOINT Float
0 40529 UC2_HMI_MD 2ND ANTI-SURGE CONTROL MANUAL DEMAND HMI Float
0 40531 UC2_MD 2ND ANTI-SURGE CONTROL MANUAL DEMAND Float
0 40533 UC2_ASV 2ND ANTI-SURGE CONTROL OUTPUT Float
0 40535 UC2_OP 2ND ANTI-SURGE CONTROL OPERATING POINT Float
0 40537 Float
0 40539 Float
0 40541 Float
0 40543 Float

Doc No.: TS2457-1407005-401
Date: 09/03/2015
Modbus Mapping - DCS Integer Read Only

0 41001 (Bit0) FZSC-622301 1ST ANTI-SURGE VALVE FULLY CLOSE Int
0 41001 (Bit1) FZSO-622301 1ST ANTI-SURGE VALVE FULLY OPEN Int
0 41001 (Bit2) FZSC-622302 2ND ANTI-SURGE VALVE FULLY CLOSE Int
0 41001 (Bit3) FZSO-622302 2ND ANTI-SURGE VALVE FULLY OPEN Int
0 41001 (Bit4) XZSC-622003 1ST SUCTION DRUM DRAIN VALVE FULLY CLOSE Int
0 41001 (Bit5) XZSO-622003 1ST SUCTION DRUM DRAIN VALVE FULLY OPEN Int
0 41001 (Bit6) XZSC-622013 2ND SUCTION DRUM DRAIN VALVE FULLY CLOSE Int
0 41001 (Bit7) XZSO-622013 2ND SUCTION DRUM DRAIN VALVE FULLY OPEN Int
0 41001 (Bit8) XZSC-622023 SEPARATION DRUM DRAIN VALVE FULLY CLOSE Int
0 41001 (Bit9) XZSO-622023 SEPARATION DRUM DRAIN VALVE FULLY OPEN Int
0 41001 (Bit10) XZSC-622002 RELIEF VENT SYSTEM LINE VALVE FULLY CLOSE Int
0 41001 (Bit11) XZSO-622002 RELIEF VENT SYSTEM LINE VALVE FULLY OPEN Int
0 41001 (Bit12) XZSC-622001 SUCTION SHUT OFF VALVE FULLY CLOSE Int
0 41001 (Bit13) XZSO-622001 SUCTION SHUT OFF VALVE FULLY OPEN Int
0 41001 (Bit14) XZSC-622004 DISCHARGE SHUT OFF VALVE FULLY CLOSE Int
0 41001 (Bit15) XZSO-622004 DISCHARGE SHUT OFF VALVE FULLY OPEN Int
0 41002 (Bit0) XZSO-622033 ESDV‐622033 FULLY OPEN Int
0 41002 (Bit1) XZSC-622033 ESDV‐622033 FULLY CLOSE Int
0 41002 (Bit2) - - Int
0 41002 (Bit3) - - Int
0 41002 (Bit4) - - Int
0 41002 (Bit5) - - Int
0 41002 (Bit6) - - Int
0 41002 (Bit7) - - Int
0 41002 (Bit8) - - Int
0 41002 (Bit9) - - Int
0 41002 (Bit10) - - Int
0 41002 (Bit11) - - Int
0 41002 (Bit12) - - Int
0 41002 (Bit13) - - Int
0 41002 (Bit14) - - Int
0 41002 (Bit15) - - Int
0 41003 (Bit0) CMXA-622321 VSDS COMMON TRIP Int
0 41003 (Bit1) XI-622322 VSDS MCB OPEN F/B Int
0 41003 (Bit2) XA-622322 VSDS COMMON ALARM Int
0 41003 (Bit3) XI-622320 VSDS READY TO START Int
0 41003 (Bit4) CMXI-622321 VSDS MOTOR RUNNING Int
0 41003 (Bit5) XA-622325 MOTOR PURGE ALARM Int
0 41003 (Bit6) XA-622326 MOTOR INTERLOCK Int
0 41003 (Bit7) XI-622323 MOTOR PURGING INTERMEDIATE SWITCH Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41003 (Bit8) - - Int
0 41003 (Bit9) - - Int
0 41003 (Bit10) AMXI-622002A AIR COOLER A‐621002 RUNNING Int
0 41003 (Bit11) AMXI-622002B AIR COOLER A‐621002 RUNNING Int
0 41003 (Bit12) AMXI-622002C AIR COOLER A‐621002 RUNNING Int
0 41003 (Bit13) AMXI-622002D AIR COOLER A‐621002 RUNNING Int
0 41003 (Bit14) PS-622701A PUMP P-621001A PRESSURE SWITCH Int
0 41003 (Bit15) PS-622701B PUMP P-621001B PRESSURE SWITCH Int
0 41004 (Bit0) XI-622302R L/O MAIN PUMP RUNNING SIGNAL Int
0 41004 (Bit1) XA-622302F L/O MAIN PUMP FAILURE Int
0 41004 (Bit2) XI-622303R L/O STANDBY PUMP RUNNING SIGNAL Int
0 41004 (Bit3) XA-622303F L/O STANDBY PUMP FAILURE Int
0 41004 (Bit4) XI-622304A ELECTRIC HEATER ON SIGNAL Int
0 41004 (Bit5) XA-622304F ELECTRIC HEATER FAILURE Int
0 41004 (Bit6) PMXI-622001A PUMP P‐621001A RUNNING Int
0 41004 (Bit7) PMXA-622001A PUMP P‐621001A FAULT Int
0 41004 (Bit8) PMXI-622001B PUMP P‐621001B RUNNING Int
0 41004 (Bit9) PMXA-622001B PUMP P‐621001B FAULT Int
0 41004 (Bit10) AMXI-622001A AIR COOLER A‐621001 RUNNING Int
0 41004 (Bit11) AMXI-622001B AIR COLLER A‐621001 RUNNING Int
0 41004 (Bit12) AMXI-622001C AIR COLLER A‐621001 RUNNING Int
0 41004 (Bit13) AMXI-622001D AIR COLLER A‐621001 RUNNING Int
0 41004 (Bit14) - - Int
0 41004 (Bit15) - - Int
0 41005 (Bit0) HS-622301A COMPRESSOR START FROM LCP Int
0 41005 (Bit1) HS-622301B COMPRESSOR NORMAL STOP FROM LCP Int
0 41005 (Bit2) HS-622301C OPERATION PLACE REMOTE / LOCAL SELECT SW REMOTE Int
0 41005 (Bit3) HS-622301R TRIP RESET FROM LCP Int
0 41005 (Bit4) HS-622301E EMERGENCY STOP FROM LCP Int
0 41005 (Bit5) HS-622305A COMPRESSOR START FROM AOC Int
0 41005 (Bit6) HS-622305B COMPRESSOR NORMAL STOP FROM AOC Int
0 41005 (Bit7) HS-622305R TRIP RESET FROM AOC Int
0 41005 (Bit8) HS-622305E EMERGENCY STOP FROM AOC Int
0 41005 (Bit9) HS-622302C L/O MAIN PUMP AUTO/MANUAL SELECT SW AUTO Int
0 41005 (Bit10) HS-622302A L/O MAIN PUMP START Int
0 41005 (Bit11) HS-622302B L/O MAIN PUMP STOP Int
0 41005 (Bit12) HS-622303C L/O STANDBY PUMP AUTOIMANUAL SELECT SW AUTO Int
0 41005 (Bit13) HS-622303A L/O STANDBY PUMP START Int
0 41005 (Bit14) HS-622303B L/O STANDBY PUMP STOP Int
0 41005 (Bit15) HS-622304C ELECTRIC HEATER AUTO/MANUAL SELECT SW AUTO Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41006 (Bit0) HS-622304A ELECTRIC HEATER ON Int
0 41006 (Bit1) HS-622304B ELECTRIC HEATER OFF Int
0 41006 (Bit2) XA-622320 SHUTDOWN SIGNAL Int
0 41006 (Bit3) HS-622320R TRIP RESET FROM SIS Int
0 41006 (Bit4) XS-622320 START PERMISSIVE FROM DCS Int
0 41006 (Bit5) ESD-100000 PLANT SHUTDOWN Int
0 41006 (Bit6) ESD-101000A FIRE SHUTDOWN Int
0 41006 (Bit7) ESD-101000B INSTRUMENT AIR FAULT SHUTDOWN Int
0 41006 (Bit8) ESD-101000C ELECTRIC POWER FAULT SHUTDOWN Int
0 41006 (Bit9) BHS-622003 EMRGENCY STOP Int
0 41006 (Bit10) BHS-622002 EMRGENCY STOP Int
0 41006 (Bit11) - - Int
0 41006 (Bit12) - - Int
0 41006 (Bit13) - - Int
0 41006 (Bit14) - - Int
0 41006 (Bit15) - - Int
0 41007 (Bit0) VAHH-622307 COMP SHAFT VIBRATION (DE) HH Int
0 41007 (Bit1) VAHH-622308 COMP SHAFT VIBRATION (NDE) HH Int
0 41007 (Bit2) ZAHH-622302 COMP. AXIAL DISPLACEMENT HH Int
0 41007 (Bit3) VAHH-622305 PINION SHAFT VIBRATION (DE) HH Int
0 41007 (Bit4) VAHH-622306 PINION SHAFT VIBRATION (NDE) HH Int
0 41007 (Bit5) VAHH-622303 GEAR SHAFT VIBRATION (DE) HH Int
0 41007 (Bit6) VAHH-622304 GEAR SHAFT VIBRATION (NDE) HH Int
0 41007 (Bit7) ZAHH-622301 GEAR AXIAL DISPLACEMENTHH Int
0 41007 (Bit8) VAHH-622302 MOTOR SHAFT VIBRATION (CPL) HH Int
0 41007 (Bit9) VAHH-622301 MOTOR SHAFT VIBRATION (ANTI-CPL) HH Int
0 41007 (Bit10) TAHH-622320 COMP JOURNAL BEARING TEMP. HH Int
0 41007 (Bit11) TAHH-622324 COMP THR. BRG.TEMP. HH Int
0 41007 (Bit12) TAHH-622316 PINION JOURNAL BEARING TEMP. HH Int
0 41007 (Bit13) TAHH-622308 GEAR JOURNAL BEARING TEMP. HH Int
0 41007 (Bit14) TAHH-622312 GEAR THRUST BEARING TEMP. HH Int
0 41007 (Bit15) TAHH-622301 MOTOR JOURNAL BEARING TEMP Int
0 41008 (Bit0) TAHH-622305 MOTOR WINDING TEMP. HH Int
0 41008 (Bit1) XA-622327 POWER SUPPLY (UPS1) FAILURE Int
0 41008 (Bit2) XA-622328 POWER SUPPLY (UPS2) FAILURE Int
0 41008 (Bit3) XA-622329 POWER SUPPLY (NON UPS) FAILURE Int
0 41008 (Bit4) XA-622330 PLC FAILURE Int
0 41008 (Bit5) XA-622331 UCP FAN FAILURE Int
0 41008 (Bit6) XA-622332 UCP TEMP HIGH Int
0 41008 (Bit7) HS-622340 BYPASS ENABLE (MASTER SW) Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41008 (Bit8) - - Int
0 41008 (Bit9) - - Int
0 41008 (Bit10) - - Int
0 41008 (Bit11) - - Int
0 41008 (Bit12) - - Int
0 41008 (Bit13) - - Int
0 41008 (Bit14) - - Int
0 41008 (Bit15) - - Int
0 41009 (Bit0) - - Int
0 41009 (Bit1) - - Int
0 41009 (Bit2) - - Int
0 41009 (Bit3) - - Int
0 41009 (Bit4) - - Int
0 41009 (Bit5) - - Int
0 41009 (Bit6) - - Int
0 41009 (Bit7) Int
0 41009 (Bit8) Int
0 41009 (Bit9) Int
0 41009 (Bit10) - - Int
0 41009 (Bit11) - - Int
0 41009 (Bit12) - - Int
0 41009 (Bit13) - - Int
0 41009 (Bit14) - - Int
0 41009 (Bit15) - - Int
0 41010 (Bit0) XS-622340 MOTOR START Int
0 41010 (Bit1) XS-622341 MAIN MOTOR NORMAL STOP SIGNAL Int
0 41010 (Bit2) XA-622342 COMMON ALARM Int
0 41010 (Bit3) XS-622302A L/O MAIN PUMP START Int
0 41010 (Bit4) XS-622302B L/O MAIN PUMP STOP Int
0 41010 (Bit5) XS-622303A L/O STANDBY PUMP START Int
0 41010 (Bit6) XS-622303B L/O STANDBY PUMP STOP Int
0 41010 (Bit7) XS-622304A ELECTRIC HEATER ON Int
0 41010 (Bit8) XS-622304B ELECTRIC HEATER OFF Int
0 41010 (Bit9) PMXSS-622001A PUMP P‐621001A STOP Int
0 41010 (Bit10) PMXSS-622001B PUMP P‐621001B STOP Int
0 41010 (Bit11) Int
0 41010 (Bit12) Int
0 41010 (Bit13) - - Int
0 41010 (Bit14) - - Int
0 41010 (Bit15) - - Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41011 (Bit0) XL-622301A READY FOR START LAMP Int
0 41011 (Bit1) XL-622301B LOCAL CONTROL LAMP Int
0 41011 (Bit2) XL-622301R COMPRESSOR RUNNING LAMP Int
0 41011 (Bit3) XL-622301D COMMON TRIP LAMP Int
0 41011 (Bit4) XL-622301C COMMON ALARM LAMP Int
0 41011 (Bit5) XL-622301E EMERGENCY LAMP Int
0 41011 (Bit6) XL-622305A READY FOR START LAMP Int
0 41011 (Bit7) XL-622305B REMOTE CONTROL LAMP Int
0 41011 (Bit8) XL-622305R COMPRESSOR RUNNING LAMP Int
0 41011 (Bit9) XL-622305D COMMON TRIP LAMP Int
0 41011 (Bit10) XL-622305C COMMON ALARM LAMP Int
0 41011 (Bit11) XL-622305E EMERGENCY LAMP Int
0 41011 (Bit12) XL-622302A L/O MAIN PUMP RUNNING LAMP Int
0 41011 (Bit13) XL-622302B L/O MAIN PUMP STOPPED LAMP Int
0 41011 (Bit14) XL-622303A L/O STANDBY PUMP RUNNING LAMP Int
0 41011 (Bit15) XL-622303B L/O STANDBY PUMP STOPPED LAMP Int
0 41012 (Bit0) XL-622304A ELECTRIC HEATER ON LAMP Int
0 41012 (Bit1) XL-622304B ELECTRIC HEATER OFF LAMP Int
0 41012 (Bit2) - - Int
0 41012 (Bit3) - - Int
0 41012 (Bit4) - - Int
0 41012 (Bit5) - - Int
0 41012 (Bit6) - - Int
0 41012 (Bit7) - - Int
0 41012 (Bit8) - - Int
0 41012 (Bit9) - - Int
0 41012 (Bit10) - - Int
0 41012 (Bit11) - - Int
0 41012 (Bit12) - - Int
0 41012 (Bit13) - - Int
0 41012 (Bit14) - - Int
0 41012 (Bit15) - - Int
0 41013 (Bit0) XA-622340 COMMON TRIP Int
0 41013 (Bit1) XA-622341 EMERGENCY STOP Int
0 41013 (Bit2) - - Int
0 41013 (Bit3) - - Int
0 41013 (Bit4) - - Int
0 41013 (Bit5) Int
0 41013 (Bit6) Int
0 41013 (Bit7) Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41013 (Bit8) - - Int
0 41013 (Bit9) - - Int
0 41013 (Bit10) - - Int
0 41013 (Bit11) - - Int
0 41013 (Bit12) SV-622301A 1ST ANTI-SURGE SOLENOID VALVE Int
0 41013 (Bit13) SV-622301B 1ST ANTI-SURGE SOLENOID VALVE Int
0 41013 (Bit14) SV-622302A 2ND ANTI-SURGE SOLENOID VALVE Int
0 41013 (Bit15) SV-622302B 2ND ANTI-SURGE SOLENOID VALVE Int
0 41014 (Bit0) - - Int
0 41014 (Bit1) - - Int
0 41014 (Bit2) - - Int
0 41015 (Bit3) LAH-622001 1ST SUCTION DRUM LEVEL HA Int
0 41014 (Bit4) LAL-622001 1ST SUCTION DRUM LEVEL LA Int
0 41014 (Bit5) LAL-622003 1ST SUCTION DRUM LEVEL LA Int
0 41014 (Bit6) LAH-622011 2ND SUCTION DRUM LEVEL HA Int
0 41014 (Bit7) LAL-622011 2ND SUCTION DRUM LEVEL LA Int
0 41014 (Bit8) LAL-622013 2ND SUCTION DRUM LEVEL LA Int
0 41014 (Bit9) LAH-622021 SEPARATION DRUM LEVEL HA Int
0 41014 (Bit10) LAL-622021 SEPARATION DRUM LEVEL LA Int
0 41014 (Bit11) LAL-622023 SEPARATION DRUM LEVEL LA Int
0 41014 (Bit12) TAH-622005 1ST DISCHARGE GAS COOLER OUTLET TEMP HA Int
0 41014 (Bit13) TAL-622005 1ST DISCHARGE GAS COOLER OUTLET TEMP LA Int
0 41014 (Bit14) TAH-622006 2ND DISCHARGE GAS COOLER OUTLET TEMP HA Int
0 41014(Bit15) TAL-622006 2ND DISCHARGE GAS COOLER OUTLET TEMP LA Int
0 41015(Bit0) GAH-622001 COMBUSTIBLE GAS DETECTOR (NEAR COMP.) HA Int
0 41015(Bit1) GAH-622002 COMBUSTIBLE GAS DETECTOR (NEAR 1ST SUCTION DRUM) HA Int
0 41015(Bit2) GAH-622003 COMBUSTIBLE GAS DETECTOR (NEAR 2ND SUCTION DRUM) HA Int
0 41015(Bit3) GAH-622004 COMBUSTIBLE GAS DETECTOR (NEAR SEPARATOR DRUM) HA Int
0 41015(Bit4) GAH-622005 COMBUSTIBLE GAS DETECTOR (NEAR 1ST GAS COOLER) HA Int
0 41015(Bit5) GAH-622006 TOXIC GAS DETECTOR (NEAR COMP.) HA Int
0 41015(Bit6) GAH-622007 TOXIC GAS DETECTOR (NEAR 1ST SUCTION DRUM) HA Int
0 41015(Bit7) GAH-622008 TOXIC GAS DETECTOR (NEAR 2ND SUCTION DRUM) HA Int
0 41015(Bit8) GAH-622009 TOXIC GAS DETECTOR (NEAR SEPARATOR DRUM) HA Int
0 41015(Bit9) GAH-622010 TOXIC GAS DETECTOR (NEAR 1ST GAS COOLER) HA Int
0 41015(Bit10) - - Int
0 41015(Bit11) - - Int
0 41015(Bit12) PDAH-622341 SEAL GAS FILTER DIFF.PRESS. HA Int
0 41015(Bit13) PDAH-622342 BUFFER GAS FILTER DIFF.PRESS. HA Int
0 41015(Bit14) PAH-622342 PRIMARY LEAKAGE PRESS. (DE) HA Int
0 41015(Bit15) PAH-622343 PRIMARY LEAKAGE PRESS. (NDE) HA Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41016(Bit0) - - Int
0 41016(Bit1) - - Int
0 41016(Bit2) - - Int
0 41016(Bit3) PAL-622331 L/O HEADER PRESS. LA Int
0 41016(Bit4) PAL-622341 BRG. SEPARATION GAS SUPPLY PRESS. LA Int
0 41016(Bit5) PDAL-622343 SEAL GAS DIFF.PRESS. LA Int
0 41016(Bit6) TAL-622341 S/G SUPPLY TEMP. LA Int
0 41016(Bit7) PDAH-622321 L/O FILTER DIFF. PRESS HA Int
0 41016(Bit8) TAH-622330 L/O RESERVOIR TEMP. HA Int
0 41016(Bit9) TAL-622330 L/O RESERVOIR TEMP. LA Int
0 41016(Bit10) LAL-622321 L/O RESERVOIR LEVEL LA Int
0 41016(Bit11) LAL-622331 L/O RUNDOWN TANK LEVEL Int
0 41016(Bit12) TAH-622331 L/O COOLER OUTLET TEMP. HA Int
0 41016(Bit13) TAL-622331 L/O COOLER OUTLET TEMP. LA Int
0 41016(Bit14) - - Int
0 41016(Bit15) - - Int
0 41017(Bit0) PAF-622351 COMP 1ST SUCTION PRESS. FAILURE Int
0 41017(Bit1) TAF-622351 COMP 1ST SUCTION TEMP. FAILURE Int
0 41017(Bit2) PAF-622352 COMP 1ST DISCHARGE PRESS. FAILURE Int
0 41017(Bit3) TAF-622352 COMP 1ST DISCHARGE TEMP. FAILURE Int
0 41017(Bit4) FAF-622352 COMP 1ST DISCHARGE FLOW. FAILURE Int
0 41017(Bit5) PAF-622353 COMP 2ND SUCTION PRESS. FAILURE Int
0 41017(Bit6) TAF-622353 COMP 2ND SUCTION TEMP. FAILURE Int
0 41017(Bit7) PAF-622354 COMP 2ND DISCHARGE PRESS. FAILURE Int
0 41017(Bit8) TAF-622354 COMP 2ND DISCHARGE TEMP. FAILURE Int
0 41017(Bit9) FAF-622354 COMP 2ND DISCHARGE FLOW. FAILURE Int
0 41017(Bit10) LAF-622002 1ST SUCTION DRUM LEVEL (FOR TRIP) FAILURE Int
0 41017(Bit11) LAF-622012 2ND SUCTION DRUM LEVEL (FOR TRIP) FAILURE Int
0 41017(Bit12) LAF-622022 SEPARATOR DRUM LEVEL (FOR TRIP) FAILURE Int
0 41017(Bit13) LAF-622001 1ST SUCTION DRUM LEVEL FAILURE Int
0 41017(Bit14) LAF-622003 1ST SUCTION DRUM LEVEL FAILURE Int
0 41017(Bit15) LAF-622011 2ND SUCTION DRUM LEVEL FAILURE Int
0 41018(Bit0) LAF-622013 2ND SUCTION DRUM LEVEL FAILURE Int
0 41018(Bit1) LAF-622021 SEPARATION DRUM LEVEL FAILURE Int
0 41018(Bit2) LAF-622023 SEPARATION DRUM LEVEL FAILURE Int
0 41018(Bit3) TAF-622005 1ST DISCHARGE GAS COOLER OUTLET TEMP FAILURE Int
0 41018(Bit4) TAF-622006 2ND DISCHARGE GAS COOLER OUTLET TEMP FAILURE Int
0 41018(Bit5) FAF-622003 DISCHARGE SHUT OFF VALVE DOWN STEAM FLOW FAILURE Int
0 41018(Bit6) - - Int
0 41018(Bit7) - - Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41018(Bit8) - - Int
0 41018(Bit9) - - Int
0 41018(Bit10) - - Int
0 41018(Bit11) - - Int
0 41018(Bit12) - - Int
0 41018(Bit13) - - Int
0 41018(Bit14) - - Int
0 41018(Bit15) - - Int
0 41019(Bit0) GAF-622001 COMBUSTIBLE GAS DETECTOR (NEAR COMP.) FAILURE Int
0 41019(Bit1) GAF-622002 COMBUSTIBLE GAS DETECTOR (NEAR 1ST SUCTION DRUM) FAILURE Int
0 41019(Bit2) GAF-622003 COMBUSTIBLE GAS DETECTOR (NEAR 2ND SUCTION DRUM) FAILURE Int
0 41019(Bit3) GAF-622004 COMBUSTIBLE GAS DETECTOR (NEAR SEPARATOR DRUM) FAILURE Int
0 41019(Bit4) GAF-622005 COMBUSTIBLE GAS DETECTOR (NEAR 1ST GAS COOLER) FAILURE Int
0 41019(Bit5) GAF-622006 TOXIC GAS DETECTOR (NEAR COMP.) FAILURE Int
0 41019(Bit6) GAF-622007 TOXIC GAS DETECTOR (NEAR 1ST SUCTION DRUM) FAILURE Int
0 41019(Bit7) GAF-622008 TOXIC GAS DETECTOR (NEAR 2ND SUCTION DRUM) FAILURE Int
0 41019(Bit8) GAF-622009 TOXIC GAS DETECTOR (NEAR SEPARATOR DRUM) FAILURE Int
0 41019(Bit9) GAF-622010 TOXIC GAS DETECTOR (NEAR 1ST GAS COOLER) FAILURE Int
0 41019(Bit10) FZAF-622301 1ST ANTI-SURGE VALVE TRANSMITTER FAILURE Int
0 41019(Bit11) FZAF-622302 2ND ANTI-SURGE VALVE TRANSMITTER FAILURE Int
0 41019(Bit12) PDAF-622341 SEAL GAS FILTER DIFF.PRESS. FAILURE Int
0 41019(Bit13) PDAF-622342 BUFFER GAS FILTER DIFF.PRESS. FAILURE Int
0 41019(Bit14) PAF-622342 PRIMARY LEAKAGE PRESS. (DE) FAILURE Int
0 41019(Bit15) PAF-622343 PRIMARY LEAKAGE PRESS. (NDE) FAILURE Int
0 41020(Bit0) PAF-622344A PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) FAILURE Int
0 41020(Bit1) PAF-622345A PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) FAILURE Int
0 41020(Bit2) PAF-622332A L/O HEADER PRESS. (FOR TRIP) FAILURE Int
0 41020(Bit3) PAF-622331 L/O HEADER PRESS. FAILURE Int
0 41020(Bit4) PAF-622341 BRG. SEPARATION GAS SUPPLY PRESS. FAILURE Int
0 41020(Bit5) PDAF-622343 SEAL GAS DIFF.PRESS. FAILURE Int
0 41020(Bit6) TAF-622341 S/G SUPPLY TEMP. FAILURE Int
0 41020(Bit7) - - Int
0 41020(Bit8) - - Int
0 41020(Bit9) - - Int
0 41020(Bit10) - - Int
0 41020(Bit11) - - Int
0 41020(Bit12) - - Int
0 41020(Bit13) - - Int
0 41020(Bit14) - - Int
0 41020(Bit15) - - Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41021(Bit0) PAF-622351B COMP 1ST SUCTION PRESS. FAILURE Int
0 41021(Bit1) TAF-622351B COMP 1ST SUCTION TEMP. FAILURE Int
0 41021(Bit2) PAF-622352B COMP 1ST DISCHARGE PRESS. FAILURE Int
0 41021(Bit3) TAF-622352B COMP 1ST DISCHARGE TEMP. FAILURE Int
0 41021(Bit4) FAF-622352B COMP 1ST DISCHARGE FLOW. FAILURE Int
0 41021(Bit5) PAF-622353B COMP 2ND SUCTION PRESS. FAILURE Int
0 41021(Bit6) TAF-622353B COMP 2ND SUCTION TEMP. FAILURE Int
0 41021(Bit7) PAF-622354B COMP 2ND DISCHARGE PRESS. FAILURE Int
0 41021(Bit8) TAF-622354B COMP 2ND DISCHARGE TEMP. FAILURE Int
0 41021(Bit9) FAF-622354B COMP 2ND DISCHARGE FLOW. FAILURE Int
0 41021(Bit10) - - Int
0 41021(Bit11) - - Int
0 41021(Bit12) - - Int
0 41021(Bit13) - - Int
0 41021(Bit14) - - Int
0 41021(Bit15) - - Int
0 41022(Bit0) PAF-622344B PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) FAILURE Int
0 41022(Bit1) PAF-622345B PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) FAILURE Int
0 41022(Bit2) PAF-622332B L/O HEADER PRESS. (FOR TRIP) FAILURE Int
0 41022(Bit3) - - Int
0 41022(Bit4) - - Int
0 41022(Bit5) - - Int
0 41022(Bit6) - - Int
0 41022(Bit7) - - Int
0 41022(Bit8) - - Int
0 41022(Bit9) - - Int
0 41022(Bit10) - - Int
0 41022(Bit11) - - Int
0 41022(Bit12) - - Int
0 41022(Bit13) - - Int
0 41022(Bit14) - - Int
0 41022(Bit15) - - Int
0 41023(Bit0) PDAF-622321 L/O FILTER DIFF. PRESS FAILURE Int
0 41023(Bit1) TAF-622330 L/O RESERVOIR TEMP. FAILURE Int
0 41023(Bit2) LAF-6223321 L/O RESERVOIR LEVEL FAILURE Int
0 41023(Bit3) LAF-622331 L/O RUNDOWN TANK LEVEL FAILURE Int
0 41023(Bit4) TAF-622331 L/O COOLER OUTLET TEMP. FAILURE Int
0 41023(Bit5) - - Int
0 41023(Bit6) - - Int
0 41023(Bit7) - - Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41023(Bit8) SAF-622320 VSDS SPEED F/B FAILURE Int
0 41023(Bit9) IAF-622320 VSDS CURRENT F/B FAILURE Int
0 41023(Bit10) JAF-622320 VSDS POWER F/B FAILURE Int
0 41023(Bit11) - - Int
0 41023(Bit12) - - Int
0 41023(Bit13) - - Int
0 41023(Bit14) - - Int
0 41023(Bit15) - - Int
0 41024(Bit0) PAF-622344C PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) FAILURE Int
0 41024(Bit1) PAF-622345C PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) FAILURE Int
0 41024(Bit2) PAF-622332C L/O HEADER PRESS. (FOR TRIP) FAILURE Int
0 41024(Bit3) - - Int
0 41024(Bit4) - - Int
0 41024(Bit5) - - Int
0 41024(Bit6) - - Int
0 41024(Bit7) - - Int
0 41024(Bit8) - - Int
0 41024(Bit9) - - Int
0 41024(Bit10) - - Int
0 41024(Bit11) - - Int
0 41024(Bit12) - - Int
0 41024(Bit13) - - Int
0 41024(Bit14) - - Int
0 41024(Bit15) - - Int
0 41025(Bit0) PI622351_ENB COMP 1ST SUCTION PRESS. BYPASS ENB Int
0 41025(Bit1) PI-622351A_BYP COMP 1ST SUCTION PRESS. BYPASS Int
0 41025(Bit2) PI-622351B_BYP COMP 1ST SUCTION PRESS. BYPASS Int
0 41025(Bit3) TI622351_ENB COMP 1ST SUCTION TEMP. BYPASS ENB Int
0 41025(Bit4) TI-622351A_BYP COMP 1ST SUCTION TEMP. BYPASS Int
0 41025(Bit5) TI-622351B_BYP COMP 1ST SUCTION TEMP. BYPASS Int
0 41025(Bit6) PI622352_ENB COMP 1ST DISCHARGE PRESS. BYPASS ENB Int
0 41025(Bit7) PI-622352A_BYP COMP 1ST DISCHARGE PRESS. BYPASS Int
0 41025(Bit8) PI-622352B_BYP COMP 1ST DISCHARGE PRESS. BYPASS Int
0 41025(Bit9) TI62352_ENB COMP 1ST DISCHARGE TEMP. BYPASS ENB Int
0 41025(Bit10) TI-622352A_BYP COMP 1ST DISCHARGE TEMP. BYPASS Int
0 41025(Bit11) TI-622352B_BYP COMP 1ST DISCHARGE TEMP. BYPASS Int
0 41025(Bit12) FI622352_ENB COMP 1ST DISCHARGE FLOW. BYPASS ENB Int
0 41025(Bit13) FI-622352A_BYP COMP 1ST DISCHARGE FLOW. BYPASS Int
0 41025(Bit14) FI-622352B_BYP COMP 1ST DISCHARGE FLOW. BYPASS Int
0 41025(Bit15) - - Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41026(Bit0) PI62353_ENB COMP 2ND SUCTION PRESS. BYPASS ENB Int
0 41026(Bit1) PI-622353A_BYP COMP 2ND SUCTION PRESS. BYPASS Int
0 41026(Bit2) PI-622353B_BYP COMP 2ND SUCTION PRESS. BYPASS Int
0 41026(Bit3) TI62353_ENB COMP 2ND SUCTION TEMP. BYPASS ENB Int
0 41026(Bit4) TI-622353A_BYP COMP 2ND SUCTION TEMP. BYPASS Int
0 41026(Bit5) TI-622353B_BYP COMP 2ND SUCTION TEMP. BYPASS Int
0 41026(Bit6) PI62354_ENB COMP 2ND DISCHARGE PRESS. BYPASS ENB Int
0 41026(Bit7) PI-622354A_BYP COMP 2ND DISCHARGE PRESS. BYPASS Int
0 41026(Bit8) PI-622354B_BYP COMP 2ND DISCHARGE PRESS. BYPASS Int
0 41026(Bit9) TI62354_ENB COMP 2ND DISCHARGE TEMP. BYPASS ENB Int
0 41026(Bit10) TI-622354A_BYP COMP 2ND DISCHARGE TEMP. BYPASS Int
0 41026(Bit11) TI-622354B_BYP COMP 2ND DISCHARGE TEMP. BYPASS Int
0 41026(Bit12) FI622354_ENB COMP 2ND DISCHARGE FLOW. BYPASS ENB Int
0 41026(Bit13) FI-622354A_BYP COMP 2ND DISCHARGE FLOW. BYPASS Int
0 41026(Bit14) FI-622354B_BYP COMP 2ND DISCHARGE FLOW. BYPASS Int
0 41026(Bit15) - - Int
0 41027(Bit0) LI-622001_BYP 1ST SUCTION DRUM LEVEL BYPASS Int
0 41027(Bit1) LI-622003_BYP 1ST SUCTION DRUM LEVEL BYPASS Int
0 41027(Bit2) LI-622011_BYP 2ND SUCTION DRUM LEVEL BYPASS Int
0 41027(Bit3) LI-622013_BYP 2ND SUCTION DRUM LEVEL BYPASS Int
0 41027(Bit4) LI-622021_BYP SEPARATION DRUM LEVEL BYPASS Int
0 41027(Bit5) LI-622023_BYP SEPARATION DRUM LEVEL BYPASS Int
0 41027(Bit6) TI-622005_BYP 1ST DISCHARGE GAS COOLER OUTLET TEMP BYPASS Int
0 41027(Bit7) TI-622006_BYP 2ND DISCHARGE GAS COOLER OUTLET TEMP BYPASS Int
0 41027(Bit8) - - Int
0 41027(Bit9) GI-622001_BYP COMBUSTIBLE GAS DETECTOR (NEAR COMP.) BYPASS Int
0 41027(Bit10) GI-622002_BYP COMBUSTIBLE GAS DETECTOR (NEAR 1ST SUCTION DRUM) BYPASS Int
0 41027(Bit11) GI-622003_BYP COMBUSTIBLE GAS DETECTOR (NEAR 2ND SUCTION DRUM) BYPASS Int
0 41027(Bit12) GI-622004_BYP COMBUSTIBLE GAS DETECTOR (NEAR SEPARATOR DRUM) BYPASS Int
0 41027(Bit13) GI-622005_BYP COMBUSTIBLE GAS DETECTOR (NEAR 1ST GAS COOLER) BYPASS Int
0 41027(Bit14) GI-622006_BYP TOXIC GAS DETECTOR (NEAR COMP.) BYPASS Int
0 41027(Bit15) GI-622007_BYP TOXIC GAS DETECTOR (NEAR 1ST SUCTION DRUM) BYPASS Int
0 41028(Bit0) GI-622008_BYP TOXIC GAS DETECTOR (NEAR 2ND SUCTION DRUM) BYPASS Int
0 41028(Bit1) GI-622009_BYP TOXIC GAS DETECTOR (NEAR SEPARATOR DRUM) BYPASS Int
0 41028(Bit2) GI-622010_BYP TOXIC GAS DETECTOR (NEAR 1ST GAS COOLER) BYPASS Int
0 41028(Bit3) PDI-622341_BYP SEAL GAS FILTER DIFF.PRESS. BYPASS Int
0 41028(Bit4) PDI-622342_BYP BUFFER GAS FILTER DIFF.PRESS. BYPASS Int
0 41028(Bit5) PI-622342_BYP PRIMARY LEAKAGE PRESS. (DE) BYPASS Int
0 41028(Bit6) PI-622343_BYP PRIMARY LEAKAGE PRESS. (NDE) BYPASS Int
0 41028(Bit7) PI-622331_BYP L/O HEADER PRESS. BYPASS Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41028(Bit8) PI-622341_BYP BRG. SEPARATION GAS SUPPLY PRESS. BYPASS Int
0 41028(Bit9) PDI-622343_BYP SEAL GAS DIFF.PRESS. BYPASS Int
0 41028(Bit10) TI-622341_BYP S/G SUPPLY TEMP. BYPASS Int
0 41028(Bit11) PI-622321_BYP L/O FILTER DIFF. PRESS BYPASS Int
0 41028(Bit12) TI-622330_BYP L/O RESERVOIR TEMP. BYPASS Int
0 41028(Bit13) LI-622321_BYP L/O RESERVOIR LEVEL BYPASS Int
0 41028(Bit14) LI-622331_BYP L/O RUNDOWN TANK LEVEL BYPASS Int
0 41028(Bit15) TI-622331_BYP L/O COOLER OUTLET TEMP. BYPASS Int
0 41029(Bit0) HS-622341A L/O HEADER PRESS. (FOR TRIP) BYPASS Int
0 41029(Bit1) HS-622341B L/O HEADER PRESS. (FOR TRIP) BYPASS Int
0 41029(Bit2) HS-622341C L/O HEADER PRESS. (FOR TRIP) BYPASS Int
0 41029(Bit3) HS-622342A PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) BYPASS Int
0 41029(Bit4) HS-622342B PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) BYPASS Int
0 41029(Bit5) HS-622342C PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) BYPASS Int
0 41029(Bit6) HS-622343A PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) BYPASS Int
0 41029(Bit7) HS-622343B PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) BYPASS Int
0 41029(Bit8) HS-622343C PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) BYPASS Int
0 41029(Bit9) HS-622344 1ST SUCTION DRUM LEVEL (FOR TRIP) BYPASS Int
0 41029(Bit10) HS-622345 2ND SUCTION DRUM LEVEL (FOR TRIP) BYPASS Int
0 41029(Bit11) HS-622346 SEPARATOR DRUM LEVEL (FOR TRIP) BYPASS Int
0 41029(Bit12) HS-622356 COMP SHAFT VIBRATION (DE) HH BYPASS Int
0 41029(Bit13) HS-622347 COMP SHAFT VIBRATION (NDE) HH BYPASS Int
0 41029(Bit14) HS-622348 PINION SHAFT VIBRATION (DE) HH BYPASS Int
0 41029(Bit15) HS-622349 PINION SHAFT VIBRATION (NDE) HH BYPASS Int
0 41030(Bit0) HS-622350 GEAR SHAFT VIBRATION (DE) HH BYPASS Int
0 41030(Bit1) HS-622351 GEAR SHAFT VIBRATION (NDE) HH BYPASS Int
0 41030(Bit2) HS-622352 MOTOR SHAFT VIBRATION (CPL) HH BYPASS Int
0 41030(Bit3) HS-622353 MOTOR SHAFT VIBRATION (ANTI-CPL) HH BYPASS Int
0 41030(Bit4) HS-622354 COMP. AXIAL DISPLACEMENT HH BYPASS Int
0 41030(Bit5) HS-622355 GEAR AXIAL DISPLACEMENTHH BYPASS Int
0 41030(Bit6) HS-622360 COMP JOURNAL BEARING TEMP. HH BYPASS Int
0 41030(Bit7) HS-622361 COMP THR. BRG.TEMP. HH BYPASS Int
0 41030(Bit8) HS-622362 PINION JOURNAL BEARING TEMP. HH BYPASS Int
0 41030(Bit9) HS-622363 GEAR JOURNAL BEARING TEMP. HH BYPASS Int
0 41030(Bit10) HS-622364 GEAR THRUST BEARING TEMP. HH BYPASS Int
0 41030(Bit11) HS-622365 MOTOR JOURNAL BEARING TEMP HH BYPASS Int
0 41030(Bit12) HS-622366 MOTOR WINDING TEMP. HH BYPASS Int
0 41030(Bit13) - - Int
0 41030(Bit14) - - Int
0 41030(Bit15) - - Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41031(Bit0) BN_RACK_NotOK BN RACK NOT OK Int
0 41031(Bit1) UPS_FL UPPER SUPPLY FAILURE Int
0 41031(Bit2) LPS_FL LOWER SUPPLY FAILURE Int
0 41031(Bit3) TDI_NotOK INTERFACE MODULE NOT OK Int
0 41031(Bit4) KAF-622301 GEAR SHAFT KEYPHASOR FAILURE Int
0 41031(Bit5) KAH-622301 GEAR SHAFT KEYPHASOR HA Int
0 41031(Bit6) KAHH-622301 GEAR SHAFT KEYPHASOR HH Int
0 41031(Bit7) KBP-622301 GEAR SHAFT KEYPHASOR IN BYPASS Int
0 41031(Bit8) KAF-622302 PINION SHAFT KEYPHASOR FAILURE Int
0 41031(Bit9) KAH-622302 PINION SHAFT KEYPHASOR H Int
0 41031(Bit10) KAHH-622302 PINION SHAFT KEYPHASOR HH Int
0 41031(Bit11) KBP-622302 PINION SHAFT KEYPHASOR IN BYPASS Int
0 41031(Bit12) - - Int
0 41031(Bit13) - - Int
0 41031(Bit14) - - Int
0 41031(Bit15) - - Int
0 41032(Bit0) VAF-622307X COMP. RADIALVIBRATION X (DE) FAILURE Int
0 41032(Bit1) VAH-622307X COMP. RADIALVIBRATION X (DE) HA Int
0 41032(Bit2) VAHH-622307X COMP. RADIALVIBRATION X (DE) HH Int
0 41032(Bit3) VBP-622307X COMP. RADIALVIBRATION X (DE) IN BYPASS Int
0 41032(Bit4) VAF-622307Y COMP. RADIALVIBRATION Y (DE) FAILURE Int
0 41032(Bit5) VAH-622307Y COMP. RADIALVIBRATION Y (DE) HA Int
0 41032(Bit6) VAHH-622307Y COMP. RADIALVIBRATION Y (DE) HH Int
0 41032(Bit7) VBP-622307Y COMP. RADIALVIBRATION Y (DE) IN BYPASS Int
0 41032(Bit8) VAF-622308X COMP. RADIALVIBRATION X (NDE) FAILURE Int
0 41032(Bit9) VAH-622308X COMP. RADIALVIBRATION X (NDE) HA Int
0 41032(Bit10) VAHH-622308X COMP. RADIALVIBRATION X (NDE) HH Int
0 41032(Bit11) VBP-622308X COMP. RADIALVIBRATION X (NDE) IN BYPASS Int
0 41032(Bit12) VAF-622308Y COMP. RADIALVIBRATION Y (NDE) FAILURE Int
0 41032(Bit13) VAH-622308Y COMP. RADIALVIBRATION Y (NDE) HA Int
0 41032(Bit14) VAHH-622308Y COMP. RADIALVIBRATION Y (NDE) HH Int
0 41032(Bit15) VBP-622308Y COMP. RADIALVIBRATION Y (NDE) IN BYPASS Int
0 41033(Bit0) VAF-622303X GEAR SHAFT VIBRATION X (DE) FAILURE Int
0 41033(Bit1) VAH-622303X GEAR SHAFT VIBRATION X (DE) HA Int
0 41033(Bit2) VAHH-622303X GEAR SHAFT VIBRATION X (DE) HH Int
0 41033(Bit3) VBP-622303X GEAR SHAFT VIBRATION X (DE) IN BYPASS Int
0 41033(Bit4) VAF-622303Y GEAR SHAFT VIBRATION Y (DE) FAILURE Int
0 41033(Bit5) VAH-622303Y GEAR SHAFT VIBRATION Y (DE) HA Int
0 41033(Bit6) VAHH-622303Y GEAR SHAFT VIBRATION Y (DE) HH Int
0 41033(Bit7) VBP-622303Y GEAR SHAFT VIBRATION Y (DE) IN BYPASS Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41033(Bit8) VAF-622304X GEAR SHAFT VIBRATION X (NDE) FAILURE Int
0 41033(Bit9) VAH-622304X GEAR SHAFT VIBRATION X (NDE) HA Int
0 41033(Bit10) VAHH-622304X GEAR SHAFT VIBRATION X (NDE) HH Int
0 41033(Bit11) VBP-622304X GEAR SHAFT VIBRATION X (NDE) IN BYPASS Int
0 41033(Bit12) VAF-622304Y GEAR SHAFT VIBRATION Y (NDE) FAILURE Int
0 41033(Bit13) VAH-622304Y GEAR SHAFT VIBRATION Y (NDE) HA Int
0 41033(Bit14) VAHH-622304Y GEAR SHAFT VIBRATION Y (NDE) HH Int
0 41033(Bit15) VBP-622304Y GEAR SHAFT VIBRATION Y (NDE) IN BYPASS Int
0 41034(Bit0) VAF-622306X PINION SHAFT RADIALVIBRATION X (NDE) FAILURE Int
0 41034(Bit1) VAH-622306X PINION SHAFT RADIALVIBRATION X (NDE) HA Int
0 41034(Bit2) VAHH-622306X PINION SHAFT RADIALVIBRATION X (NDE) HH Int
0 41034(Bit3) VBP-622306X PINION SHAFT RADIALVIBRATION X (NDE) IN BYPASS Int
0 41034(Bit4) VAF-622306Y PINION SHAFT RADIALVIBRATION Y (NDE) FAILURE Int
0 41034(Bit5) VAH-622306Y PINION SHAFT RADIALVIBRATION Y (NDE) HA Int
0 41034(Bit6) VAHH-622306Y PINION SHAFT RADIALVIBRATION Y (NDE) HH Int
0 41034(Bit7) VBP-622306Y PINION SHAFT RADIALVIBRATION Y (NDE) IN BYPASS Int
0 41034(Bit8) VAF-622305X PINION SHAFT RADIALVIBRATION X (DE) FAILURE Int
0 41034(Bit9) VAH-622305X PINION SHAFT RADIALVIBRATION X (DE) HA Int
0 41034(Bit10) VAHH-622305X PINION SHAFT RADIALVIBRATION X (DE) HH Int
0 41034(Bit11) VBP-622305X PINION SHAFT RADIALVIBRATION X (DE) IN BYPASS Int
0 41034(Bit12) VAF-622305Y PINION SHAFT RADIALVIBRATION Y (DE) FAILURE Int
0 41034(Bit13) VAH-622305Y PINION SHAFT RADIALVIBRATION Y (DE) HA Int
0 41034(Bit14) VAHH-622305Y PINION SHAFT RADIALVIBRATION Y (DE) HH Int
0 41034(Bit15) VBP-622305Y PINION SHAFT RADIALVIBRATION Y (DE) IN BYPASS Int
0 41035(Bit0) VAF-622302X MOTOR SHAFT VIBRATION X (CPL) FAILURE Int
0 41035(Bit1) VAH-622302X MOTOR SHAFT VIBRATION X (CPL) HA Int
0 41035(Bit2) VAHH-622302X MOTOR SHAFT VIBRATION X (CPL) HH Int
0 41035(Bit3) VBP-622302X MOTOR SHAFT VIBRATION X (CPL) IN BYPASS Int
0 41035(Bit4) VAF-622302Y MOTOR SHAFT VIBRATION Y (CPL) FAILURE Int
0 41035(Bit5) VAH-622302Y MOTOR SHAFT VIBRATION Y (CPL) HA Int
0 41035(Bit6) VAHH-622302Y MOTOR SHAFT VIBRATION Y (CPL) HH Int
0 41035(Bit7) VBP-622302Y MOTOR SHAFT VIBRATION Y (CPL) IN BYPASS Int
0 41035(Bit8) VAF-622301X MOTOR SHAFT VIBRATION X (ANTI-CPL) FAILURE Int
0 41035(Bit9) VAH-622301X MOTOR SHAFT VIBRATION X (ANTI-CPL) HA Int
0 41035(Bit10) VAHH-622301X MOTOR SHAFT VIBRATION X (ANTI-CPL) HH Int
0 41035(Bit11) VBP-622301X MOTOR SHAFT VIBRATION X (ANTI-CPL) IN BYPASS Int
0 41035(Bit12) VAF-622301Y MOTOR SHAFT VIBRATION Y (ANTI-CPL) FAILURE Int
0 41035(Bit13) VAH-622301Y MOTOR SHAFT VIBRATION Y (ANTI-CPL) HA Int
0 41035(Bit14) VAHH-622301Y MOTOR SHAFT VIBRATION Y (ANTI-CPL) HH Int
0 41035(Bit15) VBP-622301Y MOTOR SHAFT VIBRATION Y (ANTI-CPL) IN BYPASS Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41036(Bit0) ZAF-622302A COMP. AXIAL DISPLACEMENT A FAILURE Int
0 41036(Bit1) ZAH-622302A COMP. AXIAL DISPLACEMENT A HA Int
0 41036(Bit2) ZAHH-622302A COMP. AXIAL DISPLACEMENT A HH Int
0 41036(Bit3) ZBP-622302A COMP. AXIAL DISPLACEMENT A IN BYPASS Int
0 41036(Bit4) ZAF-622302B COMP. AXIAL DISPLACEMENT B FAILURE Int
0 41036(Bit5) ZAH-622302B COMP. AXIAL DISPLACEMENT B HA Int
0 41036(Bit6) ZAHH-622302B COMP. AXIAL DISPLACEMENT B HH Int
0 41036(Bit7) ZBP-622302B COMP. AXIAL DISPLACEMENT B IN BYPASS Int
0 41036(Bit8) ZAF-622301A GEAR AXIAL DISPLACEMENT A FAILURE Int
0 41036(Bit9) ZAH-622301A GEAR AXIAL DISPLACEMENT A HA Int
0 41036(Bit10) ZAHH-622301A GEAR AXIAL DISPLACEMENT A HH Int
0 41036(Bit11) ZBP-622301A GEAR AXIAL DISPLACEMENT A IN BYPASS Int
0 41036(Bit12) ZAF-622301B GEAR AXIAL DISPLACEMENT B FAILURE Int
0 41036(Bit13) ZAH-622301B GEAR AXIAL DISPLACEMENT B HA Int
0 41036(Bit14) ZAHH-622301B GEAR AXIAL DISPLACEMENT B HH Int
0 41036(Bit15) ZBP-622301B GEAR AXIAL DISPLACEMENT B IN BYPASS Int
0 41037(Bit0) TAF-622326A COMP. THRUST BEARING TEMP. (ACT) FAILURE Int
0 41037(Bit1) TAH-622326A COMP. THRUST BEARING TEMP. (ACT) HA Int
0 41037(Bit2) TAHH-622326A COMP. THRUST BEARING TEMP. (ACT) HH Int
0 41037(Bit3) TBP-622326A COMP. THRUST BEARING TEMP. (ACT) IN BYPASS Int
0 41037(Bit4) TAF-622327A COMP. THRUST BEARING TEMP. (ACT) FAILURE Int
0 41037(Bit5) TAH-622327A COMP. THRUST BEARING TEMP. (ACT) HA Int
0 41037(Bit6) TAHH-622327A COMP. THRUST BEARING TEMP. (ACT) HH Int
0 41037(Bit7) TBP-622327A COMP. THRUST BEARING TEMP. (ACT) IN BYPASS Int
0 41037(Bit8) TAF-622324A COMP. THRUST BEARING TEMP. (IN-ACT) FAILURE Int
0 41037(Bit9) TAH-622324A COMP. THRUST BEARING TEMP. (IN-ACT) HA Int
0 41037(Bit10) TAHH-622324A COMP. THRUST BEARING TEMP. (IN-ACT) HH Int
0 41037(Bit11) TBP-622324A COMP. THRUST BEARING TEMP. (IN-ACT) IN BYPASS Int
0 41037(Bit12) TAF-622325A COMP. THRUST BEARING TEMP. (IN-ACT) FAILURE Int
0 41037(Bit13) TAH-622325A COMP. THRUST BEARING TEMP. (IN-ACT) HA Int
0 41037(Bit14) TAHH-622325A COMP. THRUST BEARING TEMP. (IN-ACT) HH Int
0 41037(Bit15) TBP-622325A COMP. THRUST BEARING TEMP. (IN-ACT) IN BYPASS Int
0 41038(Bit0) TAF-622322A COMP. JOURNAL BEARING TEMP. (NDE) FAILURE Int
0 41038(Bit1) TAH-622322A COMP. JOURNAL BEARING TEMP. (NDE) HA Int
0 41038(Bit2) TAHH-622322A COMP. JOURNAL BEARING TEMP. (NDE) HH Int
0 41038(Bit3) TBP-622322A COMP. JOURNAL BEARING TEMP. (NDE) IN BYPASS Int
0 41038(Bit4) TAF-622323A COMP. JOURNAL BEARING TEMP. (NDE) FAILURE Int
0 41038(Bit5) TAH-622323A COMP. JOURNAL BEARING TEMP. (NDE) HA Int
0 41038(Bit6) TAHH-622323A COMP. JOURNAL BEARING TEMP. (NDE) HH Int
0 41038(Bit7) TBP-622323A COMP. JOURNAL BEARING TEMP. (NDE) IN BYPASS Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41038(Bit8) TAF-622320A COMP. JOURNAL BEARING TEMP. (DE) FAILURE Int
0 41038(Bit9) TAH-622320A COMP. JOURNAL BEARING TEMP. (DE) HA Int
0 41038(Bit10) TAHH-622320A COMP. JOURNAL BEARING TEMP. (DE) HH Int
0 41038(Bit11) TBP-622320A COMP. JOURNAL BEARING TEMP. (DE) IN BYPASS Int
0 41038(Bit12) TAF-622321A COMP. JOURNAL BEARING TEMP. (DE) FAILURE Int
0 41038(Bit13) TAH-622321A COMP. JOURNAL BEARING TEMP. (DE) HA Int
0 41038(Bit14) TAHH-622321A COMP. JOURNAL BEARING TEMP. (DE) HH Int
0 41038(Bit15) TBP-622321A COMP. JOURNAL BEARING TEMP. (DE) IN BYPASS Int
0 41039(Bit0) TAF-622318A PINION JOURNAL BEARING TEMP. (NDE) FAILURE Int
0 41039(Bit1) TAH-622318A PINION JOURNAL BEARING TEMP. (NDE) HA Int
0 41039(Bit2) TAHH-622318A PINION JOURNAL BEARING TEMP. (NDE) HH Int
0 41039(Bit3) TBP-622318A PINION JOURNAL BEARING TEMP. (NDE) IN BYPASS Int
0 41039(Bit4) TAF-622319A PINION JOURNAL BEARING TEMP. (NDE) FAILURE Int
0 41039(Bit5) TAH-622319A PINION JOURNAL BEARING TEMP. (NDE) HA Int
0 41039(Bit6) TAHH-622319A PINION JOURNAL BEARING TEMP. (NDE) HH Int
0 41039(Bit7) TBP-622319A PINION JOURNAL BEARING TEMP. (NDE) IN BYPASS Int
0 41039(Bit8) TAF-622316A PINION JOURNAL BEARING TEMP. (DE) FAILURE Int
0 41039(Bit9) TAH-622316A PINION JOURNAL BEARING TEMP. (DE) HA Int
0 41039(Bit10) TAHH-622316A PINION JOURNAL BEARING TEMP. (DE) HH Int
0 41039(Bit11) TBP-622316A PINION JOURNAL BEARING TEMP. (DE) IN BYPASS Int
0 41039(Bit12) TAF-622317A PINION JOURNAL BEARING TEMP. (DE) FAILURE Int
0 41039(Bit13) TAH-622317A PINION JOURNAL BEARING TEMP. (DE) HA Int
0 41039(Bit14) TAHH-622317A PINION JOURNAL BEARING TEMP. (DE) HH Int
0 41039(Bit15) TBP-622317A PINION JOURNAL BEARING TEMP. (DE) IN BYPASS Int
0 41040(Bit0) TAF-622314A GEAR THRUST BEARING TEMP. (ACT) FAILURE Int
0 41040(Bit1) TAH-622314A GEAR THRUST BEARING TEMP. (ACT) HA Int
0 41040(Bit2) TAHH-622314A GEAR THRUST BEARING TEMP. (ACT) HH Int
0 41040(Bit3) TBP-622314A GEAR THRUST BEARING TEMP. (ACT) IN BYPASS Int
0 41040(Bit4) TAF-622315A GEAR THRUST BEARING TEMP. (ACT) FAILURE Int
0 41040(Bit5) TAH-622315A GEAR THRUST BEARING TEMP. (ACT) HA Int
0 41040(Bit6) TAHH-622315A GEAR THRUST BEARING TEMP. (ACT) HH Int
0 41040(Bit7) TBP-622315A GEAR THRUST BEARING TEMP. (ACT) IN BYPASS Int
0 41040(Bit8) TAF-622312A GEAR THRUST BEARING TEMP. (IN-ACT) FAILURE Int
0 41040(Bit9) TAH-622312A GEAR THRUST BEARING TEMP. (IN-ACT) HA Int
0 41040(Bit10) TAHH-622312A GEAR THRUST BEARING TEMP. (IN-ACT) HH Int
0 41040(Bit11) TBP-622312A GEAR THRUST BEARING TEMP. (IN-ACT) IN BYPASS Int
0 41040(Bit12) TAF-622313A GEAR THRUST BEARING TEMP. (IN-ACT) FAILURE Int
0 41040(Bit13) TAH-622313A GEAR THRUST BEARING TEMP. (IN-ACT) HA Int
0 41040(Bit14) TAHH-622313A GEAR THRUST BEARING TEMP. (IN-ACT) HH Int
0 41040(Bit15) TBP-622313A GEAR THRUST BEARING TEMP. (IN-ACT) IN BYPASS Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41041(Bit0) TAF-622310A GEAR JOURNAL BEARING TEMP. (NDE) FAILURE Int
0 41041(Bit1) TAH-622310A GEAR JOURNAL BEARING TEMP. (NDE) HA Int
0 41041(Bit2) TAHH-622310A GEAR JOURNAL BEARING TEMP. (NDE) HH Int
0 41041(Bit3) TBP-622310A GEAR JOURNAL BEARING TEMP. (NDE) IN BYPASS Int
0 41041(Bit4) TAF-622311A GEAR JOURNAL BEARING TEMP. (NDE) FAILURE Int
0 41041(Bit5) TAH-622311A GEAR JOURNAL BEARING TEMP. (NDE) HA Int
0 41041(Bit6) TAHH-622311A GEAR JOURNAL BEARING TEMP. (NDE) HH Int
0 41041(Bit7) TBP-622311A GEAR JOURNAL BEARING TEMP. (NDE) IN BYPASS Int
0 41041(Bit8) TAF-622308A GEAR JOURNAL BEARING TEMP. (DE) FAILURE Int
0 41041(Bit9) TAH-622308A GEAR JOURNAL BEARING TEMP. (DE) HA Int
0 41041(Bit10) TAHH-622308A GEAR JOURNAL BEARING TEMP. (DE) HH Int
0 41041(Bit11) TBP-622308A GEAR JOURNAL BEARING TEMP. (DE) IN BYPASS Int
0 41041(Bit12) TAF-622309A GEAR JOURNAL BEARING TEMP. (DE) FAILURE Int
0 41041(Bit13) TAH-622309A GEAR JOURNAL BEARING TEMP. (DE) HA Int
0 41041(Bit14) TAHH-622309A GEAR JOURNAL BEARING TEMP. (DE) HH Int
0 41041(Bit15) TBP-622309A GEAR JOURNAL BEARING TEMP. (DE) IN BYPASS Int
0 41042(Bit0) TAF-622303A MOTOR JOURNAL BEARING TEMP. (CPL) FAILURE Int
0 41042(Bit1) TAH-622303A MOTOR JOURNAL BEARING TEMP. (CPL) HA Int
0 41042(Bit2) TAHH-622303A MOTOR JOURNAL BEARING TEMP. (CPL) HH Int
0 41042(Bit3) TBP-622303A MOTOR JOURNAL BEARING TEMP. (CPL) IN BYPASS Int
0 41042(Bit4) TAF-622304A MOTOR JOURNAL BEARING TEMP. (CPL) FAILURE Int
0 41042(Bit5) TAH-622304A MOTOR JOURNAL BEARING TEMP. (CPL) HA Int
0 41042(Bit6) TAHH-622304A MOTOR JOURNAL BEARING TEMP. (CPL) HH Int
0 41042(Bit7) TBP-622304A MOTOR JOURNAL BEARING TEMP. (CPL) IN BYPASS Int
0 41042(Bit8) TAF-622301A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) FAILURE Int
0 41042(Bit9) TAH-622301A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) HA Int
0 41042(Bit10) TAHH-622301A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) HH Int
0 41042(Bit11) TBP-622301A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) IN BYPASS Int
0 41042(Bit12) TAF-622302A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) FAILURE Int
0 41042(Bit13) TAH-622302A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) HA Int
0 41042(Bit14) TAHH-622302A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) HH Int
0 41042(Bit15) TBP-622302A MOTOR JOURNAL BEARING TEMP. (ANTI-CPL) IN BYPASS Int
0 41043(Bit0) TAF-622305A MOTOR WINDING TEMP. (U) FAILURE Int
0 41043(Bit1) TAH-622305A MOTOR WINDING TEMP. (U) HA Int
0 41043(Bit2) TAHH-622305A MOTOR WINDING TEMP. (U) HH Int
0 41043(Bit3) TBP-622305A MOTOR WINDING TEMP. (U) IN BYPASS Int
0 41043(Bit4) TAF-622306A MOTOR WINDING TEMP. (V) FAILURE Int
0 41043(Bit5) TAH-622306A MOTOR WINDING TEMP. (V) HA Int
0 41043(Bit6) TAHH-622306A MOTOR WINDING TEMP. (V) HH Int
0 41043(Bit7) TBP-622306A MOTOR WINDING TEMP. (V) IN BYPASS Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41043(Bit8) TAF-622307A MOTOR WINDING TEMP. (W) FAILURE Int
0 41043(Bit9) TAH-622307A MOTOR WINDING TEMP. (W) HA Int
0 41043(Bit10) TAHH-622307A MOTOR WINDING TEMP. (W) HH Int
0 41043(Bit11) TBP-622307A MOTOR WINDING TEMP. (W) IN BYPASS Int
0 41043(Bit12) - - Int
0 41043(Bit13) - - Int
0 41043(Bit14) - - Int
0 41043(Bit15) - - Int
0 41044(Bit0) ALM_PLC PLC COMMON ALARM Int
0 41044(Bit1) - - Int
0 41044(Bit2) - - Int
0 41044(Bit3) - - Int
0 41044(Bit4) - - Int
0 41044(Bit5) - - Int
0 41044(Bit6) - - Int
0 41044(Bit7) - - Int
0 41044(Bit8) - - Int
0 41044(Bit9) - - Int
0 41044(Bit10) - - Int
0 41044(Bit11) - - Int
0 41044(Bit12) - - Int
0 41044(Bit13) - - Int
0 41044(Bit14) - - Int
0 41044(Bit15) - - Int
0 41045(Bit0) PC-622354_AUTO COMP 2ND DISCHARGE PRESS. CONTROL IN AUTO Int
0 41045(Bit1) PDS_ENB PDS CONTROL ENABLE Int
0 41045(Bit2) LC-622001_AUTO 1ST SUCTION DRUM LEVEL CONTROL IN AUTO Int
0 41045(Bit3) LC-622011_AUTO 2ND SUCTION DRUM LEVEL CONTROL IN AUTO Int
0 41045(Bit4) LC-622021_AUTO SEPARATION DRUM LEVEL CONTROL IN AUTO Int
0 41045(Bit5) PDC-622343_AUTO SEAL GAS DIFF.PRESS. CONTROL IN AUTO Int
0 41045(Bit6) UC1_PID_AUTO 1ST STAGE SURGE PID CONTROL IN AUTO Int
0 41045(Bit7) HIC1_HIC_AUTO 1ST STAGE SURGE HIC CONTROL IN AUTO Int
0 41045(Bit8) UC2_PID_AUTO 2NDSTAGE SURGE PID CONTROL IN AUTO Int
0 41045(Bit9) HIC2_HIC_AUTO 2ND STAGE SURGE HIC CONTROL IN AUTO Int
0 41045(Bit10) - - Int
0 41045(Bit11) - - Int
0 41045(Bit12) - - Int
0 41045(Bit13) - - Int
0 41045(Bit14) - - Int
0 41045(Bit15) - - Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41046(Bit0) PC-622354MD_L COMP 2ND DISCHARGE PRESS. CONTROL MANUAL DEMAND LOWER HMI Int
0 41046(Bit1) PC-622354MD_R COMP 2ND DISCHARGE PRESS. CONTROL MANUAL DEMAND RAISE HMI Int
0 41046(Bit2) PC-622354SP_L COMP 2ND DISCHARGE PRESS. CONTROL SETPOINT LOWER HMI Int
0 41046(Bit3) PC-622354SP_R COMP 2ND DISCHARGE PRESS. CONTROL SETPOINT RAISE HMI Int
0 41046(Bit4) Int
0 41046(Bit5) Int
0 41046(Bit6) Int
0 41046(Bit7) Int
0 41046(Bit8) LC-622011MD_L 2ND SUCTION DRUM LEVEL CONTROL MANUAL DEMAND LOWER HMI Int
0 41046(Bit9) LC-622011MD_R 2ND SUCTION DRUM LEVEL CONTROL MANUAL DEMAND RAISE HMI Int
0 41046(Bit10) LC-622011SP_L 2ND SUCTION DRUM LEVEL CONTROL SETPOINT LOWER HMI Int
0 41046(Bit11) LC-622011SP_R 2ND SUCTION DRUM LEVEL CONTROL SETPOINT RAISE HMI Int
0 41046(Bit12) LC-622021MD_L SEPARATION DRUM LEVEL CONTROL MANUAL DEMAND LOWER HMI Int
0 41046(Bit13) LC-622021MD_R SEPARATION DRUM LEVEL CONTROL MANUAL DEMAND RAISE HMI Int
0 41046(Bit14) LC-622021SP_L SEPARATION DRUM LEVEL CONTROL SETPOINT LOWER HMI Int
0 41046(Bit15) LC-622021SP_R SEPARATION DRUM LEVEL CONTROL SETPOINT RAISE HMI Int
0 41047(Bit0) PDC-622343MD_L SEAL GAS DIFF. PRESS. CONTROL MANUAL DEMAND LOWER HMI Int
0 41047(Bit1) PDC-622343MD_R SEAL GAS DIFF. PRESS. CONTROL MANUAL DEMAND RAISE HMI Int
0 41047(Bit2) PDC-622343SP_L SEAL GAS DIFF. PRESS. CONTROL SETPOINT LOWER HMI Int
0 41047(Bit3) PDC-622343SP_R SEAL GAS DIFF. PRESS. CONTROL SETPOINT RAISE HMI Int
0 41047(Bit4) UC1_MD_L 1ST STAGE ANTI-SURGE CONTROL MANUAL DEMAND LOWER HMI Int
0 41047(Bit5) UC1_MD_R 1ST STAGE ANTI-SURGE CONTROL MANUAL DEMAND RAISE HMI Int
0 41047(Bit6) UC2_MD_L 2ND STAGE ANTI-SURGE CONTROL MANUAL DEMAND LOWER HMI Int
0 41047(Bit7) UC2_MD_R 2ND STAGE ANTI-SURGE CONTROL MANUAL DEMAND RAISE HMI Int
0 41047(Bit8) HS-622370 LAMP TEST HMI Int
0 41047(Bit9) HS-622371 ALARM ACKNOWLEDGE HMI Int
0 41047(Bit10) - - Int
0 41047(Bit11) STR_PER PERMISSIVE Int
0 41047(Bit12) ST0_SD SHUTDOWN STATE Int
0 41047(Bit13) ST1_RDY READY TO START STATE Int
0 41047(Bit14) ST2_ACCEL ACCELERATION STATE Int
0 41047(Bit15) ST3_RUN RUN STATE Int
0 41048(Bit0) TRIP_01 SHUTDOWN SIGNAL Int
0 41048(Bit1) TRIP_02 EMERGENCY STOP FROM LCP Int
0 41048(Bit2) TRIP_03 EMERGENCY STOP FROM AOC Int
0 41048(Bit3) TRIP_04 EMERGENCY STOP FROM HMI Int
0 41048(Bit4) TRIP_05 L/O HEADER PRESS. (2OO3) Int
0 41048(Bit5) TRIP_06 PRIMARY LEAKAGE PRESS. (DE) (2OO3) Int
0 41048(Bit6) TRIP_07 PRIMARY LEAKAGE PRESS. (NDE) (2OO3) Int
0 41048(Bit7) TRIP_08 1ST SUCTION DRUM LEVEL (FOR TRIP) Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41048(Bit8) TRIP_09 2ND SUCTION DRUM LEVEL (FOR TRIP) Int
0 41048(Bit9) TRIP_10 SEPARATOR DRUM LEVEL (FOR TRIP) Int
0 41048(Bit10) TRIP_11 COMP SHAFT VIBRATION (DE) HH Int
0 41048(Bit11) TRIP_12 COMP SHAFT VIBRATION (NDE) HH Int
0 41048(Bit12) TRIP_13 COMP. AXIAL DISPLACEMENT HH Int
0 41048(Bit13) TRIP_14 PINION SHAFT VIBRATION (DE) HH Int
0 41048(Bit14) TRIP_15 PINION SHAFT VIBRATION (NDE) HH Int
0 41048(Bit15) TRIP_16 GEAR SHAFT VIBRATION (DE) HH Int
0 41049(Bit0) TRIP_17 GEAR SHAFT VIBRATION (NDE) HH Int
0 41049(Bit1) TRIP_18 GEAR AXIAL DISPLACEMENTHH Int
0 41049(Bit2) TRIP_19 MOTOR SHAFT VIBRATION (CPL) HH Int
0 41049(Bit3) TRIP_20 MOTOR SHAFT VIBRATION (ANTI-CPL) HH Int
0 41049(Bit4) TRIP_21 COMP JOURNAL BEARING TEMP. HH Int
0 41049(Bit5) TRIP_22 COMP THR. BRG.TEMP. HH Int
0 41049(Bit6) TRIP_23 PINION JOURNAL BEARING TEMP. HH Int
0 41049(Bit7) TRIP_24 GEAR JOURNAL BEARING TEMP. HH Int
0 41049(Bit8) TRIP_25 GEAR THRUST BEARING TEMP. HH Int
0 41049(Bit9) TRIP_26 MOTOR JOURNAL BEARING TEMP Int
0 41049(Bit10) TRIP_27 MOTOR WINDING TEMP. HH Int
0 41049(Bit11) TRIP_28 VSDS COMMON TRIP Int
0 41049(Bit12) TRIP_29 1ST STAGE ANTI-SURGE LOOP DETECT OF SURGE Int
0 41049(Bit13) TRIP_30 2ND STAGE ANTI-SURGE LOOP DETECT OF SURGE Int
0 41049(Bit14) TRIP_31 VSDS MOTOR FAIL TO START TRIP Int
0 41049(Bit15) - - Int
0 41050(Bit0) - - Int
0 41050(Bit1) - - Int
0 41050(Bit2) - - Int
0 41050(Bit3) HS-622311E EMERGENCY STOP FROM HMI Int
0 41050(Bit4) PALL-622332 L/O HEADER PRESS. (FOR TRIP) 2oo3 LL Int
0 41050(Bit5) PALL-622332A L/O HEADER PRESS. (FOR TRIP) A LL Int
0 41050(Bit6) PALL-622332B L/O HEADER PRESS. (FOR TRIP) B LL Int
0 41050(Bit7) PALL-622332C L/O HEADER PRESS. (FOR TRIP) C LL Int
0 41050(Bit8) PALL-622344 PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) 2oo3 LL Int
0 41050(Bit9) PALL-622344A PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) A LL Int
0 41050(Bit10) PALL-622344B PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) B LL Int
0 41050(Bit11) PALL-622344C PRIMARY LEAKAGE PRESS. (DE) (FOR TRIP) C LL Int
0 41050(Bit12) PALL-622345 PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) 2oo3 LL Int
0 41050(Bit13) PALL-622345A PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) A LL Int
0 41050(Bit14) PALL-622345B PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) B LL Int
0 41050(Bit15) PALL-622345C PRIMARY LEAKAGE PRESS. (NDE) (FOR TRIP) C LL Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41051(Bit0) LAHH-622002 1ST SUCTION DRUM LEVEL (FOR TRIP) HH Int
0 41051(Bit1) LAHH-622012 2ND SUCTION DRUM LEVEL (FOR TRIP) HH Int
0 41051(Bit2) LAHH-622022 SEPARATOR DRUM LEVEL (FOR TRIP) HH Int
0 41051(Bit3) XA-622323A 1ST STAGE ANTI-SURGE LOOP DETECT OF SURGE Int
0 41051(Bit4) XA-622323B 2ND STAGE ANTI-SURGE LOOP DETECT OF SURGE Int
0 41051(Bit5) - - Int
0 41051(Bit6) - - Int
0 41051(Bit7) - - Int
0 41051(Bit8) - - Int
0 41051(Bit9) - - Int
0 41051(Bit10) - - Int
0 41051(Bit11) - - Int
0 41051(Bit12) - - Int
0 41051(Bit13) - - Int
0 41051(Bit14) - - Int
0 41051(Bit15) - - Int
0 41052(Bit0) FO_01 SHUTDOWN SIGNAL FIRSTOUT Int
0 41052(Bit1) FO_02 EMERGENCY STOP FROM LCP FIRSTOUT Int
0 41052(Bit2) FO_03 EMERGENCY STOP FROM AOC FIRSTOUT Int
0 41052(Bit3) FO_04 EMERGENCY STOP FROM HMI FIRSTOUT Int
0 41052(Bit4) FO_05 L/O HEADER PRESS. (2OO3) FIRSTOUT Int
0 41052(Bit5) FO_06 PRIMARY LEAKAGE PRESS. (DE) (2OO3) FIRSTOUT Int
0 41052(Bit6) FO_07 PRIMARY LEAKAGE PRESS. (NDE) (2OO3) FIRSTOUT Int
0 41052(Bit7) FO_08 1ST SUCTION DRUM LEVEL (FOR TRIP) FIRSTOUT Int
0 41052(Bit8) FO_09 2ND SUCTION DRUM LEVEL (FOR TRIP) FIRSTOUT Int
0 41052(Bit9) FO_10 SEPARATOR DRUM LEVEL (FOR TRIP) FIRSTOUT Int
0 41052(Bit10) FO_11 COMP SHAFT VIBRATION (DE) HH FIRSTOUT Int
0 41052(Bit11) FO_12 COMP SHAFT VIBRATION (NDE) HH FIRSTOUT Int
0 41052(Bit12) FO_13 COMP. AXIAL DISPLACEMENT HH FIRSTOUT Int
0 41052(Bit13) FO_14 PINION SHAFT VIBRATION (DE) HH FIRSTOUT Int
0 41052(Bit14) FO_15 PINION SHAFT VIBRATION (NDE) HH FIRSTOUT Int
0 41052(Bit15) FO_16 GEAR SHAFT VIBRATION (DE) HH FIRSTOUT Int
0 41053(Bit0) FO_17 GEAR SHAFT VIBRATION (NDE) HH FIRSTOUT Int
0 41053(Bit1) FO_18 GEAR AXIAL DISPLACEMENTHH FIRSTOUT Int
0 41053(Bit2) FO_19 MOTOR SHAFT VIBRATION (CPL) HH FIRSTOUT Int
0 41053(Bit3) FO_20 MOTOR SHAFT VIBRATION (ANTI-CPL) HH FIRSTOUT Int
0 41053(Bit4) FO_21 COMP JOURNAL BEARING TEMP. HH FIRSTOUT Int
0 41053(Bit5) FO_22 COMP THR. BRG.TEMP. HH FIRSTOUT Int
0 41053(Bit6) FO_23 PINION JOURNAL BEARING TEMP. HH FIRSTOUT Int
0 41053(Bit7) FO_24 GEAR JOURNAL BEARING TEMP. HH FIRSTOUT Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

0 41053(Bit8) FO_25 GEAR THRUST BEARING TEMP. HH FIRSTOUT Int
0 41053(Bit9) FO_26 MOTOR JOURNAL BEARING TEMP FIRSTOUT Int
0 41053(Bit10) FO_27 MOTOR WINDING TEMP. HH FIRSTOUT Int
0 41053(Bit11) FO_28 VSDS COMMON TRIP FIRSTOUT Int
0 41053(Bit12) FO_29 1ST STAGE ANTI-SURGE LOOP DETECT OF SURGE FIRSTOUT Int
0 41053(Bit13) FO_30 2ND STAGE ANTI-SURGE LOOP DETECT OF SURGE FIRSTOUT Int
0 41053(Bit14) FO_31 VSDS MOTOR FAIL TO START TRIP FIRSTOUT Int
0 41053(Bit15) - - Int

Doc No.: TS2457-1407005-401
Date: 09/03/2015

Control System Manual Rev 0

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Control System Manual Rev 0

Uploaded by

Copyright:

Available Formats

Control System Manual

Project Name: CNOOC-Missan Oil Field Development Project

Project Name: CNOOC-Missan Oil Field Development Project

Rev Date Change Done/Checked By

Control System Narrative -ii -

Control System Narrative -iii -

6.1 State: Shutdown ................................................................................................................ 20

Control System Narrative -iv -

8.2.8 Hand Indicating Controller (HIC) ............................................................................................... 42

Control System Narrative -v -

Relevant identification data:

Control System Narrative -1 -

Control System Narrative -2 -

3.1 TSx Controller

QTY Modules Channel

3.2 Machinery Monitoring Systems

Control System Narrative -3 -

QTY Modules Channel

3.3 Controller Cabinet

3.4 Network Instruction

Control System Narrative -4 -

Network Ferrule Cables Color

Refer to TS2457-1407004-101 Control System Architecture Diagram for the communication

3.5 Unit Control Panel Grounding

Control System Narrative -5 -

4.1 Engineering Work Station

4.2 HMI Operation

• Overall Motor-Gear-compressor Running Status

Control System Narrative -6 -

Security Levels Permissions

4.3 High-Speed Data Recording

4.4 Modbus RS-485 Communication

Module in Slot 12 Chassis 0:

Port Comm w/ Redundancy Function

Control System Narrative -7 -

Port Comm w/ Redundancy Function

Control System Narrative -8 -

5 Alarms and Trips

5.1 Cabinet Alarms

To monitor the cabinet equipment to following alarm will be generated:

• Power Supply (UPS1) Failure

5.2 System Hardware Alarms and Trips

Control System Narrative -9 -

5.3 Lubrication Oil System Alarms and Trips

Associated Tags Alarm/Trip Description

Control System Narrative -10 -

Note: All setpoints are stated in I/O list.

Associated Tags Alarm/Trip Description

Note: All setpoints are stated in I/O list.

5.5 Machine Monitoring System Alarms and Trips

Control System Narrative -11 -

5.5.1 Compressor Axial Displacement and Bearing Vibrations

The alarm signals are

The trip conditions associated to above displacement and vibration are

Note: All setpoints are stated in I/O list.

Associated Tags Description

Control System Narrative -12 -

No alarm signals are associated to above keyphasor sensors.

5.5.3 Gear Box Axial Displacement and Bearing Vibrations

Associated Tags Alarm Description

Control System Narrative -13 -

Note: All setpoints are stated in I/O list.

5.5.4 Motor Bearing Vibrations

Associated Tags Description
