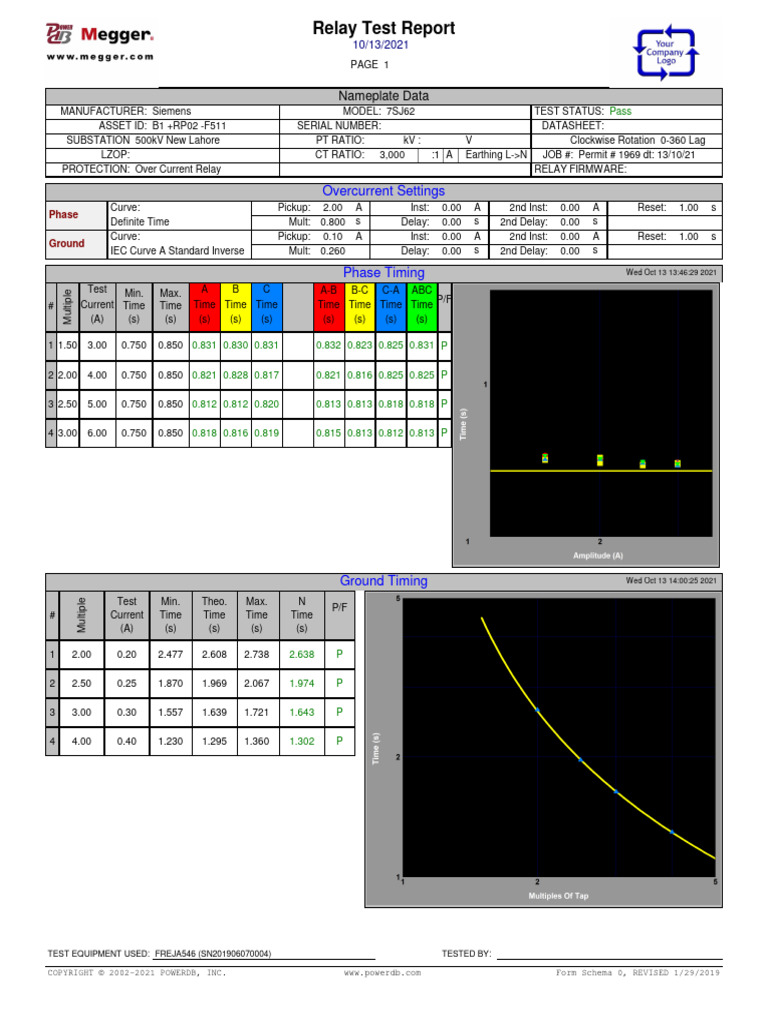

    Relay Test Report

    10/13/2021
    PAGE 1

    Nameplate Data
    MANUFACTURER: Siemens MODEL: 7SJ62 TEST STATUS: Pass
    ASSET ID: B1 +RP02 -F511 SERIAL NUMBER: DATASHEET:
    SUBSTATION 500kV New Lahore PT RATIO: kV : V Clockwise Rotation 0-360 Lag
    LZOP: CT RATIO: 3,000 :1 A Earthing L->N JOB #: Permit # 1969 dt: 13/10/21
    PROTECTION: Over Current Relay RELAY FIRMWARE:

    Overcurrent Settings
    Curve: Pickup: 2.00 A Inst: 0.00 A 2nd Inst: 0.00 A Reset: 1.00 s
    Phase
    Definite Time Mult: 0.800 s Delay: 0.00 s 2nd Delay: 0.00 s
    Curve: Pickup: 0.10 A Inst: 0.00 A 2nd Inst: 0.00 A Reset: 1.00 s
    Ground
    IEC Curve A Standard Inverse Mult: 0.260 Delay: 0.00 s 2nd Delay: 0.00 s

    Phase Timing Wed Oct 13 13:46:29 2021

    Test A B C A-B B-C C-A ABC


    Multiple

    Min. Max.
    P/F
    # Current Time Time Time Time Time Time Time Time Time
    (A) (s) (s) (s) (s) (s) (s) (s) (s) (s)

    1 1.50 3.00 0.750 0.850 0.831 0.830 0.831 0.832 0.823 0.825 0.831 P

    2 2.00 4.00 0.750 0.850 0.821 0.828 0.817 0.821 0.816 0.825 0.825 P

    3 2.50 5.00 0.750 0.850 0.812 0.812 0.820 0.813 0.813 0.818 0.818 P

    4 3.00 6.00 0.750 0.850 0.818 0.816 0.819 0.815 0.813 0.812 0.813 P

    Ground Timing Wed Oct 13 14:00:25 2021


    Multiple

    Test Min. Theo. Max. N


    P/F
    # Current Time Time Time Time
    (A) (s) (s) (s) (s)

    1 2.00 0.20 2.477 2.608 2.738 2.638 P

    2 2.50 0.25 1.870 1.969 2.067 1.974 P

    3 3.00 0.30 1.557 1.639 1.721 1.643 P

    4 4.00 0.40 1.230 1.295 1.360 1.302 P

    TEST EQUIPMENT USED: FREJA546 (SN201906070004) TESTED BY:

    COPYRIGHT © 2002-2021 POWERDB, INC. www.powerdb.com Form Schema 0, REVISED 1/29/2019
