QUALITY NDT SERVICES

REGD.OFFICE: PLOT NO B.G.A. 1/1,2,3 BHOSARI GENERAL BLOCK, M.I.D.C.,

BHOSARI, PUNE 411 026.
PH: 020-27121843, 27119490
E-mail: bkp_qndt@yahoo.in/bhausaheb@qualityndt.org
RADIOGRAPHY, ULTRASONIC, MAGNETIC PARTICLE AND PENETRANT TESTING SERVICES

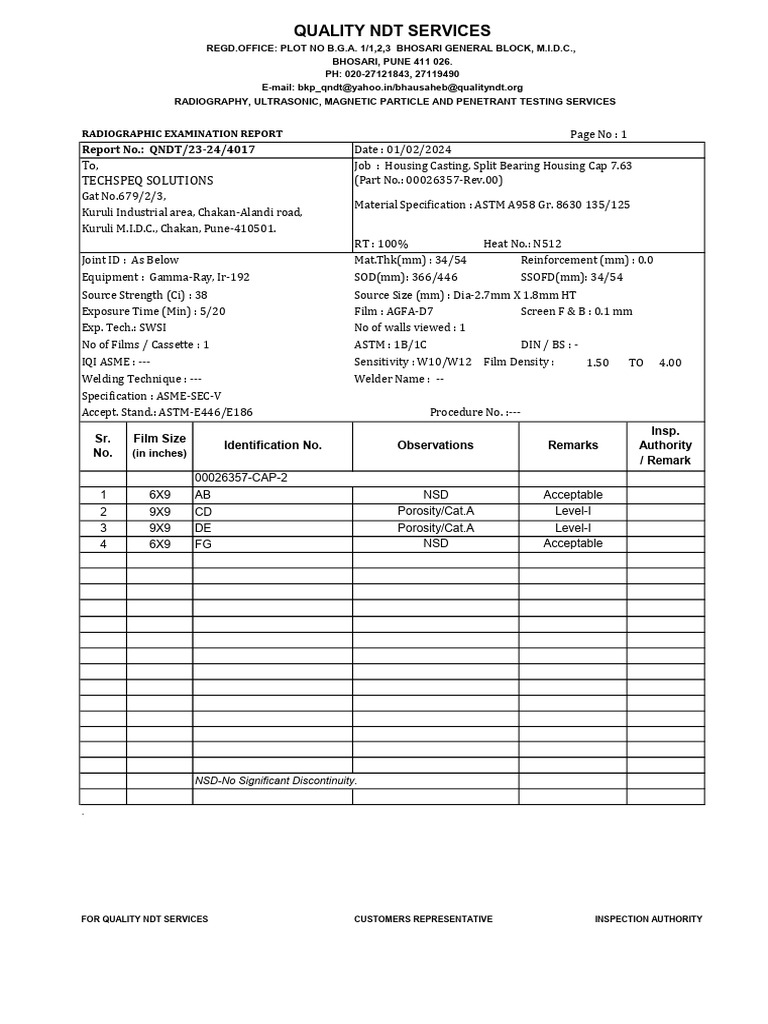

RADIOGRAPHIC EXAMINATION REPORT Page No : 1

Report No.: QNDT/23-24/4017 Date : 01/02/2024
To, Job : Housing Casting, Split Bearing Housing Cap 7.63
TECHSPEQ SOLUTIONS (Part No.: 00026357-Rev.00)
Gat No.679/2/3,
Material Specification : ASTM A958 Gr. 8630 135/125
Kuruli Industrial area, Chakan-Alandi road,
Kuruli M.I.D.C., Chakan, Pune-410501.
RT : 100% Heat No.: N512
Joint ID : As Below Mat.Thk(mm) : 34/54 Reinforcement (mm) : 0.0
Equipment : Gamma-Ray, Ir-192 SOD(mm): 366/446 SSOFD(mm): 34/54
Source Strength (Ci) : 38 Source Size (mm) : Dia-2.7mm X 1.8mm HT
Exposure Time (Min) : 5/20 Film : AGFA-D7 Screen F & B : 0.1 mm
Exp. Tech.: SWSI No of walls viewed : 1
No of Films / Cassette : 1 ASTM : 1B/1C DIN / BS : -
IQI ASME : --- Sensitivity : W10/W12 Film Density : 1.50 TO 4.00
Welding Technique : --- Welder Name : --
Specification : ASME-SEC-V
Accept. Stand.: ASTM-E446/E186 Procedure No. :---
Insp.
Sr. Film Size
Identification No. Observations Remarks Authority
No. (in inches)
/ Remark
00026357-CAP-2
1 6X9 AB NSD Acceptable
2 9X9 CD Porosity/Cat.A Level-I
3 9X9 DE Porosity/Cat.A Level-I
4 6X9 FG NSD Acceptable

NSD-No Significant Discontinuity.

FOR QUALITY NDT SERVICES CUSTOMERS REPRESENTATIVE INSPECTION AUTHORITY
