Master Format Full Specifications Sample

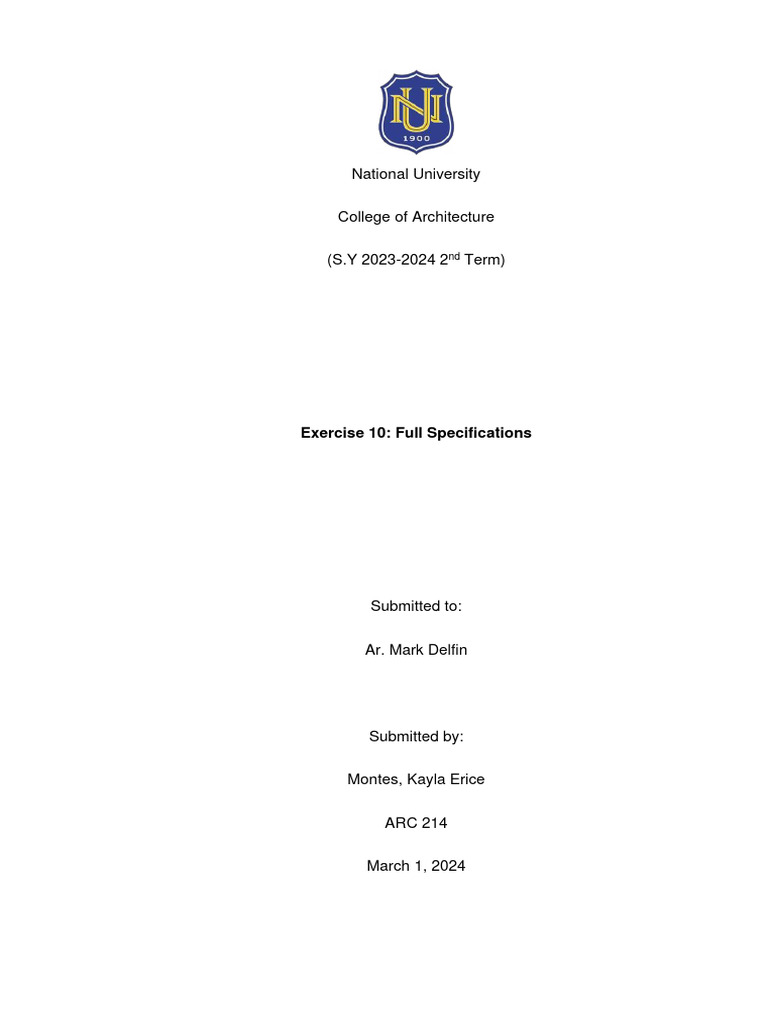

National University
College of Architecture
(S.Y 2023-2024 2nd Term)
Exercise 10: Full Specifications
Submitted to:
Ar. Mark Delfin
Submitted by:
Montes, Kayla Erice
ARC 214
March 1, 2024
Division 1: GENERAL REQUIREMENTS
1. Plans and specifications must be well-interpreted in the construction
completely to the full satisfaction of the Architect-in-Charge and Project
Owner.
2. Procured design and construction must conform to all local ordinances,
relevant rules and regulations that are enforced in the area, the National
Building Code of the Philippines (NBCP) and American Society for Testing
and Materials, including all referral codes.
SCOPE
3. The scope of work to be done by the Architect, as herein authorized by the
Owners for the project consists of professional services for Regular
Detailed Architectural Engineering Design of the Two-Storey Residential
Structure.
4. Works comprises of execution, completion, and maintenance during the
Defects Liability Period of the Architectural, Plumbing, and Electrical of the
Two-Storey Residential Structure.
PERFORMANCE AND STANDARDS
1. The remaining sections of the Specifications specify the needed
performance of materials and products, as well as the requirements that
must be met.
2. If there are any conflicts between codes, regulations, project conditions, or
Employer's requirements, the Contractor must notify the Engineer in
P a g e 2 | 89
writing. The Engineer will interpret and resolve the conflict in accordance
with the Conditions of Contract.
RELATED DOCUMENTS
A. Maintain at job site, one copy of:
1. Contract Drawing
2. Specifications
3. Reviewed Shop Drawings
4. Change Orders
5. Other Modifications to Contract
6. Field test Records
7. As-Built Drawings
SCHEDULE OF DRAWINGS
The following are Working Drawings and Project Manuals as reference for the
construction completion:
ARCHITECTURAL DRAWINGS
Sheet No. Title
A-2 Floor Plans & Roof Plan
A-2.1 Ground Floor Plan
A-2.2 Second Floor Plan
A-2.3 Roof Plan
A-3 Elevations
A-3.1 Front Elevation
P a g e 3 | 89
A-3.2 Rear Elevation
A-3.3 Left Side Elevation
A-3.4 Right Side Elevation
A-4 Sections
A-4.1 Cross Section
A-4.2 Longitudinal Section
A-5 Reflected Ceiling Plans
A-5.1 Ground Floor Reflected Ceiling Plans
A-5.2 Second Floor Reflected Ceiling Plans
A-5.3 RCP Detailed Section A
A-5.4 RCP Detailed Section B
A-6 Door Schedule & Window Schedule
A-7 Blow-Up Plans
A-7.1 Kitchen Key Plan
A-7.2 Kitchen Section
A-7.3 Masters T&B Key Plan
A-7.4 Masters T&B Section
A-7.5 Stair Key Plan
A-7.6 Staircase Section
P a g e 4 | 89
STRUCTURAL DRAWINGS
Sheet No. Title
S-1 Foundation Plan and Framing Plans
S-1.1 Foundation Plan
S-1.2 Second Floor Framing Plan
S-1.3 Roof Framing Plan
S-2 Details & Schedules
S-2.1 Footing Details
S-2.2 Slab Details
S-2.3 Connection Details
S-2.4 Slab & Footing Schedule
S-2.5 Column Schedule
S-2.6 Column Details
PLUMBING DRAWINGS
P-1 Water Supply Layout, Details, and Schedules
P-1.1 Ground Floor Water Supply Layout
P-1.2 Second Floor Water Supply Layout
P-1.3 Lavatory (Wall Hung) Construction Details
P-1.4 Water Closet (Flush Tank) Const. Details
P-1.5 Floor Cleanout Construction Details
P a g e 5 | 89
P-1.6 Floor Cleanout Construction Details
P-1.7 Downspout Construction Details
P-1.8 Vent Pipe Layout
P-1.9 Air Cap Chamber Construction Details
P-1.10 Floor Drain Construction Details
P-2 Sanitary & Storm Drain Layout and Details
P-2.1 Ground Floor Sanitary & Storm Drain Layout
P-2.2 Second Floor Sanitary & Storm Drain Layout
P-2.3 Roof Storm Drain Layout
P-2.4 AD/CB Detail
P-2.5 Septic Tank Detail
P-3 Isometric Layouts
P-3.1 Water Supply Isometric Layout
P-3.2 Sanitary Drainage Line Isometric Layout
P-3.3 Storm Drainage Line Layout
ELECTRICAL DRAWINGS
E-1 Power Layout & Lighting Layout
E-1.1 Ground Floor Power Layout
E-1.2 Second Floor Power Layout
E-1.3 Ground Floor Lighting Layout
P a g e 6 | 89
E-1.4 Second Floor Lighting Layout
E-2 Schedule of Loads & Diagrams
E-2.1 Schedule of Loads
E-2.2 Panel Board Diagram
E-2.3 Single Line Riser Diagram
RELATED CODES AND REGULATIONS
1. National Building Code of the Philippines (NBCP)
2. International Building Code (IBC)
3. American Society for Testing and Materials (ASTM)
4. American Concrete Institute (ACI)
5. National Structural Code of the Philippines (NCSP 2010)
6. Concrete Reinforcing Steel Institute (CRSI)
7. Steel Joist Institute (SJI)
8. Architectural Woodwork Institute (AWI)
9. Builders Hardware Manufacturers Association (BHMA)
10. National Plumbing Code of the Philippines
11. American National Standards Institute, Inc. (ANSI)
12. National Electric Code (NEC)
P a g e 7 | 89
CLEANING
Cleaning and Protection Work
1. When each unit of work or element of the construction is substantially
completed (in each region of the Project), clean the unit or element to a
condition acceptable for occupancy and usage (as intended), and repair
minor or superficial damage. Replace units and pieces that are too
damaged to be successfully restored.
2. Clean and restore adjacent surfaces and other work that was dirty or
damaged (superficially) during installation; replace any damaged work that
cannot be successfully restored. units and pieces that are too damaged to
be successfully restored.
3. To prevent damage to a unit or element during later work, offer protective
coverings or other measures.
4. Continue cleaning and protecting work areas throughout construction to
prevent harm from soiling or exposure.
During Construction
1. Maintain organized building grounds and public properties to prevent
garbage and rubbish accumulation.
2. Clean up the work site and dispose of waste, rubbish, and debris at regular
intervals.
*End of Section*
P a g e 8 | 89
Division 2: EXSTING CONDITIONS
Site Clearing
Part 1: General
1. The work done under this consists of rubbish, debris, designated trees,
brush, and other vegetations to a disposal site and the preservation of
tagged vegetations and items to remain after site clearing.
2. All work should be performed to meet erosion and sediment control
provisions.
3. Finish excavations to a smooth and uniform surface, making sure not to
damage the materials or the uniform surface.
4. When excavating, avoid disturbing objects outside the boundaries of
slopes.
5. Excavate no further than the dimensions and elevations established, and
do not remove any material until the staking and cross sectioning of the site
is complete.
6. All excavated materials should be used to build, subgrades, shoulders, and
other structures as required. This site preparations should be done in
accordance with P.D 1096 Green Building Code Section 14: Site
Sustainability.
A. Site clearing of designated site improvements and landscaping
B. Tagging of vegetation and items to remain after site clearing.
C. Clearing and grubbing
D. Stripping and stockpiling topsoil
E. Temporary erosion and sedimentation control measures
P a g e 9 | 89
RELATED DOCUMENTS
1. S-1 Foundation Plan and Framing Plans
a. S-1.1 Foundation Plan
2. S-2 Details & Schedules
a. S-2.1 Footing Details
b. S-2.2 Slab Details
3. P-1 Water Supply Layout, Details, and Schedules
a. P-1.1 Ground Floor Water Supply Layout
4. P-2 Sanitary & Storm Drain Layout and Details
a. P-2.1 Ground Floor Sanitary & Storm Drain Layout
5. P-2.5 Septic Tank Detail
Part 2: Products
Materials
A. Site Clearing Materials Suitable for Site Conditions:
1. Tree protection
2. Erosion and sedimentation control (Insulfoam – Geofoam Structural
Insulation)
3. Backhoe loader
P a g e 10 | 89
Part 3: Execution
Preparation
A. Protection of existing vegetation, trees, landscaping, and site
improvements not designated for clearing that might get damaged by
construction activities.
B. Protect and maintain benchmarks and survey control locations throughout
construction.
C. Restore vegetation which has been damaged or pay damages by replacing
the damaged vegetation. Remove any dense grass growth before stripping.
Stockpile suitable topsoil on site that is free of large stones, foreign
substances, and weeds for reuse.
Temporary Erosion and Sedimentation Control
A. Temporary erosion and sedimentation control measures should be used to
avoid soil erosion and the discharge of soil-bearing water runoff or airborne
dust to surrounding properties and sidewalks as per Green Building Code
requirements.
Clearing and Grubbing
A. Remove any obstructions trees, shrubs, and other vegetation to make way
for new construction.
1. Retain trees, shrubs, and other vegetation designated to remain or
be relocated.
2. Remove stumps, roots, obstructions, and debris to a depth of 300
mm below the exposed subgrade.
P a g e 11 | 89
B. Fill depressions created by clearing and grubbing operations with suitable
soil material unless further excavation or earthwork is required.
Topsoil Stripping
A. Remove sod and grass before scraping topsoil.
B. Strip topsoil so that it does not mix with underlying subsoil or other waste
items.
C. Topsoil must be stripped and stockpiled under generally dry conditions.
Stripping and stockpiling will be prohibited in wet weather.
Disposal of Waste Materials
A. Remove extra soil material, incompatible topsoil, obstructions, demolished
materials, and waste materials, including waste and debris, from the
Owner's property and legally dispose of them to the designated disposal
site.
Earth Moving
Part 1: General
Provide all personnel, materials, and equipment required to execute all work as
detailed on the Drawings. The works included in this section are excavating and
filling for rough grading the site, preparing subgrades for walks, pavements, turf
and grasses and plants, subbase course for concrete walks and pavements,
subbase course and base course for paving, subsurface drainage backfill for walls
and trenches, and excavating and backfilling trenches for utilities and pits for
buried utility structures. Suitable fill from off-site if on-site amounts are insufficient
P a g e 12 | 89
or unsuitable, and legal disposal of excess fill off-site. After excavating
inappropriate material, the underlying ground must be proof-rolled and compacted
to the same specification as the subsequent compaction operations.
Grading Existing Surfaces
The work under this section comprises of executing all activities required to shape
the existing ground preparatory to the placement of the fill or surface material.
Grade trench bottoms accurately to give uniform bearing and support for each
section of pipe on undisturbed soil along its entire length. Make sure the pipe
subgrade has a smooth, uniform surface where the bedding material will be laid.
Excavation
Removal of material discovered above subgrade elevations and along lines
dimensions are provided. Excavate the building pad to the stipulated dimensions
and depths in the approved site plan. Provide trenching and backfill for mechanical
and electrical work and utilities. Borrow materials are to be provided when off-site
suitable fill if on-site quantities are insufficient or undesirable, and legal off-site
disposal of excess fill. It must be ensured that the excavation does not extend
below established grades.
Unless otherwise required by building requirements, the excavation must be large
enough to allow for the appropriate installation and removal of concrete forms or
precast structures, as well as the creation of necessary pipe connections.
Excavated trenches must be wide enough to allow for adequate pipe, conduit, or
cable laying, and banks must be sloped to meet current safety standards.
P a g e 13 | 89
Fill
Ensure that the excavations and areas to be filled are clear of loose dirt, trash,
and standing water. Cobbles, boulders, and rock fragments whose biggest
dimension exceeds the allowed limitations for each type of fill (usually less than
75 mm for structural fill and 125 mm for general fill) are not permitted to be
incorporated into the fill. The Earthworks Contractor should consider removing big
fragments and sending them through a crusher unit to reduce their size to a
suitable grading.
Backfill
Excavated soil that is devoid of frozen material, stumps, roots, brush, other organic
matter, debris, and other objects. Place backfilled material above embedment
materials in a way that prevents pipeline damage or misalignment. Insert lifts of
the thickness required to provide the prescribed backfill density or to meet other
regulatory criteria.
Excavations include:
1. Topsoil Excavation
2. Footings Excavation
3. Ground beams Excavation
4. Wall Footings Excavation
5. Trench Excavation
6. Dewatering Wells Excavation
7. Septic Tank Excavation
P a g e 14 | 89
Excess Excavation
Backfill any excavations taken that is wider than required specified for backfilling
and deeper than required with compacted material specified for backfilling.
Part 2: Products
- Excavator
- Trencher
- Loader
Geotextiles:
- TYPAR Geotextiles 3501
- TYPAR Geocomposite Drains 1A1
Materials:
1. Subbase Material: Naturally or artificially graded gravel or crushed stone.
2. Base Course: Naturally or artificially graded mixture of natural or crushed
gravel, crushed stone
3. Bedding Course: Naturally or artificially graded mixture of natural or
crushed gravel, crushed stone, and natural or crushed sand
4. Borrow Soil: Off-site soil for fill or backfill
5. Drainage Fill: Narrowly grade mixture of washed crushed or uncrushed
gravel or washed crushed stone.
6. Common Fill: Mineral soil free from unsuitable materials.
7. Structural Fill: Graded gravel.
P a g e 15 | 89
8. Impervious Fill: Gravel and sand mixture capable of compacting to a dense
state
Part 3: Execution
Preparation
1. Protect structures, utilities, walkways, pavements, and other facilities from
damage caused by earth-moving operations such as settlement, lateral
movement, undermining, washout, and other dangers.
- Protect and sustain erosion and sedimentation controls during earth-
moving operations using TYPAR Geocomposite Drains 1A1 for trenches
and TYPAR Geotextiles 3501 for the rest.
2. Subgrades and foundation soils should be protected from freezing
temperatures and frost. Remove the temporary protection before adding
the next materials.
Dewatering
1. Prevent surface and ground water entering excavations, ponding on
prepared subgrades, and flooding the project site and surrounding region.
2. Subgrades should be protected from softening, undermining, washout, and
damage caused by rain or water accumulation.
3. Surface water runoff should be diverted away from excavated areas. Allow
no water to accumulate in excavations. Excavated trenches should not be
used as temporary drainage ditches.
4. Excavate soil with a 0.6m diameter and 2.4m depth for shallow wells.
P a g e 16 | 89
Excavation
1. Excavation is unclassified and comprises digging to the subgrade
regardless of the materials found. Excavations beyond the heights and
dimensions mentioned below must be repaired:
a. At Structure: Concrete or compacted structural fill.
b. Elsewhere: Backfill and compact as directed.
2. Excavate 300mm for the preparation of slab with 100mm topsoil thickness.
Excavate trenches to indicated gradients, lines, depths, and elevations.
Trenches should be excavated to 0.42m uniform width as stated in the
Drawings to provide the following clearance on each side of pipe or conduit.
3. Maintain excavation stability; coordinate shoring and bracing as required
by authorities with jurisdiction. Prevent the accumulation of surface and
subsurface water in excavations. Stockpile suitable materials for reuse,
allow for sufficient drainage, and avoid stockpiling items within the drip line
of trees.
4. Place and compact backfill in excavations promptly after completing the
following:
a. Construction below grade, including sub drainage, damp proofing,
waterproofing, and perimeter insulation, where applicable.
b. Surveying locations of underground utilities for Record Documents
c. Testing and inspecting underground utilities
d. Removing trash and debris.
e. Removing temporary shoring, bracing, and sheeting
f. Installing permanent or temporary horizontal bracing on horizontally
supported walls
P a g e 17 | 89
5. Place a 100mm bedding course on trench bottoms as indicated. Form
bedding course to give continuous support for pipe bells, joints, and barrels,
as well as conduit joints, fittings, and bodies.
6. Backfill voids with suitable soil while removing shoring and bracing. To
avoid damage or displacement of piping or conduit, carefully compact initial
backfills under pipe haunches and with a 100mm allowance from pipes
uniformly up on both sides and along the whole length of piping or conduit.
Coordinate backfilling with utility testing. After that, place and compact final
backfill of satisfactory soil to final subgrade elevation.
7. Compact materials to the following maximum dry density percentages by
aeration or wetting to the optimum moisture content as established by
ASTM D698:
a. Structure, Pavement, Walkways: Subgrade and each fill layer to 95
percent of maximum dry density to suitable depth.
b. Unpaved Areas: Each fill layer to 90 percent maximum dry density.
8. Place appropriate materials in layers of no more than 200mm loose depth
for heavy equipment and no more than 100mm loose depth for hand
equipment to the subgrades listed below:
a. Structural Fill: Use under foundations, slabs on grade in layers as
indicated
b. Drainage Fill: Use under designated building slabs, at foundation
drainage.
c. Common Fill: Use under unpaved areas
d. Subbase Material: Use under pavement, walks, steps, piping and
conduit
P a g e 18 | 89
9. Grade regions uniformly to a smooth surface free of uneven surface
changes. Comply with compaction standards and grade to the given cross
sections, lines, and elevations. Make the transition between adjacent
existing grades and new grades as smooth as possible.
*End of Section*
P a g e 19 | 89
Division 3: CONCRETE
Part 1: General
1. For general concrete construction, this section covers materials, formwork
installation and testing, joints, concrete, reinforcing steel, finishing, and
curing.
2. Construction notes and standard details, unless otherwise indicated, apply
to all drawings. Modify standard details as necessary to accommodate
unique circumstances.
3. The purpose of these specifications is to guarantee the strength and
durability of all the concrete that is put at different locations throughout the
job. It needs to be practically impervious to water and wear well.
4. All applicable work shall be carried out in accordance with the ASTM
Cement Standards and Concrete Standards.
5. The contractor should offer all necessary measures to protect both existing
and new construction, such as bracing and shoring for imposed loads
during construction.
6. Shop drawings include erection and placing diagrams of all structural
steels, miscellaneous iron, pre-cast concrete etc. Must be provided for the
approval of the engineers prior to manufacture.
7. The contractor should inspect the drawings and notify the
engineer/architect of any errors discovered prior to or during construction.
8. All building and workmanship must be inspected, examined, and tested by
the Engineer. The Engineer reserves the authority to reject substandard
materials and workmanship or seek their rectification.
9. All bar diameters and spacing are in millimeter unless otherwise noted.
P a g e 20 | 89
10. All slabs, beams, girders, and other structural elements that are not
indicated, detailed, designated, or inadvertently omitted but are required to
coordinate with the architectural and other engineering plans, as well as to
complete the structural work in accordance with the intent of the plans and
specifications, must be brought up during pre-bids/meetings/negotiations.
It is known that the contractor offered and included all of these features in
their bid.
RELATED DOCUMENTS
a. S-1.1 Foundation Plan
b. S-1.2 Second Floor Framing Plan
c. S-1.3 Roof Framing Plan
a. S-2.1 Footing Details
b. S-2.2 Slab Details
c. S-2.3 Connection Details
d. S-2.4 Slab & Footing Schedule
e. S-2.5 Column Schedule
f. S-2.6 Column Details
A. Foundation
1. After excavation for footings is finished and any necessary reinforcing
steel is in place, the structural engineer-of-record shall, upon
notification, conduct a thorough inspection of the foundation works.
P a g e 21 | 89
2. All column footings must rest on a 100mm thick properly compacted
gravel foundation course.
3. Formwork must be installed before the inspection, and concrete pouring
into the foundation system is prohibited without prior written consent
from the structural engineer of record.
4. Liquid limit shall not exceed 25 in accordance with ASTM D-423
5. Plasticity Index shall not exceed 12% when tested in accordance with
ASTM D-424.
6. No more than 25% by weight an shall be finer than No, 200 Sieve when
tested in accordance with ASTM D-1140
B. Concrete
1. All work must be completed in compliance with the minimum
specifications of either the American Concrete Institute Building Code
for Reinforced Concrete ACI 318 or the national structural code of the
Philippines (NCSP 2010), unless otherwise specified.
2. The following is the minimal concrete cover for all reinforcing bars in
non-corrosive environments:
a. Concrete cast permanently in 75mm
contact with the ground
b. Formed surfaces exposed 60mm
to earth or weather
D16mm bars or smaller 40mm
Other bars 50mm
c. Formed surfaces not exposed 20mm
P a g e 22 | 89
to weather nor in
contact with ground
Slabs, walls, and joists 20mm
Beams, girders, and columns 40mm
3. Unless otherwise indicated in plans or noted in the specifications, the
minimum 28 days cylinder compressive of concrete shall be as follows;
a. Footings and footing tie beams 20.7MPa (3000Psi)
b. Columns and pedestals 20.7MPa (3000 Psi)
c. Floor slabs and beams 20.7MPa (3000 Psi)
d. Maximum slump 100mm (4”)
4. In general, unless otherwise indicated, the most recent version of ACI
315—the handbook of standard practice for detailing concrete
structures—must be followed.
5. The concrete must be laid in its final position without interruption. It
should preferably be placed using wheelbarrows, buckets, or buggies
for handling and flowing.
6. Aggregate size shall be as follows:
a. Suspended slabs, beams, and columns 25mm
b. Footing, thickened slabs and slab -on-grade 40mm
7. Concrete cylinders need to be returned every day and every 50 cu.m or
fraction thereof cast in accordance with ASTM C31 and tested in
accordance with ASTM C39.
8. Construction joints shall be located within the middle third of spans of
slabs, beams, joints, girders for case unavoidable, proposed location
must be approved first by Structural Engineer.
P a g e 23 | 89
9. Admixtures may be used to get the right slump and workability, but only
with the engineer's permission.
C. Slab-on-grade
1. At least 95 percent MDD must be achieved by mechanically compacting
the soil, subgrade, and fill layers beneath slabs-on-grade, paving, and
pits. These layers should be 200 mm deep.
2. Slab-on-grade shall be provided with a minimum of 100mm thick
compacted clean coarse gravel bed, except as otherwise stated in the
plans.
3. All slab-on-grade are not designed as pressure slab unless otherwise
indicated on plan.
4. Slab-on-grade shall be 100mm thick with 10mm diameter bars spaced
at 60mm O.C.
D. Reinforcing Bars
1. All work must be completed in compliance with the minimum
specifications of either the American Institute of Steel Construction for
reinforcing steel and reinforcing bars or the National Structural Code of
the Philippines (NCSP 2010), unless otherwise specified.
2. Bars must be free of anything that could weaken the binding, such as
grease, rust, or other debris. Every bend in a reinforcing bar needs to
be formed cold.
3. Place all reinforcing bars accurately and securely before pouring
concrete or applying mortar or grout.
P a g e 24 | 89
DIAMETER OF BARS ASTM GRADE
10mmø and smaller ASTM A 615 GRADE 33 fy=230 MPa
16mmø and larger ASTM A 615 GRADE 40 fy=275 MPa
4. Bar splices must be securely wired together and shown in details for
reinforced concrete beams, girders, columns, and walls shall be
securely wired together stagger splices at least 600mm. Splice the top
bar at midspan and the bottom bar close to the support wherever it is
practicable in beams and slabs. Reinforcement splices may only be
made as specified or approved on design drawings, as permitted by the
ACI Code, or as approved by the engineers.
5. For non-structural walls, masonry walls, and slabs, splices must be a
minimum of 40mm bar diameter and staggered where possible.
6. Reinforcement shall be spliced only as indicated in the drawings.
Part 2: Materials
A. Acquire cement straight from a certified manufacturer or supplier, and have
it delivered in sealed bags or in large quantities using specially designed
vehicles. Every cement must flow freely and lump-free.
- Eagle Cement StrongCem
- Eagle Cement Advance Portland 40kg (378 Bags)
B. Conform to the requirements for fine and coarse aggregates in ASTM C 33.
C. Consist of crushed or naturally occurring materials with particles that are
robust, resilient, and hard. Use clean water to wash each aggregate. We
will not approve the usage of marine aggregates.

P a g e 25 | 89
D. Provide coarse aggregates made of naturally occurring crushed rock that
don't include enough dangerous components to compromise the
reinforcing or negatively impact the concrete's strength or longevity.
- 25mm-40mm Aggregates
- 22 cu.m of Sand
- 44 cu.m of Gravel
E. Use clean water that satisfies ASTM C 94 standards and is devoid of any
hazardous materials in suspension or solution. Conduct ASTM C 94
compliant tests as instructed by the Engineer to verify conformity with the
specification.
- Water
F. Formulate concrete mix from cement, aggregate and water, all as specified
and approved. Do not add other ingredients without prior approval of the
Engineer.
- Concrete cylinders
G. Use spacer blocks made from cement, sand and small aggregate not
exceeding 50 mm square in section and secure with wire to the
reinforcement to ensure that they are not displaced when the concrete is
poured. Make these of similar mix proportions and strength as the adjacent
concrete.
- 10mmø PNS 230 Grade 33; 6m length
- 16mmø PNS 275 Grade 40; 6m length
P a g e 26 | 89
Part 3: Execution
A. Formwork
1. Check centers, lines, and levels before starting the formwork. Verify that
the measurements match the drawings.
2. Install formwork, shoring, and bracing in compliance with ACI 301 and
ACI 347 specifications to meet design specifications.
3. Provide bracing to guarantee the formwork's stability. Formwork that
may be overstressed by building loads should be shored or
strengthened. Props must be used with construction that is strong
enough to provide the required support without endangering any part of
the structure. This could imply that they are occasionally moved to the
foundations or other appropriate bases.
4. Assemble and arrange formwork so that it can be disassembled and
stripped without causing any shock or disturbance. Keep the concrete
undamaged when stripping. Permit the elimination of the principal
coasts that remain. The Contractor is in charge of ensuring the props
are removed safely.
5. Align joints and ensure water tightness to stop concrete grout leaks.
Reduce the amount of form joints.
6. Formwork must be built with correct, straight angles, heights, and
edges. Install chamfer strips on the outside corners of the walls,
columns, and beams.
7. In order to ensure precise alignment at the sides and a clean line at the
concrete construction joints, formwork panels must have true angles.
P a g e 27 | 89
B. Concrete Reinforcement
1. Bend reinforcement should adhere to the newest editions of ASTM A
184, ASTM A 185, ASTM A 615, ACI 318, CRSI 63, and CRSI 65, as
specified in the bar schedule.
2. Do not heat reinforcement before bending.
3. Avoid straightening or re-bending cold wrought and hot rolled high yield
bars after they have been bent. To bend mild steel reinforcement cast
in concrete, the internal radius must be at least twice the diameter of
the bar.
4. After bending, bind bars together in bundles or groups and identify them
as per CRSI 63 and CRSI 65.
5. Locate reinforcing splices at point of minimum stress. Review and take
instruction for location of splices with Engineer.
6. When the reinforcement is being concreted, it should be clean and free
of any loose mill scale, rust, oil, grease, concrete, or other hazardous
material.
C. Concrete Mix
1. Conduct preliminary test for concrete mix ratio in accordance with the
ASTM C172 sampling standard for the slump test.
2. Perform compressive strength test in accordance with the ASTM C39
where a total of 9 (+3) samples are taken to have 2 to 3 samples tested
within 7 days, 14 days, and 28 days; the remaining 3 are for spare.
- 7 days = 65-70% of desired strength
- 14 days = 90% of desired strength
P a g e 28 | 89
- 28 days = 99% of desired strength
3. Unless otherwise stated by the Engineer, mix concrete in 1:2:4 ratio for
Suspended slabs, footings, beams, footing tie beams, wall footings, and
foundations. While, 1:2-1/2:5 concrete mix ratio for slab-on-grade.
4. Arrange for the installation of form accessories and concrete formwork
to coincide with the positioning of joint devices.
5. Prior to pouring concrete, make sure all of the formwork and
reinforcement in the designated concreting area is dry and clean.
6. Give the engineer at least 24 hours' notice before starting any operat
Make sure that while placing the concrete, the reinforcement, inserts,
embedded components, and created expansion and contraction joints
are not disturbed.
7. Install a vapor barrier or retarder beneath the grade of interior slabs.
Minimum 150 mm lap joints that are sealed airtight with taped ends and
edges.
8. Concrete when deposited shall have a temperature not less than 5°C
and not more than 28°C except with the approval of the Engineer.
9. Place the concrete in horizontal layers to a compacted depth of no more
than 300 mm, unless columns are included or the Engineer specifies
otherwise. Consolidate each layer before adding the next.
10. Protect freshly placed concrete from rainfall and from water running
over the surface until it is sufficiently hard to resist damage from this
cause.
11. Do not subject concrete placed in the Permanent Works to any
structural loading until it has attained at least it's minimum average
strength.
P a g e 29 | 89
12. Use a curing procedure that protects exposed concrete surfaces from
strong drying winds and high temperatures. No later than 30 minutes
following the last tamping, apply the curing in position. While the
concrete is still flexible, tamp the surface one more to seal any cracks
that may have appeared.
13. When a rising thermometer reads more than 43 degrees Celsius or a
falling thermometer reads more than 45 degrees Celsius, do not mix or
pour the concrete. Provide a precise thermometer with a maximum and
lowest reading, and hang it in a designated area on the construction
site.
*End of Section*
P a g e 30 | 89
Division 4: MASONRY
Part 1: General
1. Concrete masonry construction shall include the furnishing of all labor,
material, and equipment, and performing all operations necessary to
execute all concrete masonry construction, as specified.
2. The contractor will set up and complete all work required to accept and
adjoin additional projects.
3. Contractor shall personally supervise the work and retain a competent
foreman on duty at all times when he is not there.
4. All masonry construction shall conform to the requirements of the local
building code and the Specification for Masonry Structures.
5. The contractor is responsible for setting up the appropriate storage area at
the job site for building supplies.
RELATED DOCUMENTS
d. S-1.1 Foundation Plan
e. S-1.2 Second Floor Framing Plan
f. S-1.3 Roof Framing Plan
g. S-2.1 Footing Details
h. S-2.2 Slab Details
i. S-2.3 Connection Details
j. S-2.4 Slab & Footing Schedule
k. S-2.5 Column Schedule
P a g e 31 | 89
l. S-2.6 Column Details
m. S-2.6 Column Details
Part 2: Materials
1. All materials should conform to the ASTM Masonry Standards.
2. Concrete Masonry Units should conform to the ASTM C90-11b standard
for loadbearing concrete masonry units.
3. CHB
o Concrete Hollow Blocks (CHB) 6”
o Concrete Hollow Blocks (CHB) 4”
4. Mortar and Plaster
a. Mortar shall consist of sand, cement, and water conforming to the
requirements of standard specifications for concrete masonry,
mixed in the proportion of (1) part cement to (3) parts sand by
volume and sufficient water to obtain the required consistency.
b. Do not use calcium chloride in mortar or plaster.
c. Plaster should be made conforming to the ASTM C476 Proportion
Specification.
i. The ASTM C 476 material requirements are as follows: it
achieves the required compressive strength, or 2000 psi,
whichever is higher, after 28 days when tested in
compliance with ASTM C 1019; it has a slump flow of 24 to
30 inches, as determined by ASTM C 1611; and it has a
Visual Stability Index (VSI), as determined by ASTM C
1611, that is less than or equal to 1.
P a g e 32 | 89
▪ Eagle Cement Advanced Portland Cement, 40kg bag
▪ Sand
5. Reinforcing Steel
a. Capitol Steel Structural Grade Steel
▪ PNS 49 Grade 230 (size: 10 mm; length: 9 m)
b. Capitol Steel Intermediate Grade Steel
▪ PNS 49 GRADE 280 (size: 16 mm; length 9 m)
Part 3: Execution
Installation
1. Ensure that the surfaces supporting the masonry work are clear of dirt and
other harmful materials and that they are completed with the correct lines
and grades. Wait until improperly prepared surfaces have been
satisfactorily rectified before starting any work.
2. The drawings will specify the horizontal and vertical spacing between
anchors that secure the masonry wall to the structural frame. You might
use intersecting walls in place of an anchor.
3. Assemble floors, walls, and other masonry structures using cavity and
composite materials to the specified thickness. Utilizing the designated
nominal thickness units, construct any single-withed walls to the exact
thickness of the masonry units.
4. Leave spaces for equipment to be fitted before completing the masonry
construction. After installing equipment, finish masonry work to match the
work adjacent to the opening.
P a g e 33 | 89
5. Use water-cooled or motor-driven dry-cutting saws to cut masonry units so
that the edges are crisp, clean, and undamaged. Cut pieces as needed to
fit adjacent work and to create continuous patterns. If at all feasible, use
full-size units without trimming them.
6. Install units with cut surfaces and, if at all possible, with concealed cut
edges.
7. Units shall be placed while the mortar is soft and plastic. Any unit disturbed
to the extent that the initial bond is broken after initial positioning shall be
removed and re-laid in fresh mortar.
8. Do not install cracked, broken, or chipped masonry units exceeding ASTM
allowances.
9. Avoid letting mortar droplets or other debris harm sills, ledges, and offsets
during building. Utilize covers laid on the ground and over the wall surface
to shield the base of walls from rain-splattered mud and mortar. Lost grout
or mortar must be removed right away. Take precautions to prevent stains
on face materials. When building, take care to avoid damaging door jambs
and corners.
10. Mortar should not be spread too far ahead of units, as it will stiffen and
loose plasticity, especially in hot weather. Mortar that has stiffened should
not be used. ASTM C270 requires that mortar be used within 2 ½ hours of
initial mixing.
Reinforcement for Concrete Hollow Blocks
1. Reinforcement should be done in accordance with the structural plans as
to size, spacing, and other requirements such as 600mm spacing vertically
P a g e 34 | 89
and every (3) CHB layers horizontally for rebars using 9m length steel
reinforcement.
2. Reinforcement shall be clean and free from loose, rust, scales, and any
coatings that will reduce bond.
3. When a foundation dowel does not connect with the vertical core to be
reinforced, it must be grouted in direct vertical alignment, even if it is in an
adjacent cell to the vertical wall reinforcing.
Laying Masonry Walls
1. Do not wet concrete masonry prior to laying up units unless written
permission is obtained from the Engineer.
2. Plan your wall layout in advance to ensure that surface bond patterns are
spaced precisely, with consistent joint widths, and that openings,
movement-type joints, offsets, and returns are all located precisely. Less-
than-half-size units should not be used anywhere possible, especially at
corners and jambs.
3. Lay-up walls with precise course spacing and coordination with other
operations, adhering to the required construction tolerances.
4. Fill the space between hollow metal frames and masonry with mortar,
unless otherwise specified.
5. Grout cores in hollow concrete masonry units to support beams or slabs
beneath bearing plates, beams, lintels, posts, and similar things, unless
otherwise specified.
P a g e 35 | 89
Mortar bedding and Jointing
1. Concrete masonry units should have a consistent nominal joint thickness
of 10mm conforming to the current masonry codes standard for mortar joint
thickness, unless otherwise specified in the plans.
2. Install solid masonry units and fully-grouted hollow CMU with a filled bed
and head joint. Apply enough mortar to fill head joints and shove into place.
Avoid furrowing bed joints or slushy head joints.
3. Use a round jointing tool to create weather-proof, concave, tooled
connections in exposed surfaces using mortar that is thumbprint hard.
Make strike joints flush on surfaces that will be plastered, covered with
another material, or finished with a surface finish other than paint.
4. Remove any mortar that is protruding into the grouting cells or voids. Do
not allow mortar droppings to clog weep holes. Mortar should not be used
to fill horizontal joints between masonry partitions and concrete or steel
structures unless specified in the plans.
5. Remove any masonry components that were disturbed during the laying
process; clean and reset in fresh mortar. Avoid pounding jamb corners to
move stretcher units already in place. To make modifications, remove the
units, clean the mortar, and reinstall with fresh mortar.
Construction Stability
1. Provide and install bracing that will ensure stability of masonry during
construction.
P a g e 36 | 89
2. Allow 16 hours after completing masonry columns and walls to place floor
or roof construction loads. Allow 48 hours before using concentrated loads
like girders, beams, or trusses.
3. Use formwork and shores to temporarily support reinforced masonry
sections.
4. Create formwork that conforms to the shape, line, and measurements
provided. Ensure a tight seal to prevent mortar, grout, or concrete leaks.
Maintain the position and shape of reinforced masonry by bracing, tying,
and supporting it throughout building and curing.
5. Formwork shall be designed and working drawings prepared by a
professional Engineer.
6. Formwork shall not be removed until the reinforced masonry member has
cured enough to support its own weight and additional loads during
construction.
7. Allow at least the following time after completion of the member to remove
shores or forms, if proper curing conditions were attained during the curing
period:
a. Lintels and beams – 10 days
Grouting
1. Fully grout vertical cells of concrete masonry containing steel
reinforcement.
2. Do not place grout until entire height of masonry to be grouted has attained
sufficient strength to resist grout pressure.
3. Pour grout in one continuous pour over apertures in beams or lintels.
P a g e 37 | 89
4. Extend reinforcement beyond masonry as needed for splicing when
multiple pours are needed to finish a particular section of masonry. Grout
should be poured to within 1-1/2 inches of the initial pour's top course. Prior
to grouting, lay the masonry units and the reinforcement for the second
pour section once the grouted masonry has cured. If more pours are
needed, repeat the sequence.
Cleaning
1. When mortar is thoroughly set and cured, clean masonry by removing large
mortar particles by hand with wooden paddles a non-metallic scrapes or
chisels.
2. Use a sample wall panel to test cleaning techniques; for comparison, leave
one panel uncleaned.
3. Obtain Architect approval for sample cleaning before cleaning masonry.
4. Use waterproof masking tape, polyethylene film, or a liquid strippable
masking agent to shield nearby stone and non-masonry surfaces from the
cleaner.
5. Ensure that the unit masonry work is free of damage and deterioration at
the time of substantial completion by providing the last layer of protection
and maintaining the area in a way that is acceptable to the installer.
*End of Section*
P a g e 38 | 89
DIVISION 5: METALS
Part 1: General
STRUCTURAL METAL FRAMING
1. All structural steel must meet the necessary ASTM requirements for the
needed strength.
2. Fabrication and erection must meet the specifications of the American
Institute of Stainless Steel Construction, "Specifications for the Design,
Fabrication and Erection of Structural Steel for Buildings".
3. Specify shop primer painting for all steel and welds. Field touch-up
following erection.
4. Shop drawings must include detailed dimensions, layout, special
connections, hole patterns, and accessories for approval.
5. Prefer ASTM A 325 tension control bolts for structural connections.
METAL JOISTS
1. Follow Steel Joist Institute (SJI) standards.
2. Specify shop primer paint and touch-up after erection.
METAL FABRICATIONS
A. Provide for necessary shop and field painting.
P a g e 39 | 89
Handrails
1. Provide handrails in compliance with International Building Code (IBC)
2. Design handrails to project beyond top and bottom steps of the stairs as
required by code.
3. Construct handrails with smooth shapes and return ends to the wall or
support. Design a continuous rail at landings.
Grilles
1. Refer to the Door Schedule for the security and aesthetic requirements for
the grille works.
Part 2: Products
STRUCTURAL STEEL FRAMING
1. 1.15mm (2" x 6" x 6m) C-Purlins
2. 380mmx12mm dia. Plain Bar w/ standard nuts & washers @ both ends:
Sagrod
3. 75 x 75 x 6mm x 130mm Clip Angle to Purlins
GRILLES
1. 10mm Round Bar (6 meters length)
2. 25mm Round Bar (6 meters length)
MISCELLANOUS
1. Welding Rod (Fuji)
2. Oxygen (content only)
3. Acetylene (content only)

P a g e 40 | 89
4. Paint brush # 2
5. Paint brush # 4
6. Red Lead Primer
7. Paint Thinner
8. Hacksaw Blade
Part 3: Execution
STRUCTURAL STEEL FRAMING
1. Before starting work, verify the details and locations of the framing from
the related documents.
2. The Contractor shall take extreme care when unloading, handling, and
erecting the steel to prevent bending, twisting, or distorting the steel
members.
3. The Contractor must plan and execute the erection in a way that
preserves the tidy appearance of the joints and structure.
4. Tack welds must be ground smooth, and holes should be filled with weld
metal or body solder and smoothed by grinding or filing.
RAILINGS
1. Verify that field measurements are acceptable to suit stair assembly
tolerances.
2. Verify that supports and anchors are correctly positioned.
3. Check for alignment with nearby construction. Coordinate with related
operations to prevent interruptions during installation.
P a g e 41 | 89
4. Weld connections that cannot be shop welded due to shipping size limits
and should not be left exposed. Do not weld, cut, or abrade the surfaces
of hot-dip galvanized external equipment with bolted or screwed field
connections.
5. Finish exposed welds and surfaces smooth and blended, ensuring no
roughness and a contour that fits the surrounding surface.
6. After erection, remove any mud and filth that has accumulated on the
steelwork. Clean mud from visible areas, apply touch-up primer layer, and
prepare for final painting.
GRILLE WORKS
1. Refer to the Door Schedule for the dimensions of the grille works.
2. Finish exposed welds and surfaces smooth and blended, with no
roughness and a contour that matches the surrounding surface.
3. Apply coating for metal protection.
*End of Section*
P a g e 42 | 89
Division 6: WOODS & PLASTICS
Part 1: General
INTERIOR ARCHITECTURAL WOODWORK
1. This section refers to architectural millwork and casework. Design and
specification of elements in this part should ensure long-term durability of
the structure. The design and finish should prioritize flexibility, durability,
low maintenance, high impact, occasional overloading, and cost-
effectiveness.
2. The use of endangered or limited tree species for veneers or solid stock,
such as mahogany or teak, is prohibited. Soft species used for face
veneers, tops, kick plates, bases, or any other high-impact or abrasion
use are not permitted.
3. When specifying a painted finish on casework or millwork, choose lower-
cost species.
4. Cabinet and millwork tops, sides, dividers, and shelving must be at least
3/4" stock. Stained veneer materials must meet AWI custom grade
standards with a minimum thickness of 1/16".
5. Doors and drawer fronts must be at least 3/4" core stock.
6. Cabinet tops should be of sufficient height to meet the minimal impaired
accessibility requirements.
7. Shelving, whether built-in or free-standing, should not exceed 6' from the
finished floor (except in big storage rooms). It should also be securely
secured to reinforced studs or unit masonry walls.
8. All shelving should be designed as fully adjustable, 3/4" minimum
thickness.
P a g e 43 | 89
Part 2: Products
1. Lumber
a. AWI Custom grade suitable for transparent finish. Moisture content;
between 5 and 10 percent.
i. Good Lumber S4S
▪ Size: ½” X 2” X 12’
ii. Good Lumber S4S
▪ Size:1” X 2” X 12’
2. Casework Hardware and Accessories
a. 2” Stainless 304 Heavy Duty Narrow Butt Hinge
b. 1229 Plain Black Plastic Pull Handle (76mm)
c. 3 cm Black Cabinet Screw/Side Panel Screw
Part 3: Execution
1. Install work plumb, level, securely in place and with tightly fitted joints.
2. Do not set up woodwork in areas with incomplete painting, sanding,
grinding, or wet operations to provide effective woodwork protection.
3. For wall-mounted components, use concealed attachments. Countersink
anchorage devices and cover with solid plugs that match the surrounding
wood. Finish flush with the adjacent surfaces.
4. Secure base cabinets to floor.
*End of Section*
P a g e 44 | 89
Division 7: THERMAL MOISTURE AND PROTECTION
Part 1: General
WATERPROOFING AND DAMPPROOFING
1. Install waterproofing only when weather conditions allow, and follow
manufacturer directions.
2. Require that all wall penetrations be completed before applying
membrane so that the installer of the membrane can properly seal them.
Refrain from adding extra sleeves, and when you do install them, give
special attention to the details.
Scope
1. Furnish all materials, labor, equipment, plant, tools, required to complete:
a. Protection of all exterior finishes
b. Water sealing of exterior wall surfaces
c. Dampproofing of slabs on fill
d. Waterproofing of underground walls and slab
ROOFING INSULATION
1. Supply and deliver insulation material in its finished form.
2. Store in a location that is well-protected from rain and sunshine.
Prolonged outside exposure is not recommended.
3. The insulation material shall not be in contact with wet concrete.
P a g e 45 | 89
SEALANTS
1. Materials should be delivered to the site in original sealed containers or
packaging with the manufacturer’s name and brand specifications.
2. Materials stored on job sites must be safeguarded from weather,
moisture, and high temperatures with additional care.
3. Follow the manufacturer’s temperature and humidity recommendations
before, during, and after application. Allow surfaces to dry after rain
before applying any applications.
SHEET METAL ROOFING
1. Refer to Sheet No. A-2.3 Roof Plan for the details and specifications.
2. Design a roof system that can withstand walking loads without causing
severe distortion or telegraphing of structural supports. For maximum
span, panels must sustain a 100-pound focused load applied to a four-
square-inch pad situated in the middle of the panel flat without rib buckling
or visible permanent panel distortion.
3. Air Infiltration: Not over 0.09 cfm per square foot at a static air pressure
difference of 4.0 lbf/sq. ft. when tested in accordance with ASTM E1680.
4. No water penetration as defined in the test method when tested according
to ASTM E 1646 at a minimum differential pressure of 20 percent of
inward acting, wind-load design pressure of not less than 6.24 lb/sq. ft.
and not more than 12.0 lb./sq. ft.
5. Design gutter and downspout system to meet or exceed
recommendations of National Plumbing Code. Slope to drain.
P a g e 46 | 89
Part 2: Products
1. Sika® Injection-201 CE (Part A and Part B) 20.6 kg
2. Pentens® T-303 Moisture Barrier 25 kg bag
ROOF INSULATION
1. PE Foam Insulation (size: 1 m x 50 m; thickness: 25mm; types; 2-sided
Aluminum Foil)
JOINT SEALANTS
1. Bostik Seal N Flex 1 Hi-Performance Polyurethane Joint Sealant 600ml
Sausage Type Seal and Flex
SHEET METAL ROOFING
1. Hi Rib Union Galvasteel (thickness: 0.80mm; width: 1220mm; rib height:
50mm)
2. HardieFlex® NexGen™ Senepa 9mm x 10”
3. 36” Aluminum Gutter (thickness: 0.5mm; length: 8 ft.)
4. P.Tech Vinyl Soffit Perforated
OTHER ROOFING
1. SHGC 20mm thick Danpalon Multicell Polycarbonate Roofing
P a g e 47 | 89
Part 3: Execution
1. Deliver waterproofing products to the site in original sealed containers or
packages with the manufacturer’s name, brand, specification number,
type, and class.
2. Carefully store and protect waterproofing products against damage,
weather, moisture, and extreme temperatures.
3. Surfaces should be clean, devoid of holes and defects, smooth, and dry
before applying waterproofing products. The Contractor must follow the
manufacturer’s surface preparation specifications. Prior to applying
waterproofing, ensure surfaces are clean and approved. Waterproofing is
not authorized in damp weather.
4. Flood test all applicable waterproofed locations before accepting the
project. To waterproof the space, plug all drains and create temporary
dams at openings to ensure water depth of 250 mm (1”) at the highest
point. Keep the water for at least 24 hours. Immediately address any
indication of leaking.
5. Cure in accordance with the Manufacturer’s specifications. Allow foot
traffic only after curing.
ROOF INSULATION
1. Install insulation in dry state.
2. Verify that substrate is clean, dry, and free of honeycombs, fins, or
projections that will (impede adhesive bond or) damage insulation board.
P a g e 48 | 89
3. Install insulation without gaps or voids.
4. Trim neatly to fit spaces.
SHEET METAL ROOFING
1. Lay down the ribbed roofing sheet starting from the end opposite the
prevailing wind.
2. Install the first sheet with the turned-down edge facing outside of the
covered area.
3. Overlay the next sheet with the exposed edge down and the covered
edge up.
4. Fix the strap according to indications shown in the manufacturer’s
brochure.
5. Secure the roofing sheets to the steel purlins with straps riveted to the
sheets and wrapped around the purlin.
6. Fasten panels securely to structural steel frame.
*End of Section*
P a g e 49 | 89
Division 8: DOORS AND WINDOWS
Part 1: General
1. Fenestration for the Two-storey Residential Project shall comply with all the
provisions:
• NBCP (National Building Code of the Philippines),
• BP 344 (Accessibility Law),
• RA 9514 (Fire Code of the Philippines),
• BP 220 (Socialized and Economic Housing).
2. Any deviations or changes deemed necessary by the Contractor shall be
coordinated with the Architect before proceeding.
3. All specified materials shall be followed according to the indicated
specifications, if a material is not available, the Contractor shall provide an
alternative material with the same specification as the material that will be
replaced and consult the Architect of the changes.
4. Wood doors should often only be utilized for interior openings. You can
only use solid core wood doors for exterior openings and hollow core for
interior openings.
5. Contractor shall coordinate with manufacturer(s) for all hardware items
specified.
6. Glazing for private areas and rooms must be tinted or reflective to ensure
privacy. Glazing for kitchen window can be clear coat glass.
7. Door openings should have fire door certification or should pass the fire
door requirements.
RELATED DOCUMENTS
1. A-6 Door Schedule & Window Schedule
P a g e 50 | 89
Part 2: Products
1. Doors
Materials
MATERIAL SPECIFICATIONS
• PANEL DOORS (D1, D3, D5)
KD S4S Wood Tanguile
Link: • Dimension: 2 x 4 x 8
https://www.topmosthardware.ph/produ
ct/kd-s4s-wood-tanguile/
• PANEL DOOR (D2)

• Dimension: 1220 x 2440 x 18
UV-HIGH DENSITY FIBER BOARD
mm
(SOLID)
• Surface: Smooth
Link:
• Finish: High gloss
https://tenbuildph.com/shop/boards/uv-
• Pattern: Solid
board/uv-high-density-fiber-board-solid-
• Color: White
2/
• FLUSH DOOR (D4)
PVC Door with Louver White
Link: • Dimension: 70 cm x 210 cm
https://www.topmosthardware.ph/produ
ct/pvc-door-with-louver-white/
• GRILLE WORK (D6)

• Dimension: 10 mm x 6m
10mm Round Bar
Link:
P a g e 51 | 89
https://www.theprojectestimate.com/stai
nless-steel-plate-price-list/
Hardwares
BRAND SPECIFICATIONS
• BEDROOMS & FAMILY ROOM (D2,
D5) • Finish: Satin
• Dormakaba Hamberg Privacy • Material: Wrought Brass
Leverset
Link:
https://shop.wilcon.com.ph/privacy-
leverset-0384.html • Size: 4” x 4”
- Direct Hardware Ball Bearing • Finish: Satin
Hinge • Material: Stainless Steel
Link:
https://shop.wilcon.com.ph/ball-bearing-
hinge-284400004225.html
• LIVING AREA & MASTER’S • Dimension: 356mm x 32
BEDROOM (D1, mm
- Vintage Hardware Manila Belt • Finish: Powder coated
Pair Handle Set black
Link: • Material: Carbon Steel
https://www.vhmanila.com/handles-1
- Direct Hardware Ball Bearing • Size: 4” x 4”
Hinge • Finish: Satin
P a g e 52 | 89
Link: • Material: Stainless Steel
hinge-284400004225.html
• TOILET & BATH
- Dormakaba Hamberg Privacy

• Finish: Satin
Leverset
• Material: Wrought Brass
Link:
https://shop.wilcon.com.ph/privacy-
leverset-0384.html
• Size: 4” x 4”
- Direct Hardware Ball Bearing
• Finish: Satin
Hinge
• Material: Stainless Steel
Link:
hinge-284400004225.html
2. Windows
Frames
MATERIALS SPECIFICATIONS
• SLIDING WINDOWS (W1, W2,
W5)
PrimoBoard PVC
-
Link:
https://primoboard.com.ph/what-is-
primoboard/
P a g e 53 | 89
• AWNING WINDOW W/
TRANSOM (W2)
APMC Aluminum Sheets

-
Link:
https://www.apmc.ph/products/al
uminum/sheets-plates
• DOUBLE AWNING W/ FIXED
CORNER WINDOW

• Dimensions: 0.051” x 4’ x 8’
Link:
• TRIPLE VERTICAL AWNING
WINDOW
PrimoBoard PVC
-
Link:
https://primoboard.com.ph/what-
is-primoboard/
• AWNING WINDOWS
Link:
• Dimensions: 0.051” x 4’ x 8’
• Glazing
P a g e 54 | 89
o Tinted Glass
▪ Pioneer 6mm Tinted Euro Gray Float
o Clear Glass
▪ Pioneer 6mm Clear Float (Standard size: 120" x 390")
o Reflective Glass
▪ Pioneer 6mm Tinted Euro Gray Reflective Glass
Link: https://www.pfg.com.ph/products/tintedfloat.html
• Hardwares
TYPE Materials
• AMC 900 Durable Flush lock
w/ Key (Color: Black)
• 798 blue panel rollers single
• new screen guide top/bottom
Sliding Window • 798 panel roller w/ bearing
Link: https://onesky.ph/wp- • 798 jamb rubber
content/themes/onesky/assets/ca • 798 plastic
talog- • guide 4 kinds
download/Aluminum%20Brochur • screen vinyl/
e%202019.pdf • bundle
• 907 Center Lock
• screen guide top/bottom
• top/bottom mohair
• Hardmesh
Awning Window w/ Transom • 368B Camhandle
P a g e 55 | 89
Link: https://onesky.ph/wp- • Forebar Center/Side Open
content/themes/onesky/assets/ca (8”, 10”, 12”, 14”) 202 & 304
talog- stainless steel
download/Aluminum%20Brochur • YC 38 Bubble Vinyl
e%202019.pdf
Triple Vertical Awning Window

• 368B Camhandle
Link: https://onesky.ph/wp-
• Forebar Center/Side Open
content/themes/onesky/assets/ca
(8”, 10”, 12”, 14”) 202 & 304
talog-
stainless steel
download/Aluminum%20Brochur
• YC 38 Bubble Vinyl
e%202019.pdf
Double Awning w/ Fixed Corner
Window • 368B Camhandle
Link: https://onesky.ph/wp- • Forebar Center/Side Open
content/themes/onesky/assets/ca (8”, 10”, 12”, 14”) 202 & 304
talog- stainless steel
download/Aluminum%20Brochur • YC 38 Bubble Vinyl
e%202019.pdf
Awning Window
• 368B Camhandle
Link: https://onesky.ph/wp-
• Forebar Center/Side Open
content/themes/onesky/assets/ca
(8”, 10”, 12”, 14”) 202 & 304
talog-
stainless steel
download/Aluminum%20Brochur
• YC 38 Bubble Vinyl
e%202019.pdf
P a g e 56 | 89
Part 3: Execution
2. Do not begin installation until substrates have been properly constructed
and prepared.
3. If another installer is in charge of the substrate preparation, you should first
give written notice to the architect of any inadequate preparation before
moving further.
4. Before installing, properly clean the surfaces.
5. Prepare surfaces according to the manufacturer's recommendations for
attaining the optimum results for the substrate under the project conditions.
6. Install in accordance with the manufacturer's instructions, approved
submittals, and in the appropriate proximity to neighboring structures.
7. Maintain alignment and compatibility with adjacent work.
8. Before field finishing, ensure that all doors are fully hung, with all hardware
installed, tested, and adjusted for a precise fit. Dismount doors, remove
hardware, and rehang after completion.
9. Clean products in accordance with the manufacturer's recommendations.
10. Protect installed products until completion of project.
*End of Section*
P a g e 57 | 89
Division 9: FINISHES
Part 1: General
1. Metal furring as required for plaster walls and ceilings.
2. Furnish all materials, labor, equipment, plant, tools, required to complete
all plain cement plaster finish.
3. Works should comply with applicable local and international standards
referring:
a. ASTM C150 – “Portland Cement”
b. ASTM C144 – “Sand for Cement Plaster Work”
c. ASTM C631 – “Bonding Compounds for Interior Plastering”
4. Materials should be delivered to the site in original unopened packages,
bundles, or containers.
5. Protect materials against dampness during shipment and after delivery.
Store materials under cover in a well-ventilated environment and avoid
storing them in anywhere near construction areas.
6. The contractor shall submit to the Engineer names of the manufacturers
and their products which will be used. Approval of the manufacturers and
products must be obtained before proceeding with the related work.
7. Epoxy paints should be used in corridors, high-traffic areas, unclean areas,
and restrooms without tiled walls to make cleaning easier.
RELATED DOCUMENTS
1. A-2 Floor Plans & Roof Plan
a. A-2.1 Ground Floor Plan
b. A-2.2 Second Floor Plan

P a g e 58 | 89
c. A-2.3 Roof Plan
2. A-3 Elevations
a. A-3.1 Front Elevation
b. A-3.2 Rear Elevation
c. A-3.3 Left Side Elevation
d. A-3.4 Right Side Elevation
PLASTER
1. 3 (three) coat cement plaster with smooth finish coat to receive paint and
wallpaper. 2 (two) coat cement plaster with smooth finish coat to receive
fluted wood panel.
2. Provide adequate heat and ventilation in locations where this section's
work is being performed so that the cement plaster can cure properly.
Take the appropriate precautions to prevent extreme temperature
fluctuations.
CEILING
1. Do not install a wood ceiling until all wet construction work is completed
and the moisture content of the ambient air in the installation room has been
stabilized.
2. Provide heat, light, and ventilation prior to installation.
3. Maintain room temperature and relative humidity according to the glue
manufacturer's guidelines for two days before material delivery, during
installation, and after.
P a g e 59 | 89
4. Ceilings must be freely accessible for maintenance and other needs,
including technology installations. To reduce maintenance and repair
expenses, buildings should employ a consistent ceiling tile, tile size, and
suspension method. The only exclusions are unique feature or specialized
function areas that do not require accessibility.
5. Furring channels minimum thickness should be 0.4mm.
6. The Architect shall only recommend finishes that require minimal
maintenance and are easy to maintain.
PAINT
1. Before applying paint, finish one whole surface of each color scheme,
clearly displaying the selected colors, final texture, materials, and
workmanship.
2. Approved sample area will serve as a minimum standard for work
throughout building.
3. Prepare 500mm x 200mm samples of finishes when requested by the
Architect and apply finishes on identical type materials to which they will be
applied on job.
4. Identify each sample as to finish, formula, color name and number, and
sheen name and gloss units.
5. Use elastomeric paint for exterior plaster cement painted finish.
6. Containers to be tightly sealed and clearly labeled for identification.
7. Take precautionary measures to prevent fire hazards and spontaneous
combustion.
P a g e 60 | 89
8. No paint shall be applied to surfaces structurally or superficially damps and
all surfaces shall be cleaned before applying paint as specified by the
manufacturer.
9. Corridor finishes must meet flame spread criteria of the International
Building Code.
FLOORING
1. Tile concrete bases must have a floating finish rather than a steel trowel
finish.
2. Constructor should be instructed to give the Owner at least 1–5% more of
each sort of stock.
3. Nonskid ceramic tiles for areas with heavy duty use and liquid exposure
such as Toilet Rooms.
4. Installation of tile should wait until the spaces are finished being
constructed and the relative humidity and temperature are kept at the levels
specified in the manufacturer's written instructions and the standards that
are cited.
5. Installed using an authorized adhesive material, epoxy grouted joints are
used for ceramic tile flooring and skirting.
TILE ADHESIVE AND GROUT
1. Tile adhesive should be both applicable for indoor and outdoor application.
2. Grout should match or be a shade darker than the color of the tiles.
3. Use an antibacterial grout material that has anti-mold properties for grouted
tiles.
P a g e 61 | 89
Part 2: Products
1. Ceilings
• CF-1
o HardieFlex® NexGen™ Fiber Cement Board
▪ Thickness: 3.5mm
o BOYSEN® EcoPrimer™ 4-Liters
o BOYSEN® Permacoat™ Latex 4-Liters
▪ Color: B-701 Flat White
o Philippine Steelcare Trading Single Furring
▪ Dimensions: 19 × 25 × 5000 mm
• CF-2
o P. Tech Pvc Ceiling Panel
▪ Dimension: 2.95m X 25cm X 8mm
▪ Finish: Matte
▪ Material: Pvc
o Philippine Steelcare Trading Single Furring
▪ Dimensions: 19 × 25 × 5000 mm
• CF-3
o ACEWELL Polycarbonate Solid Sheet
▪ Dimension: 4 ft. x 8 ft.
▪ Color: Bronze
P a g e 62 | 89
o CARRYING CHANNEL
▪ Dimension: 12mm x 38mm x 5m
▪ Thickness: 1.00 mm
2. Walls
• WF-1
o DAVIES® ElastoGel® Ultra (White) 1 liter
o Bostik Ultrafino Skimcoat 2kg
▪ Color: White
• WF-2
o BOYSEN Konstrukt™ Lunar Series: Kaiser 4-Liters
▪ Color: White
• WF-3
o DAVIES® Megacryl Semi-Gloss (White) 4 liters
▪ Color: White
• WF-4
o FLEX 30 Series- MDF Slat (Fluted) Wall Panel
▪ Style: (Flex 07)
▪ Dimensions: 2440(L) x 1220(H) x 6mm
(Thickness)
P a g e 63 | 89
Figure 1. https://homeu.ph/products/copy-of-flex-30-series-mdf-slat-fluted-wall-panel
o DAP Weldwood FRP Construction Adhesive
1Gal.
• Color: White
• WF-5
o Heim Textured Wallpaper
▪ Dimension: 53x100cm
▪ Material: Non-Woven
Figure 2.
https://dqvd9g622ecnq.cloudfront.net/media/catalog/product/cache/5bc9fafbd097fcac6ea36e150ae65605/2/8/284
P a g e 64 | 89
▪ Color: White
• WF-6
o Konstrukt™ Lunar Series: Koastal
▪ Color: White
• WF-7
o DAVIES® Bio-Fresh+™ Semi-Gloss Modified Acrylic
(Frosted Beige) 4 liters
▪ Color: White
• WF-8
o Shera Fiber Cement Boards
▪ Thickness: 12.0mm; size: 4ft x 8ft
o Heim Wood Wallpaper
▪ Dimension: 53x100cm
▪ Material: Pvc
P a g e 65 | 89
Figure
3.https://dqvd9g622ecnq.cloudfront.net/media/catalog/product/cache/5bc9fafbd097fcac6ea36e150ae65605/2/8/2
3. Tiling
a. FF-1
i. Arte Ceramiche Chadler Matte Floor Tile
o Series: Chadler
o Size: 60cm x 60cm
b. FF-2
• Homogenous Vinyl Kent Supreme
o Color: Caramel
o Size: 30cm x 30cm x 2cm
c. FF-3
• TILES ESPANA CLASSIC BT
o Size: 30cm x 30cm
o Color: Mocha
o Finish: Glossy Finish
d. FF-7
• Tile Center Molino Bruno
P a g e 66 | 89
o Size: 30cm x 30cm
o Texture: Non-skid
e. FF-10
• Sol Ceramica Outdoor Floor Tile
o Size: 30cm x 30cm
f. FF-11
• Greystone Asia Resources Inc. Designo Mosaic Tile Mesh
Mounted
o Size: 306mm x 306mm
4. Flooring
• FF-4
o IKEA RUNNEN Decking
▪ Dimension: 30cm x 30cm x 2cm
▪ Color: Acacia
▪ Total area: 0.81 m²
o Quantity: 9 pieces per pack
• FF-5
o Kent Vinyl Infinity Almond Hairline
▪ Size: 15cm x 90 cm x 2mm
• FF-6
o Kent Vinyl Wood Planks (Butternut)
▪ Size: 15cm x 90 cm x 2mm
• FF-8
o Decopavers Blind Stop
▪ Size: 10cm x 10cm

P a g e 67 | 89
▪ Color: Gray
• FF-9
o JBRock Araal Crazy Cut Stone
• FF-12
o Rusty Slate Outdoor Flagstone with Greenery
5. Grout
• ABC 2 in 1 MOSAIC TILE ADHESIVE & GROUT 2kg
o Color: P32-A Dark Blue
• ABC TILE GROUT with BIO-TECH
o Color: F1 Bahama Beige
6. Tile Adhesive
• ABC TILE ADHESIVE HEAVY-DUTY 25kg
o Color: White
Part 3: Execution
CEILING
1. Install ceiling furring when the above-ceiling work is completed.
Coordinate the location of hangers with other work.
2. Securely attach carrying channels to hangers to prevent them from
turning or twisting and to develop the full strength of the hangers.
3. Furring channels should be placed 600mm apart, perpendicular to
carrying channels, and no more than 50mm from the perimeter walls.
Strictly adhere to carrying channels.
P a g e 68 | 89
WALLS
1. Plaster
a. Dust, laitance, efflorescence, loose particles, grease, and other
foreign matter should be removed from the surface of concrete and
concrete blocks. To clean, thoroughly moisten the surfaces and
apply acid solutions, solvents, or detergent.
b. Apply a bonding agent on concrete and concrete block surfaces
which are to receive cement plaster. Apply in accordance with the
manufacture’s recommendations, ensuring complete coverage.
c. Apply cement plaster using two coat system and three coat system
respectively as indicated.
d. Allow each coat to cure for minimum of 3 (three) days before
applying the next coat.
e. Apply a layer adequate to secure the required texture, but no less
than 5mm. Apply final coat according to the requirements.
f. Provide surfaces receiving paint with a steel trowel finish, to match
approved sample pane.
g. Moist cure finish coat for minimum period of 48 hours.
2. Panels
a. Clean surfaces of dust, laitance, efflorescence, loose particles,
grease and other foreign matter that may affect the effectiveness of
the bonding agent used to attach the panels.
P a g e 69 | 89
b. Measure and mark the surface where the panels will be attached
and cut the panels according to the planned sections in order to
make a consistent and uniform sections.
c. Sand or roughen the walls a little in order for the adhesive to
perform and have better strength in handling the panels.
d. Apply the panels onto the marked wall and ensure that the panels
are straight.
3. Wallpapers
a. Installers must have at least 3 years of expertise with wall
coverings similar to the project's size and complexity.
b. Thoroughly clean and smoothen the surface where the wallpapers
will be applied in order for the adhesive to attach properly.
c. Carefully plan and section the surface to have a consistent cut of
the wallpaper in order to have a smoother transition and avoid
uneven and weird looking border.
d. Attach the wallpapers carefully without bubbles and border sticking
out.
4. Tiles
a. Examine substrates, spaces, and circumstances where tile will be
placed, in the presence of the installer, to ensure that installation
tolerance criteria and other factors influencing the work's
performance are met.
i. Make sure the substrates used to set tile are firm, dry, clean, free
of coatings that interfere with the tile setting materials (such as

P a g e 70 | 89
curing compounds and other substances containing silicone, wax,
or soap), and that they meet the flatness tolerances specified by
ANSI A108.01 for the indicated installations.
ii. Check that the concrete substrates for tile floors laid with thin set
mortar or bonded mortar bed meet the specified installations'
surface finish standards in ANSI A108.01.
b. Installing should only begin after poor conditions have been fixed.
c. Adhere to the sections of the "Specifications for Installation of
Ceramic Tile" ANSI A108 series that are applicable to the types of
setting and grouting materials used, referenced in TCNA installation
techniques, and stated in tile installation schedules.
i. To achieve 95% mortar coverage for the following installations,
adhere to the steps outlined in the ANSI A108 series of tile
installation standards:
1. Exterior tile floors
2. Tile floors in wet areas
3. Tile swimming pool decks
d. Unless otherwise specified, extend tile work into nooks and under or
behind fixtures and equipment to create a seamless whole covering.
Work should be cleanly terminated at corners, edges, and
impediments to avoid messing with pattern or joint alignments.
e. Form intersections and returns with accuracy. Tile should be drilled
and cut without damaging surrounding surfaces. For perfectly
aligned joints, carefully grind the cut edges of tile that abut trim,
finish, or built-in objects. As plates, collars, or coverings overlap tile,
P a g e 71 | 89
fit tile tightly to electrical outlets, pipework, fixtures, and other
penetrations.
f. Jointing Pattern: Unless otherwise specified, arrange tiles in a grid
pattern. Arrange the tile work and place the tile fields in the middle
of each room or along each wall. Reduce the amount of parts that
are less than half of a tile when laying out tile work. Provide
consistent joint widths unless specified otherwise.
g. Grout Sealer: Follow the written directions provided by the grout
sealer manufacturer when applying grout sealer to cementitious
grout joints in tile flooring. Wipe excess sealer and sealer from tile
faces with a soft cloth as soon as the sealer has reached the grout
joints.
5. Exterior Walls
Preparation
a. Take out the loose concrete and honeycomb.
b. Examine and fix any pertinent surface flaws (such as gaps and
cracks) using corrective civil works that are waterproof where
needed.
c. Before applying, make sure the surface to be coated is dry, clean,
and the weather is favorable.
Application
a. Apply the mixture thinly to the surface with a steel trowel, pressing
down firmly on the concrete with the trowel's edge until it covers the
entire area.
P a g e 72 | 89
b. Allow it to cure for at least 60 minutes before applying the second
layer. Apply in random strokes to achieve a cement effect. Repeat
the technique for the third coat, if necessary.
c. Allow it to cure for at least 60 minutes before polishing. To smooth
the surface, tilt the steel trowel to 45º and press hard on all covered
regions.
d. No need to neutralize the surface.
e. Allow at least seven (7) days of cure time before applying the clear
coat.
*End of Section”
P a g e 73 | 89
Division 15: PLUMBING
Part 1: General
1. All plumbing work must be built in line with the most recent appliance laws,
as well as the norms and regulations of the local governing authority.
2. Coordinate the drawings with other relevant documents and specifications.
Any differences between designs or drawings and the site must be reported
to the Architect/Master Plumber promptly.
3. All pipes must be put at the locations specified in the designs. Any
relocation required for the appropriate execution of other trades must have
the Architect or Master Plumber's prior consent.
4. The proposed sanitary installation has to stick to the actual location and
invert elevation of all existing pipes and structures, as certified by the
Contractor.
5. All horizontal drain slopes must be at least 1%, unless otherwise specified
in the Drawing.
6. The sizes of water supply pipes to fixtures must be consistent with the
manufacturer's recommendations.
7. The Contractor must verify all existing utilities on site and coordinate the
work with the sewage line effluent disposal point and the water service
connection point.
8. All pipes sizes are in millimeters and lengths are in meters unless otherwise
stated.
P a g e 74 | 89
RELATED DOCUMENTS
1. P-1 Water Supply Layout, Details, and Schedules
a. P-1.1 Ground Floor Water Supply Layout
b. P-1.2 Second Floor Water Supply Layout
c. P-1.3 Lavatory (Wall Hung) Construction Details
d. P-1.4 Water Closet (Flush Tank) Const. Details
e. P-1.5 Floor Cleanout Construction Details
f. P-1.6 Floor Cleanout Construction Details
g. P-1.7 Downspout Construction Details
h. P-1.8 Vent Pipe Layout
i. P-1.9 Air Cap Chamber Construction Details
j. P-1.10 Floor Drain Construction Details
2. P-2 Sanitary & Storm Drain Layout and Details
a. P-2.1 Ground Floor Sanitary & Storm Drain Layout
b. P-2.2 Second Floor Sanitary & Storm Drain Layout
c. P-2.3 Roof Storm Drain Layout
d. P-2.4 AD/CB Detail
e. P-2.5 Septic Tank Detail
3. P-3 Isometric Layouts
a. P-3.1 Water Supply Isometric Layout
b. P-3.2 Sanitary Drainage Line Isometric Layout
c. P-3.3 Storm Drainage Line Layout
P a g e 75 | 89
Part 2: Products
Pipes and Fittings
1. Cold (potable) and non-potable water lines for risers, downfeeds, and
distribution lines must be polypropylene (PP-R) pipe and fittings PN 20
complying to DIN requirements DIN 8077 and DIN 8078 or ASTM 2389,
with polyfusion homogenous joints. All threaded inserts should be
constructed of nickel-plated brass that meets DIN 2999 specifications.
2. Soil, Waste and Vent Pipes - shall be Polyvinyl Chloride (PVC) pipes
conforming to ASTM D2729, Series 1000.
3. Downspouts/Collector Pipes/ AHU and FCU Drains - shall be Polyvinyl
Chloride (PVC) pipes conforming to ASTM D2729, Series 1000.
4. Storm Drainage Lines – shall be Polyvinyl Chloride (PVC) pipes series 1000
conforming to ASTM D2729 for sizes 57mm to 107mm diameter. Use
reinforced concrete drain pipes (RCP), tongue and groove, mortar joints for
sizes 300 mm diameter and larger conforming to ASTM C-76 Class IV Wall
B.
WATER SUPPLY
Pipes
1. 1" (32mm) Neltex PPR Pipes Pn20 4m
2. 3/4" (25mm) Neltex PPR Pipes Pn20 4m
3. 1/2" (20mm) Rehau PPR Pipes Pn20 4m
Valves
1. 1" (32mm) Goal Team Brass Ball Valve w/ Lock Wing
2. 3/4" (25mm) Goal Team Brass Ball Valve w/ Lock Wing

P a g e 76 | 89
3. 3/4" (25mm) Rehau PPR Ball Valve
4. 1" (32mm) Goal Team Check Valve
5. 3/4" (25mm) Goal Team Check Valve
6. 1" (32mm) Creston Hardware Float Valve
7. 1" (32mm) ICON Minde PPR Normal Stop Valve
8. 1" (32mm) Italy Hamber Heavy Duty Brass Gate Valve
9. 1/2" (20mm) Pozzi Two Angle Valve and Supply Pipe
Fittings
1. 1" (32mm) Neltex PPR Coupling
2. 3/4" (25mm) Neltex PPR Coupling
3. 1" (32mm) Neltex PPR Elbow 90 Deg
4. 3/4" (25mm) Neltex PPR Elbow 90 Deg
5. 1/2" (25mm) Neltex PPR Elbow 90 Deg
6. 3/4" (25mm) Neltex PPR Tee
7. 3/4" x 1/2" (25mm x 20mm) Neltex PPR Tee Reducer
8. 3/4" x 1/2" (25mm-20mm) Neltex PPR Elbow Reducer
9. 1" (32mm) Neltex PPR Male Adapter
10. 3/4" (25mm) Neltex PPR Male Adapter
11. 1" x 3/4" (32mm x 25mm) Neltex PPR Male Adapter
12. 2" x 3/4 (63mm x 25mm) ICON Minde PPR Male Adapter
Fixtures
1. ROSCO BRASS HOSE BIBB FAUCET RO-803
Appliances
2. 1" (32mm) E-jet Water Meter E-Series
P a g e 77 | 89
3. Hayward DE3620 Pool Filter - Pro-Grid® Series Vertical Grid D.E. Filter
4. 1HP Hayward Maxflo XL Pool Pumps
5. Wika Pressure Gauge
6. 1.5 HP Adelino Acm Centrifugal Water Pump (1" or 25mm inlet & outlet)
7. 1000L Bestank Polyethylene Storage Tank (Horizontal)
8. 100L TVT/100 Montana Butyl Bladder Pressure Tank
SANITARY
Pipes
1. 2" (57mm) NELTEX Saniline
3. 6" (160mm) NELTEX Sewerline
Fittings
1. 4" x 4" (107mm x 107mm) NELTEX Saniguard Wye Fitting
2. 4" x 2" (107mm x 57mm) NELTEX Saniguard Wye Reducer
3. 4" x 45 Deg (107mm) NELTEX Saniguard Elbow
5. 2"(57mm) NELTEX Saniguard P-trap with Clean-out
6. 4"(107mm) NELTEX Saniguard P-trap
7. 4" (107mm) NELTEX Saniguard Coupling
8. 4" (107mm) NELTEX Saniguard Clean-out
9. PT-12C Weida Polytrap
P a g e 78 | 89
STORM DRAINAGE
Pipes
Fittings
1. 4" x 4" (107mm x 107mm) NELTEX Saniguard Wye Fitting
4. 4" (107mm) NELTEX Saniguard Coupling
Fixtures
1. 2" (57mm) Hartford Stainless Dome Strainer
2. 4H Hartford Stainless Dome Strainer
3. 4" (107mm) Birke Floor Strainer
MISCLELLANOUS AND CONSUMABLES
1. 3M 314D P120 Grit Fine Utility Cloth Roll, 25m x 50mm
2. Candle Wick Pure Cotton (Approx. 1.6-1.9 KILO)
3. Weller T0051303199N 0.5oz Lead Free Solder Flux Canister
4. ½” Powerhouse PTFE Thread Seal Tape
5. ¾” Powerhouse PTFE Thread Seal Tape
6. 1” Powerhouse PTFE Thread Seal Tape
P a g e 79 | 89
Part 3: Execution
DRAINAGE SYSTEM TESTS
1. The drainage and venting system must have pluggable apertures that allow
water to fill up to the topmost stack vent or vent stack above the roof.
2. The system must hold the water for 30 minutes, with no drop exceeding
100 mm.
3. If the Engineer requires additional tests, such as air or smoke tests on the
drainage system, the Contractor will undertake these at no additional
expense.
PRESSURE TESTS FOR WATER LINES
1. Newly installed pipe or valve sections should be subjected to hydrostatic
pressure equal to one-and-one-half times the system's designed working
pressure, or as specified by the Engineer, after installation and joint
evaluation.
4. Drawing plans, schematics, and diagrams show the general location and
arrangement of plumbing systems. The indicated locations and
configurations were utilized to size pipe and compute friction loss,
expansion, pump sizing, and other design factors. Install piping according
to layout unless changes are agreed on coordination drawings.
5. Install plumbing in concealed places, excluding service spaces.
6. Each pressure test should last at least 10 minutes, unless otherwise
indicated by the engineer.
7. Each section of pipeline shall be gradually filled with water, and the
specified test pressure, measured at the lowest elevation, shall be applied
using a pump attached to the pipe in a manner satisfactory to the Engineer.

P a g e 80 | 89
All air must be released from the pipeline while it is being filled and before
the test pressure is applied. To do this, if necessary, a tap shall be made at
the highest point of the pipe under test, and the taps shall be tightly shut
when the test is completed, unless otherwise indicated. During testing, all
exposed pipes, fittings, valves, joints, and couplings will be thoroughly
checked. If found broken or damaged, the Contractor will replace them with
sound materials at their expense. The test will be repeated until satisfactory
findings are obtained.
LEAKAGE TESTS FOR WATER LINES
1. After completing the pressure test, the leakage test will examine all
exposed joints for leaks and assess the overall leaking of the pipeline.
2. The pressure to be maintained during the test shall be the designed working
pressure of the system.
3. Leakage tests must be conducted at least 24 hours after the pipe has been
filled with water.
4. The duration of each leakage test shall be two hours unless otherwise
specified by the Engineer.
5. Fill each pipe line gradually with water and apply the appropriate test
pressure at the lowest elevation using a positive displacement pump and
reservoir attached to the pipe in a suitable way to the Engineer.
6. Before beginning the leakage test, all air must be released from the pipe.
During testing, all exposed pipes, fittings, valves, and joints should be
inspected for leaks.
P a g e 81 | 89
DEFECTIVE WORK
1. If an inspection or test reveals a problem, the work or material must be
replaced and the test repeated until satisfactory to the Engineer.
2. The Contractor is responsible for repairing piping with new materials at their
expense.
DISINFECTION OF WATER DISTRIBUTION SYSTEM
1. Before starting up the water system, it must be completely cleansed and
disinfected with chlorine.
CLEANING
1. All exposed metal surfaces shall be free of grease, dirt of other foreign
materials.
2. Plumbing fixtures must be protected from harm during construction. After
completion, the fittings must be cleaned to the satisfaction of the Engineer
before accepting the work.
3. Clean all equipment, pipes, valves, and fittings of any accumulated grease
or sludge. The Contractor is responsible for repairing any system-related
blockage, discoloration, or damage to building components.
*End of Section*
P a g e 82 | 89
Division 16: ELECTRICAL
Part 1: General
1. Provide all personnel, materials, and equipment required by the plans and
specifications to ensure a functional electrical system. These standard
outlines the materials, processes, and management to be used. This
comprises both the work indicated in this division and the equipment
provided under other divisions not included here.
2. All equipment, materials, and methods of design and installation are to
comply with the following standards:
a. American National Standards Institute, Inc. (ANSI)
b. National Electric Code (NEC)
3. Where the plans or specifications require for a greater level of workmanship
or material quality than the aforementioned regulations and standards
suggest, these plans and specifications will take precedence.
RELATED DOCUMENTS
1. A-5 Reflected Ceiling Plans
a. A-5.1 Ground Floor Reflected Ceiling Plans
b. A-5.2 Second Floor Reflected Ceiling Plans
c. A-5.3 RCP Detailed Section A
d. A-5.4 RCP Detailed Section B
2. E-1 Power Layout & Lighting Layout
a. E-1.1 Ground Floor Power Layout
b. E-1.2 Second Floor Power Layout
c. E-1.3 Ground Floor Lighting Layout

P a g e 83 | 89
d. E-1.4 Second Floor Lighting Layout
3. E-2 Schedule of Loads & Diagrams
a. E-2.1 Schedule of Loads
b. E-2.2 Panel Board Diagram
c. E-2.3 Single Line Riser Diagram
EQUIPMENT, MATERIAL, AND WORKMANSHIP
1. All equipment and materials must be new, defect-free, and of current
manufacture. Materials should come from trustworthy and competent
manufacturers. Similar components in the project must be from the same
manufacturer. Use industrial-grade equipment and materials for long-
lasting, reliable service.
4. Protect products and tools from loss or damage throughout the contract.
Prevent weather damage by storing equipment indoors before installation.
5. After installation, safeguard components and equipment from corrosion,
physical damage, and moisture on insulation.
6. During construction, use manufactured seals to cap all conduit runs. Keep
openings in packaging and equipment closed.
7. Do not cut or notch any structural member or building surface without prior
consent from the Engineer. Carefully cut, channel, chase, or drill floors,
walls, partitions, ceilings, paving, or other surfaces to install, support, or
anchor conduit, raceways, or electrical equipment. Restore surfaces to new
conditions with expert craftsmen at no additional expense to the owner.
8. All work will be done by skilled and experienced staff, with ongoing
supervision.
P a g e 84 | 89
PERMITS
1. To proceed with the electrical installation, get and pay for all necessary
permissions and inspections from the appropriate regulatory authority
before making any progress payments.
TEMPORARY INSTALLATION
1. Temporary installations must comply with the National Electric Code, as
well as national and local regulations.
2. Pay for temporary electricity services and use rates until the project is done.
Part 2: Products
A. Use THHN/THWN 10-gauge wire for water heaters, air conditioner,
refrigerator, and range outlets.
B. THHN/THWN 12-gauge wire shall be used for other bathroom, kitchen,
outdoor receptacles.
C. Use THHN/THWN 14-gauge wire for lamps, lighting fixtures, and lighting
circuits.
Conduits and Bends
1. RS PRO Flexible Contractor Pack Conduit, 20mm Nominal Diameter,
PVC, Black
2. PVC Conduit Elbow 3/4 in
Connection Boxes
1. Honeywell Masterseal Plus™ Junction Box
2. Panduit Power Junction Box 2 Gang PVC
P a g e 85 | 89
Wires
1. Phelps Dodge THHN/THWN 3.5mm #10
Switches
1. Schneider Concept Series Elongated 1 Gang 1 Way Switch
2. Schneider Concept Series Mid-Size 2 Gang 1 Way Switch
3. ROYU Plano 3 Gang Switch Set - White
4. Schneider S-Flexi X - Size 4 Gang 1 Way Switch
5. ROYU Plano 1 Gang 3 Ways Switch Set – White
Convenience Outlets
1. Schneider Concept Series Duplex Universal Outlet
2. Schneider S-Flexi Series 2 Gang International Outlet
3. Panasonic Slim Art Universal Duplex with Ground Outlet
4. Panasonic Slim Art Universal Aircon Outlet
MCBs and Panel Boards
1. Schneider Panel Board 13 Way 63 A
2. Circuit Breaker
Lighting Fixtures
1. Alphalux LED Ceiling Lamp 500mm (Daylight, Warm White, and Cool
White)
2. Circo LED Ceiling Light 50cm Tri-color
P a g e 86 | 89
3. CYMAX L.E.D. Ceiling Lamp (100cm x 90cm x 20cm) Tri-color
4. Alphalux Basic Series Downlight with Cover 4in
5. Alphalux Basic Series Downlight with Cover 3.5in
6. Kaze Tenjo Series 52in Ceiling Fan
7. Sierra Pendant Light
8. LED Striplight 5050 5M Indoor Daylight
9. Alphalux Spotlight Series Gu10 Surface Type Spotlight 3x
10. Quantum Outdoor Wall Light
11. LED High Wattage Track Light
12. AISEO Solar Lights Outdoor Waterproof Landscape Spotlights Double
Heads
Light Bulbs
1. PRO Series LED Tri-Color
Miscellaneous and Consumables
1. ROSCO PTFE Tape 3/4IN. X 10M
2. Scotch® Super 33+™ Vinyl Electrical Tape
3. 3M Electrical Rubber Insulation Tape
4. McGill Service Entrance Cap 1in
5. Panasonic Outlet Switches Weatherproof Cover WEG8981P WEG8881
P a g e 87 | 89
Part 3: Execution
INSTALLATION
1. The electrical plan drawings indicate general configurations and locations
for equipment conduit, outlets, and so on. Unless defined or dimensioned,
the exact locations of conduit, cable routing, and equipment placement will
be determined by structural conditions, physical interference, and electrical
termination points on equipment. Examine architectural, structural, and
mechanical designs, as well as shop drawings for the various equipment,
to identify the precise routing and positioning of all raceways, cables, and
equipment, ensuring a functional installation.
2. The design includes the minimal number of raceways and conductors
required to power and control all electrical equipment, as determined by the
engineer. If the installed equipment has higher horsepower or requires
more power or conductors, resize the raceway and conductors accordingly
and submit for evaluation before installation.
3. Ensure conduits, cables, and conductors fulfill the needs of electrical
equipment and devices. Conduits should be 20mm diameter PVC Pipe.
Wirings should be 2mm THHN/THWN for light fixtures and lighting circuits
and 3.5mm THHN/THWN for the rest.
4. Follow the manufacturer's instructions for each piece of equipment to
ensure proper installation. Include manufacturer instructions as part of the
specifications.
CLEAN-UP
1. Continuously remove debris, cuttings, crates, cartons, etc.
P a g e 88 | 89
2. Thoroughly clean all cabinets, panels, boxes, wiring devices, cover plates,
etc. before accepting. Replace any fixtures that are broken or tarnished.
*End of Section*
P a g e 89 | 89

Master Format Full Specifications Sample

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Master Format Full Specifications Sample

Uploaded by

Copyright:

Available Formats

National University

(S.Y 2023-2024 2nd Term)

Exercise 10: Full Specifications

Ar. Mark Delfin

Montes, Kayla Erice

1. Plans and specifications must be well-interpreted in the construction

completely to the full satisfaction of the Architect-in-Charge and Project

2. Procured design and construction must conform to all local ordinances,

and Materials, including all referral codes.

3. The scope of work to be done by the Architect, as herein authorized by the

Owners for the project consists of professional services for Regular

Detailed Architectural Engineering Design of the Two-Storey Residential

4. Works comprises of execution, completion, and maintenance during the

Defects Liability Period of the Architectural, Plumbing, and Electrical of the

Two-Storey Residential Structure.

PERFORMANCE AND STANDARDS

1. The remaining sections of the Specifications specify the needed

performance of materials and products, as well as the requirements that

2. If there are any conflicts between codes, regulations, project conditions, or

Employer's requirements, the Contractor must notify the Engineer in

with the Conditions of Contract.

A. Maintain at job site, one copy of:

3. Reviewed Shop Drawings

5. Other Modifications to Contract

6. Field test Records

Sheet No. Title

A-2 Floor Plans & Roof Plan

A-2.1 Ground Floor Plan

A-2.2 Second Floor Plan

A-2.3 Roof Plan

A-3.1 Front Elevation

A-3.3 Left Side Elevation

A-3.4 Right Side Elevation

A-4.1 Cross Section

A-4.2 Longitudinal Section

A-5 Reflected Ceiling Plans

A-5.1 Ground Floor Reflected Ceiling Plans

A-5.2 Second Floor Reflected Ceiling Plans

A-5.3 RCP Detailed Section A

A-5.4 RCP Detailed Section B

A-6 Door Schedule & Window Schedule

A-7 Blow-Up Plans

A-7.1 Kitchen Key Plan

A-7.2 Kitchen Section

A-7.3 Masters T&B Key Plan

A-7.4 Masters T&B Section

A-7.5 Stair Key Plan

A-7.6 Staircase Section

Sheet No. Title

S-1 Foundation Plan and Framing Plans

S-1.1 Foundation Plan

S-1.2 Second Floor Framing Plan

S-1.3 Roof Framing Plan

S-2 Details & Schedules

S-2.1 Footing Details

S-2.2 Slab Details

S-2.3 Connection Details

S-2.4 Slab & Footing Schedule

S-2.5 Column Schedule

S-2.6 Column Details

P-1 Water Supply Layout, Details, and Schedules

P-1.1 Ground Floor Water Supply Layout

P-1.2 Second Floor Water Supply Layout

P-1.3 Lavatory (Wall Hung) Construction Details
