Ain Shams University Spring 2024

Faculty of Engineering ECE 414s

Electronics & Comm. Eng. Dept. RF Circuit Design

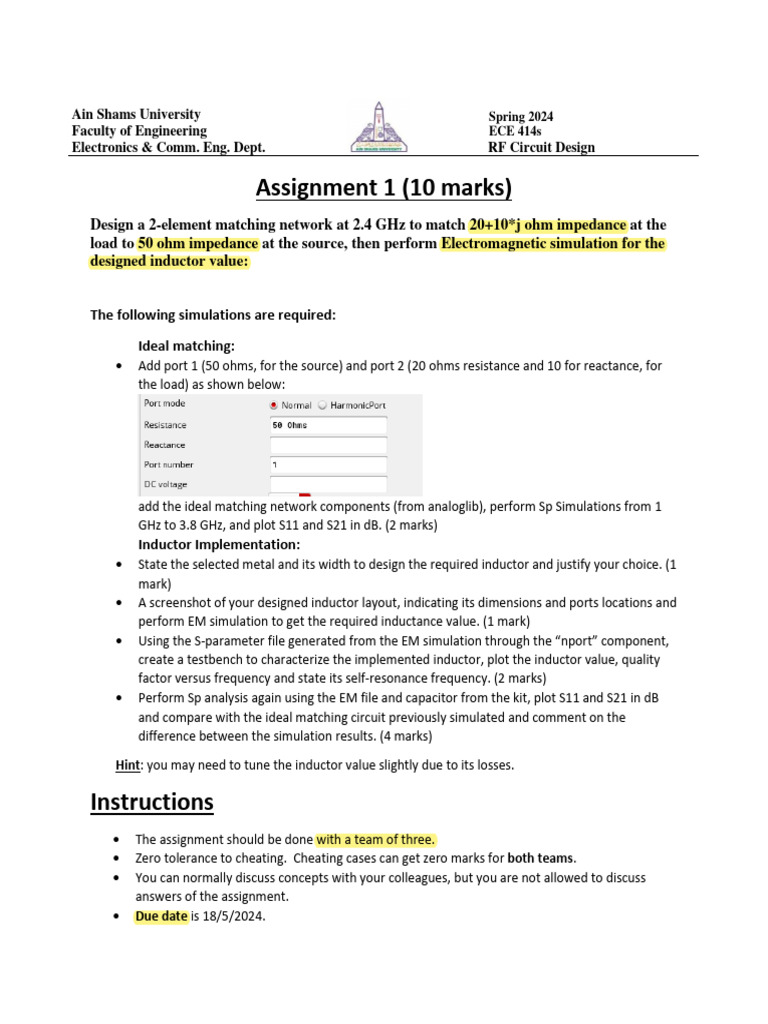

Assignment 1 (10 marks)

Design a 2-element matching network at 2.4 GHz to match 20+10*j ohm impedance at the
load to 50 ohm impedance at the source, then perform Electromagnetic simulation for the
designed inductor value:

The following simulations are required:

Ideal matching:
• Add port 1 (50 ohms, for the source) and port 2 (20 ohms resistance and 10 for reactance, for
the load) as shown below:

add the ideal matching network components (from analoglib), perform Sp Simulations from 1
GHz to 3.8 GHz, and plot S11 and S21 in dB. (2 marks)
Inductor Implementation:
• State the selected metal and its width to design the required inductor and justify your choice. (1
mark)
• A screenshot of your designed inductor layout, indicating its dimensions and ports locations and
perform EM simulation to get the required inductance value. (1 mark)
• Using the S-parameter file generated from the EM simulation through the “nport” component,
create a testbench to characterize the implemented inductor, plot the inductor value, quality
factor versus frequency and state its self-resonance frequency. (2 marks)
• Perform Sp analysis again using the EM file and capacitor from the kit, plot S11 and S21 in dB
and compare with the ideal matching circuit previously simulated and comment on the
difference between the simulation results. (4 marks)

Hint: you may need to tune the inductor value slightly due to its losses.

Instructions
• The assignment should be done with a team of three.
• Zero tolerance to cheating. Cheating cases can get zero marks for both teams.
• You can normally discuss concepts with your colleagues, but you are not allowed to discuss
answers of the assignment.
• Due date is 18/5/2024.
• The assignment should be sent to the following mail eng.ahmed.adel.mourad@gmail.com as a
pdf file, the subject of the mail MUST be Assignment1_ECE414s_Spring2024, ignoring this may
result in your assignment being lost.
• The first page should be a cover page clearing indicating your name in Arabic and English and
your code.
