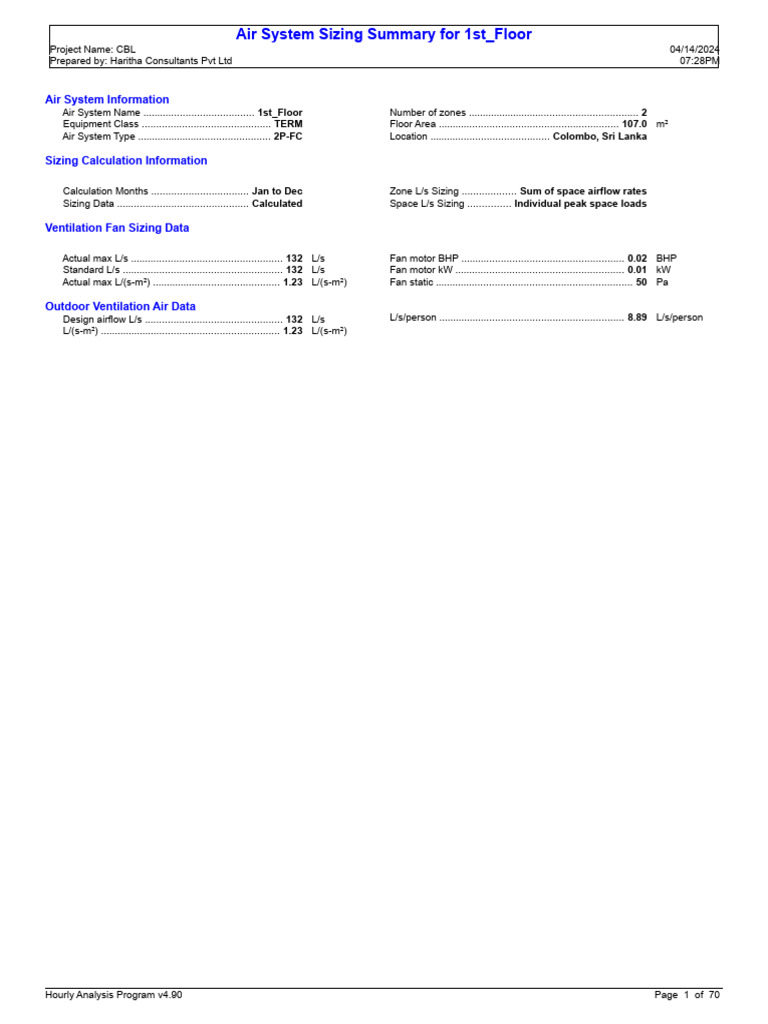

Air System Sizing Summary for 1st_Floor

Project Name: CBL 04/14/2024

Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ....................................... 1st_Floor Number of zones ............................................................ 2
Equipment Class ............................................. TERM Floor Area ............................................................... 107.0 m²
Air System Type ............................................... 2P-FC Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Ventilation Fan Sizing Data

Actual max L/s ..................................................... 132 L/s Fan motor BHP ......................................................... 0.02 BHP
Standard L/s ........................................................ 132 L/s Fan motor kW ........................................................... 0.01 kW
Actual max L/(s-m²) ............................................. 1.23 L/(s-m²) Fan static ..................................................................... 50 Pa

Outdoor Ventilation Air Data

Design airflow L/s ................................................ 132 L/s L/s/person ................................................................. 8.89 L/s/person
L/(s-m²) ............................................................... 1.23 L/(s-m²)

Hourly Analysis Program v4.90 Page 1 of 70

 Zone Sizing Summary for 1st_Floor
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ....................................... 1st_Floor Number of zones ............................................................ 2
Equipment Class ............................................. TERM Floor Area ............................................................... 107.0 m²
Air System Type ............................................... 2P-FC Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 6.2 679 679 Jul 1600 0.1 55.0 12.35
Zone 2 10.3 1125 1125 Jun 1800 0.1 52.0 21.64

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.0 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 10.4 6.7 23.4 / 19.2 15.2 / 14.8 0.50 Jul 1700
Zone 2 16.9 11.5 23.3 / 18.8 14.8 / 14.4 0.81 Jun 1800

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -18.3 / -18.3 0.00 679 0.086 0.068 54
Zone 2 0.0 -18.3 / -18.3 0.00 1125 0.142 0.113 78

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L1- Video Conf. Room 1 6.2 Jul 1600 679 0.1 55.0 12.35
Zone 2
L1-Gym 1 10.3 Jun 1800 1125 0.1 52.0 21.64

Hourly Analysis Program v4.90 Page 2 of 70

 Air System Design Load Summary for 1st_Floor
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jun 1800 HEATING DATA AT DES HTG
COOLING OA DB / WB 30.7 °C / 29.5 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 36 m² 3743 - 36 m² - -
Wall Transmission 69 m² 2634 - 69 m² 83 -
Roof Transmission 0 m² 0 - 0 m² 0 -
Window Transmission 36 m² 968 - 36 m² 62 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 3 m² 158 - 3 m² 4 -
Floor Transmission 107 m² 1273 - 107 m² 0 -
Partitions 123 m² 1951 - 123 m² 0 -
Ceiling 55 m² 550 - 55 m² 0 -
Overhead Lighting 764 W 602 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 920 W 826 - 0 0 -
People 13 1501 3347 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 10% / 10% 1421 335 0% 0 0
>> Total Zone Loads - 15626 3682 - 150 0
Zone Conditioning - 15995 3682 - 83 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 132 L/s 0 - 132 L/s 0 -
Ventilation Load 132 L/s 1285 5742 132 L/s 72 0
Ventilation Fan Load 132 L/s 13 - 132 L/s -13 -
Space Fan Coil Fans - 180 - - -180 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 17474 9424 - -39 0
Terminal Unit Cooling - 17474 9426 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 17474 9426 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 3 of 70

 Air System Sizing Summary for 2nd_Floor
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ...................................... 2nd_Floor Number of zones .......................................................... 12
Equipment Class ............................................. TERM Floor Area ............................................................... 871.5 m²
Air System Type ............................................... 2P-FC Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Ventilation Fan Sizing Data

Actual max L/s ..................................................... 671 L/s Fan motor BHP ......................................................... 0.08 BHP
Standard L/s ........................................................ 671 L/s Fan motor kW ........................................................... 0.07 kW
Actual max L/(s-m²) ............................................. 0.77 L/(s-m²) Fan static ..................................................................... 50 Pa

Outdoor Ventilation Air Data

Design airflow L/s ................................................ 671 L/s L/s/person ................................................................. 4.89 L/s/person
L/(s-m²) ............................................................... 0.77 L/(s-m²)

Hourly Analysis Program v4.90 Page 4 of 70

 Zone Sizing Summary for 2nd_Floor
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ...................................... 2nd_Floor Number of zones .......................................................... 12
Equipment Class ............................................. TERM Floor Area ............................................................... 871.5 m²
Air System Type ............................................... 2P-FC Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 70.4 7726 7726 Jul 1700 0.8 552.0 14.00
Zone 2 14.2 1563 1563 Dec 1600 0.1 62.0 25.22
Zone 3 3.7 411 411 Jun 1600 0.0 25.0 16.44
Zone 4 5.2 568 568 Jun 1700 0.1 27.0 21.05
Zone 5 3.1 336 336 Aug 1800 0.1 15.0 22.39
Zone 6 1.5 165 165 Oct 1700 0.0 15.0 10.98
Zone 7 2.8 302 302 Jun 1600 0.0 13.0 23.26
Zone 8 8.0 882 882 Dec 1600 0.1 35.0 25.21
Zone 9 3.3 367 367 Aug 1600 0.0 27.0 13.59
Zone 10 2.7 298 298 Aug 1700 0.0 27.0 11.03
Zone 11 1.7 190 190 Aug 1700 0.0 10.5 18.07
Zone 12 16.8 1846 1846 Jun 1600 0.2 63.0 29.30

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.0 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 99.2 78.3 23.2 / 18.1 14.8 / 14.4 4.75 Jul 1600
Zone 2 20.8 15.8 23.1 / 18.1 14.7 / 14.2 1.00 Dec 1600
Zone 3 5.1 4.0 23.1 / 18.2 15.0 / 14.6 0.24 Jun 1600
Zone 4 6.6 5.5 22.9 / 17.8 14.9 / 14.4 0.32 Jun 1700
Zone 5 3.6 3.2 22.9 / 17.8 15.1 / 14.6 0.17 Aug 1700
Zone 6 2.4 1.7 23.4 / 18.5 14.8 / 14.3 0.11 Aug 1700
Zone 7 3.8 2.9 23.4 / 18.5 15.4 / 14.9 0.18 Jun 1600
Zone 8 11.3 8.7 23.1 / 18.3 14.9 / 14.5 0.54 Dec 1600
Zone 9 5.4 3.8 23.5 / 18.8 15.0 / 14.6 0.26 Jul 1600
Zone 10 3.5 2.9 22.9 / 17.9 14.9 / 14.4 0.17 Jul 1600
Zone 11 2.1 1.8 23.0 / 18.1 15.3 / 14.8 0.10 Aug 1600
Zone 12 20.5 18.2 23.0 / 17.6 14.8 / 14.3 0.98 Jun 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -18.3 / -18.3 0.00 7726 0.974 0.773 341
Zone 2 0.0 -18.3 / -18.3 0.00 1563 0.197 0.156 119
Zone 3 0.0 -18.3 / -18.3 0.00 411 0.052 0.041 18
Zone 4 0.0 -18.3 / -18.3 0.00 568 0.072 0.057 18
Zone 5 0.0 -18.3 / -18.3 0.00 336 0.042 0.034 7
Zone 6 0.0 -18.3 / -18.3 0.00 165 0.021 0.016 12
Zone 7 0.0 -18.3 / -18.3 0.00 302 0.038 0.030 16
Zone 8 0.0 -18.3 / -18.3 0.00 882 0.111 0.088 63

Hourly Analysis Program v4.90 Page 5 of 70

 Zone Sizing Summary for 2nd_Floor
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Zone 9 0.0 -18.3 / -18.3 0.00 367 0.046 0.037 31

Zone 10 0.0 -18.3 / -18.3 0.00 298 0.038 0.030 8
Zone 11 0.0 -18.3 / -18.3 0.00 190 0.024 0.019 6
Zone 12 0.0 -18.3 / -18.3 0.00 1846 0.233 0.185 34

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- All Offices 1 70.4 Jul 1700 7726 0.8 552.0 14.00
Zone 2
L2- Board Room 1 14.2 Dec 1600 1563 0.1 62.0 25.22
Zone 3
L2- CEOoffice 1 3.7 Jun 1600 411 0.0 25.0 16.44
Zone 4
L2- Chairman Office 1 5.2 Jun 1700 568 0.1 27.0 21.05
Zone 5
L2- Director 01 1 3.1 Aug 1800 336 0.1 15.0 22.39
Zone 6
L2- Director 02 1 1.5 Oct 1700 165 0.0 15.0 10.98
Zone 7
L2- DiscussionRoom N 1 2.8 Jun 1600 302 0.0 13.0 23.26
Zone 8
L2- MeetingRoom1 1 8.0 Dec 1600 882 0.1 35.0 25.21
Zone 9
L2- MeetingRoom2 1 3.3 Aug 1600 367 0.0 27.0 13.59
Zone 10
L2- Panel & UPS Room 1 2.7 Aug 1700 298 0.0 27.0 11.03
Zone 11
L2- Secretory 1 1.7 Aug 1700 190 0.0 10.5 18.07
Zone 12
L2- Waiting Lobby 1 16.8 Jun 1600 1846 0.2 63.0 29.30

Hourly Analysis Program v4.90 Page 6 of 70

 Air System Design Load Summary for 2nd_Floor
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jul 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.8 °C / 29.8 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 314 m² 25254 - 314 m² - -
Wall Transmission 266 m² 8469 - 266 m² 320 -
Roof Transmission 871 m² 19000 - 871 m² 517 -
Window Transmission 314 m² 9874 - 314 m² 536 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 8 m² 398 - 8 m² 10 -
Floor Transmission 871 m² 8089 - 871 m² 0 -
Partitions 957 m² 14804 - 957 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 9873 W 8071 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 13014 W 11970 - 0 0 -
People 127 6507 7539 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 10% / 10% 11244 754 0% 0 0
>> Total Zone Loads - 123681 8293 - 1383 0
Zone Conditioning - 128382 8293 - 772 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 671 L/s 0 - 671 L/s 0 -
Ventilation Load 671 L/s 8171 29385 671 L/s 350 -5
Ventilation Fan Load 671 L/s 67 - 671 L/s -67 -
Space Fan Coil Fans - 1466 - - -1466 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 138085 37678 - -411 -5
Terminal Unit Cooling - 138085 37814 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 138085 37814 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 7 of 70

 Air System Sizing Summary for gf entrance lobby
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ......................... gf entrance lobby Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ............................................................... 145.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 8 of 70

 Zone Sizing Summary for gf entrance lobby
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ......................... gf entrance lobby Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ............................................................... 145.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 13.8 1333 1333 Dec 1500 0.1 145.0 9.19

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 18.6 14.9 23.9 / 18.2 14.7 / 14.1 - Dec 1500

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 1333 0.000 0.000 81

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
LG-Entr. lobby/Reception 1 13.8 Dec 1500 1333 0.1 145.0 9.19

Hourly Analysis Program v4.90 Page 9 of 70

 Air System Design Load Summary for gf entrance lobby
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Dec 1500 HEATING DATA AT DES HTG
COOLING OA DB / WB 28.0 °C / 27.1 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 23 m² 5486 - 23 m² - -
Wall Transmission 44 m² 758 - 44 m² 53 -
Roof Transmission 0 m² 0 - 0 m² 0 -
Window Transmission 23 m² 268 - 23 m² 39 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 18 m² 2119 - 18 m² 29 -
Floor Transmission 145 m² 0 - 145 m² 15 -
Partitions 164 m² 1744 - 164 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 1160 W 967 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 1160 W 1074 - 0 0 -
People 12 683 721 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 655 36 0% 0 0
>> Total Zone Loads - 13754 757 - 136 0
Zone Conditioning - 14461 757 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 81 L/s 425 2975 81 L/s 34 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 14886 3732 - 34 0
Terminal Unit Cooling - 14886 3737 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 14886 3737 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 10 of 70

 Air System Sizing Summary for gf induction,meeting
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .................... gf induction,meeting Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 50.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 11 of 70

 Zone Sizing Summary for gf induction,meeting
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .................... gf induction,meeting Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 50.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 8.0 779 779 Jun 1600 0.1 50.0 15.58

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 11.1 8.8 24.2 / 18.5 14.8 / 14.3 - Jun 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 779 0.000 0.000 40

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
LG-Induction area 1 8.0 Jun 1600 779 0.1 50.0 15.58

Hourly Analysis Program v4.90 Page 12 of 70

 Air System Design Load Summary for gf induction,meeting
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jun 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.2 °C / 29.9 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 24 m² 4011 - 24 m² - -
Wall Transmission 42 m² 1120 - 42 m² 50 -
Roof Transmission 0 m² 0 - 0 m² 0 -
Window Transmission 24 m² 620 - 24 m² 40 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 50 m² 0 - 50 m² 9 -
Partitions 53 m² 718 - 53 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 563 W 382 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 563 W 482 - 0 0 -
People 8 322 451 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 383 23 0% 0 0
>> Total Zone Loads - 8037 473 - 99 0
Zone Conditioning - 8397 473 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 40 L/s 408 1863 40 L/s 12 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 8805 2336 - 12 0
Terminal Unit Cooling - 8805 2341 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 8805 2341 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 13 of 70

 Air System Sizing Summary for gf welfare
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ...................................... gf welfare Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 43.3 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 14 of 70

 Zone Sizing Summary for gf welfare
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ...................................... gf welfare Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 43.3 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 10.1 979 979 Dec 1600 0.1 43.3 22.62

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 13.2 10.4 24.2 / 18.7 15.4 / 14.9 - Nov 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 979 0.000 0.000 56

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
LG-WelfareShop 1 10.1 Dec 1600 979 0.1 43.3 22.62

Hourly Analysis Program v4.90 Page 15 of 70

 Air System Design Load Summary for gf welfare
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Nov 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 28.9 °C / 28.2 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 23 m² 5823 - 23 m² - -
Wall Transmission 16 m² 484 - 16 m² 19 -
Roof Transmission 0 m² 0 - 0 m² 0 -
Window Transmission 23 m² 347 - 23 m² 39 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 3 m² 875 - 3 m² 6 -
Floor Transmission 43 m² 0 - 43 m² 6 -
Partitions 77 m² 850 - 77 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 374 W 316 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 346 W 322 - 0 0 -
People 6 423 506 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 472 25 0% 0 0
>> Total Zone Loads - 9914 532 - 70 0
Zone Conditioning - 10074 532 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 56 L/s 338 2254 56 L/s 22 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 10413 2785 - 22 0
Terminal Unit Cooling - 10413 2812 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 10413 2812 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 16 of 70

 Air System Sizing Summary for GroundFloor
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ................................. GroundFloor Number of zones ............................................................ 3
Equipment Class ............................................. TERM Floor Area ............................................................... 238.3 m²
Air System Type ............................................... 2P-FC Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Ventilation Fan Sizing Data

Actual max L/s ..................................................... 177 L/s Fan motor BHP ......................................................... 0.02 BHP
Standard L/s ........................................................ 177 L/s Fan motor kW ........................................................... 0.02 kW
Actual max L/(s-m²) ............................................. 0.74 L/(s-m²) Fan static ..................................................................... 50 Pa

Outdoor Ventilation Air Data

Design airflow L/s ................................................ 177 L/s L/s/person ................................................................. 6.32 L/s/person
L/(s-m²) ............................................................... 0.74 L/(s-m²)

Hourly Analysis Program v4.90 Page 17 of 70

 Zone Sizing Summary for GroundFloor
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ................................. GroundFloor Number of zones ............................................................ 3
Equipment Class ............................................. TERM Floor Area ............................................................... 238.3 m²
Air System Type ............................................... 2P-FC Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 8.8 963 963 Jun 1600 0.1 50.0 19.27
Zone 2 15.2 1666 1666 Dec 1500 0.1 145.0 11.49
Zone 3 11.0 1203 1203 Dec 1600 0.1 43.3 27.79

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.0 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 12.0 9.8 23.2 / 18.0 14.8 / 14.3 0.58 Jun 1600
Zone 2 20.8 16.5 23.1 / 18.1 14.9 / 14.4 1.00 Nov 1500
Zone 3 14.4 11.7 23.1 / 18.0 15.0 / 14.5 0.69 Nov 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -18.3 / -18.3 0.00 963 0.121 0.096 40
Zone 2 0.0 -18.3 / -18.3 0.00 1666 0.210 0.167 81
Zone 3 0.0 -18.3 / -18.3 0.00 1203 0.152 0.120 56

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
LG-Induction area 1 8.8 Jun 1600 963 0.1 50.0 19.27
Zone 2
LG-Entr. lobby/Reception 1 15.2 Dec 1500 1666 0.1 145.0 11.49
Zone 3
LG-WelfareShop 1 11.0 Dec 1600 1203 0.1 43.3 27.79

Hourly Analysis Program v4.90 Page 18 of 70

 Air System Design Load Summary for GroundFloor
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Nov 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 28.9 °C / 28.2 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 70 m² 11312 - 70 m² - -
Wall Transmission 101 m² 2687 - 101 m² 122 -
Roof Transmission 0 m² 0 - 0 m² 0 -
Window Transmission 70 m² 1283 - 70 m² 119 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 21 m² 3006 - 21 m² 34 -
Floor Transmission 238 m² 0 - 238 m² 31 -
Partitions 294 m² 4137 - 294 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 2097 W 1676 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 2069 W 1883 - 0 0 -
People 26 1438 1678 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 10% / 10% 2742 168 0% 0 0
>> Total Zone Loads - 30164 1846 - 306 0
Zone Conditioning - 31241 1846 - 199 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 177 L/s 0 - 177 L/s 0 -
Ventilation Load 177 L/s 1327 6860 177 L/s 95 -3
Ventilation Fan Load 177 L/s 18 - 177 L/s -18 -
Space Fan Coil Fans - 383 - - -383 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 32969 8706 - -107 -3
Terminal Unit Cooling - 32966 8726 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 32966 8726 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 19 of 70

 Air System Sizing Summary for L1 gym
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .......................................... L1 gym Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 52.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 20 of 70

 Zone Sizing Summary for L1 gym
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .......................................... L1 gym Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 52.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 8.9 780 780 Jun 1800 0.1 52.0 14.99

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 16.4 9.7 25.1 / 20.3 14.8 / 14.4 - Jun 1800

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 780 0.000 0.000 78

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L1-Gym 1 8.9 Jun 1800 780 0.1 52.0 14.99

Hourly Analysis Program v4.90 Page 21 of 70

 Air System Design Load Summary for L1 gym
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jun 1800 HEATING DATA AT DES HTG
COOLING OA DB / WB 30.7 °C / 29.5 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 36 m² 3743 - 36 m² - -
Wall Transmission 16 m² 536 - 16 m² 19 -
Roof Transmission 0 m² 0 - 0 m² 0 -
Window Transmission 36 m² 739 - 36 m² 62 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 3 m² 143 - 3 m² 4 -
Floor Transmission 52 m² 386 - 52 m² 0 -
Partitions 55 m² 550 - 55 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 624 W 428 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 780 W 670 - 0 0 -
People 10 1263 3194 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 423 160 0% 0 0
>> Total Zone Loads - 8881 3354 - 85 0
Zone Conditioning - 9146 3354 - -8 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 78 L/s 583 3315 78 L/s 30 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 9729 6669 - 22 0
Terminal Unit Cooling - 9729 6660 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 9729 6660 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 22 of 70

 Air System Sizing Summary for L1 vedio conference room
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ........... L1 vedio conference room Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 55.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 23 of 70

 Zone Sizing Summary for L1 vedio conference room
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ........... L1 vedio conference room Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 55.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 4.7 410 410 Jul 1600 0.1 55.0 7.45

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 7.9 4.9 25.7 / 20.6 15.7 / 15.3 - Jul 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 410 0.000 0.000 54

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L1- Video Conf. Room 1 4.7 Jul 1600 410 0.1 55.0 7.45

Hourly Analysis Program v4.90 Page 24 of 70

 Air System Design Load Summary for L1 vedio conference room
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jul 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.8 °C / 29.8 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 0 m² 0 - 0 m² - -
Wall Transmission 54 m² 1543 - 54 m² 65 -
Roof Transmission 0 m² 0 - 0 m² 0 -
Window Transmission 0 m² 0 - 0 m² 0 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 55 m² 455 - 55 m² 0 -
Partitions 68 m² 744 - 68 m² 0 -
Ceiling 55 m² 275 - 55 m² 0 -
Overhead Lighting 619 W 420 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 619 W 530 - 0 0 -
People 11 483 676 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 222 34 0% 0 0
>> Total Zone Loads - 4672 710 - 65 0
Zone Conditioning - 4386 710 - -20 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 54 L/s 530 2297 54 L/s 25 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 4916 3007 - 5 0
Terminal Unit Cooling - 4916 3008 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 4916 3008 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 25 of 70

 Air System Sizing Summary for L2 auditors room
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .......................... L2 auditors room Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 12.5 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 26 of 70

 Zone Sizing Summary for L2 auditors room
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .......................... L2 auditors room Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 12.5 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 3.1 274 274 Dec 1600 0.0 12.5 21.93

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 3.8 3.1 24.7 / 18.8 15.4 / 14.8 - Dec 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 274 0.000 0.000 14

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- auditors room 1 3.1 Dec 1600 274 0.0 12.5 21.93

Hourly Analysis Program v4.90 Page 27 of 70

 Air System Design Load Summary for L2 auditors room
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Dec 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 27.8 °C / 27.1 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 8 m² 1921 - 8 m² - -
Wall Transmission 9 m² 327 - 9 m² 11 -
Roof Transmission 13 m² 164 - 13 m² 7 -
Window Transmission 8 m² 71 - 8 m² 14 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 13 m² 74 - 13 m² 0 -
Partitions 46 m² 72 - 46 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 141 W 95 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 141 W 120 - 0 0 -
People 3 129 180 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 149 9 0% 0 0
>> Total Zone Loads - 3123 189 - 33 0
Zone Conditioning - 3037 189 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 14 L/s 53 484 14 L/s 6 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 3090 674 - 6 0
Terminal Unit Cooling - 3090 675 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 3090 675 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 28 of 70

 Air System Sizing Summary for L2 BOARD ROOM
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ......................... L2 BOARD ROOM Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 62.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 29 of 70

 Zone Sizing Summary for L2 BOARD ROOM
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ......................... L2 BOARD ROOM Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 62.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 12.7 1112 1112 Dec 1600 0.1 62.0 17.94

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 19.1 13.1 25.2 / 19.7 15.4 / 14.9 - Dec 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 1112 0.000 0.000 119

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- Board Room 1 12.7 Dec 1600 1112 0.1 62.0 17.94

Hourly Analysis Program v4.90 Page 30 of 70

 Air System Design Load Summary for L2 BOARD ROOM
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Dec 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 27.8 °C / 27.1 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 31 m² 7109 - 31 m² - -
Wall Transmission 19 m² 695 - 19 m² 23 -
Roof Transmission 61 m² 798 - 61 m² 36 -
Window Transmission 31 m² 262 - 31 m² 53 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 61 m² 89 - 61 m² 0 -
Partitions 76 m² 554 - 76 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 698 W 474 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 930 W 797 - 0 0 -
People 30 1288 1803 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 603 90 0% 0 0
>> Total Zone Loads - 12669 1893 - 113 0
Zone Conditioning - 12737 1893 - -3 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 119 L/s 411 4035 119 L/s 40 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 13147 5928 - 37 0
Terminal Unit Cooling - 13147 5909 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 13147 5909 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 31 of 70

 Air System Sizing Summary for L2 CEO
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .......................................... L2 CEO Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 25.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 32 of 70

 Zone Sizing Summary for L2 CEO
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .......................................... L2 CEO Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 25.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 2.9 259 259 Jun 1600 0.0 25.0 10.36

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 4.0 3.0 25.0 / 19.3 15.4 / 14.9 - Jul 1700

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 259 0.000 0.000 18

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- CEOoffice 1 2.9 Jun 1600 259 0.0 25.0 10.36

Hourly Analysis Program v4.90 Page 33 of 70

 Air System Design Load Summary for L2 CEO
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jul 1700 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.2 °C / 29.7 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 8 m² 642 - 8 m² - -
Wall Transmission 9 m² 317 - 9 m² 11 -
Roof Transmission 25 m² 538 - 25 m² 15 -
Window Transmission 8 m² 193 - 8 m² 14 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 3 m² 12 - 3 m² 1 -
Floor Transmission 25 m² 49 - 25 m² 0 -
Partitions 72 m² 320 - 72 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 304 W 258 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 304 W 283 - 0 0 -
People 3 188 195 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 140 10 0% 0 0
>> Total Zone Loads - 2942 204 - 40 0
Zone Conditioning - 2840 204 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 18 L/s 162 778 18 L/s 8 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 3002 982 - 8 0
Terminal Unit Cooling - 3002 983 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 3002 983 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 34 of 70

 Air System Sizing Summary for L2 chairman office
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ........................ L2 chairman office Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 27.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 35 of 70

 Zone Sizing Summary for L2 chairman office
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ........................ L2 chairman office Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 27.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 4.3 377 377 Jun 1700 0.1 27.0 13.97

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 5.5 4.4 24.9 / 18.8 15.1 / 14.5 - Jun 1700

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 377 0.000 0.000 18

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- Chairman Office 1 4.3 Jun 1700 377 0.1 27.0 13.97

Hourly Analysis Program v4.90 Page 36 of 70

 Air System Design Load Summary for L2 chairman office
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jun 1700 HEATING DATA AT DES HTG
COOLING OA DB / WB 31.6 °C / 29.7 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 11 m² 1032 - 11 m² - -
Wall Transmission 36 m² 1238 - 36 m² 43 -
Roof Transmission 27 m² 561 - 27 m² 16 -
Window Transmission 11 m² 237 - 11 m² 18 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 27 m² 81 - 27 m² 0 -
Partitions 46 m² 170 - 46 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 328 W 278 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 328 W 306 - 0 0 -
People 3 188 195 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 205 10 0% 0 0
>> Total Zone Loads - 4297 204 - 77 0
Zone Conditioning - 4282 204 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 18 L/s 155 835 18 L/s 6 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 4437 1039 - 6 0
Terminal Unit Cooling - 4437 1042 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 4437 1042 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 37 of 70

 Air System Sizing Summary for L2 cofee and meal room
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .............. L2 cofee and meal room Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 38.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 38 of 70

 Zone Sizing Summary for L2 cofee and meal room
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name .............. L2 cofee and meal room Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 38.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 5.7 556 556 Jun 1700 0.0 38.0 14.62

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 8.5 6.0 24.2 / 19.2 15.3 / 14.8 - Jun 1800

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 556 0.000 0.000 36

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2-cofee and meal rm 1 5.7 Jun 1700 556 0.0 38.0 14.62

Hourly Analysis Program v4.90 Page 39 of 70

 Air System Design Load Summary for L2 cofee and meal room
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jun 1800 HEATING DATA AT DES HTG
COOLING OA DB / WB 30.7 °C / 29.5 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 16 m² 1779 - 16 m² - -
Wall Transmission 12 m² 491 - 12 m² 14 -
Roof Transmission 0 m² 0 - 0 m² 0 -
Window Transmission 16 m² 372 - 16 m² 27 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 38 m² 360 - 38 m² 0 -
Partitions 68 m² 868 - 68 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 456 W 313 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 570 W 490 - 0 0 -
People 10 498 791 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 10% / 10% 517 79 0% 0 0
>> Total Zone Loads - 5687 870 - 42 0
Zone Conditioning - 5686 870 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 36 L/s 304 1616 36 L/s 18 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 5989 2486 - 18 0
Terminal Unit Cooling - 5989 2484 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 5989 2484 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 40 of 70

 Air System Sizing Summary for L2 DIRECTOR
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............................... L2 DIRECTOR Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 15.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 41 of 70

 Zone Sizing Summary for L2 DIRECTOR
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............................... L2 DIRECTOR Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 15.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 2.5 217 217 Aug 1800 0.1 15.0 14.49

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 2.9 2.5 24.8 / 18.4 15.1 / 14.6 - Aug 1700

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 217 0.000 0.000 7

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- Director 01 1 2.5 Aug 1800 217 0.1 15.0 14.49

Hourly Analysis Program v4.90 Page 42 of 70

 Air System Design Load Summary for L2 DIRECTOR
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Aug 1700 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.2 °C / 29.7 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 0 m² 0 - 0 m² - -
Wall Transmission 33 m² 1011 - 33 m² 40 -
Roof Transmission 15 m² 334 - 15 m² 9 -
Window Transmission 0 m² 0 - 0 m² 0 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 3 m² 162 - 3 m² 4 -
Floor Transmission 15 m² 30 - 15 m² 0 -
Partitions 36 m² 387 - 36 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 182 W 155 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 243 W 227 - 0 0 -
People 1 47 49 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 118 2 0% 0 0
>> Total Zone Loads - 2470 51 - 53 0
Zone Conditioning - 2453 51 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 7 L/s 65 320 7 L/s 2 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 2518 371 - 2 0
Terminal Unit Cooling - 2518 375 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 2518 375 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 43 of 70

 Air System Sizing Summary for L2 Discussion rm north
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............... L2 Discussion rm north Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 13.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 44 of 70

 Zone Sizing Summary for L2 Discussion rm north
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............... L2 Discussion rm north Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 13.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 2.2 193 193 Jun 1600 0.0 13.0 14.84

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 3.2 2.2 25.2 / 19.8 15.6 / 15.1 - Jun 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 193 0.000 0.000 16

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- DiscussionRoom N 1 2.2 Jun 1600 193 0.0 13.0 14.84

Hourly Analysis Program v4.90 Page 45 of 70

 Air System Design Load Summary for L2 Discussion rm north
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jun 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.2 °C / 29.9 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 8 m² 787 - 8 m² - -
Wall Transmission 7 m² 241 - 7 m² 8 -
Roof Transmission 13 m² 246 - 13 m² 8 -
Window Transmission 8 m² 196 - 8 m² 14 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 13 m² 25 - 13 m² 0 -
Partitions 49 m² 211 - 49 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 146 W 99 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 146 W 125 - 0 0 -
People 4 161 225 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 105 11 0% 0 0
>> Total Zone Loads - 2197 237 - 30 0
Zone Conditioning - 2091 237 - -5 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 16 L/s 151 726 16 L/s 7 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 2242 962 - 2 0
Terminal Unit Cooling - 2242 963 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 2242 963 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 46 of 70

 Air System Sizing Summary for L2 Discussion rmSouth
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............... L2 Discussion rmSouth Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 14.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 47 of 70

 Zone Sizing Summary for L2 Discussion rmSouth
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............... L2 Discussion rmSouth Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 14.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 3.2 283 283 Dec 1600 0.0 14.0 20.18

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 3.9 3.1 24.9 / 19.2 15.8 / 15.2 - Dec 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 283 0.000 0.000 17

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- DiscussionRoom S 1 3.2 Dec 1600 283 0.0 14.0 20.18

Hourly Analysis Program v4.90 Page 48 of 70

 Air System Design Load Summary for L2 Discussion rmSouth
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Dec 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 27.8 °C / 27.1 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 8 m² 1921 - 8 m² - -
Wall Transmission 9 m² 327 - 9 m² 11 -
Roof Transmission 14 m² 183 - 14 m² 8 -
Window Transmission 8 m² 71 - 8 m² 14 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 14 m² 83 - 14 m² 0 -
Partitions 49 m² 77 - 49 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 158 W 107 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 158 W 135 - 0 0 -
People 4 161 225 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 153 11 0% 0 0
>> Total Zone Loads - 3219 237 - 34 0
Zone Conditioning - 3060 237 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 17 L/s 61 572 17 L/s 8 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 3121 809 - 8 0
Terminal Unit Cooling - 3121 807 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 3121 807 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 49 of 70

 Air System Sizing Summary for L2 Discussion/meeting s
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............. L2 Discussion/meeting s Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 17.2 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 50 of 70

 Zone Sizing Summary for L2 Discussion/meeting s
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............. L2 Discussion/meeting s Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 17.2 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 3.3 285 285 Dec 1600 0.0 17.2 16.59

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 4.1 3.2 24.7 / 19.0 15.4 / 14.9 - Dec 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 285 0.000 0.000 18

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- Discussion/meeting s 1 3.3 Dec 1600 285 0.0 17.2 16.59

Hourly Analysis Program v4.90 Page 51 of 70

 Air System Design Load Summary for L2 Discussion/meeting s
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Dec 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 27.8 °C / 27.1 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 8 m² 1921 - 8 m² - -
Wall Transmission 6 m² 219 - 6 m² 7 -
Roof Transmission 17 m² 225 - 17 m² 10 -
Window Transmission 8 m² 71 - 8 m² 14 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 17 m² 102 - 17 m² 0 -
Partitions 63 m² 99 - 63 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 194 W 131 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 194 W 166 - 0 0 -
People 4 161 225 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 155 11 0% 0 0
>> Total Zone Loads - 3250 237 - 32 0
Zone Conditioning - 3142 237 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 18 L/s 69 619 18 L/s 9 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 3211 855 - 9 0
Terminal Unit Cooling - 3211 857 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 3211 857 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 52 of 70

 Air System Sizing Summary for L2 meeting room 1
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ....................... L2 meeting room 1 Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 35.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 53 of 70

 Zone Sizing Summary for L2 meeting room 1
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ....................... L2 meeting room 1 Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 35.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 7.0 612 612 Dec 1600 0.1 35.0 17.48

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 10.4 7.2 25.0 / 19.6 15.2 / 14.7 - Dec 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 612 0.000 0.000 63

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- MeetingRoom1 1 7.0 Dec 1600 612 0.1 35.0 17.48

Hourly Analysis Program v4.90 Page 54 of 70

 Air System Design Load Summary for L2 meeting room 1
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Dec 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 27.8 °C / 27.1 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 17 m² 3779 - 17 m² - -
Wall Transmission 10 m² 377 - 10 m² 13 -
Roof Transmission 35 m² 458 - 35 m² 21 -
Window Transmission 17 m² 139 - 17 m² 28 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 35 m² 51 - 35 m² 0 -
Partitions 76 m² 554 - 76 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 394 W 267 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 394 W 337 - 0 0 -
People 16 676 946 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 332 47 0% 0 0
>> Total Zone Loads - 6971 994 - 62 0
Zone Conditioning - 6971 994 - -7 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 63 L/s 234 2168 63 L/s 25 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 7204 3161 - 18 0
Terminal Unit Cooling - 7204 3150 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 7204 3150 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 55 of 70

 Air System Sizing Summary for L2 meeting room 2
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ....................... L2 meeting room 2 Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 27.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 56 of 70

 Zone Sizing Summary for L2 meeting room 2
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ....................... L2 meeting room 2 Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 27.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 2.6 225 225 Aug 1600 0.0 27.0 8.34

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 4.5 2.7 25.7 / 20.7 15.7 / 15.3 - Aug 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 225 0.000 0.000 31

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- MeetingRoom2 1 2.6 Aug 1600 225 0.0 27.0 8.34

Hourly Analysis Program v4.90 Page 57 of 70

 Air System Design Load Summary for L2 meeting room 2
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Aug 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.8 °C / 29.8 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 0 m² 0 - 0 m² - -
Wall Transmission 0 m² 0 - 0 m² 0 -
Roof Transmission 27 m² 550 - 27 m² 16 -
Window Transmission 0 m² 0 - 0 m² 0 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 27 m² 54 - 27 m² 0 -
Partitions 95 m² 1083 - 95 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 304 W 206 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 304 W 260 - 0 0 -
People 7 290 406 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 122 20 0% 0 0
>> Total Zone Loads - 2566 426 - 16 0
Zone Conditioning - 2427 426 - -12 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 31 L/s 300 1300 31 L/s 16 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 2727 1725 - 3 0
Terminal Unit Cooling - 2727 1727 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 2727 1727 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 58 of 70

 Air System Sizing Summary for L2 open office
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............................... L2 open office Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ............................................................... 552.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 59 of 70

 Zone Sizing Summary for L2 open office
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ............................... L2 open office Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ............................................................... 552.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 59.7 5234 5234 Jul 1700 0.8 552.0 9.48

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 84.1 64.7 25.0 / 18.9 14.8 / 14.2 - Jul 1700

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 5234 0.000 0.000 341

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- All Offices 1 59.7 Jul 1700 5234 0.8 552.0 9.48

Hourly Analysis Program v4.90 Page 60 of 70

 Air System Design Load Summary for L2 open office
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jul 1700 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.2 °C / 29.7 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 178 m² 11363 - 178 m² - -
Wall Transmission 123 m² 3807 - 123 m² 148 -
Roof Transmission 552 m² 11875 - 552 m² 328 -
Window Transmission 178 m² 4279 - 178 m² 304 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 552 m² 4388 - 552 m² 0 -
Partitions 342 m² 3817 - 342 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 6707 W 5690 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 8942 W 8336 - 0 0 -
People 57 3298 3408 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 2843 170 0% 0 0
>> Total Zone Loads - 59695 3578 - 780 0
Zone Conditioning - 61549 3578 - 1 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 341 L/s 3151 15659 341 L/s 135 -1
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 64700 19237 - 135 -1
Terminal Unit Cooling - 64700 19379 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 64700 19379 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 61 of 70

 Air System Sizing Summary for L2 sectretary
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ................................. L2 sectretary Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 10.5 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 62 of 70

 Zone Sizing Summary for L2 sectretary
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ................................. L2 sectretary Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 10.5 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 1.2 107 107 Aug 1700 0.0 10.5 10.19

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 1.5 1.2 24.9 / 19.3 15.9 / 15.4 - Aug 1500

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 107 0.000 0.000 6

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- Secretory 1 1.2 Aug 1700 107 0.0 10.5 10.19

Hourly Analysis Program v4.90 Page 63 of 70

 Air System Design Load Summary for L2 sectretary
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Aug 1500 HEATING DATA AT DES HTG
COOLING OA DB / WB 33.0 °C / 29.9 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 0 m² 0 - 0 m² - -
Wall Transmission 0 m² 0 - 0 m² 0 -
Roof Transmission 11 m² 188 - 11 m² 6 -
Window Transmission 0 m² 0 - 0 m² 0 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 11 m² 86 - 11 m² 0 -
Partitions 59 m² 645 - 59 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 84 W 70 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 101 W 93 - 0 0 -
People 1 45 48 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 56 2 0% 0 0
>> Total Zone Loads - 1185 50 - 6 0
Zone Conditioning - 1107 50 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 6 L/s 58 247 6 L/s 3 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 1165 298 - 3 0
Terminal Unit Cooling - 1165 299 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 1165 299 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 64 of 70

 Air System Sizing Summary for L2 security consultant
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ................. L2 security consultant Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 12.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 65 of 70

 Zone Sizing Summary for L2 security consultant
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ................. L2 security consultant Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 12.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 2.7 237 237 Jun 1600 0.0 12.0 19.71

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 3.1 2.6 25.1 / 19.1 16.0 / 15.4 - Jun 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 237 0.000 0.000 9

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- security consultant 1 2.7 Jun 1600 237 0.0 12.0 19.71

Hourly Analysis Program v4.90 Page 66 of 70

 Air System Design Load Summary for L2 security consultant
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jun 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.2 °C / 29.9 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 11 m² 1192 - 11 m² - -
Wall Transmission 9 m² 312 - 9 m² 11 -
Roof Transmission 13 m² 246 - 13 m² 8 -
Window Transmission 11 m² 258 - 11 m² 19 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 12 m² 94 - 12 m² 0 -
Partitions 45 m² 192 - 45 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 135 W 92 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 135 W 116 - 0 0 -
People 2 64 90 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 128 5 0% 0 0
>> Total Zone Loads - 2694 95 - 37 0
Zone Conditioning - 2519 95 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 9 L/s 77 383 9 L/s 4 0
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 2596 478 - 4 0
Terminal Unit Cooling - 2596 485 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 2596 485 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 67 of 70

 Air System Sizing Summary for L2 waiting lobby
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ........................... L2 waiting lobby Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 63.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Hourly Analysis Program v4.90 Page 68 of 70

 Zone Sizing Summary for L2 waiting lobby
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

Air System Information

Air System Name ........................... L2 waiting lobby Number of zones ............................................................ 1
Equipment Class ............................................. TERM Floor Area ................................................................. 63.0 m²
Air System Type .................................................. VRF Location .......................................... Colombo, Sri Lanka

Sizing Calculation Information

Calculation Months .................................. Jan to Dec Zone L/s Sizing ................... Sum of space airflow rates
Sizing Data .............................................. Calculated Space L/s Sizing ............... Individual peak space loads

Zone Sizing Data

Maximum Maximum Zone

Cooling Design Minimum Heating Floor
Sensible Airflow Airflow Time of Load Area Zone
Zone Name (kW) (L/s) (L/s) Peak Load (kW) (m²) L/(s-m²)
Zone 1 15.0 1316 1316 Jun 1600 0.2 63.0 20.89

Terminal Unit Sizing Data - Cooling

Total Sens Coil Coil Water Time

Coil Coil Entering Leaving Flow of
Load Load DB / WB DB / WB @ 5.6 °K Peak
Zone Name (kW) (kW) (°C) (°C) (L/s) Load
Zone 1 17.7 15.9 24.9 / 18.2 14.8 / 14.2 - Jun 1600

Terminal Unit Sizing Data - Heating, Fan, Ventilation

Heating Htg Coil

Heating Coil Water Fan OA Vent
Coil Ent/Lvg Flow Design Fan Fan Design
Load DB @11.1 °K Airflow Motor Motor Airflow
Zone Name (kW) (°C) (L/s) (L/s) (BHP) (kW) (L/s)
Zone 1 0.0 -17.8 / -17.8 0.00 1316 0.000 0.000 34

Space Loads and Airflows

Cooling Time Air Heating Floor

Zone Name / Sensible of Flow Load Area Space
Space Name Mult. (kW) Load (L/s) (kW) (m²) L/(s-m²)
Zone 1
L2- Waiting Lobby 1 15.0 Jun 1600 1316 0.2 63.0 20.89

Hourly Analysis Program v4.90 Page 69 of 70

 Air System Design Load Summary for L2 waiting lobby
Project Name: CBL 04/14/2024
Prepared by: Haritha Consultants Pvt Ltd 07:28PM

DESIGN COOLING DESIGN HEATING

COOLING DATA AT Jun 1600 HEATING DATA AT DES HTG
COOLING OA DB / WB 32.2 °C / 29.9 °C HEATING OA DB / WB 20.6 °C / 14.2 °C
Sensible Latent Sensible Latent
ZONE LOADS Details (W) (W) Details (W) (W)
Window & Skylight Solar Loads 61 m² 9317 - 61 m² - -
Wall Transmission 18 m² 498 - 18 m² 22 -
Roof Transmission 63 m² 1193 - 63 m² 37 -
Window Transmission 61 m² 1425 - 61 m² 105 -
Skylight Transmission 0 m² 0 - 0 m² 0 -
Door Loads 0 m² 0 - 0 m² 0 -
Floor Transmission 63 m² 138 - 63 m² 0 -
Partitions 60 m² 659 - 60 m² 0 -
Ceiling 0 m² 0 - 0 m² 0 -
Overhead Lighting 504 W 425 - 0 0 -
Task Lighting 0W 0 - 0 0 -
Electric Equipment 403 W 375 - 0 0 -
People 5 260 169 0 0 0
Infiltration - 0 0 - 0 0
Miscellaneous - 0 0 - 0 0
Safety Factor 5% / 5% 715 8 0% 0 0
>> Total Zone Loads - 15006 177 - 164 0
Zone Conditioning - 15634 177 - 0 0
Plenum Wall Load 0% 0 - 0 0 -
Plenum Roof Load 0% 0 - 0 0 -
Plenum Lighting Load 0% 0 - 0 0 -
Exhaust Fan Load 0 L/s 0 - 0 L/s 0 -
Ventilation Load 34 L/s 308 1606 34 L/s 9 -5
Ventilation Fan Load 0 L/s 0 - 0 L/s 0 -
Space Fan Coil Fans - 0 - - 0 -
Duct Heat Gain / Loss 0% 0 - 0% 0 -
>> Total System Loads - 15942 1783 - 10 -5
Terminal Unit Cooling - 15942 1805 - 0 0
Terminal Unit Heating - 0 - - 0 -
>> Total Conditioning - 15942 1805 - 0 0
Key: Positive values are clg loads Positive values are htg loads
Negative values are htg loads Negative values are clg loads

Hourly Analysis Program v4.90 Page 70 of 70
