3150913

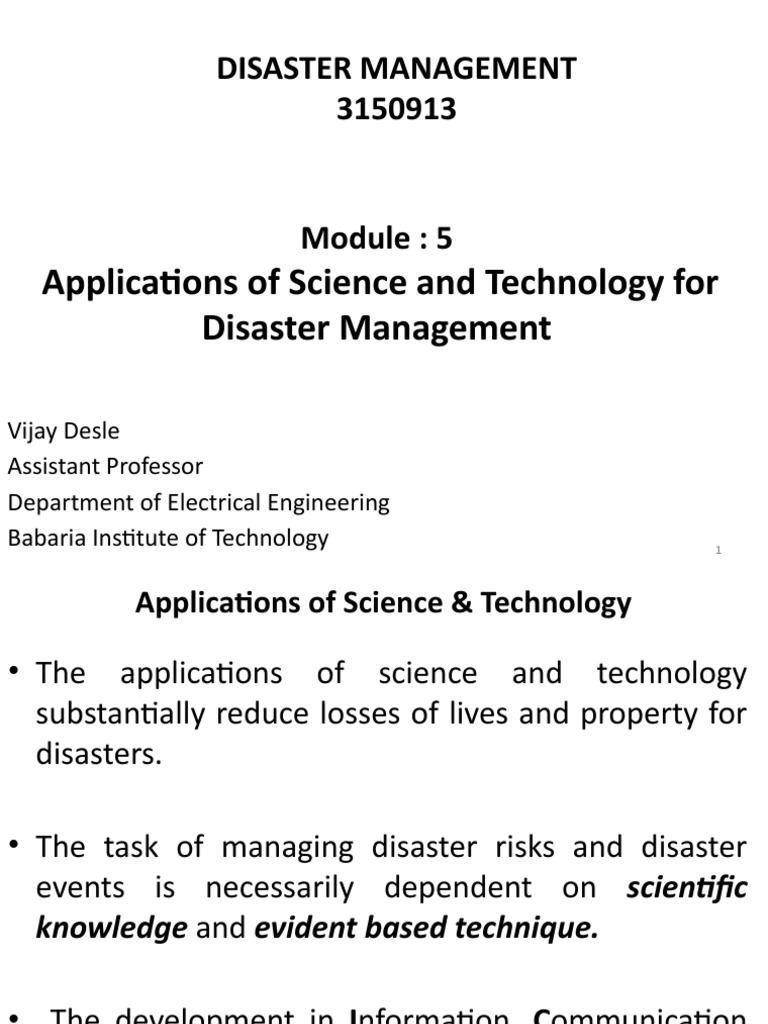

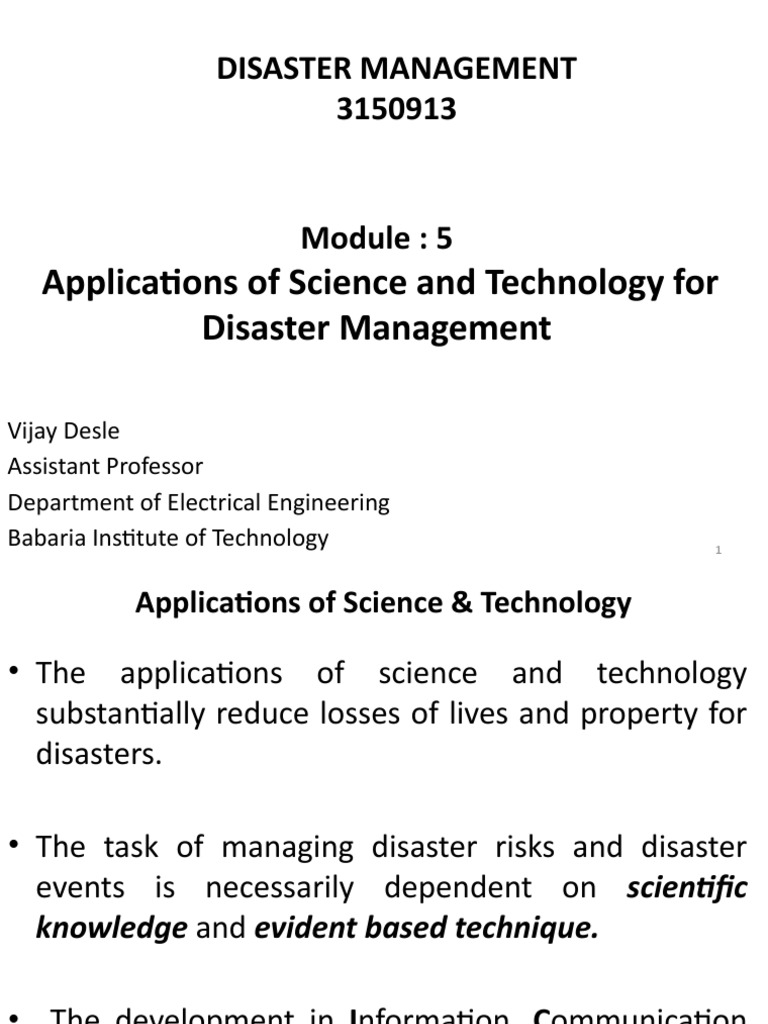

Module : 5
Applications of Science and Technology for
Disaster Management
Vijay Desle
Assistant Professor
Department of Electrical Engineering
Babaria Institute of Technology 1
Applications of Science & Technology
16
Remote Sensing
Use :
Geography
Land surveying
Earth Science disciplines (for example: hydrology,
ecology, oceanography, glaciology, geology)
Military, intelligence, commercial, economic,
planning,
Humanitarian applications.
17
18
Remote Sensing
Sensor System :
Passive Sensor System
Photography
Infrared
Charge-coupled devices
Radiometers
Active Sensor System
RADAR – Radio Detection And Ranging: RADAR is an object-
detection, electronic device that uses ultra-high frequency or
microwave part of the radio frequency spectrum to
determine the position or range of an object.
23
Role of Remote Sensing
• Satellite imageres and aerial photographs.
• Terrain properties; vegetation, water, geology.
• Analysis of a scenario and database updation during
disaster.
• First earth resource satellite, LANDSAT-1 in 1972.
• Data collection using Solar radiation, thermal sensor,
microwave sensor.
• Mitigation of natural disaster by obtaining knowledge about
the expected frequency, character, and magnitude of any
hazardous event.
• Synoptic earth observation method.
• Cost analysis and justification of losses over INDIA due to
various natural disasters.
Remote Sensing
Advantages:
Save times
No physical contact required with object with danger zone
Shows image of very large area of land
Detects features at wavelength not visible to the human
eyes
Regularly data acquisition
Assistance at the time of damage assessment
Remote Sensing
Limitations:
Costly to built and operate
Difficult to interpret data and requires expert skills
Coarse resolution
Small size activities cannot be delineated on remote
sensing
26
LANDSAT THERMAL INFRARED SENSORS (TIRS)
27
Role of Remote Sensing
Flood Management
28
Role of Remote Sensing
Flood Management
Satellite imagery useful things:
Detailed mapping.
Developing a large scale view of the general flood
situation.
Monitoring land use or cover changes over the year.
Information provision during flood relief operations.
Provision of RADAR images and multi spectrum images
during flood.
3-D digital model covered by flooded area is taken from
RAASAT picture at the time of flood.
Use of Synthetic Aperature Radar (SAR) in the presence of
thick clouds. 29
Role of Remote Sensing
Flood Damage Assessment
The operation mainly involves safety of people
and property using flood extent mapping and
real time monitoring.
Damage analysis to the buildings and
infrastructures.
Meteorological NOWCASTS data.
Acquiring spatial data.
Collecting non-spatial data.
30
Role of Remote Sensing
Flood Prediction
This includes mainly based on movement/observation of clouds.
Images captured by METEOSAT satellite.
Data to be collected of varying illumination time and angles of
clouds.
Assessment by provision of temperature and humidity profiles
and synoptic maps of the area at the same time.
31
METEOSAT image
32
Role of Remote Sensing
Drought
Drought is a continuous period of dry weather so it is the most
serious disaster affecting crop.
The drought monitoring system established at ministry of water
consists of three components :
- Meteorological Model
- Hydrological Model
- Remote Sensing
• Drought can be classified into three groups:
- Meteorological Drought: happens when dry weather patterns
dominate an area.
- Hydrological Drought: occurs when low water supply becomes
evident, especially in streams, reservoirs, and groundwater levels,
usually after many months of meteorological drought.
- Agriculture Draught: happens when crops become affected.
Role of Remote Sensing
Drought Management Activities:
Preparedness
• Prediction
• Risk zone identification
Prevention
• Early warning system
• Preparation of contingency plans
• monitoring
Response
• Damage assessment
• Relief management
Role of Remote Sensing
Drought Impact
Barren land
Reduced crop
37
Role of Remote Sensing
Earthquakes
Land use and geological maps also used as a vital tool towards
potential earthquake zones.
38
Role of Remote Sensing
Earthquakes
Damage assessment.
Map the extent and impact of earthquake on the lives and properties.
A geographic information
system (GIS) is a computer system
designed to capture, store,
manipulate, analyze, manage, and
present spatial or geographical data.
The three basic symbol types for vector data are points,
lines and polygons (areas).
GIS
• Vector Data
- A representation of the world using points, lines, and
polygons.
- These data are created by digitizing the base data. They
store information in x, y coordinates. Vectors models
are used to store data, which have discrete boundaries
like country borders, land parcels and roads.
- Vector models are useful for storing data that has
discrete boundaries, such as country borders, land
parcels, and streets.
Points
Polygons
Lines
Merged vector data
GIS
• Raster Data
- Raster data stores information of features in cell-based
manner.
-Satellite images, photogrammetry and scanned maps are all
raster-based data.
- Raster models are used to store data, which varies
continuously as in aerial photography, a satellite image or
elevation values (DEM- Digital Elevation Model).
Raster Data
RASTER VS VECTOR DATA
49
GIS
Uses:
For identification of villages having road connectivity, hospital facility, route maps
for the disaster prone area, etc.
50
Role of GIS
The study of GIS have resulted in the potential
applications:
Establishment of susceptibility of the land and
vulnerability of society.
Mapping potential hazard areas for use in physical
planning.
Providing advanced warning by monitoring potentially
hazardous situations and processes.
Improvement in management of emergency situations
following a disaster – Disaster response stage.
Remotely sensed data, hydrological models and GIS
techniques can be combined and has potential applications in
warning systems or mitigating instantaneous disaster.
Role of GIS
A combined method of linking GIS with flood modeling
software is a cost and time efficient method for planning
particular flood disastrous events.
Q actual C I A
Where,
Q = Peak discharge, cfs
c = Rational method runoff coefficient
i = Rainfall intensity, inch/hour
52
A = Drainage area, acre
FLOOD ROUTING MODEL
53
FLOOD INUNDATIN MAPPING
54
FLOOD INUNDATIN MAPPING
55
RASTER FORMAT MAP OF A RIVER
56
GIS
Software used:
HEC-HMS
HEC-RAS
HEC-GeoRAS
Arc-GIS
DEM
SWAT
57
Geographic Information System (GIS)
Framework for Disaster Management
Introduction
• Disaster management means the range of activities, prior
to, during and after the disasters, designed to maintain
control over disasters and to provide a framework for
helping at-risk persons and/or communities to avoid,
minimize or recover from the impact of the disasters.
• Disaster management organizations are government
agencies at central, state, and local levels that are charged
with reducing community vulnerability and establishing
capabilities to manage and quickly recover from
emergencies.
Geographic Information System (GIS)
Framework for Disaster Management
Introduction
• Over the last several years, disaster management has
become more complex.
• Large-scale emergencies seem to be more prevalent, and
new threats exist. The need to plan for, prevent, and
reduce the consequences of emergencies is greater than
ever.
• Emergency managers have the responsibility to
collaborate with and coordinate and facilitate multiple
departments in planning, response, and recovery.
Geographic Information System (GIS)
Framework for Disaster Management
Introduction
• The objective of this topic is to illustrate how Geographic
Information System (GIS) technology effectively improves
the workflow in all phases of disaster management and
defines an effective architecture to implement framework
on the ground.
GIS Support for Disaster Management
• Disaster management activities as grouped under into four
phases that are related in time and function to all types of
emergencies and disasters i.e. Mitigation, Preparedness,
Response and Recovery.
An Emergency Operations
Center (EOC)
Source:-
http://www.unisdr.org/we/inform/terminology
Structural and Nonstructural Mitigation
• Mitigation techniques are generally categorized as
structural and nonstructural, as well as voluntary or
mandatory.
– Building standards and codes and land-use regulation are
two of the most used nonstructural mitigation techniques
to reduce threats to property and potential loss of life.
– Building standards specify what materials can be used in
the construction of homes, businesses, and institutional
structures based upon criteria such as strength, durability,
flammability, resistance to water and wind, etc., and
appropriate designs for the environment.
Structural and Nonstructural Mitigation
– Building codes are regulations adopted by states and/or
communities that specify what kinds of building materials
and designs are appropriate for particular locations, general
standards to reduce the risk of fire and/or damage from
earthquakes or other kinds of disaster, and specific
mitigation measures to reduce the potential damage from
winds or other hazards.
Structural Mitigation
• Structural mitigation techniques include building dams,
levees, breakwaters, and containment ponds to hold water
or slow its flow; building civil defense shelters; and other
physical means to reduce potential loss of life and
property.
• Public agencies and officials are often predisposed to use
structural or nonstructural mitigation measures rather than
seek other options. For example, engineers tend to be
oriented toward structural solutions and lawyers tend to
be oriented toward nonstructural solutions.
Structural Mitigation
• Any physical construction to reduce or avoid possible
impacts of hazards, or application of engineering
techniques to achieve hazard-resistance and resilience in
structures or systems
• The “structural elements” of a building carry the weight of
the building itself, the people and the things inside, and the
forces of nature. These “load-bearing” elements include
the frame (columns, beams) and in masonry or
construction also the “shear-wall”.
Source:- http://www.unisdr.org/we/inform/terminology
ToT Manual-NSSP-GSDMA
Components of Structural Mitigation
• Resistant construction
• Building codes and regulatory measures
• Relocation
• Structural modification
• Physical modification
• Lintel Beam
• Column
• Masonry Wall
• Plinth Beam/Bend
• Foundation
• Corrosion
Source: Non- Structural Risk Reduction Handbook for School, Delhi Earthquake Safety Initiative
Structural Mitigation Measures
• Geographical Area of Building Construction
– Coastal Area
– Desert area
– River bank area
– Flood prone area
– Rural & Urban
– Near by Industrial area or Hazardous industries
• Earth Quake Zoning of Building Construction
• Types of Structure ( Frame, Load bearing OR Wooden)
• Soil Pattern (Rocky OR Sandy)
• Roofing pattern, (RCC, mud tiles, Cement or steel sheet)
• Age of the Building
• Retrofitting of the building
• If Building is multistory (Fire safety Installed or Not)
•
Non Structural Mitigation
• Any measure not involving physical construction that uses
knowledge, practice or agreement to reduce risks and
impacts, in particular through policies and laws, public
awareness raising, training and education.
• The “non-structural elements” of a building do not carry
the weight of the building, and include windows, doors,
stairs, partition walls, pipes and ducts. They include
“building contents” that users bring with them such as
furniture, appliances, coolers, water tanks, etc. In other
words non-structural elements are those which are either
attached to building or kept in building.
