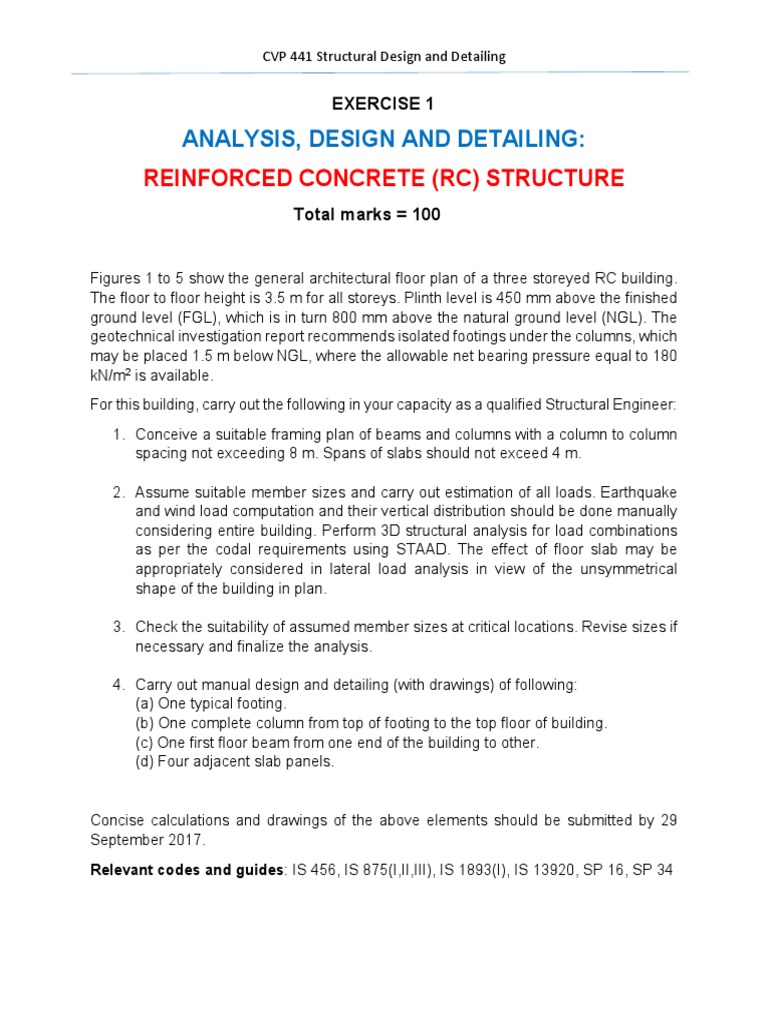

CVP441StructuralDesignandDetailing

EXERCISE 1

ANALYSIS, DESIGN AND DETAILING:

REINFORCED CONCRETE (RC) STRUCTURE
Total marks = 100

Figures 1 to 5 show the general architectural floor plan of a three storeyed RC building.
The floor to floor height is 3.5 m for all storeys. Plinth level is 450 mm above the finished
ground level (FGL), which is in turn 800 mm above the natural ground level (NGL). The
geotechnical investigation report recommends isolated footings under the columns, which
may be placed 1.5 m below NGL, where the allowable net bearing pressure equal to 180
kN/m2 is available.
For this building, carry out the following in your capacity as a qualified Structural Engineer:
1. Conceive a suitable framing plan of beams and columns with a column to column
spacing not exceeding 8 m. Spans of slabs should not exceed 4 m.

2. Assume suitable member sizes and carry out estimation of all loads. Earthquake
and wind load computation and their vertical distribution should be done manually
considering entire building. Perform 3D structural analysis for load combinations
as per the codal requirements using STAAD. The effect of floor slab may be
appropriately considered in lateral load analysis in view of the unsymmetrical
shape of the building in plan.

3. Check the suitability of assumed member sizes at critical locations. Revise sizes if
necessary and finalize the analysis.

4. Carry out manual design and detailing (with drawings) of following:

(a) One typical footing.
(b) One complete column from top of footing to the top floor of building.
(c) One first floor beam from one end of the building to other.
(d) Four adjacent slab panels.

Concise calculations and drawings of the above elements should be submitted by 29

September 2017.
Relevant codes and guides: IS 456, IS 875(I,II,III), IS 1893(I), IS 13920, SP 16, SP 34
 CVP441StructuralDesignandDetailing

15m 15m

12m
12m

Figure1BuildingplanforGroup1(minordetails maybeassumed)
 CVP441StructuralDesignandDetailing
10 m 12m

20m

8m
Figure2BuildingplanforGroup2(minordetailsmaybeassumed)
 CVP441StructuralDesignandDetailing

18m

18m

25m
25 m

Figure3BuildingplanforGroup3(minordetailsmaybeassumed)
 CVP441StructuralDesignandDetailing

10m 15m 15m

15m
10m
Figure4BuildingplanforGroup4(minordetailsmaybeassumed)
 CVP441StructuralDesignandDetailing

Figure5BuildingplanforGroup5(dimensionsinthefigureareinfeet,convertthemintometres)
