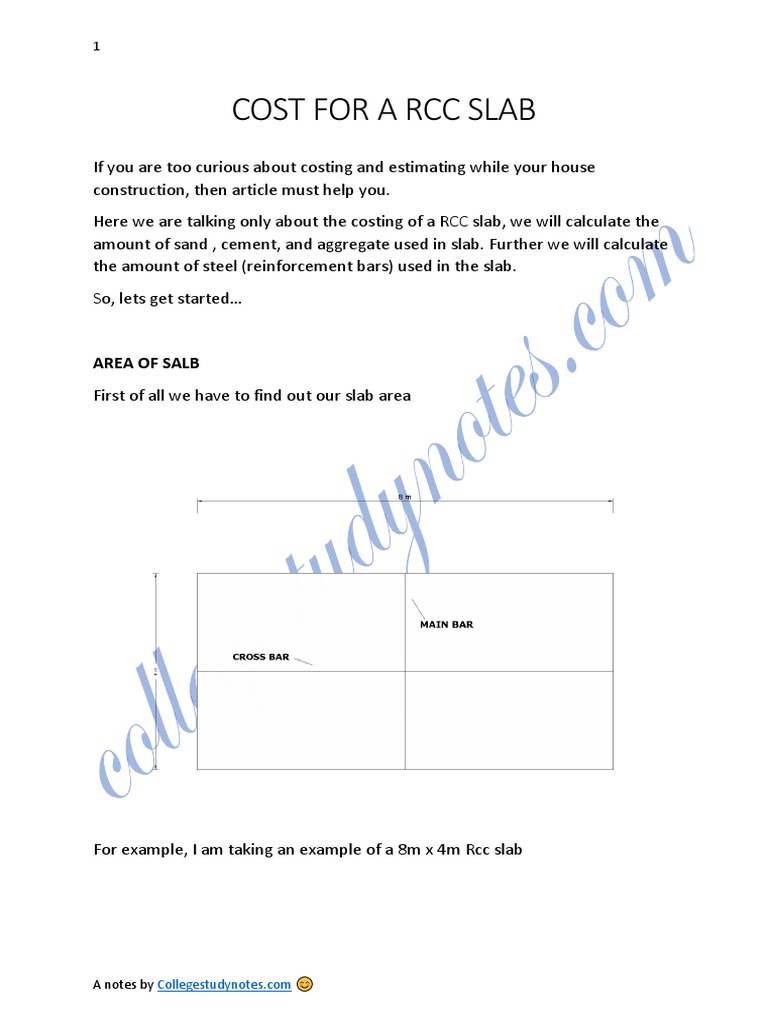

AREA OF SALB
First of all we have to find out our slab area
A notes by Collegestudynotes.com
2
In Rcc slab we use some steel bar known as reinforcement bars. For a slab the
the bar which is parallel to short side of slab is known as MAIN BAR and the
bar which runs parallel to the longest side of slab is known as CROSS BAR
So, MAIN BAR is of SHORT LENGTH &
CROSS BAR is of LONGER LENGTH
We should take main bar of Φ 12mm and for cross bar it should be
Φ10mm
Distance b/w two main bar should be 150mm & (centre to centre)
Distance b/w two cross bar should be 200mm (centre to centre)
A notes by Collegestudynotes.com
3
In my case,
102
For Φ10mm steel = 164 x
162
122
For Φ12mm steel =222 x
162
A notes by Collegestudynotes.com
4
= 0.038 m3
As the materials are available in dry condition so we will calculate for dry
concrete
1m3 of dry concrete volume = 1.54
Total dry concrete volume = 1.54 x 3.642
= 5.608m3
GRADE OF CONCRETE
There are many type of grade of concrete such as M10, M15, M20, M25
These are the grade which are differenced by the ratio of cement sand
and aggregate used.
Grade of Concrete Ratio of mixtutre
(cement:sand:aggregate)
M10 1:3:6
M15 1:2:4
M20 1:1.5:3
M25 1:1:2
A notes by Collegestudynotes.com
5
So the ratio of M20 grade concrete is 1:1.5:3 and the sum of ratio is 5.5
For CEMENT
1
𝑇𝑜𝑡𝑎𝑙 𝑏𝑎𝑔𝑠 𝑜𝑓 𝑐𝑒𝑚𝑒𝑛𝑡 = × 𝑑𝑟𝑦 𝑐𝑜𝑛𝑐𝑟𝑒𝑡𝑒 𝑣𝑜𝑙𝑢𝑚𝑒 × 28.8
5.5
For SAND
1.5
𝑇𝑜𝑡𝑎𝑙 𝑣𝑜𝑙𝑢𝑚𝑒 𝑜𝑓 𝑠𝑎𝑛𝑑 𝑢𝑠𝑒 𝑖𝑛 𝑐𝑢𝑏𝑖𝑐 𝑓𝑒𝑒𝑡 = × 𝑑𝑟𝑦 𝑐𝑜𝑛𝑐𝑟𝑒𝑡𝑒 𝑣𝑜𝑙𝑢𝑚𝑒 × 35.3147
5.5
For AGGREGATE
3
𝑉𝑜𝑙𝑢𝑚𝑒 𝑜𝑓 𝑎𝑔𝑔𝑟𝑒𝑔𝑎𝑡𝑒 𝑢𝑠𝑒 𝑖𝑛 𝑐𝑢𝑏𝑖𝑐 𝑓𝑒𝑒𝑡 = × 𝑑𝑟𝑦 𝑐𝑜𝑛𝑐𝑟𝑒𝑡𝑒 𝑣𝑜𝑙𝑢𝑚𝑒 × 35.3147
5.5
A notes by Collegestudynotes.com
6
