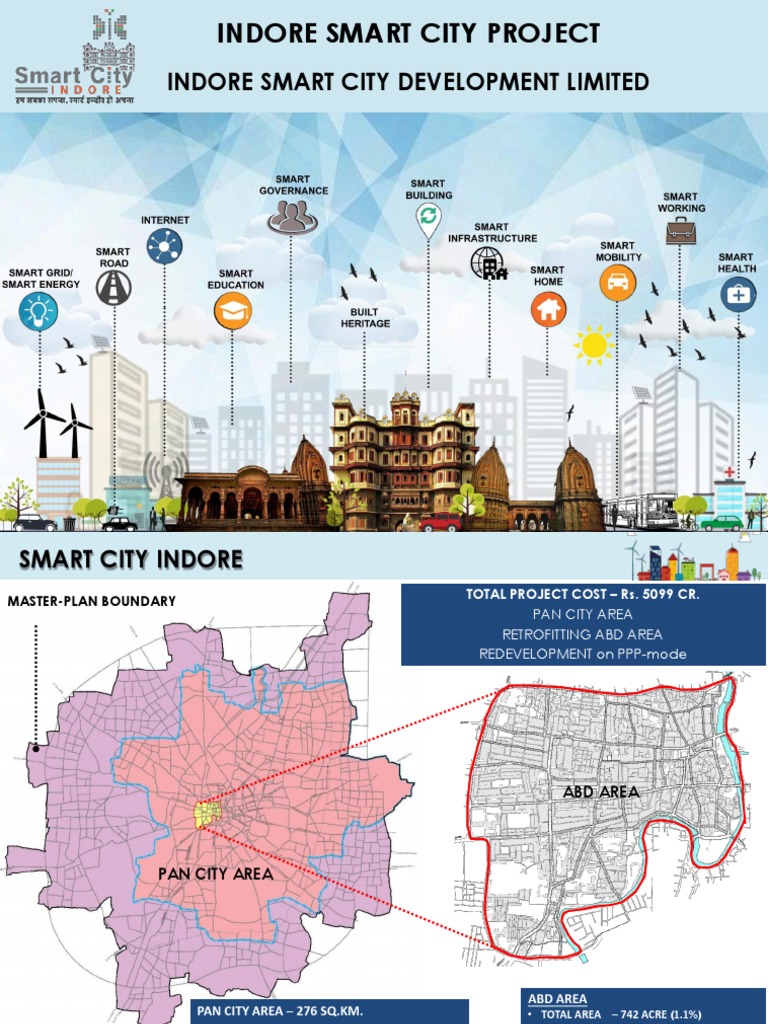

INDORE SMART CITY PROJECT

INDORE SMART CITY DEVELOPMENT LIMITED

 SMART CITY INDORE
MASTER-PLAN BOUNDARY TOTAL PROJECT COST – Rs. 5099 CR.
PAN CITY AREA
RETROFITTING ABD AREA
REDEVELOPMENT on PPP-mode

ABD AREA

PAN CITY AREA

ABD AREA
PAN CITY AREA – 276 SQ.KM. • TOTAL AREA – 742 ACRE (1.1%)
• POPULATION – 25 LACS • POPULATION – 1.25 LACS (5%)
• PROJECT COST – RS. 700 CR. FOR ICT SOLUTIONS • PROJECT COST – RS. 1400 CR.
 SMART CITY INDORE

ABD AREA
MAIN COMPONENTS
• CONSERVATION OF HERITAGE STRUCTURE
ABD AREA • RESTORATION OF CULTURAL HERITAGE
• ECONOMY & EMPLOYMENT
• IT CONNECTIVITY & IT ENABLED GOVT.
REDEVELOPMENT AREA
SERVICES
• TRANSPORTATION & WALKABILITY
• 24X7 WATER SUPPLY
• SEWERAGE LINE
• SOLID WASTE MANAGEMENT
• 24X7 ELECTRICITY WITH UNDERGROUND
CABLING
• ROADS WITH FOOTPATH
• PARKING
• RIVERFRONT DEVELOPMENT

REDEVELOPMENT AREA- 54 ACRES • VENDOR MARKET

PROJECT COST – RS 2900 CR. PPP • SECURITY SYSTEM BY CCTV CAMERA
SMART CITY INDORE
ABD AREA
URBAN FORM– PEDESTRIAN ZONE
RAJWADA AREA AND SURROUNDINGS
TRANSFORMATION
ABD AREA
URBAN FORM– NO VEHICLE ZONE & PLAZA
RAJWADA AND SURROUNDINGS TRANSFORMATION

BEFORE

BEFORE BEFORE

AFTER AFTER

SARAFA RAJWADA
SMART CITY INDORE

REDEVELOPMENT AREA RIVERFRONT DEVELOPMENT

ON TOD PRINCIPLE LENGTH - 3.9 KM

MOG LINE AREA – 56.5 ACRES

BEFORE

BEFORE AFTER

BEFORE

AFTER
AFTER

MOG LINE AREA –ON PPP RIVER DEVELOPMENT

MAJOR SMART ROADS IN ABD AREA

11 key roads of length

10.7 km.

Project cost – Rs.135 Crores

Cement concrete
pavement (ROW 12 -30MT.)

RCC duct for electrical

cables and RCC pipes for
OFC on both sides of the
road

RCC median with central

LED smart lighting
MAJOR ROADS IN ABD AREA
EARLIER SCENARIO SITE PREPARATION WORK NEAR COMPLETION

Typical section of the road showing all the utility services

MAJOR ROADS IN ABD AREA
ROAD CONSTRUCTION IN CENTRAL DIVIDER WITH SMART
PROGRESS STREET LIGHTING

SHIFTING OF RELIGIOUS RCC DUCTS FOR UNDERGROUND

STRUCTURES CABLING
NMV ZONE & MULTI LEVEL PARKING

NMV ROUTE
MLP

NMV ROUTE LENGTH : 2.3 KM

TOTAL PROPOSED MLP : 14
REQUIRED PARKING (CARS ) : 1000
PROPOSED PARKING (CARS ) : 1100
REQUIRED PARKING (2-WHEELER ) : 3000
PROPOSED PARKING (2-WHEELER) : 3500
STREET TRANSFORMATION & FAÇADE REDEVELOPMENT
HERITAGE WALK

3. Ghat
CONSTRUCTION OF CHANDRABHAGA BRIDGE
EXISTING PROPOSED

Present 6.0 M. wide bridge constructed in WORK IN PROGRESS

year 1901.

To ease traffic congestion, 24.0 M. wide

high level bridge being constructed.

Project cost Rs. 5.026 Crore

Project completion period - 11 Months

RIVERFRONT DEVELOPMENT
RIVERFRONT DEVELOPMENT

Length of the river from subhash Total 11 bridges ( 9

Total project cost – River width varies
marg bridge to lalbagh bridge is 78.0 Cr. vehicular & 2
from 15m to 46 m
approx 3.9 km. Pedestrian

Est. Cost
No. Phase / Section Remarks
(Rs. Crore)

1 Phase 1 / Section 1: Subhash Marg Bridge to MG Road Bridge 4.0 LOA Issued.

2 Phase 1 / Section 2: MG Road Bridge to Jawahar Marg Bridge 23.0 RFP Finalized

RFP Issued on
3 Phase 1 / Section 3: Jawahar Marg Bridge to Chandrabhaga Bridge 17.5
27th May.
Work in
4 Phase 1 / Section 4: Chandrabhaga Bridge to Harsiddhi Bridge 4.5
progress
Phase 2 : Harsiddhi Bridge,Gangour bridge, jairam bridge, Lalbagh DPR under
5 29.0
bridge preparation
RIVERFRONT DEVELOPMENT

WORK IN PROGRESS TRANSFORMATION OF RIVERFRONT

RIVERFRONT DEVELOPMENT
PROPOSED VIEW

• Park near Krishnapura Chhatri: 4000 sqm.

• Redevelopment of vegetable & fruit market (230 hawker shops & 135 fruit shops)
• Underground parking for 250 4-Wheeler & 800 2-Wheeler
SECTION
BUILT HERITAGE

Preservation of cultural and historical

values with promotion of Tourism

Built Heritage projects under Smart City

Conservation Conservation Conservation of
of Chhatri Bagh of Rajwada Gopal Mandir

Comprehensive Approach

Adaptive Re-use

Scientific Conservation
1 – CHHATRI BAGH (WORK IN PROGRESS)
Conservation Of Chhatris

Conservation Of Kund

Landscaping

Monument Lighting

Parking And Toilets

TOTAL PROJECT COST INR 4.43 CR.
DURATION 15 MONTHS
2 – RAJWADA
Reconstruction Of North Redeveloping Peripheral
Building Platform

Restoration Of Front Façade Restoration Of Outer Wall

Renovation Of Darbar Hall Restoration Of Woodwork

EST. COST – RFP ISSUED ON

INR 20.0 CRORE 29 th MAY 2017

EAST SIDE ELEVATION

3-GOPAL MANDIR

Conservation Restoration Adaptive Reuse

Est. Cost – Rs. 15 Crore (Phase 1)

RFP Issued on 9 th May 2017.
BLOCK D:
SHOPS &
BLOCK C:
OFFICES
PERFORMANCE
PLACE

BLOCK B:
ARTS & CRAFTS BLOCK A:
PROMOTION TEMPLE
PLACE BLOCK

SITE LOCATION SITE PLAN

3-GOPAL MANDIR
PROPOSED FOOD COURT AT PROPOSED AMPHITHEATRE AT
B BLOCK C-BLOCK

SHOPPING COMPLEX FRONT FAÇADE OF THE

FOR REHABILITATION OF EXISTING SHOPS TEMPLE COMPLEX
JINSI HAAT VENDORS’ MARKET
Development Of Road, Organic Waste Converter
Inclusive Development
Parking And Footpath Unit

Project Cost – Rs.9.12 Cr Total no. of shops - 510 Skill Development Centre

SITE PLAN
JINSI HAAT VENDORS’ MARKET
TRANSFORMATION OF HAAT SPACE

WORK IN PROGRESS
REDEVELOPMENT: MOG LINES AREA

4 pockets is spread over

56.5 acres.

Mix Land use, TOD, High

density, Smart features

Compensatory Housing. 23 hectares /

Total Land Area for Redevelopment
56.5 acres

FAR (incl incentive for

3.00
DPR prepared for 1st Land rehabilitation /compensation)
Parcel. Total Built-up Area 6,30,000 sqm
Residential Built-up Area @ 70% 4,41,000 sqm

Transfer of land to SPV in Commercial Built-up Area @ 20% 1,26,000 sqm

process
Institutional Built-up Area @ 10% 63,000 sqm
SMART EDUCATION
SCOPE OF WORK INCLUDES:

HARDWARE AND NETWORK SETUP DEPLOYMENT AND

AND INSTALLATION. TRAINING.

SMART SOLUTION APPLICATION

SOFTWARE INSTALLATION
WITH ALL MODULES.

MODULE DESIGN / COURSE

PROGRAM DEVELOPMENT
CONTENT

Five bids were received and opened on 20th June 2017.

· Technical presentation scheduled for 28 June.
· Financial Bid opening 05 July.
· Award of contract by 12 July .
INFRASTRUCTURAL DEVELOPMENT OF GOVERNMENT SCHOOLS
(ABD AREA)

Rationalization of schools in proportion

POOR CONDITION
to the strength of students

Construction Of Additional Classrooms

SCOPE OF WORK:

Construction Of Toilet Block

Electrical Works

WORK IN PROGRESS
Construction Of New Compound Wall

Development Of Playground

Miscellaneous Repair Works, Drainage

System.
SMART HEALTH (ATM)

ACTION ITEM STATUS

Assessment of
completed
AS-IS situation

Workshop on
completed
smart health

Feasibility
completed
study

Last week of
POC to be
June by Dell &
establish
Yolo Health.
SMART POLE (PPP)

500 Smart poles of height (12 M. to 15 M)

with Mobile Micro Towers, Wi-Fi Access
Points, Surveillance Camera, Digital
Billboard, Environmental Sensor etc.

500 km OFC with 4 core for ISCDL.

Integration with Central Control &

Command Centre.

O & M of the complete system for 15 years,

at no cost to ISCDL.

RFP in June last week (2nd call)

INSTALLATION AND O & M OF LED LIGHTS IN PAN-CITY

Install / Replace 70,000 streetlights in Indore

City

Design and supply of energy efficient luminaire with Smart

control including poles, cabling, control panel etc.

Design of Web-based System for complete control over the

streetlights to monitor their operations such as Scheduling, Dimming

Operation and maintenance of the complete system for 7 years.

ISCDL shall give an annual grant per LED fixture as a part contribution towards
CAPEX and OPEX.
SMART PBS INDORE (PUBLIC BICYCLE SHARING)
CAPEX and OPEX Model with financial RFP ISSUED ON 21ST JUNE 2017
support.

• Planning and installation

1000 cycles - 100 stations.
of Cycles and Stations

Contract Period of 5 +2 years, granted

• Central Control System
for the installation and operation of • Redistribution System

SCOPE OF WORK
the Indore Cycle Sharing System
• Depots / Workshops for
maintenance
• Registration of Users
• Fare Collection System
• User Information System
• Advertisement Space
• Marketing and User
Education
GPS-BASED VEHICLE TRACKING & MONITORING SYSTEM

GPS devices installed over 700

vehicles of IMC .

Configuration of cloud based

vehicle tracking system
completed.

RFID Tag

Surveillance CCTV Cameras

on
Vehicle

installed at Landfill site and PT/ CT.

Data
Server
INTEGRATED SOLID WASTE MANAGEMENT SYSTEM

The objective of ISWM project is to introduce analytical tools for automated decision
making to help in effective monitoring of solid waste management operations.

The project will be implemented in 6 months and the Contractor will provide
O & M Services for 3 years.
SWM TRANSFER STATIONS WITH PORTABLE COMPACTORS
Technology
Cylindrical Design prevents
corrosion and Hydraulic
Mounted Compactors
Efficiency
Capacity – 16/20 CuM.
Transfer Station at Sirpur

Transfer Station at Sanwer Road

Transfer Station at Kabit Khedi

INDORE 311

311 Is the APP made

for people of Indore
to log their complain,
to track about the
project, traffic
information, field
inspection etc.

CITIZEN COMPLAINT
REGISTRATION CREATION

COMPLAINT COMPLAINT COMPLAINT COMPLAINT COMPLAINT COMPLAINT

SUBMISSION SUBMISSION NOTIFICATION NOTIFICATION RESOLUTION RESOLUTION
SOLAR POWER

As per Smart City Mission Guideline, to meet 10% of

Indore’s power demand (35 MW) through Solar Power.

ISCDL signed MoU with SECI in August 2016. SECI official

visited Indore in March 2017.

ISCDL has identified land areas and roof –tops over

government schools and parking buildings for solar
panel installations.

Cost of Plant -Rs.12Cr.

Sites has been finalised for installation Expected Power Generation
Approx.- 500 Units/hr

ISCDL is in discussion with MP Urja Vikas Nigam Ltd. M/s

Mundra Solar Pvt. Ltd. (for 50 KW+)/M/s Ujaas Energy
Ltd. (for < 50 KW) have been selected to assess
suitability of sites.
2 MW Solar Power Plant at
Sewerage Treatment Plant, Indore
MUNICIPAL BONDS

Indore would be one of the earliest Smart cities to issue

Municipal Bonds

Tranche 1: Issue Size- INR 250 Crores

for funding specific Projects

Bond rating by CARE and Brickwork

Expected date of Issue - End of June 2017

Plan for TraNCHE ii Municipal Bonds in Jan 2019
