Barometric Pressure Sensor Circuit - Voltage Below Normal, or Shorted to Low Source Page 1 of 14

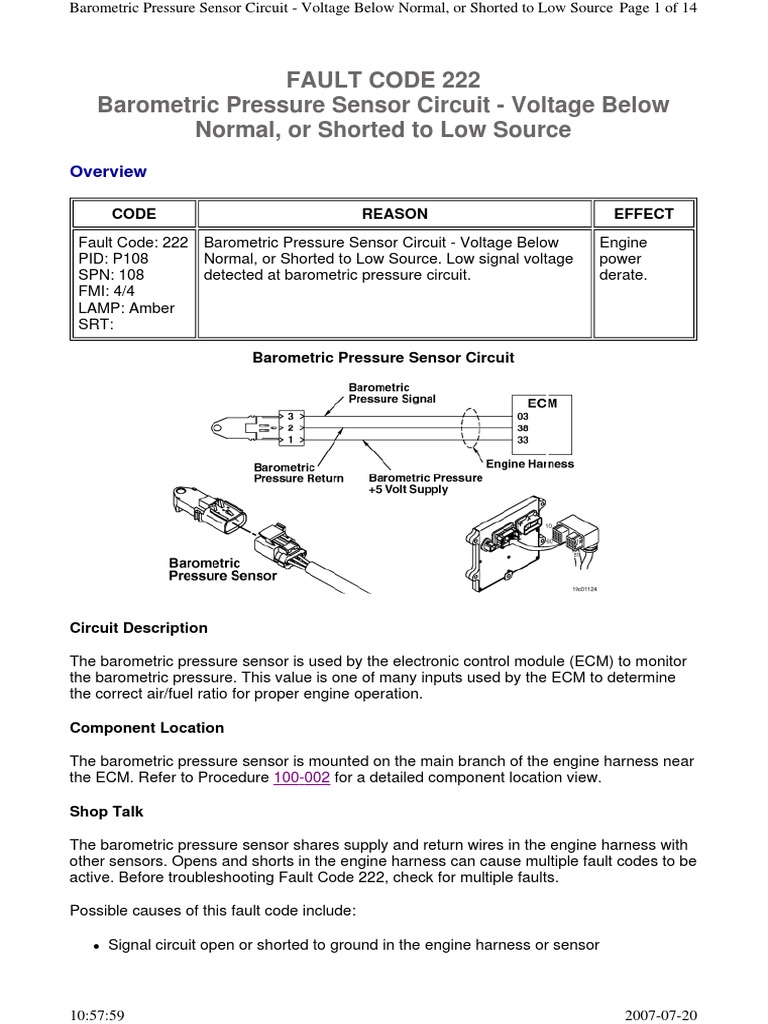

FAULT CODE 222

Barometric Pressure Sensor Circuit - Voltage Below
Normal, or Shorted to Low Source
Overview
CODE REASON EFFECT

Fault Code: 222 Barometric Pressure Sensor Circuit - Voltage Below Engine
PID: P108 Normal, or Shorted to Low Source. Low signal voltage power
SPN: 108 detected at barometric pressure circuit. derate.
FMI: 4/4
LAMP: Amber
SRT:
Barometric Pressure Sensor Circuit
Circuit Description
The barometric pressure sensor is used by the electronic control module (ECM) to monitor
the barometric pressure. This value is one of many inputs used by the ECM to determine
the correct air/fuel ratio for proper engine operation.
Component Location
The barometric pressure sensor is mounted on the main branch of the engine harness near
the ECM. Refer to Procedure 100-002 for a detailed component location view.
Shop Talk
The barometric pressure sensor shares supply and return wires in the engine harness with
other sensors. Opens and shorts in the engine harness can cause multiple fault codes to be
active. Before troubleshooting Fault Code 222, check for multiple faults.
Possible causes of this fault code include:
z Signal circuit open or shorted to ground in the engine harness or sensor
10:57:59 2007-07-20
z Supply line open or shorted to ground.
Cautions and Warnings
CAUTION
To reduce the possibility of damaging a new ECM, all other active fault
codes must be investigated prior to replacing the ECM.
CAUTION
To reduce the possibility of pin and harness damage, use the following
test leads when taking a measurement:
Part Number 3164596 - male Framatome test lead
Part Number 3822917 - female Deutsch/AMP/Metri-Pack test lead.
Troubleshooting Steps
STEPS SPECIFICATIONS
STEP 1. Check the fault codes.
STEP 1A. Check for sensor Fault Code 352 active?
supply fault codes.
STEP 1B. Check for an inactive Fault Code 222 inactive?
fault code.
STEP 2. Check the barometric pressure
sensor and circuit.
STEP 2A. Inspect the barometric Dirty or damaged pins?
pressure sensor and connector
pins.
STEP 2B. Check the sensor 4.75 to 5.25 VDC?
supply voltage and return circuit.
STEP 2C. Check the circuit Fault Code 221 active and Fault Code
response. 222 inactive?
STEP 2D. Check the fault codes Fault Code 222 active?
and verify sensor condition.
STEP 3. Check the engine control module
and engine harness.
STEP 3A. Inspect engine control Dirty or damaged pins?
module and engine harness
connector pins.
STEP 3A-1. Check the sensor

supply voltage and return circuit.
10:57:59 2007-07-20
STEP 3A-2. Check for an active

fault code.
STEP 3B. Inspect engine control Dirty or damaged pins?
module and engine harness
connector pins.
STEP 3B-1. Check the engine

control module response.
STEP 3B-2. Check for an active
fault code.
STEP 4. Clear the fault code.
STEP 4A. Disable the fault code. Fault Code 222 inactive?
STEP 4B. Clear the inactive fault All fault codes cleared?
codes.
Guided Step 1 - Check the fault codes.
Guided Step 1A - Check for sensor supply fault codes.
Conditions
z Turn keyswitch ON.

z Connect INSITE™ electronic
service tool.
Action
Check for sensor supply fault codes.
z Use INSITE™ electronic service

tool to read the fault codes.
Fault Code 352 active? Fault Code 352 active?

YES NO
No Repair No Repair
Refer to Fault Code 352 Go to 1B
Guided Step 1B - Check for an inactive fault code.
10:57:59 2007-07-20
Conditions

service tool.
Action
Check for an inactive fault code.

Fault Code 222 inactive? Fault Code 222 inactive?

YES NO
No Repair No Repair
Inactive or Intermittent Fault Code,
Go to 2A
Procedure 019-362
Guided Step 2 - Check the barometric pressure sensor

and circuit.
Guided Step 2A - Inspect the barometric pressure sensor and connector

pins.
Conditions
z Turn keyswitch OFF.

z Disconnect the barometric
pressure sensor from the engine
harness.
Action
Inspect the engine harness and

barometric pressure sensor connector
pins for the following:
z Loose connector
z Corroded pins
z Bent or broken pins
z Pushed back or expanded pins
10:57:59 2007-07-20
z Moisture in or on the connector

z Missing or damaged connector
seals
z Dirt or debris in or on the
connector pins
z Wire insulation damage
z Connector shell broken.
For general inspection techniques, refer

to Component Connector and Pin
Inspection, Procedure 019-361.
Dirty or damaged pins? Dirty or damaged pins?

YES NO
A defective connection has been detected No Repair
in the sensor or harness connector.
Clean the connector and pins.
Repair the damaged harness, connector or

pins, if possible.
Refer to Procedure 019-043.
Go to 4A Go to 2B
Guided Step 2B - Check the sensor supply voltage and return circuit.
Conditions

pressure sensor from the
engine harness.
Action
Check the supply voltage and

return circuit.
z Measure the voltage from

the barometric pressure +5
volt SUPPLY pin to the
barometric pressure
RETURN pin at the sensor
connector of the engine
10:57:59 2007-07-20
harness.
Refer to the wiring diagram for

connector pin identification.
4.75 to 5.25 VDC? 4.75 to 5.25 VDC?

YES NO
No Repair No Repair
Go to 2C Go to 3A
Guided Step 2C - Check the circuit response.
Conditions

pressure sensor from the
engine harness.
z Connect INSITE™
electronic service tool.
Action
Place a jumper wire between the

barometric pressure +5 volt
SUPPLY pin and the barometric
pressure SIGNAL pin at the
barometric pressure sensor
connector of the engine harness.
Refer to the wiring diagram for

connector pin identification.
Check for the appropriate circuit

response after 30 seconds.
z Use INSITE™ electronic

service tool to read the
fault codes.
Fault Code 221 active and Fault Fault Code 221 active and Fault Code 222
Code 222 inactive? inactive?
YES NO
10:57:59 2007-07-20
No Repair No Repair
Go to 2D Go to 3B
Guided Step 2D - Check the fault codes and verify sensor condition.
Conditions

z Connect the barometric pressure
sensor to the engine harness.
service tool.
Action
Check the appropriate circuit response

after 30 seconds.

Fault Code 222 active? Fault Code 222 active?

YES NO
A defective sensor has been detected. None. The removal and installation of the
connector corrected the failure.
Replace the barometric pressure sensor.
Go to 4A Go to 4A
Guided Step 3 - Check the engine control module and

engine harness.
Guided Step 3A - Inspect engine control module and engine harness

connector pins.
Conditions
10:57:59 2007-07-20

z Disconnect the engine harness
from the ECM.
Action
Inspect the engine harness and engine

control module engine connector pins for
the following:
z Loose connector
z Corroded pins
seals
connector pins


YES NO
in the engine control module engine
connector or engine harness connector.

pins, if possible.
Go to 4A Go to 3A-1
Guided Step 3A-1 - Check the sensor supply voltage and return circuit.
Conditions
z Turn
10:57:59 2007-07-20
keyswitch
OFF.
z Disconnect
the engine
harness from
the ECM.
z Turn
keyswitch
ON.
Action
Check the supply

voltage and return
circuit.
z Measure the
voltage from
the
barometric
pressure +5
volt SUPPLY
pin to the
barometric
pressure
RETURN pin
at the engine
control
module
engine
connector.
Refer to the wiring

diagram for
connector pin
identification.
4.75 to 5.25 VDC? 4.75 to 5.25 VDC?

YES NO
No Repair Call for pre-authorization.
Replace the ECM.
Go to 3A-2 Go to 4A
Guided Step 3A-2 - Check for an active fault code.
10:57:59 2007-07-20
Barometric Pressure Sensor Circuit - Voltage Below Normal, or Shorted to Low So... Page 10 of 14
Conditions
z Connect all components.

service tool.
Action



YES NO
None. The removal and installation of the An open or shorted SUPPLY circuit has
connector corrected the failure. been detected in the engine harness.
Repair or replace the engine harness.
Go to 4A Go to 4A
Guided Step 3B - Inspect engine control module and engine harness

connector pins.
Conditions

z Disconnect the engine harness
from the ECM.
Action
Inspect the engine harness and engine

control module engine connector pins for
the following:
z Loose connector
z Corroded pins
10:57:59 2007-07-20
seals
connector pins


YES NO
in the engine control module engine
connector or engine harness connector.

pins, if possible.
Go to 4A Go to 3B-1
Guided Step 3B-1 - Check the engine control module response.
Conditions
z Turn
keyswitch
OFF.
z Disconnect
the engine
harness from
the ECM.
z Turn
keyswitch
ON.
z Connect
INSITE™
electronic
service tool.
Action
Place a jumper
10:57:59 2007-07-20
wire between the

barometric
pressure +5 volt
SUPPLY pin and
the barometric
pressure SIGNAL
pin at the engine
control module
engine connector.
Refer to the wiring

diagram for
connector pin
identification.
Check for the

appropriate circuit
response after 30
seconds.
z Use
INSITE™
electronic
service tool
to read the
fault codes.
Fault Code 221 Fault Code 221 active and Fault Code 222 inactive?
active and Fault
Code 222 inactive?
YES NO
No Repair Call for pre-authorization.
Replace the ECM.
Go to 3B-2 Go to 4A
Guided Step 3B-2 - Check for an active fault code.
Conditions

service tool.
10:57:59 2007-07-20
Action



YES NO
None. The removal and installation of the An open RETURN or a pin-to-pin short
connector corrected the failure. circuit has been detected on the signal line
of the engine harness.
Repair or replace the engine harness.
Go to 4A Go to 4A
Guided Step 4 - Clear the fault code.
Guided Step 4A - Disable the fault code.
Conditions

service tool.
Action
Disable the fault code.
z Start the engine and let it idle for 1

minute.
tool to verify that the fault code is
inactive.

YES NO
10:57:59 2007-07-20
No Repair Return to the troubleshooting steps or

contact a local Cummins Authorized Repair
Location if all steps have been completed
and checked a second time.
Go to 4B Go to 1A
Guided Step 4B - Clear the inactive fault codes.
Conditions

service tool.
Action
Clear the inactive fault codes.

tool to erase the inactive fault
codes.
All fault codes cleared? All fault codes cleared?

YES NO
No Repair No Repair
Repair complete Appropriate troubleshooting steps
Last Modified: 30-Jan-2006
Copyright© 2006
Cummins, Inc.
All rights reserved
10:57:59 2007-07-20

Fault Code 222 Barometric Pressure Sensor Circuit - Voltage Below Normal, or Shorted To Low Source

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Fault Code 222 Barometric Pressure Sensor Circuit - Voltage Below Normal, or Shorted To Low Source

Uploaded by

Copyright:

Available Formats

Barometric Pressure Sensor Circuit - Voltage Below Normal, or Shorted to Low Source Page 1 of 14

FAULT CODE 222

CODE REASON EFFECT

Barometric Pressure Sensor Circuit

Possible causes of this fault code include:

z Signal circuit open or shorted to ground in the engine harness or sensor

z Supply line open or shorted to ground.

Cautions and Warnings

STEP 3A-1. Check the sensor

STEP 3A-2. Check for an active

STEP 3B-1. Check the engine

Guided Step 1 - Check the fault codes.

Guided Step 1A - Check for sensor supply fault codes.

z Turn keyswitch ON.

Check for sensor supply fault codes.

z Use INSITE™ electronic service

Fault Code 352 active? Fault Code 352 active?

Guided Step 1B - Check for an inactive fault code.

z Turn keyswitch ON.

Check for an inactive fault code.

z Use INSITE™ electronic service

Fault Code 222 inactive? Fault Code 222 inactive?

Guided Step 2 - Check the barometric pressure sensor

Guided Step 2A - Inspect the barometric pressure sensor and connector

z Turn keyswitch OFF.

Inspect the engine harness and

z Moisture in or on the connector

For general inspection techniques, refer

Dirty or damaged pins? Dirty or damaged pins?

Clean the connector and pins.

Repair the damaged harness, connector or

Refer to Procedure 019-043.

z Turn keyswitch OFF.

Check the supply voltage and

z Measure the voltage from

Refer to the wiring diagram for

4.75 to 5.25 VDC? 4.75 to 5.25 VDC?

Guided Step 2C - Check the circuit response.

z Turn keyswitch OFF.

Place a jumper wire between the

Refer to the wiring diagram for

Check for the appropriate circuit

z Use INSITE™ electronic

z Turn keyswitch OFF.

Check the appropriate circuit response

z Use INSITE™ electronic service

Fault Code 222 active? Fault Code 222 active?

Refer to Procedure 019-004.

Guided Step 3 - Check the engine control module and

Guided Step 3A - Inspect engine control module and engine harness

z Turn keyswitch OFF.

Inspect the engine harness and engine

For general inspection techniques, refer

Dirty or damaged pins? Dirty or damaged pins?

Clean the connector and pins.

Repair the damaged harness, connector or

Refer to Procedure 019-043.

Check the supply

Refer to the wiring

4.75 to 5.25 VDC? 4.75 to 5.25 VDC?

Replace the ECM.

Refer to Procedure 019-031.

Guided Step 3A-2 - Check for an active fault code.
