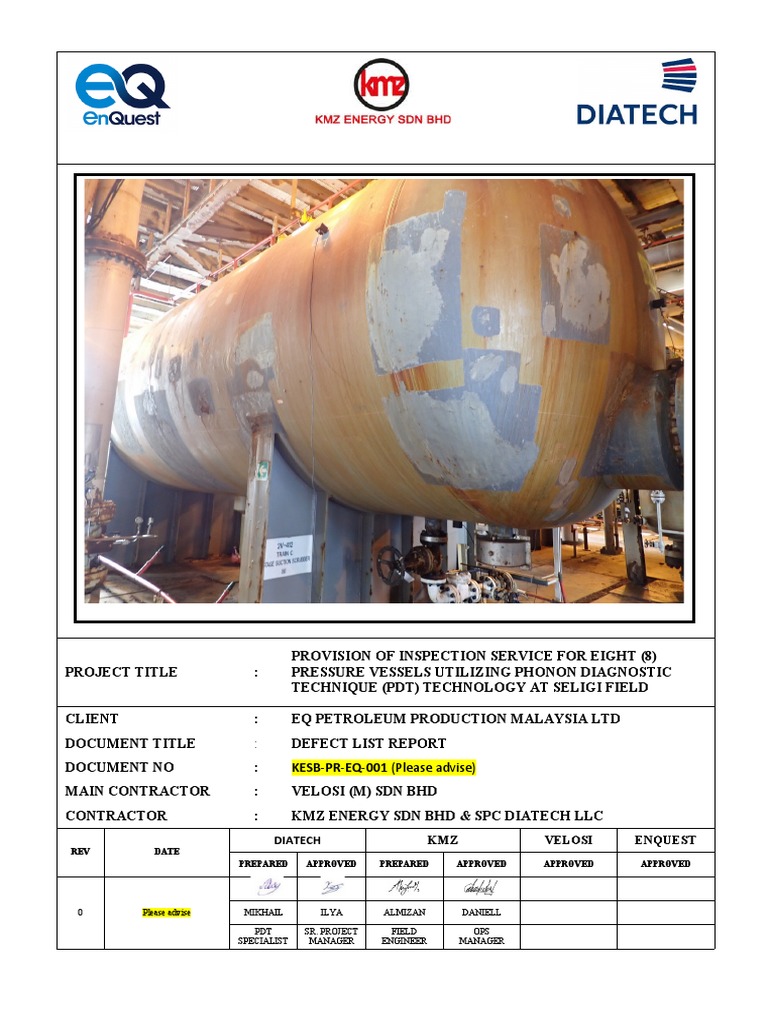

PROVISION OF INSPECTION SERVICE FOR EIGHT (8)

PROJECT TITLE : PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC

TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD

CLIENT : EQ PETROLEUM PRODUCTION MALAYSIA LTD

DOCUMENT TITLE : DEFECT LIST REPORT
DOCUMENT NO : KESB-PR-EQ-001 (Please advise)
MAIN CONTRACTOR : VELOSI (M) SDN BHD
CONTRACTOR : KMZ ENERGY SDN BHD & SPC DIATECH LLC
DIATECH KMZ VELOSI ENQUEST
REV DATE
PREPARED APPROVED PREPARED APPROVED APPROVED APPROVED

0 Please advise MIKHAIL ILYA ALMIZAN DANIELL

PDT SR. PROJECT FIELD OPS

SPECIALIST MANAGER ENGINEER MANAGER
 CONTENTS
1. EXECUTIVE SUMMARY.........................................................................................................................................3
2. INTRODUCTION.......................................................................................................................................................4
3. MAIN PARAMETERS & FINDINGS.......................................................................................................................5

LIST OF TABLES
Table 1: List of Inspected Pressure Vessels.........................................................................................................................3
Table 2: Summary of Defects..............................................................................................................................................3
Table 3: Manpower Loading................................................................................................................................................4
Table 4: 2V-312 Main Parameters.......................................................................................................................................5
Table 5: 2V-312 Findings....................................................................................................................................................6
Table 6: 2V-312 Defects Mapping of Shell.........................................................................................................................8
Table 7: 2V-312 Defects Mapping of Head.........................................................................................................................9
Table 8: 2V-312 Defects List.............................................................................................................................................10
Table 9: 2V-412 Main Parameters.....................................................................................................................................11
Table 10: 2V-412 Findings................................................................................................................................................12
Table 11: 2V-412 Defects Mapping of Shell.....................................................................................................................15
Table 12: 2V-412 Defects Mapping of Head.....................................................................................................................16
Table 13: 2V-412 Defects List...........................................................................................................................................17
Table 14: 2V-322 Main Parameters...................................................................................................................................18
Table 15: 2V-322 Findings................................................................................................................................................19
Table 16: 2V-322 Defects Mapping of Shell.....................................................................................................................21
Table 17: 2V-322 Defects Mapping of Head.....................................................................................................................22
Table 18: 2V-322 Defects List...........................................................................................................................................23
Table 19: 2V-422 Main Parameters...................................................................................................................................24
Table 20: 2V-422 Findings................................................................................................................................................25
Table 21: 2V-422 Defects Mapping of Shell.....................................................................................................................28
Table 22: 2V-422 Defects Mapping of Head.....................................................................................................................29
Table 23: 2V-422 Defects List...........................................................................................................................................30
Table 24: 2V-332 Main Parameters...................................................................................................................................31
Table 25: 2V-332 Findings................................................................................................................................................32
Table 26: 2V-332 Defects Mapping of Shell.....................................................................................................................35
Table 27: 2V-332 Defects Mapping of Head.....................................................................................................................36
Table 28: 2V-332 Defects List...........................................................................................................................................37
Table 29: 2V-432 Main Parameters...................................................................................................................................38
Table 30: 2V-432 Findings................................................................................................................................................39
Table 31: 2V-432 Defects Mapping of Shell.....................................................................................................................42
Table 32: 2V-432 Defects Mapping of Head.....................................................................................................................43
Table 33: 2V-432 Defects List...........................................................................................................................................44
Table 34: 3WS-356 Main Parameters................................................................................................................................45
Table 35: 3WS-356 Findings.............................................................................................................................................46
Table 36: 3WS-356 Defects Mapping of Shell..................................................................................................................48
Table 37: 3WS-356 Defects Mapping of Head..................................................................................................................49
Table 38: 3WS-356 Defects List........................................................................................................................................50
Table 39: 3WS-358 Main Parameters................................................................................................................................51
Table 40: 3WS-358 Findings.............................................................................................................................................52
Table 41: 3WS-358 Defects Mapping of Shell..................................................................................................................54
Table 42: 3WS-358 Defects Mapping of Head..................................................................................................................55
Table 43: 3WS-358 Defects List........................................................................................................................................56
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 3

1. EXECUTIVE SUMMARY
EQ Petroleum Production Malaysia Ltd (EnQuest) has engaged KMZ ENERGY SDN BHD (KESB) jointly
with SPC DIATECH LLC (Diatech) to conduct inspection service utilizing Phonon Diagnostic Technique
(PDT) for eight (8) pressure vessels located at Seligi Alpha platform as shown in Table 1. Phonon
Diagnostic Technique (PDT) inspection detects the Phonon Energy and identifies the Phonon-Active Area
(PhAA) that occurs in crystalline material / object. The inspection was performed on-line and without
interrupting the operation.

Table 1: List of Inspected Pressure Vessels

No Item Tag / ID Item Purpose Train Area

1 2V-312 1st Stage Suction B
2 2V-412 Scrubber C
3 2V-322 2nd Stage Suction B Se-AP Mezzanine
4 2V-422 Scrubber C Deck

5 2V-332 3rd Stage Suction B

6 2V-432 Scrubber C
7 3WS-356 Oil / Water Se-AC Production
CPI
8 3WS-358 Separator Deck

The summary of defects list identified by Phonon Diagnostic Technique (PDT) are provided as shown in
Table 2:

Table 2: Summary of Defects

No Item Tag / ID PhAA No Type of Defect Defect Depth (%)

1 2V-312 8 Corrosive 12
2 2V-412 21 Corrosive 12
3 2V-322 7 Corrosive 11
4 2V-422 10 Corrosive 11
5 2V-332 16 Corrosive 11
6 2V-432 18 Corrosive 11
7 3WS-356 7 Corrosive 11 - 12
8 3WS-358 12 Corrosive 11 - 12

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 4

2. INTRODUCTION
EQ Petroleum Production Malaysia Ltd (EnQuest) has engaged KMZ ENERGY SDN BHD (KESB) jointly
with SPC DIATECH LLC (Diatech) to conduct inspection services utilizing Phonon Diagnostic Technique
(PDT) for eight (8) pressure vessels at Seligi Alpha platform. The PDT inspection was executed from 16 th
December 2021 to 19th December 2021 by a team comprising of one (1) Field Engineer and two (2) PDT
Specialists as shown in Table 3. The PETs were then installed, and data gathering was performed for about 2
hours for each pressure vessel.
Table 3: Manpower Loading
No Name Designation
Field Engineer / Team Leader / PTW
1 Ahmad Almizan Bin Che Omar
Applicant
2 Ilya Khokhlov PDT Specialist
3 Mikhail Khomiakov PDT Specialist

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 5

3. MAIN PARAMETERS & FINDINGS

Main parameters and PDT results of eight (8) pressure vessels are shown in respective tables and figures
below:

Table 4: 2V-312 Main Parameters

No 1 - 2V-312 (1st Stage Suction Scrubber)

Object Location: Mezzanine Deck, Seligi Alpha Production

Item No: 2V-312
Object Type: Horizontal pressure vessel
Volume: 60 m3
Construction Date: 1988
Operating Pressure（Designed): 551.7 Psig
Operating Pressure（Actual): 200.5 Psig
Operating Temperature: 46.1 °C
Designed Temperature: 90°C
Object Material: Carbon steel
Specification: ASME XIII
Insulation No
Surface Condition: Painted
Nominal thickness shell Minimum wall thickness shall not less than 52 mm
Nominal thickness ( ellip. head): 52/60 mm (min/used)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 6

Table 5: 2V-312 Findings

No 1 - 2V-312 (1st Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 7

No 1 - 2V-312 (1st Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 8

Table 6: 2V-312 Defects Mapping of Shell

No 1 - 2V-312 (1st Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 9

Table 7: 2V-312 Defects Mapping of Head

No 1 - 2V-312 (1st Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 10

Table 8: 2V-312 Defects List

Degree,
00 - 360 0 Defect dimensions, mm
Nominal Defect Depth
Defect Level of
Distance Location Defect type thickness, Percentage d(%)
Designation Defect
from start Width of (t) mm =d/t*100%
(manhole) Length of Depth of
area,
m area, L defect
W

No 1 - 2V-312 (1st Stage Suction Scrubber)

DF-1 245° 7.0 m  shell 1200 1700 6 corrosive insignificant 52 12
DF-2 125° 0.8 m  shell 800 600 6 corrosive insignificant 52 12
DF-3 70° 3.8 m  shell 700 600 6 corrosive insignificant 52 12
DF-4 180° 3.8 m  shell 600 600 6 corrosive insignificant 52 12
DF-5 240° 5.0 m  shell 1900 1200 6 corrosive insignificant 52 12
DF-6 140° 1.1 m  head 700 1300 7 corrosive insignificant 60 12
DF-7 140° 0.8 m  head 1800 1100 7 corrosive insignificant 60 12
DF-8 120° 0.9 m  head 700 1000 7 corrosive insignificant 60 12
* Probability of detection (POD) is no less than 80%.

** Phonon-Active Areas with a depth of less than 10% (of nominal thickness) are not included in Defects List.

*** Depth of defect uncertainty is 0.1t (t-nominal thickness).

**** Depth of defect indicates the maximum Depth of thinning in the Phonon-Active Areas.

***** The type of defect external / internal is not determined.

PDT Inspection Summary:

In total Phonon Diagnostics detected eight (8) Phonon-Active Areas.
Eight (8) Phonon-Active Areas are corrosive defects.
Eight (8) Phonon-Active Areas are insignificant.

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 11

Table 9: 2V-412 Main Parameters

No 2 - 2V-412 (1st Stage Suction Scrubber)

Object Location: Mezzanine Deck, Seligi Alpha Production

Item No: 2V-412
Object Type: Horizontal pressure vessel
Volume: 60 m3
Construction Date: 1991
Operating Pressure（Designed): 3800 kPaG
Operating Pressure（Actual): 1382 kPaG
Operating Temperature: 46.1 °C
Designed Temperature: 90°C
Object Material: Carbon steel
Specification: ASME XIII
Insulation No
Surface Condition: Painted
Nominal thickness shell Minimum wall thickness shall not less than 52 mm
Nominal thickness ( ellip. head): 52/60 mm (min/used)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 12

Table 10: 2V-412 Findings

No 2 - 2V-412 (1st Stage Suction Scrubber)

No 2 - 2V-412 (1st Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 13

No 2 - 2V-412 (1st Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 14

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 15

Table 11: 2V-412 Defects Mapping of Shell

No 2 - 2V-412 (1st Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 16

Table 12: 2V-412 Defects Mapping of Head

No 2 - 2V-412 (1st Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 17

Table 13: 2V-412 Defects List

Degree,
00 - 360 0 Defect dimensions, mm
Nominal Defect Depth
Defect Level of
Distance Location Defect type thickness, Percentage d(%)
Designation Defect
from start Width of (t) mm =d/t*100%
(manhole) Length of Depth of
area,
m area, L defect
W

No 2 - 2V-412 (1st Stage Suction Scrubber)

DF-1 30° 7.3 m  shell 700 600 6 corrosive insignificant 52 12
DF-2 260° 1.9 m  shell 1000 800 6 corrosive insignificant 52 12
DF-3 110° 2.0 m  shell 800 900 6 corrosive insignificant 52 12
DF-4 10° 2.6 m  shell 1900 500 6 corrosive insignificant 52 12
DF-5 250° 3.1 m  shell 700 900 6 corrosive insignificant 52 12
DF-6 90° 3.7 m  shell 600 800 6 corrosive insignificant 52 12
DF-7 210° 4.8 m  shell 800 800 6 corrosive insignificant 52 12
DF-8 330° 3.8 m  shell 600 600 6 corrosive insignificant 52 12
DF-9 185° 3.9 m  shell 900 700 6 corrosive insignificant 52 12
DF-10 120° 6.1 m  shell 900 1100 6 corrosive insignificant 52 12
DF-11 240° 6.3 m  shell 700 700 6 corrosive insignificant 52 12
DF-12 180° 6.7 m  shell 1100 600 6 corrosive insignificant 52 12
DF-13 0° 6.8 m  shell 900 700 6 corrosive insignificant 52 12
DF-14 110° 1.4 m  head 1600 500 7 corrosive insignificant 60 12
DF-15 70° 0.4 m  head 700 700 7 corrosive insignificant 60 12
DF-16 230° 1.0 m  head 800 600 7 corrosive insignificant 60 12
DF-17 90° 1.3 m  head 1200 500 7 corrosive insignificant 60 12
DF-18 255° 1.0 m  head 1800 900 7 corrosive insignificant 60 12
DF-19 175° 0.3 m  head 800 600 7 corrosive insignificant 60 12
DF-20 140° 1.0 m  head 900 500 7 corrosive insignificant 60 12
DF-21 220° 7.3 m  shell 600 700 6 corrosive insignificant 52 12
* Probability of detection (POD) is no less than 80%.

** Phonon-Active Areas with a depth of less than 10% (of nominal thickness) are not included in Defects List.

*** Depth of defect uncertainty is 0.1t (t-nominal thickness).

**** Depth of defect indicates the maximum Depth of thinning in the Phonon-Active Areas.

***** The type of defect external / internal is not determined.

PDT Inspection Summary:

In total Phonon Diagnostics detected eight (21) Phonon-Active Areas.
Eight (21) Phonon-Active Areas are corrosive defects.
Eight (21) Phonon-Active Areas are insignificant.

Table 14: 2V-322 Main Parameters

No 3- 2V-322 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 18

Object Location: Mezzanine Deck, Seligi Alpha Production

Item No: 2V-322
Object Type: Horizontal pressure vessel
Volume: 31.2 m3
Construction Date: 1988
Operating Pressure（Designed): 68.8 kgf/cm2
Operating Pressure（Actual): 37.7 kgf/cm2
Operating Temperature: 46.1 °C
Designed Temperature: 90°C
Object Material: Carbon steel
Specification: ASME XIII
Insulation No
Surface Condition: Painted
Nominal thickness shell Minimum wall thickness shall not less than 73 mm
Nominal thickness ( ellip. head): 77.2 /87.2 mm (min/used)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 19

Table 15: 2V-322 Findings

No 3- 2V-322 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 20

No 3- 2V-322 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 21

Table 16: 2V-322 Defects Mapping of Shell

No 3- 2V-322 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 22

Table 17: 2V-322 Defects Mapping of Head

No 3- 2V-322 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 23

Table 18: 2V-322 Defects List

Degree,
00 - 360 0 Defect dimensions, mm
Nominal Defect Depth
Defect Defect Level of
Distance Location thickness, Percentage d(%)
Designation type Defect
from start Width of Depth (t) mm =d/t*100%
(manhole) Length of
area, of
m area, L
W defect

No 3 - 2V-322 (2nd Stage Suction Scrubber)

DF-1 240° 0.4 m  shell 900 1100 8 corrosive insignificant 73 11
DF-2 300° 0.6 m  shell 1200 700 8 corrosive insignificant 73 11
DF-3 60° 1.0 m  shell 1200 1400 8 corrosive insignificant 73 11
DF-4 120° 3.1 m  shell 1300 800 8 corrosive insignificant 73 11
DF-5 120° 5.2 m  shell 700 1500 8 corrosive insignificant 73 11
DF-6 0° 0.3 m  head 700 900 10 corrosive insignificant 87.2 11
DF-7 260° 0.8 m  head 1200 700 10 corrosive insignificant 87.2 11
* Probability of detection (POD) is no less than 80%.

** Phonon-Active Areas with a depth of less than 10% (of nominal thickness) are not included in Defects List.

*** Depth of defect uncertainty is 0.1t (t-nominal thickness).

**** Depth of defect indicates the maximum Depth of thinning in the Phonon-Active Areas.

***** The type of defect external / internal is not determined.

PDT Inspection Summary:

In total Phonon Diagnostics detected eight (7) Phonon-Active Areas.
Eight (7) Phonon-Active Areas are corrosive defects.
Eight (7) Phonon-Active Areas are insignificant.

Table 19: 2V-422 Main Parameters

No 4 - 2V-422 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 24

Object Location: Mezzanine Deck, Seligi Alpha Production

Item No: 2V-422
Object Type: Horizontal pressure vessel
Volume: 31.2 m3
Construction Date: 1988
Operating Pressure（Designed): 6500 kPag
Operating Pressure（Actual): 3695.6 kPag
Operating Temperature: 46.1 °C
Designed Temperature: 90°C
Object Material: Carbon steel
Specification: ASME XIII
Insulation No
Surface Condition: Painted
Nominal thickness shell Minimum wall thickness shall not less than 73 mm
Nominal thickness ( ellip. head): 77.2 /87.2 mm (min/used)

Table 20: 2V-422 Findings

No 4 - 2V-422 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 25

No 4 - 2V-422 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 26

No 4 - 2V-422 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 27

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 28

Table 21: 2V-422 Defects Mapping of Shell

No 4 - 2V-422 (2nd Stage Suction Scrubber)

Table 22: 2V-422 Defects Mapping of Head

No 4 - 2V-422 (2nd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 29

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 30

Table 23: 2V-422 Defects List

Degree,
00 - 360 0 Defect dimensions, mm
Nominal Defect Depth
Defect Level of
Distance Location Defect type thickness, Percentage d(%)
Designation Defect
from start Width of (t) mm =d/t*100%
(manhole) Length of Depth of
area,
m area, L defect
W

No 4 - 2V-422 (2nd Stage Suction Scrubber)

DF-1 145° 0.3 m  shell 800 600 8 corrosive insignificant 73 11
DF-2 0° 1.0 m  shell 400 1200 8 corrosive insignificant 73 11
DF-3 325° 1.3 m  shell 600 900 8 corrosive insignificant 73 11
DF-4 140° 2.2 m  shell 700 900 8 corrosive insignificant 73 11
DF-5 330° 4.1 m  shell 1000 800 8 corrosive insignificant 73 11
DF-6 115° 4.5 m  shell 800 800 8 corrosive insignificant 73 11
DF-7 30°0.3 m  head 900 500 10 corrosive insignificant 87.2 11
DF-8 180° 0.6 m  head 1500 800 10 corrosive insignificant 87.2 11
DF-9 305° 0.8 m  head 600 800 10 corrosive insignificant 87.2 11
DF-10 225° 1.0 m  head 700 600 10 corrosive insignificant 87.2 11
* Probability of detection (POD) is no less than 80%.

** Phonon-Active Areas with a depth of less than 10% (of nominal thickness) are not included in Defects List.

*** Depth of defect uncertainty is 0.1t (t-nominal thickness).

**** Depth of defect indicates the maximum Depth of thinning in the Phonon-Active Areas.

***** The type of defect external / internal is not determined.

PDT Inspection Summary:

In total Phonon Diagnostics detected eight (10) Phonon-Active Areas.
Eight (10) Phonon-Active Areas are corrosive defects.
Eight (10) Phonon-Active Areas are insignificant.

Table 24: 2V-332 Main Parameters

No 5 - 2V-332 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 31

Object Location: Mezzanine Deck, Seligi Alpha Production

Item No: 2V-332
Object Type: Horizontal pressure vessel
Volume: 12.1 m3
Construction Date: 1988
Operating Pressure（Designed): 160.6 kgf/cm2
Operating Pressure（Actual): 97.5 kgf/cm2
Operating Temperature: 46.1 °C
Designed Temperature: 90°C
Object Material: Carbon steel
Specification: ASME XIII
Insulation No
Surface Condition: Painted
Nominal thickness shell Minimum wall thickness shall not less than 127 mm
Nominal thickness ( ellip. head): 127 /143 mm (min/used)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 32

Table 25: 2V-332 Findings

No 5 - 2V-332 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 33

No 5 - 2V-332 (3rd Stage Suction Scrubber)

No 5 - 2V-332 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 34

Table 26: 2V-332 Defects Mapping of Shell

No 5 - 2V-332 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 35

Table 27: 2V-332 Defects Mapping of Head

No 5 - 2V-332 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 36

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 37

Table 28: 2V-332 Defects List

Degree,
00 - 360 0 Defect dimensions, mm
Nominal Defect Depth
Defect Level of
Distance Location Defect type thickness, Percentage d(%)
Designation Defect
from start Width of (t) mm =d/t*100%
(manhole) Length of Depth of
area,
m area, L defect
W

No 5 - 2V-332 (2nd Stage Suction Scrubber)

DF-1 65° 0.1 m  shell 500 600 14 corrosive insignificant 127 11
DF-2 110° 0.3 m  shell 1700 600 14 corrosive insignificant 127 11
DF-3 30° 0.3 m  shell 400 400 14 corrosive insignificant 127 11
DF-4 270° 0.4 m  shell 700 700 14 corrosive insignificant 127 11
DF-5 255° 1.7 m  shell 800 900 14 corrosive insignificant 127 11
DF-6 180° 1.9 m  shell 400 700 14 corrosive insignificant 127 11
DF-7 110° 2.9 m  shell 600 600 14 corrosive insignificant 127 11
DF-8 310° 3.5 m  shell 700 500 14 corrosive insignificant 127 11
DF-9 350° 3.9 m  shell 1100 500 14 corrosive insignificant 127 11
DF-10 55° 3.9 m  shell 1100 900 14 corrosive insignificant 127 11
DF-11 240° 4.1 m  shell 500 400 14 corrosive insignificant 127 11
DF-12 285° 4.2 m  shell 500 400 14 corrosive insignificant 127 11
DF-13 320° 4.2 m  shell 400 400 14 corrosive insignificant 127 11
DF-14 285° 0.6 m  head 600 600 16 corrosive insignificant 143 11
DF-15 125° 0.6 m  head 500 500 16 corrosive insignificant 143 11
DF-16 60° 0.6 m  head 700 600 16 corrosive insignificant 143 11
* Probability of detection (POD) is no less than 80%.

** Phonon-Active Areas with a depth of less than 10% (of nominal thickness) are not included in Defects List.

*** Depth of defect uncertainty is 0.1t (t-nominal thickess).

**** Depth of defect indicates the maximum Depth of thinning in the Phonon-Active Areas.

***** The type of defect external / internal is not determined.

PDT Inspection Summary:

In total Phonon Diagnostics detected eight (16) Phonon-Active Areas.
Eight (16) Phonon-Active Areas are corrosive defects.
Eight (16) Phonon-Active Areas are insignificant.

Table 29: 2V-432 Main Parameters

No 6 - 2V-432 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 38

Object Location: Mezzanine Deck, Seligi Alpha Production

Item No: 2V-432
Object Type: Horizontal pressure vessel
Volume: 12.1 m3
Construction Date: 1988
Operating Pressure（Designed): 15750 kPag
Operating Pressure（Actual): 9558.6 kPag
Operating Temperature: 46.1 °C
Designed Temperature: 90°C
Object Material: Carbon steel
Specification: ASME XIII
Insulation No
Surface Condition: Painted
Nominal thickness shell Minimum wall thickness shall not less than 127 mm
Nominal thickness ( ellip. head): 127 /143 mm (min/used)

Table 30: 2V-432 Findings

No 6 - 2V-432 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 39

No 6 - 2V-432 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 40

No 6 - 2V-432 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 41

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 42

Table 31: 2V-432 Defects Mapping of Shell

No 6 - 2V-432 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 43

Table 32: 2V-432 Defects Mapping of Head

No 6 - 2V-432 (3rd Stage Suction Scrubber)

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 44

Table 33: 2V-432 Defects List

Degree,
00 - 360 0 Defect dimensions, mm
Nominal Defect Depth
Defect Level of
Distance Location Defect type thickness, Percentage d(%)
Designation Defect
from start Width of (t) mm =d/t*100%
(manhole) Length of Depth of
area,
m area, L defect
W

No 6 - 2V-432 (3rd Stage Suction Scrubber)

DF-1 150° 0.8 m  head 600 900 16 corrosive insignificant 143 11
DF-2 265° 0.6 m  shell 700 700 14 corrosive insignificant 127 11
DF-3 170° 0.7 m  shell 700 800 14 corrosive insignificant 127 11
DF-4 125° 1.1 m  shell 800 600 14 corrosive insignificant 127 11
DF-5 235° 1.8 m  shell 800 500 14 corrosive insignificant 127 11
DF-6 100° 1.9 m  shell 700 800 14 corrosive insignificant 127 11
DF-7 20° 2.4 m  shell 900 600 14 corrosive insignificant 127 11
DF-8 140° 2.5 m  shell 1000 500 14 corrosive insignificant 127 11
DF-9 15° 3.3 m  shell 700 800 14 corrosive insignificant 127 11
DF-10 220° 3.6 m  shell 700 900 14 corrosive insignificant 127 11
DF-11 40°4.1 m  shell 800 700 14 corrosive insignificant 127 11
DF-12 120° 4.0 m  shell 600 500 14 corrosive insignificant 127 11
DF-13 80°0.7 m  head 800 700 16 corrosive insignificant 143 11
DF-14 350° 0.3 m  head 700 700 16 corrosive insignificant 143 11
DF-15 0° 0.9 m  head 500 600 16 corrosive insignificant 143 11
DF-16 300° 0.8 m  head 800 500 16 corrosive insignificant 143 11
DF-17 140° 0.6 m  head 900 800 16 corrosive insignificant 143 11
DF-18 175° 2.4 m  shell 400 600 14 corrosive insignificant 127 11
* Probability of detection (POD) is no less than 80%.

** Phonon-Active Areas with a depth of less than 10% (of nominal thickness) are not included in Defects List.

*** Depth of defect uncertainty is 0.1t (t-nominal thickess).

**** Depth of defect indicates the maximum Depth of thinning in the Phonon-Active Areas.

***** The type of defect external / internal is not determined.

PDT Inspection Summary:

In total Phonon Diagnostics detected eight (18) Phonon-Active Areas.
Eight (18) Phonon-Active Areas are corrosive defects.
Eight (18) Phonon-Active Areas are insignificant.

Table 34: 3WS-356 Main Parameters

No 7 -3WS-356

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 45

Object Location: Production Deck, Seligi Alpha Compression

Item No: 3WS-356
Object Type: Vertical pressure vessel
Construction Date: 1997
Operating Pressure（Designed): 345 kPag
Operating Pressure（Actual): 1380 kPag
Operating Temperature: 30-85 °C
Designed Temperature: 10-90 °C
Object Material: Carbon steel
Specification: ASME XIII
Insulation No
Surface Condition: Painted
Nominal thickness shell 25 mm
Nominal thickness ( ellip. head): 36 mm

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 46

Table 35: 3WS-356 Findings

No 7 -3WS-356

No 7 -3WS-356

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 47

Table 36: 3WS-356 Defects Mapping of Shell

No 7 -3WS-356

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 48

Table 37: 3WS-356 Defects Mapping of Head

No 7 -3WS-356

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 49

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 50

Table 38: 3WS-356 Defects List

Degree,
00 - 360 0 Defect dimensions, mm
Nominal Defect Depth
Defect Level of
Distance Location Defect type thickness, Percentage d(%)
Designation Defect
from start Width of (t) mm =d/t*100%
(manhole) Length of Depth of
area,
m area, L defect
W

No 7 – 3WS-356
DF-1 10° 0.2 m  shell 500 2000 3 corrosive insignificant 25 12
DF-2 285° 0.5 m  shell 600 500 3 corrosive insignificant 25 12
DF-3 0° 2.0 m  shell 1000 1000 3 corrosive insignificant 25 12
DF-4 205° 1.9 m  shell 800 700 3 corrosive insignificant 25 12
DF-5 40° 0.8 m  head 900 1000 4 corrosive insignificant 36 11
DF-6 260° 0.9 m  head 900 1200 4 corrosive insignificant 36 11
DF-7 5° 0.2 m  head 1300 1100 4 corrosive insignificant 36 11
* Probability of detection (POD) is no less than 80%.

** Phonon-Active Areas with a depth of less than 10% (of nominal thickness) are not included in Defects List.

*** Depth of defect uncertainty is 0.1t (t-nominal thickess).

**** Depth of defect indicates the maximum Depth of thinning in the Phonon-Active Areas.

***** The type of defect external / internal is not determined.

PDT Inspection Summary:

In total Phonon Diagnostics detected eight (7) Phonon-Active Areas.
Eight (7) Phonon-Active Areas are corrosive defects.
Eight (7) Phonon-Active Areas are insignificant.

Table 39: 3WS-358 Main Parameters

No 8 - 3WS-358

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 51

Object Location: Production Deck, Seligi Alpha Compression

Item No: 3WS-358
Object Type: Vertical pressure vessel
Construction Date: 1997
Operating Pressure（Designed): 345 kPag
Operating Pressure（Actual): 1380 kPag
Operating Temperature: 30-85 °C
Designed Temperature: 10-90 °C
Object Material: Carbon steel
Specification: ASME XIII
Insulation No
Surface Condition: Painted
Nominal thickness shell 25 mm
Nominal thickness ( ellip. head): 36 mm

Table 40: 3WS-358 Findings

No 7 -3WS-358

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 52

No 7 -3WS-358

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 53

Table 41: 3WS-358 Defects Mapping of Shell

No 7 -3WS-358

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 54

Table 42: 3WS-358 Defects Mapping of Head

No 7 -3WS-358

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 55

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
 Doc No Please advise
PROVISION OF INSPECTION SERVICE FOR EIGHT (8) Rev. No Rev 0
PRESSURE VESSELS UTILIZING PHONON DIAGNOSTIC
TECHNIQUE (PDT) TECHNOLOGY AT SELIGI FIELD Date Please advise
Page No Page 56

Table 43: 3WS-358 Defects List

Degree,
00 - 360 0 Defect dimensions, mm
Nominal Defect Depth
Defect Level of
Distance Location Defect type thickness, Percentage d(%)
Designation Defect
from start Width of (t) mm =d/t*100%
(manhole) Length of Depth of
area,
m area, L defect
W

No 8 – 3WS-358
DF-1 50° 0.2 m  shell 500 4000 3 corrosive insignificant 25 12
DF-2 215° 0.3 m  shell 500 2800 3 corrosive insignificant 25 12
DF-3 300° 0.6 m  shell 1000 1000 3 corrosive insignificant 25 12
DF-4 45° 1.0 m  shell 900 1200 3 corrosive insignificant 25 12
DF-5 340° 1.5 m  shell 800 800 3 corrosive insignificant 25 12
DF-6 255° 1.6 m  shell 900 900 3 corrosive insignificant 25 12
DF-7 205° 1.8 m  shell 1000 800 3 corrosive insignificant 25 12
DF-8 125° 1.9 m  shell 900 1500 3 corrosive insignificant 25 12
DF-9 290° 0.9 m  head 700 1300 4 corrosive insignificant 36 11
DF-10 80° 0.8 m  head 800 1300 4 corrosive insignificant 36 11
DF-11 205° 0.8 m  head 800 1200 4 corrosive insignificant 36 11
DF-12 315° 0.2 m  head 1500 1400 4 corrosive insignificant 36 11
* Probability of detection (POD) is no less than 80%.

** Phonon-Active Areas with a depth of less than 10% (of nominal thickness) are not included in Defects List.

*** Depth of defect uncertainty is 0.1t (t-nominal thickess).

**** Depth of defect indicates the maximum Depth of thinning in the Phonon-Active Areas.

***** The type of defect external / internal is not determined.

PDT Inspection Summary:

In total Phonon Diagnostics detected eight (12) Phonon-Active Areas.
Eight (12) Phonon-Active Areas are corrosive defects.
Eight (12) Phonon-Active Areas are insignificant.

KMZ ENERGY SDN BHD JOINTLY WITH SPC DIATECH

LLC
