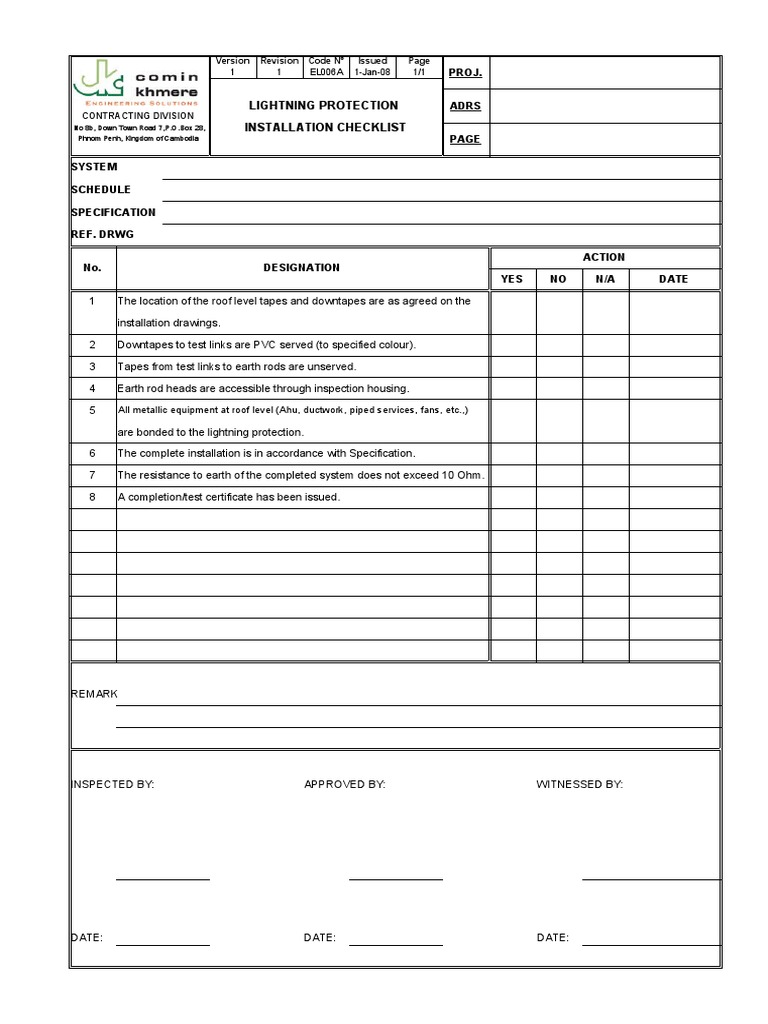

Version Revision Code Nº Issued Page

1 1 EL006A 1-Jan-08 1/1 PROJ.

LIGHTNING PROTECTION ADRS

CONTRACTING DIVISION
No 8b, Down Town Road 7,P.O.Box 28, INSTALLATION CHECKLIST
Phnom Penh, Kingdom of Cambodia PAGE

SYSTEM

SCHEDULE

SPECIFICATION

REF. DRWG

ACTION
No. DESIGNATION
YES NO N/A DATE

1 The location of the roof level tapes and downtapes are as agreed on the

installation drawings.

2 Downtapes to test links are PVC served (to specified colour).

3 Tapes from test links to earth rods are unserved.

4 Earth rod heads are accessible through inspection housing.

5 All metallic equipment at roof level (Ahu, ductwork, piped services, fans, etc.,)

are bonded to the lightning protection.

6 The complete installation is in accordance with Specification.

7 The resistance to earth of the completed system does not exceed 10 Ohm.

8 A completion/test certificate has been issued.

REMARK

INSPECTED BY: APPROVED BY: WITNESSED BY:

DATE: DATE: DATE:

 Version Revision Code Nº Issued Page
1 1 EL006A 1-Jan-08 1/1 PROJ.

LIGHTNING PROTECTION ADRS

CONTRACTING DIVISION
No 8b, Down Town Road 7,P.O.Box 28, INSTALLATION CHECKLIST
Phnom Penh, Kingdom of Cambodia PAGE

SYSTEM

SCHEDULE

SPECIFICATION

REF. DRWG

ACTION
No. DESIGNATION
YES NO N/A DATE

1 Check against approved manufacturer.

2 Check against approved drawing.

3 Earth pits and disconnect facilities are installed.

4 Ground network interconnected.

5 Network disconnected from plant earth system.

6 Down conductors connected from air terminal to the earth electrode.

7 Check cadwelds, bounding secure.

8 Bonding (resistance) test value shall be ≤1Ω.

9 Resistance to earth test and record.

10 Check earth electrode.

11 Shop Drawing marked up as per actual installation and filed.

REMARK

INSPECTED BY: APPROVED BY: WITNESSED BY:

DATE: DATE: DATE:
