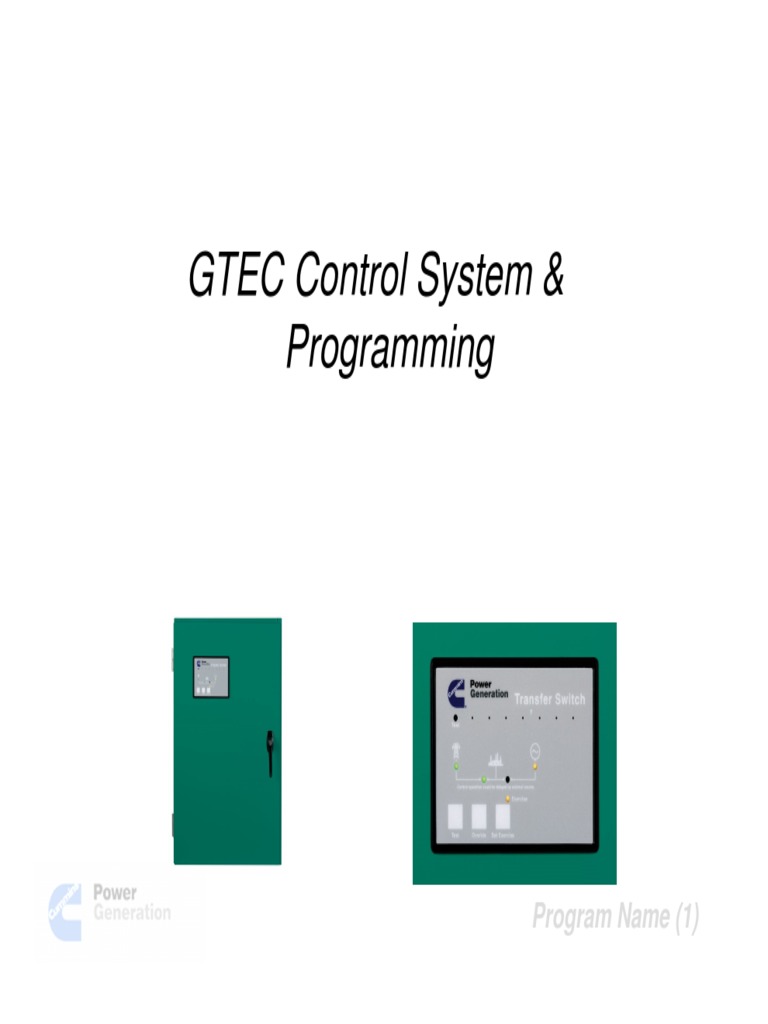

GTEC Control System &

Programming

Program Name (1)

GTEC Automatic Transfer Switch

• Standard Features
• Available Options
• GTEC Control
Description
• GTEC Installation
Topics

Program Name (2)

 Features of the Switch Mechanism &
Enclosure
• WN Switch Mechanism
– Three Position Transfer Switch Design
– Center Off Position for Programmed Transition
Operation
– Manual Operator Included
– Simultaneously Switched Neutral on 4 Pole Switches
• Available with Enclosure
– Standard Enclosure is Type IP32
– Control and Switch also Available Separately as a Kit
• Warranty
– 12 Months from Date of Commissioning
– 18 Months from Date of Sale

Program Name (3)

 Options for the GTEC
• Elevator Signal Relay
– Contact Rating is 5A @ 380VAC
– Time Delay Elevator Signal (TDEL) Configurable with 0
Seconds (Disabled) or 1, 2, 3, 5, 30, 120, or 300 Second
Delay
– Elevator Post Transfer Delay Configurable as Off or On,
With the Same Duration as TDEL
• External & Day Clock
– Allows Setting a More Complex Exercise Program Than
the Integral Clock
• Battery Chargers, Terminal Blocks, Auxiliary
Relays
– Available as Options
• Manual Retransfer Signal (Keyed)

Program Name (4)

 GTEC Controller Topics:

– GTEC Control Features

– Automatic Operation
– Configuration
– Annunciation
– Networking

Program Name (5)

Features of the GTEC Control
• Front Panel Configurability
– No Service Tool is Required
– Software Based Adjustments (multiple set-point tables)
• DC Powered
– Input Range: 8 to 35 VDC (12 or 24 volt genset battery)
– Does not use Source 1 or Source 2 for Control Power
• Programmed Transition
– Preferred Method of Transfer for Motor, UPS, and VFD Loads
• Phase Check Transfer
– An In-phase Monitor That Offers an Alternative Method of Handling
Motor Loads
– Return to Programmed Transition Setting
• Gold Flashed Start Contacts

Program Name (6)

Operation of the GTEC

• Automatic Mode
– One Line Diagram with Symbols to Indicate Which Source is
Available and Which Source is Connected
• Test Mode
– Front Panel Test and Time Delay Override Buttons
– Test Active Indicator
– Remote Test Input Standard
• Exercise Mode
– Front Panel Exercise Button
– Exercise Active Indicated by Flashing LED
– Exercise Repeat Indicated When LED Stays On
– Remote Exercise Input Standard
Program Name (7)
Normal Operation

• Source 1 Available
• Source 1 Connected
• Repeat Exercise Scheduled

Program Name (8)

Front Panel Test
• Source 1 Available
• Test LED Illuminated
• Source 2 Available
• Source 2 Connected
• Repeat Exercise Scheduled

Program Name (9)

Configuration of the GTEC

• Configuration Mode Switch

– Can Only be Accessed by Opening the Door
– Provides One Level of Key Lock Security
• Software Based Adjustments
– Precise, Reliable and Repeatable
• Discrete Configuration Settings
– Multi-Valued Tables for Appropriate Function

Program Name (10)

Configuration of the GTEC

• No Service Tool Required

• Configure from the Front Panel

– 8 LED Indicators Allow Viewing and Setting Parameters
– White Triangle Separates Them Into Two Fields
– First 5 LEDs Indicate the Function Code
– Last 3 LEDs Indicate the Value Code
– Use ‘Test’ Button to Step Through Function Tables
– Use ‘Override’ Button to Step Through Value Tables

Program Name (11)

Configuration Mode

• Open the ATS Door

• Locate the Auto/Config Mode Switch on the Control PCB

• Slide to Configuration Position

• Close the Door to Change or

Verify the Configuration Settings

Program Name (12)

Configuration Mode
• Function Code
– 00111
– Test With or Without Load

• Value Code
– 000
– Without Load

Program Name (13)

Configuration Mode
• Function Code
– 00111
– Test With or Without Load

• Value Code
– 001
– With Load

Program Name (14)

Configuration Mode
• Function Code
– 10011
– Exercise Repeat Interval

• Value Code
– 001
– Every 14 Days

Program Name (15)

Installation Issues

• Annunciation by Engine Control

– PCC 2100
– PCC 3100
– PCC3200
– Detector or Competitor’s Genset

• Networking
– Adding this Switch to a PowerCommand Network

Program Name (16)

Annunciation with a PCC 2100

• Hard-wire the desired ATS signals to the

Programmable Inputs on the PCC 2100 control.
• Use InPower 4.0, or later, to configure the inputs
accordingly, and then follow the Self-install
Procedure to Auto-bind with the PowerCommand
Network Annunciator (This is covered in the
PowerCommand Network Installation and Operation
Manual, FT-10, P/N 0900-0529).
• Alternatively, use the CCM-T or DIM module to build
a PowerCommand Network including a Network
Annunciator.
Program Name (17)
Annunciation with a PCC 3100

• Hard-wire the desired ATS signals to the Discrete

Inputs on the 0300-4510 Annunciator.
• Alternatively, use the CCM-T Or DIM module to build
a PowerCommand Network including a Network
Annunciator.

Program Name (18)

Annunciation with a PCC 3200

• Hard-wire the Desired ATS signals to the Discrete

Inputs on the PCC 3200 Control.
• Use InPower 4.0, or later, to configure the inputs
accordingly, and then bind those inputs to the
Network Annunciator using LonMaker for Windows.
• Alternatively, use the CCM-T or DIM Module to build
a PowerCommand Network including a Network
Annunciator.

Program Name (19)

Annunciation With A Detector (Or Competitors Genset)

• Hard-wire the desired ATS signals to the Discrete

Inputs on the 0300-4510 Annunciator.

Program Name (20)

Networking Solution

• The GTEC can be integrated into a

PowerCommand Network by adding a CCM-T
or DIM module.
• Please refer to the PowerCommand Network
Installation and Operation Manual (FT-10) p/n
0900-0529 for detailed instructions on
installing the CCM-T and DIM modules on a
PowerCommand Network.

Program Name (21)

For Further Information, Contact Your Local
Cummins Power Generation Distributor
