UMBB/IGEE EE242/ L04

2020

Recitation #09

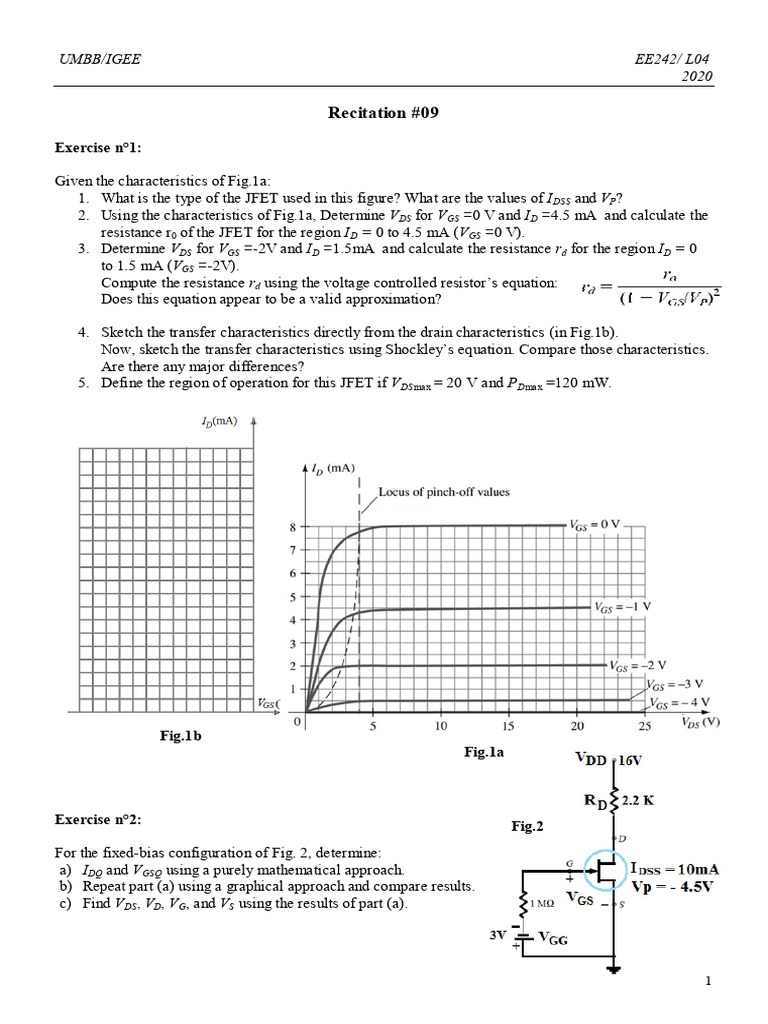

Exercise n°1:

Given the characteristics of Fig.1a:

1. What is the type of the JFET used in this figure? What are the values of I DSS and VP?
2. Using the characteristics of Fig.1a, Determine V DS for V GS =0 V and I D =4.5 mA and calculate the
resistance r0 of the JFET for the region I D = 0 to 4.5 mA (V GS =0 V).
3. Determine VDS for VGS =-2V and I D =1.5mA and calculate the resistance rd for the region ID = 0
to 1.5 mA (VGS =-2V).
Compute the resistance rd using the voltage controlled resistor’s equation:
Does this equation appear to be a valid approximation?

4. Sketch the transfer characteristics directly from the drain characteristics (in Fig.1b).
Now, sketch the transfer characteristics using Shockley’s equation. Compare those characteristics.
Are there any major differences?
5. Define the region of operation for this JFET if V DS max = 20 V and P Dmax =120 mW.

Fig.1b
Fig.1a

Exercise n°2: Fig.2

For the fixed-bias configuration of Fig. 2, determine:
a) IDQ and V GSQ using a purely mathematical approach.
b) Repeat part (a) using a graphical approach and compare results.
c) Find V DS, VD, V G, and VS using the results of part (a).

1
Exercise n°3:
For the voltage-divider biasing configuration of Fig. 3: R1=910k, R2=110k, RD =2.2k, RS=1.1k.
a) Determine: V G, IDQ and VGS Q, VD and VS, VDSQ.
b) What is the effect of a smaller RS (RS =0.51 k) on IDQ and VGSQ?
c) What is the minimum possible value of RS for this circuit?
Exercise n°4:
For the Fixed-bias configuration of Fig.4, determine: ID, VDS, V D and VS. RD =2.2k, RS=0.68k.
Exercise n°5:
For the common gate network of Fig. 5, determine: IDQ, VGS Q, V DS and VS.

Fig.3 Fig.4 Fig.5

Exercise n°6:
For the combination network of Fig. 6, determine: (With =100)
VB ,VG , V E, IE, IC, ID, IB, VC, VS, VD, VCE and VDS.

Exercise n°7:
For the networks of Fig. 7a and Fig.7b, determine: IDQ, VGS Q, V DS , VS and V D.

Fig .6 Fig .7a Fig .7b
