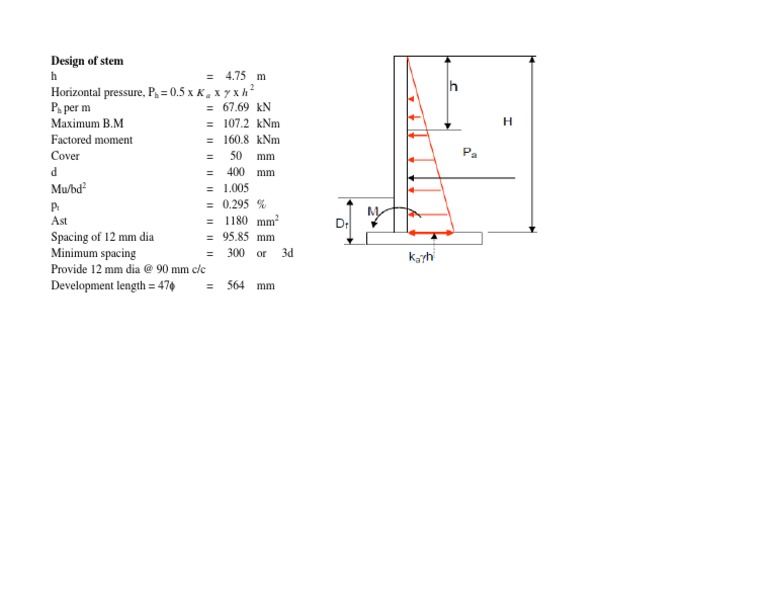

    Design of stem

    h = 4.75 m
    Horizontal pressure, Ph = 0.5 x K a x g x h 2
    Ph per m = 67.69 kN
    Maximum B.M = 107.2 kNm
    Factored moment = 160.8 kNm
    Cover = 50 mm
    d = 400 mm
    2
    Mu/bd = 1.005
    pt = 0.295 %
    Ast = 1180 mm2
    Spacing of 12 mm dia = 95.85 mm
    Minimum spacing = 300 or 3d
    Provide 12 mm dia @ 90 mm c/c
    Development length = 47f = 564 mm
