Republic of the Philippines

Department of Education
Region V (Bicol)
IRIGA CITY DIVISION
SAGRADA NATIONAL HIGH SCHOOL
City of Iriga
http://sagradanhs.depedirigacity.com

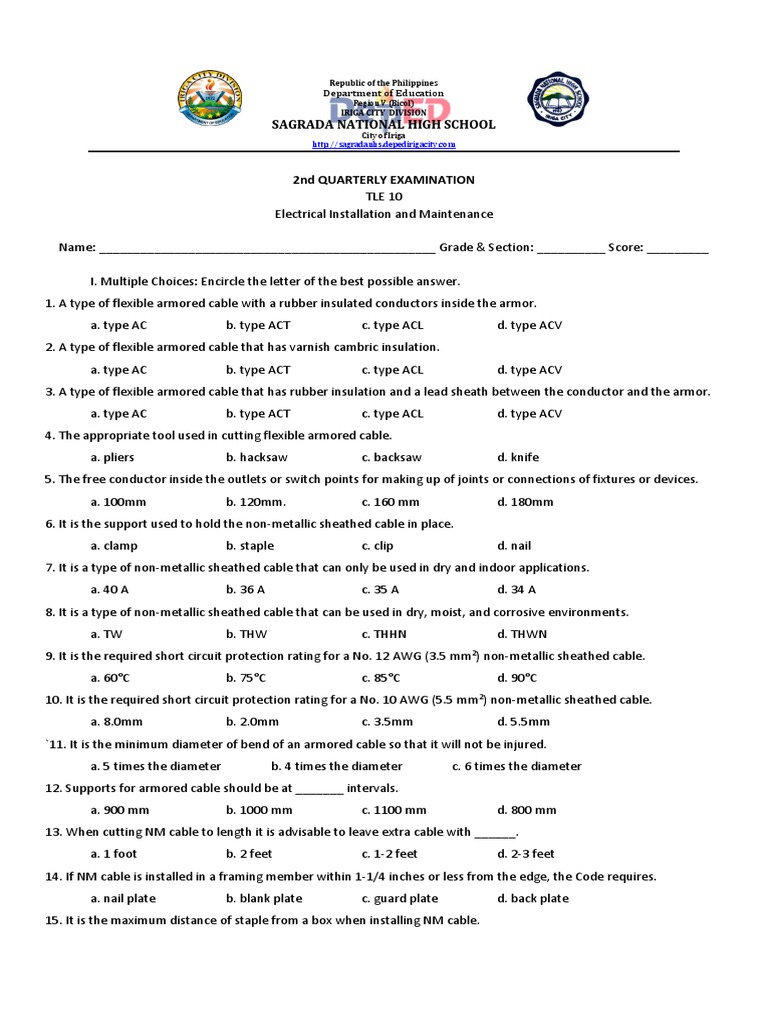

2nd QUARTERLY EXAMINATION

TLE 10
Electrical Installation and Maintenance

Name: _________________________________________________ Grade & Section: __________ Score: _________

I. Multiple Choices: Encircle the letter of the best possible answer.

1. A type of flexible armored cable with a rubber insulated conductors inside the armor.
a. type AC b. type ACT c. type ACL d. type ACV
2. A type of flexible armored cable that has varnish cambric insulation.
a. type AC b. type ACT c. type ACL d. type ACV
3. A type of flexible armored cable that has rubber insulation and a lead sheath between the conductor and the armor.
a. type AC b. type ACT c. type ACL d. type ACV
4. The appropriate tool used in cutting flexible armored cable.
a. pliers b. hacksaw c. backsaw d. knife
5. The free conductor inside the outlets or switch points for making up of joints or connections of fixtures or devices.
a. 100mm b. 120mm. c. 160 mm d. 180mm
6. It is the support used to hold the non-metallic sheathed cable in place.
a. clamp b. staple c. clip d. nail
7. It is a type of non-metallic sheathed cable that can only be used in dry and indoor applications.
a. 40 A b. 36 A c. 35 A d. 34 A
8. It is a type of non-metallic sheathed cable that can be used in dry, moist, and corrosive environments.
a. TW b. THW c. THHN d. THWN
9. It is the required short circuit protection rating for a No. 12 AWG (3.5 mm2) non-metallic sheathed cable.
a. 60°C b. 75°C c. 85°C d. 90°C
10. It is the required short circuit protection rating for a No. 10 AWG (5.5 mm2) non-metallic sheathed cable.
a. 8.0mm b. 2.0mm c. 3.5mm d. 5.5mm
`11. It is the minimum diameter of bend of an armored cable so that it will not be injured.
a. 5 times the diameter b. 4 times the diameter c. 6 times the diameter
12. Supports for armored cable should be at _______ intervals.
a. 900 mm b. 1000 mm c. 1100 mm d. 800 mm
13. When cutting NM cable to length it is advisable to leave extra cable with ______.
a. 1 foot b. 2 feet c. 1-2 feet d. 2-3 feet
14. If NM cable is installed in a framing member within 1-1/4 inches or less from the edge, the Code requires.
a. nail plate b. blank plate c. guard plate d. back plate
15. It is the maximum distance of staple from a box when installing NM cable.
a. 5 inches b. 10 inches c. 12 inches d. 8 inches
II. Enumeration. Enumerate the following:

1. At least five (5) places where installation of Flexible Armored Cable is prohibited.
2. Three (3) Types of NM Cable
3. Four (4) Types of Armored Cable
III. Draw the electrical symbols of the following.
