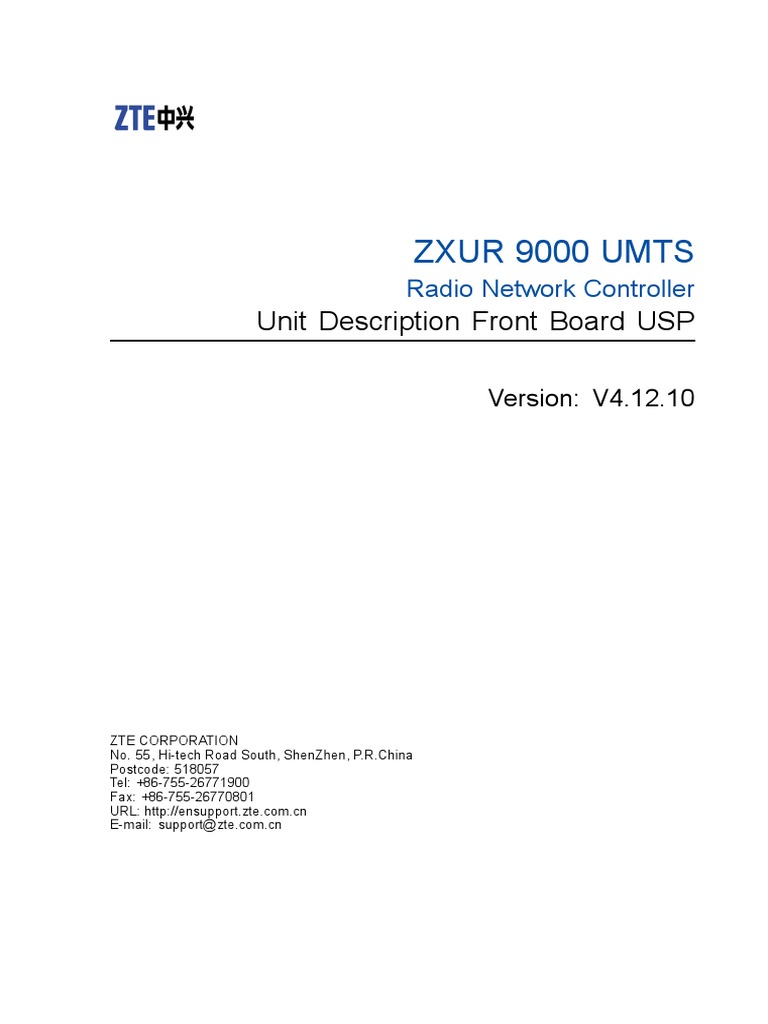

ZXUR 9000 UMTS

Radio Network Controller

Unit Description Front Board USP

Version: V4.12.10

ZTE CORPORATION
No. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: +86-755-26771900
Fax: +86-755-26770801
URL: http://ensupport.zte.com.cn
E-mail: support@zte.com.cn
LEGAL INFORMATION
Copyright © 2013 ZTE CORPORATION.
The contents of this document are protected by copyright laws and international treaties. Any reproduction or
distribution of this document or any portion of this document, in any form by any means, without the prior written
consent of ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by
contractual confidentiality obligations.
All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE
CORPORATION or of their respective owners.
This document is provided “as is”, and all express, implied, or statutory warranties, representations or conditions
are disclaimed, including without limitation any implied warranty of merchantability, fitness for a particular purpose,
title or non-infringement. ZTE CORPORATION and its licensors shall not be liable for damages resulting from the
use of or reliance on the information contained herein.
ZTE CORPORATION or its licensors may have current or pending intellectual property rights or applications
covering the subject matter of this document. Except as expressly provided in any written license between ZTE
CORPORATION and its licensee, the user of this document shall not acquire any license to the subject matter
herein.
ZTE CORPORATION reserves the right to upgrade or make technical change to this product without further notice.
Users may visit ZTE technical support website http://ensupport.zte.com.cn to inquire related information.
The ultimate right to interpret this product resides in ZTE CORPORATION.

Revision History

Revision No. Revision Date Revision Reason

R1.0 2013–07–30 First edition

Serial Number: SJ-20130710144204-028

Publishing Date: 2013-07-30 (R1.0)

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Contents
About This Manual ......................................................................................... I
Chapter 1 Board Types .............................................................................. 1-1
Chapter 2 Board Assembly Structure....................................................... 2-1
Chapter 3 Front Boards USP ..................................................................... 3-1
3.1 USP Functions ................................................................................................... 3-1
3.2 USP Panel Structure .......................................................................................... 3-1
3.3 USP Panel Indicators ......................................................................................... 3-2
3.4 USP Panel Buttons............................................................................................. 3-4
3.5 USP Panel Interfaces ......................................................................................... 3-4

Figures............................................................................................................. I
Tables ............................................................................................................ III
Glossary .........................................................................................................V

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 II

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 About This Manual
Purpose
This manual describes the hardware structure and features of ZXUR 9000 UMTS, including
the front board USP functions and structure.

Intended Audience
l Planning engineers
l Installation engineers
l Debugging engineers
l Maintenance engineers

What Is in This Manual

Chapter Summary

Chapter 1, Board Types Describes the board types of ZXUR 9000 UMTS.

Chapter 2, Board Assembly Describes the ZXUR 9000 UMTS board assembly structure.
Structure

Chapter 3, Front Board Describes the front board USP functions and structure of ZXUR 9000
USP UMTS.

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 II

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Chapter 1
Board Types
The ZXUR 9000 UMTS boards fall into the following types:
l Front board
l Rear board
l Backplane

1-1

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

ZXUR 9000 UMTS Unit Description Front Board USP

This page intentionally left blank.

1-2

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Chapter 2
Board Assembly Structure
Figure 2-1 shows the structure of board assembly.

Figure 2-1 Structure of Board Assembly

1. Front board 2. Backplane 3. Rear board

2-1

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

ZXUR 9000 UMTS Unit Description Front Board USP

This page intentionally left blank.

2-2

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Chapter 3
Front Boards USP
Table of Contents
USP Functions ...........................................................................................................3-1
USP Panel Structure ..................................................................................................3-1
USP Panel Indicators .................................................................................................3-2
USP Panel Buttons.....................................................................................................3-4
USP Panel Interfaces .................................................................................................3-4

3.1 USP Functions

Universal Service Processing Board (USP) performs the following functions:
l CMP Functions
Processes the common control plane protocols of the Iub and Iu interfaces.
l DMP Functions
Processes the dedicated control plane protocols of the Ius and Iu interfaces.
l RUP functions
Processes the user plane protocols of CS and PS services

3.2 USP Panel Structure

Figure 3-1 shows the structure of USP panel.

3-1

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

ZXUR 9000 UMTS Unit Description Front Board USP

Figure 3-1 Structure of USP Panel

3.3 USP Panel Indicators

Table 3-1 describes the indicators on the panel of USP board.

Table 3-1 USP Panel Indicators

Indicator Color Meaning Category Functions

OOS Red/green Board Common Green ON:The board is in initialization

service Indicator state.
status Red ON:The board is in out of service
indicator state.
OFF:The board is operating properly.

OK Red/green Health Green ON:The board is operating properly.

status Red ON:The board has alarms. Higher
indicator frequency indicates higher alarm levels.

ACT Red/green Ac- Green ON:The board is in active state.

tive/standby Green OFF:The board is in standby state.
indicator

3-2

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Chapter 3 Front Boards USP

Indicator Color Meaning Category Functions

HOST Red/green Run- Table 3-2 describes the status of HOST

ning/alarm indicator.
indicator

H/S Blue Hot-swap BLUE ON:Hot swapping can be perform

indicator on the board.
BLUE OFF:Hot swapping can not be
perform on the board.
BLUE FALSH:The board is activating.

Table 3-2 HOST Indicator Description

Prior- Flashing
Status ity Color Frequency Meaning

Initialization status 1 - Always OFF Initialization status.

Normal running 2 Green 1 Hz Normal running.

Memory initializing/load- Or- The internal memory is initializing /

ing 3 ange 1 Hz loading.

The service is applicable (the

board is performing active/standby
4 Red 1 Hz switchover).

Minor alarm 5 Red 1 Hz Subcard fault.

The media plane Ethernet port is

6 Red 2 Hz disconnected.

7 Red 2 Hz High speed data path is broken.

8 Red 2 Hz The link to OMP is disconnected.

The version does not match the

9 Red 2 Hz hardware or configuration.

10 Red 2 Hz Clock input lost.

Major alarm 11 Red 2 Hz Subcard severe fault.

12 Red 5 Hz Version download fail.

13 Red 5 Hz Board self-test fail.

14 Red 5 Hz Support boot fail.

The system fails to obtain logical

15 Red 5 Hz address.

Basic process power-on fails or times

16 Red 5 Hz out.

Reset alarm 17 Red 5 Hz Initialization of core data fail.

3-3

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

ZXUR 9000 UMTS Unit Description Front Board USP

Prior- Flashing
Status ity Color Frequency Meaning

18 Red 5 Hz Subcard critical fault.

• ON:The indicator is ON
• OFF:The indicator is OFF
• Periodical flashing at 5 Hz:The period is 0.2 second with the 50% duty ratio. That is, the indicator is
ON for 0.1 second and OFF for 0.1 second
• Periodical flashing at 2 Hz:The period is 0.5 second with the 50% duty ratio. That is, the indicator is
ON for 0.25 second and OFF for 0.25 second
• Periodical flashing at 1 Hz:The period is 1 second with the 50% duty ratio. That is, the indicator is
ON for 0.5 second and OFF for 0.5 second
• Periodical flashing at 1 Hz:The period is 1 second with the 90% duty ratio. That is, the indicator is
ON for 0.9 second and OFF for 0.1 second
• Periodical flashing at 0.5 Hz:The period is 2 second with the 50% duty ratio. That is, the indicator is
ON for 1 second and OFF for 1 second

3.4 USP Panel Buttons

Table 3-3 describes the buttons on the panel of USP board.

Table 3-3 USP Panel Buttons

Button Description

RST Reset button

3.5 USP Panel Interfaces

Table 3-4 describes the interfaces on the panel of USP board.

Table 3-4 UMP Panel Interfaces

Interface Name Direction Description

IPMC-232 Bidirectional Debugging interface

HOST-232 Bidirectional Debugging interface

USB 1 Bidirectional Debugging interface

USB 2 Bidirectional Debugging interface

3-4

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Figures
Figure 2-1 Structure of Board Assembly.................................................................... 2-1
Figure 3-1 Structure of USP Panel ............................................................................ 3-2

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Figures

This page intentionally left blank.

II

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Tables
Table 3-1 USP Panel Indicators ................................................................................ 3-2
Table 3-2 HOST Indicator Description ....................................................................... 3-3
Table 3-3 USP Panel Buttons.................................................................................... 3-4
Table 3-4 UMP Panel Interfaces................................................................................ 3-4

III

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Tables

This page intentionally left blank.

IV

SJ-20130710144204-028|2013-07-30 (R1.0) ZTE Proprietary and Confidential

 Glossary
CMP
- Common signaling MP
CS
- Circuit Switched
DMP
- Dedicated signaling MP
OMP
- Operation & Maintenance Processor
PS
- Packet Switched
RUP
- Rnc User plane Processor
USP
- Universal Service Process Board
