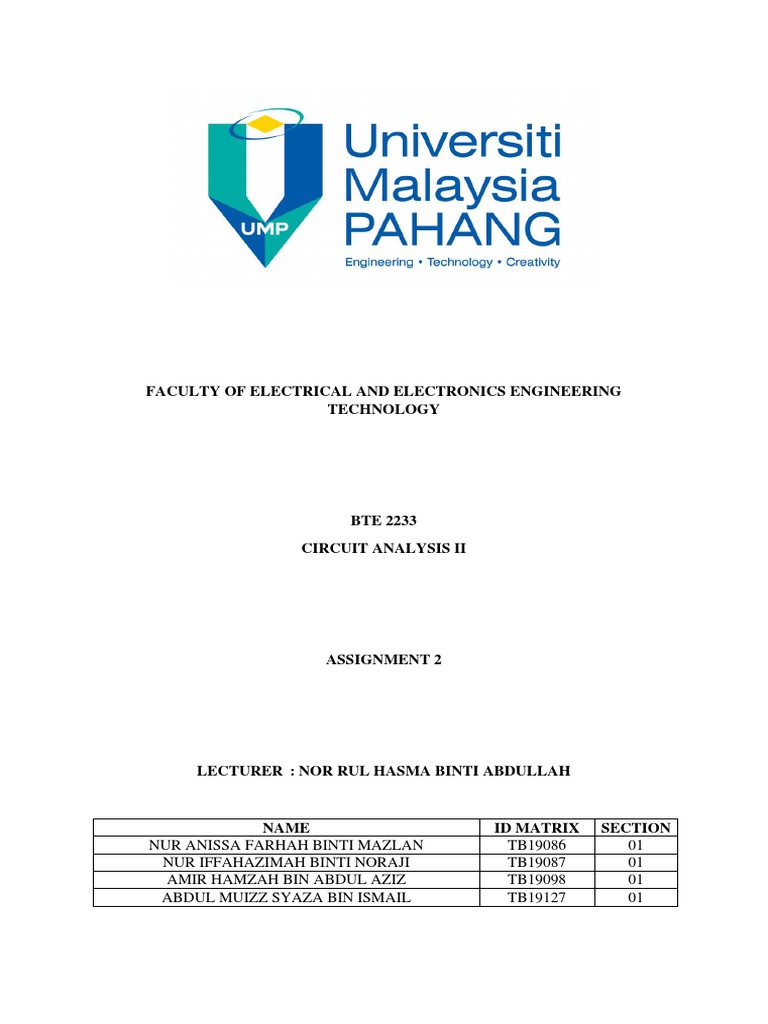

FACULTY OF ELECTRICAL AND ELECTRONICS ENGINEERING

TECHNOLOGY

BTE 2233
CIRCUIT ANALYSIS II

ASSIGNMENT 2

LECTURER : NOR RUL HASMA BINTI ABDULLAH

NAME ID MATRIX SECTION

NUR ANISSA FARHAH BINTI MAZLAN TB19086 01
NUR IFFAHAZIMAH BINTI NORAJI TB19087 01
AMIR HAMZAH BIN ABDUL AZIZ TB19098 01
ABDUL MUIZZ SYAZA BIN ISMAIL TB19127 01
Question 1
Obtain Vo shown in the Figure 1.

Apply KVL in Loop 1:

I1 + (j6) I1 +(j2) I2 = 10 < 0˚
(1+ j6) I1 +(j2) I2 = 10 < 0˚ ---------- (1)

Apply KVL in Loop 2:

(j4) I2 + (j2) I1 + 4I2 –(j3) I2 = 0
(4+j1) I2 + (j2)I1 = 0
(4+𝑗1)
I1 = -[ ]I2 ---------------(2)
𝑗2
Substitute eq. 2 into eq. 1:
(1+ j6) (4+𝑗1)
[- +(j2)] I2 = 10 < 0˚
𝑗2
I2 = 0.7975<-175.426˚ A
Hence,
Vo = j3*I2
= (j3) (0.7975<-175.426˚)
= 2.3924<94.574˚ V
Question 2
Determine the phasor currents I1 and I2 in the circuit of figure 2.

Apply Kirchhoff ’s voltage law to loop 1:

-100<60° + 5I1 + [ j2I1 – j3(I1 – I2)] + [ j6(I1 – I2) – j3I1] = 0
I1 (5 + j2 – j3 + j6 – j3) + I2 (j3 – j6) = 100<60°
(5 + j2) I1 – (j3) I2 = 100<60° ------ (1)

Apply Kirchhoff ’s voltage law to loop 2:

-j4I2 + [ j6 (I2 – I1) + j3I1] = 0
( j3 – j6 )I1 + ( j6 – j4 )I2 = 0
( j2 )I2 = ( j3 )I1
I2 = 1.5I1

Substitute 1.5I1 for I2 in equation (1):

( 5 + j2 )I1 – ( j3 )(1.5I1) = 100<60°
( 5 + j2 )I1 – j4.5I1 = 100<60°

100<60˚
I1 = I2 = 1.5(I1)
5−𝑗2.5

100<60˚
= 5.59<−26.565˚ = 1.5(17.889<86.57˚)

= 17.889<86.57˚ A = 26.83<86.57˚ A
Question 3

Find the Vo?

a. KVL at loop 1
−46∠0 + 2𝐼1 + 𝑗8𝐼1 − 𝑗2𝐼2 + 5(𝐼1 − 𝐼2) = 0
(7 + 𝑗8)𝐼1 − (5 + 𝑗2)𝐼2 = 46∠0

b. KVL at loop 2
−𝑗2𝐼1 + 𝑗12𝐼2 + 10𝐼2 + 5(𝐼2 − 𝐼1) = 0
−(5 + 𝑗2)𝐼1 + (15 + 𝑗12)𝐼2 = 0
15 + 𝑗12
𝐼1 = 𝐼2
5 + 𝑗2
𝐼1 = (3.4138 + 𝑗1.0345)𝐼2

c. Substitute b to a

(7 + 𝑗8)(3.4138 + 𝑗1.0345)𝐼2 − (5 + 𝑗2)𝐼2 = 46∠0

(10.6206 + 𝑗34.5519)𝐼2 = 46∠0

46∠0
𝐼2 =
(10.6206 + 𝑗32.5519)

𝐼2 = 1.3434∠ − 71.9302 𝐴 @ 0.4167 − 𝑗1.2772 𝐴

d. Substitute c to b
𝐼1 = (3.4138 + 𝑗1.0345)(0.4167 − 1.2772)
𝐼1 = 4.7923 ∠ − 55.0719
 𝐼1 = 2.7438 − 𝑗3.9291

e. By Ohm Law
𝑉𝑜 = 10𝐼2
𝑉𝑜 = 10(1.3434∠ − 71.9302)
𝑉𝑜 = 13.434∠ − 71.9302 𝑉 @ 4.1669 − 𝑗12.7714 𝑉
