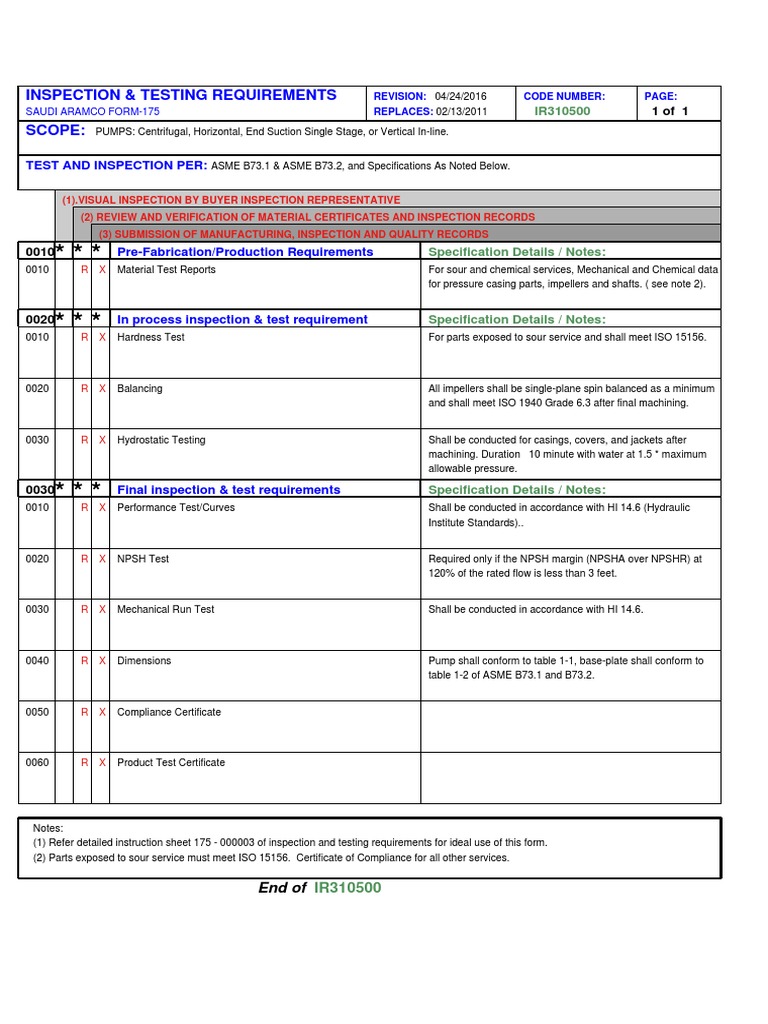

INSPECTION & TESTING REQUIREMENTS REVISION: 04/24/2016 CODE NUMBER: PAGE:

SAUDI ARAMCO FORM-175 REPLACES: 02/13/2011 IR310500 1 of 1

SCOPE: PUMPS: Centrifugal, Horizontal, End Suction Single Stage, or Vertical In-line.

TEST AND INSPECTION PER: ASME B73.1 & ASME B73.2, and Specifications As Noted Below.

(1).VISUAL INSPECTION BY BUYER INSPECTION REPRESENTATIVE

(2) REVIEW AND VERIFICATION OF MATERIAL CERTIFICATES AND INSPECTION RECORDS
(3) SUBMISSION OF MANUFACTURING, INSPECTION AND QUALITY RECORDS
0010
0010
*** R X
Pre-Fabrication/Production Requirements
Material Test Reports
Specification Details / Notes:
For sour and chemical services, Mechanical and Chemical data
for pressure casing parts, impellers and shafts. ( see note 2).

0020
0010
*** R X
In process inspection & test requirement
Hardness Test
Specification Details / Notes:
For parts exposed to sour service and shall meet ISO 15156.

0020 R X Balancing All impellers shall be single-plane spin balanced as a minimum

and shall meet ISO 1940 Grade 6.3 after final machining.

0030 R X Hydrostatic Testing Shall be conducted for casings, covers, and jackets after
machining. Duration 10 minute with water at 1.5 * maximum
allowable pressure.

0030
0010
*** R X
Final inspection & test requirements
Performance Test/Curves
Specification Details / Notes:
Shall be conducted in accordance with HI 14.6 (Hydraulic
Institute Standards)..

0020 R X NPSH Test Required only if the NPSH margin (NPSHA over NPSHR) at
120% of the rated flow is less than 3 feet.

0030 R X Mechanical Run Test Shall be conducted in accordance with HI 14.6.

0040 R X Dimensions Pump shall conform to table 1-1, base-plate shall conform to
table 1-2 of ASME B73.1 and B73.2.

0050 R X Compliance Certificate

0060 R X Product Test Certificate

Notes:
(1) Refer detailed instruction sheet 175 - 000003 of inspection and testing requirements for ideal use of this form.
(2) Parts exposed to sour service must meet ISO 15156. Certificate of Compliance for all other services.

End of IR310500
