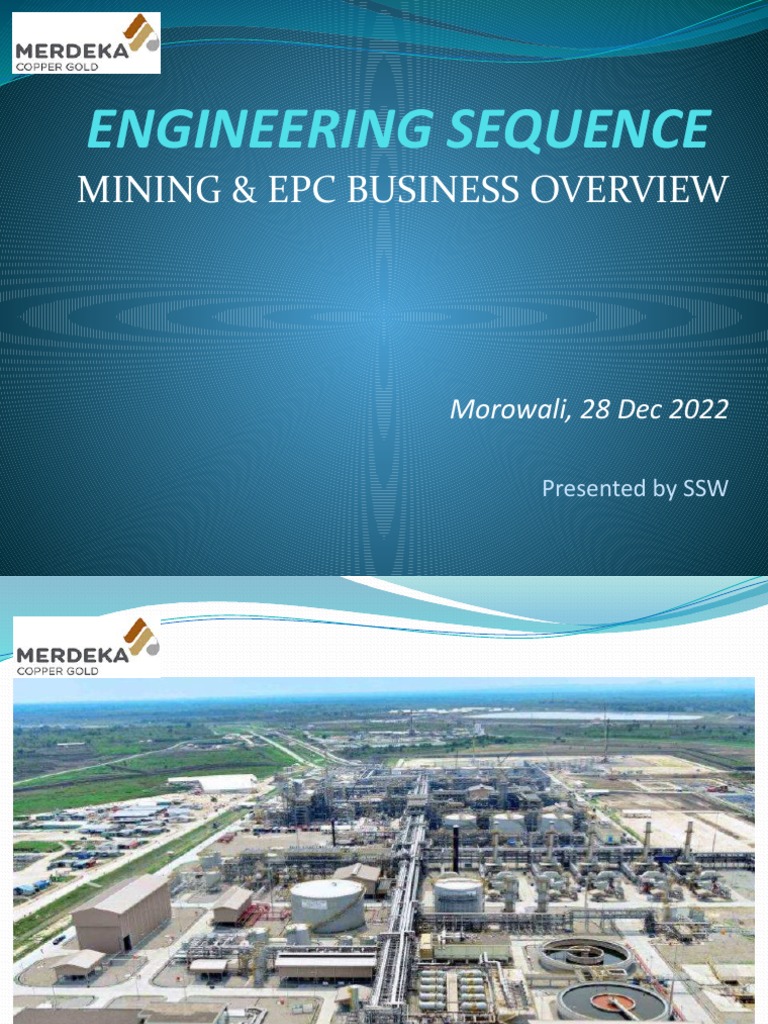

ENGINEERING SEQUENCE

MINING & EPC BUSINESS OVERVIEW

Morowali, 28 Dec 2022

Presented by SSW
Topic Discussion
Mining & EPC Project Introduction
Engineering Sequence for Mining & EPC Project.
Pengenalan Project EPC
Engineering Sequence
Project Scope
All personnel shall review “Scope of Work”.
Each Discipline shall review respective document
received from Client, such as Project Specification and
Drawing.
Prepare Need List (if required) before starting of
Engineering Work.
Input to Project Management Team regarding
engineering deliverable sequence, it is important for
preparing Project Master Schedule.
Code and Standard
API (American Petroleum Institute).
 API 14E for Line Sizing
 API 610 for Pumps Selection and Calculation
 API 650 for Storage Tanks Calculation
 API 521 for Pressure Safety Valve (PSV) Calculation
ASME Standard.
ANSI Standard.
NFPA for Fire Protection System.
SNI (Standar Nasional Indonesia).
Software Requirement
Project Management
 Microsoft Project : Project Planning and Scheduling
 Primavera : Project Scheduling and Control

Process Engineering
 ASPEN HSYS : Process Simulation
 Pipesim : Pipeline Hydraulic Simulation
 OLGA: Flow Assurance (Dynamic) Pipeline Simulation
 Flarenet : Flare Network Simulation
 Pipenet : Firewater Network Simulation
 PHAST : Flare/Vent Dispersion Simulation

Mechanical Engineering
 PVElite / Compress : Pressure Vessel & Heat Exchanger Design
 TANK COADE or AME Tank : Tank Design
Software Requirement
Piping Engineering
 CAESAR II : Pipe Stress Analysis
 SP 3D/E3D/PDMS : 3D Model Design
 AutoCAD : 2D & 3D Drawing
 AutoCAD Plant 3D : 3D Drawing

Instrument Engineering
 InstruCalc : Instrumentation Sizing
 Pipesim : Pipeline Hydraulic Simulation

Electrical Engineering
 ETAP : Power System Studies
 Dialux : Lighting Calculation and Design

Civil Engineering
 Staad Pro : Steel Structural Design
 Tekla Structure: Fabrication Drawing
 Plaxis : Slope Stabilization
Design Data (Process Discipline)
Design Data Interdiscipline
Design Data Interdiscipline
Design Data Interdiscipline
PID Development Instrument &
Electrical Engineer

• Instrument is • Instrument
identified at Design Criteria
PID during PID • Instrument
development Index
• Motor Power is • Control System
identified at Narrative
PID • Electrical Load
• PID Drafting List
Design Data Interdiscipline
Design Data Interdiscipline
Design Data Interdiscipline
Design Data Interdiscipline
PID Piping Engineer
Development

• Equipment • Plot Plant

sizing Development
• Pipe size is • Piping
identified at Layout
PID • Piping
• PID Drafting Design
Criteria
Design Data All Discipline
Design Data All Discipline
PFD PID Discipline
Development Development Engineering

• Technology • Equipment • Plot Plan

selection sizing Layout
• Block Flow • PID • Equipment
Diagram Drafting List
Finalization • Electrical
• PFD Load List
Finalization • Civil
Design
• Building
Layout
Project Procurement Management
Project Procurement Management
THANK YOU
